| Model NO. | Y3150Y |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Processing Precision | 0.01~0.02(mm) |
| Max Working Module | 6 |
| Worktable Diameter | 370mm |
| Certification | GS, CE, RoHS, ISO 9001 |

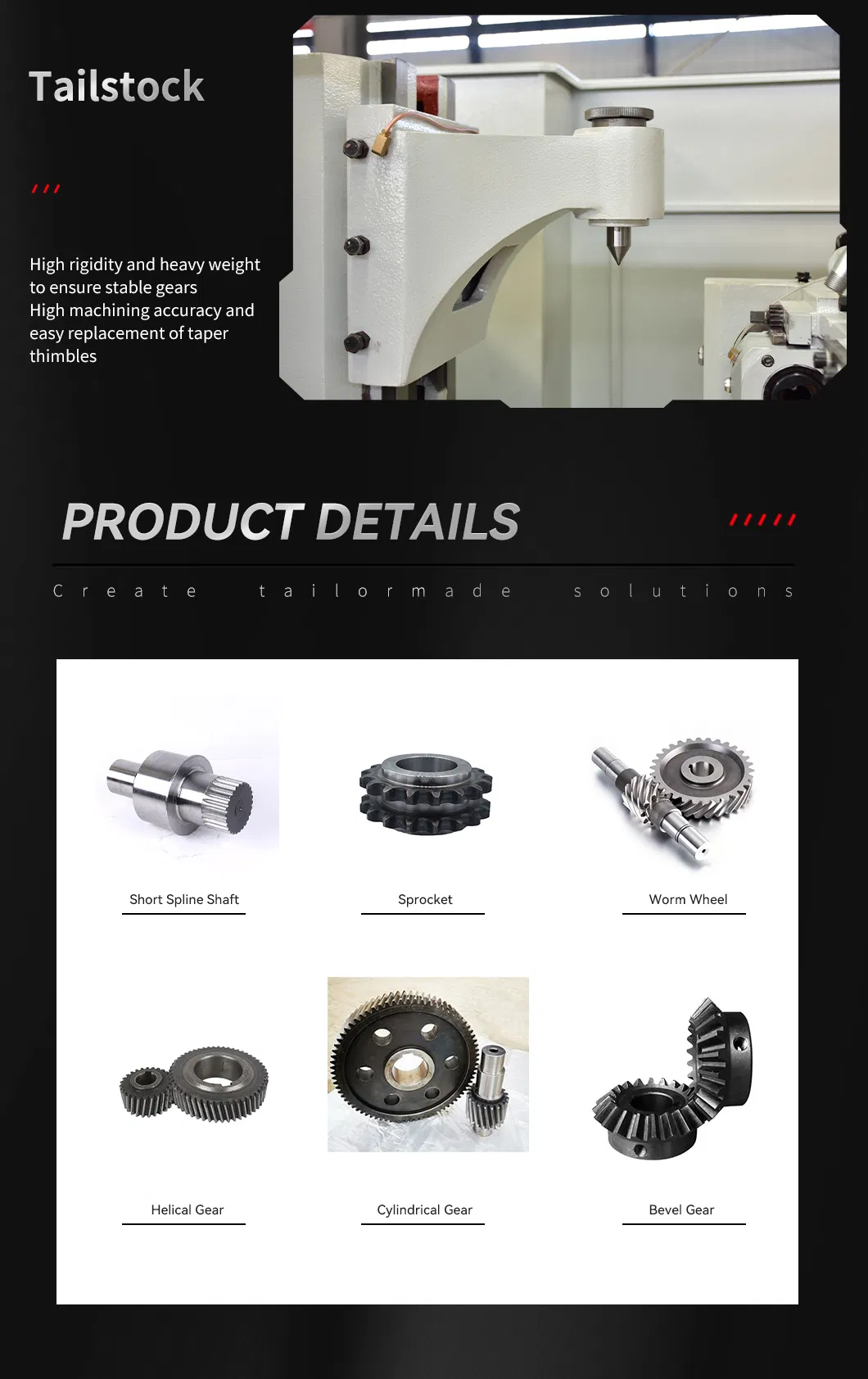

The machine is suitable for processing a variety of cylindrical spur gears, helical gears and warrants. Suitable for single-piece production and batch production, such as with more than one of the same type of machine tool is the most reasonable way to use the number of machines dedicated to the use of fine grinding to ensure that the machine tool processing.
| Technical Parameters | Specification |
|---|---|
| Max working module (Steel / Cast Iron) | 6mm / 8mm |
| Max diameter cutting (with/without column) | 450mm / 800mm |
| Max vertical travel of hob | 275mm |
| Max diameter of hob | 120mm |
| Speed of Hob main spindle | 47.5-192 r/min (7 Grades) |
| Main motor power | 3 kw |
| Total Weight | 3300kg |
| Dimensions (L*W*H) | 2290*1100*1910 mm |
A: Please provide your specifications or product drawings, and we will recommend the best model based on your requirements.
A: We specialize in CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
A: FOB, CFR, and CIF are all acceptable for our shipments.
A: T/T (30% initial payment, 70% balance before shipment) or Irrevocable LC at sight.
A: The MOQ is 1 set for most of our machine tools.
A: Please tell us your industrial voltage, workpiece size, material, and your destination port for CIF pricing.
