📊 Basic Info.
Processing Precision
0.01~0.02(mm)
Main Motor Speed
1430r/Min
Certification
GS, CE, RoHS, ISO 9001
⚙️ Product Description

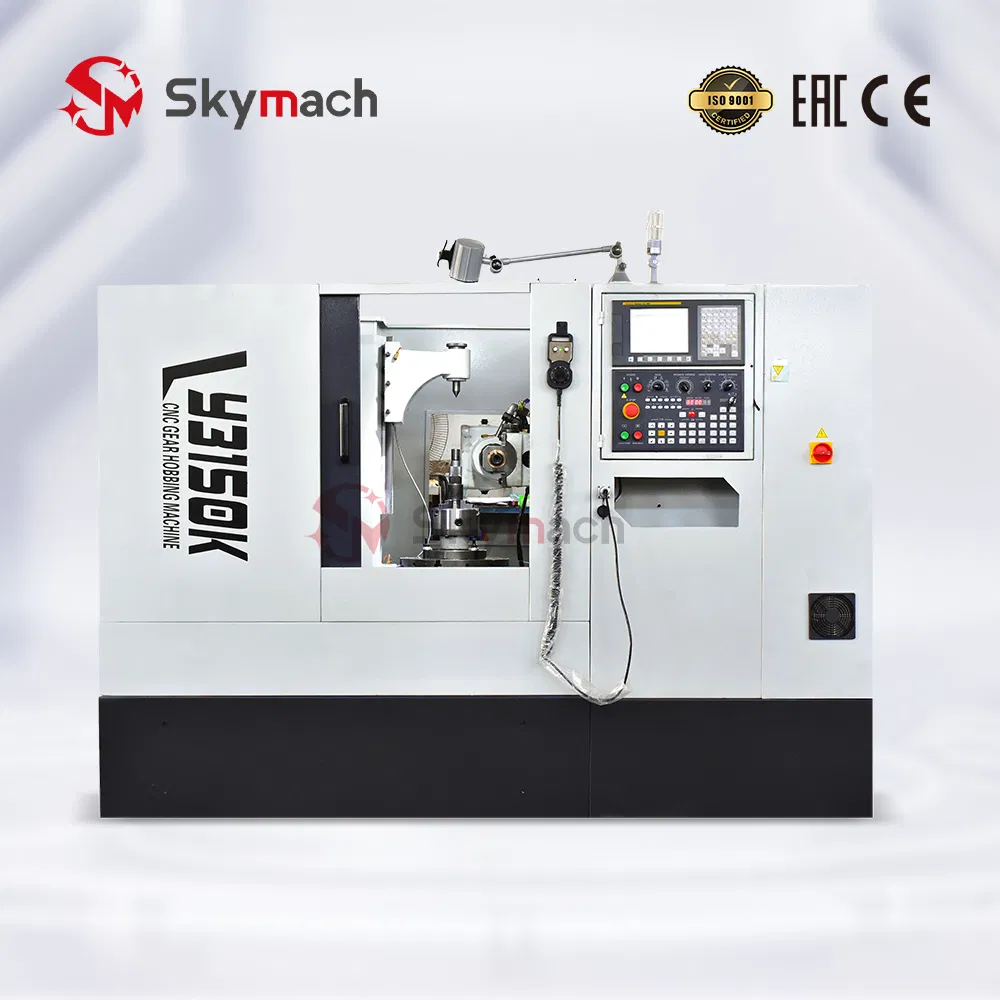

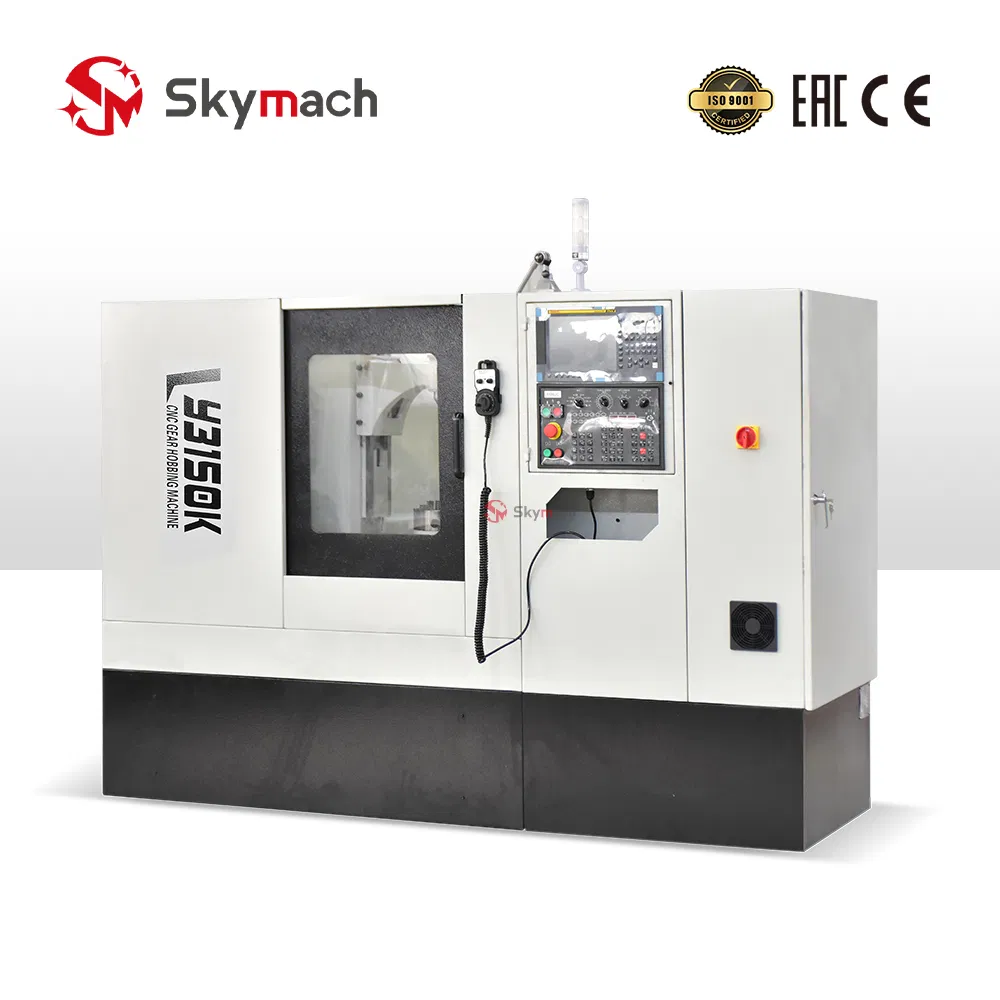

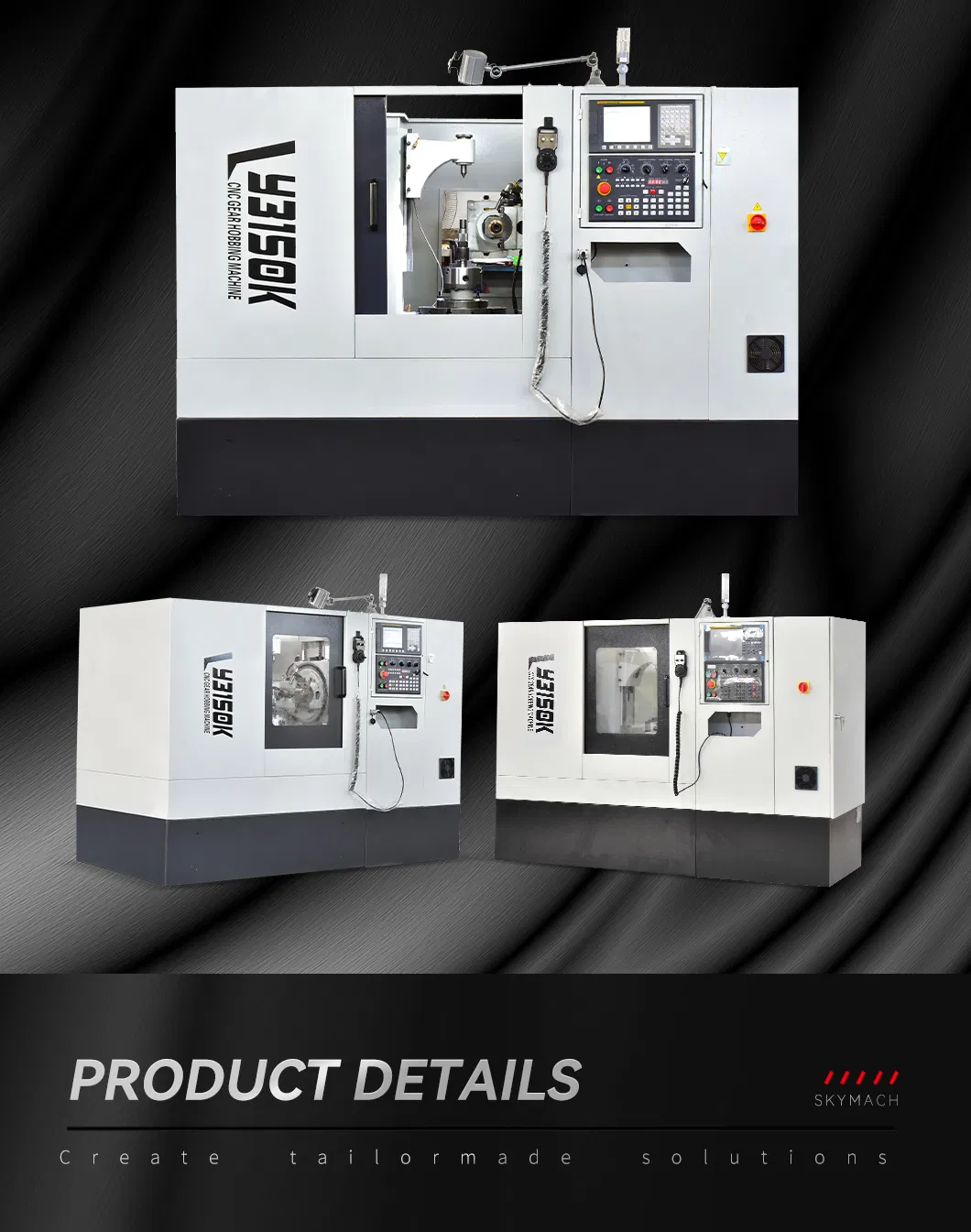

YK3150 CNC Gear Hobbing Machine

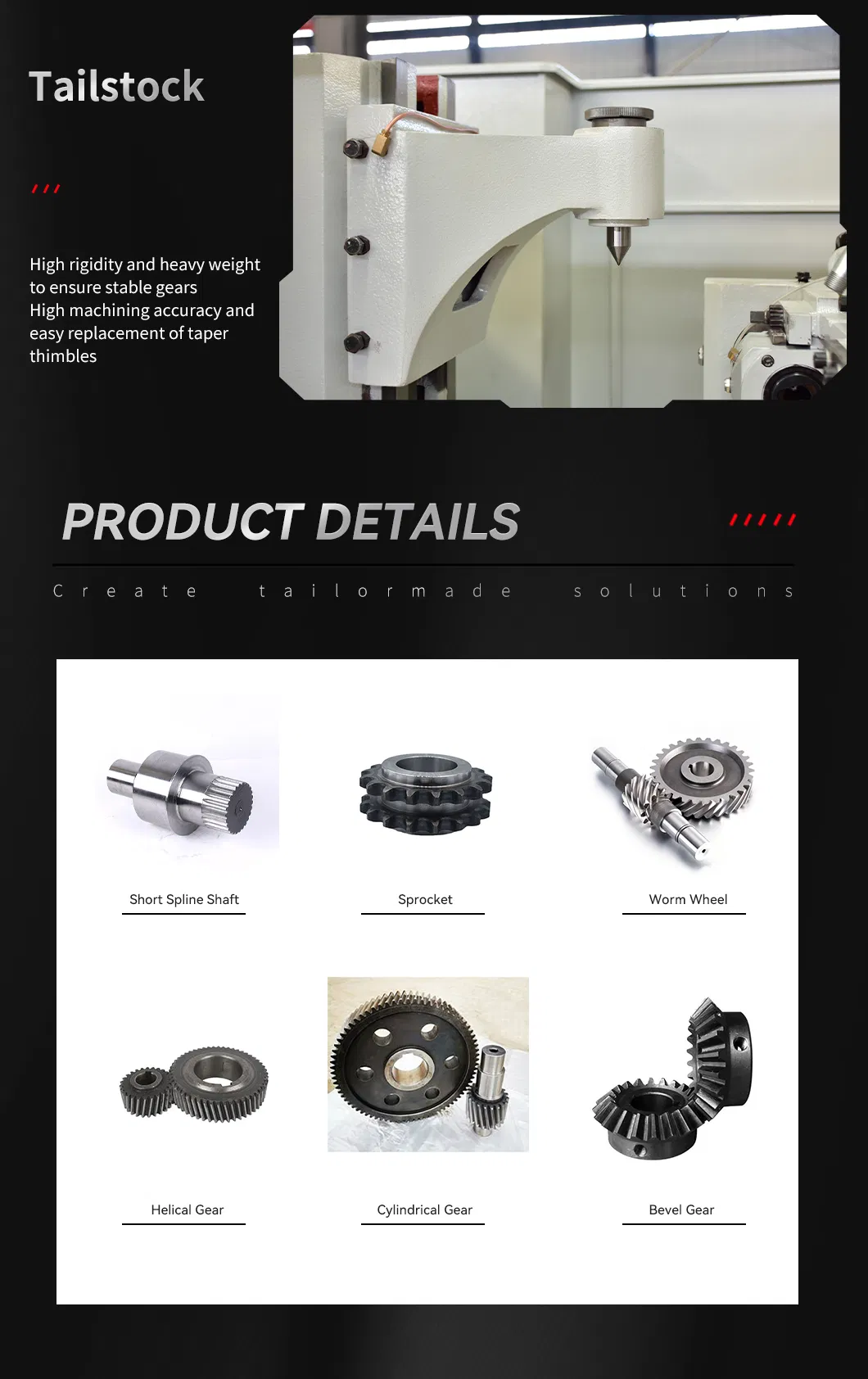

The machine is suitable for processing a variety of cylindrical spur gears, helical gears and warrants. Suitable for single-piece production and batch production, such as with more than one of the same type of machine tool is the most reasonable way to use the number of machines dedicated to the use of fine grinding to ensure that the machine tool processing.
Core Advantages
- Powerful Machining Capacity Cuts gears up to Module 8 (cast iron) / Module 6 (steel), with a maximum spur gear diameter of 800mm.
- Heavy-Duty Rigid Design Robust construction supports hobs up to 120mm in diameter, ensuring accuracy and stability.
- Precise and Flexible Setup Offers 275mm of vertical hob travel and wide adjustable range for various gear geometries.

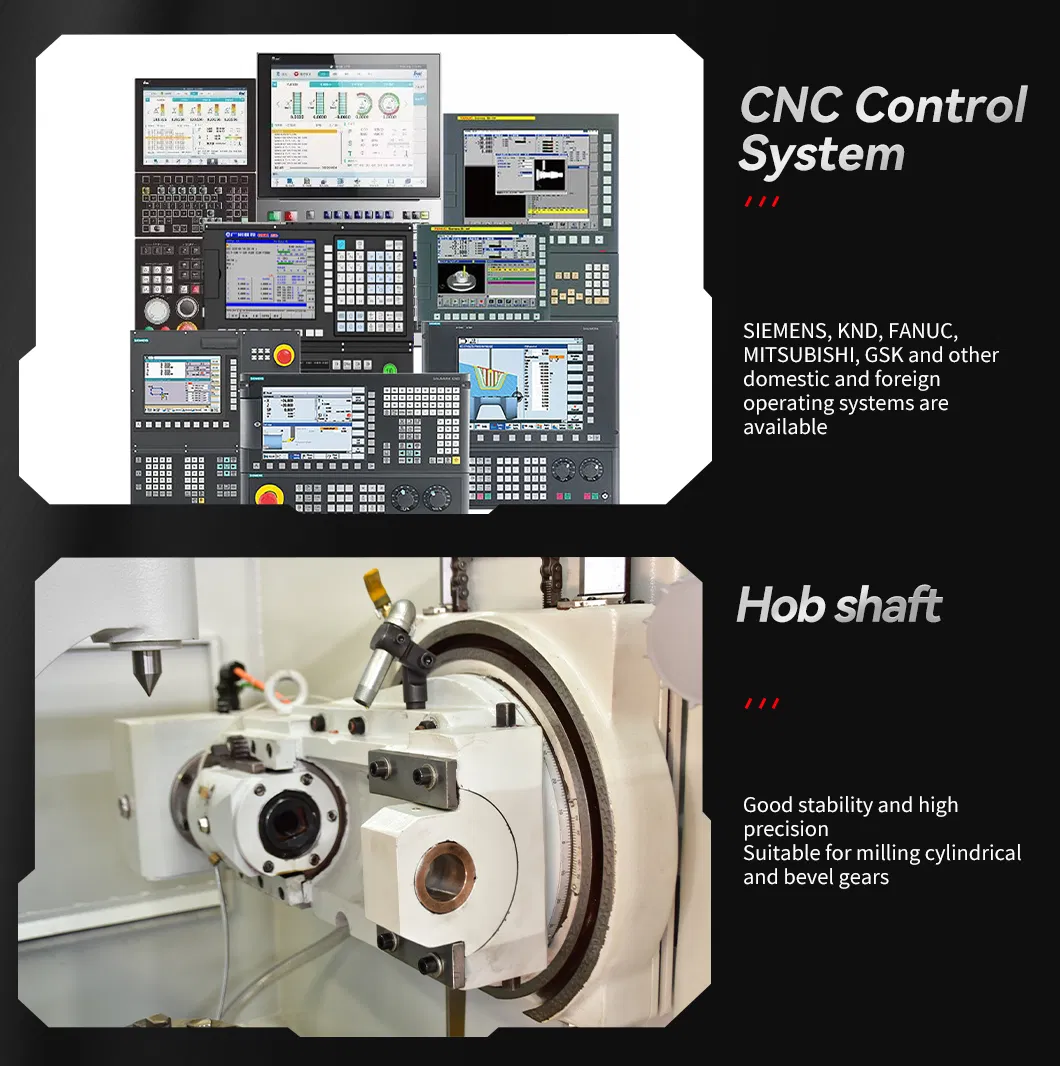

- Efficient and Reliable Production Equipped with a 7-speed hob spindle and a large indexing worm wheel for high indexing accuracy.
📋 Product Parameters
| Main Technical Parameters |
YK3150 |
| Max working module |
Steel |
6mm |
| Cast iron |
8mm |
| Max vertical travel of hob |
Vertical Travel |
275mm |
| Speed of Hob main spindle |
Range (r/min) |
47.5-192r/min |
| Main motor power |
Power |
3 kw |
| Overall Size (L*W*H) |
Dimensions |
2290*1100*1910 mm |
| Total Weight |
Weight |
3300kg |
🛠️ Our Services
✓ Technical support online service provided
✓ Machine operation video & technical files
✓ Spare parts replacement and repair service
✓ All questions replied within 8 hours
✓ Custom product development support
✓ On-site training service available
❓ FAQ
How can I choose the most suitable machines?
Please provide your specifications or product drawings, and we will recommend the best model for your specific production needs.
What are the main products available?
We specialize in a wide range of machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
What are your standard trade and payment terms?
We accept FOB, CFR, and CIF. Payment is typically T/T (30% initial deposit, 70% balance before shipment) or Irrevocable LC at sight.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. For some low-cost auxiliary machines, the MOQ might be higher.
What information is needed for a CIF quote?
If you require a CIF price, please kindly inform us of your destination port along with the machine specifications.
Can you help with custom workpiece evaluation?
Yes, we strongly suggest sending us the size, material, and drawings of your workpiece so we can recommend the most suitable machine model.
