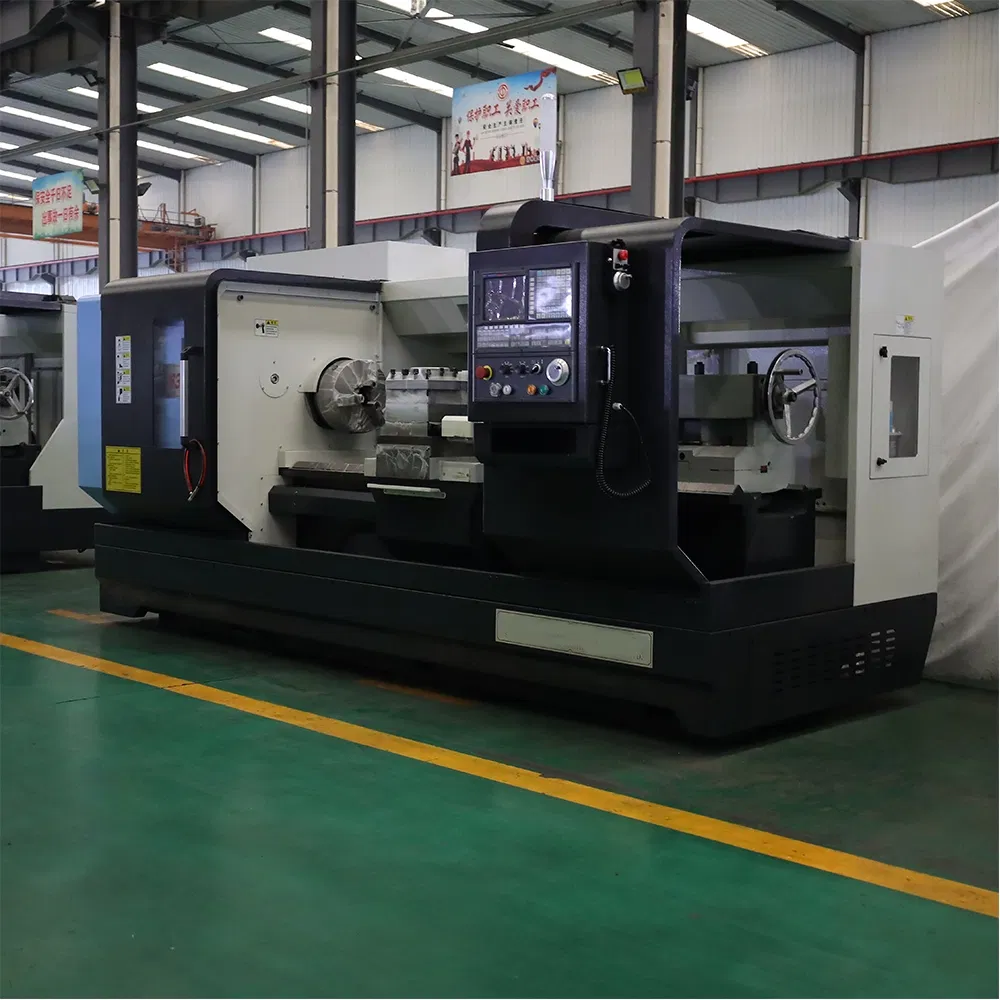

CK6150 High Precision CNC Lathe - Featuring an 8-Station Hydraulic Turret and 500mm Swing. This series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpieces with reliable structure, easy operating, and high accuracy.
| Specification | Unit | CK6150 | CK6156 |
|---|---|---|---|
| Swing over bed | mm | 500 | 560 |
| Swing over cross slide | mm | 270 | 300 |
| Distance between centers | mm | 1000/1500/2000 | 1000/1500/2000 |
| Spindle bore | mm | 82 | 82 |
| Spindle speed range | rpm | 80-1500 | 80-1500 |
| Main motor power | kW | 7.5 | 7.5 |

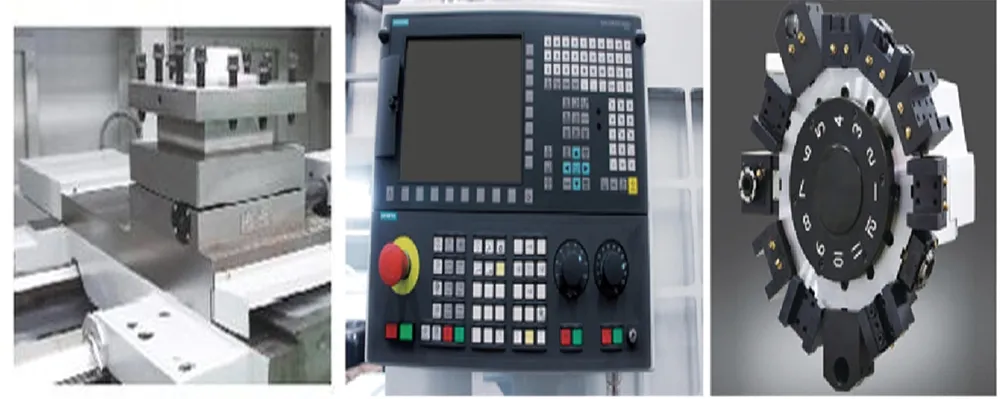

Customizable options include: Fanuc or other brand CNC controllers, hydraulic or power turrets, pneumatic or hydraulic chucks, hydraulic tailstock, and full-shield protection.
Warranty Policy: One-year warranty covering manufacturing defects under normal usage.
Technical Support: Dedicated expert team available for troubleshooting, operational guidance, and maintenance tips via email or phone.
