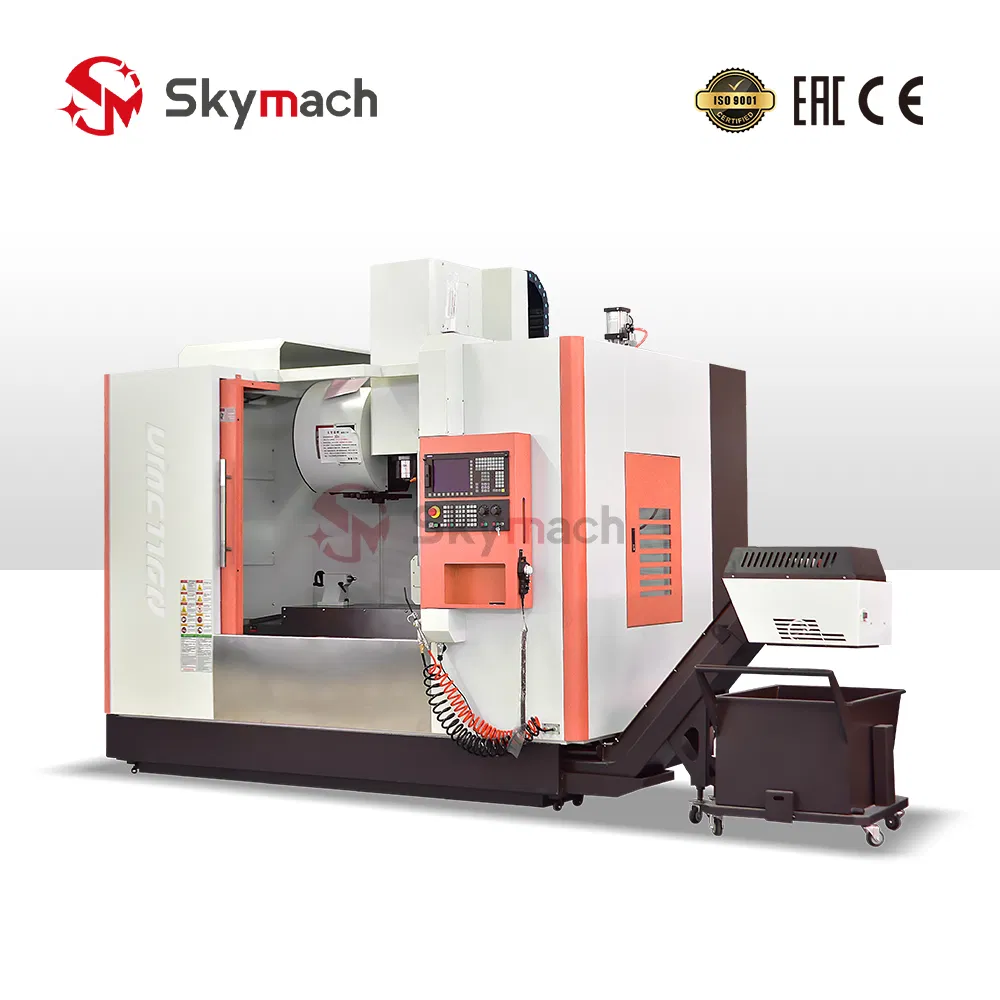

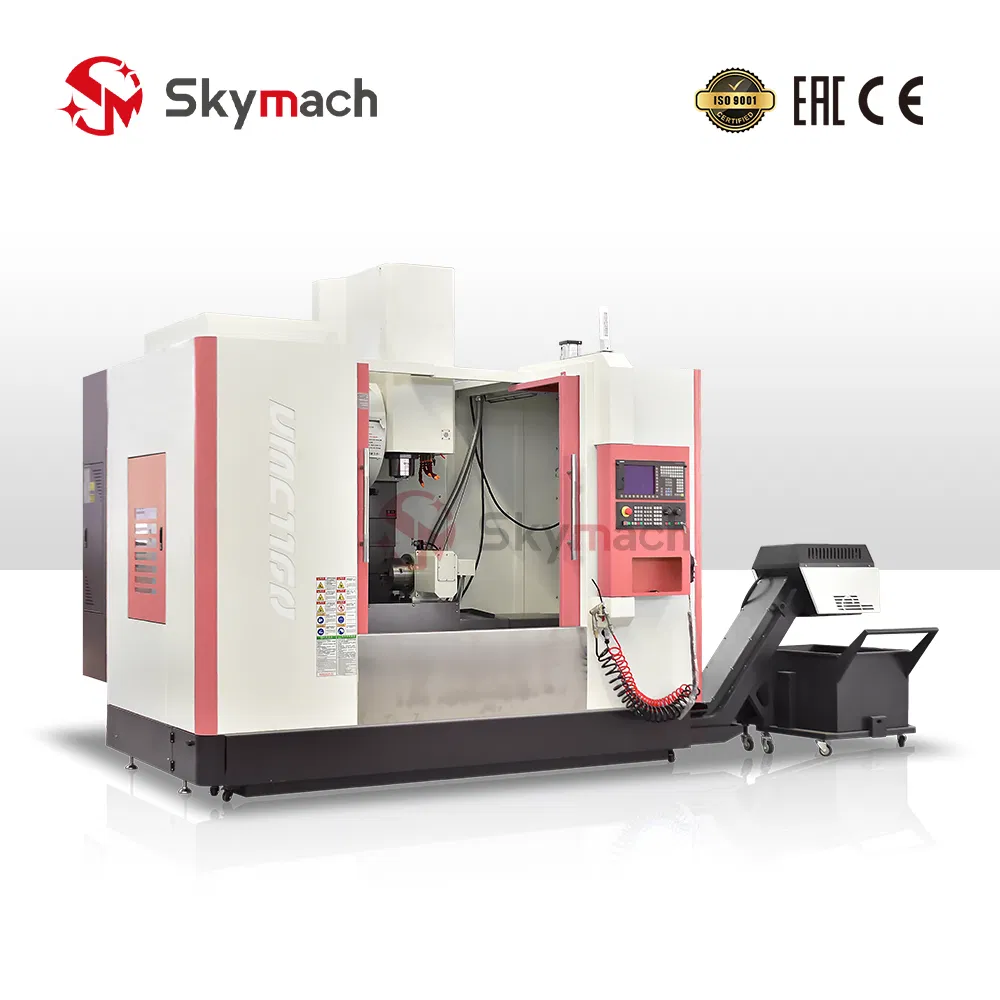

Vmc1160 Vertical CNC Machining Center – High-Speed Spindle for Precision Metal Cutting

1 / 5

Vmc1160 Vertical CNC Machining Center – High-Speed Spindle for Precision Metal Cutting

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

🟦 Basic Info.

Model NO.

VMC1160

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Point to Point Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.005

Certification

GS, CE, RoHS, ISO 9001

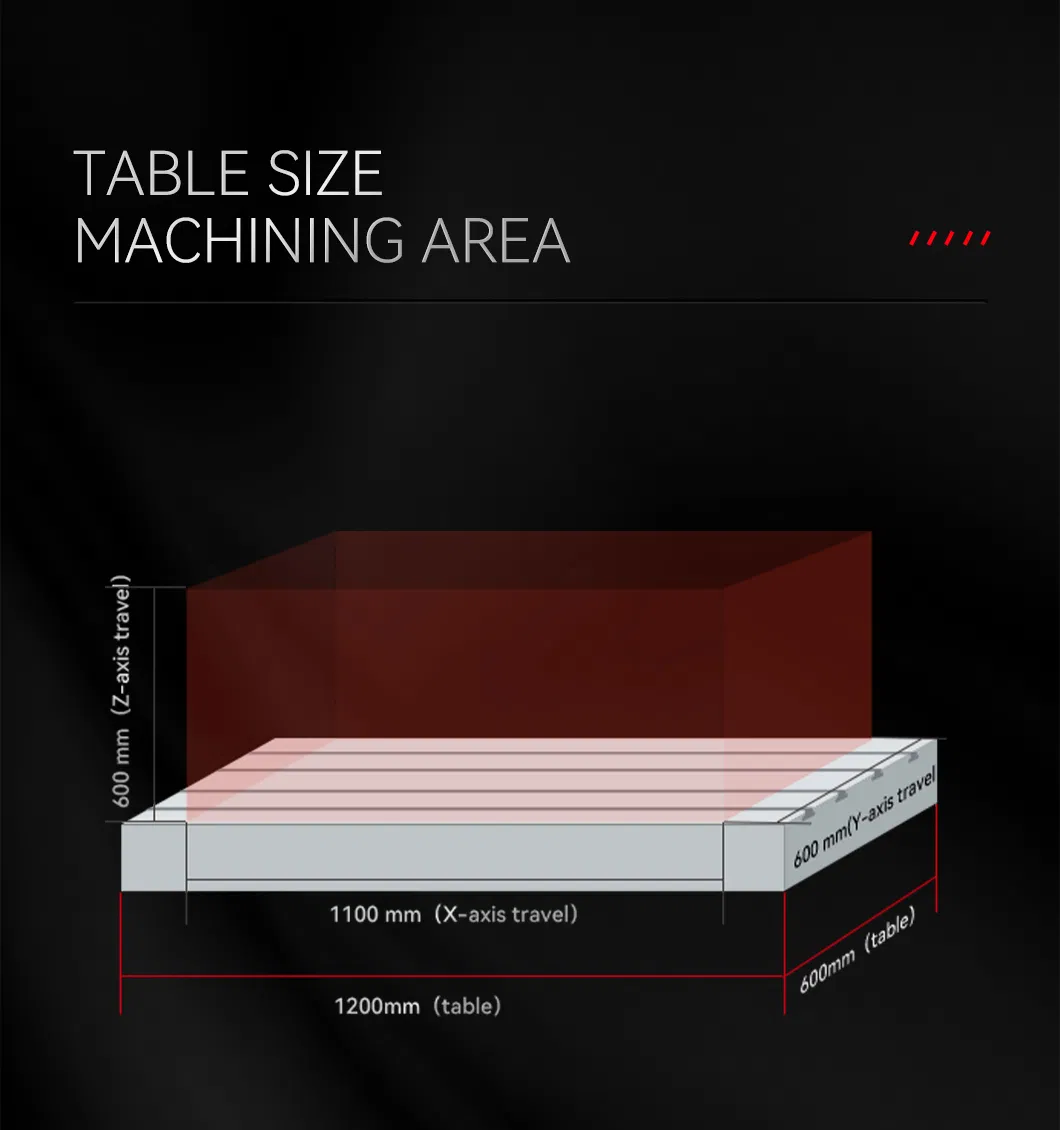

Table Size

1200*600

X, Y, Z Travel

1100*600*600

Spindle Speed

1-8000 rpm

Control System

GSK/Fanuc/Siemens

📦 Packaging & Delivery

Package Size

480.00cm * 228.00cm * 255.00cm

Gross Weight

6300.000kg

🛠️ Product Description

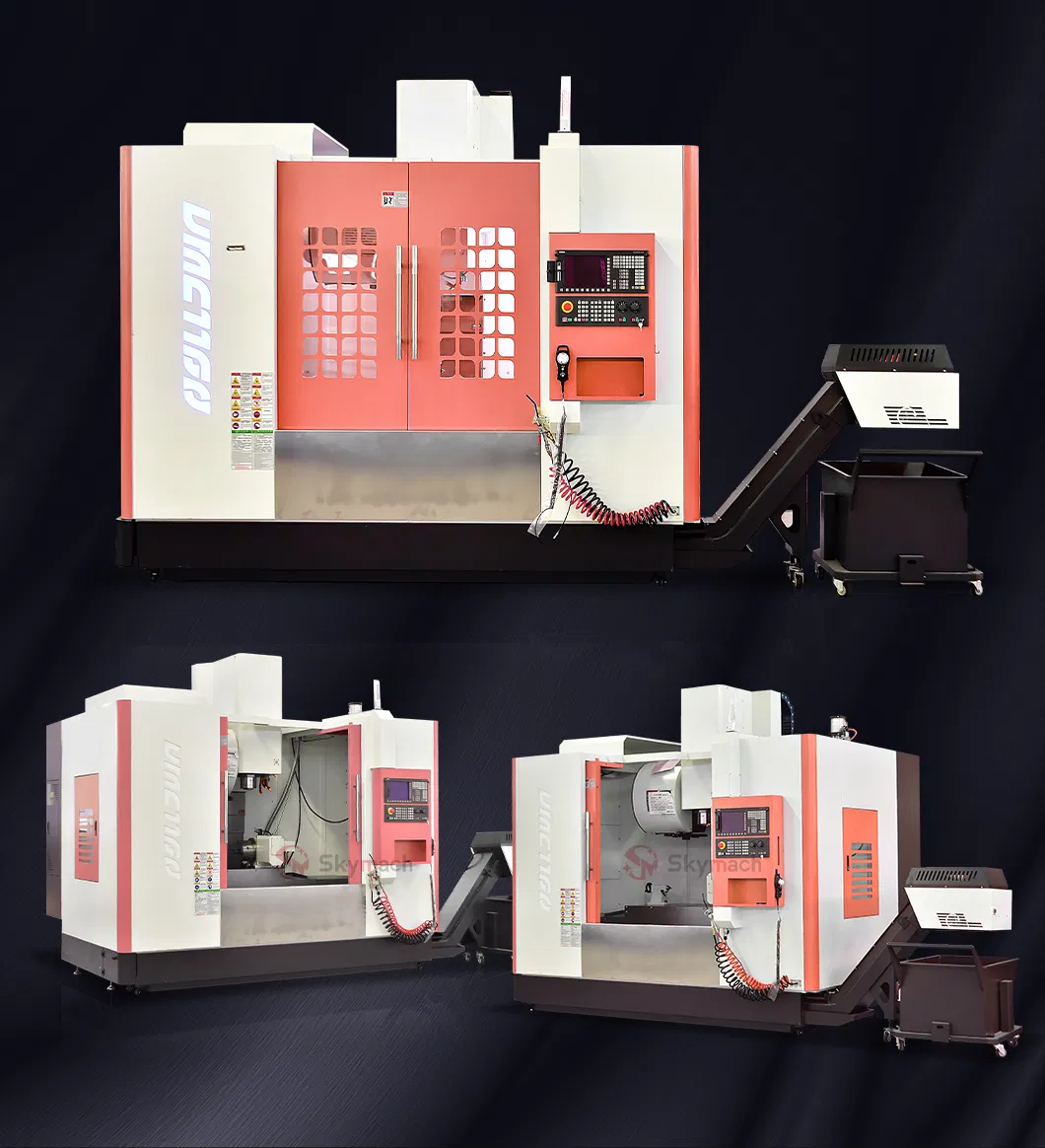

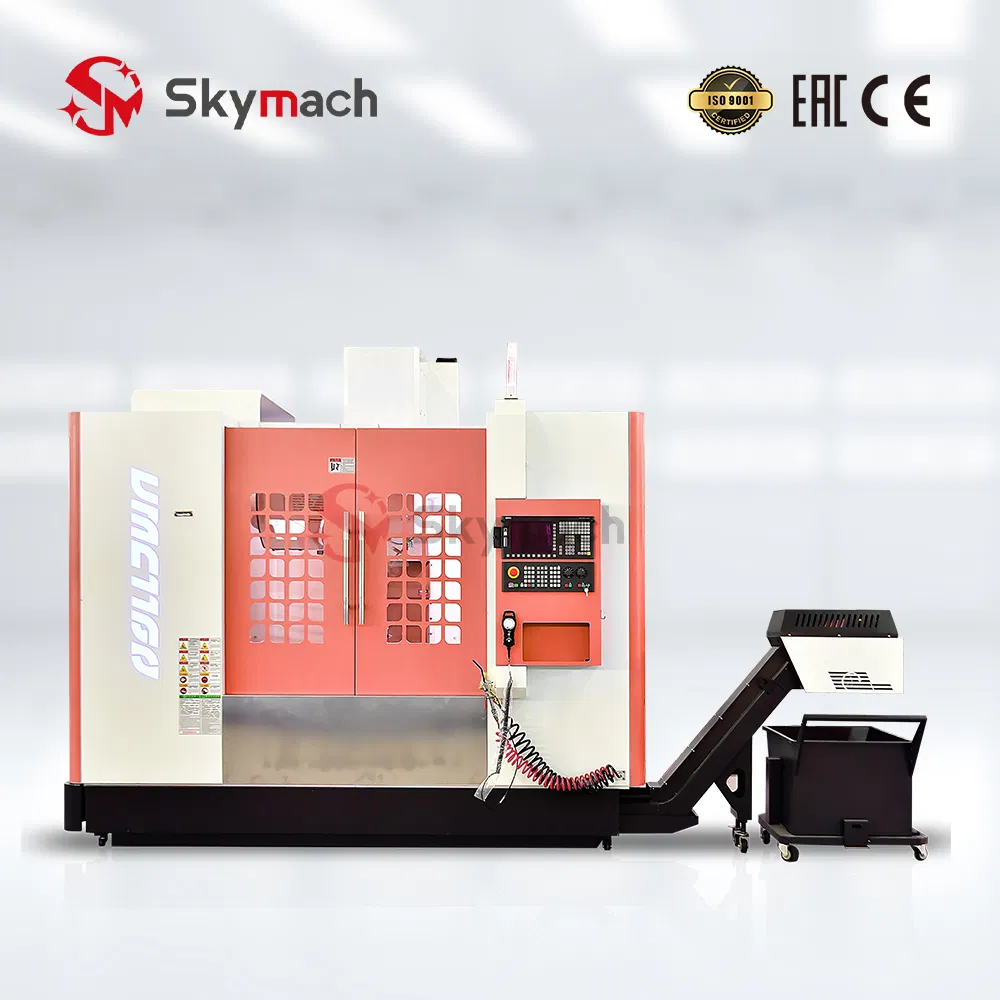

VMC1160 CNC Machining Center

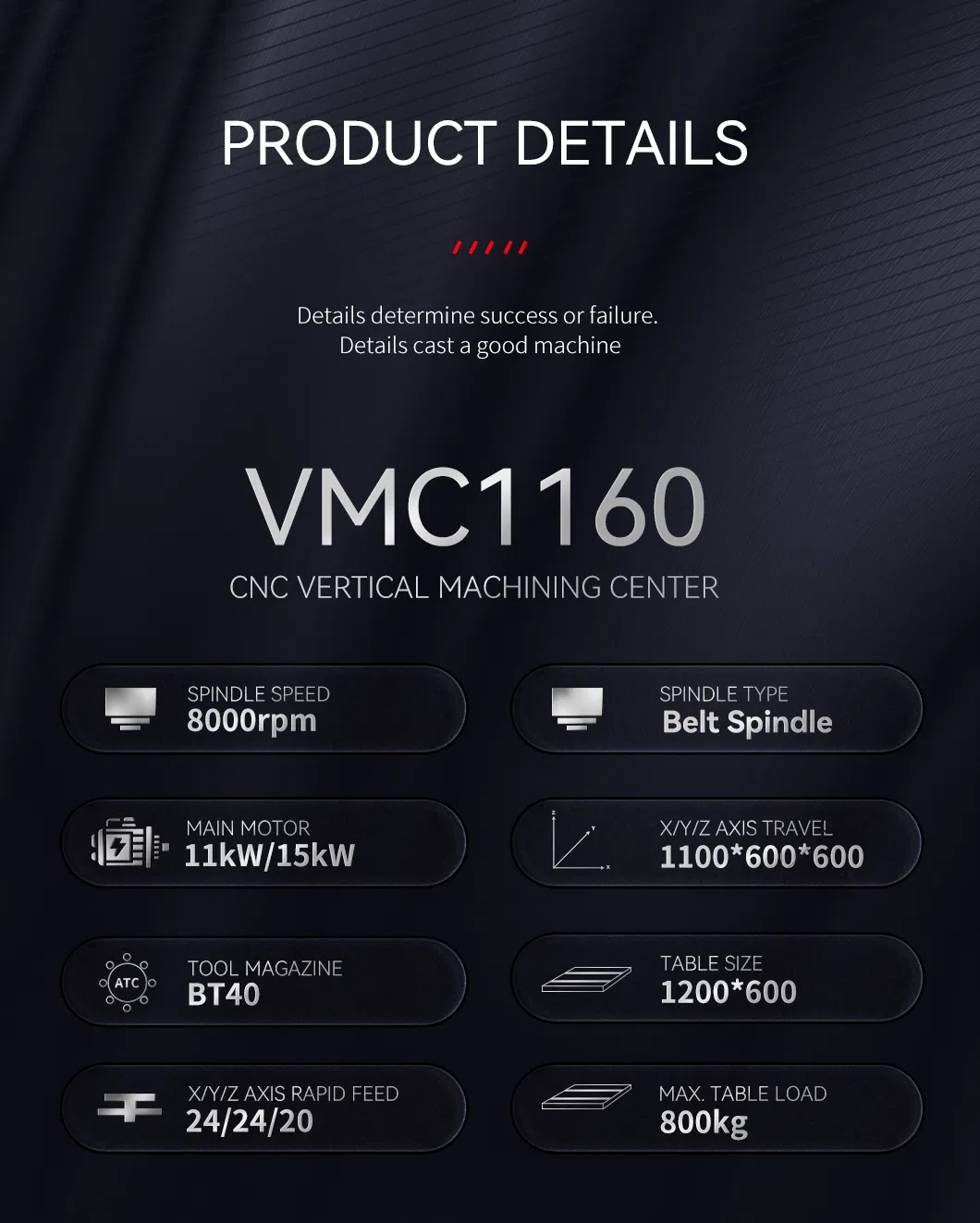

📊 Product Parameters

Specification	Unit	VMC1160
X/Y/Z axis travel	mm	1100/600/600
Spindle nose to worktable surface	mm	120-720
Spindle center to column surface	mm	650
T-slot	mm	5-18*100
Worktable size	mm	1200*600
Worktable max loading	kg	800

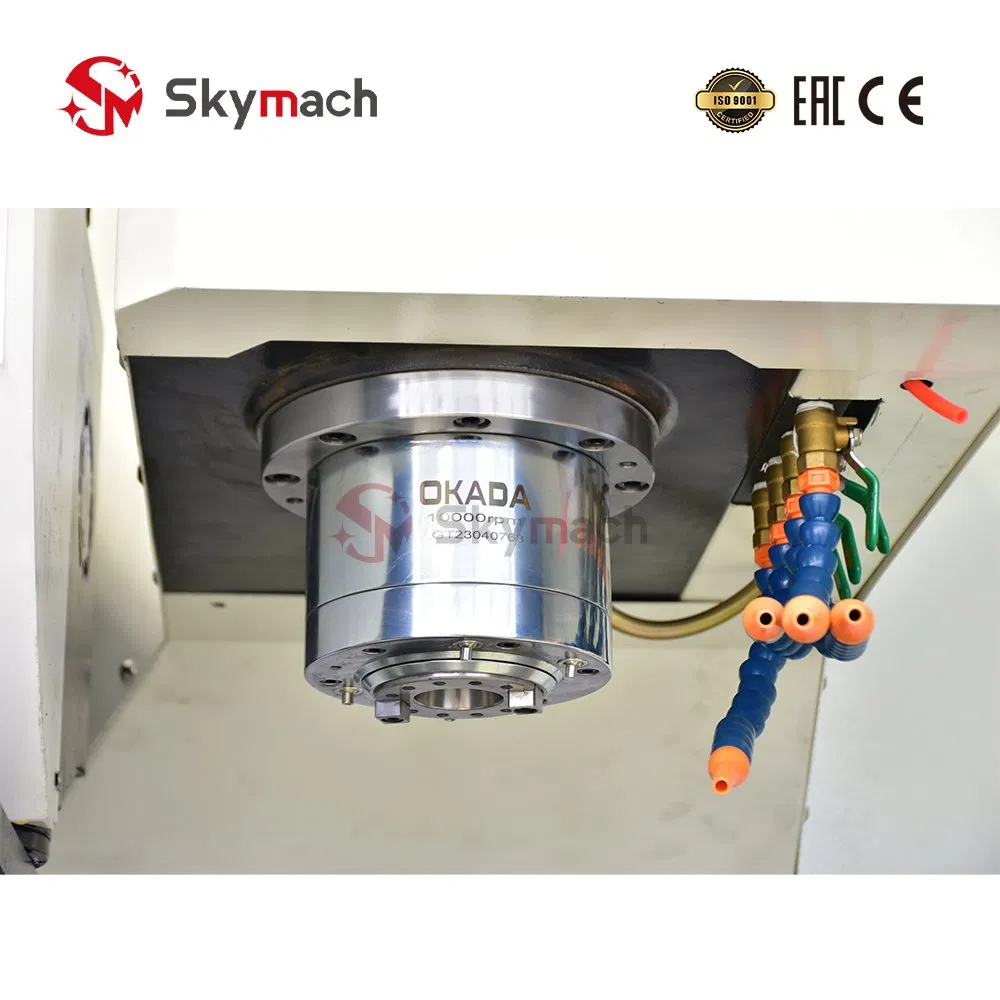

Spindle speed	rpm	8000
Main motor	kW	11KW/15KW

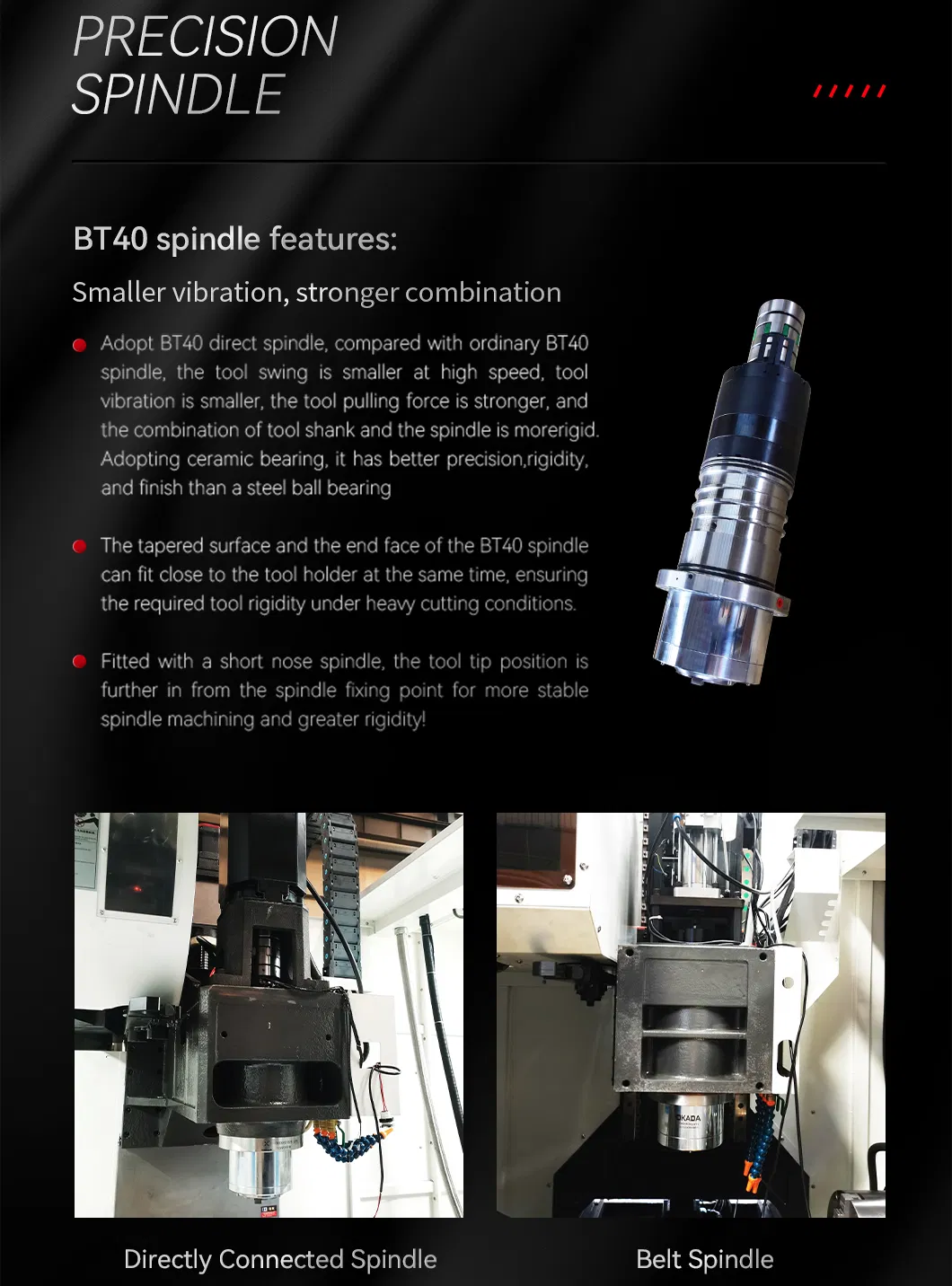

Spindle taper	-	BT40
Rapid traverse speed	m/min	24/24/20
Positioning accuracy	mm	±0.005
Repeat Positioning accuracy	mm	±0.003

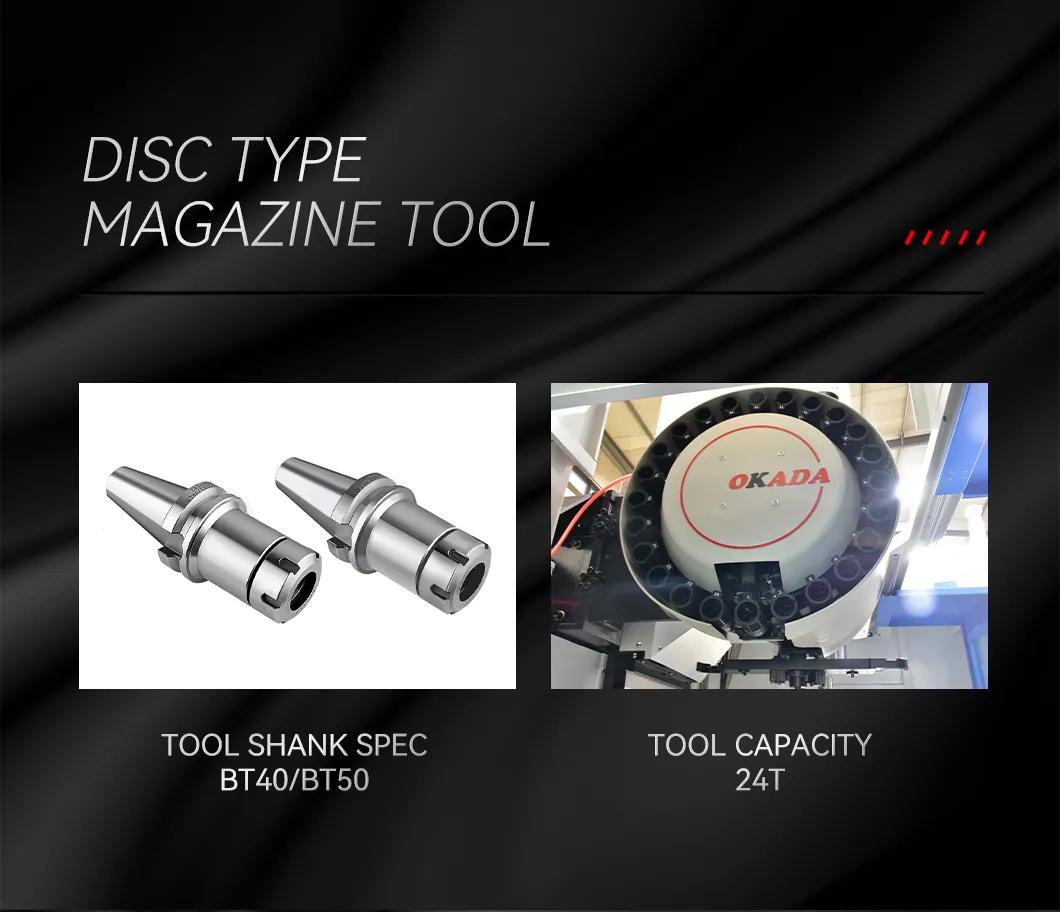

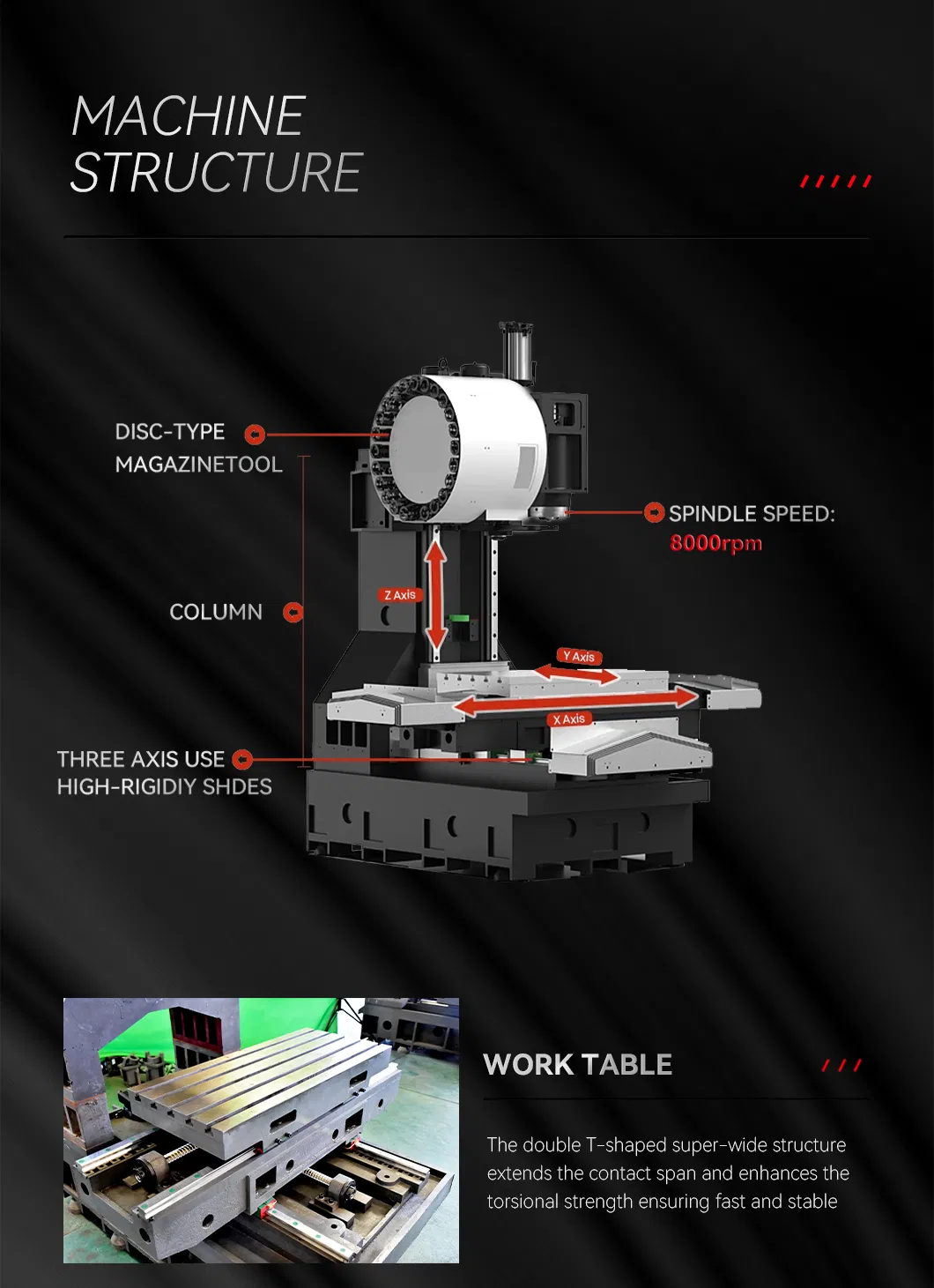

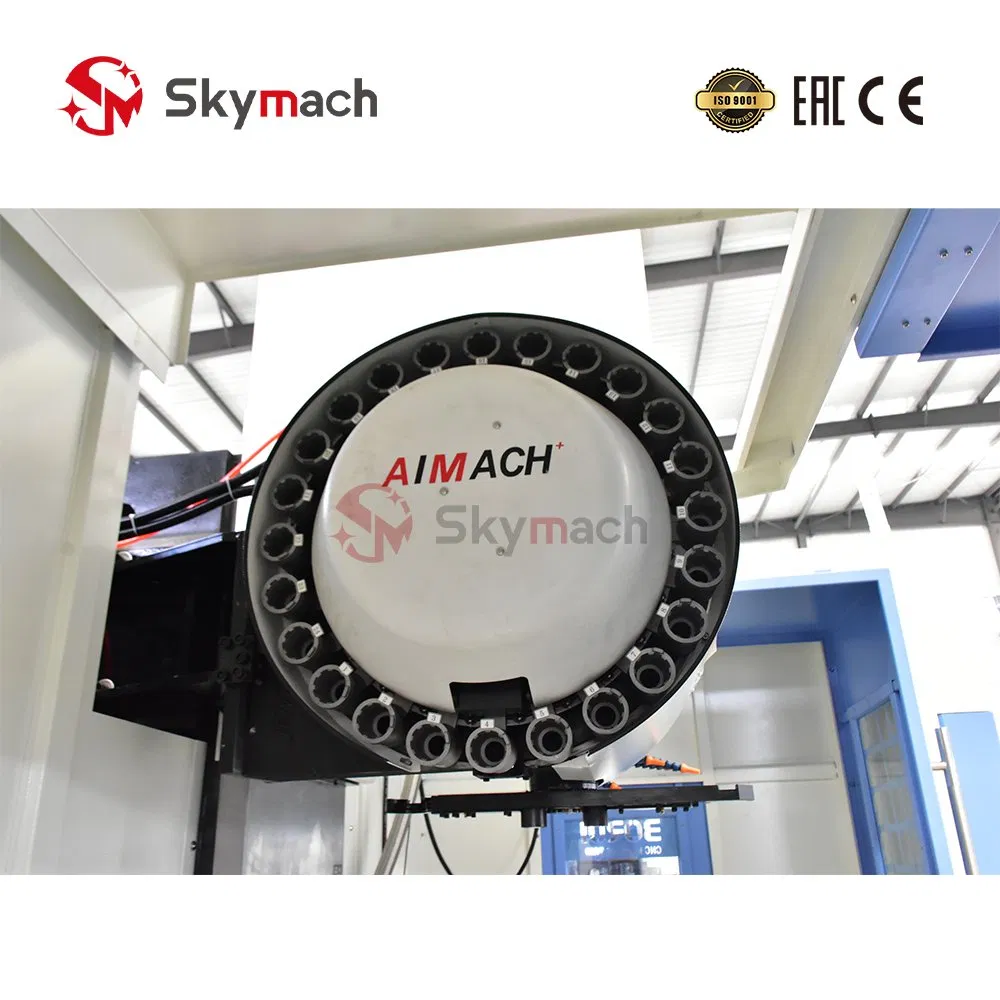

Magazine tool capacity	pcs	24 (disc type)
Machine weight	kg	6100

❓ FAQ

1. How can I choose the most suitable machines?

Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.

2. What are the main products?

We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, and gear hobbing machine.

3. Where is the factory located?

The factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit.

4. What are your trade terms?

FOB, CFR, and CIF are all acceptable trade terms for our transactions.

5. What are the Payment Terms?

T/T: 30% initial payment when ordered, 70% balance payment before shipment; or Irrevocable LC at sight.

6. What is the MOQ?

The Minimum Order Quantity is 1 set. (Only some low-cost machines will require more than 1 set).
