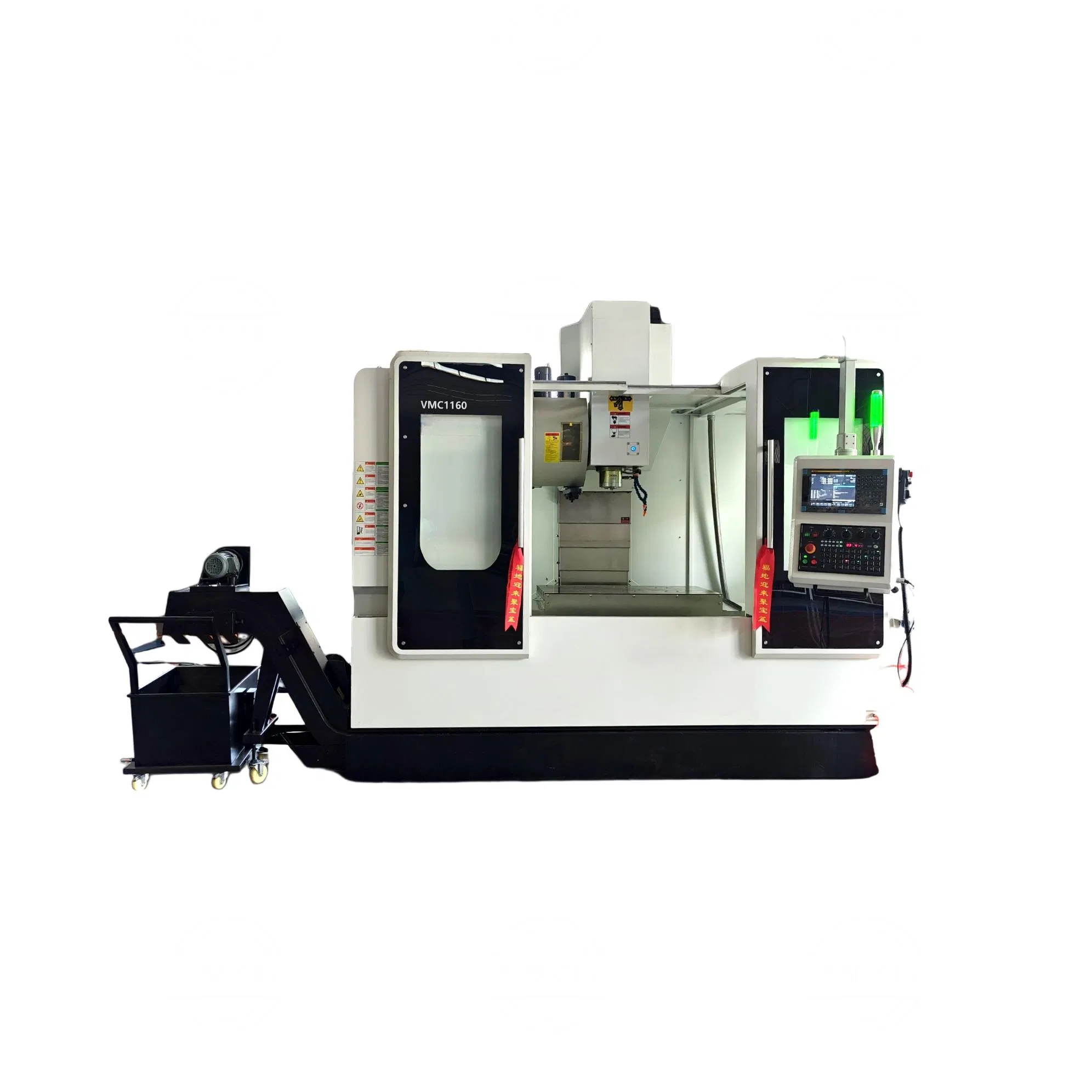

Vmc1160 Metal Processing Milling Vertical Machining Center High Speed Automated Machining Center

1 / 5

Vmc1160 Metal Processing Milling Vertical Machining Center High Speed Automated Machining Center

Customization:	Available
After-sales Service:	Online Service
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.:VMC1160

Application:Metal

Processing Precision:0.01~0.02(mm)

Numerical Control:CNC/MNC

Table Size:1000*550 mm

Spindle Speed:40 - 8000 r.p.m

Certification:CE, ISO 9001

Tool Capacity:24

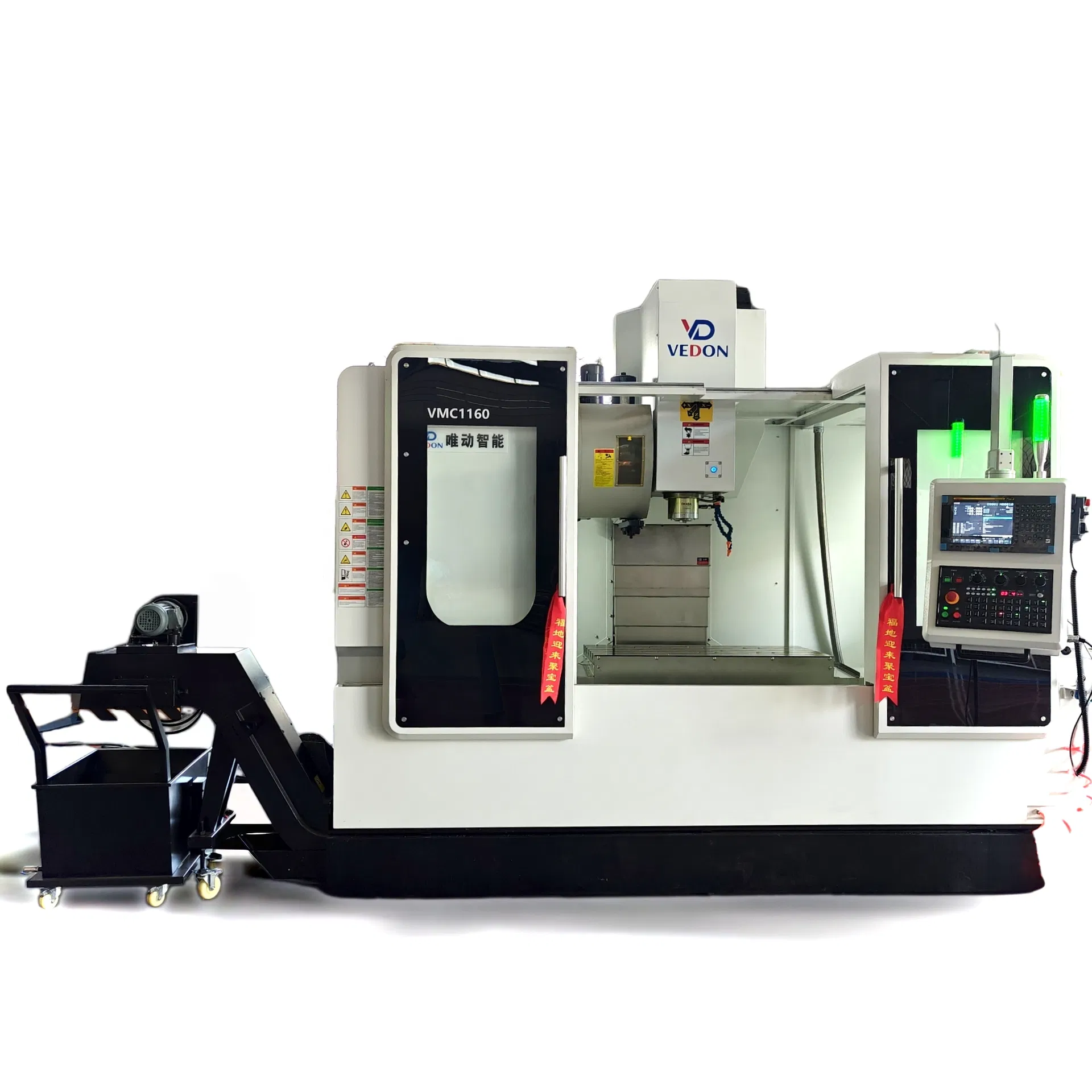

⚙️ Vertical Machining Center

Vertical machining centers (VMCs) are among the most widely used core machine tools in modern precision manufacturing. Characterized by their vertically oriented CNC spindle and worktable, they integrate multiple machining processes such as milling, drilling, tapping, and boring into a single machine. Thanks to their stable column structure, efficient automatic tool changing system, and powerful CNC unit, VMCs can achieve high-precision, high-efficiency, and highly automated continuous machining of complex metal or non-metal parts.

🔍 Key Components Analysis

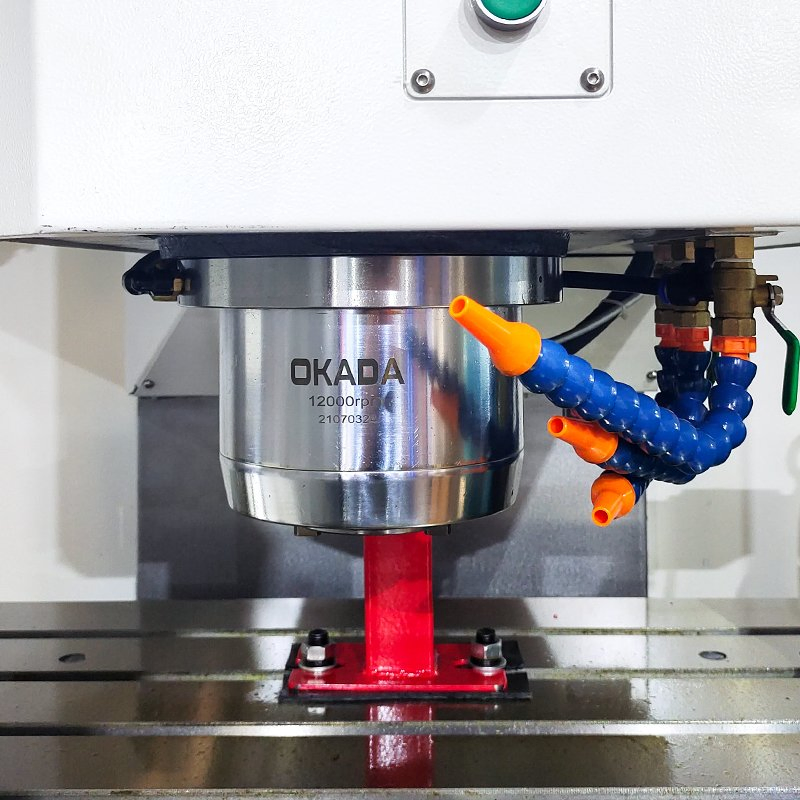

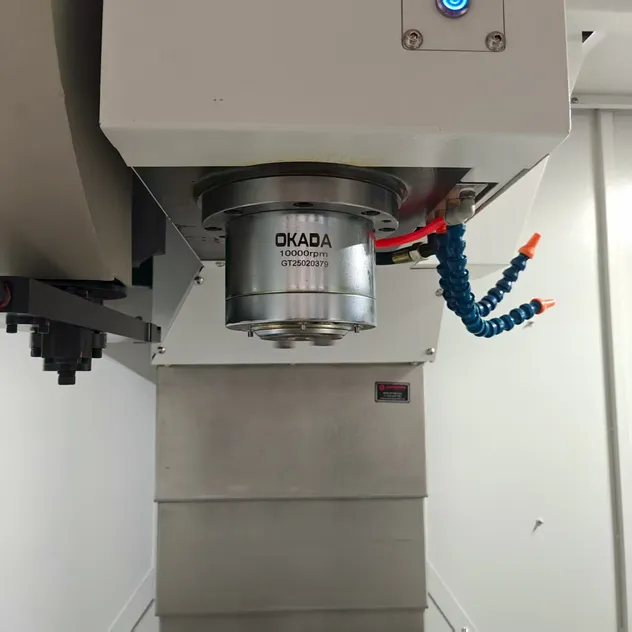

Spindle: Integrated spindle motor drives high-speed rotation for precise cutting. Includes blue air lines for cooling and chip removal.

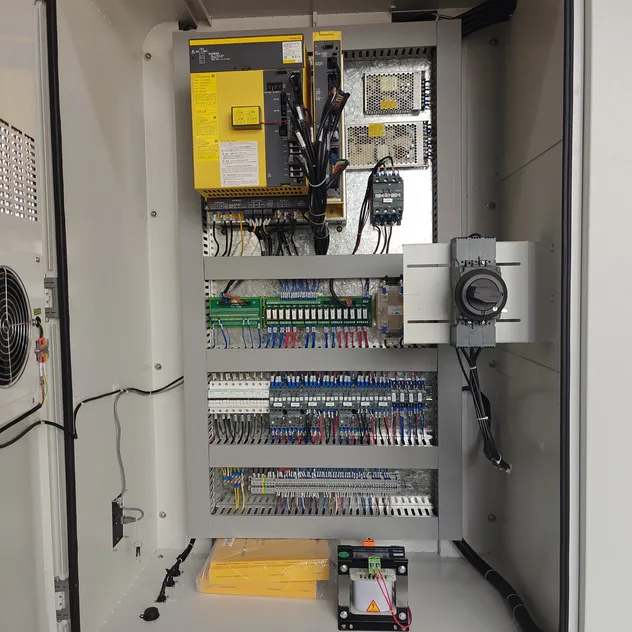

Electrical Cabinet: Stable power distribution with PLC signal control and full circuit protection devices.

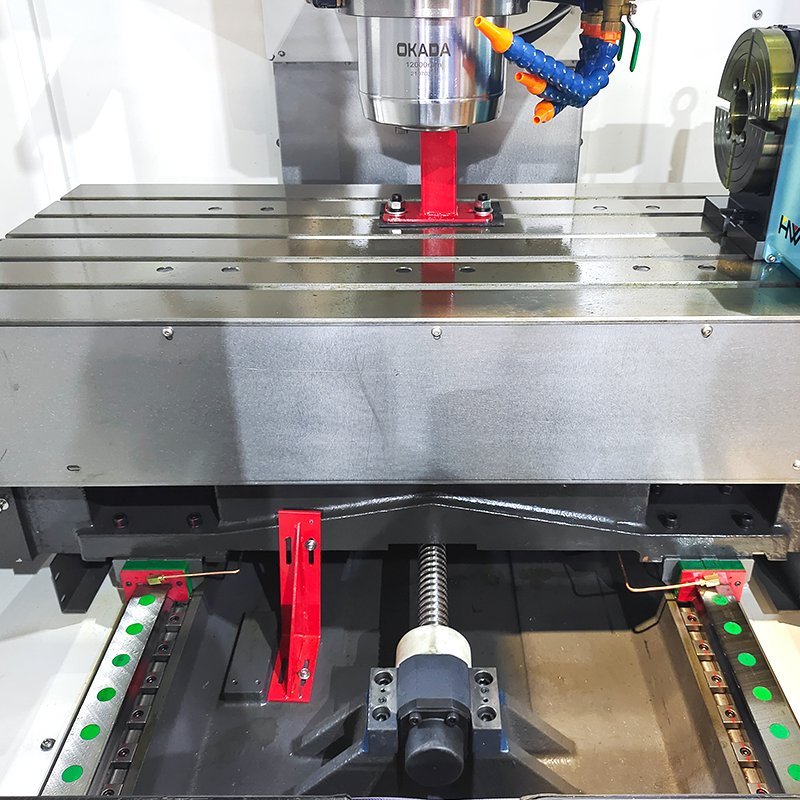

Workbench: High-precision guide rails and ball screws convert motor rotation into micron-level linear motion.

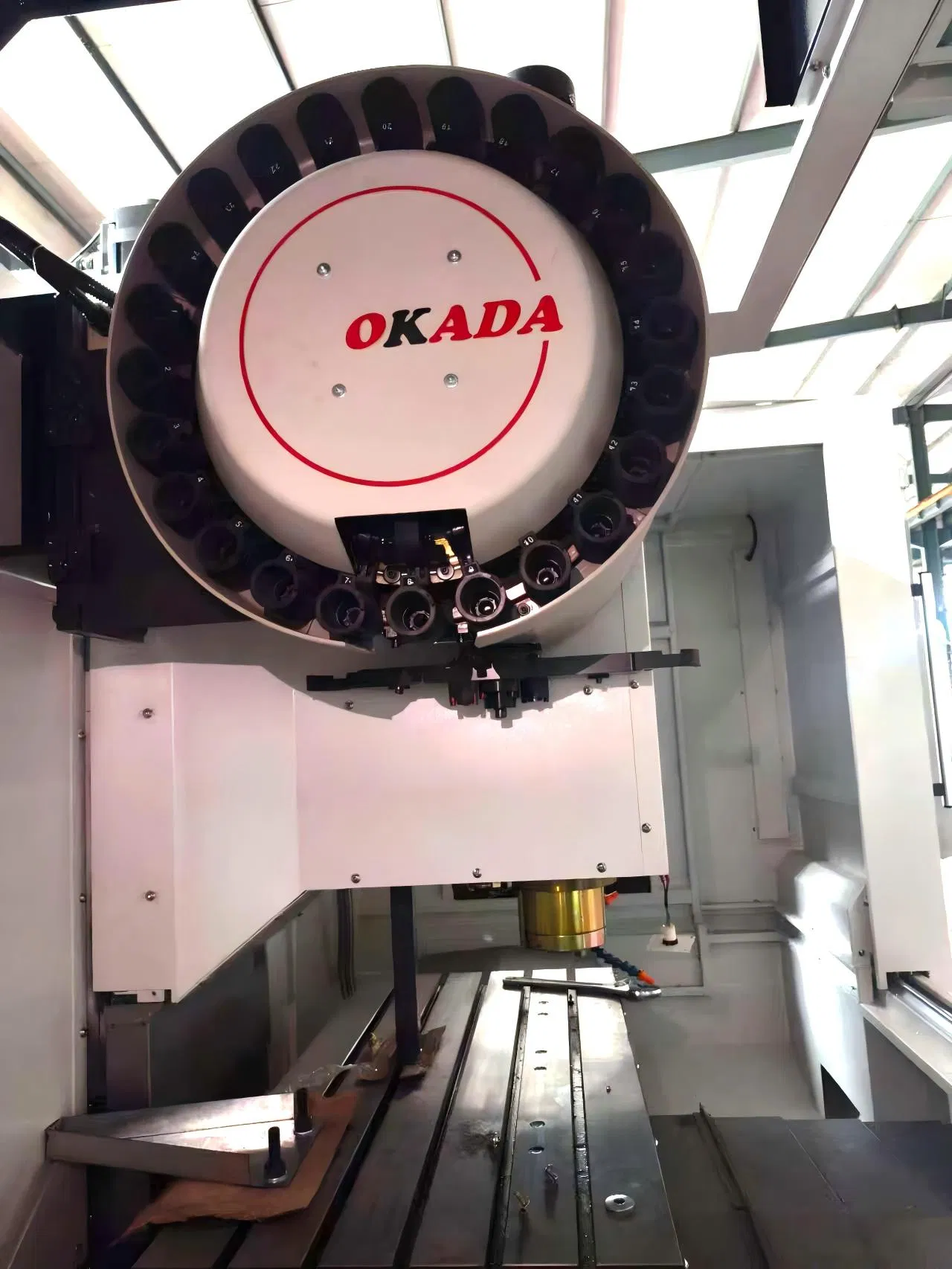

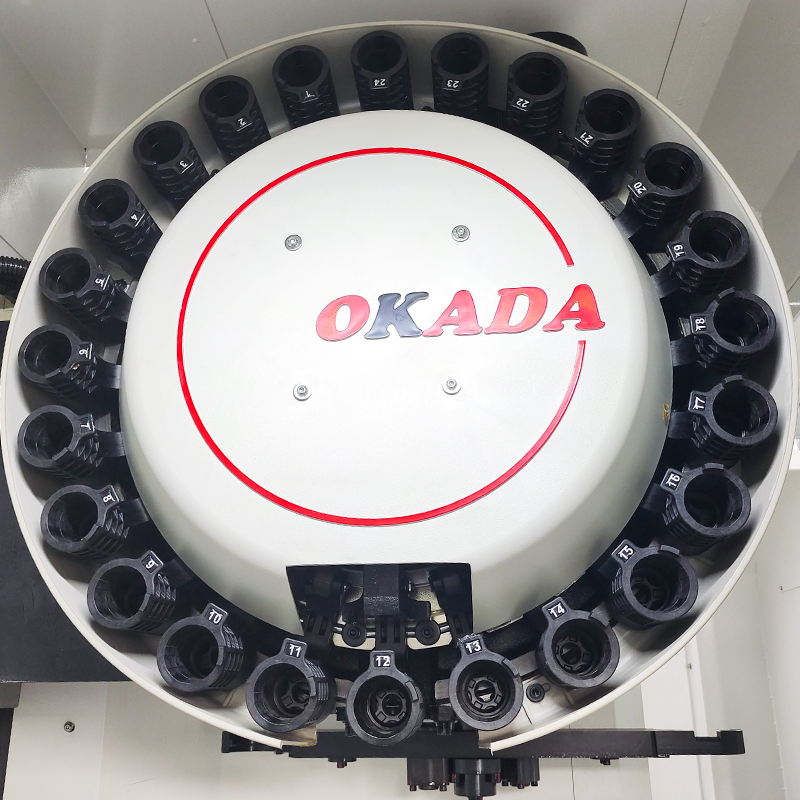

Tool Magazine: Conical layout for holding 24 tools with efficient automatic changing capability.

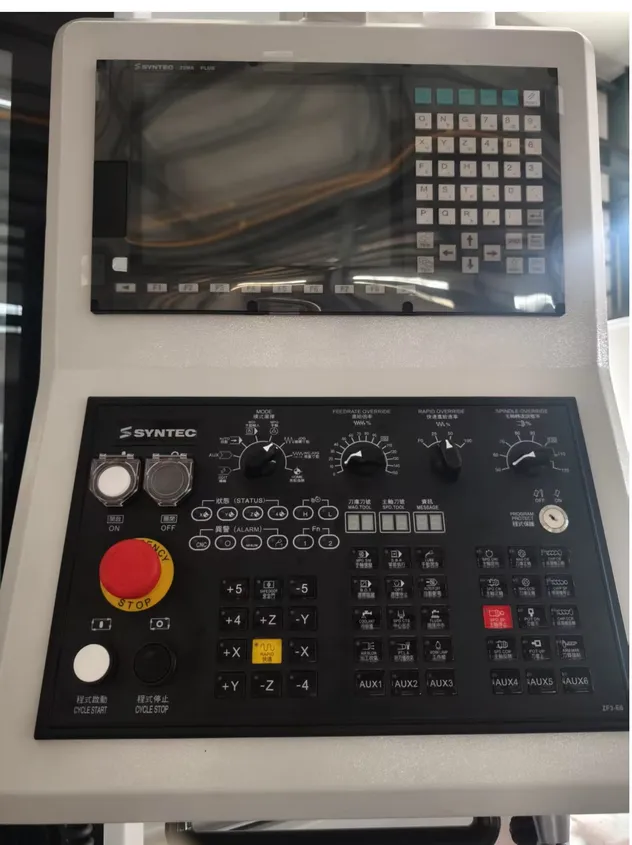

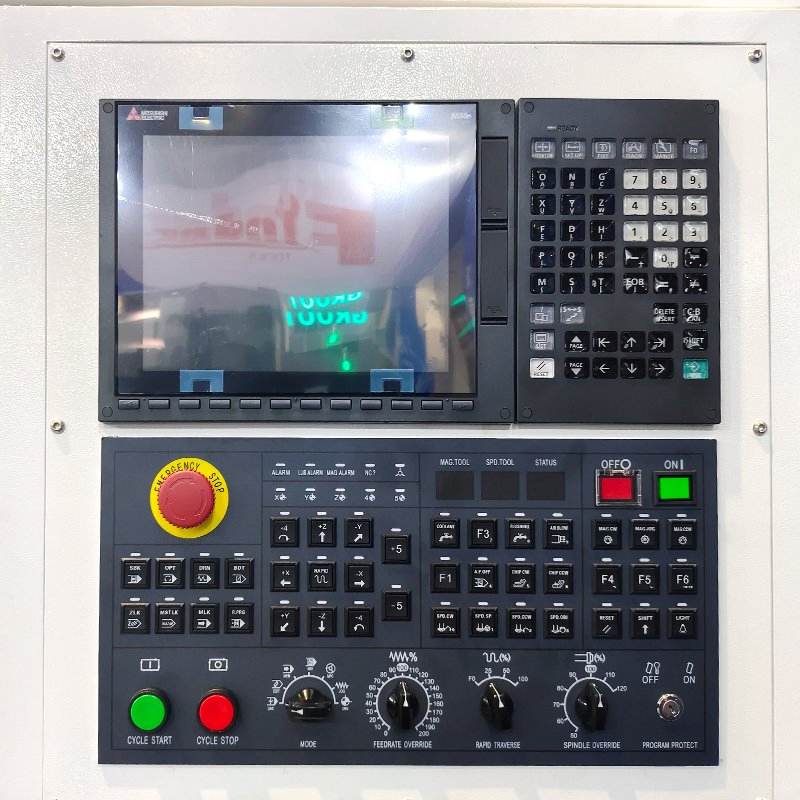

CNC System: Intuitive keypad and display for real-time coordinate monitoring and parameter adjustment.

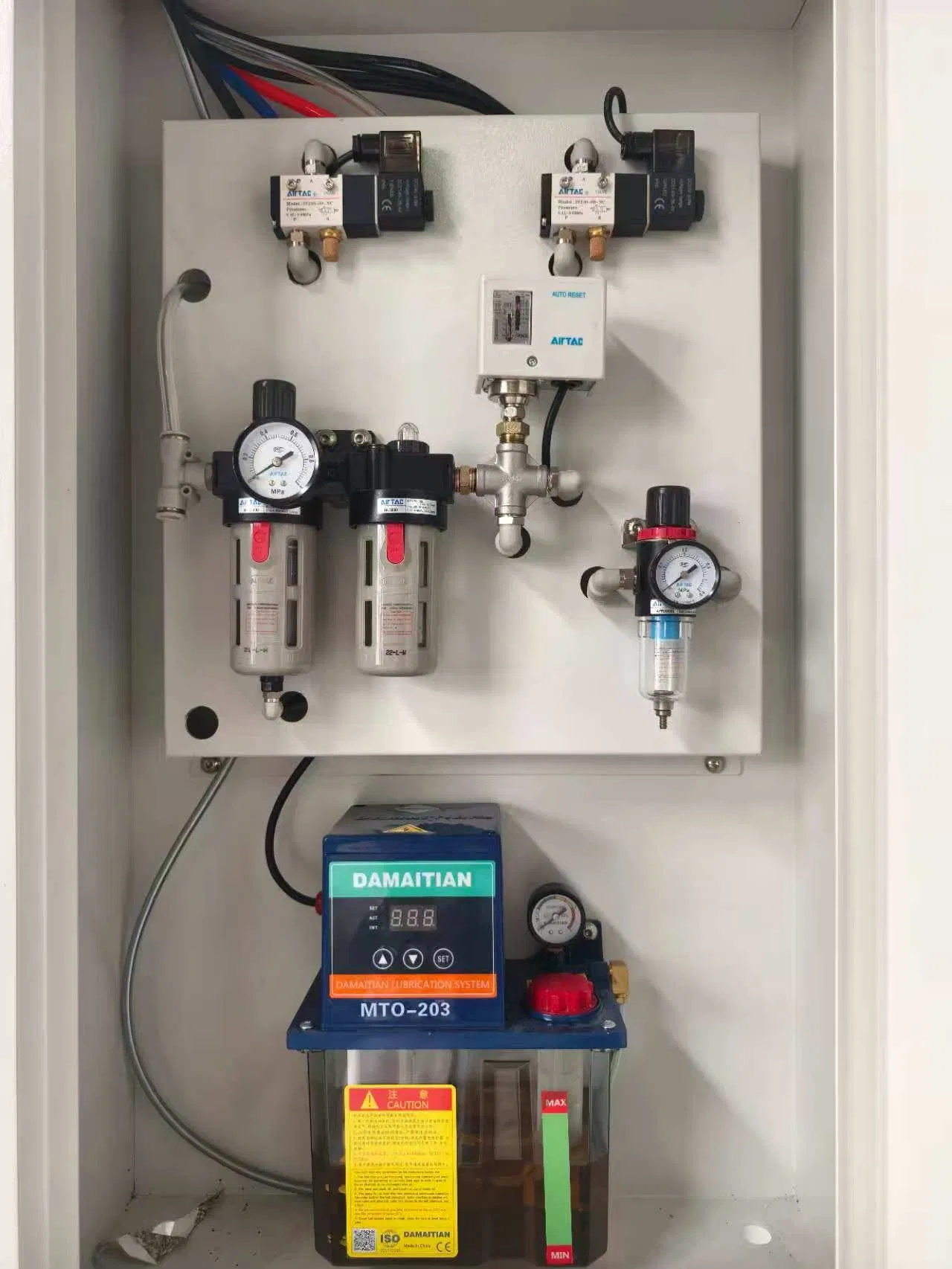

Pneumatic/Lubrication: Automated delivery of filtered air and lubricating oil to ensure component lifespan.

📋 Technical Specifications

Item	Unit	VMC1160 Parameter
X/Y/Z Axis Travel	mm	1100 / 600 / 600
Worktable Size	mm	1200 x 600
Max Loading Capacity	kg	800
Spindle Speed	rpm	10000 (Belt)
Spindle Motor Power	kw	11 / 15
Fast Moving Speed (X/Y/Z)	m/min	36 / 36 / 30
Positioning Accuracy	mm	±0.004 / 300mm
Tool Magazine Capacity	pcs	24 (Disc)

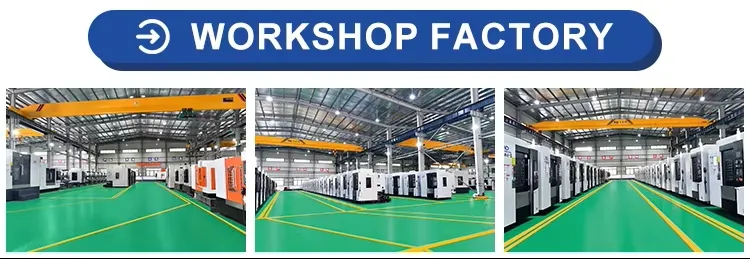

🏭 Manufacturing & Quality Control

❓ Frequently Asked Questions

Q1: Can I customize the machine with my own logo or color? A: Yes, we provide OEM services including logo placement and custom painting as long as the order quantity meets the MOQ.

Q2: What are the accepted trade terms? A: We accept FOB, CIF, DAP, and other standard international trade terms.

Q3: Is there a minimum order quantity (MOQ)? A: We have no MOQ for standard version products; you can order a single unit for trial.

Q4: What should be confirmed before placing an order? A: Please confirm your required voltage, frequency, plug type, trade terms, and whether you have a shipping agent.

Q5: What are your payment terms? A: For orders ≤1000USD, 100% in advance. For orders >1000USD, 30% T/T in advance and 70% before shipment.

Q6: What is the positioning accuracy of the VMC1160? A: The machine achieves a high positioning accuracy of ±0.004/300mm and a repeat accuracy of ±0.003/300mm.
