| Model NO. | CK-1530-7T-5AXIS |
| Voltage | 380V |
| Tool Holder | Double-tool Holder CNC Lathe |
| Automatic Grade | Automatic |
| Precision | Precision |
| Controlling Mode | CNC |
| Power Source | Electric |
| Certification | CE, ISO, FDA |

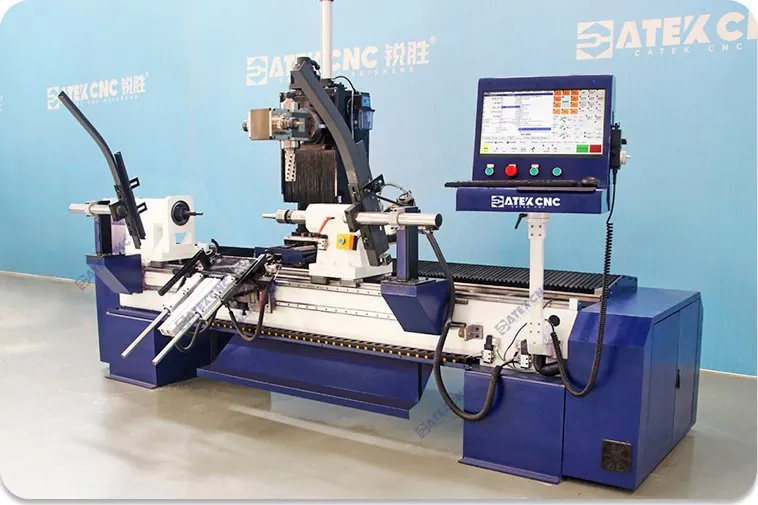

| Product Name | 5 Axis CNC Wood Lathe Machine |
| Linear Axis Drive Motor | Bus-Type Absolute 1500W Servo Motor |
| Reducer | Shimpo (Japan) Planetary Gear Reducer |
| Multi-Functional Spindle | 7.5kw High-Speed Air-Cooled Four-Head Spindle |
| Control System | Taiwan Lnc Control System |
| Repeat Positioning Accuracy | ±0.02mm |
| Specification | 3750*2150*2150mm |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Drive-Spindle Motor | 4KW pure servo high-torque and high-speed motor |
| Drive-Spindle Speed | 0-6000r/min |
| Multi-functional Spindle Speed | 0-18000r/min |
| Sanding Device | Independent 1100W variable frequency servo motor |
| Compatible Software | Artcam, Type3, AutoCAD, Powermill, UG, Mastercam, etc. |

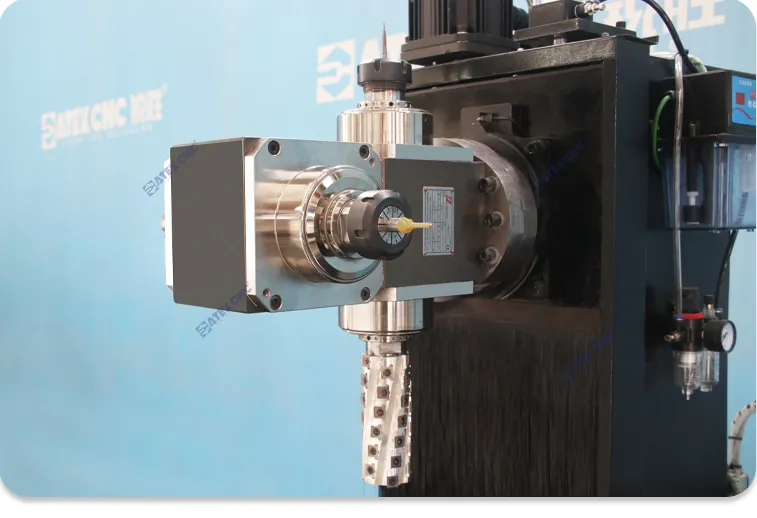

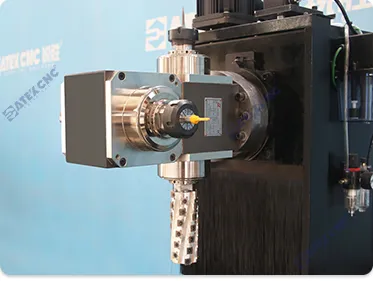

The four-head electric spindle, designed for five-axis machining centers, features a max speed of 18,000 rpm. Equipped with an ER40 toolholder, it supports four different tools and ±90-degree tilt adjustment.

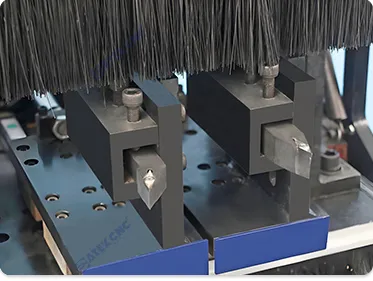

Equipped with two turning tool mounting positions switched via a pneumatic cylinder. Accommodates V-type, U-type, O-type, and cut-off tools for diverse turning needs.

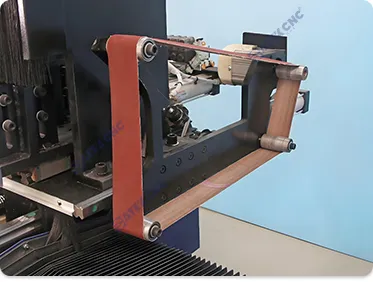

Sanding belt unit driven by an 1100W brushless servo motor (max 6000 rpm). Ideal for precise grinding needs.

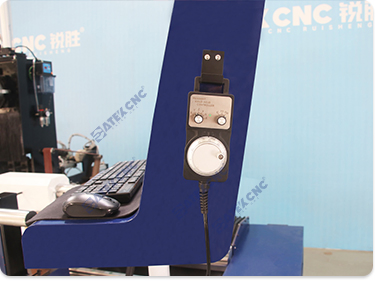

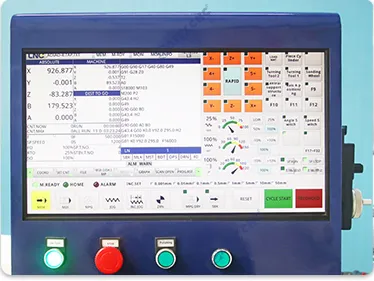

Taiwan LNC five-axis CNC system supports RTCP and handwheel simulation, compatible with NC, TAP, and TXT formats.
Application Range: Covers furniture manufacturing, musical instrument production, customized crafts, and architectural decoration.
