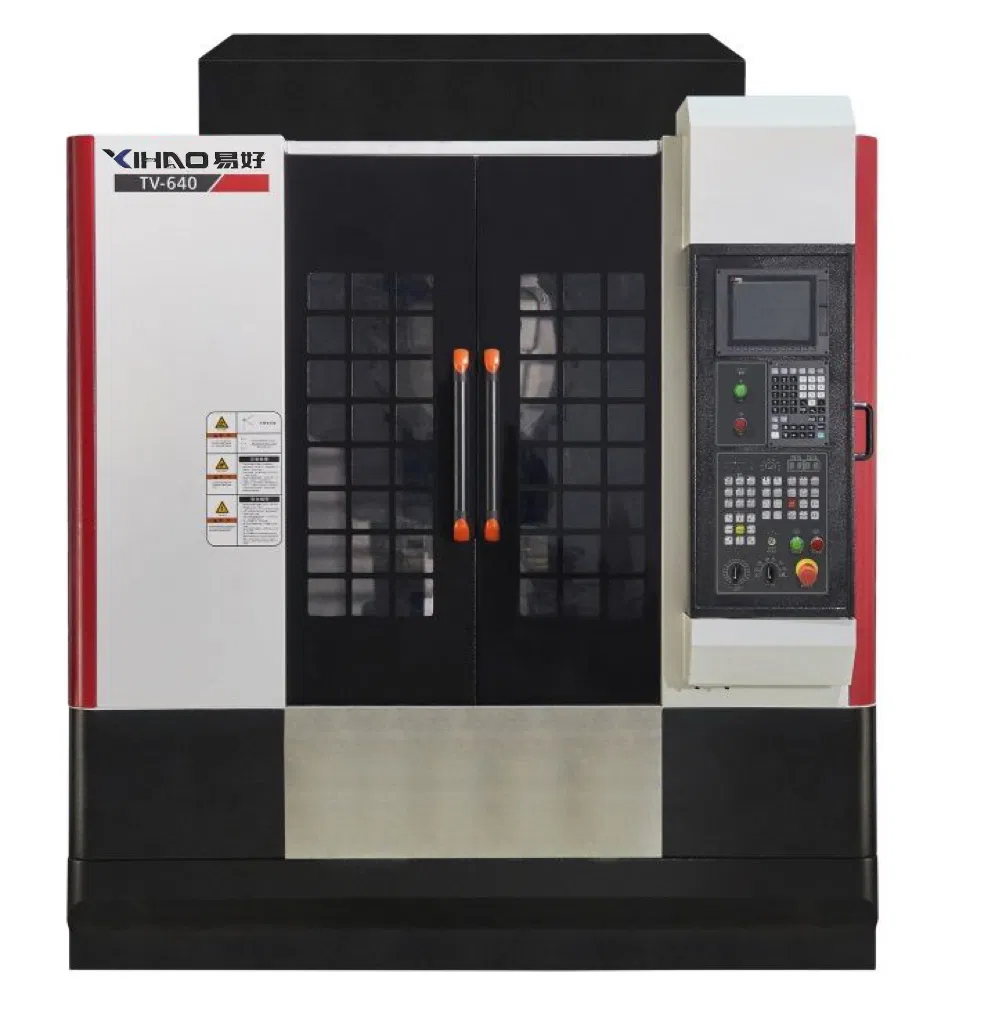

TV-640 High-Speed Precision CNC Drilling-Tapping Center Machine for Compound Machining

1 / 5

TV-640 High-Speed Precision CNC Drilling-Tapping Center Machine for Compound Machining

Customization:	Available
After-sales Service:	Lifetime Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

TV-640

Structure

Mill Drilling Machine

Controlling Mode

CNC

Worktable

700X420mm

Spindle Taper

BT30

Precision

High Precision

Machine Size

2340X1950X2750mm

Weight

3000kg

Product Main Parameters

ITEM	DETAILS	SPECIFICATION
Table	Worktable (Length x Width)	700×420mm
Travel	X/Y/Z-axis Travel	600 / 400 / 320mm
Load	Max Table Load	300kg
Spindle	Max Speed	15000rpm
Spindle	Motor Power	5.5KW
Accuracy	Positioning Accuracy	±0.005mm
Accuracy	Repeatability	±0.003mm
Speed	X-Y-Z Rapid Speed	48m/min

T-Series Technical Comparison

Model	Unit	T5	T6	T7	T10
Table size	mm	650x400	700x420	800x420	1000x420
X/Y/Z travel	mm	500/400/320	600/400/320	700/400/300	1000/400/300
Rapid speed	m/min	48-60	48-60	48-60	48-60
Machine weight	kg	2800	3000	3200	3500

Core Features

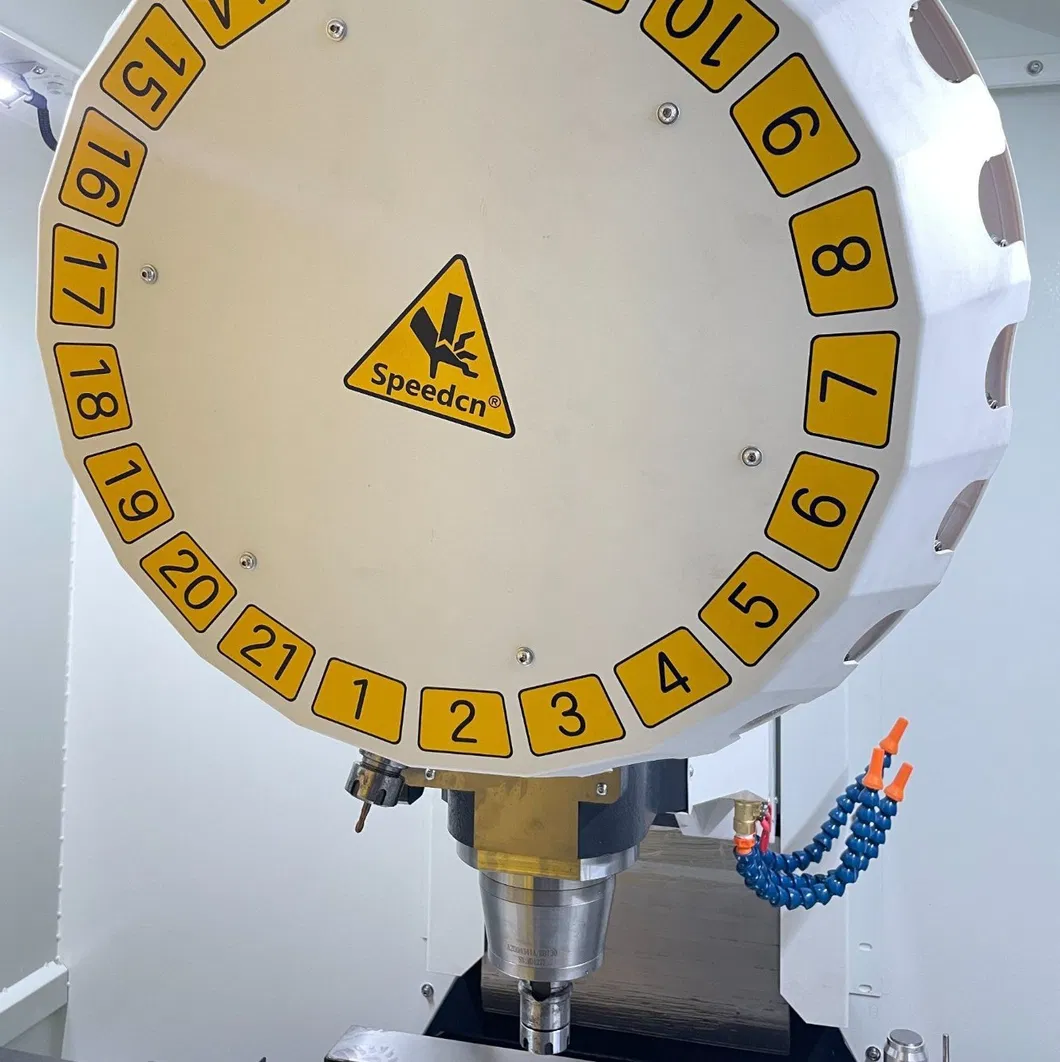

Mainly used for drilling and tapping, equipped with high-speed umbrella tool magazine.
Mechanical automatic tools change system to significantly save processing time.

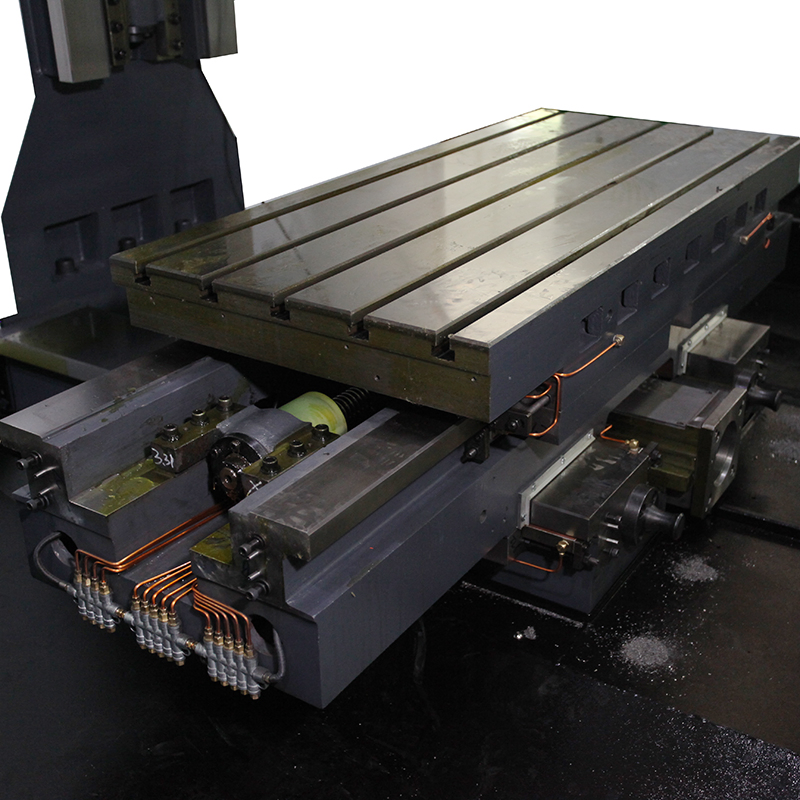

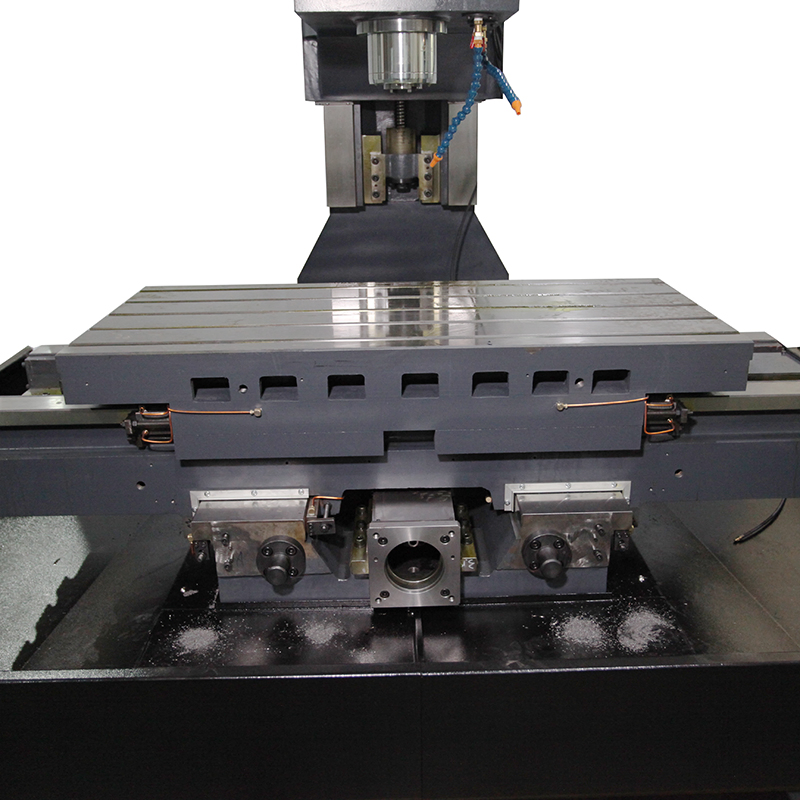

Three-axis adopting ball linear guideways for superior speed and high precision.
Wide stable base with box-type column and lengthened saddle for high-speed machining stability.
Standard BT30 Spindle Taper for versatile tooling.

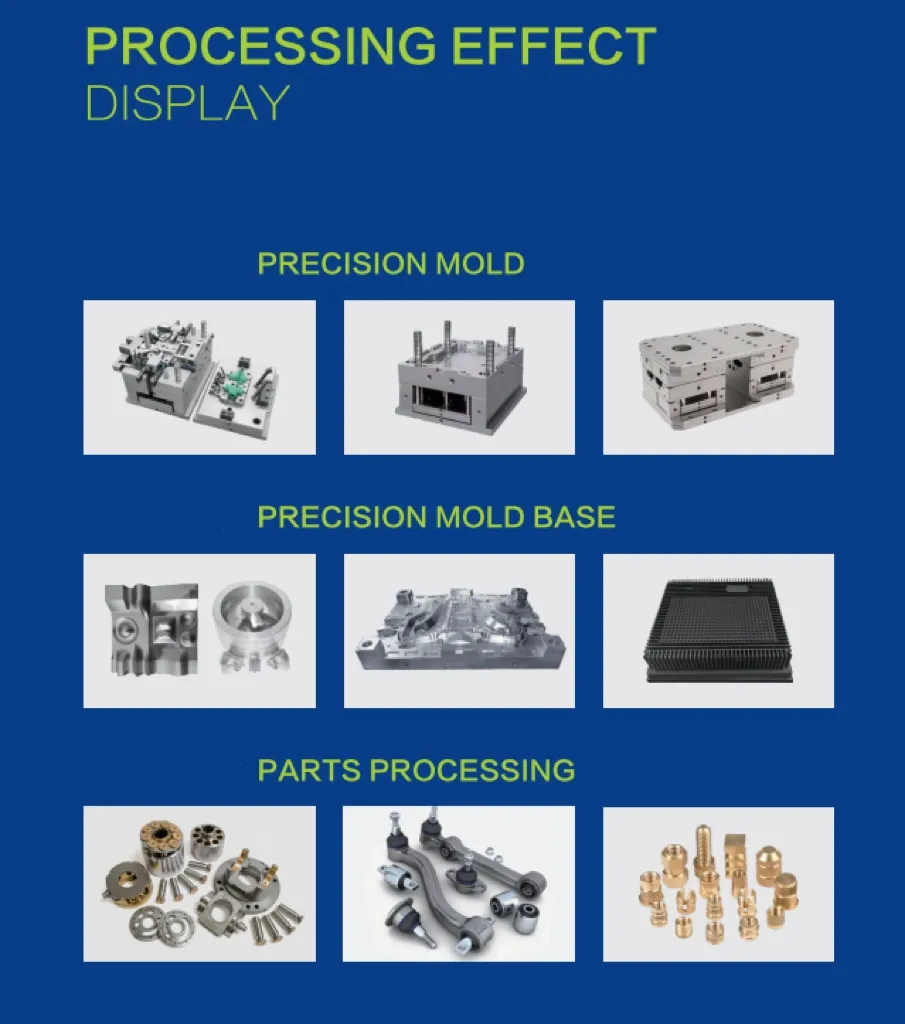

Product Display

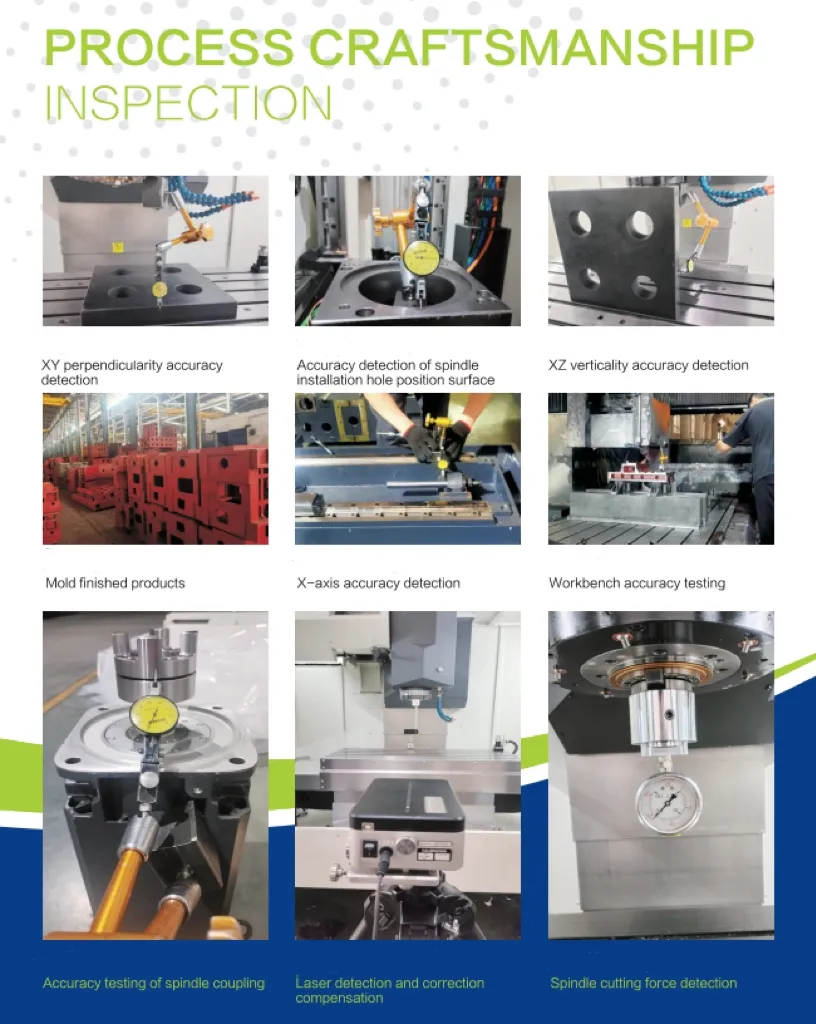

Precision Testing

We utilize RENISHAW laser detectors to strictly test the precision of each machine. Dynamic compensation is performed based on real-time data to ensure optimal positioning and repeatability.

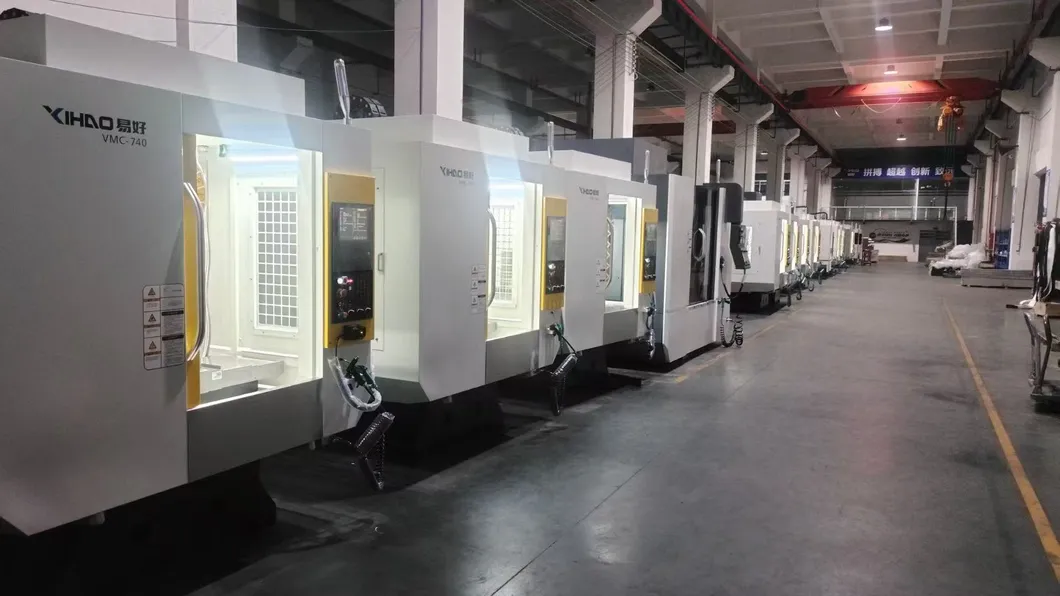

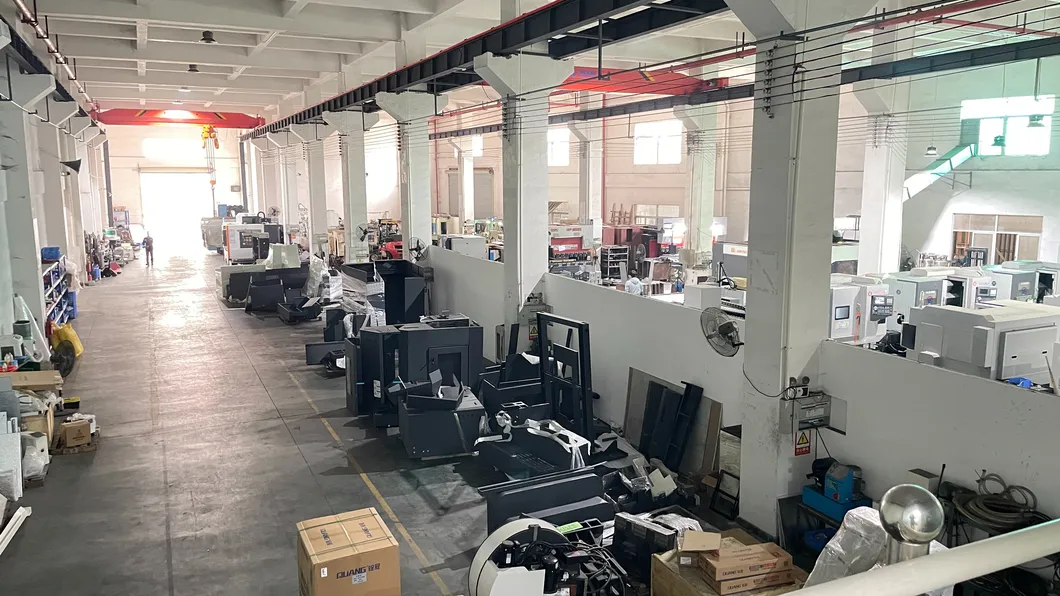

Production Environment

Frequently Asked Questions

What is the minimum order quantity (MOQ) and warranty?

The MOQ is one set, and all machines come with a standard one-year warranty.

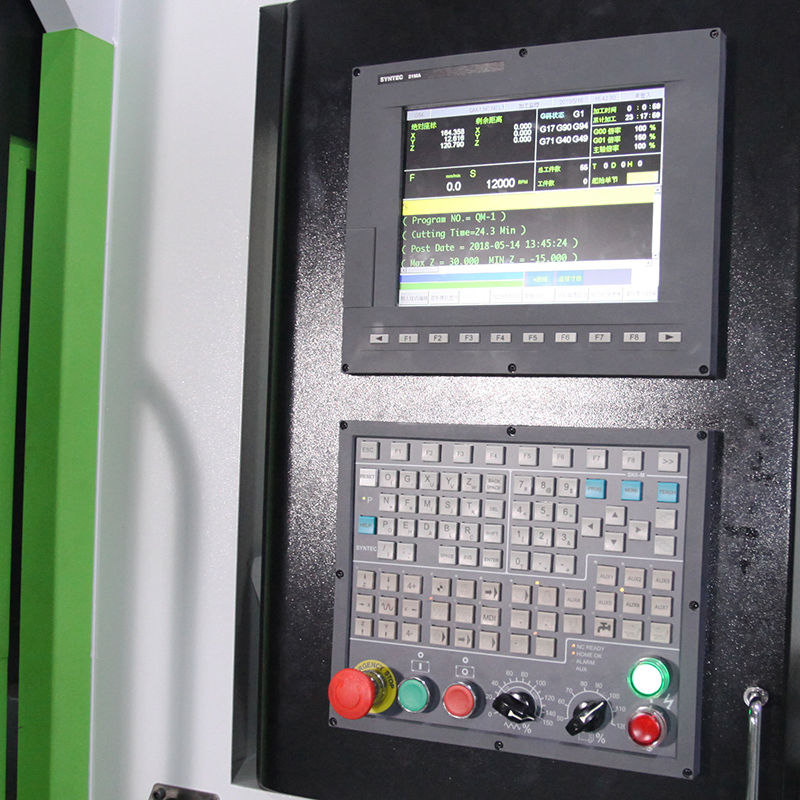

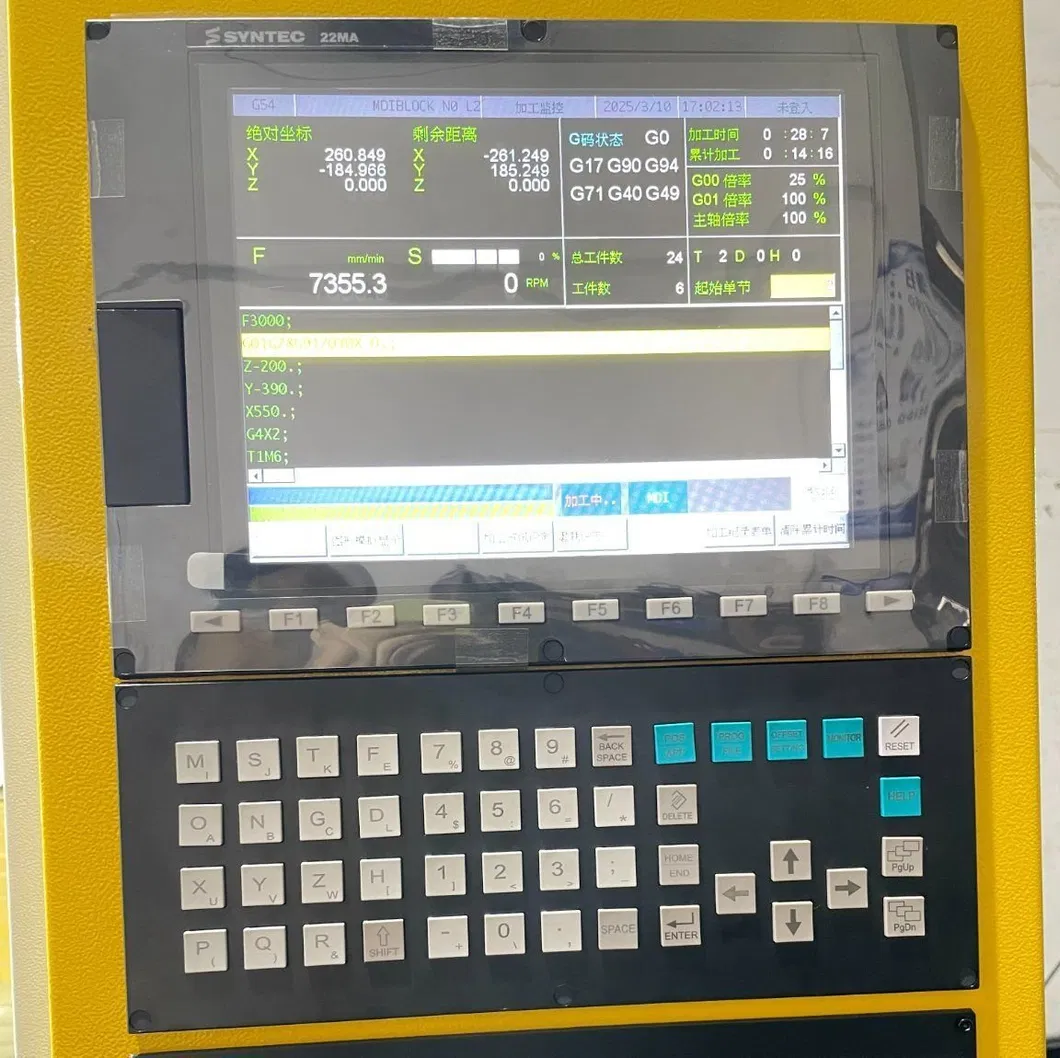

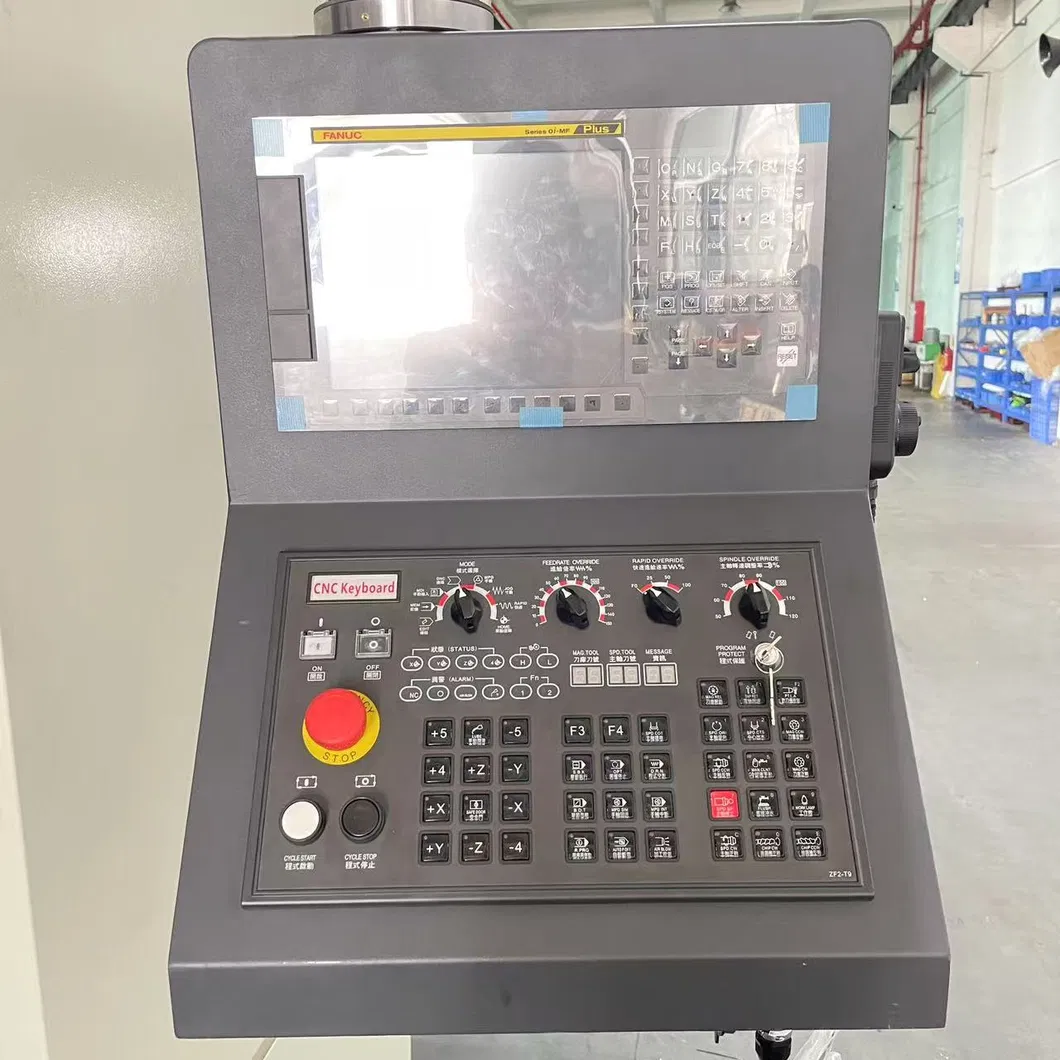

Which CNC systems are supported?

We offer multiple options including MITSUBISHI, FANUC, SIEMENS, and SYNTEC, depending on your specific requirements.

What is the typical delivery timeframe?

Standard delivery time is within 45 days after receiving payment.

How is warranty service handled?

During the warranty period, we provide free replacement parts for quality-related issues. For non-quality issues requiring on-site engineering, appropriate service fees apply.

Do you provide technical training and installation?

We offer free remote technology training. For on-site installation, we can dispatch engineers to your facility according to a scheduled service agreement.

What applications are these machines suitable for?

They are widely used in precision molds, electronic communication, optics, medical equipment, and general high-speed manufacturing.
