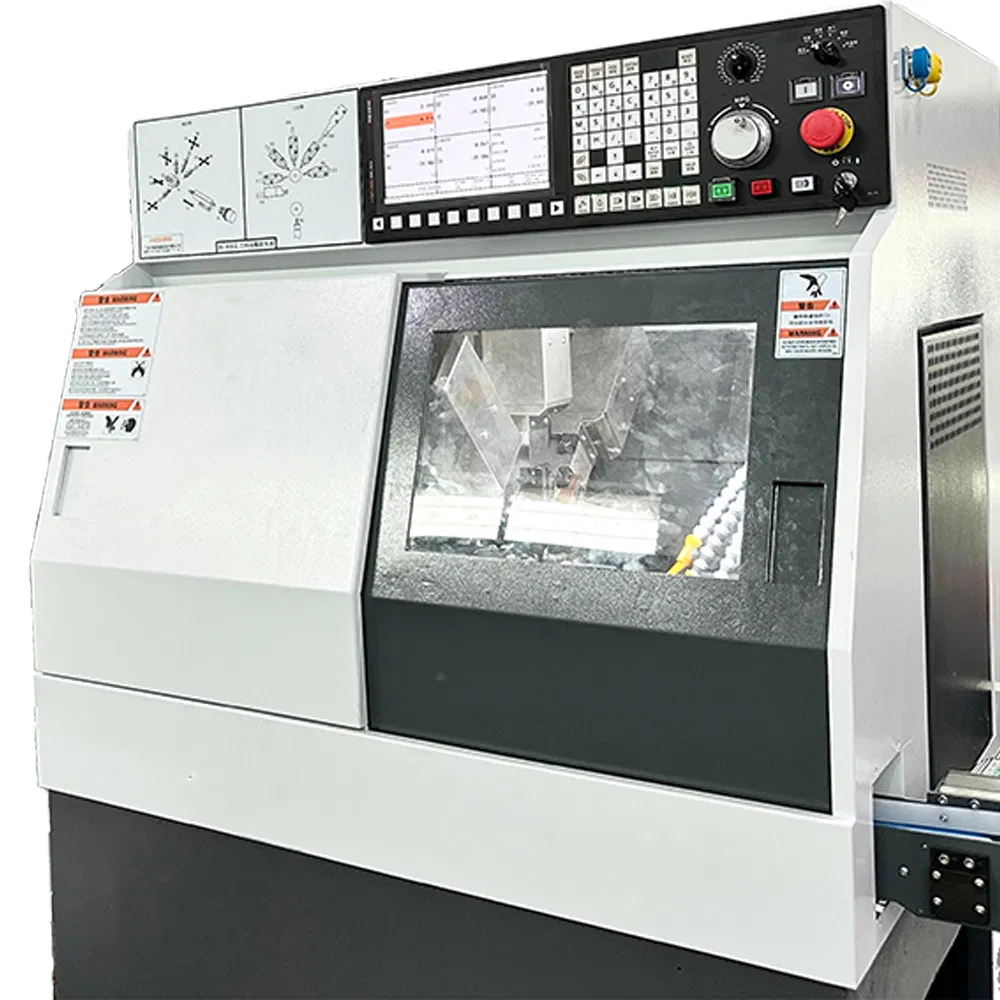

Turning Drilling Tapping Milling Swiss Type CNC Lathe for Increased Production Efficiency

1 / 5

Turning Drilling Tapping Milling Swiss Type CNC Lathe for Increased Production Efficiency

Customization:	Available
After-sales Service:	on Site Sevice
Warranty:	on Site Sevice

Send Inquiry

Product Description

📊 Overview & Basic Info

Model NO.

TZ-W15 / TZ-W20

Application

Metal Cutting

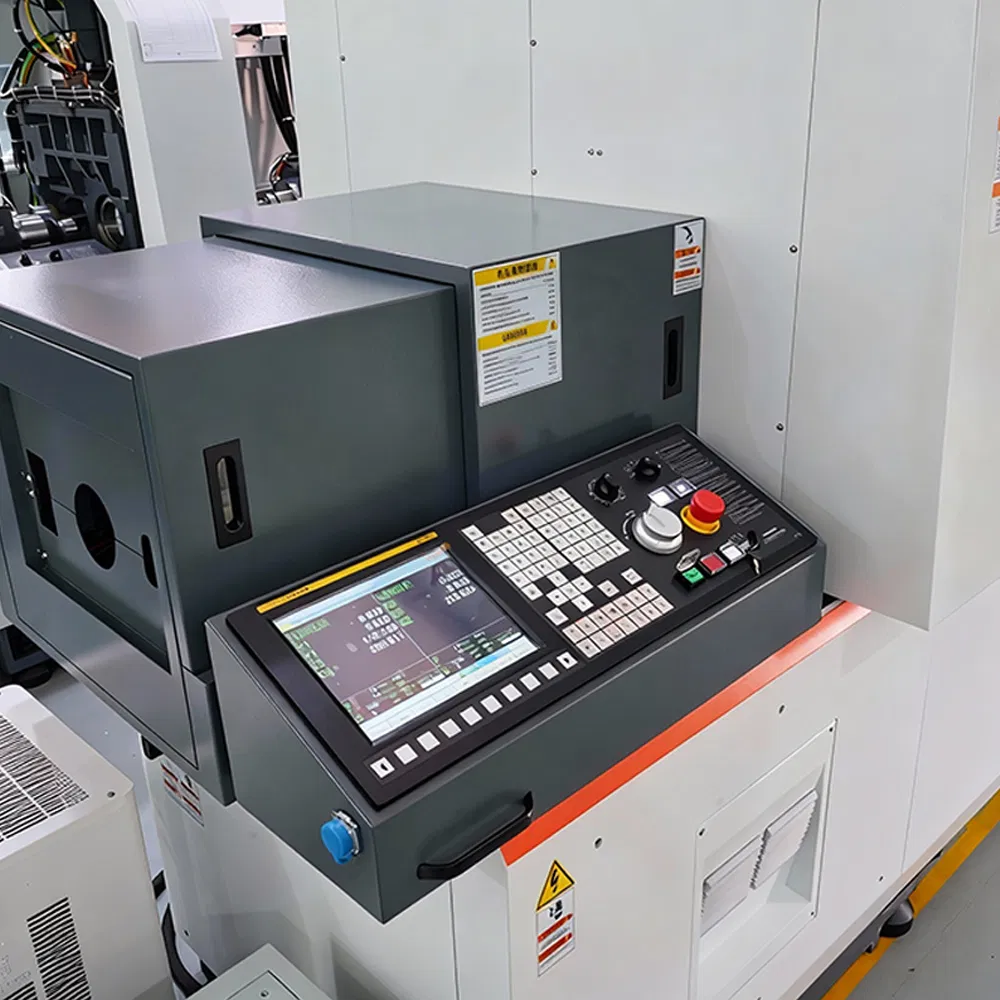

Control Method

CNC System

Processing Precision

0.03~0.04(mm)

Certification

System

Syntec

Guide Rail

THK, PMI

HS Code

8457101000

📦 Packaging & Delivery

Package Size

155.00cm * 106.00cm * 165.00cm

Package Gross Weight

3300.000kg

Transport Package

Plywood Case

🛠️ Product Description

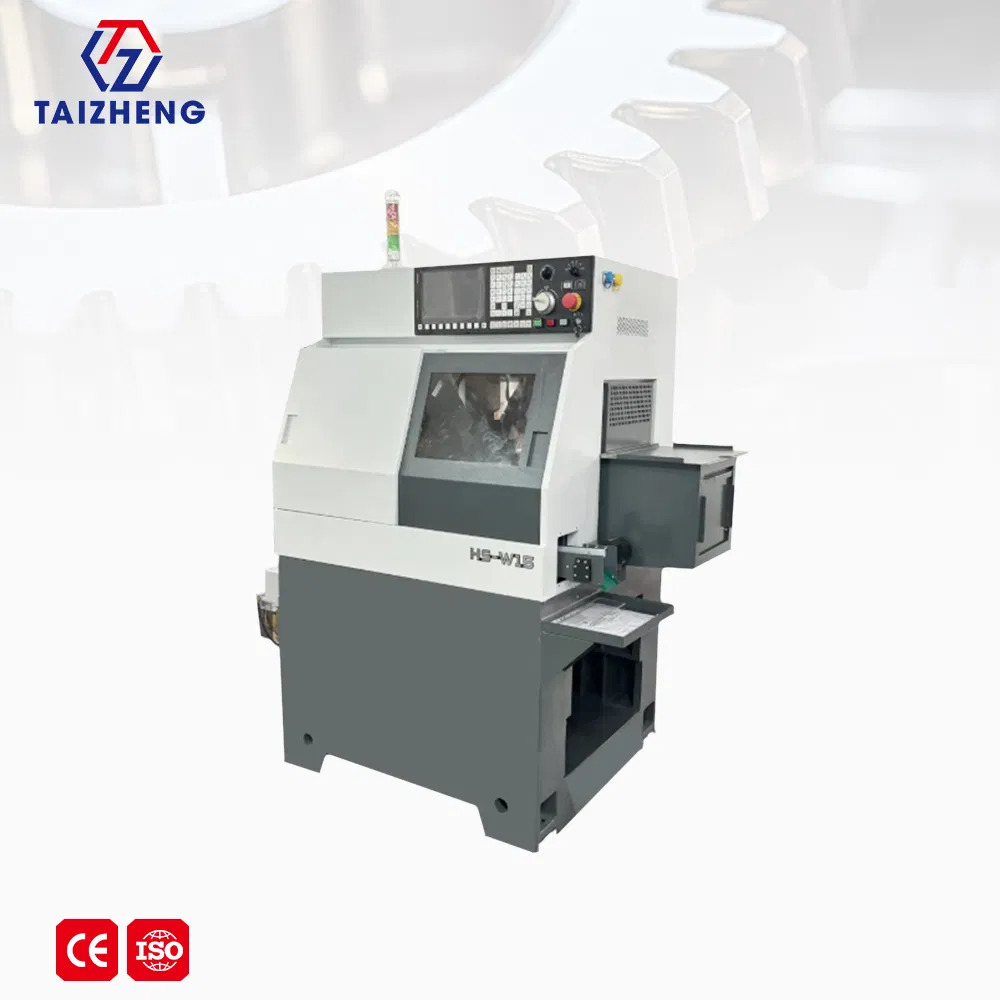

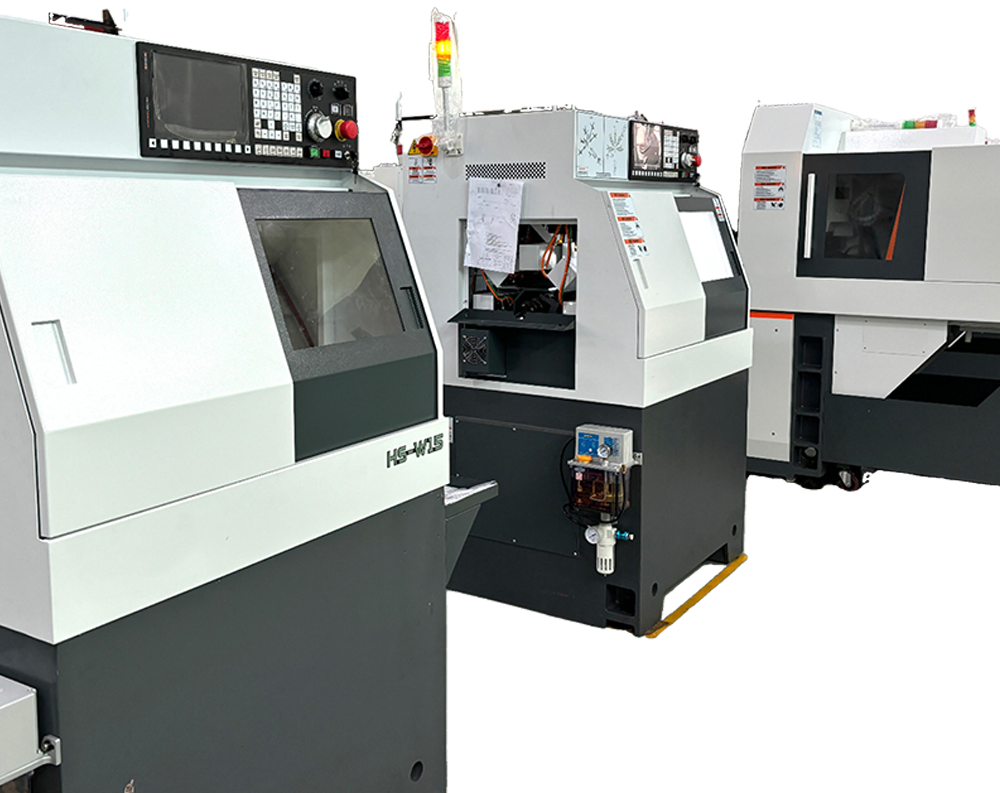

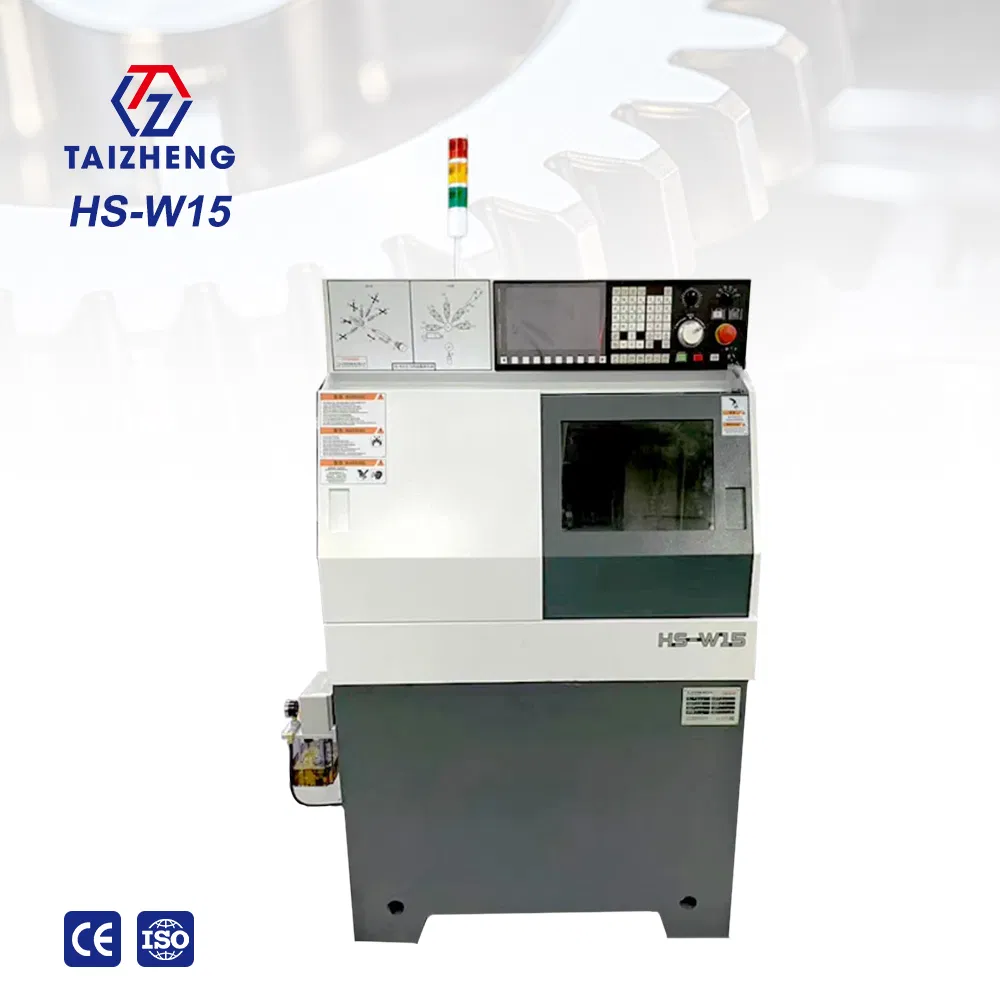

HS-W15: Increased Production Efficiency

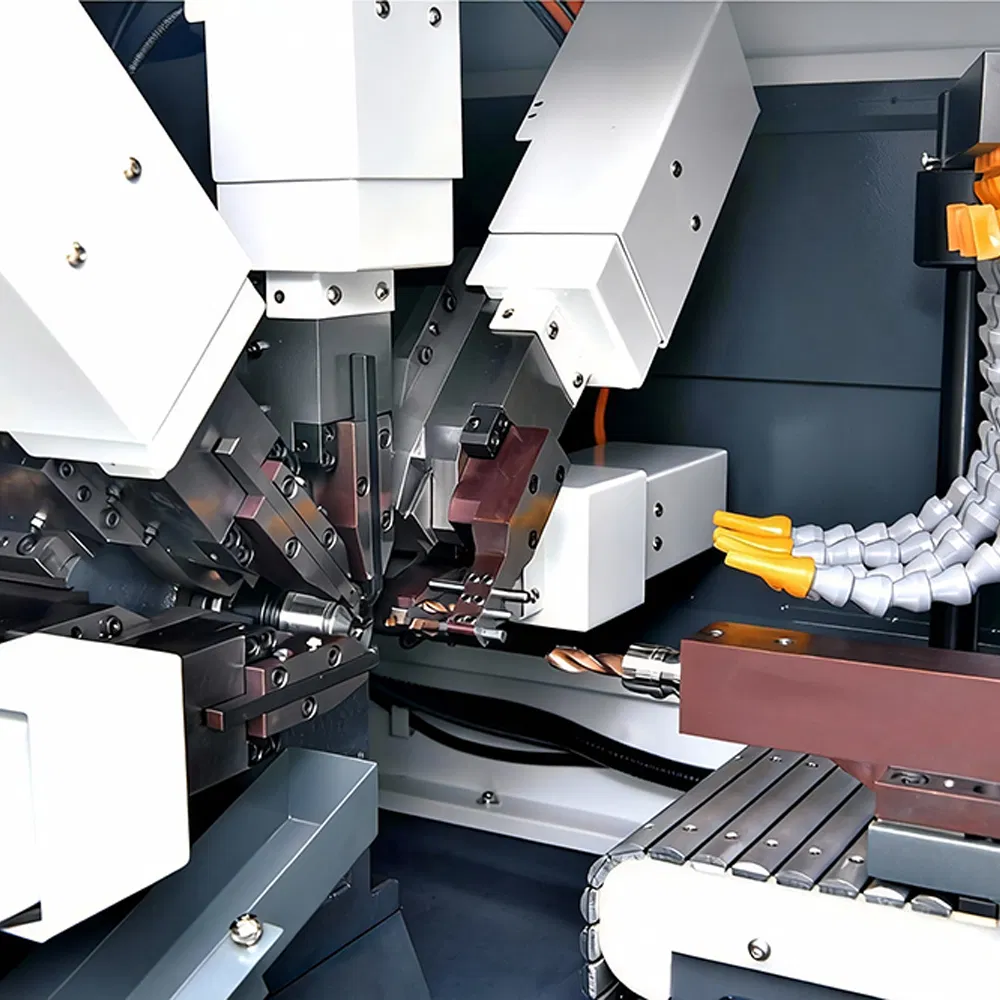

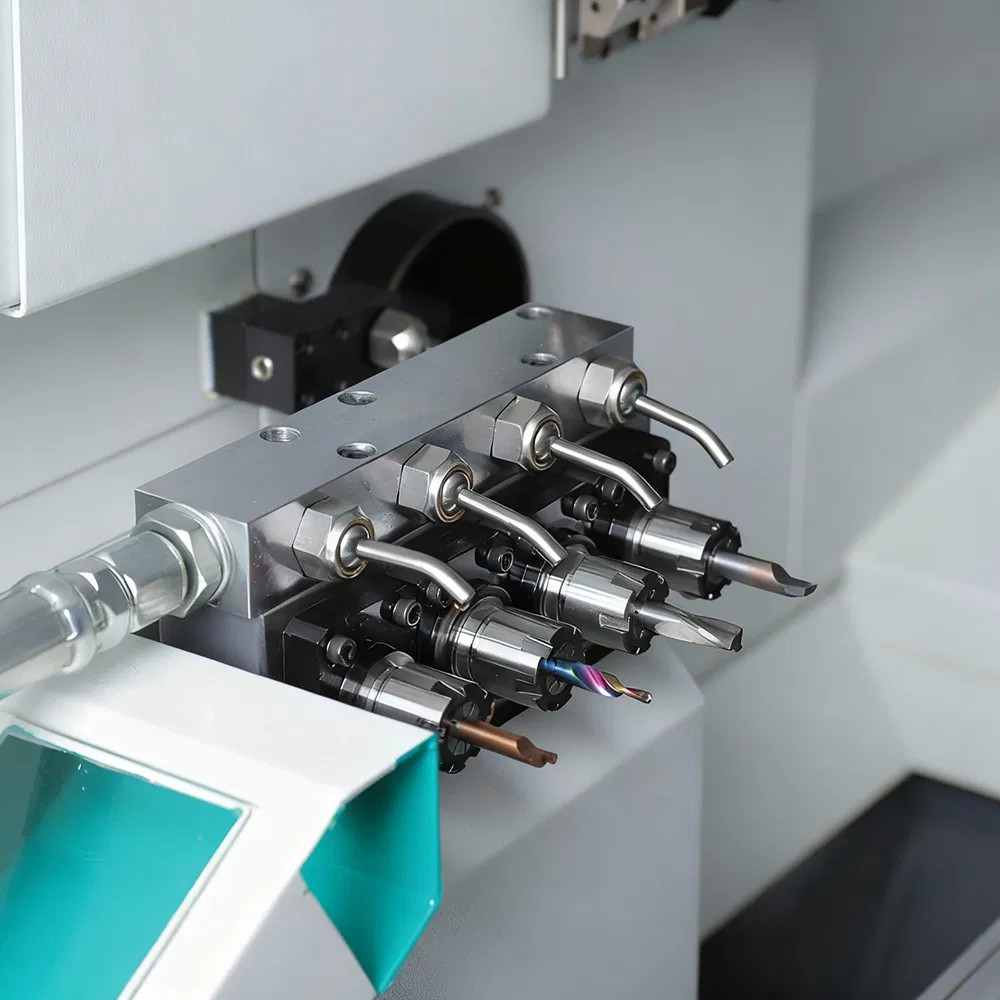

Simultaneous Multi-Tool Operation: The ability to use up to five tools simultaneously significantly reduces machining time.

Reduced Tool Change Time: Minimizes the need for frequent tool changes, saving time and boosting productivity.

Capability to Machine Complex Parts

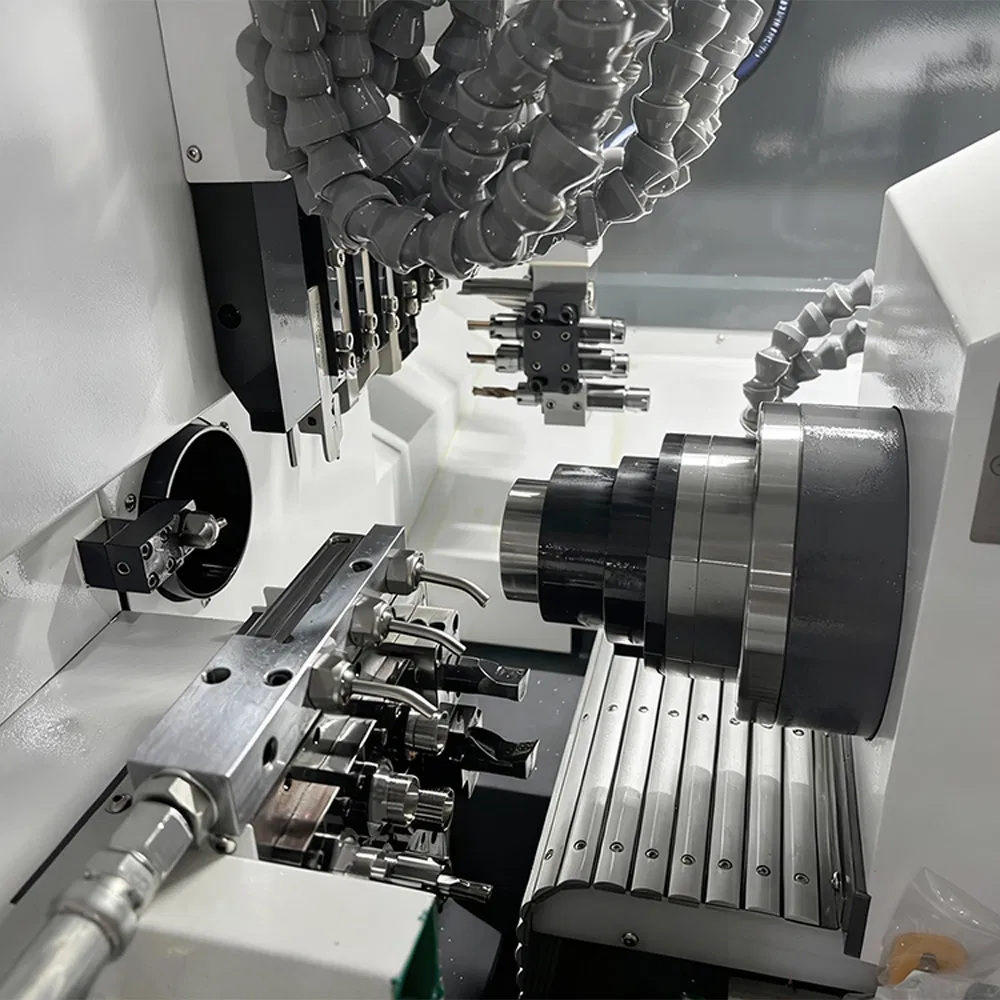

Integrated Multi-Process Machining: Perform turning, drilling, tapping, and milling in a single setup.

Support for Synchronised Spindle: Secondary spindle performs back-end machining for complex part streamlining.

📋 Technical Parameters

Machine Type	TZ-W20	TZ-W15
Number of Servo axes	13 axis	13 axis
Max Machining Diameter	Φ20mm	Φ15mm
Max Machining Length	30mm	30mm
Spindle Speed	8000rpm	8000rpm
Spindle Power	2KW	2KW
Dimension	155010601650mm	155010601650mm
Weight	1800Kg	1800Kg

❓ Frequently Asked Questions

What are the Payment Terms?

We accept T/T, with a 40% initial payment upon order confirmation, and the remaining 60% balance is due before shipment.

What are your trade terms?

We offer flexible terms including FOB, CFR, and CIF, ensuring a hassle-free transaction experience.

What is the typical delivery time?

For standard machines, we can prepare them within 30 days. For special machines, it may take longer based on specific requirements.

What is the minimum order quantity and warranty?

The minimum order quantity is one set, and we provide a comprehensive one-year warranty on our products.

How are the machines packaged for shipping?

Our machines are securely packaged in standard wooden (plywood) cases to ensure safe transportation and delivery.

How can I choose the most suitable machine?

Share your specifications or product drawings with us, and we will assist you in selecting the best model tailored to your needs.

Turning Drilling Tapping Milling Swiss Type CNC Lathe for Increased Production Efficiency

Product Description

HS-W15: Increased Production Efficiency

Capability to Machine Complex Parts
