Cora CNC
1 / 5
| Model NO. | LJVHMX-CNC-6500 |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Total Power | 62kw |
| Sawing Motor Power | 7.5kw |
| Electric Spindle Power | 6kw × 6 Units |
| Saw Blade Spec. | φ650×φ30×4.8×144t |
| Cutting Range | 400-6500 mm |
| Package Size | 185.00cm * 50.00cm * 25.00cm |
| Gross Weight | 9000.000kg |

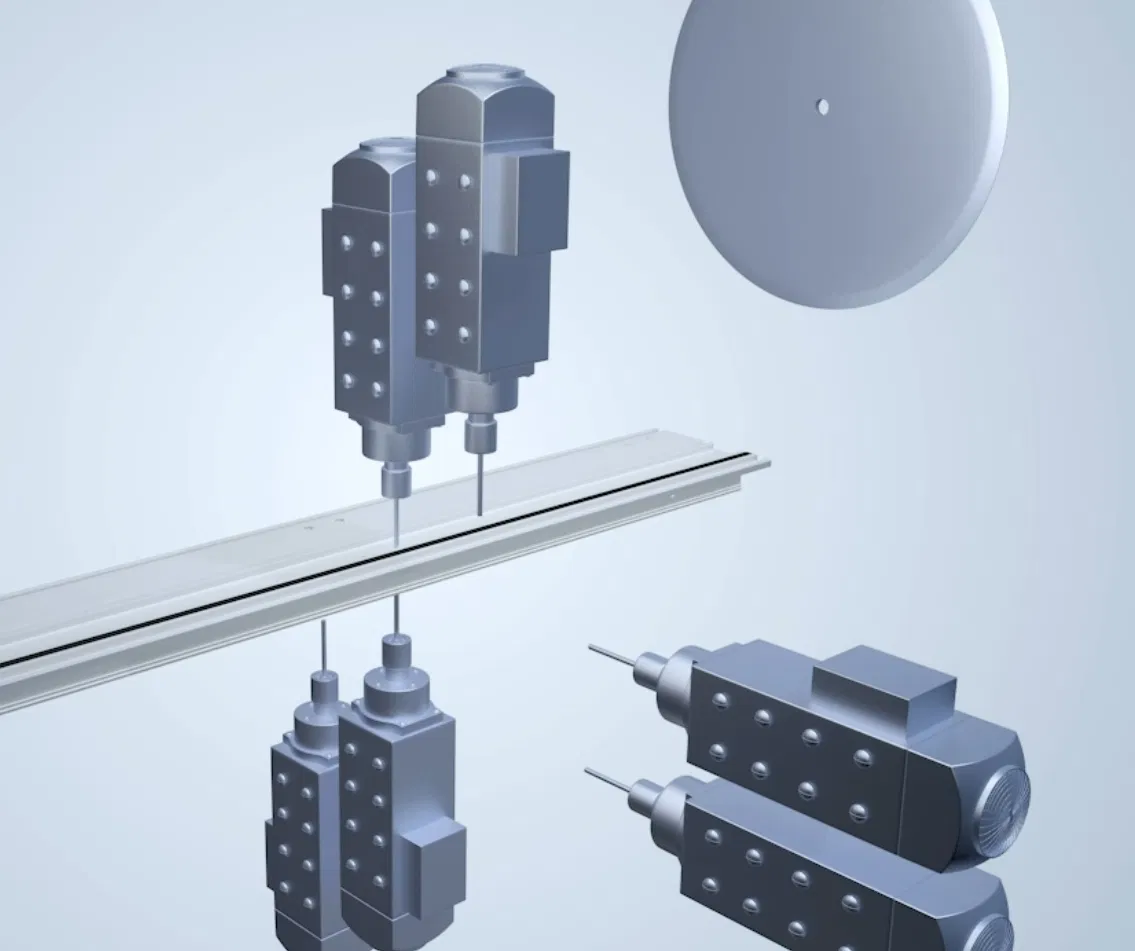

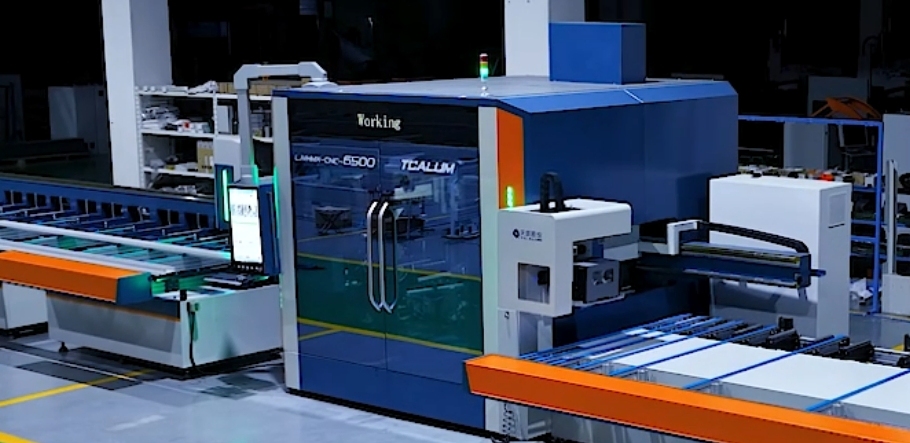

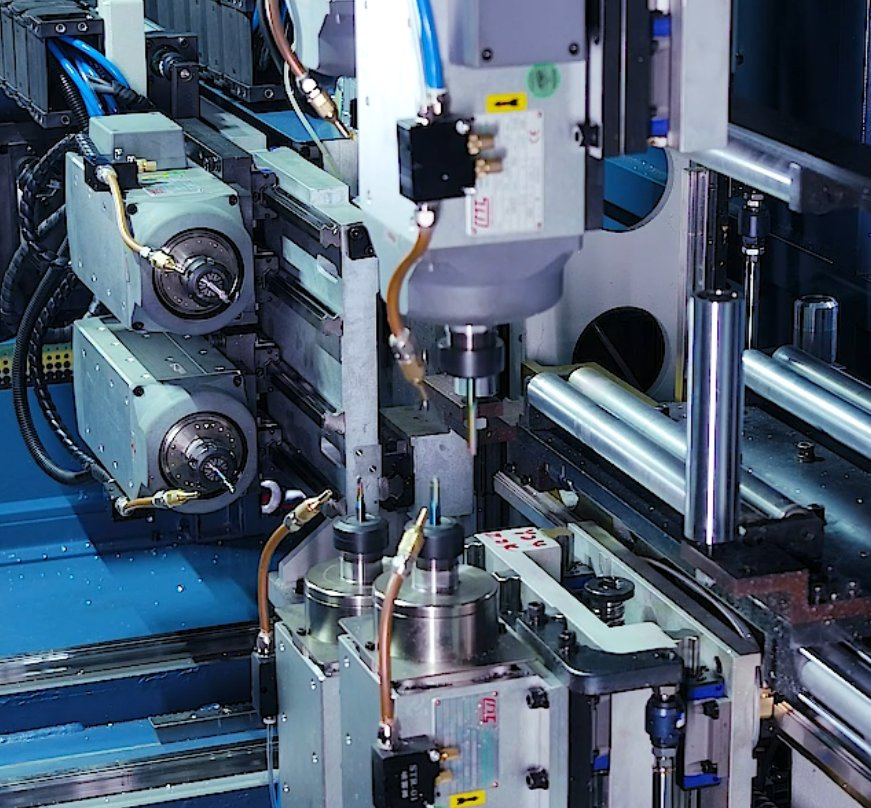

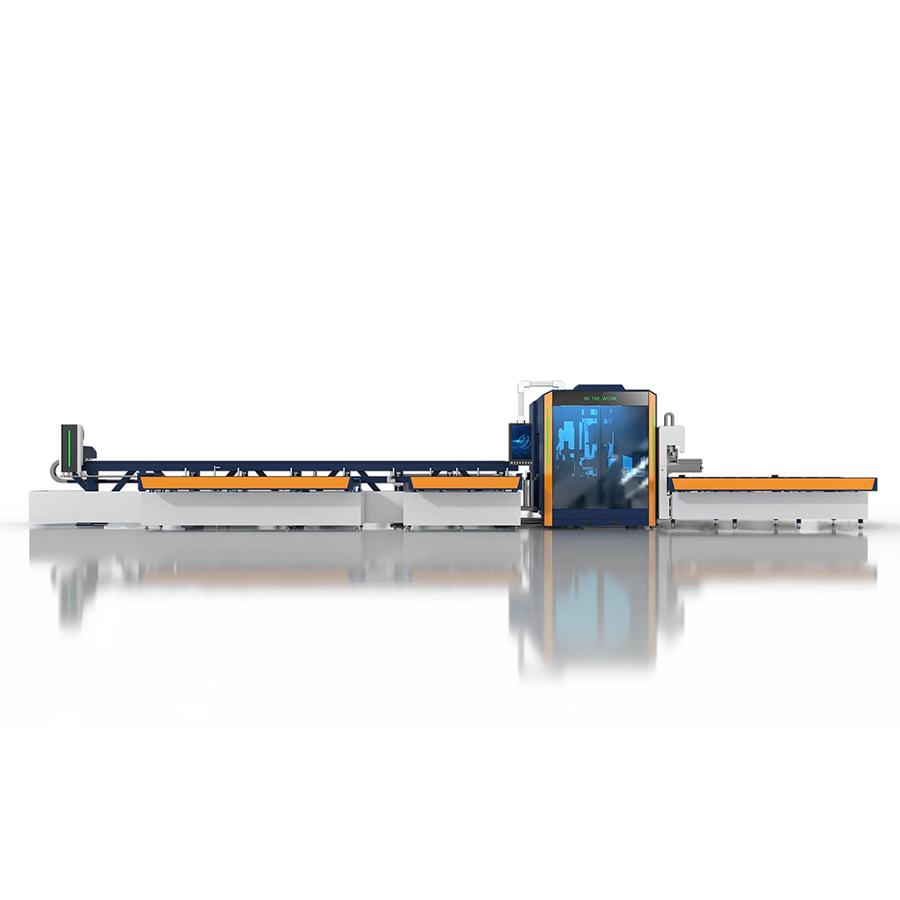

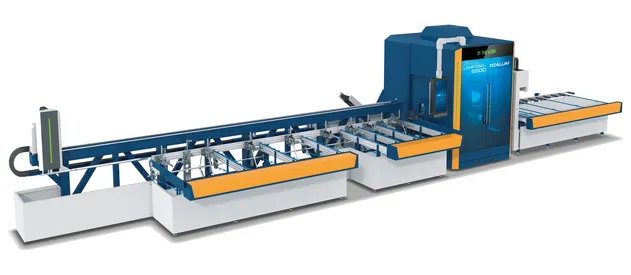

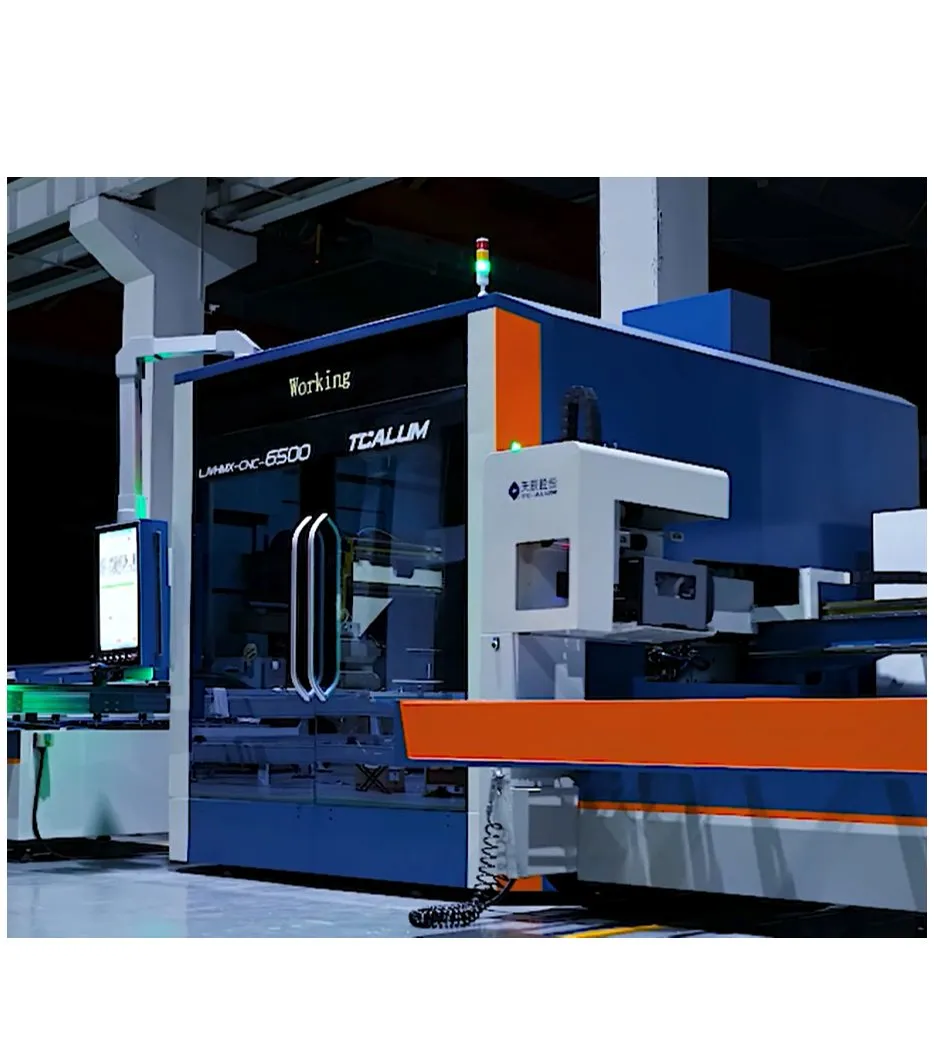

The Model LJVHMX-CNC-6500 is a high-performance CNC system integrating drilling, milling, and sawing. Specifically designed for aluminum curtain wall profiles, it achieves superior automation. Utilizing multiple synchronized spindles and automatic handling, it boosts efficiency and accuracy for modern digital factories.
| Working Air Pressure | 0.5-0.8MPa |
| Air Consumption | 150L/min |
| Cutting Profile Height | 30-190mm |
| Cutting Profile Width | 30-350mm |
| Overall Dimensions | 18500×5000×2500mm |

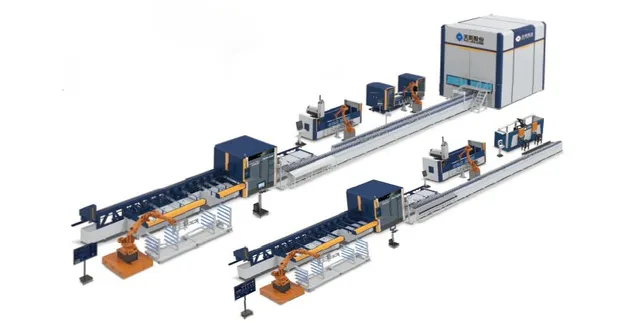

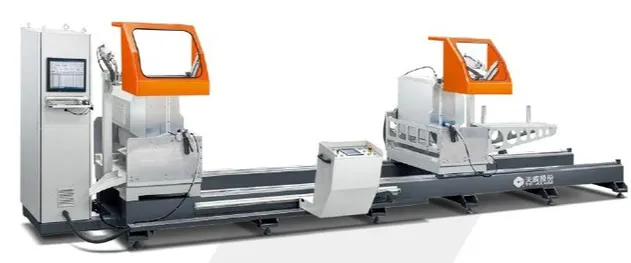

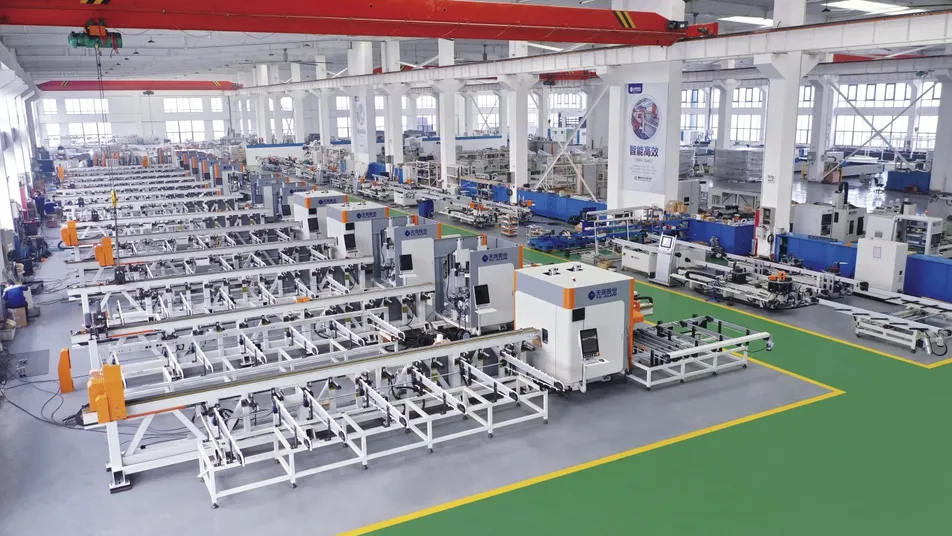

Comprehensive machinery for aluminum door, window, and curtain wall production, including Intelligent Machining Centers, CNC Cutting Saws, and Assembly Lines.
A high-tech enterprise specializing in R&D, manufacturing, and sales. We provide automated aluminum window, door, and curtain wall fabrication systems with extensive market penetration and service networks.
Pre-Sale: Complimentary consultation and customized professional design solutions.
After-Sale: 24/7 technical support, 1-year warranty, and overseas engineer dispatch for installation and training.
Payment: L/C, T/T (30% deposit, 70% balance before shipment).
