📋 Basic Information
Model NO.T46
ApplicationMetal
Numerical ControlCNC/MNC
Processing Precision0.01~0.02(mm)
Control MethodClosed-Loop
CNC SystemGSK / Fanuc / Siemens
CertificationISO 9001
OriginChina

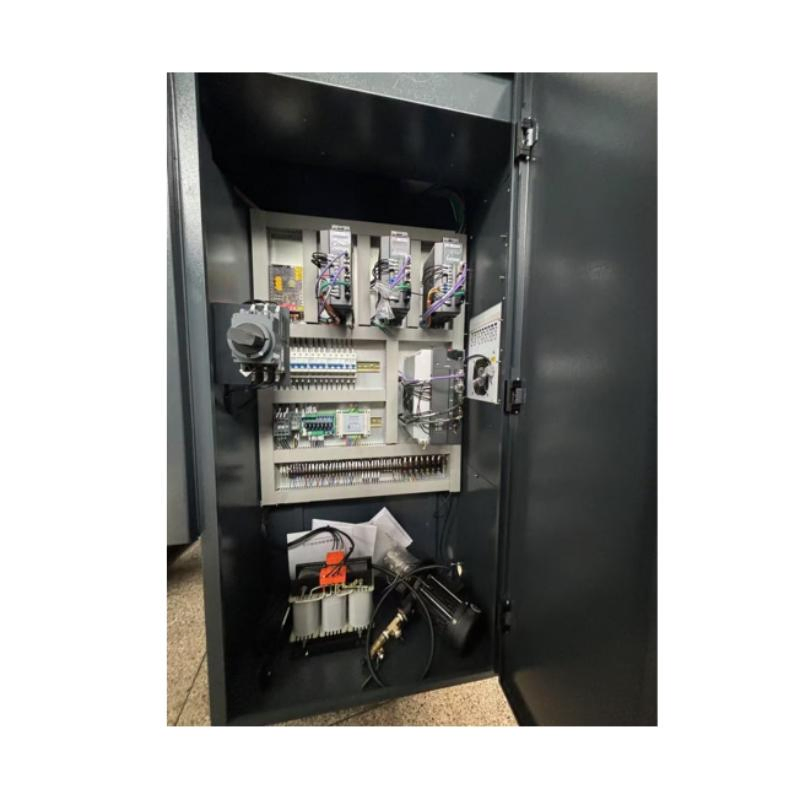

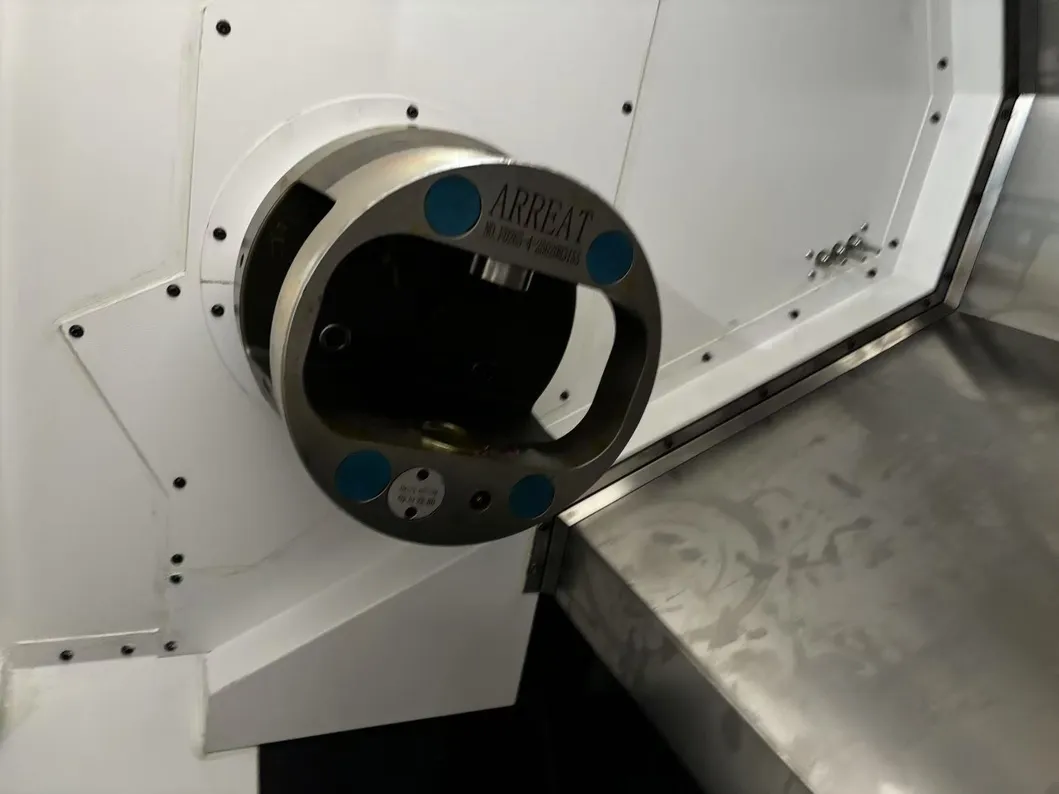

📸 Detailed Photos

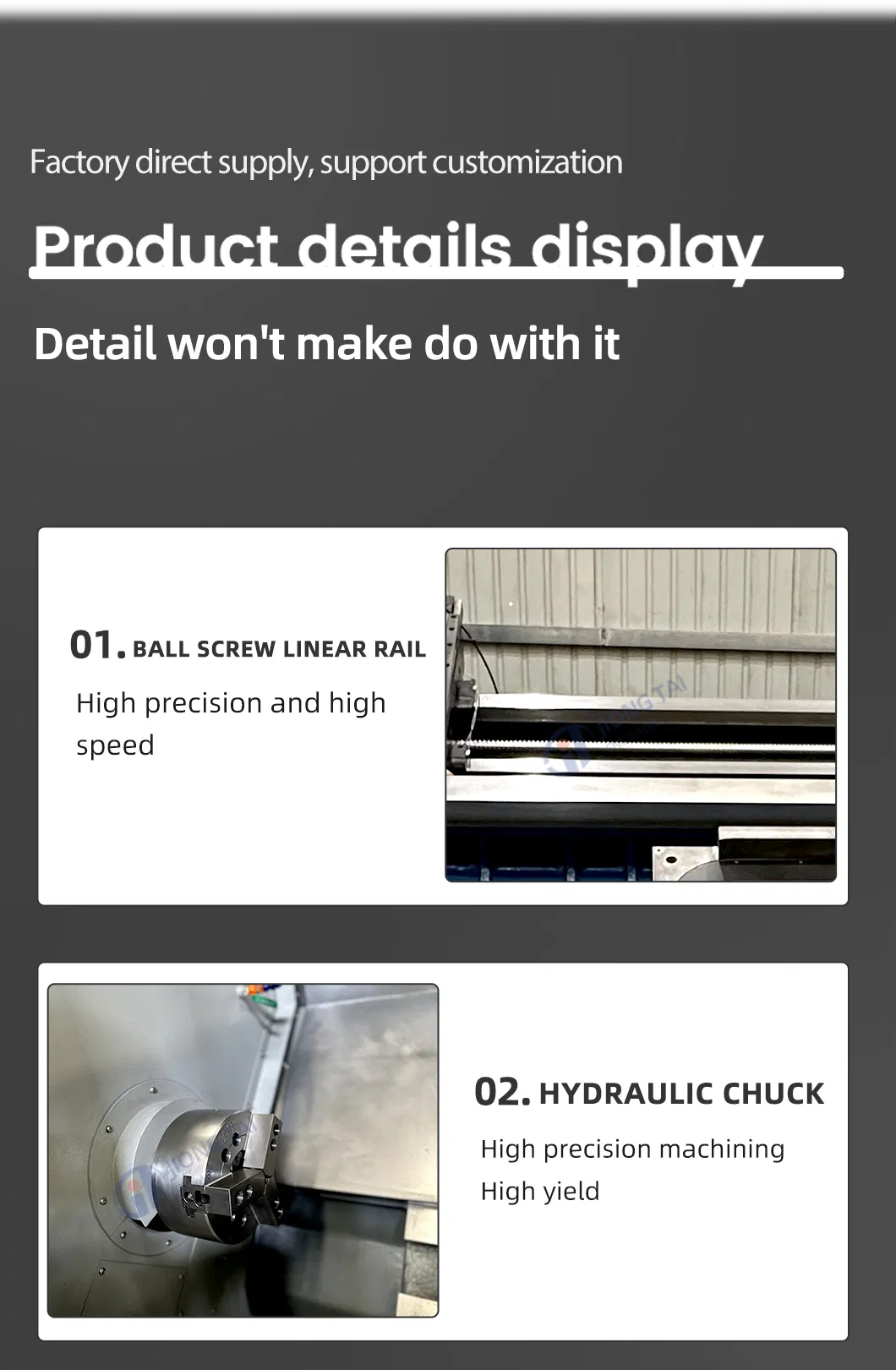

⚙️ Product Configuration
📊 Product Parameters

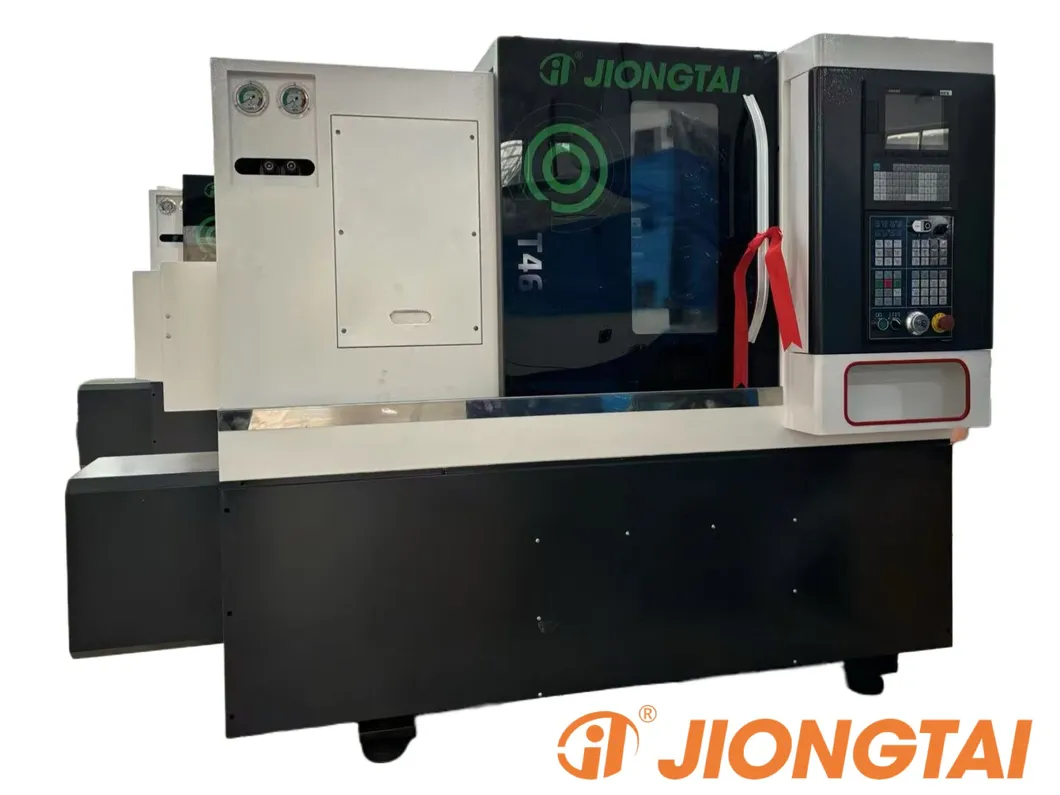

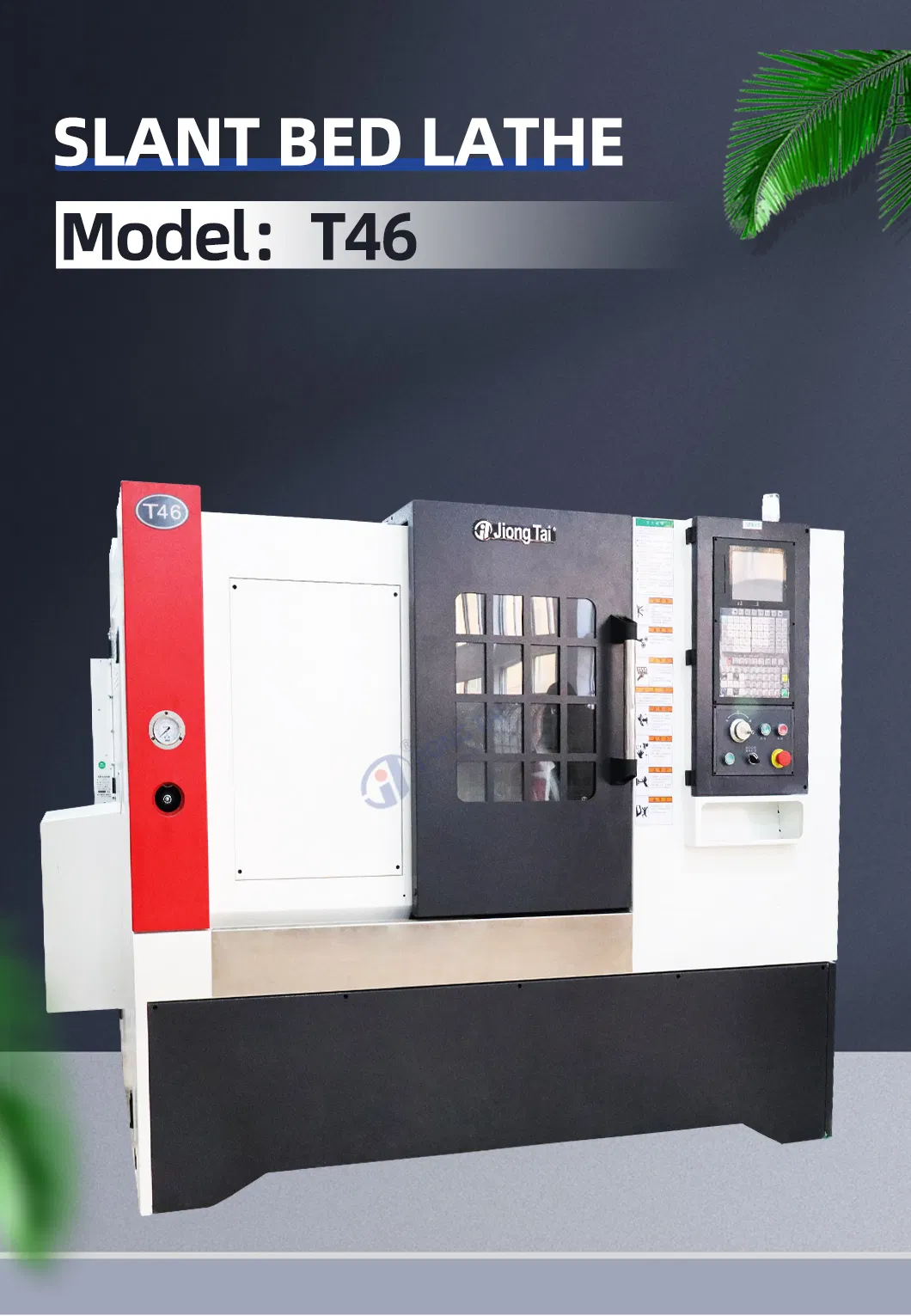

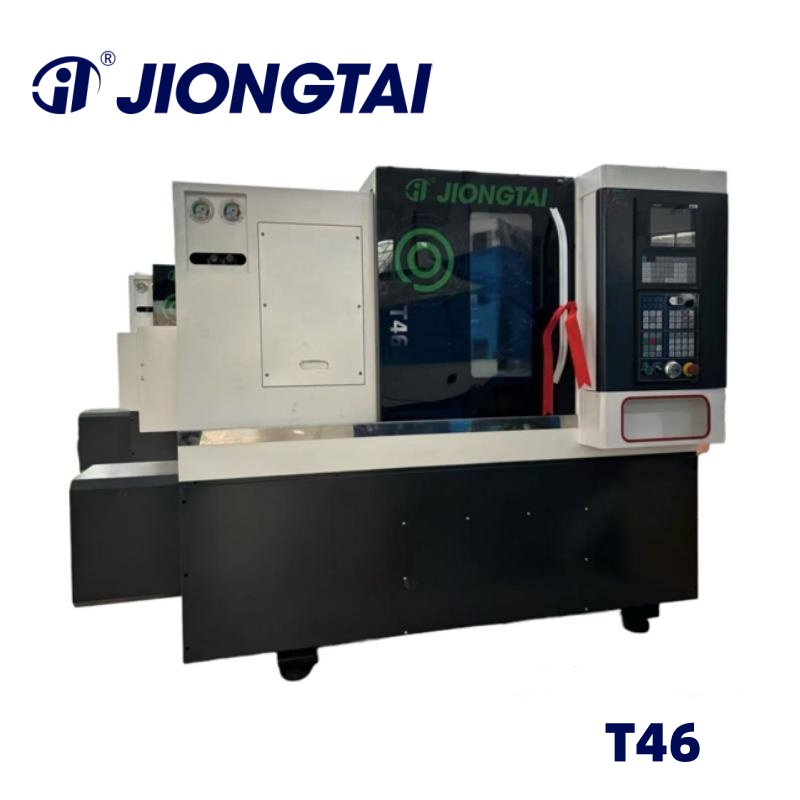

The T46 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption, ensuring high-precision cutting. It uses an AC servo motor with a V-belt direct drive spindle for low noise. The spindle has precision high-speed bearings and a box-type support for high-speed operation. Equipped with a multi-position or powered turret, it can machine complex parts like cylinders, threads, slots, and worms, offering linear and arc interpolation for mass production.
| General Rules | CNC system | - | GSK |

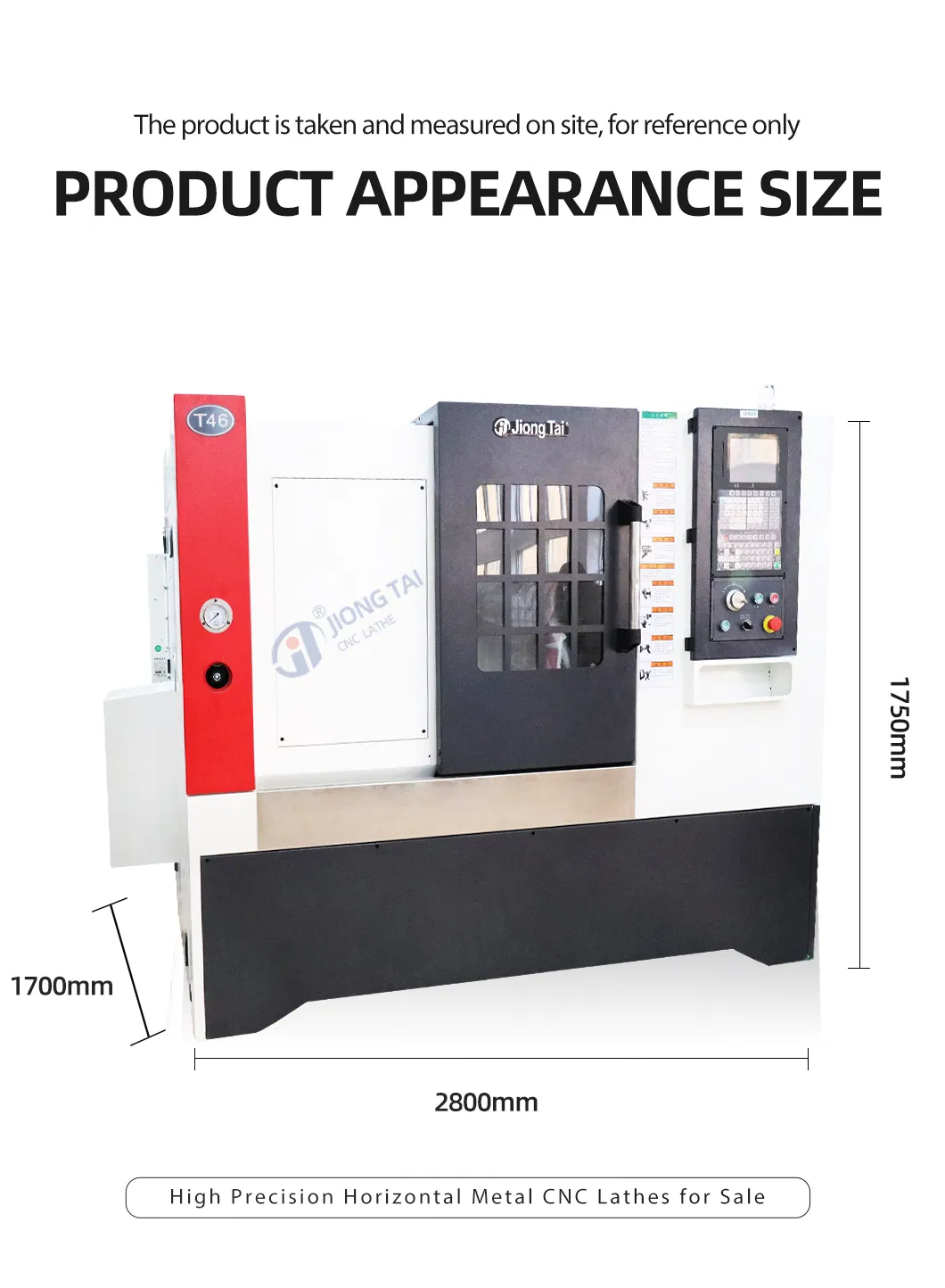

| Physical dimension | mm | 2800*1700*1750 |
| Total weight | kg | 3500 |
| Technical specs | Max rotation diameter | mm | φ500 |
| Max processing length | mm | 480 |
| Max workpiece length | mm | 530 |
| Max turning disc diameter | mm | φ400 |
| Spindle | Main motor | kw | 11 |
| Spindle hole diameter | mm | φ56 |
| Max bar diameter | mm | φ46 |
| Spindle speed | rpm | 50-3000 |
| Feeding system | X/Z axis travel | mm | 230 / 500 |
| Rapid feed (X/Z) | m/min | 20 |
| Positioning accuracy | mm | 0.005 |
| Surface roughness | - | Ra1.6 |
❓ Frequently Asked Questions
What is the main advantage of the T46 slant-bed design?
The one-piece cast bed and slant guide rails provide superior rigidity and vibration absorption, which is essential for maintaining high precision during heavy-duty cutting.

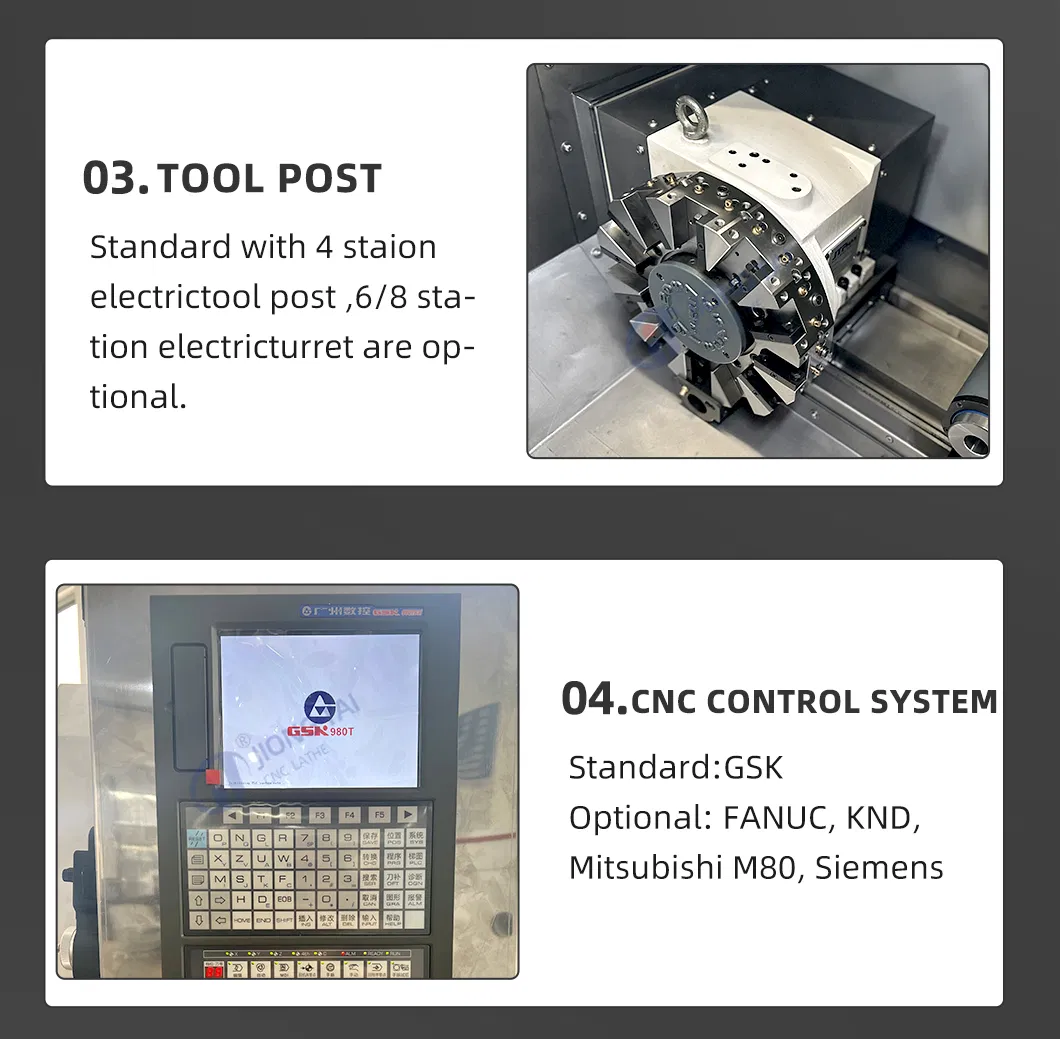

Which CNC control systems are compatible with this machine?
Standard configuration uses GSK, but it optionally supports Fanuc, Mitsubishi M80, Siemens, KND, and Nanjing KT systems.
What is the positioning accuracy of the X and Z axes?
Both the X and Z axes feature a high positioning and repeat positioning accuracy of 0.005mm.
Can the T46 handle mass production of complex parts?

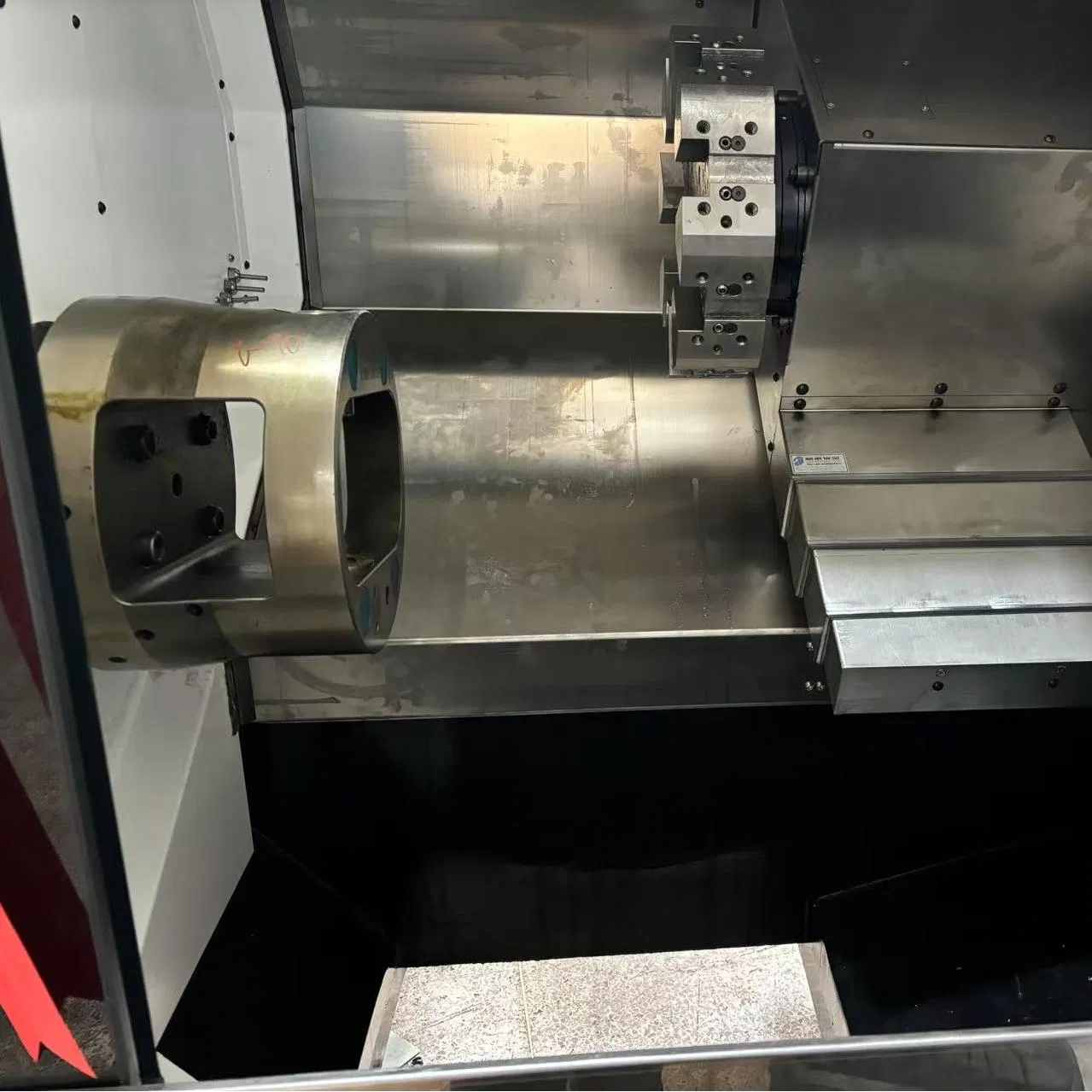

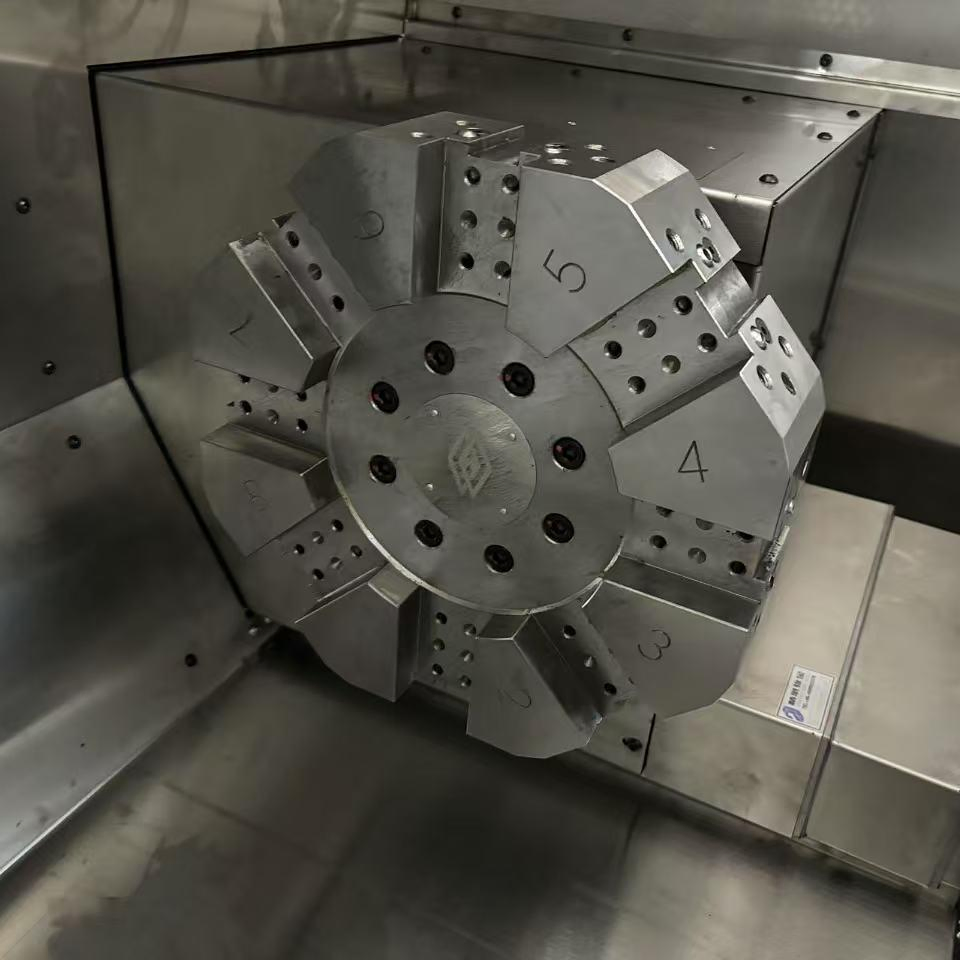

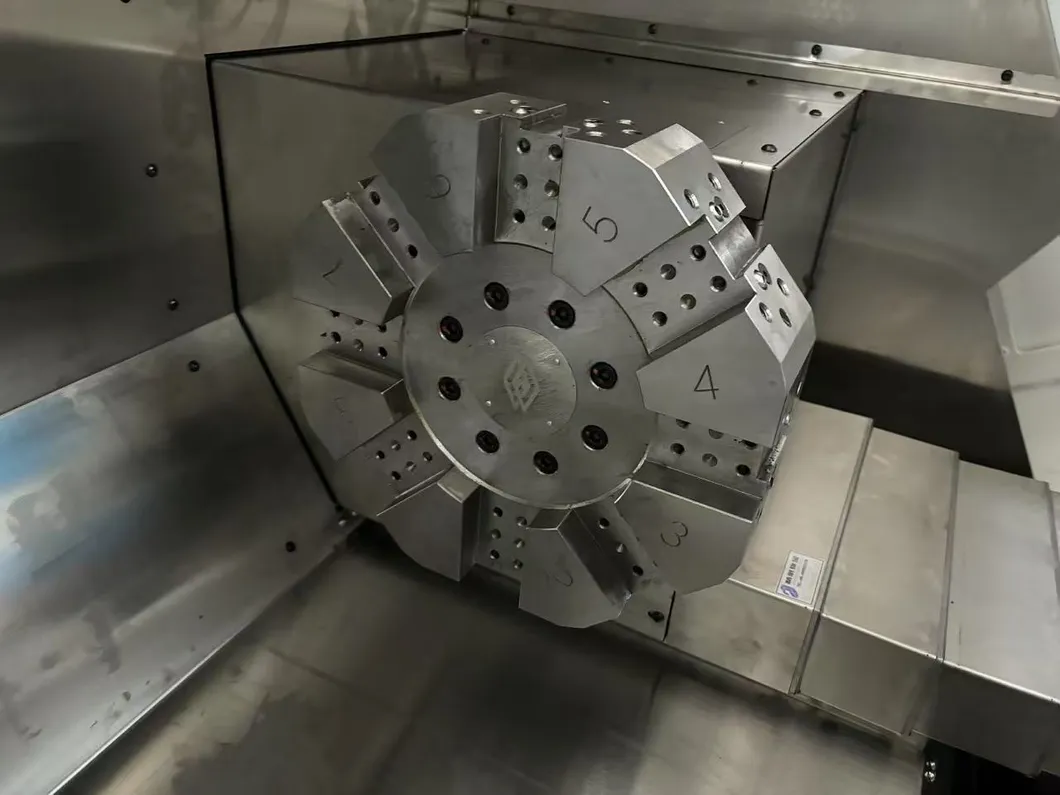

Yes, equipped with a multi-position turret and linear/arc interpolation capabilities, it is designed for mass production of complex parts like threads, slots, and worms.

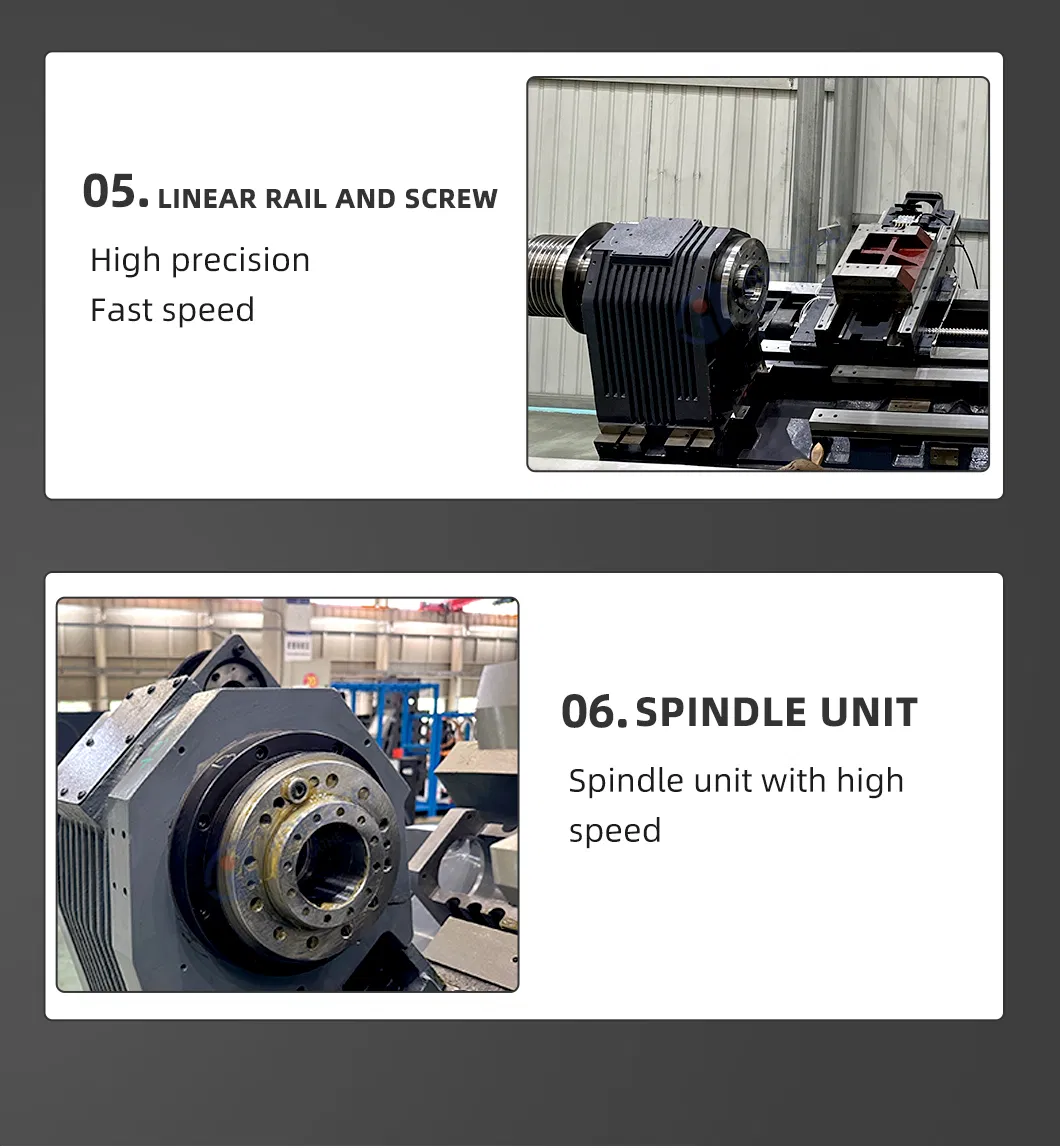

What type of spindle drive does it use?
It utilizes an AC servo motor with a V-belt direct drive spindle to ensure low noise and smooth operation.
