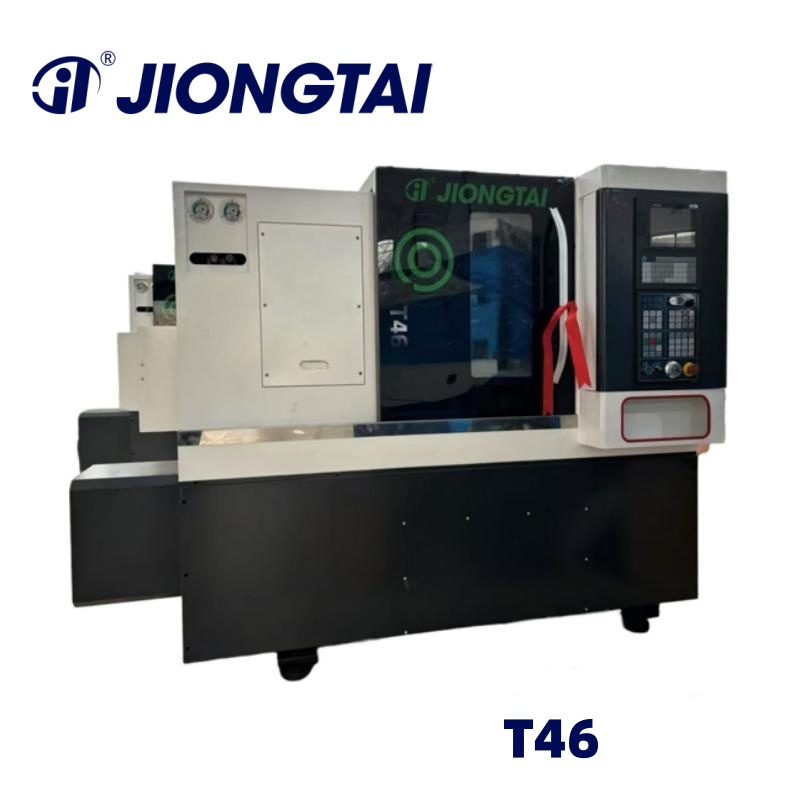

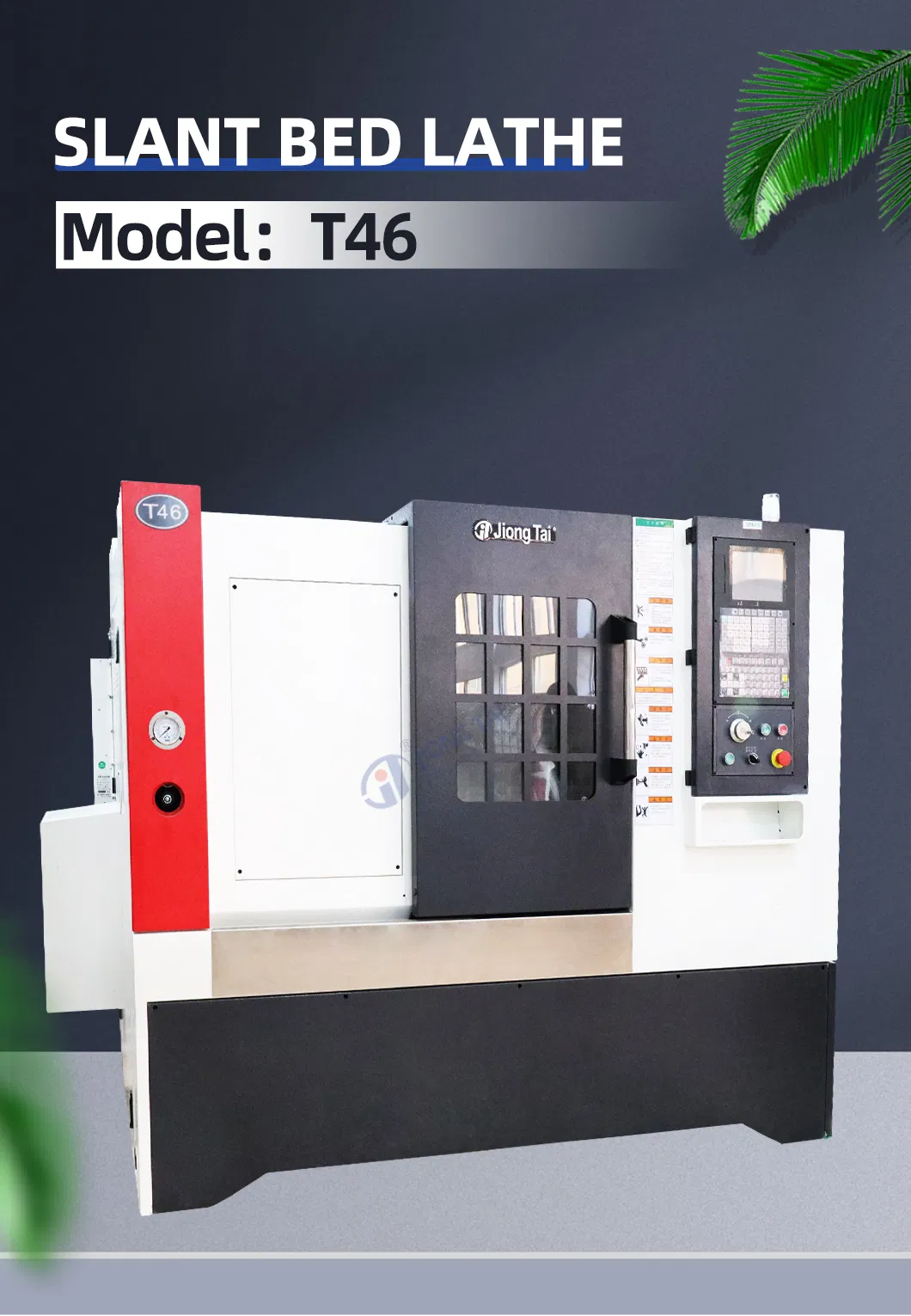

T46 Compact High Precision CNC Machine Slant Bed Lathe

1 / 5

T46 Compact High Precision CNC Machine Slant Bed Lathe

Customization:	Available
After-sales Service:	a Year
Warranty:	a Year

Send Inquiry

Product Description

Basic Information

Model NO.

T46

Application

Metal

Process Usage

CNC Non-Conventional Machine Tools

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

CNC System

GSK / Optional: Fanuc, Mitsubishi, Siemens

Specification

2800*1700*1750mm

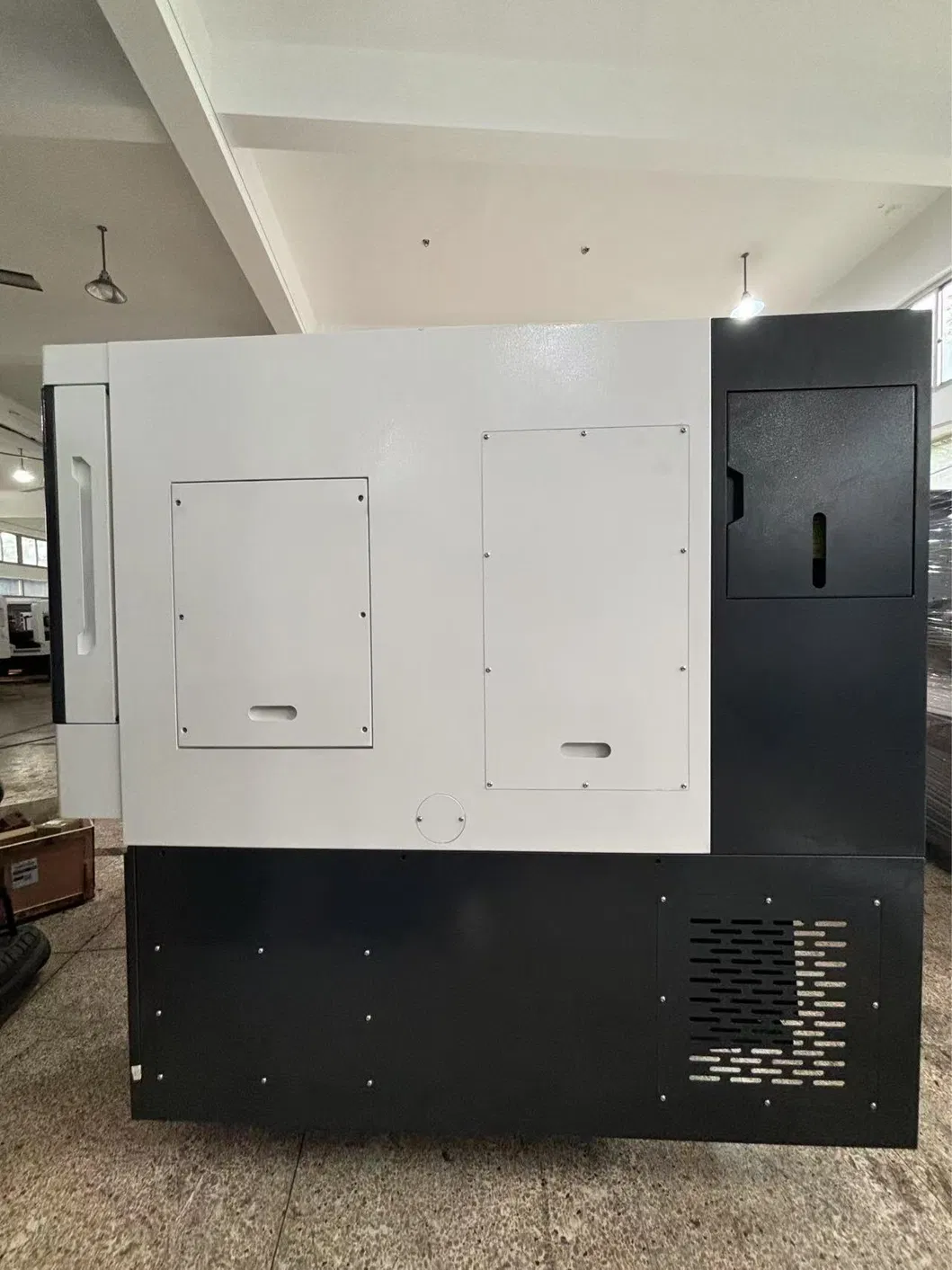

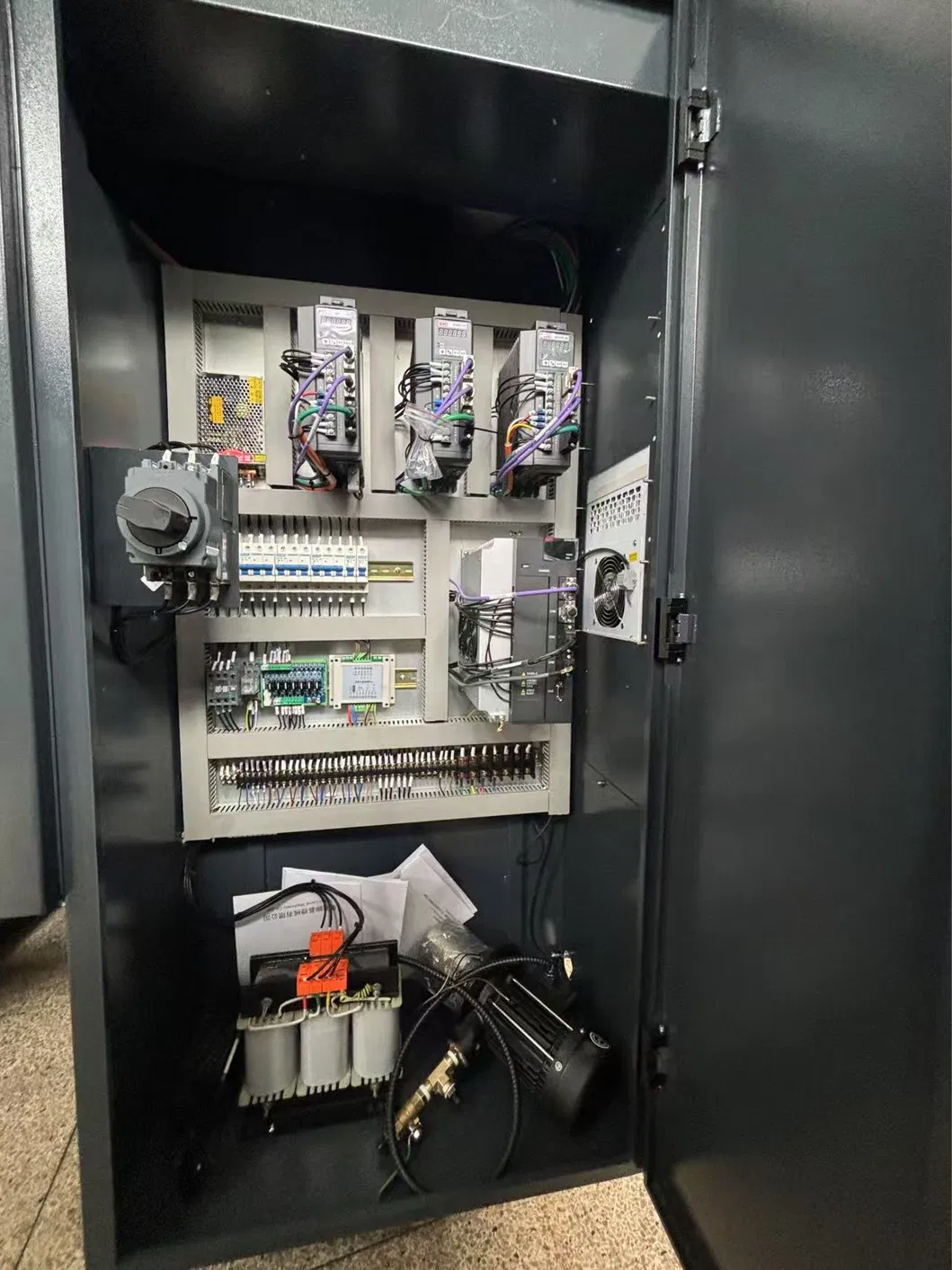

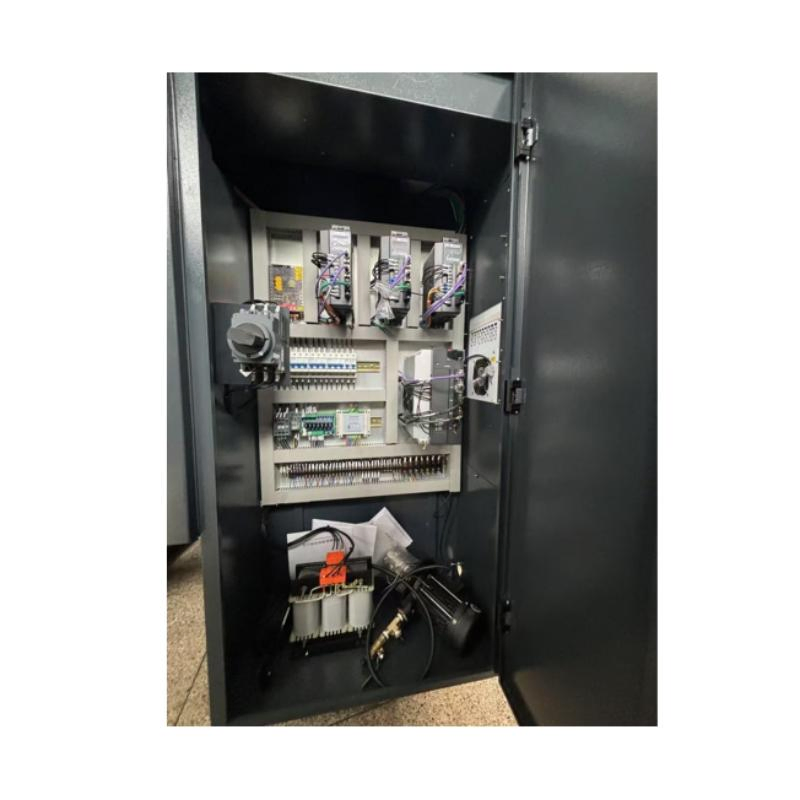

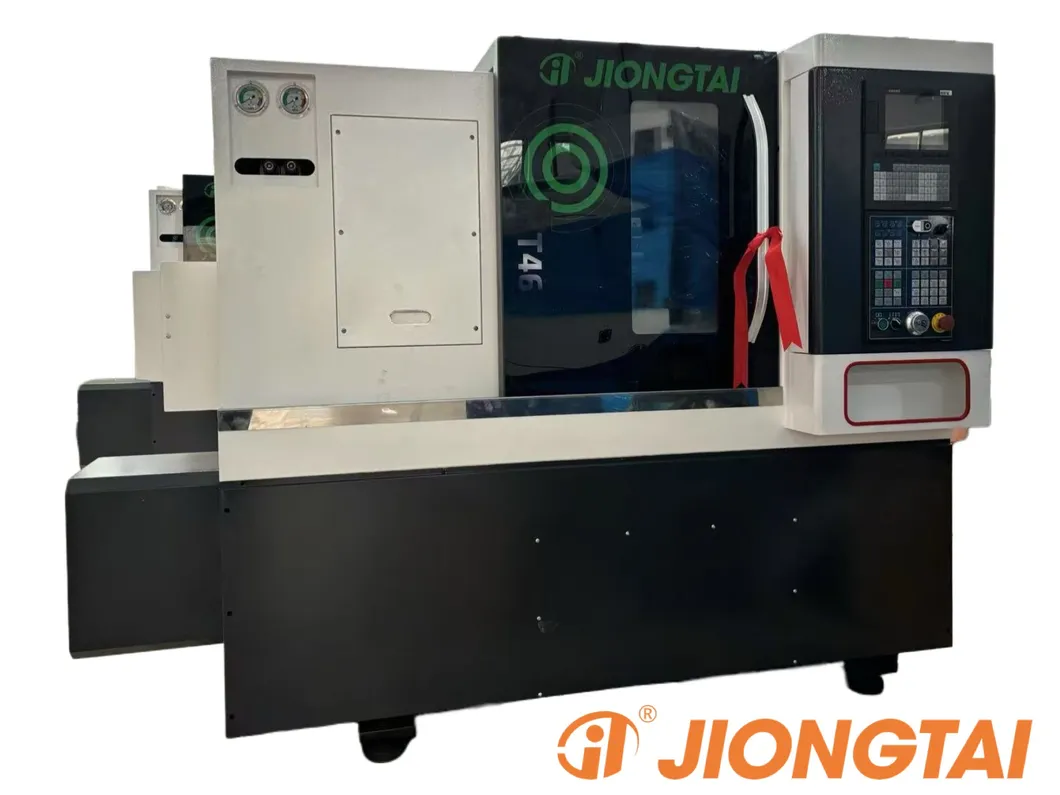

Detailed Photos

Product Description

⚙️ High Precision & Rigidity: Features a one-piece cast bed and slant guide rails for excellent vibration absorption.

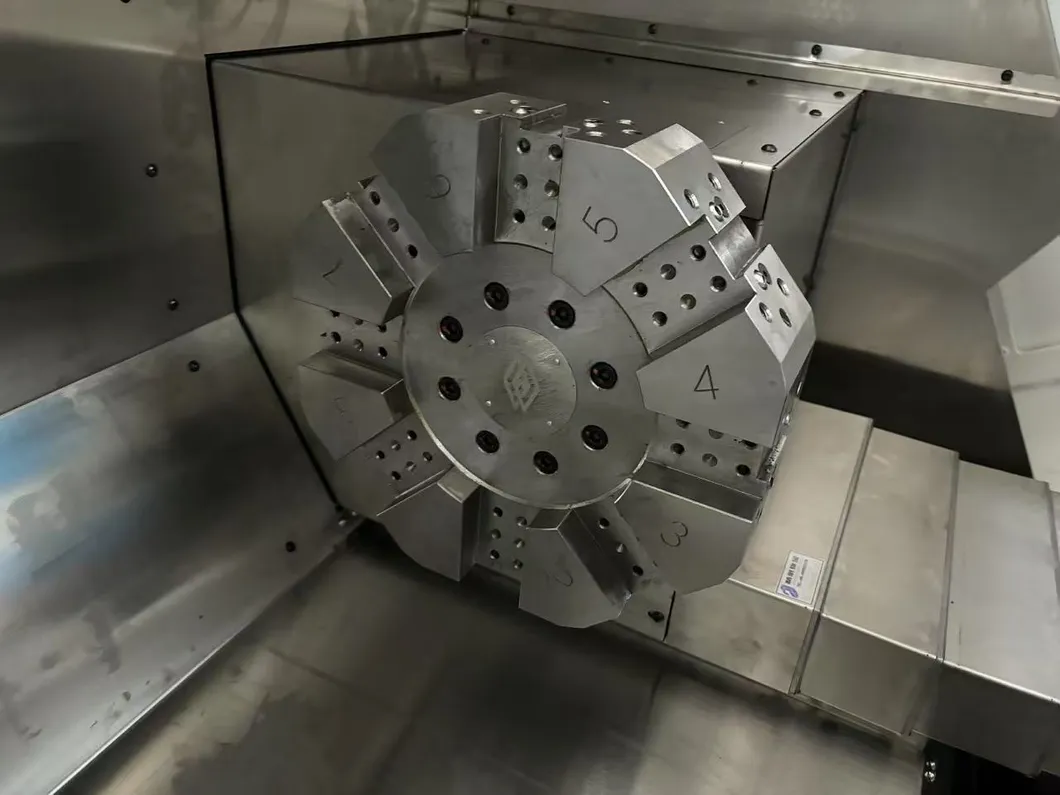

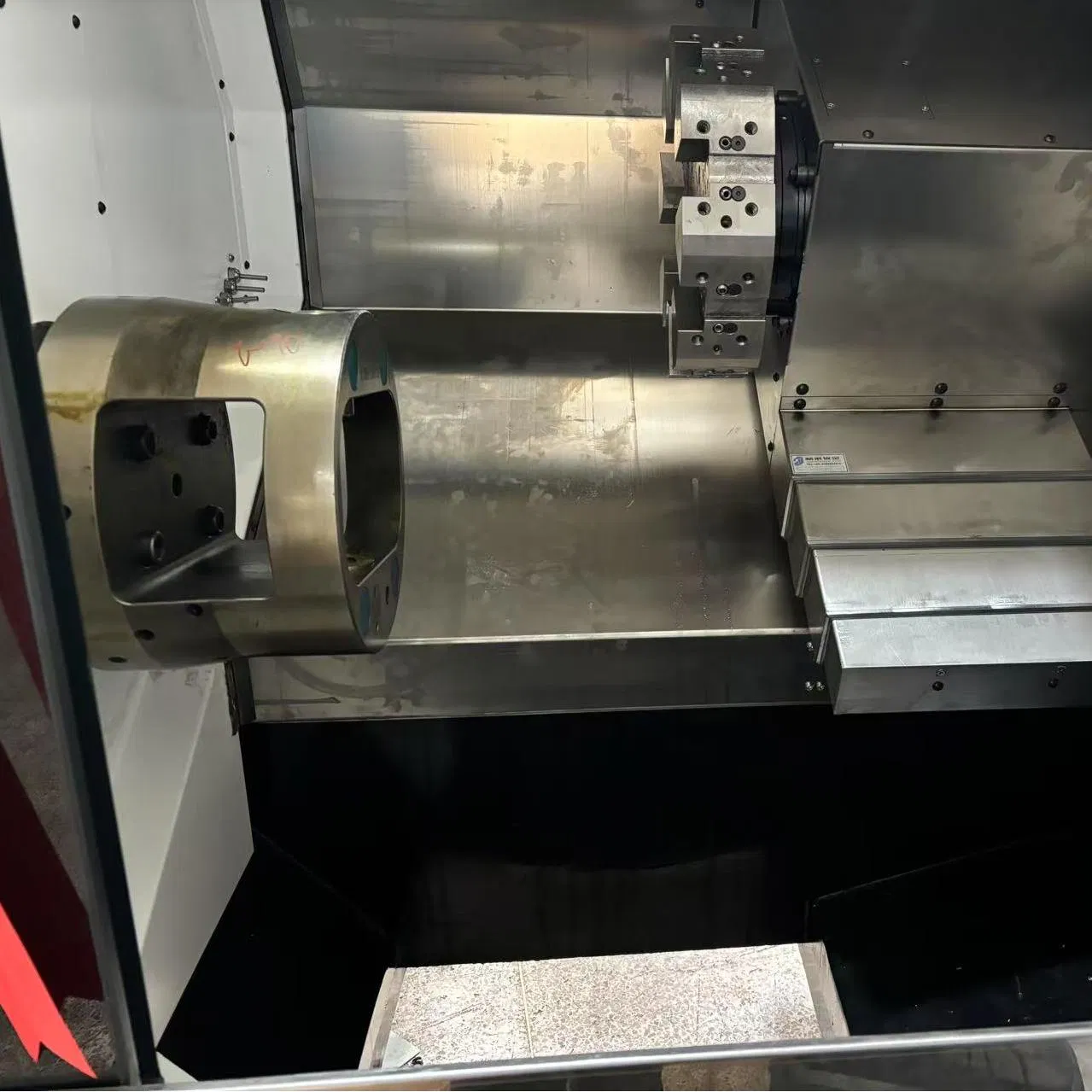

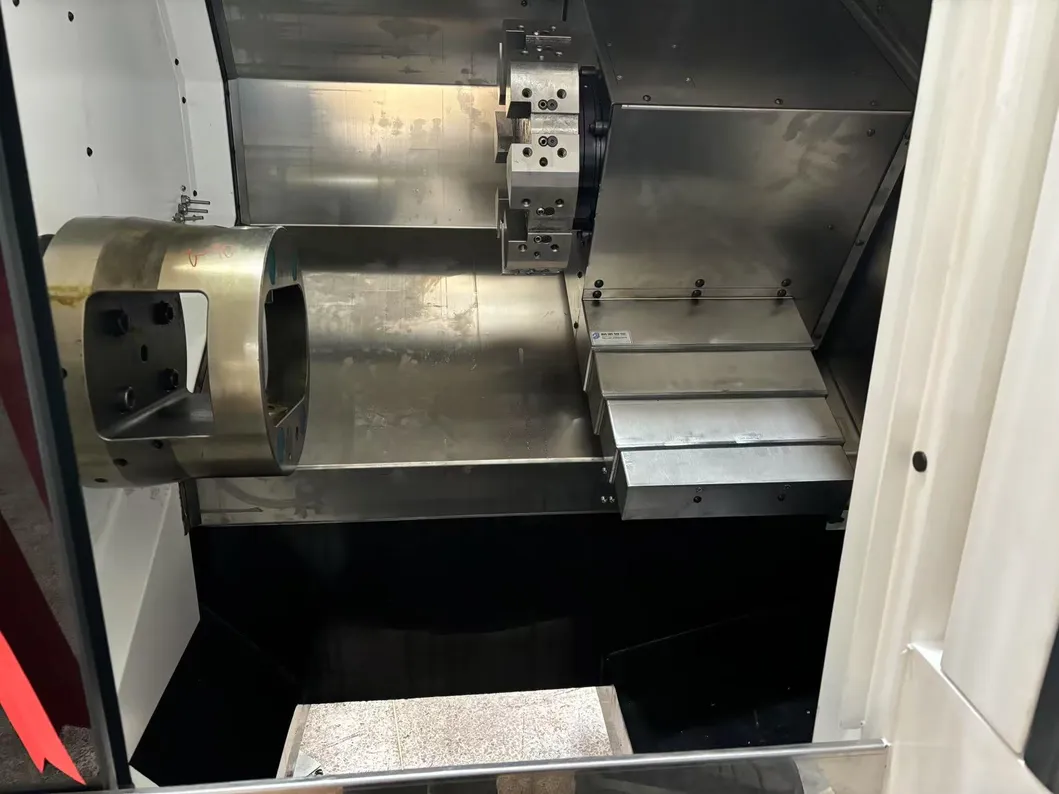

The T46 slant-bed CNC lathe utilizes an AC servo motor with a V-belt direct drive spindle for low noise operation. The spindle features precision high-speed bearings and box-type support. Equipped with a multi-position turret, it machines complex parts including cylinders, threads, slots, and worms with high-speed linear and arc interpolation.

Product Configuration

Technical Parameters

ITEM		UNIT	T46
General Rules	CNC System	-	GSK

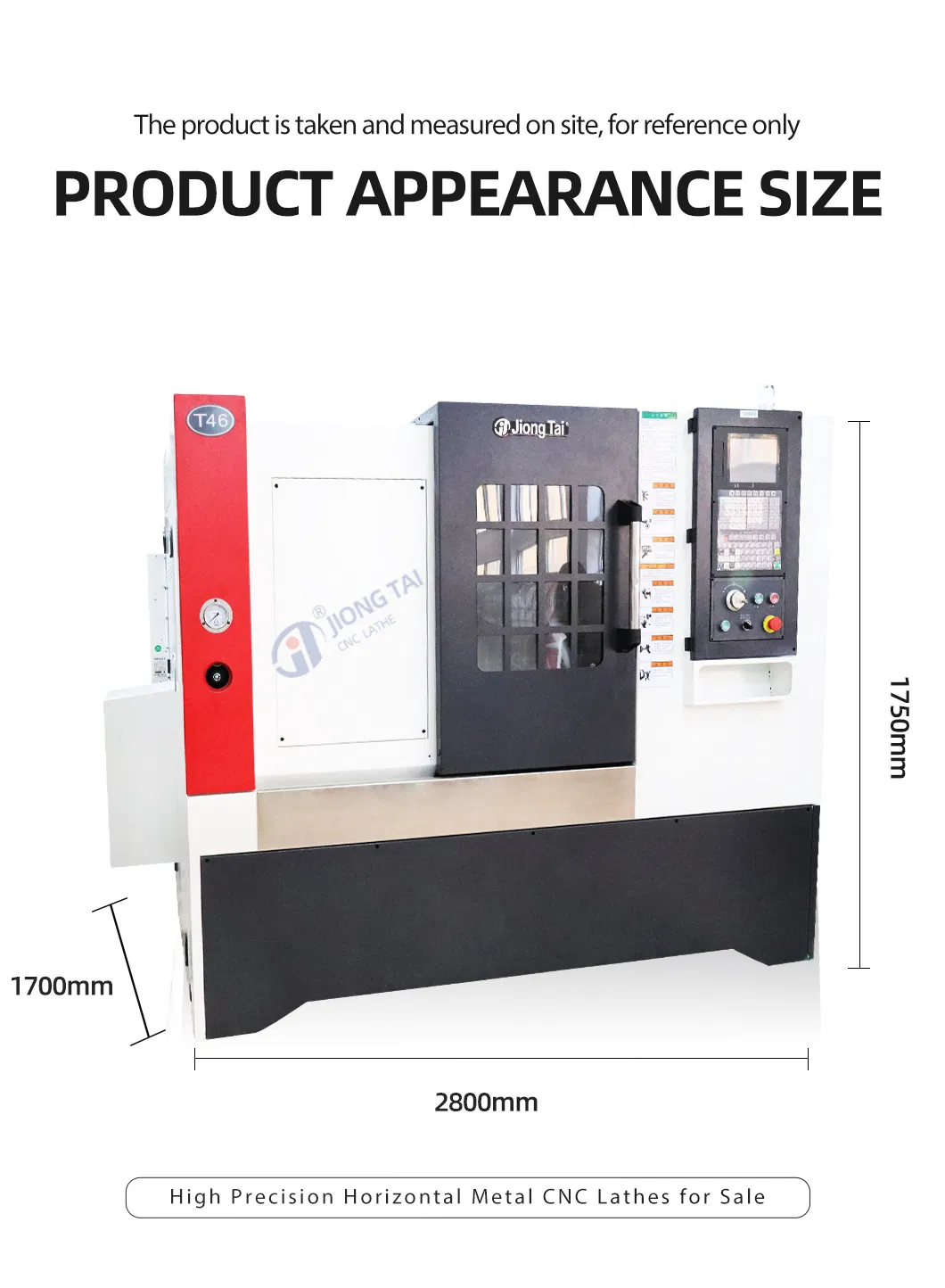

General Rules	Physical Dimension	mm	280017001750
Tech Specs	Max Rotation Dia. on Bed	mm	φ500
	Max Processing Length	mm	480
	Max Turning Disc Dia.	mm	φ400
Spindle	Main Motor Power	kw	11
	Spindle Speed	rpm	50-3000
	Max Bar Diameter	mm	φ46
Feeding	X/Z Rapid Feed	m/min	20
Feeding	Positioning Accuracy	mm	0.005

Frequently Asked Questions

Q1: What are the main applications of the T46 CNC Lathe? A: It is primarily designed for high-precision metal processing, including cylinders, threads, slots, and complex worm components.

Q2: Which CNC systems are compatible with this machine? A: The standard system is GSK, but optional configurations for Fanuc, Mitsubishi M80, Siemens, KND, and Nanjing KT are available.

Q3: How does the slant bed design benefit the machining process? A: The one-piece cast slant bed provides superior rigidity and vibration absorption, leading to higher precision and better chip removal.

Q4: What is the positioning accuracy of the T46? A: Both X and Z axes feature a high positioning and repeat positioning accuracy of 0.005mm.

Q5: Can this machine handle mass production? A: Yes, with its high-speed operation and multi-position turret capabilities, it is ideal for efficient mass production of complex parts.

Q6: What type of chucks are supported? A: The standard comes with a manual chuck, but it can be upgraded to an optional hydraulic chuck for faster operation.
