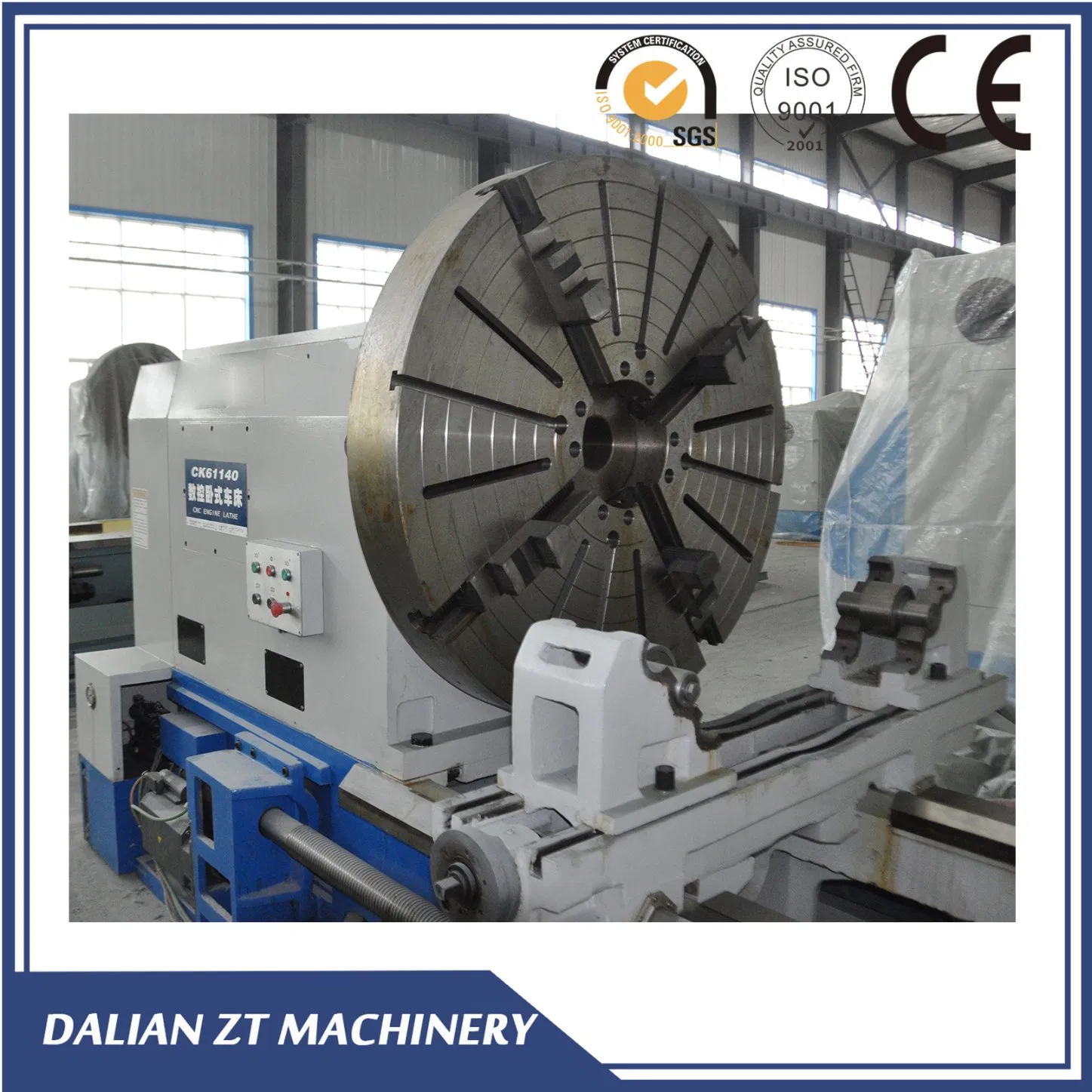

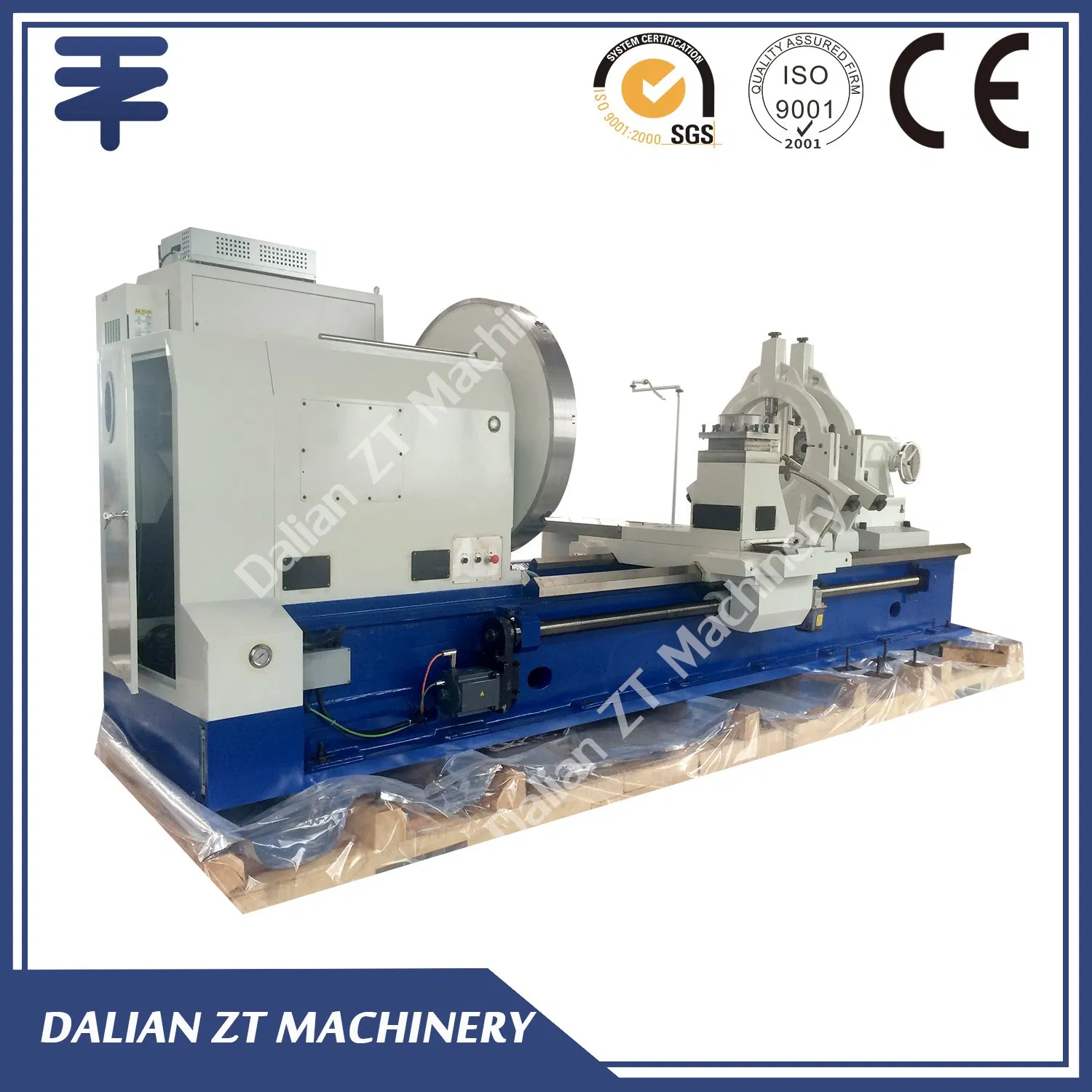

Steel Plant Large and Heavy Duty Conventional (CNC) Lathe Turning Machinery Torno

Customization:	Available
Type:	Horizontal Lathe
Processing Accessory:	Metal Shaft & Disc Type Parts

Send Inquiry

Product Description

📊 Basic Information

Model NO.

CK61160

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

Swing Over Bed

1400mm

Turning Length

12000mm

Workpiece Weight

Production Capacity

100 Sets/Month

Certification

CE, ISO 9001

⚙️ Product Description & Features

This machine features built-in strong power, good rigidity, high accuracy, and excellent accuracy persistence. Equipped with FANUC (SIEMENS) AC NC system for maximum reliability. Features include CRT display, tool compensation, failure diagnosis, and rapid programming with diagram display. Main drive system utilizes gear-driven automatic infinitely speed changing.

One-piece machine bed design for high rigidity; Hardened guideway for wear-resistance.
Turcite B coating and forced lubrication system used for guideways to increase service life.

Item/Machine Model	Unit	CK61100E	CK61125E	CK61140E
Max. swing over bed	mm	1000	1250	1400
Max. swing over carriage	mm	650	900	1050
Max. turning length	mm	1500 - 8000
Max. weight of workpiece	kg	6000 / 8000
Width of bed	mm	755
Spindle bore dia.	mm	130
Main motor power	kW	AC 22/30-40 (servo)
No. of tool position	-	Vertical: 4; Horizontal: 8/12

🎯 Machining Accuracy Performance

● Roundness of finish turning surface: 0.010 mm

● Flatness of finish turning face: 0.025 mm / 300 mm

● Roughness of finish turning surface: Ra 1.6

● Pitch accuracy of threads: 0.025 mm / 50 mm

● Positioning accuracy: X: 0.020 mm; Z: 0.090 mm

● Accuracy of size: IT6

🛠️ Standard Accessories

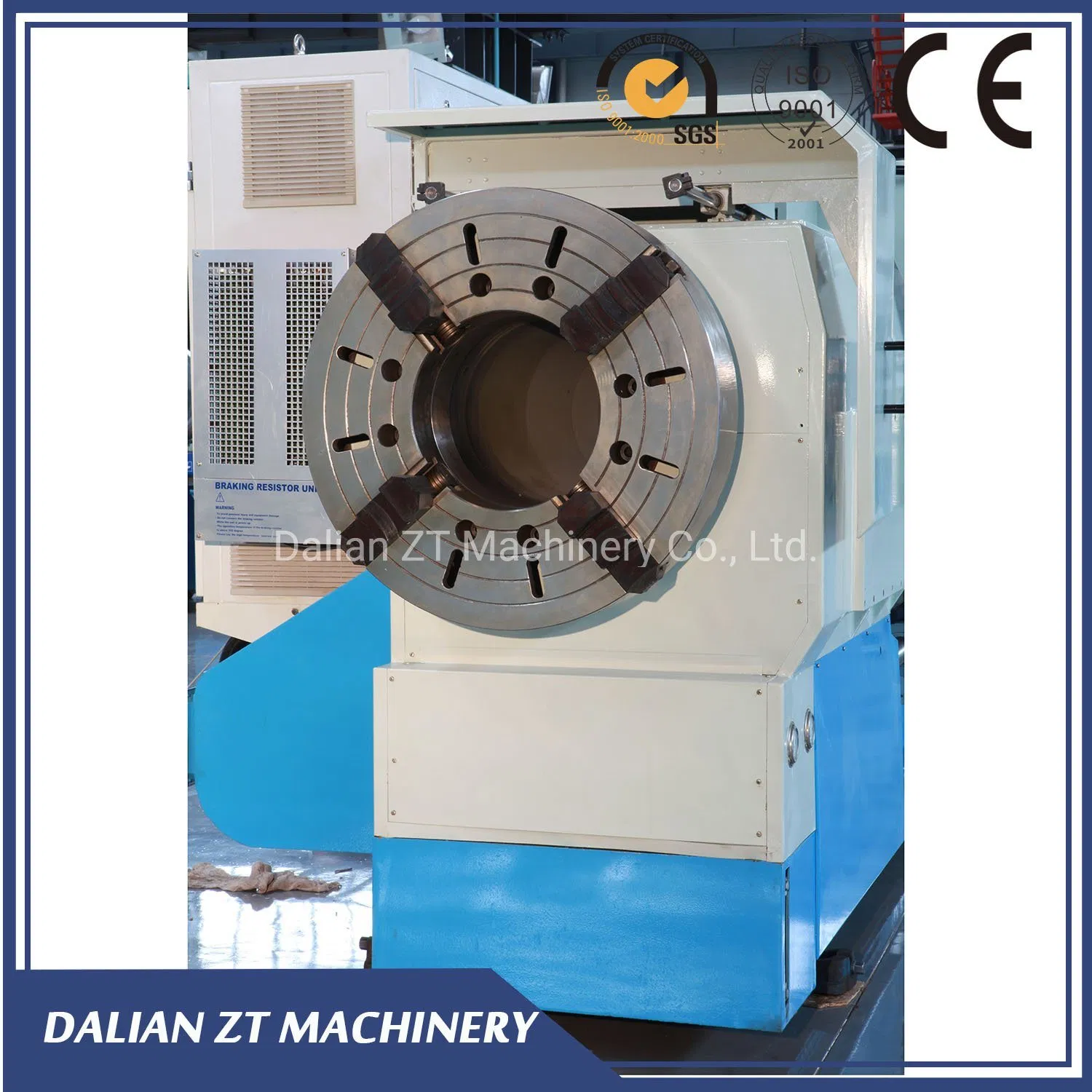

4-JAW CHUCK (1,000 MM): 1 SET

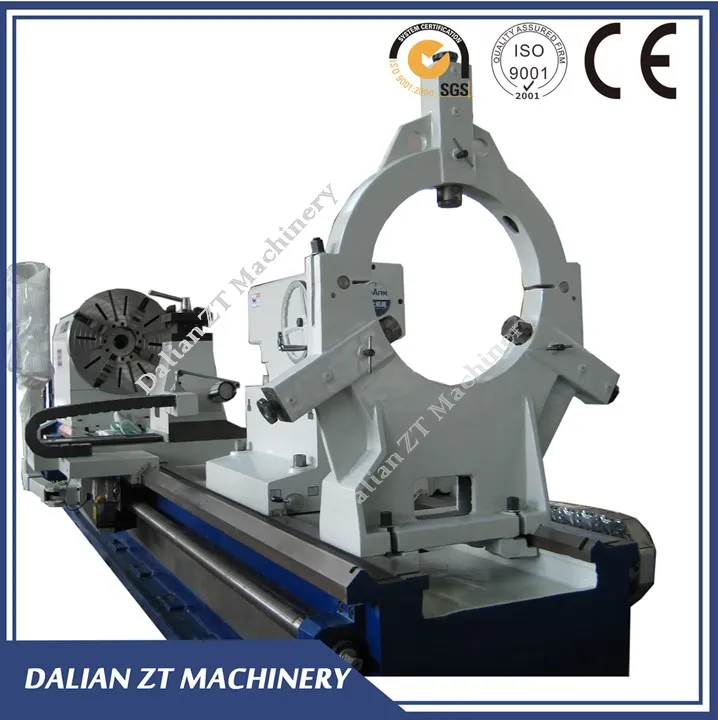

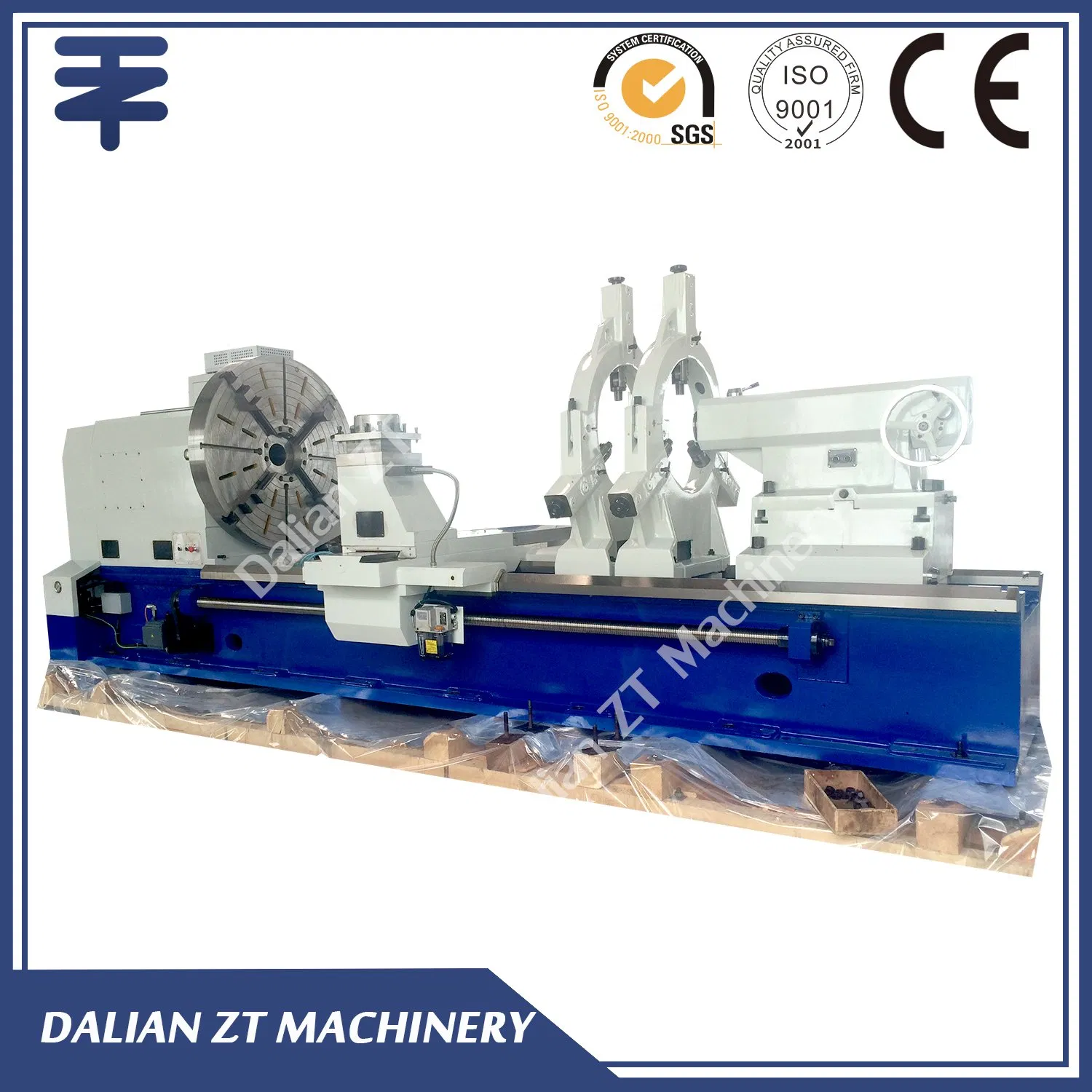

STEADY REST (50 TO 590 MM): 1 SET
LIGHTING & COOLANT DEVICES: 1 SET EACH
DEAD CENTER: 2 PIECES
FOUNDATION BOLTS & LEVEL PADS: 12 SETS

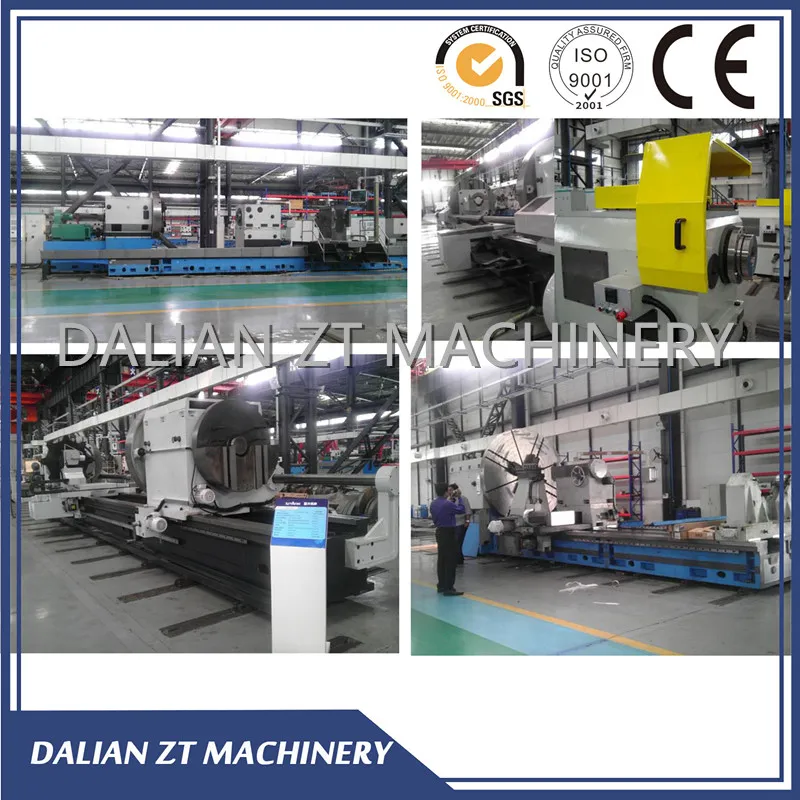

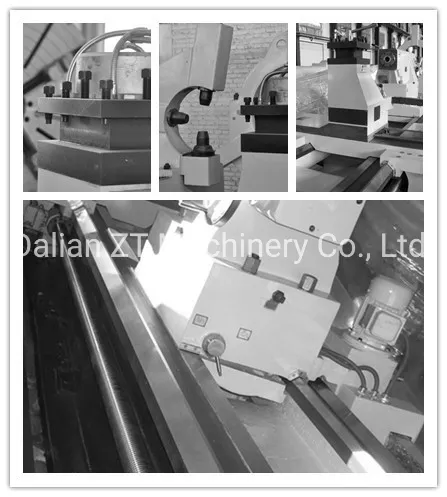

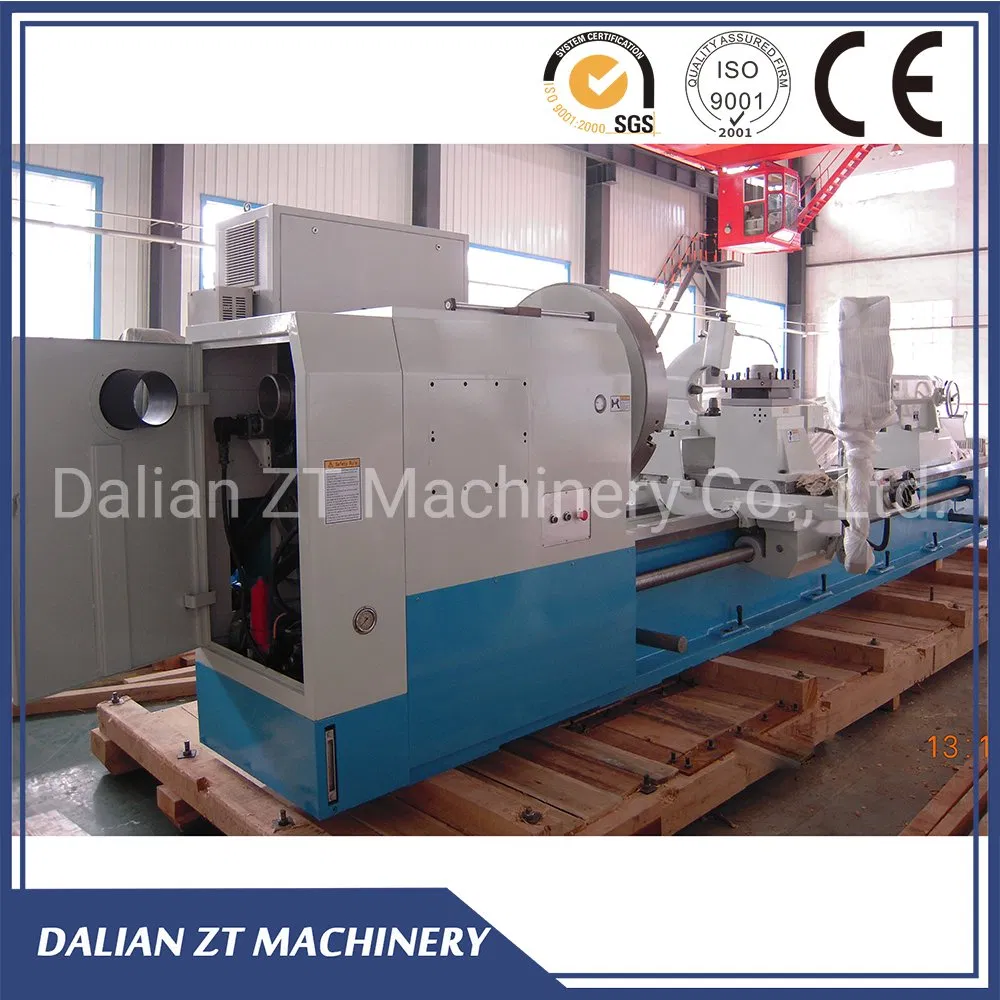

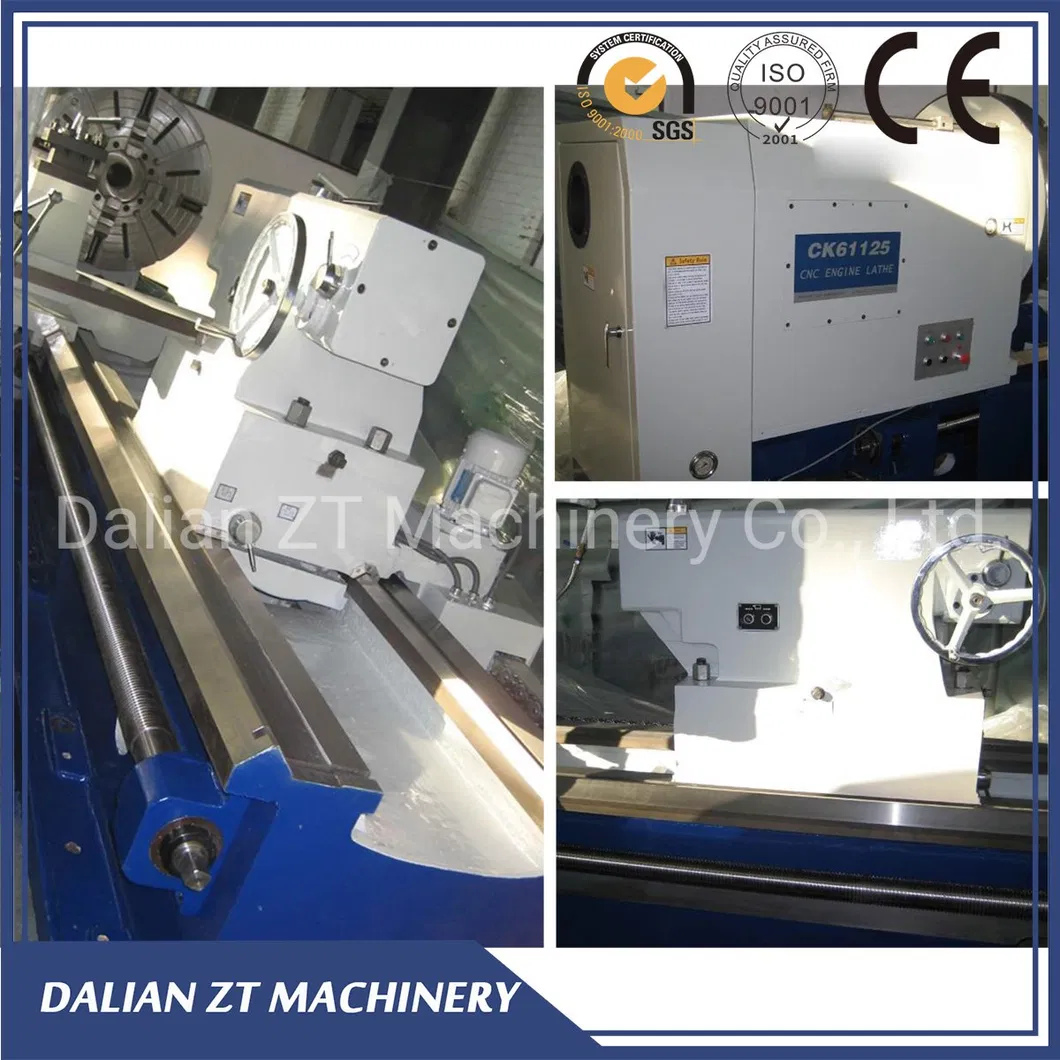

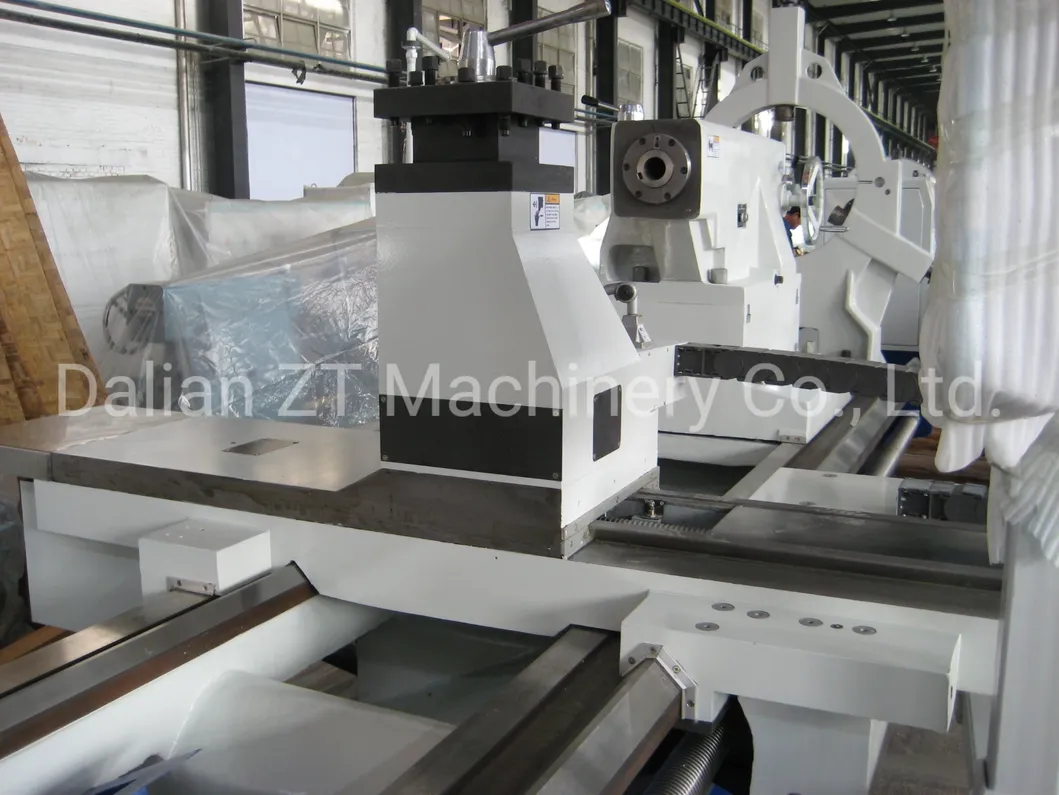

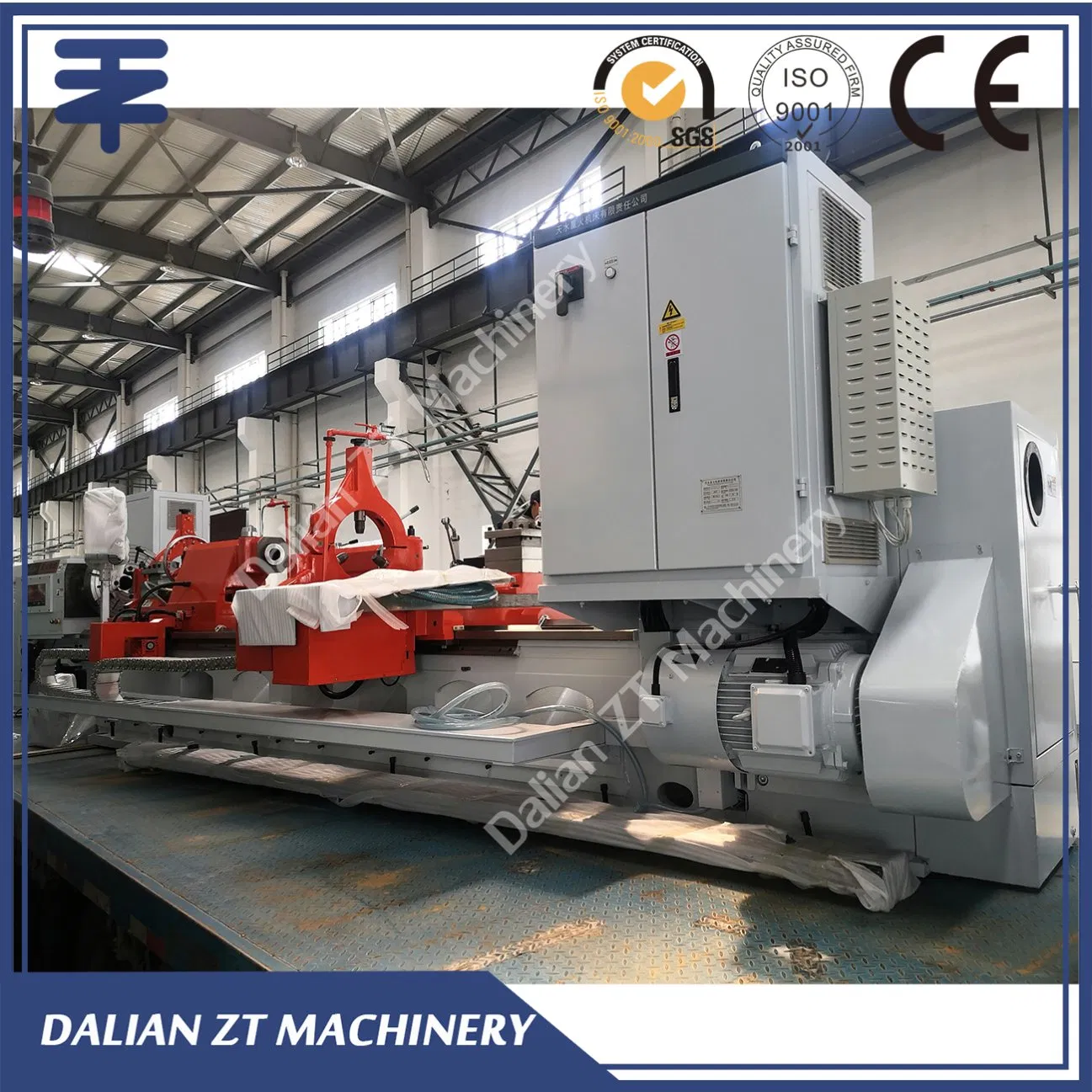

📸 Detailed Photos

🔍 Quality Control & Logistics

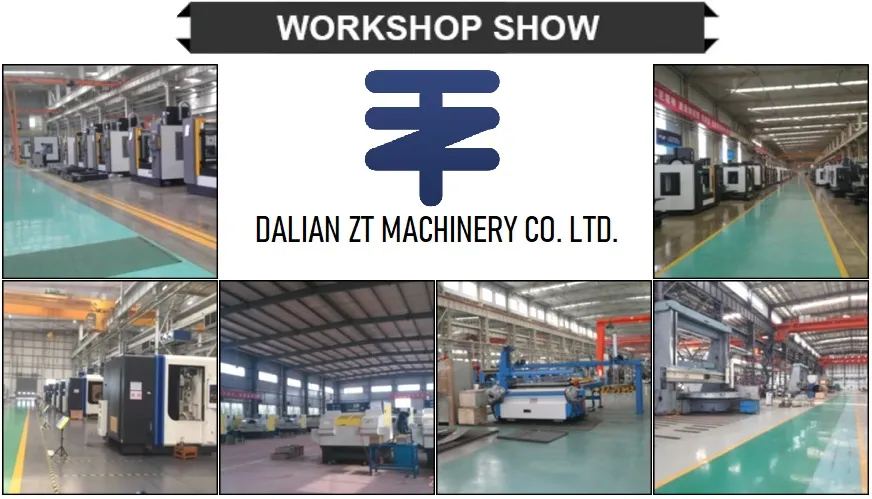

We control assembly quality and the integrity of casting parts to ensure performance stability. All accessories are checked item by item after testing and painting.

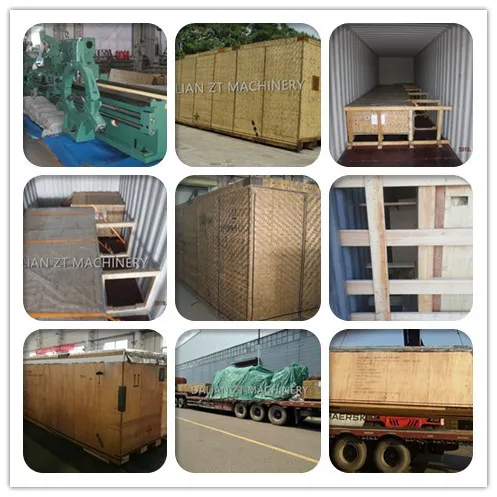

Machines are packed in fumigated wooden cases or steel pallets. Secure fixing is performed upon container loading to ensure sea shipment safety.

❓ Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ for this heavy-duty CNC lathe is 1 set.

What is the typical delivery time?

Delivery usually takes between 2 to 4 months depending on the specific model. All machines are 100% new.

What are the payment terms?

T/T 30% down payment upon order, and 70% balance payment before shipment.

How long is the warranty period?

The warranty is 13 months from the B/L date. During this time, daily damage parts are supplied freely.

How is after-sales service handled?

During the warranty, service is provided by dealers. After the warranty, spare parts are supplied at factory price.

Is the machine bed durable?

Yes, it features a one-piece bed design with hardened guideways and Turcite B coating for high wear resistance.
