Overview
Model NO.PHD1616 CNC Drilling Machine
StructureBench Drilling Machine
LayoutHorizontal
Controlling ModeCNC
Number of Shaft6
Hole Diameter50-100mm
Automatic GradeAutomatic
PrecisionHigh Precision
CertificationGS, CE, RoHS, ISO 9001
FunctionDrilling Milling Machining
Table Size1600*1600
Specification4550 x 3050x 3520mm
Product Description

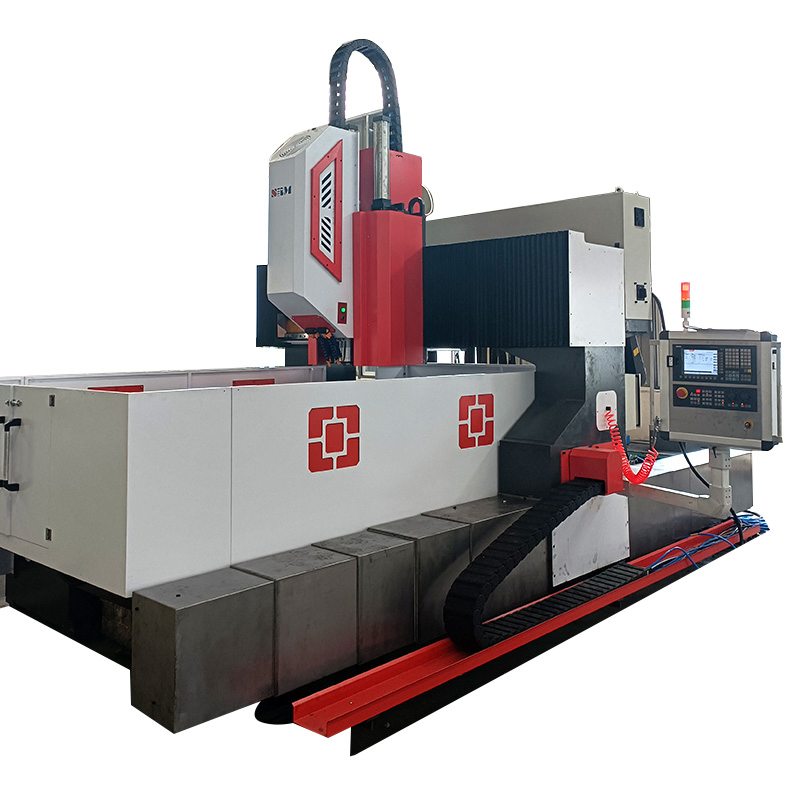

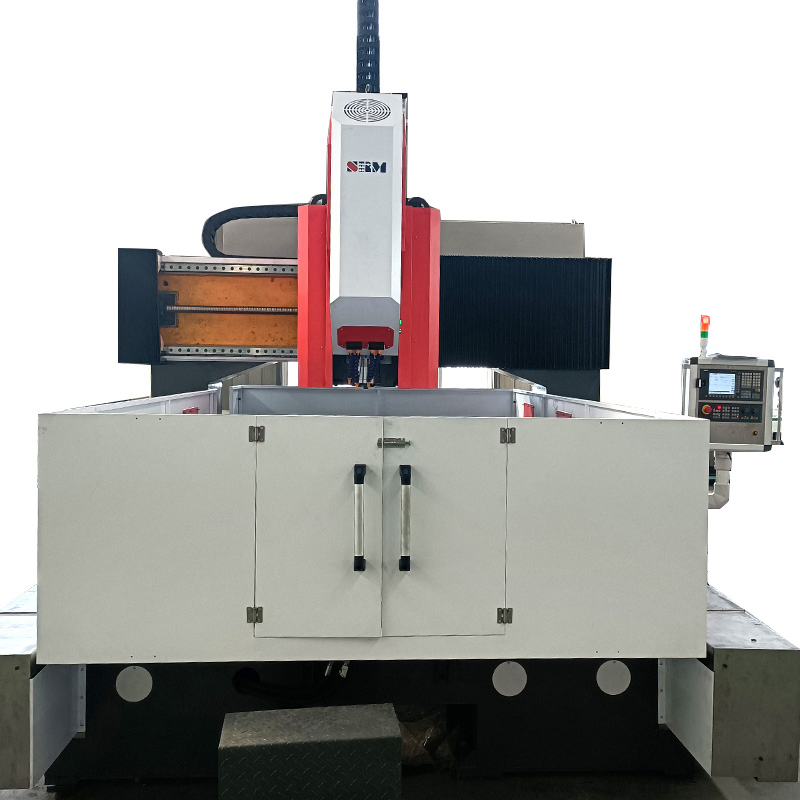

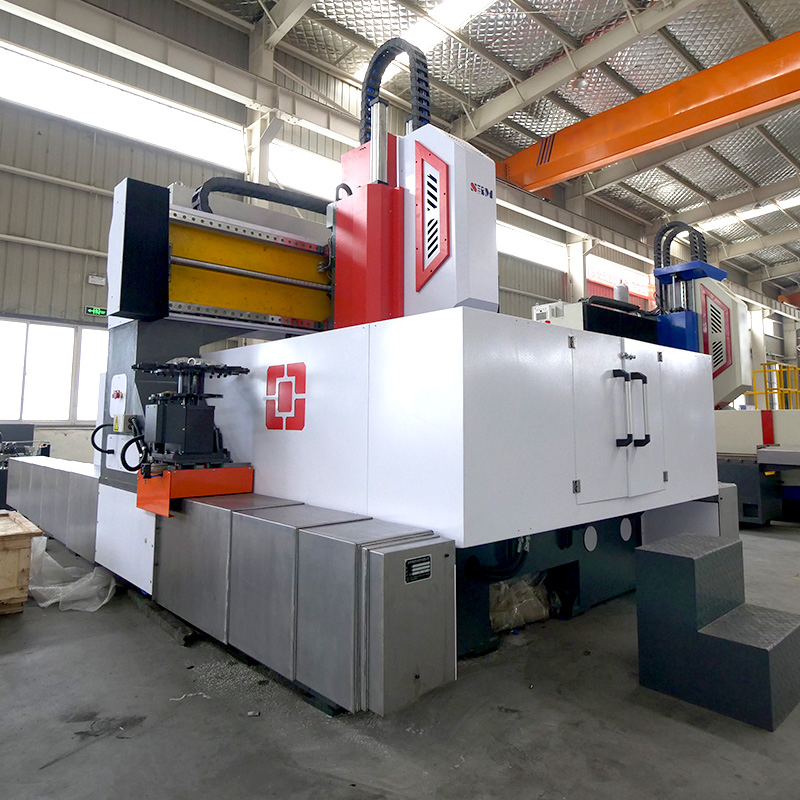

Best Price Siemens System CNC High Speed Drilling Machine For Milling
Features:
- The main spindle adopts square slide pillow, material is casting iron, more stable to avoid any vibration when in high speed rotation. Z axis special design: servo guide rail and drilling bit on same center line.
- Machine bed completely T slot structure. The whole machine is completely welded by thick plate after quenching. This model suitable for big flanges with less holes, can add chuck self centering for easy fix of flanges.
- Double drives on both sides of the bed, double screw rods, double guide rails, wider gantry, larger and more stable gantry base, using Siemens control system.
Product Parameters
| Model |
PHD1616 |
PHD2016 |
PHD2020 |
| Processing Range (LxW mm) |
1600x1600 |
2000x1600 |
2000x2000 |
| Thickness (mm) |
15-300 |
| Spindle speed (RPM) |
30-4500 |
| Spindle Model |
BT40/BT50 |
| Positional Accuracy (mm) |
0.1 |
| Control Mode |

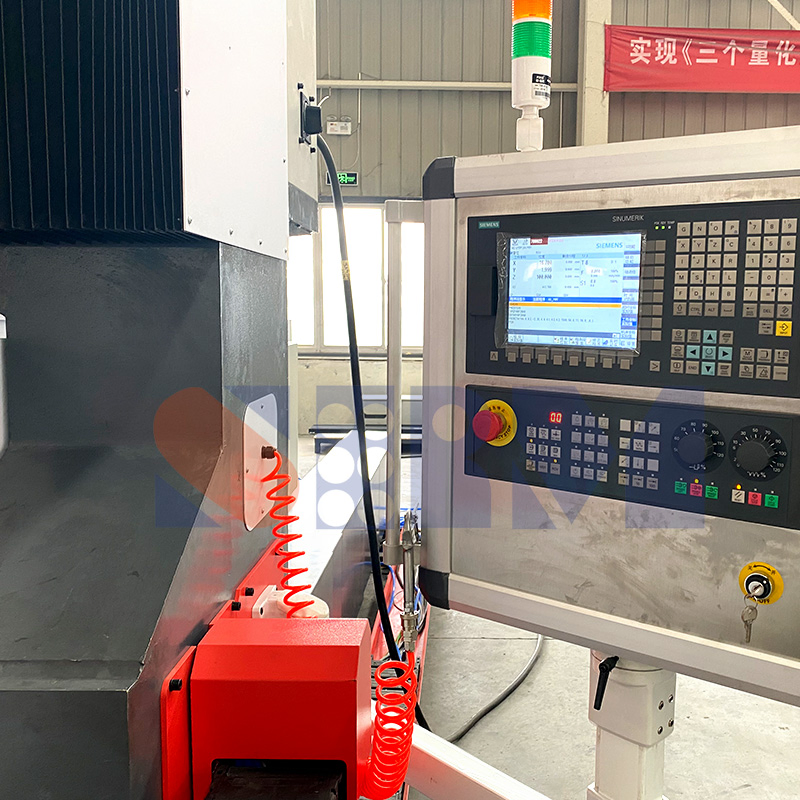

Siemens 808D cnc system |
Product Application
PHD Series machine is mainly used for drilling and milling of connection plates and anchor plates in steel structures, iron towers, bridges, machining and other industries. It can drill through holes, blind holes, stepped holes, hole end chamfering and light milling.

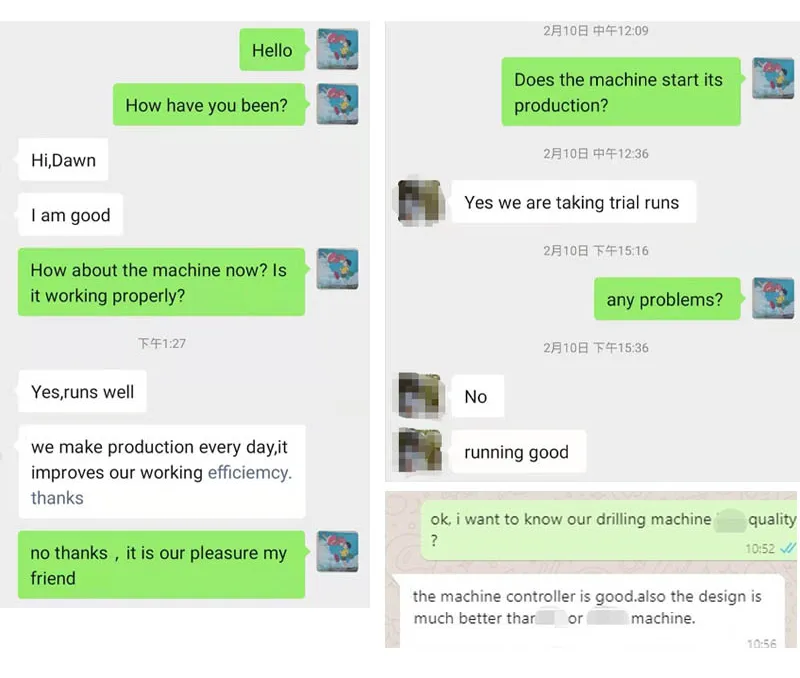

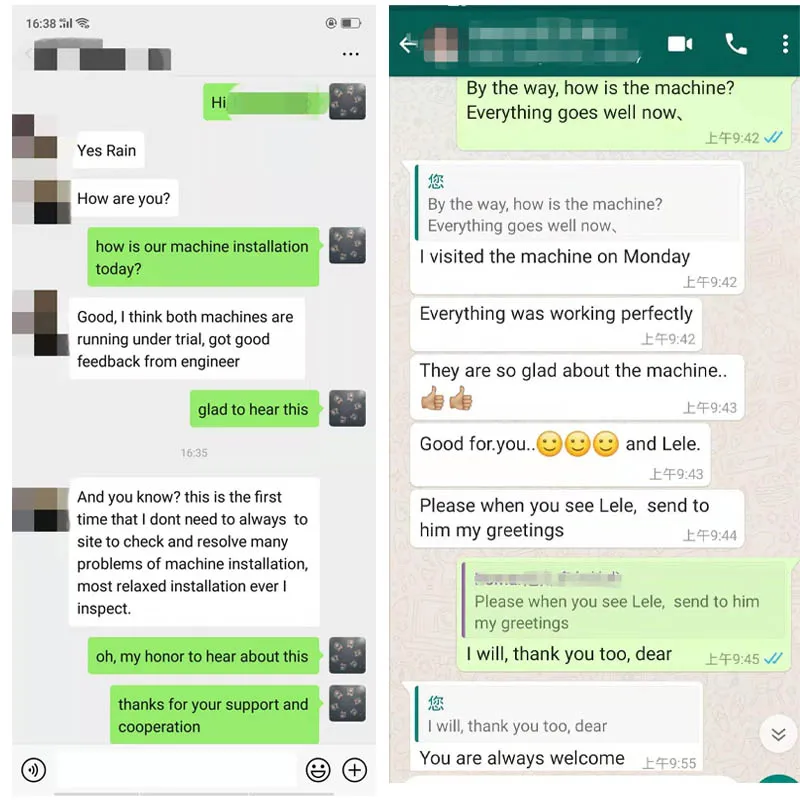

Customer Feedback & Visits
Certificates & Patents
Packaging & Shipping
Frequently Asked Questions
1. What are your main advantages?
We assure each machine a long-life usage with easy operation and humane design, aimed at increasing production efficiency and saving labor costs.
2. What about the product warranty?
We provide a 12-month warranty from the date the machine arrives at the customer site, including free spare parts and online maintenance service.
3. How long is the delivery time?
For standard models, delivery is usually within 25 days after receipt of advance payment. Customized products follow specific customer agreements.
4. What payment methods are supported?
We accept TT, 100% L/C at sight, Cash, and Western Union. Other terms can be discussed.
5. Do you provide installation and training?
Yes, we provide process quality control, machine trials, and free installation and training at the customer site.
6. Is third-party inspection available?
Yes, third-party inspections through recognized organizations are available to ensure the quality and capability of our plant.
