Cutting-Edge Robotic Welding Solutions for Seamless Metal Connections

1 / 5

Cutting-Edge Robotic Welding Solutions for Seamless Metal Connections

Customization:	Available
Application:	Welding, Loading, Forging, Burnishing, Polishing,
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

Overview - Basic Specifications

Drive Mode:Electric

Repeatability:0.05mm

Motion Radius:1490mm

Structure:Articulated

Mounting Type:Ground, Bracket, Ceiling

Payload:6kg

DOF:6

Weight:185kg

Condition:New

Certification:ISO, CE

GSK RH06A3-1490 Industrial Welding Robot

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, agricultural machines, engineering machines, and other hardware welding fields.

Type	DOF	Drive Method	Payload(kg)	Repeatability(mm)	Radius(mm)	Weight(kg)
RH06A2-1490	6	AC Servo	6	±0.05	1490	190
RH06A3-1490	6	AC Servo	6	±0.05	1490	185
RH06B1-1605	7	AC Servo	6	±0.05	1605	215

Production Line Control & Management Systems

Unit Control System

GSK-LINK realizes high-speed connection between CNC, robot, and auxiliary devices.
On-line and off-line programming support.
Improves production efficiency and stability.

General Control Management System

Digitalized factory and Intelligent workshop management.
CAM and CAPP application and management.
Equipment utilization statistics and production flow control.

Practical Applications

1. Aluminum Template Industry

Double-position man-machine alternating operation. Effectively guarantees production continuity and reduces risks associated with manual welding like smoke and arc light.

2. Laser Welding (Small Appliances)

High-speed continuous welding for stainless steel sheets (0.6mm) with minimal deformation and superior bead color.

3. Electrical Industry (TIG Welding)

Full-automatic welding with automatic clamping and orientation. No manual labor required for stainless steel products.

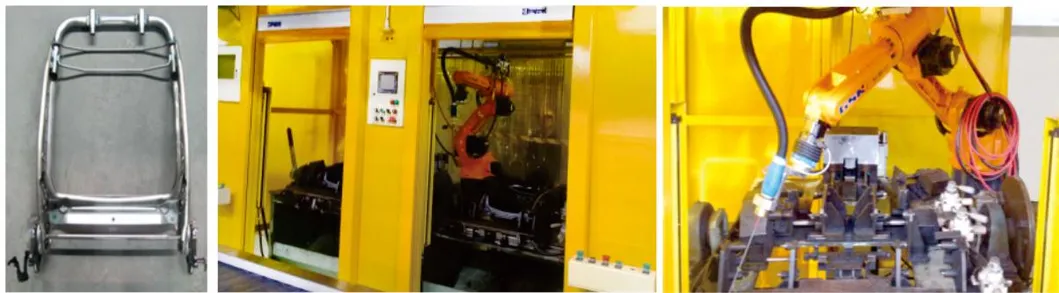

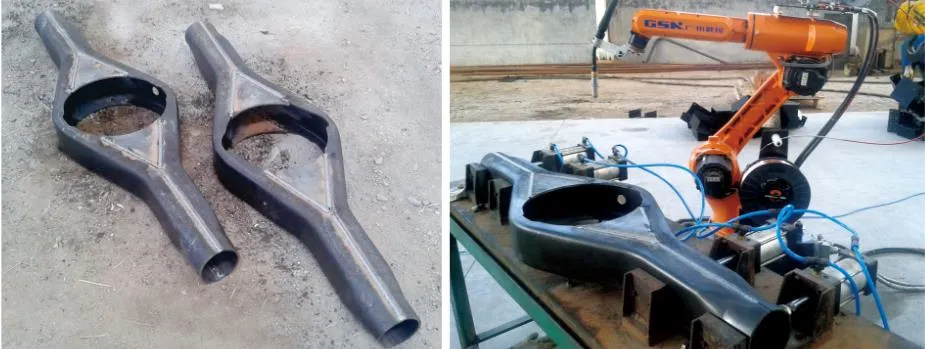

4. Automobile Accessories

High-precision welding avoiding distortion, undercuts, or air vents. Layout is optimized for space efficiency and safety with light curtains.

Robot Family & Development

With over 30 years of R&D experience, GSK has developed industrial robots with independent intellectual property, covering 6 series: transportation, welding, polishing, painting, stacking, and paralleling.

Core Product Categories

Frequently Asked Questions (FAQ)

What is the repeatability of the RH06 series welding robots?

The RH06 series robots offer a high repeatability of ±0.05mm, ensuring precise and consistent welding results for industrial applications.

What materials can be welded using these robotic systems?

These robots are widely used for welding stainless steel, aluminum templates, and various hardware components in the automotive and motorcycle industries.

Do these robots support laser welding?

Yes, the RH06 robots can be equipped with fiber transmission laser welding machines for high-speed, low-deformation welding of thin sheets.

What are the safety features of the robot workstations?

Workstations are typically equipped with arc light guards, safety light curtains, and interference protection to ensure a safe manual-machine alternating environment.

What is the payload capacity of the RH06A3-1490 model?

The RH06A3-1490 model has a standard payload capacity of 6kg, suitable for most industrial welding torches and handling needs.
