Advanced Robotic Solutions for Streamlined Industrial Workflow Optimization

Customization:	Available
Application:	burnishing, polishing, machine loading/unloading a
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Basic Information

Drive Mode: servo drive

Axes: 6 Axes

Motion Radius: 2850mm

Payload range: 300kg

Machine weight: 1650kg

Structure: Articulated

Mounting Type: Ground, Bracket, Ceiling

Certification: ISO, CE

Warranty: 1 year

HS Code: 8479501000

Product Description

RB300A1-2850 Industrial General Robot

Payload: 300kg | Reach: 2850mm

Application field: It is widely used in burnishing, polishing, spraying/painting, machine loading/unloading and automatic transport on punching automation production lines.

Product Features

√ Simplified mechanical design with high reliability and stable performance.

√ Perfect seal design (J4~J6 axis) protection level up to IP65.

√ High speed and high precision to reduce production costs.

√ Adaptable movement radius and load for diverse market needs.

Technical Specifications

Model	Axes	Payload (kg)	Repeatability (mm)	Radius (mm)	Weight (kg)
RB03A1-562	6	3	±0.02	562	36
RB06-900	6	6	±0.03	900	60
RB08A3-1490	6	8	±0.04	1490	185
RB20A3-1700	6	20	±0.04	1700	265
RB50-1956	6	50	±0.05	1956	650
RB300A1-2850	6	300	±0.1	2850	1650

Control Systems

Production Line Unit Control System

Utilizing high-speed bus communication between CNC machines, industrial robots, and auxiliary devices. Supports online/offline programming and humanized operation.

Application Cases

1. Machine Tool Loading/Unloading

RB08 robots integrated with CNC turning machines. Provides flexibility for multiple workpiece types and high safety interlock mechanisms.

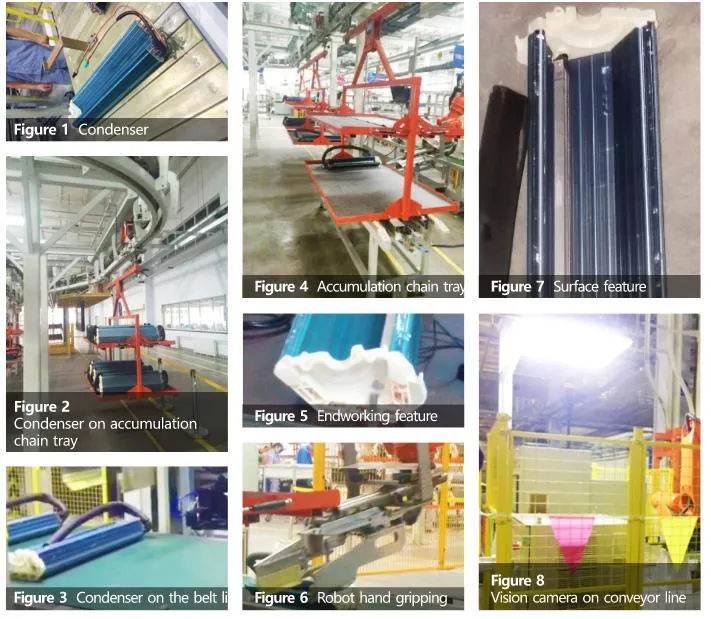

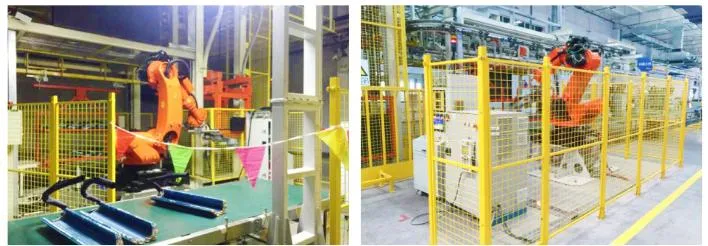

2. 3D Vision-Guided Transfer

RB165 robots utilizing 3D vision to identify and transfer irregular condensers on conveyor lines with a 10-second beat.

3. Specialized Industrial Tasks

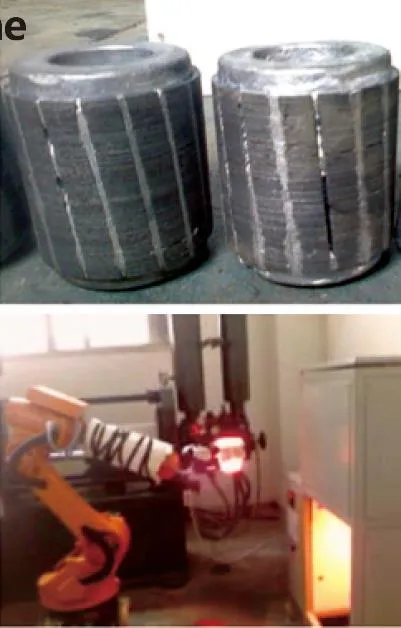

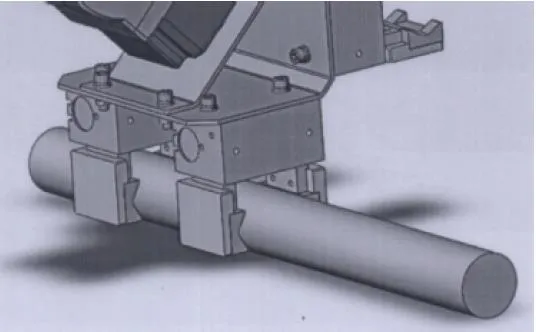

Applications including Motor Shaft loading (continuous 3-hour machining) and Die-Casting pouring (high-temperature environment protection).

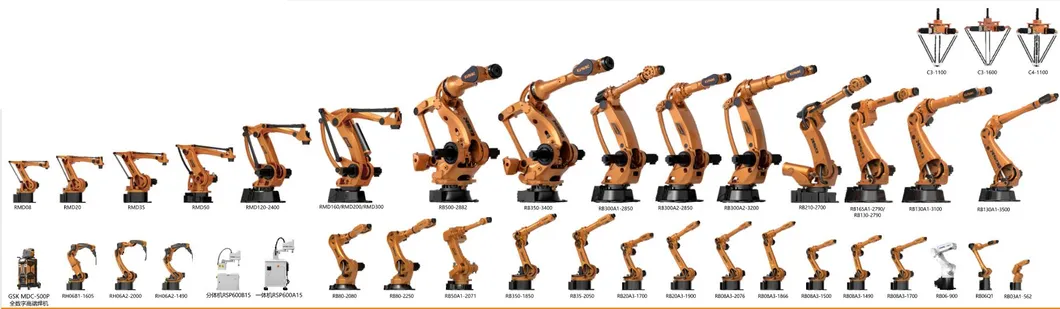

Robot Family & Development

With over 30 years of R&D experience, the lineup includes over 30 kinds of robots covering transportation, welding, polishing, painting, stacking, and paralleling. All key components like controllers, servo motors, and drivers are developed independently.

Core Product Range

CNC Systems

Industrial Robots

Injection Molding Machines

Frequently Asked Questions (FAQ)

Q1: What is the maximum payload and reach of the RB300A1-2850 robot?

A: The RB300A1-2850 industrial robot features a high payload capacity of 300kg and an extensive motion radius (reach) of 2850mm.

Q2: What is the protection level of these industrial robots?

A: The local protection level for the J4 to J6 axes is up to IP65, making the robot highly adaptable to various harsh industrial working environments.

Q3: Can these robots be used for high-temperature applications like die-casting?

A: Yes, the robots are successfully applied in die-casting industries for pouring molten aluminum, helping to avoid human exposure to dangerous high-temperature environments.

Q4: Does the system support integration with existing CNC machines?

A: Absolutely. The control management systems utilize GSK-LINK on-site bus to realize high-speed connections between CNC machines, robots, and auxiliary devices.

Q5: What kind of after-sales support is provided?

A: We offer a standard 1-year warranty and full support for after-sales service, including wooden case packaging for safe transport.

Q6: Are the robots capable of 24-hour continuous operation?

A: Yes, these robotic solutions are designed for continuous production across multiple shifts (up to 24 hours) to maximize efficiency and reduce labor costs.
