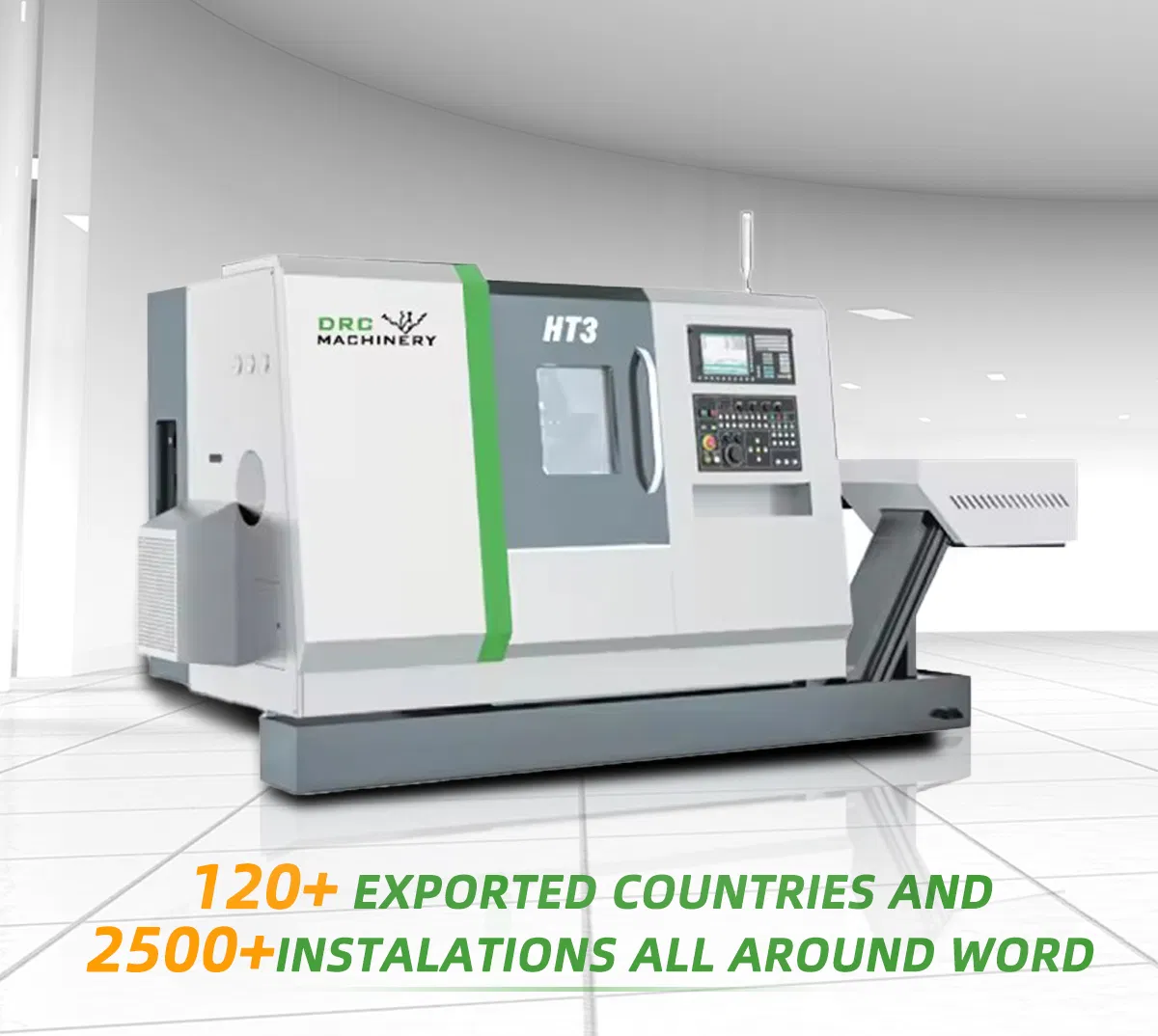

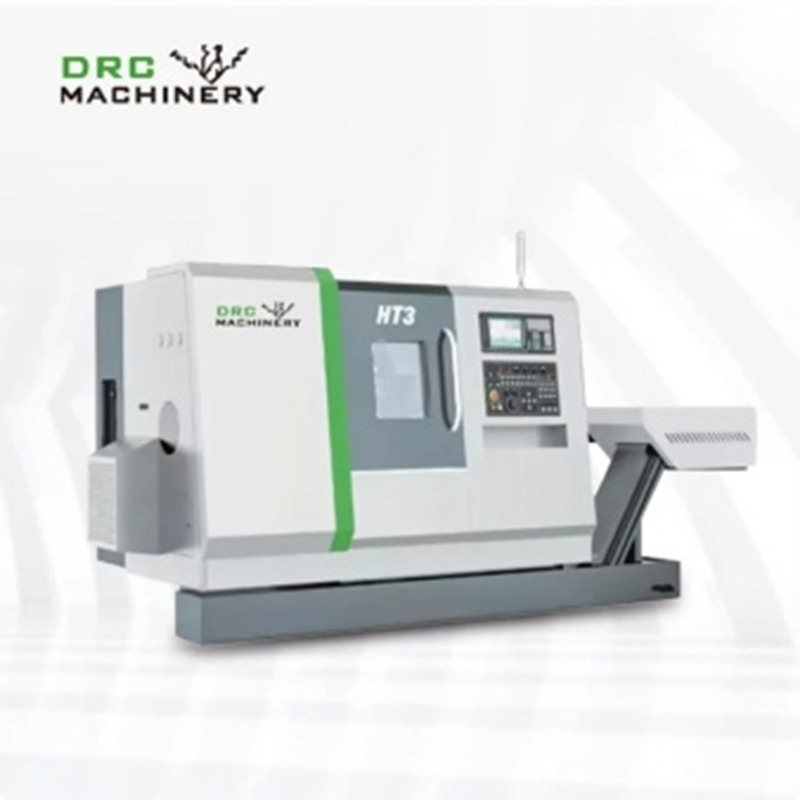

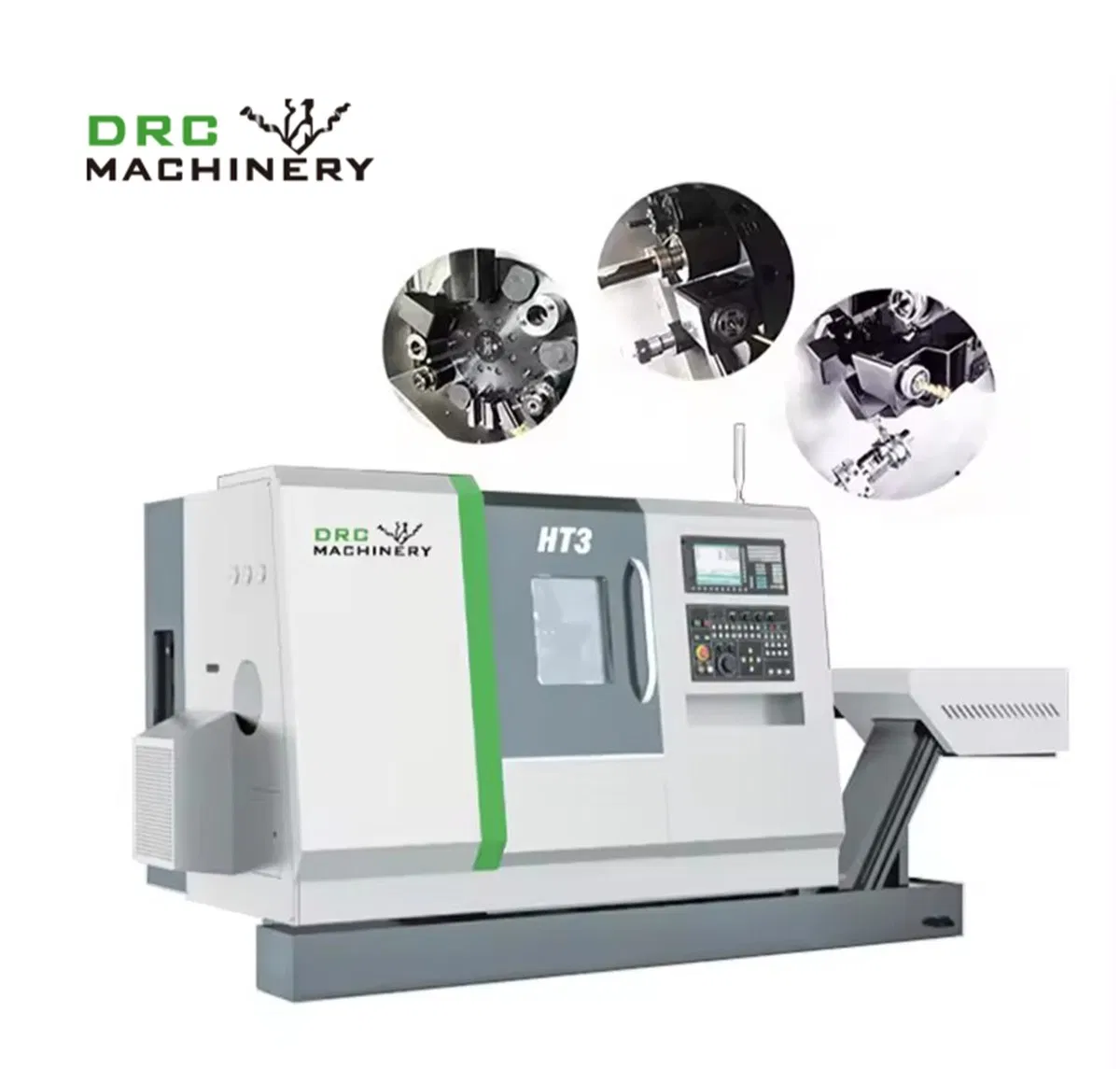

HT3 CNC Lathe System

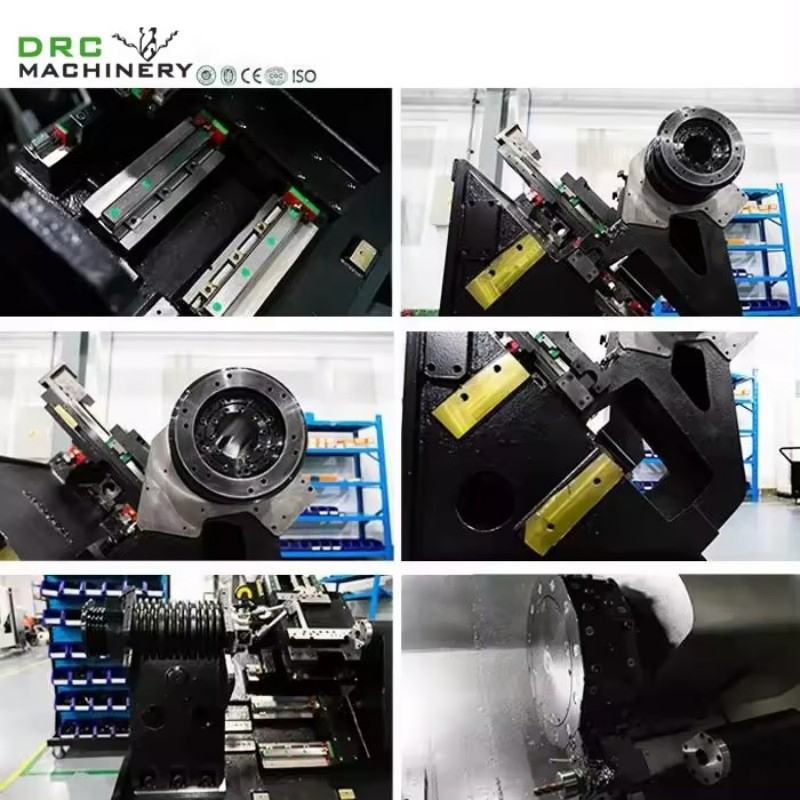

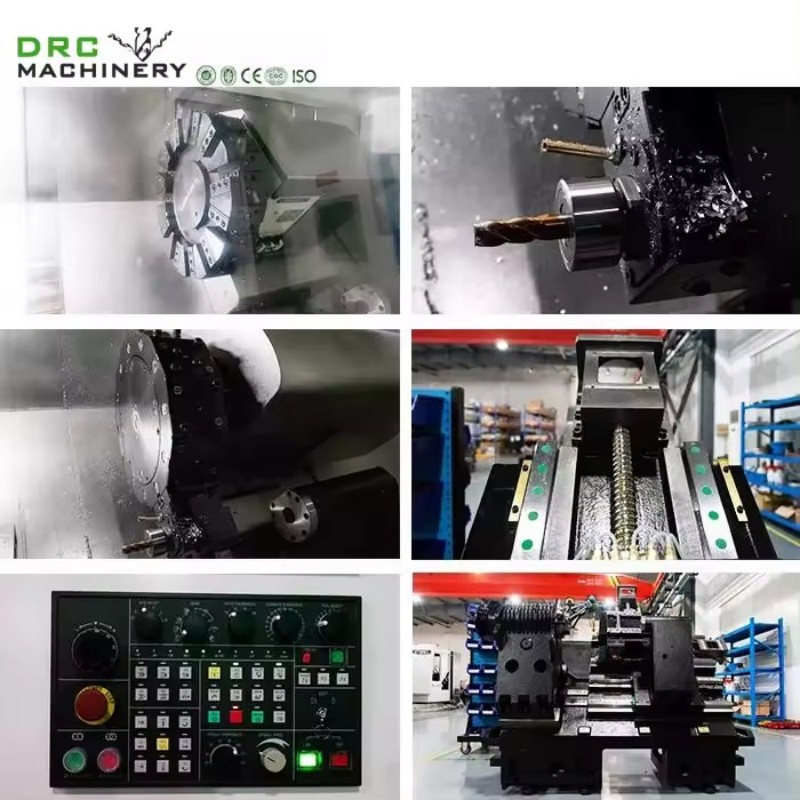

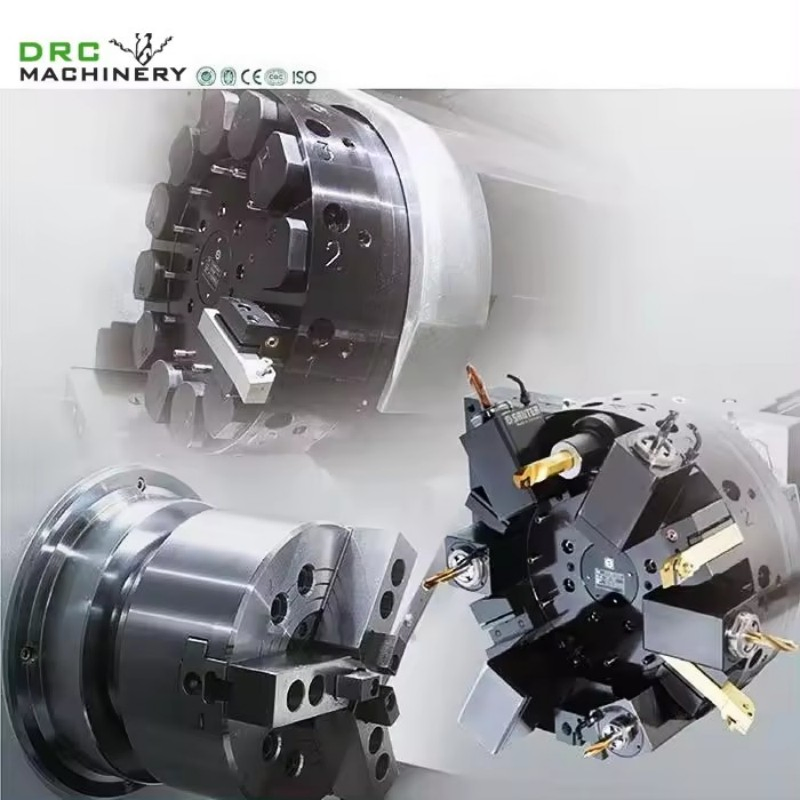

The latest CNC system, equipped with a 10" control panel and Fanuc 0i-TF plus, boasts high accuracy, precision, and rigidity, while occupying a small footprint. It features a high-dynamic-performance spindle with a power of 11-12 kW and a torque of 112 Nm, capable of reaching a maximum speed of 4500 rpm. Standard configurations include bar material specifications of ø 51 mm and an 8-position servo turret. The optimized bed structure and all axes are equipped with linear guide rails (size 35 mm).
| Model | HT3 | Type | Turret Lathe |
| Max. Turning Diameter | 310 mm | Swing over Bed | 558 mm |
| X/Z Travel | 180 / 380 mm | Rapid Traverse X/Z | 24/24 m/min |
| Spindle Speed | 4500 rpm | Spindle Bore | 74 mm |
| Main Motor Power | 11/15 kW | Max. Torque | 112 Nm |
| Tool Stations | 12 pcs | Control Mode | CNC (Fanuc) |
| Positioning Accuracy | ≤ 6 / 8 µm | Machine Weight | Approx. 3800 kg |
| Dimensions (L*W*H) | 2150 x 1300 x 1700mm | ||
