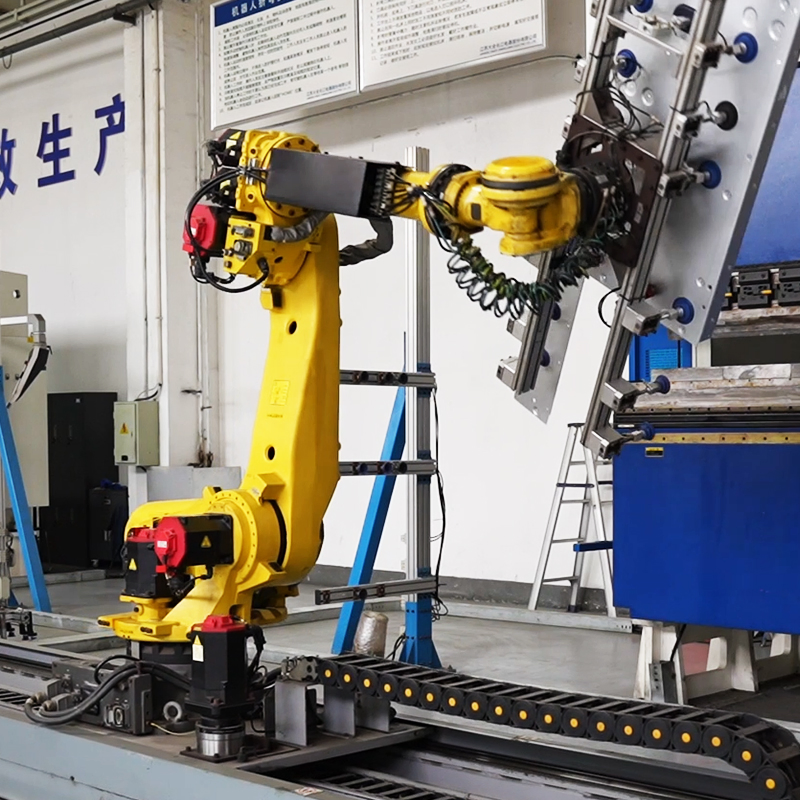

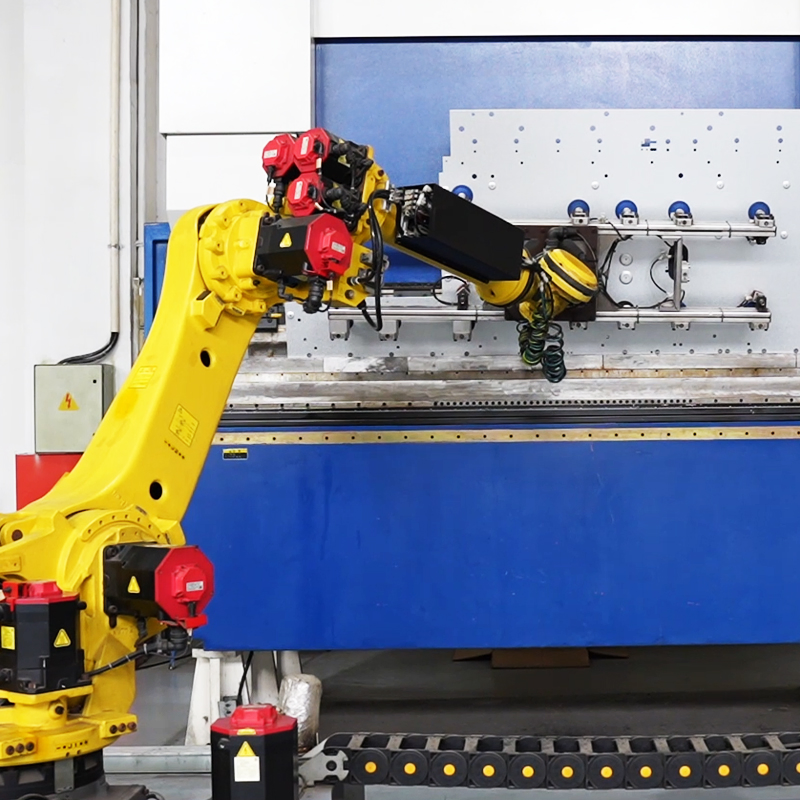

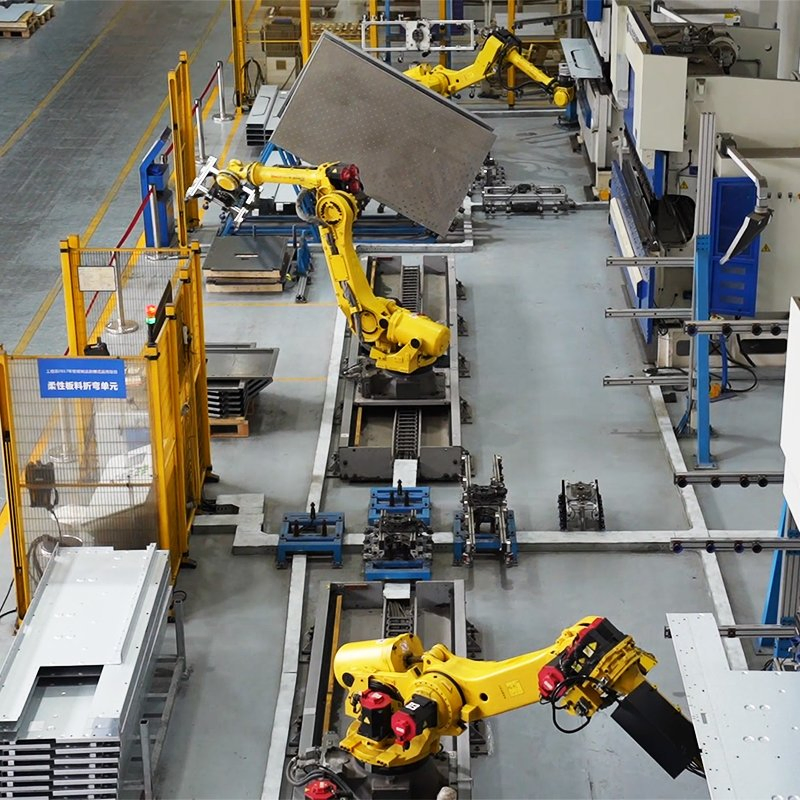

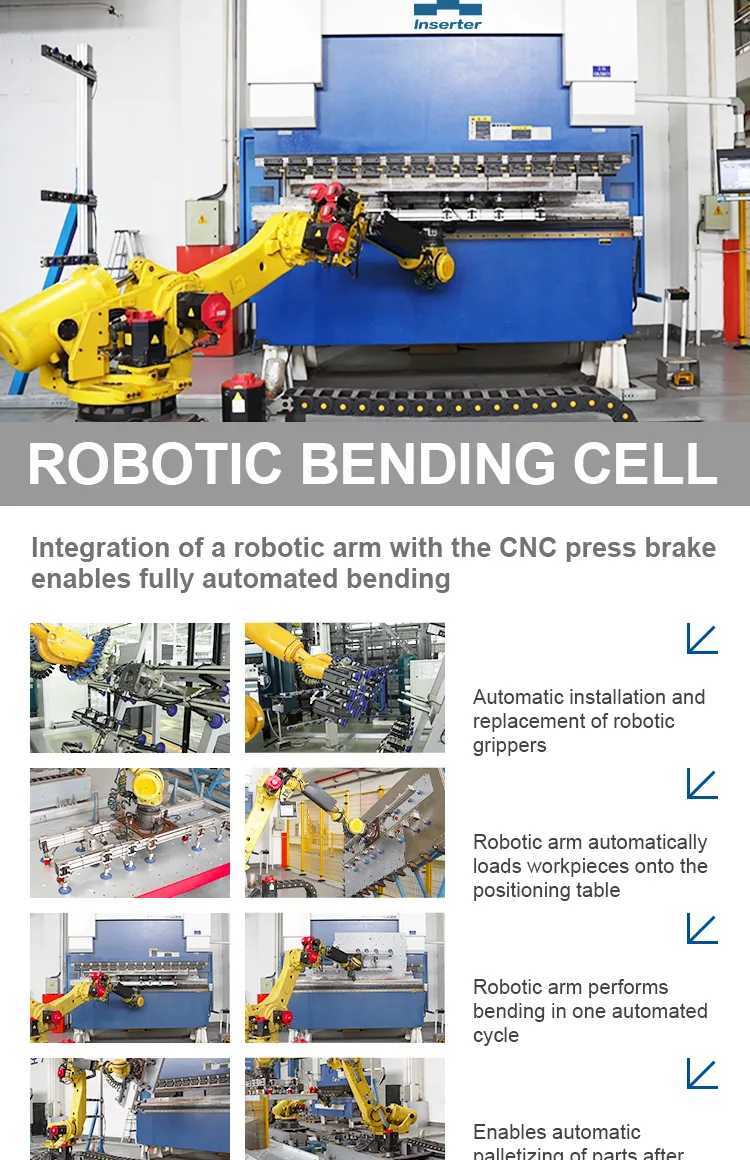

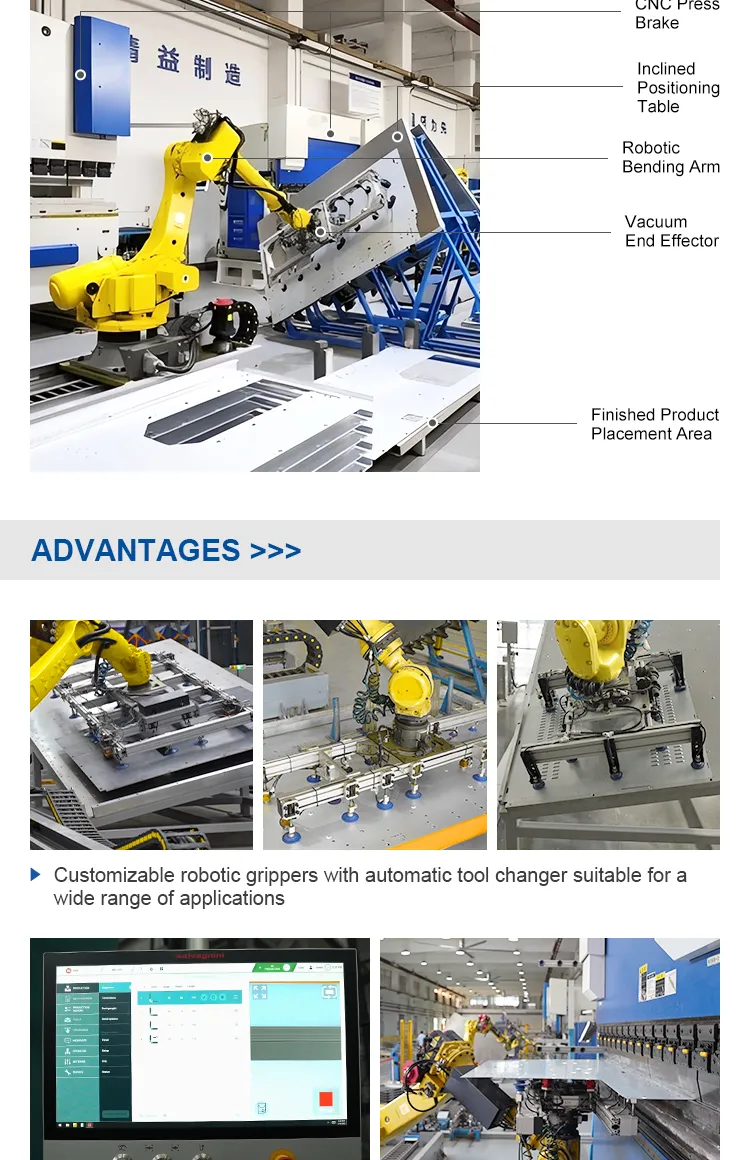

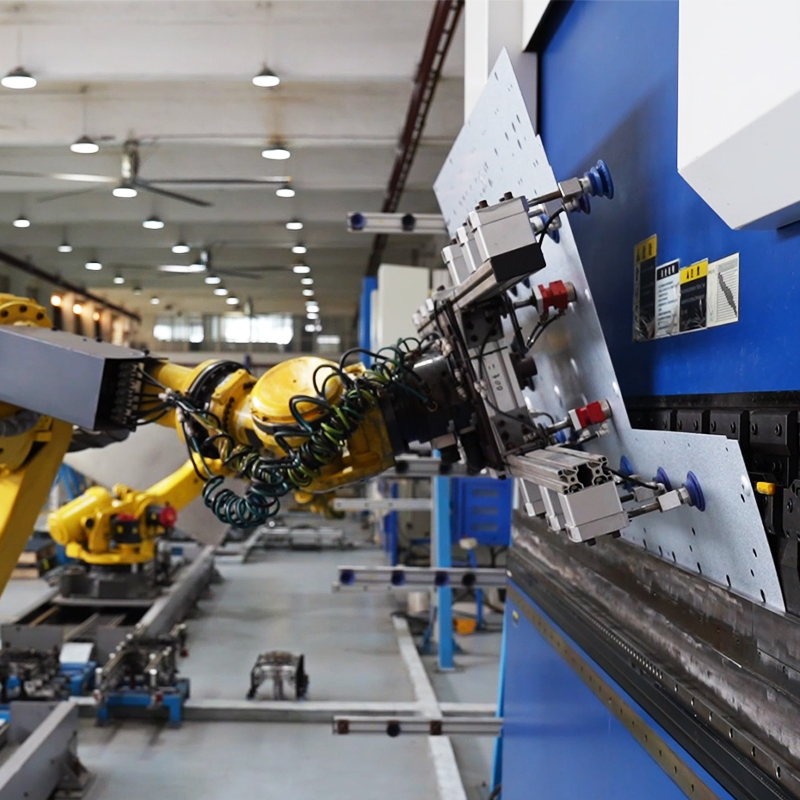

• Automated loading and unloading of sheet metal parts in high-volume production.

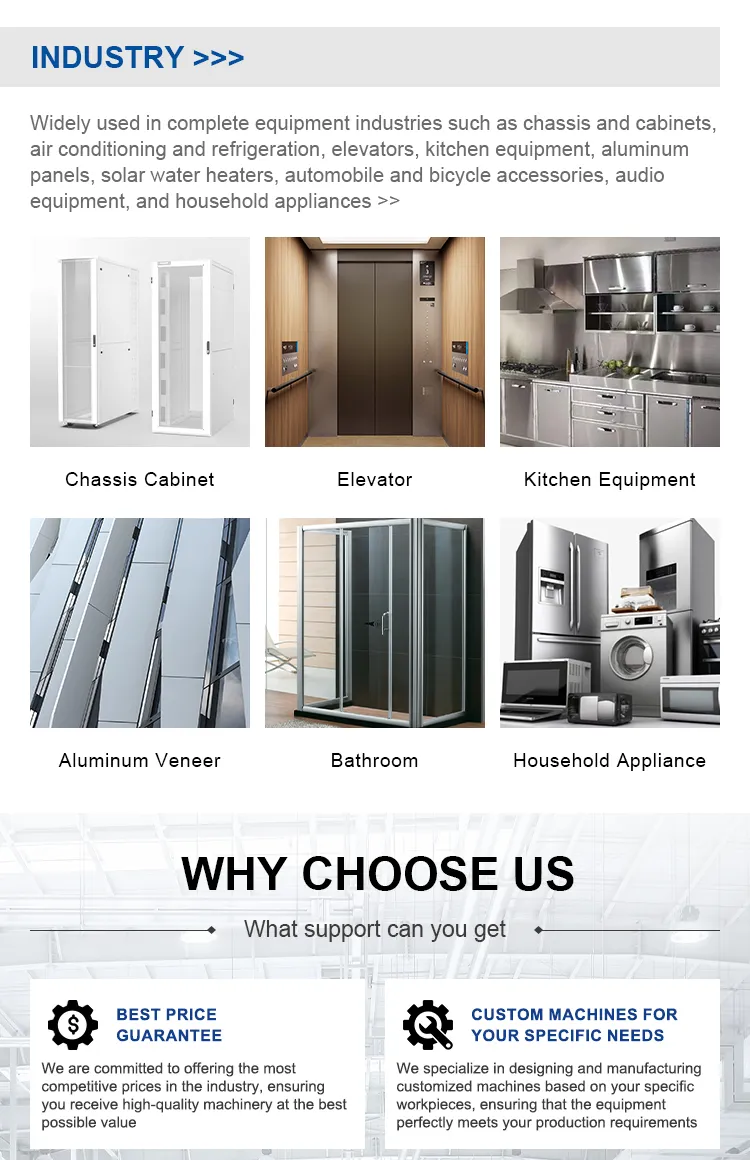

• Bending components such as computer cabinets, electrical cabinets, kitchen equipment, solar panels, and metal furniture.

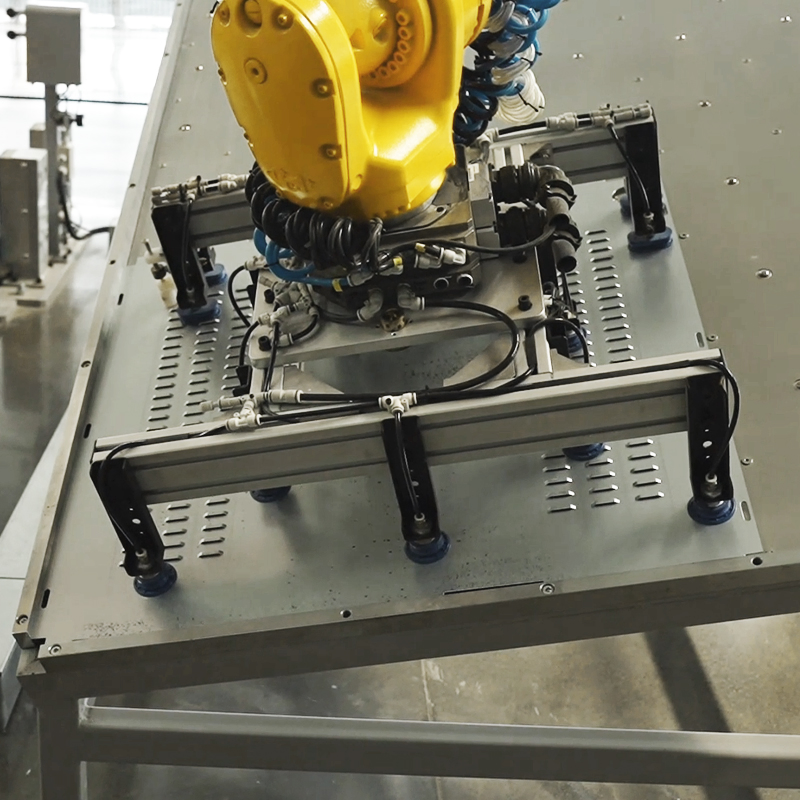

• Handling large or heavy sheets that are difficult to position manually.
• Environments requiring consistent precision and repeatable bending.
• High Efficiency: Significantly reduces cycle time via automation.
• Improved Safety: Eliminates manual handling of heavy or sharp-edged sheets.
• Consistent Accuracy: Robotic arm ensures repeatable positioning.
• Flexibility: Minimal setup for different parts and batches.
• Labor Savings: Minimizes reliance on highly skilled operators.
| Model | EHP-5016 |
| Bending Force (KN) | 500 |
| Foldable Length (mm) | 1650 |
| Column Spacing (mm) | 1200 |
| Throat Depth (mm) | 300 |
| Cylinder Stroke (mm) | 120 |
| Main Motor Power (kw) | 2*4.4 |
| Slider Max Speed (mm/s) | Drive-in: 300 / Stifle: 20 / Return: 250 |
| Backgauge X-axis | Stroke: 450mm / Max Speed: 450mm/s |
| Backgauge R-axis | Stroke: 200mm / Max Speed: 75mm/s |
| Dimensions | 2180*1340*2385mm |
| Weight (kg) | 4300 |
Providing customized smart production line solutions to clients in over 80 countries. Our products cover key processes including blanking, pre-processing, forming, welding, and assembly.
With over 160 advanced machines and a 100,000 m² manufacturing base, we specialize in R&D of punch presses, press brakes, laser cutters, bending centers, and more, holding over 130 patents. We support industries like high-speed rail, new energy vehicles, and medical devices with a "24-hour response + lifetime maintenance" service standard.
