Precision Load and Unload Industrial Robot Arm Solutions

Customization:	Available
Application:	burnishing, polishing, machine loading/unloading a
Control Mode:	Point to Point Control

Send Inquiry

Product Description

Basic Information

Model NO.

GSK RB300A1-2850

Drive Mode

servo drive

Axes

6 Axes

Motion Radius

2850mm

Payload range

300kg

Machine weight

1650kg

Structure

Articulated

Certification

ISO, CE

Warranty

1 year

Production Capacity

50000 Sets/Years

Product Description

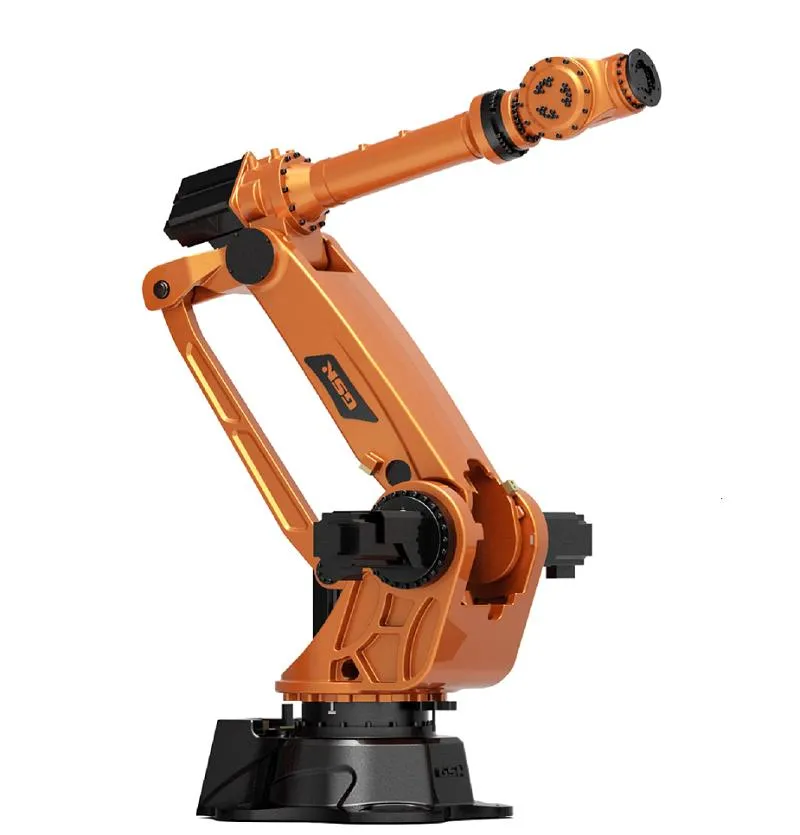

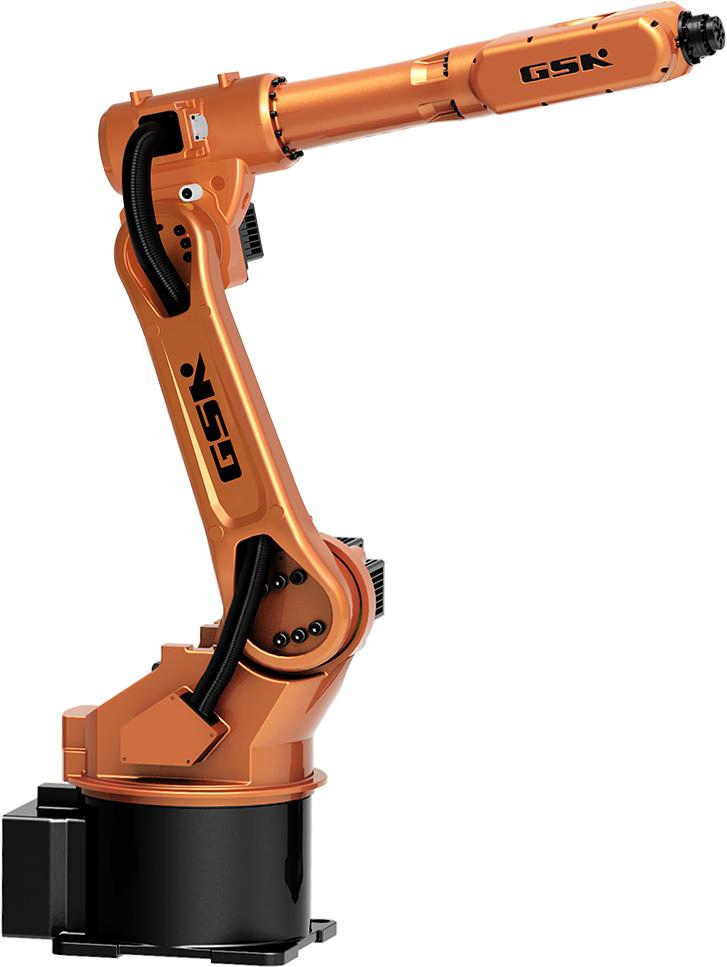

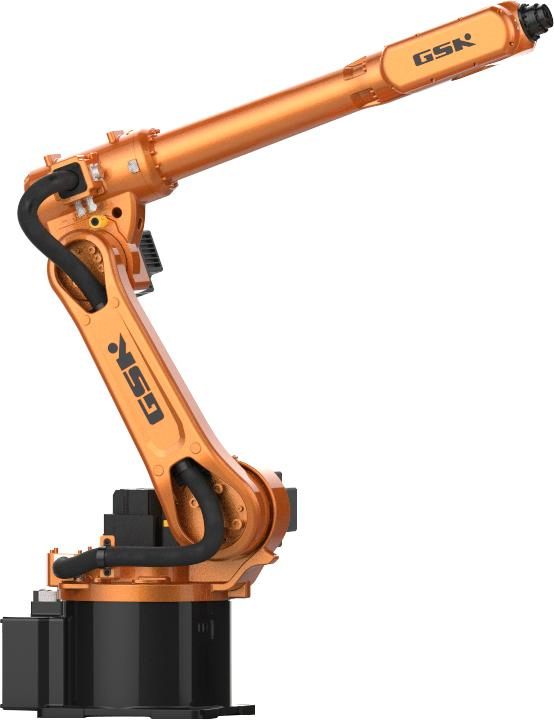

Introducing the RB300A1-2850 Industrial General Robot - a powerhouse in automation with a robust payload capacity of 300kg and an impressive reach of 2850mm, expertly engineered for seamless packing and loading operations.

Application Field: Embrace the versatility of this solution, perfectly crafted for an array of applications including burnishing, polishing, spraying/painting, and seamless integration in machine loading/unloading tasks.

Product Features

Experience a revolution in design with a greatly simplified mechanical structure. Enjoy unparalleled reliability and stability.

Boasting a flawless seal design, with local axes J4~J6 offering protection up to IP65, adaptable to diverse environments.

Achieve unprecedented levels of speed and precision, engineered to boost production efficiency and reduce costs.

A range of different movement radii and load capacities to meet diverse market sector needs.

Technical Specifications

Type	Dof	Payload (kg)	Repeatability (mm)	Motion Radius (mm)	Weight (kg)
RB03A1-562	6	3	±0.02	562	36
RB06-900	6	6	±0.03	900	60
RB20A3-1700	6	20	±0.04	1700	265
RB300A1-2850	6	300	±0.1	2850	1650
RB500-2882	6	500	±0.1	2882	3300

Application Cases

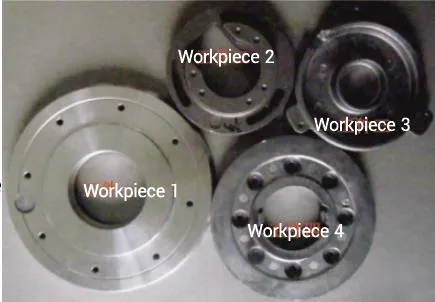

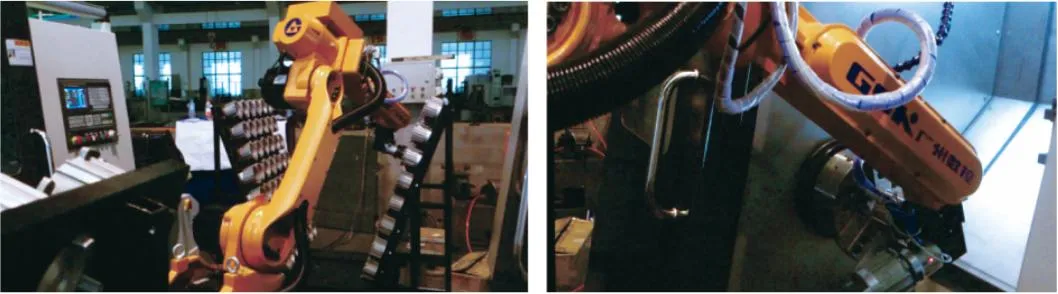

1. Machine Tool Load/Unload Operations

Utilizing RB08 robots for efficient loading and unloading systems. Pairs with CNC turning machines to ensure production cycle efficiency and safety via position confirmation switches.

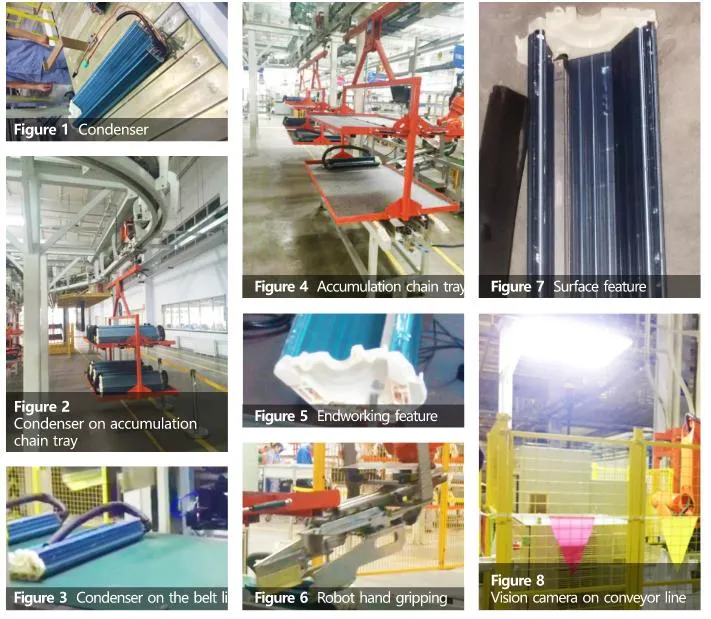

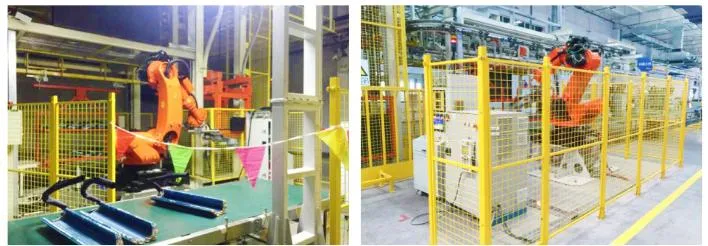

2. 3D Vision-Guided Precision Handling

GSK RB165 Robot with 3D Vision-Guided Precision for Condenser Handling. Features spatial three-dimensional grabbing and 24/7 reliable performance.

3. Specialized Industrial Solutions

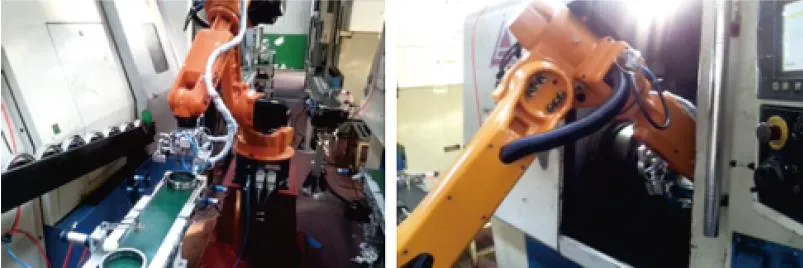

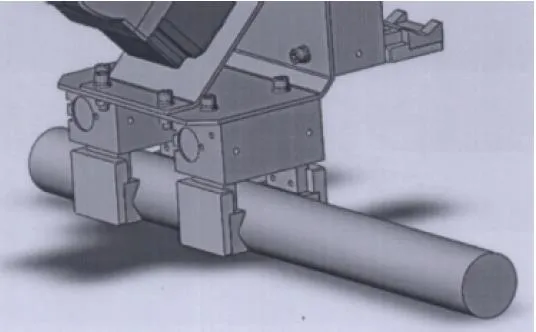

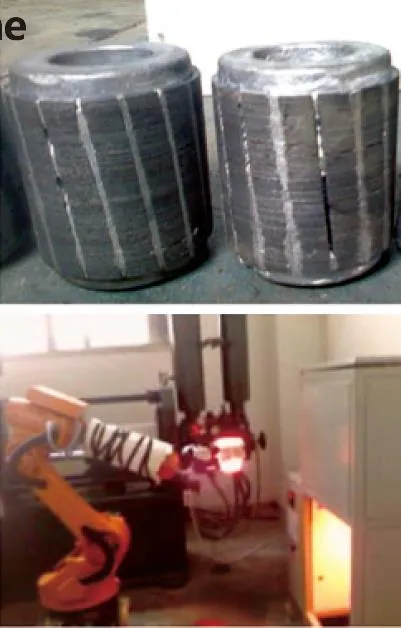

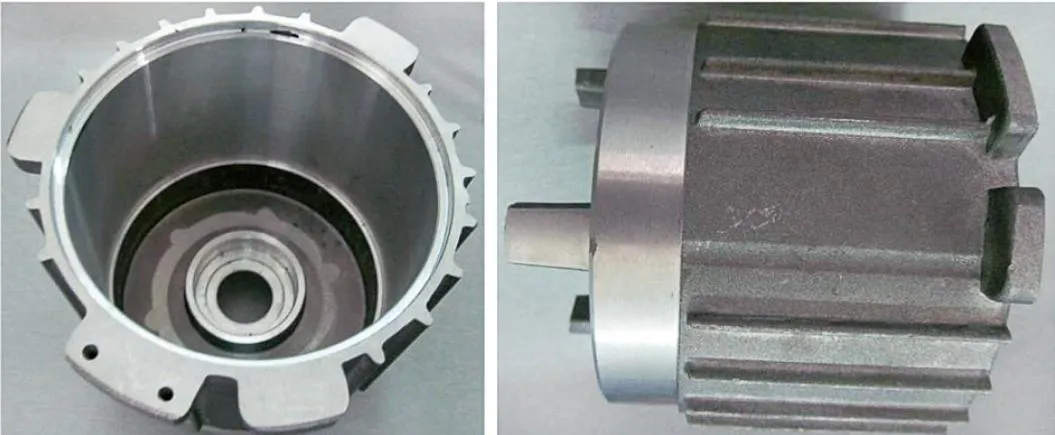

From gear machining to motor shaft handling and die-casting pouring applications, replacing hazardous manual labor with consistent robotic precision.

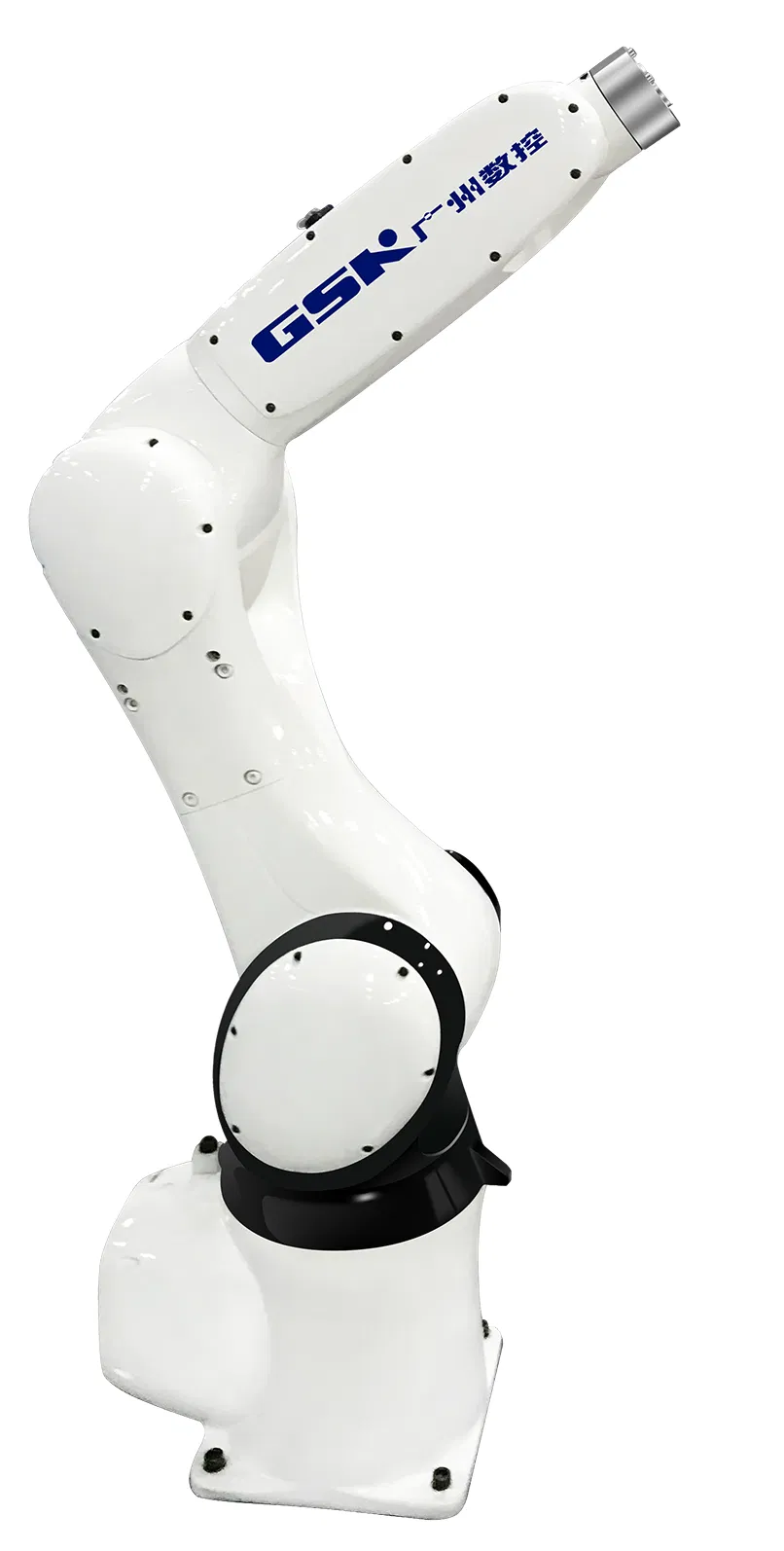

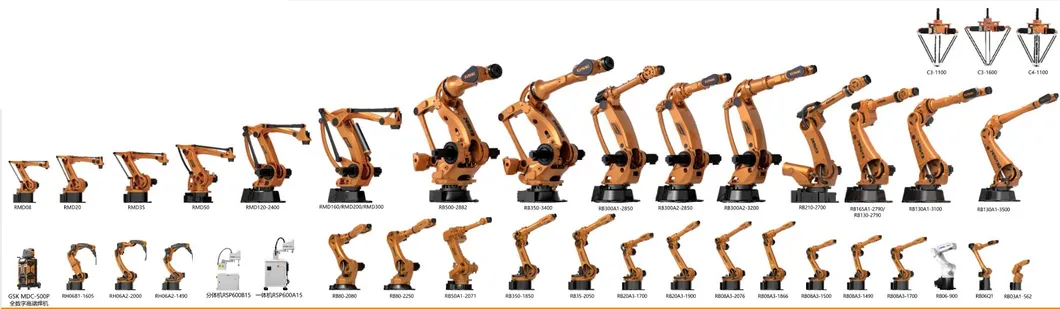

Industrial Robot Family

GSK industrial robots encompass six distinct series engineered for transportation, welding, polishing, painting, stacking, and paralleling. With up to thirty unique models, our products deliver exceptional performance tailored to modern manufacturing needs.

Frequently Asked Questions (FAQ)

What is the maximum payload of the RB300A1-2850 robot? The RB300A1-2850 is a heavy-duty industrial robot with a maximum payload capacity of 300kg and a motion radius of 2850mm.

Does the robot support operation in harsh environments? Yes, the robot features a high-grade seal design, with local axes J4 to J6 offering protection up to IP65, making it suitable for challenging working environments.

What are the primary applications for these industrial robots? Our robots are versatile and used for loading/unloading machine tools, gear machining, motor shaft handling, die-casting pouring, polishing, spraying, and assembly lines.

Can these robots be integrated with existing CNC machines? Absolutely. Using the GSK-LINK on-site bus, the robots ensure high-speed, seamless connection between CNC machines and auxiliary operation devices.

What kind of drive system do these robots use? The robots utilize a high-precision AC Servo Drive system, ensuring reliability, stability, and consistent performance across all 6 axes.

How does robotic automation improve production efficiency? Robots allow for 24/7 continuous operation (three shifts), reduce labor costs, minimize cycle times, and ensure stable production quality with high positioning precision.
