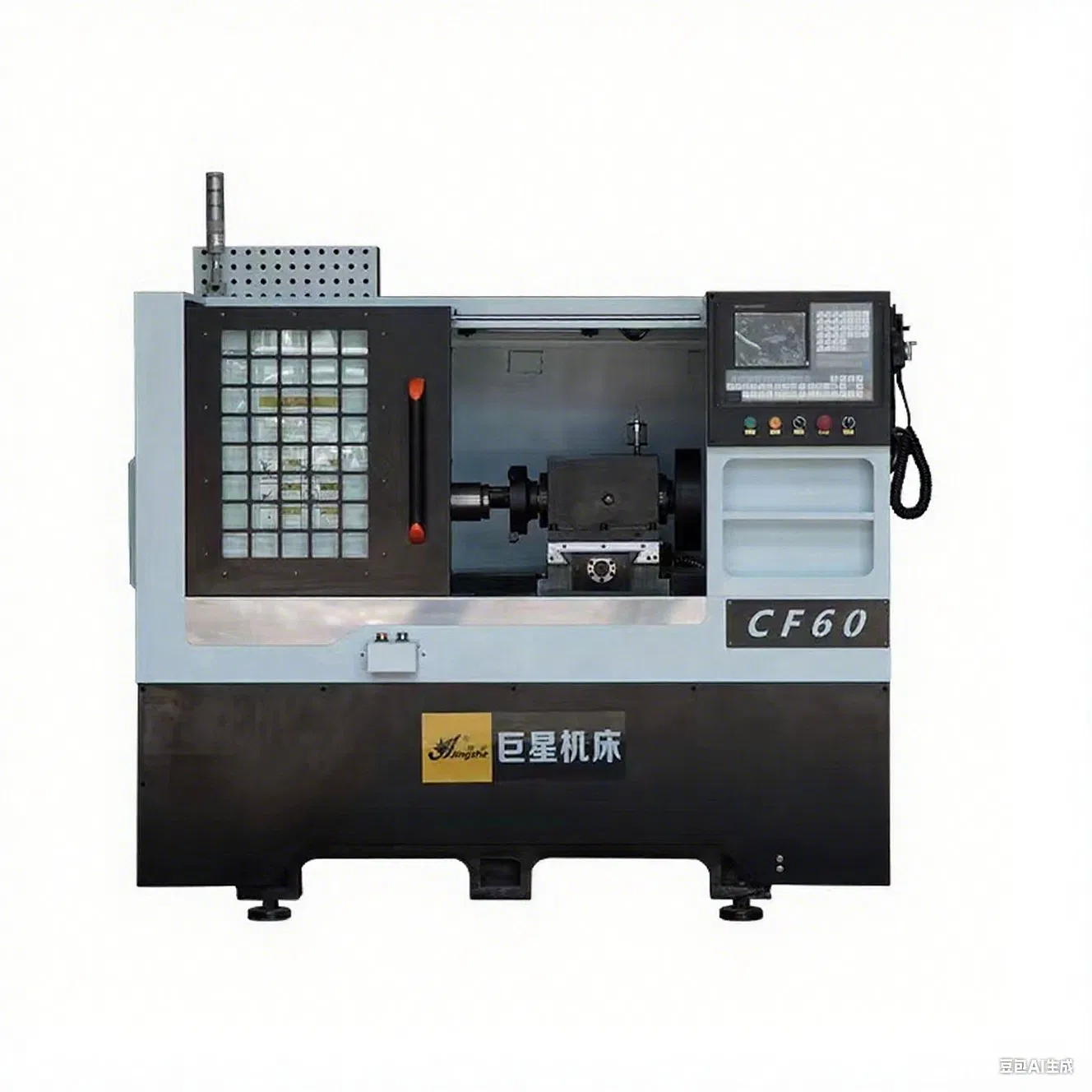

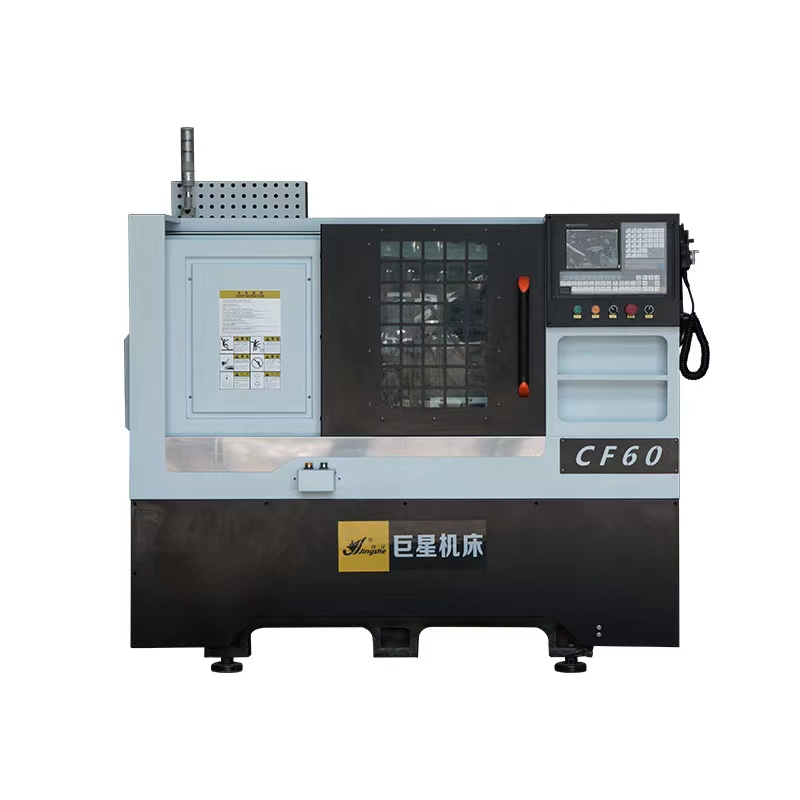

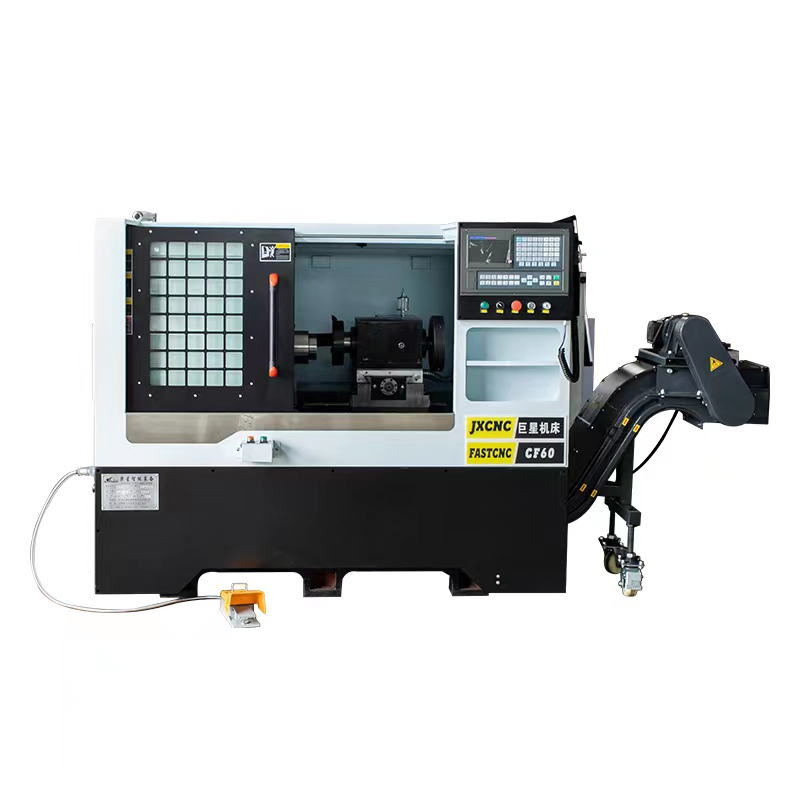

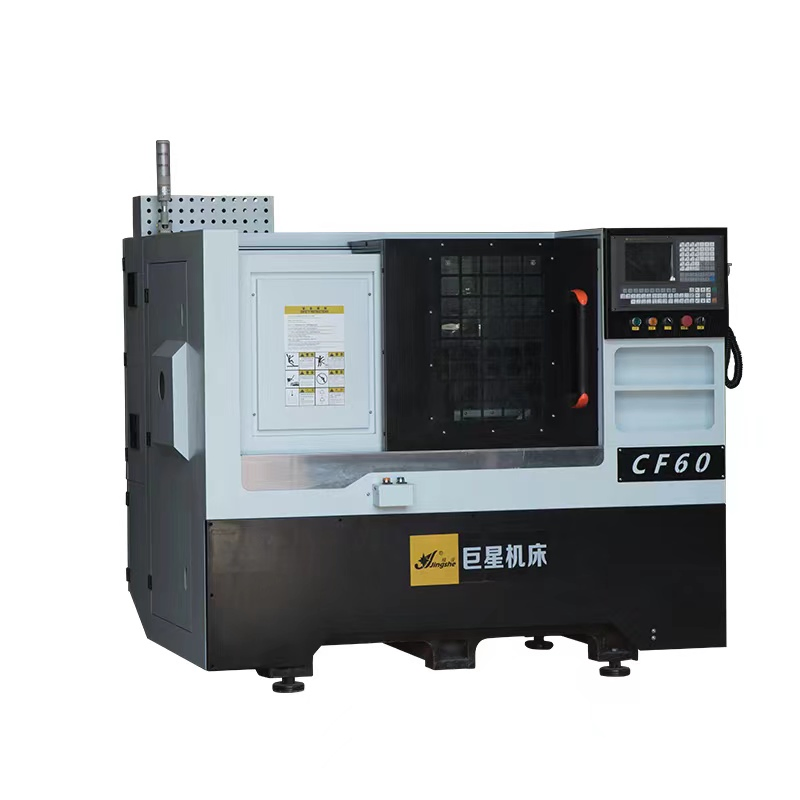

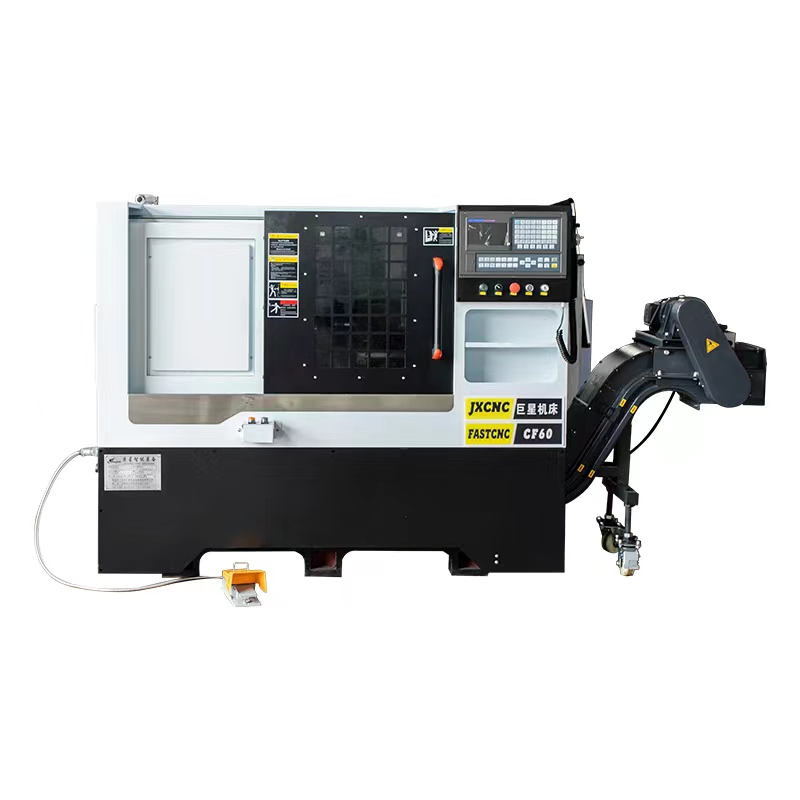

Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
1 / 5
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control
Precision Compact Juxing CNC Lathe with GSK928td-L Control

Precision Compact Juxing CNC Lathe with GSK928td-L Control

Customization: Available
After-sales Service: Yes
Warranty: One Year
Send Inquiry

Product Description

Basic Info
Model NO.
CF60
Type
Horizontal Lathe
Processing
Chuck CNC Lathe
Guide Rail
Horizontal
Power Source
Electric
Precision
High Precision
Control Mode
CNC
Polygon Machined
Flat/Square/Hexagonal/Octagon
Spindle Speed
50-1200rpm
Net Weight
2200kg
Product Description

Small CNC Lathe with English GSK928TD-L Control

Designed for small to medium-sized high-precision parts, featuring an advanced CNC system and dedicated polygon turning structure to achieve efficient multi-face milling. Process upgrades enhance efficiency and surface quality.

Original Configuration Brand Origin
Electrical GSK English controller / Servo motor & drive GSK Guangzhou
Guide Screw High frequency hardening high rigidity guide Self-made Zhejiang
Spindle A2-6 spindle / Three-phase spindle motor Juxing / Baiquan Domestic
CNC Lathe Function

Function & Structure

  • Capable of Flat-square, Square, Hexagon cutting.
  • High torque headstock and fly cutter spindle.
  • Spindle and fly cutter connected by synchronization belt.
Technical Parameters
Parameter Item Unit Data
Machining shaft workpiece diam. range mm 5-45
Max. process workpiece length mm 120
Spindle end runout mm 0.005
Spindle hole diameter mm Φ63
Surface Roughness μm 1.6-3.2

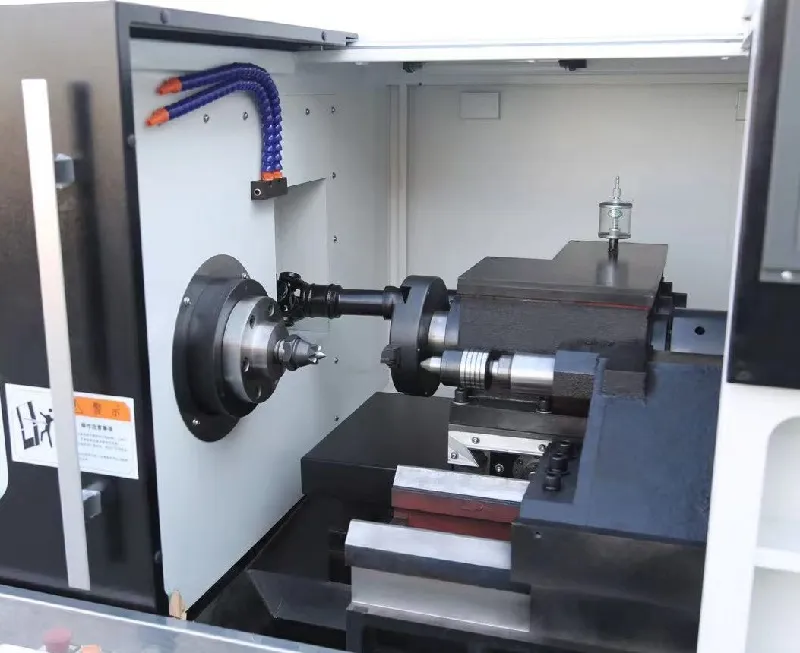

CNC Advantage

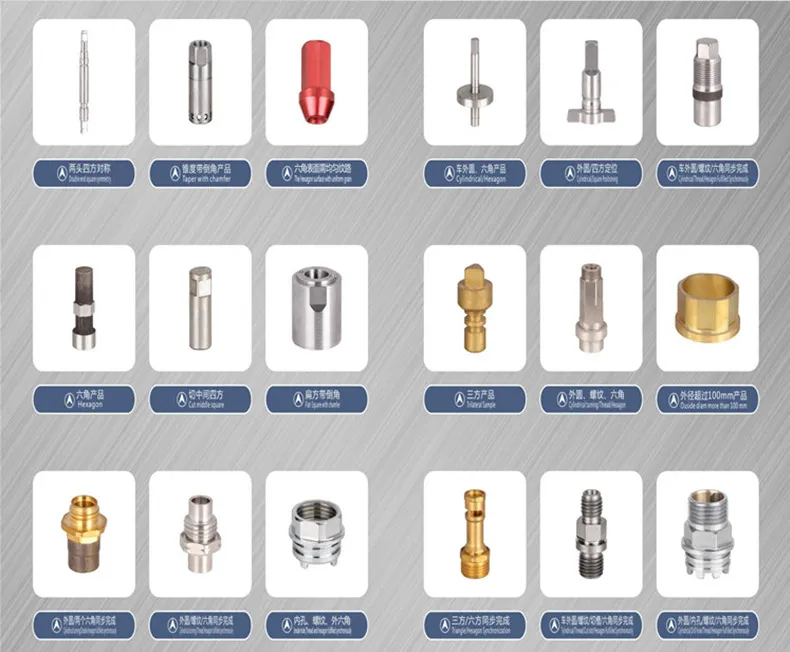

Sample Display
Applications & Advantages
1Suitable for processing valve stems, joints, screws, and nuts.
2Processed Materials: Brass, Iron, Aluminum, Titanium, Stainless steel, Wood, Nylon.
3Processing efficiency is several times higher than conventional milling machines.

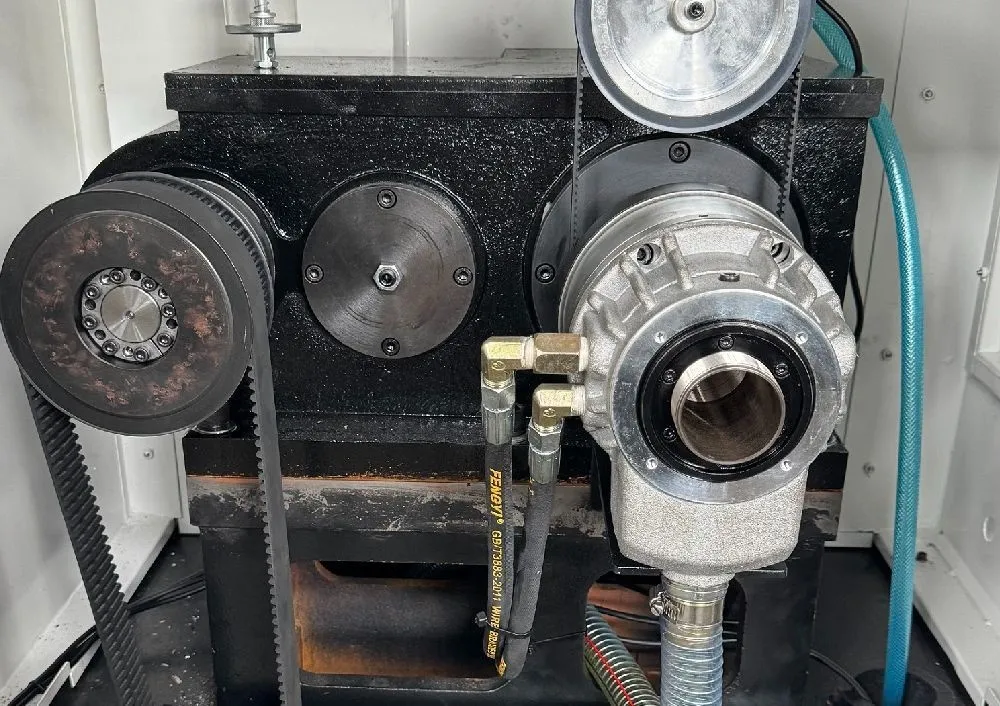

Application 1

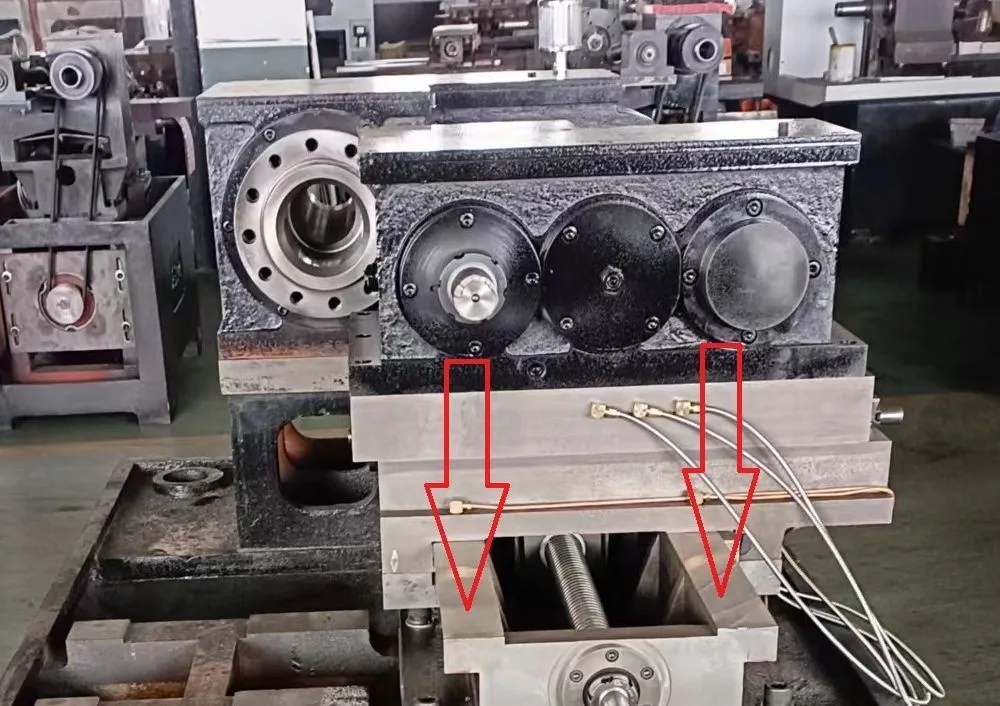

Application 2

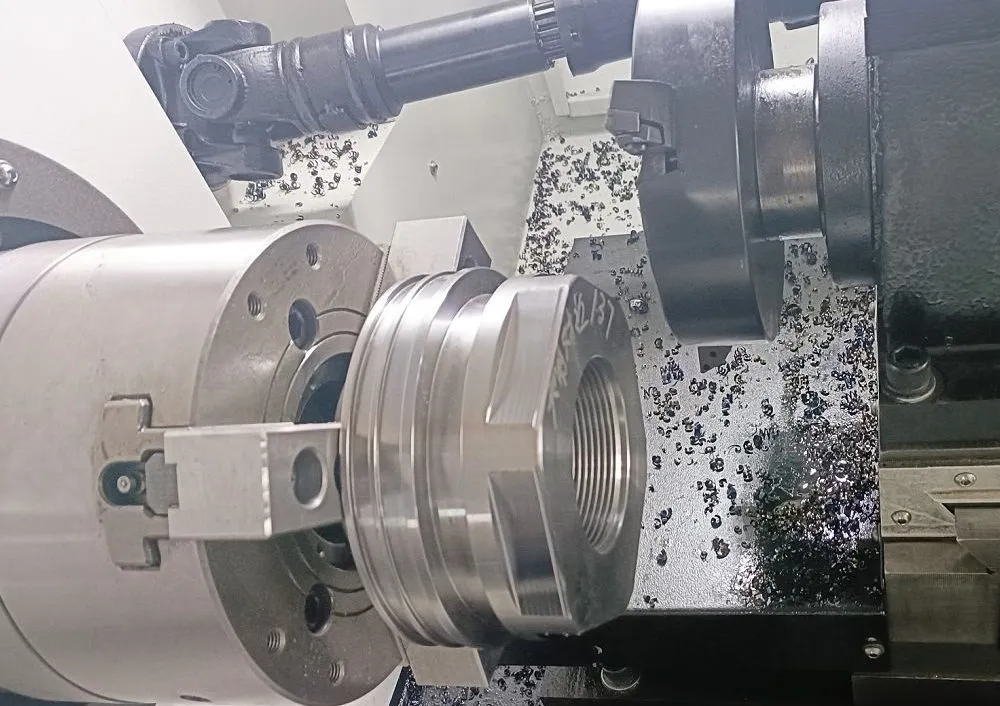

Application 3
Service & Support

After-Sales Service:

  • Free machine parts warranty for 12 months upon arrival.
  • Lifelong technical support and spare parts provision.
  • Fault response within 24 hours.
  • Sample testing available according to product drawings before shipment.
Certificate 1

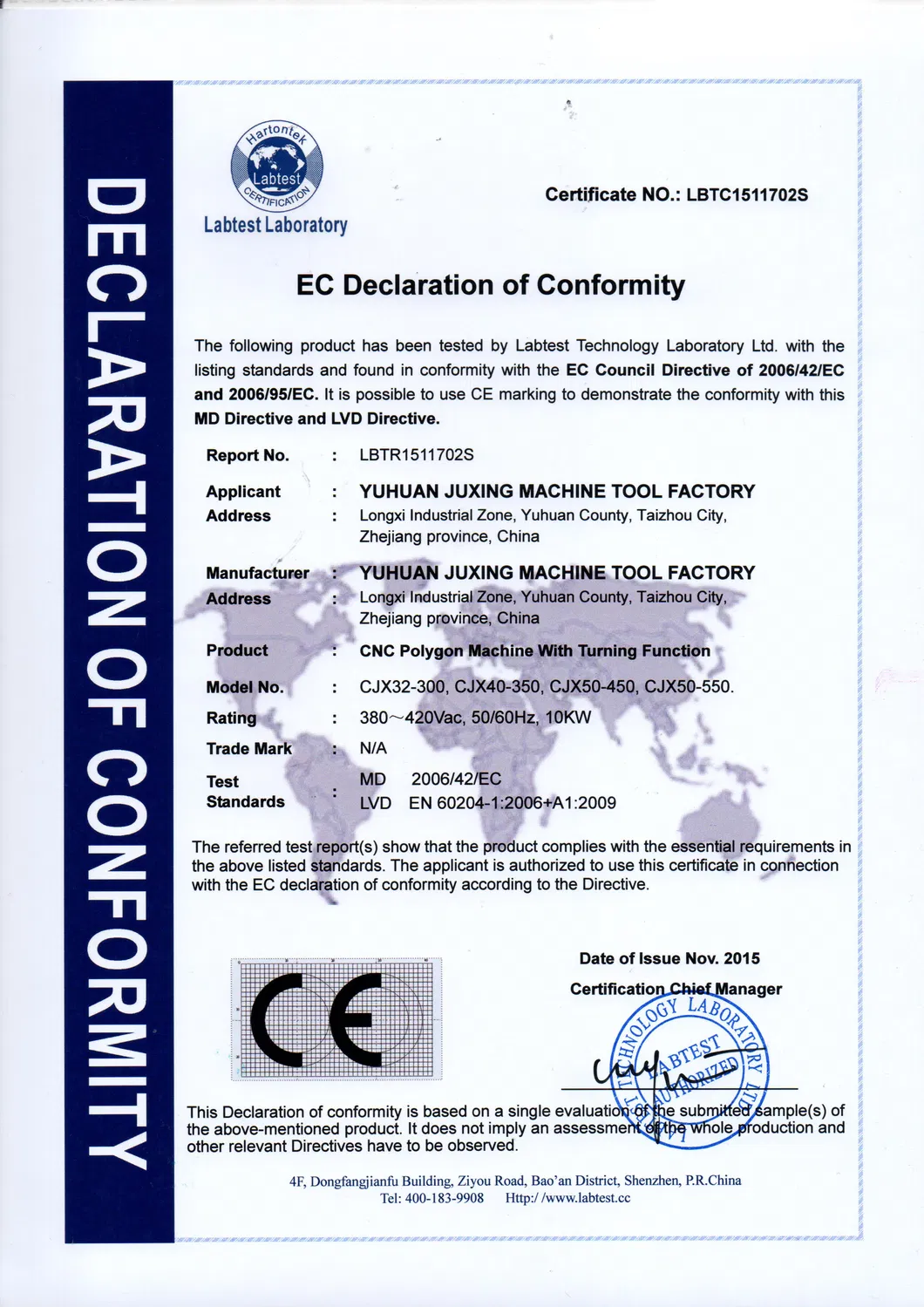

Certificate 2

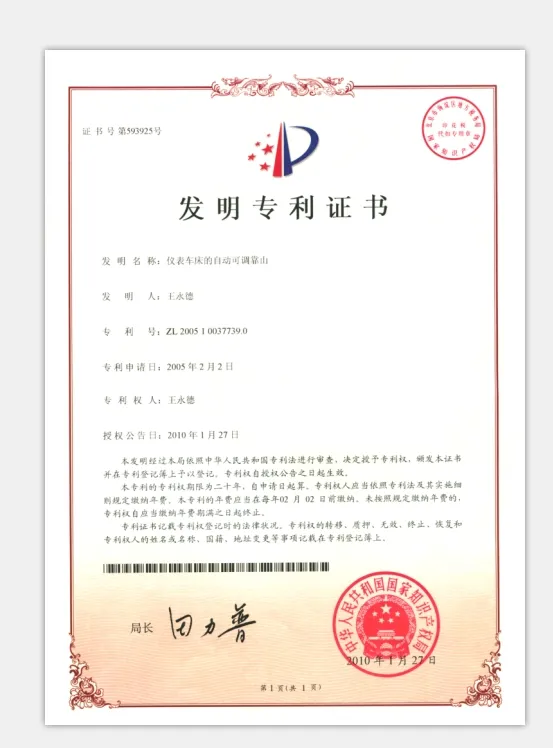

Certificate 3
Frequently Asked Questions
Q What are your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We will show you photos of the products and packages before final payment.
Q What is the standard delivery time?
A: Generally, it takes 30 to 60 days after receiving advance payment, depending on the items and order quantity.
Q Do you test the machine before delivery?
A: Yes, we conduct a 100% test on all goods before they are shipped.
Q What delivery terms do you support?
A: We support EXW, FOB, CFR, CIF, and DDU.
Q How do you provide technical support?
A: We offer lifelong technical support and provide spare parts. Any inquiries are typically answered within 24 hours.
