Non-Destructive Laser Cutter Machine with High-Speed Performance
Non-Destructive Laser Cutter Machine with High-Speed Performance
Non-Destructive Laser Cutter Machine with High-Speed Performance
1 / 3
Non-Destructive Laser Cutter Machine with High-Speed Performance
Non-Destructive Laser Cutter Machine with High-Speed Performance
Non-Destructive Laser Cutter Machine with High-Speed Performance

Non-Destructive Laser Cutter Machine with High-Speed Performance

Customization: Available
Automation: Automation
After-sales Service: on-Line Support
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
SL5-UD7000
Cell Type
Mono 156-230mm
Maximum Capacity
3600PCS/H (Full Cell)
Equipment Utilization
More Than 99%
Breakage Rate
Less Than 0.05%
Transmission Type
Flexible
Certification
CE
Warranty
One Year Warranty
Specification
5100*1750*2100mm
Origin
China
⚙️ Features of Equipment
✓Latest technology of Non-Destructive Cutting (thermal laser separation technology)
✓Dry Cutting, Waterless, no need water spray during Splitting (No Water Stains Pollution)
✓High throughput upto 3600pcs/h (SL5-UD3600)
✓Low breakage rate, less than 0.05%
✓Low Splitting Temperature (<130°C), meets PERC Hit Topcon IBC Cells requirement
✓N type and P type cells Compatible; Smooth cutting surface with no cracks
✓Simple process: loading, Slotting, Splitting and unloading (No drying needed)
✓Visual detection: 20Mpixel CCD camera for auto-correction and NG cell removal
📋 Technical Specification
Classify Item Technical Index Remarks
Equipment performance Applicable solar cells Cell Type Mono 156-230mm 1/2 cut Updateable to 1/3 1/4; fast switch
Cell thickness 160-220(±10um) Batch deviation <20μm
Grid linelayout Blank area width ≥1.5mm required on cutting area
Cell warpage <2mm A grade cell
Maximum capacity 3600pcs/h (full cell) 182 Perc Cell: 3400-3500 pcs/h
Equipment utilization ≥99% failure rate ≤1%
Fragmentation rate ≤0.05% Includes missing corners/chipped edges
Laser Index Slotting laser 50W RAYCUS (Optional SPI/IPG)
Splitting laser 300W High precision splitting
Laser lifetime 30,000 hours Level 4 safety protection
🖼️ Product Showcase

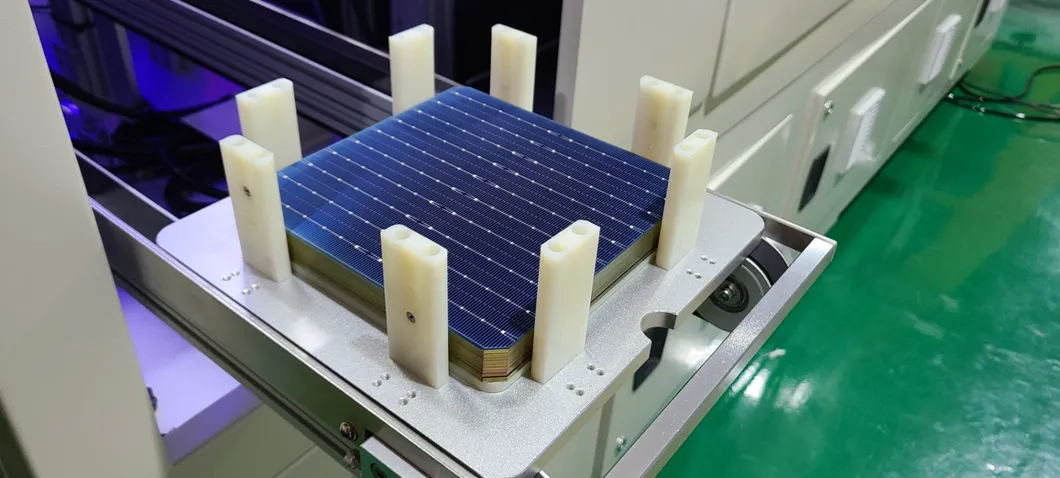

Non-Destructive Laser Cutter Machine 1

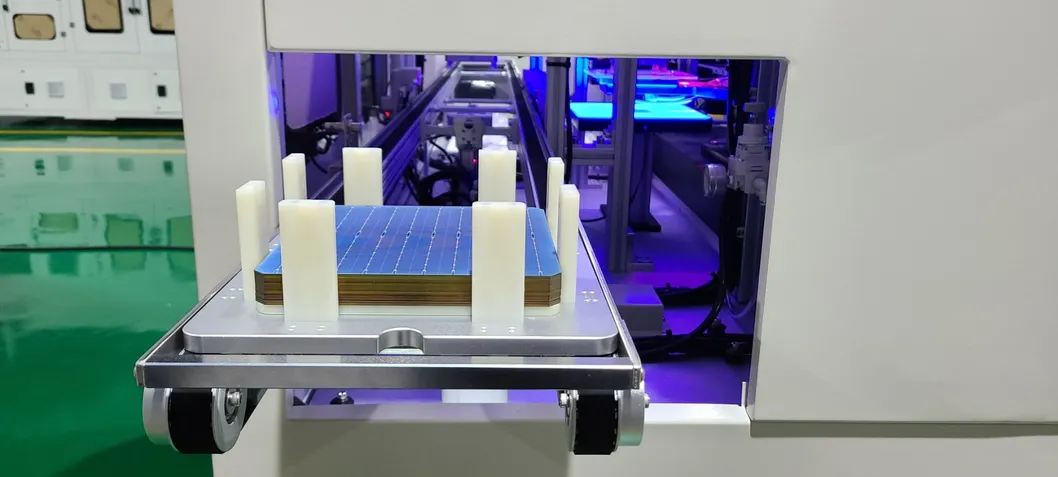

Non-Destructive Laser Cutter Machine 2

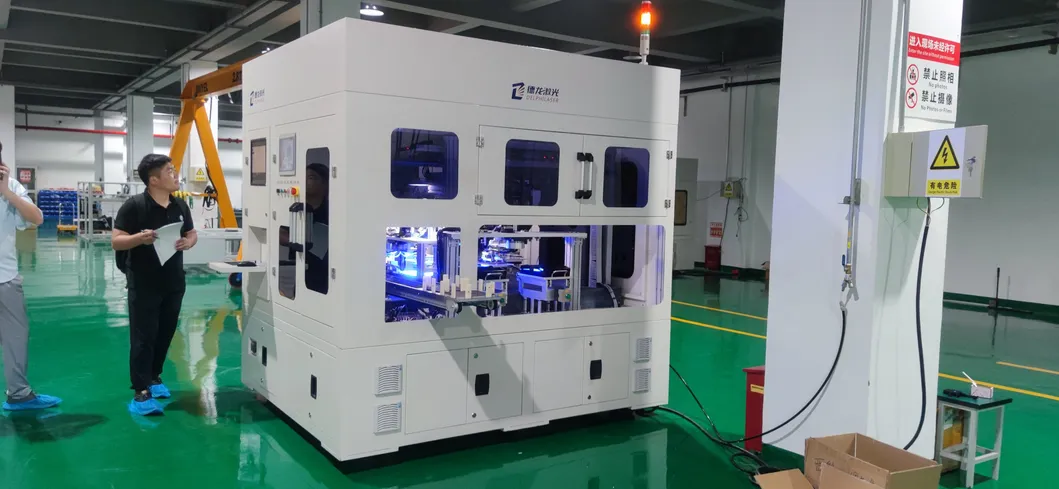

Non-Destructive Laser Cutter Machine 3

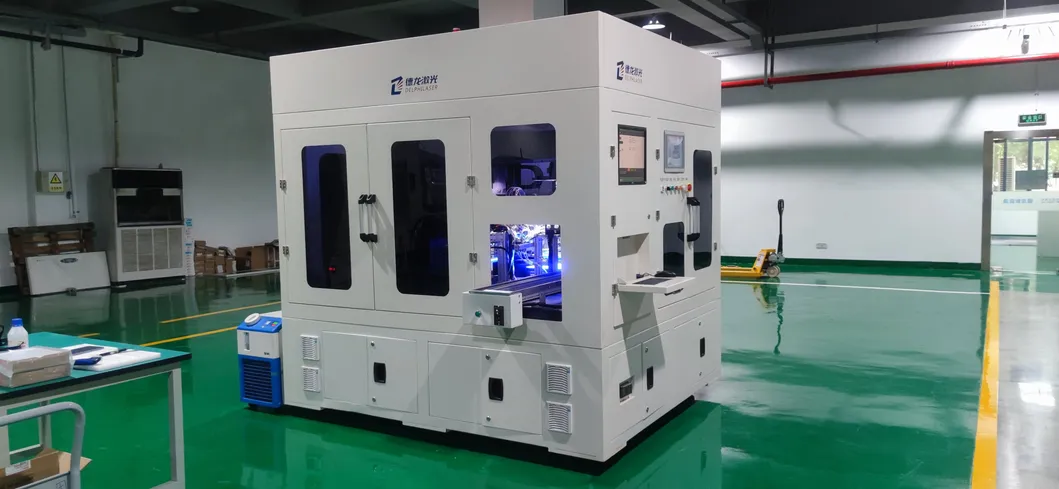

Non-Destructive Laser Cutter Machine 4
❓ Frequently Asked Questions
Q1: What is Non-Destructive Cutting technology?
It uses thermal laser separation technology to split cells without water or mechanical force, ensuring a smooth surface without micro-cracks.
Q2: What types of solar cells are compatible with this machine?
The equipment is compatible with Mono 156-230mm cells, including N-type and P-type (PERC, HIT, TOPCon, IBC).
Q3: How does the machine ensure low breakage rates?
By utilizing a waterless dry cutting process and automatic laser splitting (no mechanical action), the breakage rate is kept below 0.05%.
Q4: Can the machine be upgraded for different cut sizes?
Yes, there is reserved space to easily upgrade the system to support 1/3 or 1/4 cell cutting configurations.
Q5: What is the maintenance and safety level of the equipment?
The machine features Level 4 safety protection (safety curtains, sealed boxes) and is designed for easy maintenance with a laser lifetime of 30,000 hours.
Q6: What is the maximum production capacity?
The SL5-UD7000 series offers a high throughput of up to 3600 pieces per hour for full cells.
