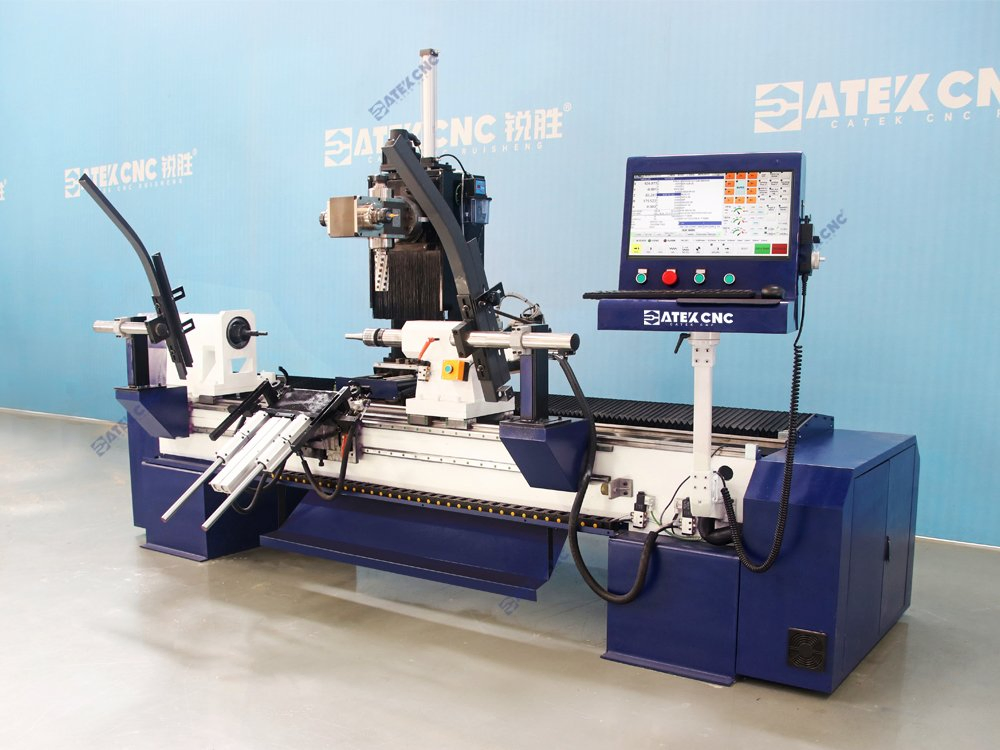

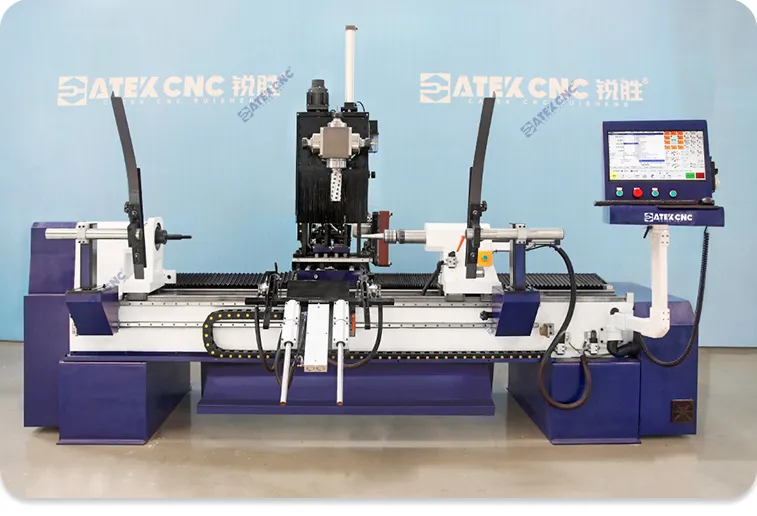

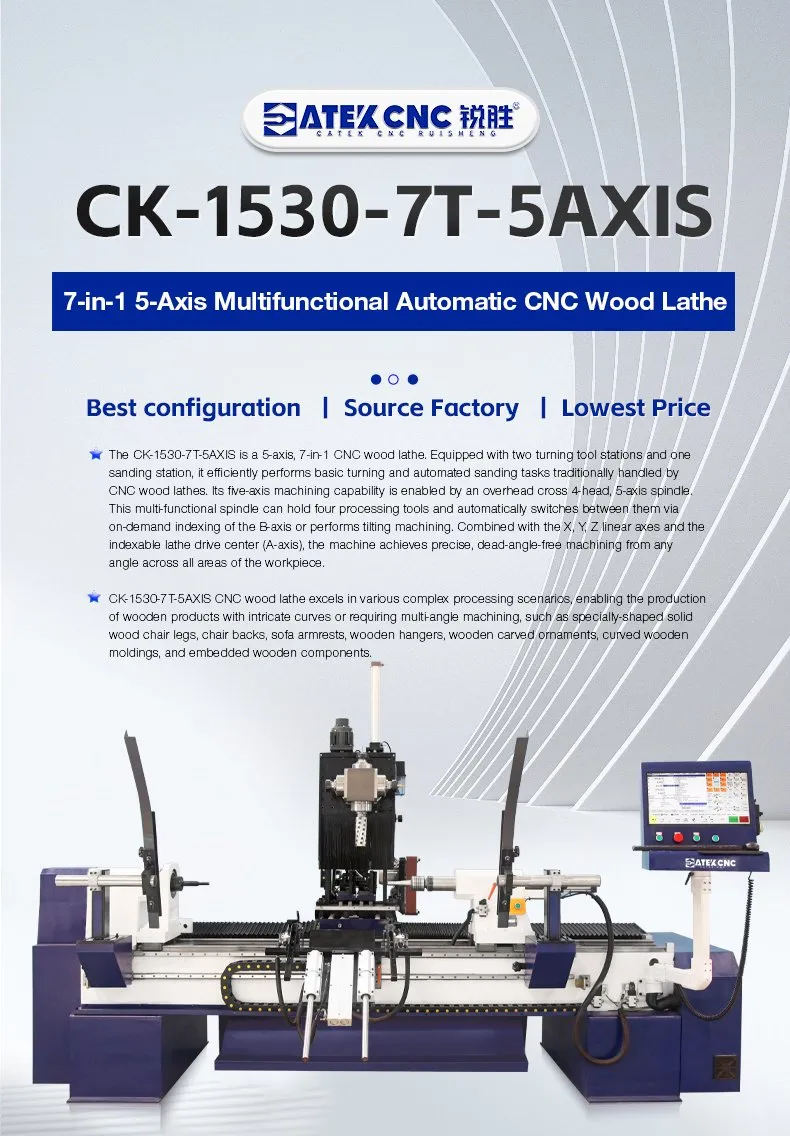

| Model | CK-1530-7T-5AXIS |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |
| Drive Motor | Bus-type absolute 1500W servo motor |
| Drive-Spindle Motor | 4KW pure servo high-torque motor |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle |
| Sanding Device | Independent 1100W variable frequency servo |
| Operating Voltage | AC380V/220V 50/60Hz |

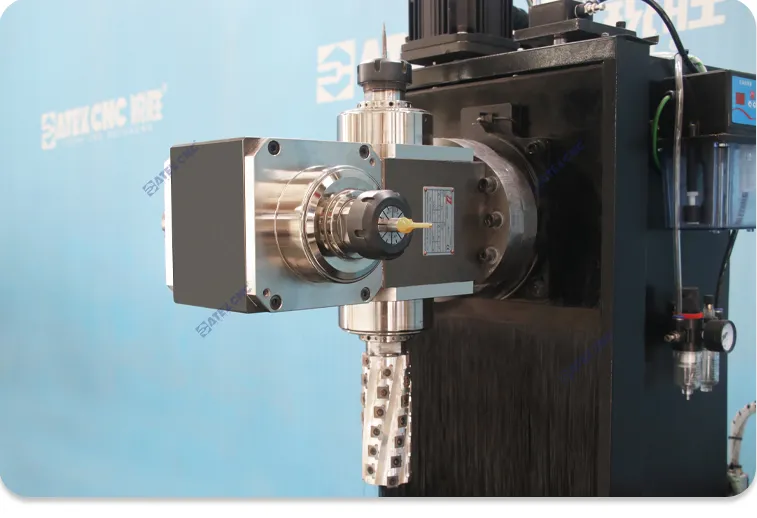

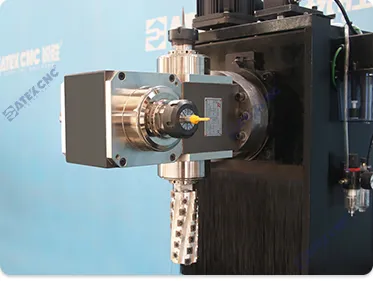

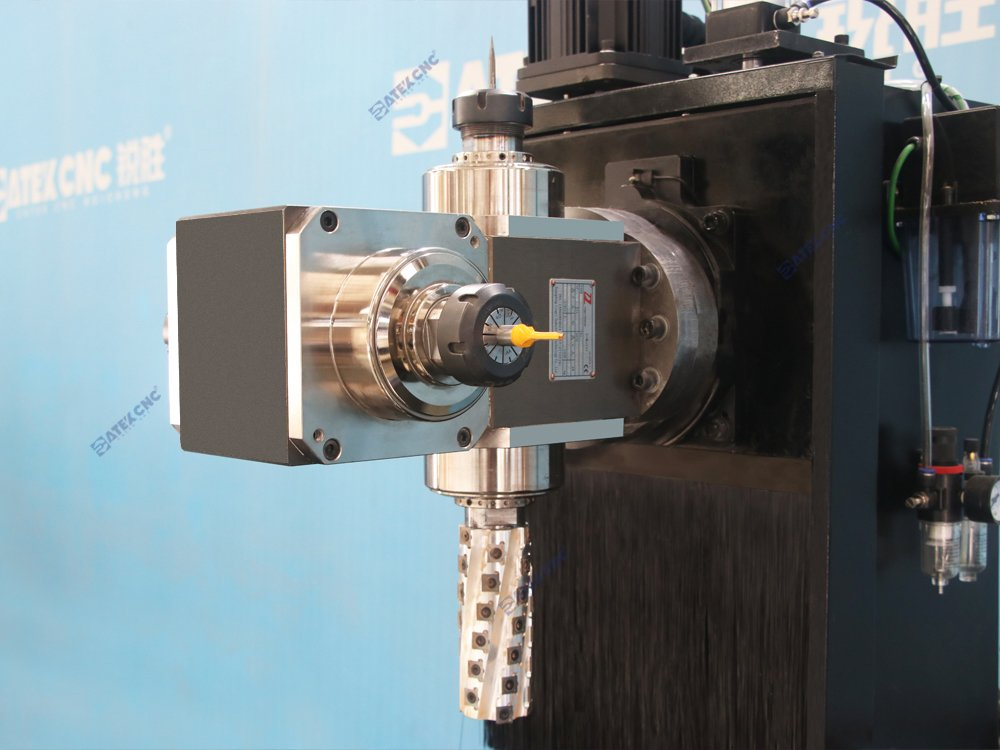

The four-head electric spindle, designed specifically for five-axis machining centers, features an integrated design and a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it automatically rotates and switches tools according to the drawing with ±90-degree tilt adjustment.

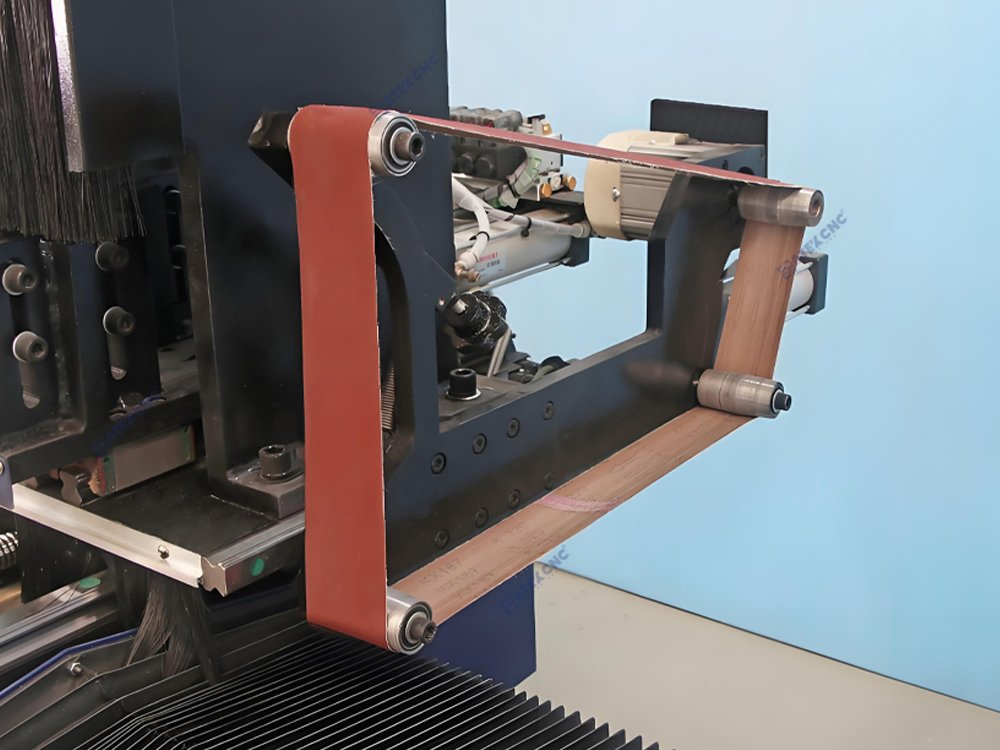

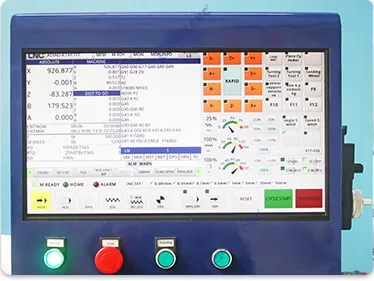

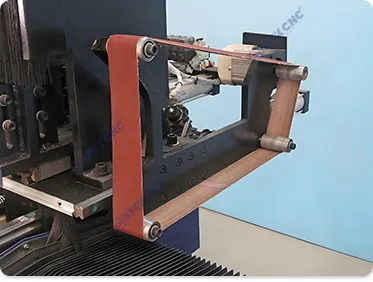

Equipped with a sanding belt unit for grinding, driven by an 1100W brushless servo motor. The Taiwan LNC five-axis CNC system supports advanced features such as five-axis RTCP and handwheel simulation.
Furniture Manufacturing: Specially shaped curved table legs, chair legs, sofa armrests, and headboards featuring relief patterns and S-shaped curves.
Musical Instruments: Guitar necks, violin fretboards, and flutes.
