Industrial Use Multifunctional 5 Axis Multifunctional CNC Wood Lathe Automatic Loading and Feeding CNC Wood Milling Machine

1 / 5

Industrial Use Multifunctional 5 Axis Multifunctional CNC Wood Lathe Automatic Loading and Feeding CNC Wood Milling Machine

Customization:	Available
Warranty:	3 Years
Type:	Horizontal Lathe

Send Inquiry

Product Description

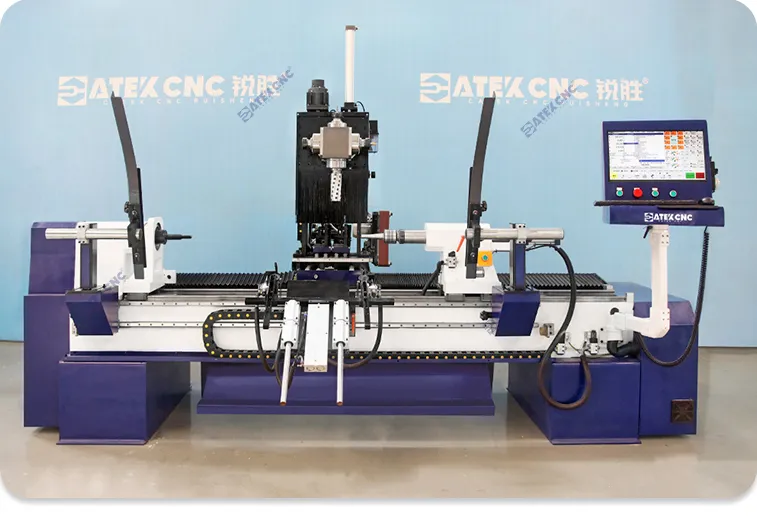

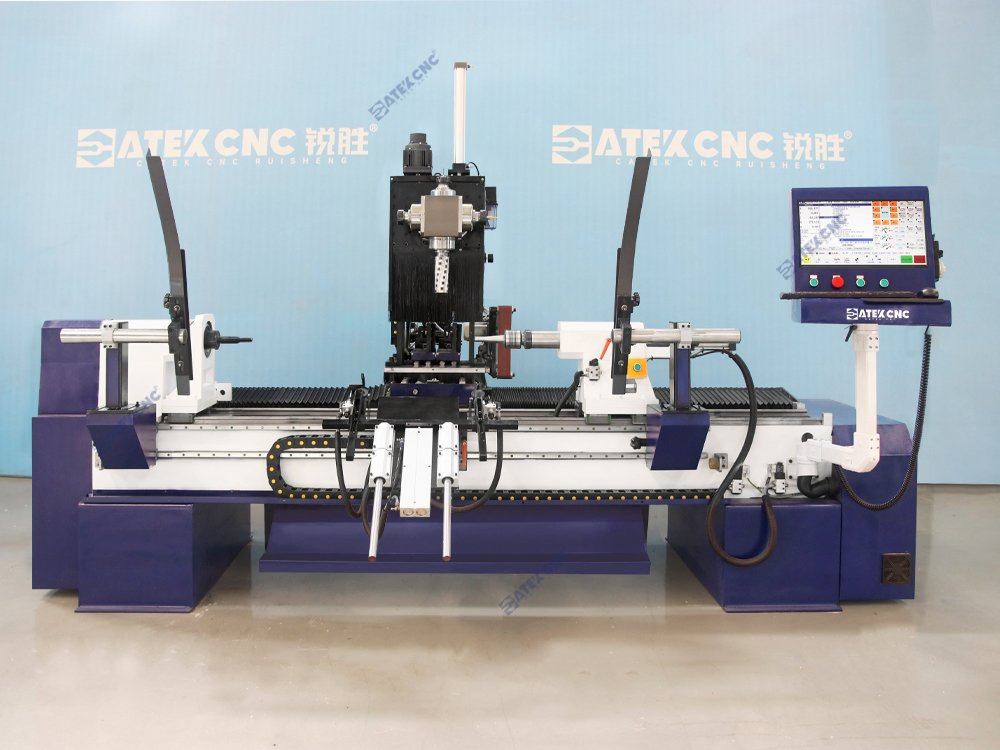

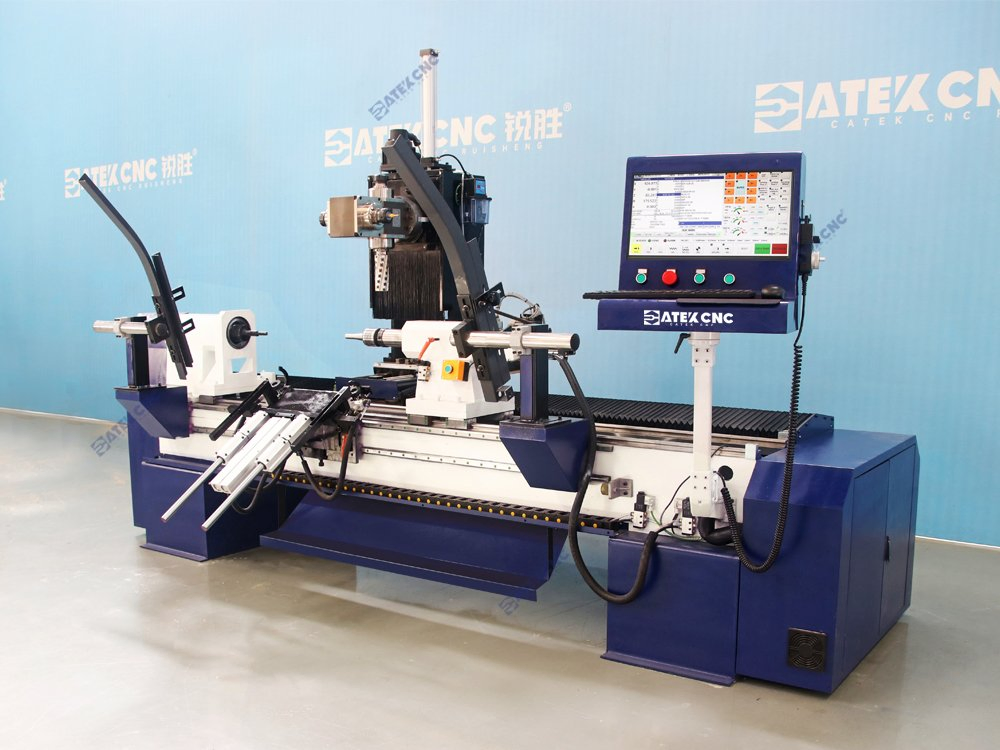

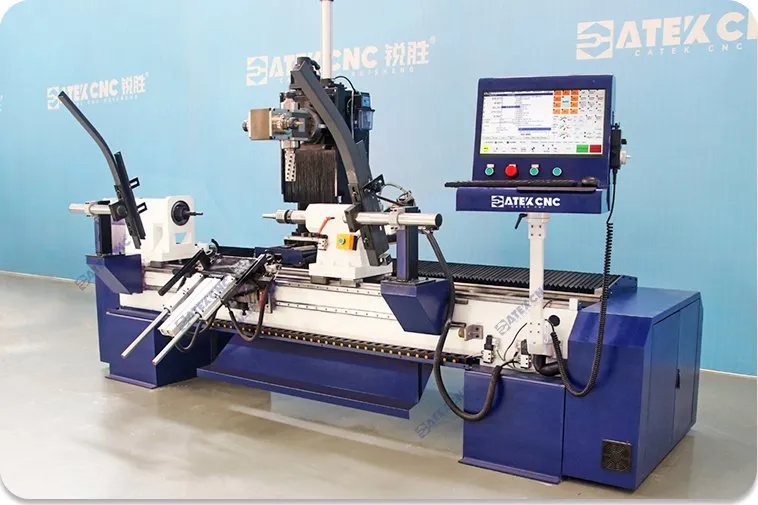

MACHINE PHOTOS

PRODUCT PARAMETERS

Model	CK-1530-7T-5AXIS
Processing Dimensions	1500 * 300mm (customizable)
Lathe Bed	Heavy-duty integrally cast parallel twin beds
Linear Axis Drive Motor	Bus-type absolute 1500W servo motor
Fifth Rotary Axis Motor	Bus-type absolute 750W servo motor
Reducer	Shimpo (Japan) planetary gear reducer
Drive-Spindle Motor	4KW pure servo high-torque motor
Multi-functional Spindle	7.5KW high-speed air-cooled four-head spindle
Control System	Taiwan LNC control system
Repeat Positioning Accuracy	±0.02mm
Weight	2300kg
Dimensions	375021502150mm

DETAILS IMAGES

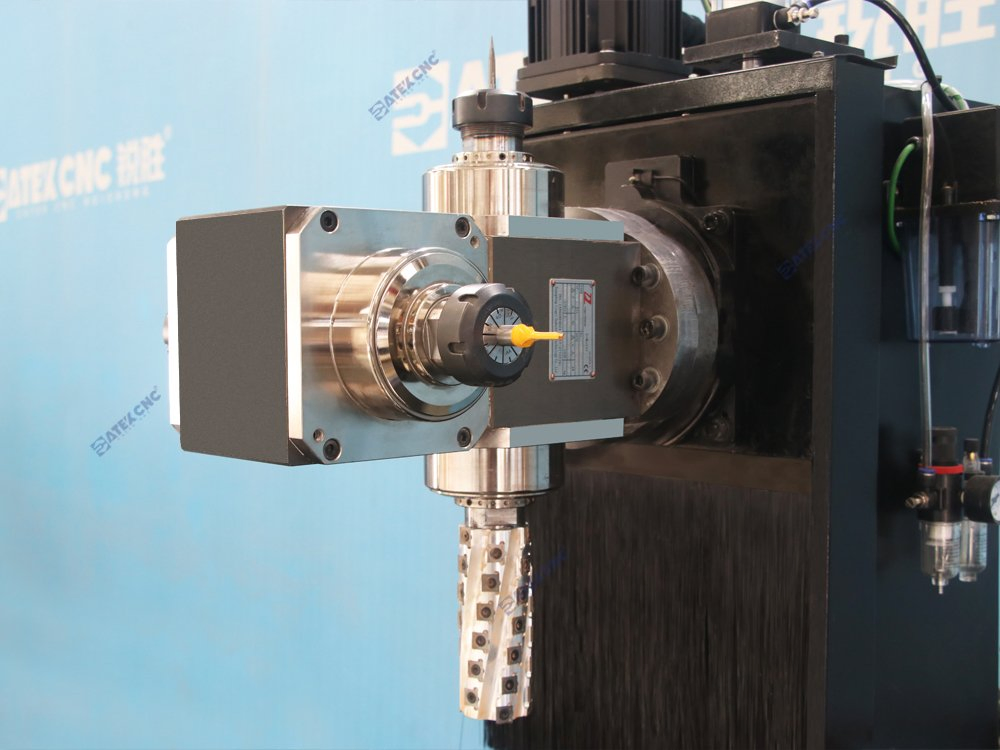

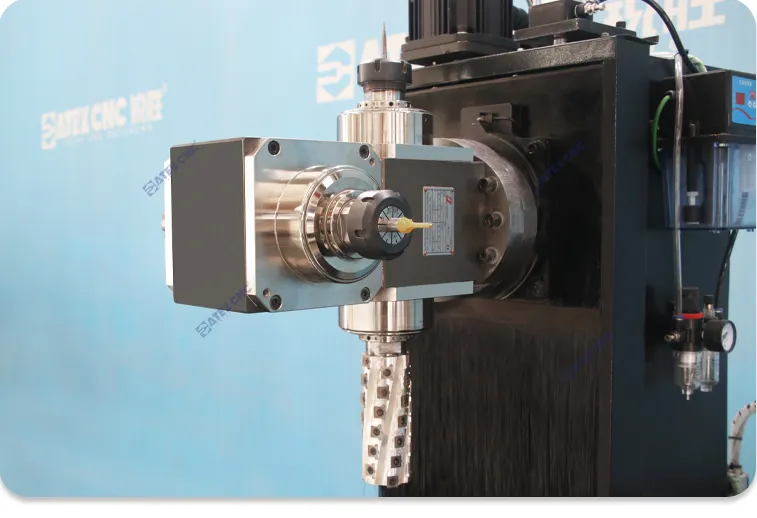

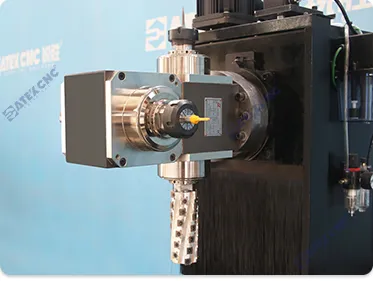

Four-head electric spindle for 5-axis machining, max 18,000 rpm, supports RTCP.

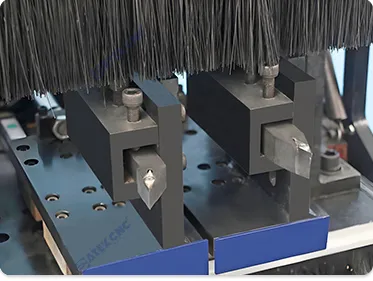

Two mounting positions for turning tools, pneumatic cylinder switching.

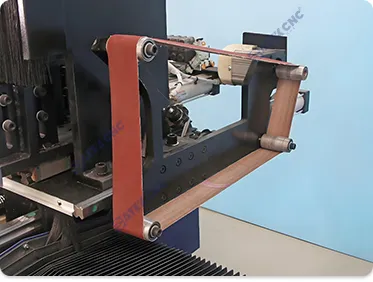

Sanding belt unit driven by 1100W brushless servo motor for precise grinding.

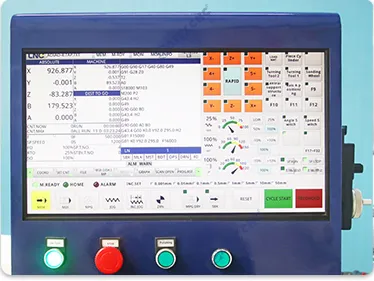

Taiwan LNC five-axis CNC system with handwheel simulation and RTCP support.

SAMPLE DISPLAY

Applications: Furniture manufacturing (curved legs, bedposts), Architectural decoration (staircase columns), Musical instruments (guitar necks), and Custom crafts.

MANUFACTURING EXCELLENCE

COMPANY CERTIFICATION

Frequently Asked Questions

1. Are you a factory or trading company?

We are a certified factory with export licenses and professional manufacturing capabilities.

2. Do you offer OEM services?

Yes, we have 19 years of OEM experience collaborating with global trading partners.

3. What is included in your after-sales service?

We provide a 3-year full machine warranty, a 12-hour guaranteed response time, and 24/7 technical support.

4. How do I choose the right machine for my needs?

Provide your material specifications and product dimensions, and we will recommend the optimal solution based on our 19+ years of expertise.

5. Do you provide installation and training?

Machines are pre-tested and ready-to-use. We include operation manuals and video guides; onsite commissioning is also available globally.

6. Can the machines be customized?

Yes, customization is fully supported by our engineering team to meet your specific production requirements.
