| Feature | Details |
| Movement Control | X, Z, Y, A axis interpolation; Minimum command unit: 0.001mm; Fast speed up to 30000mm/min. |
| G-Codes | Supports 29 kinds of G codes including G00-G04, G28, G32-G34, G40-G42, G70-G76, G90-G99. |
| Thread Machining | Single/Multi-head metric straight, tapered, and variable pitch threads; Pitch range 0.0001mm to 500mm. |
| Accuracy Comp. | Reverse gap compensation (0-2.000mm) and 512 pitch error compensation points. |
| Spindle Control | 0V-10V analog voltage output; support for servo spindle or frequency converter. |

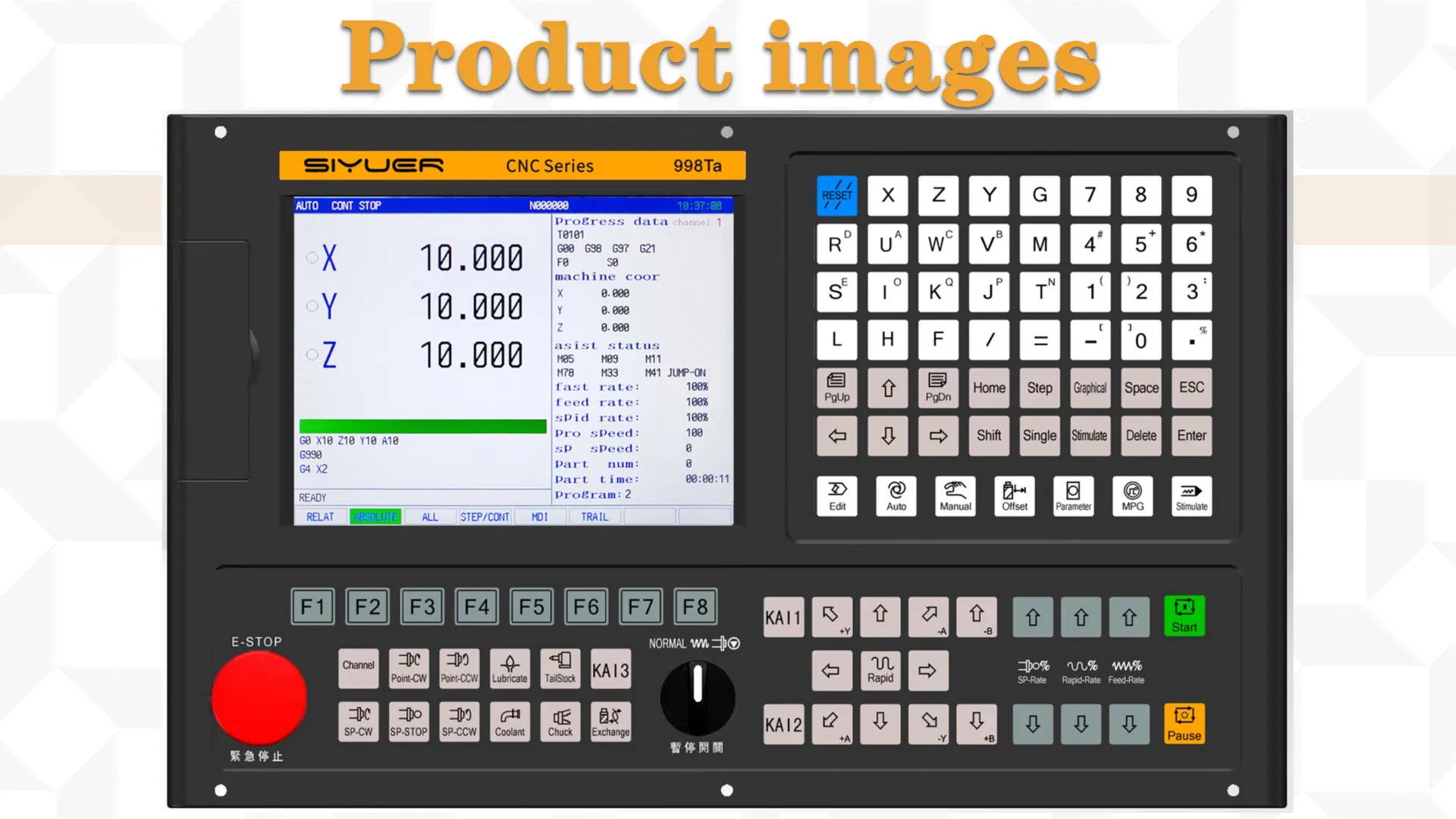

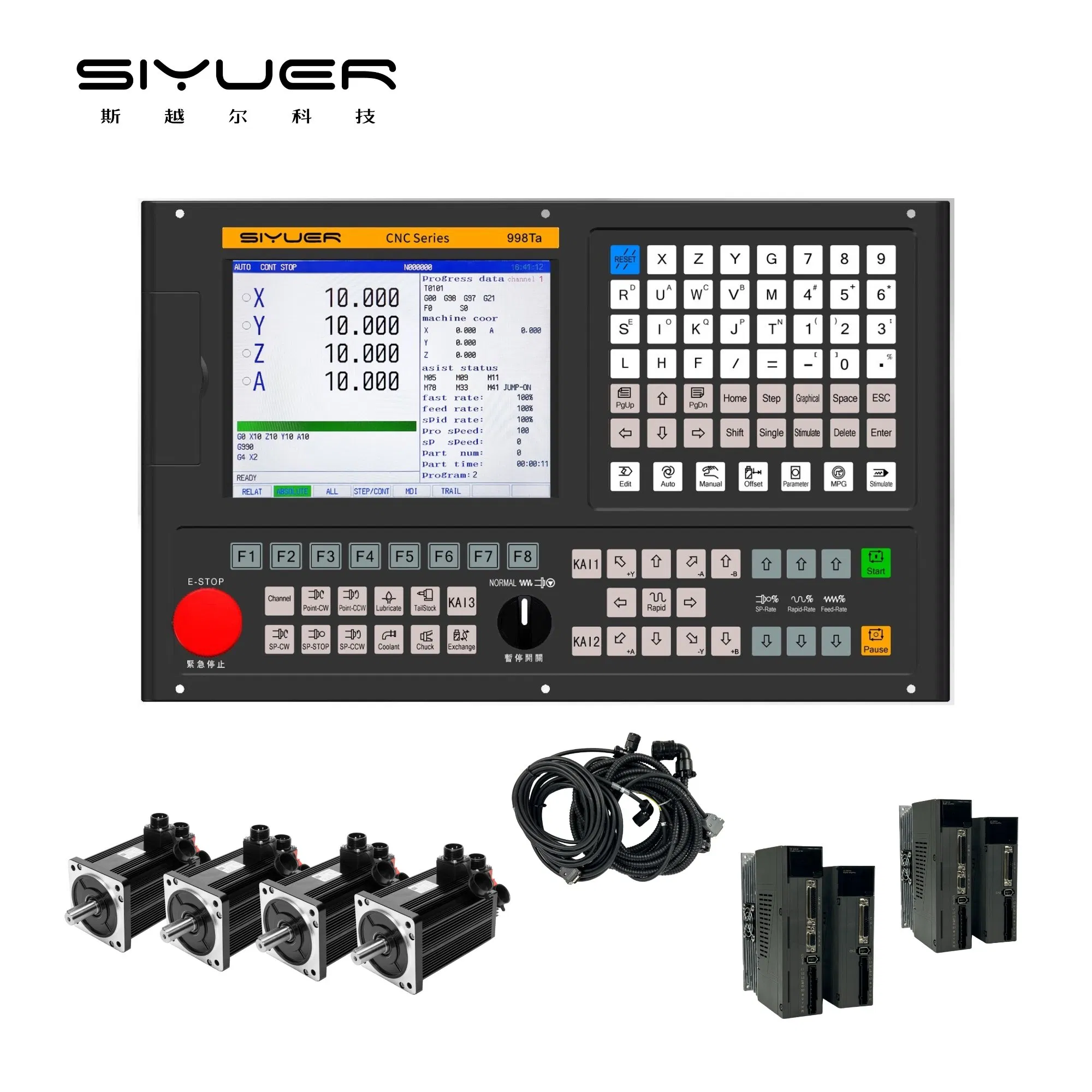

| Display Interface | 8-inch LCD (800x600); Chinese/English interface; Real-time processing trajectory graphics. |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Export wooden crate packaging is used for CNC Lathes.
