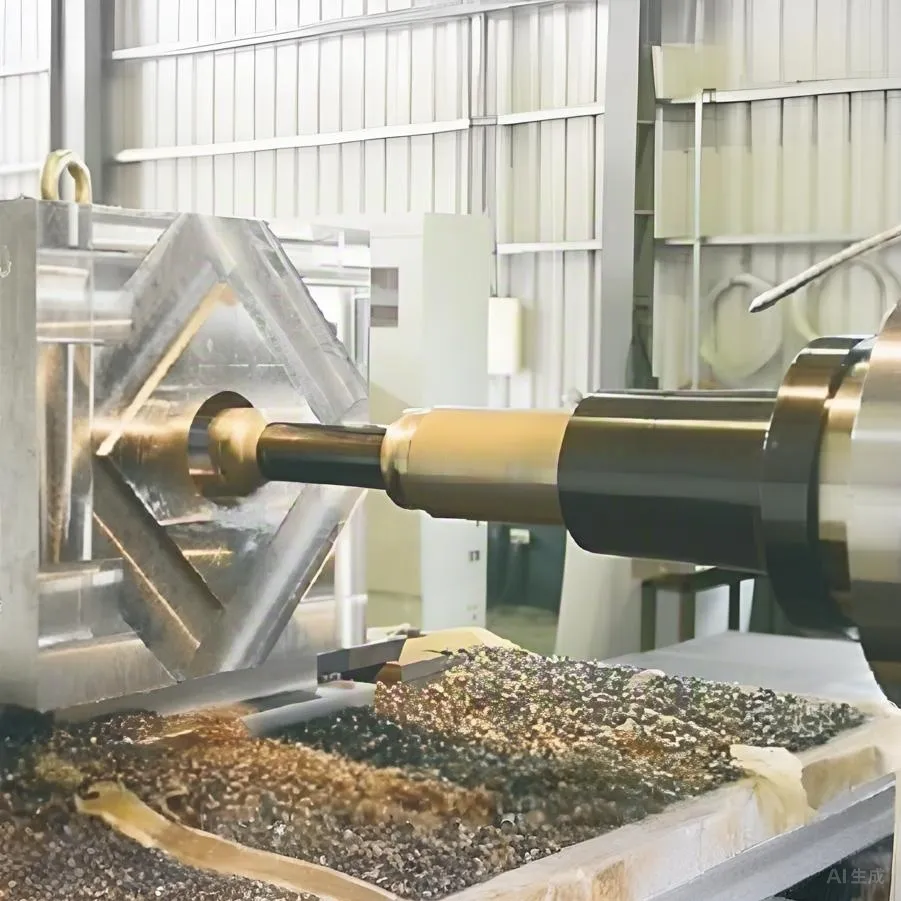

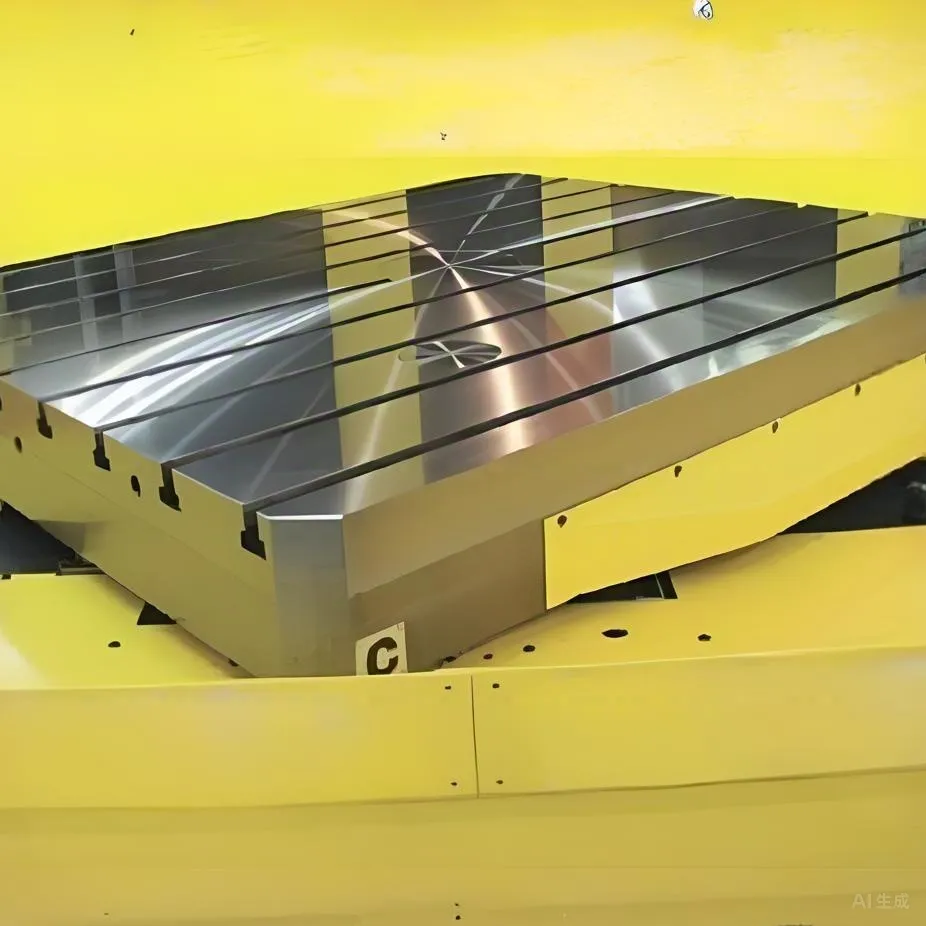

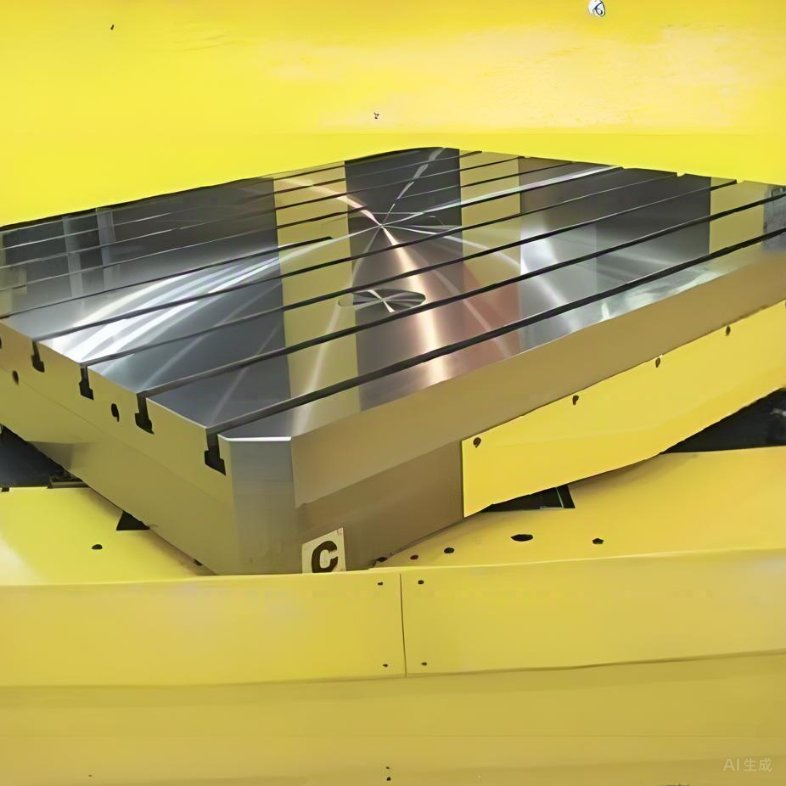

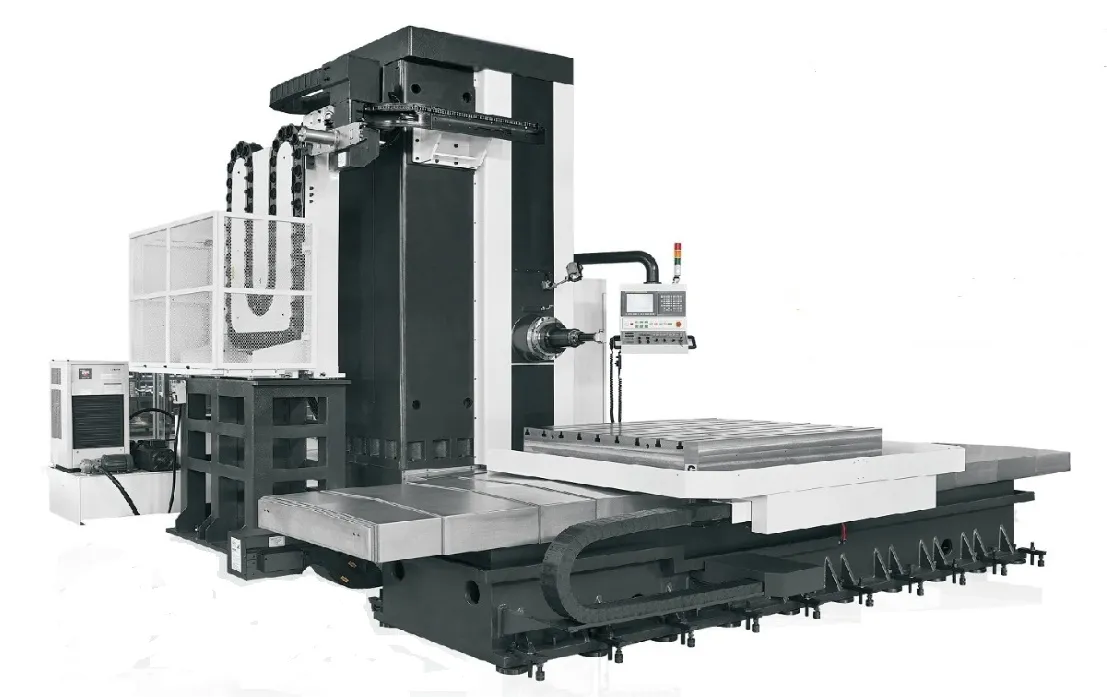

Maximum spindle torque output reaches 2838 N·m, the highest among products of the same category. The nose-type spindle head enables close proximity to workpieces during machining, ideal for heavy-duty cutting. The rotary worktable comes standard with a load capacity of 8000 kg, with options up to 25,000 kg.

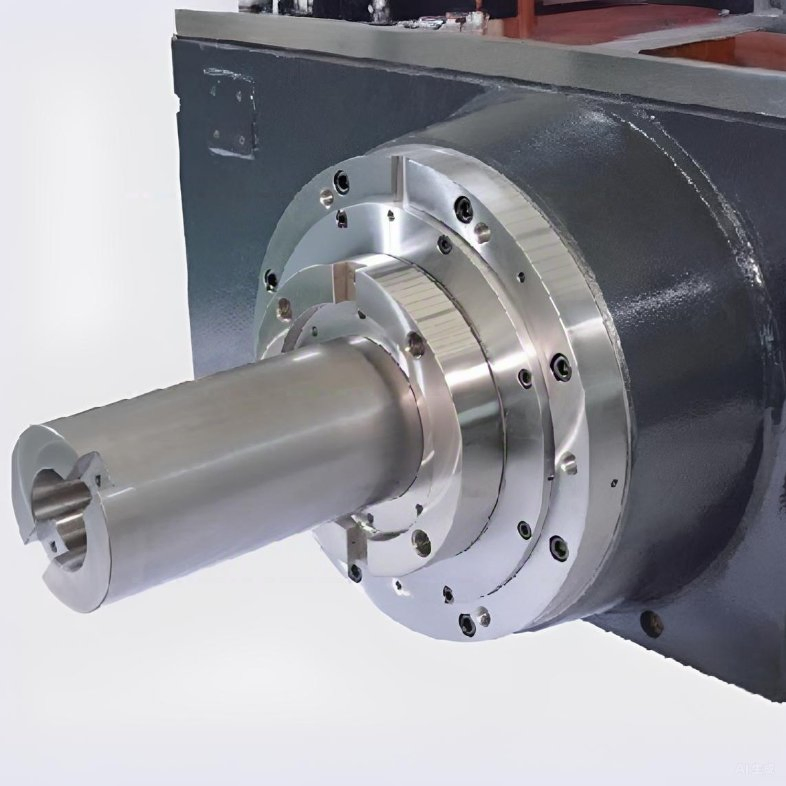

The spindle bearings adopt circulating oil cooling to prevent thermal displacement. The spindle undergoes special nitriding treatment, ensuring no wear even after long-term operation. X/Y-axis ball screws are directly coupled to motors for optimal transmission.
Constructed of high-grade cast iron with an arch-shaped design for superior vibration resistance. The column's bending resistance is increased by 1.7 times. Combined with nitriding and cryogenic treatment (-190℃), the machine maintains optimal performance long-term.

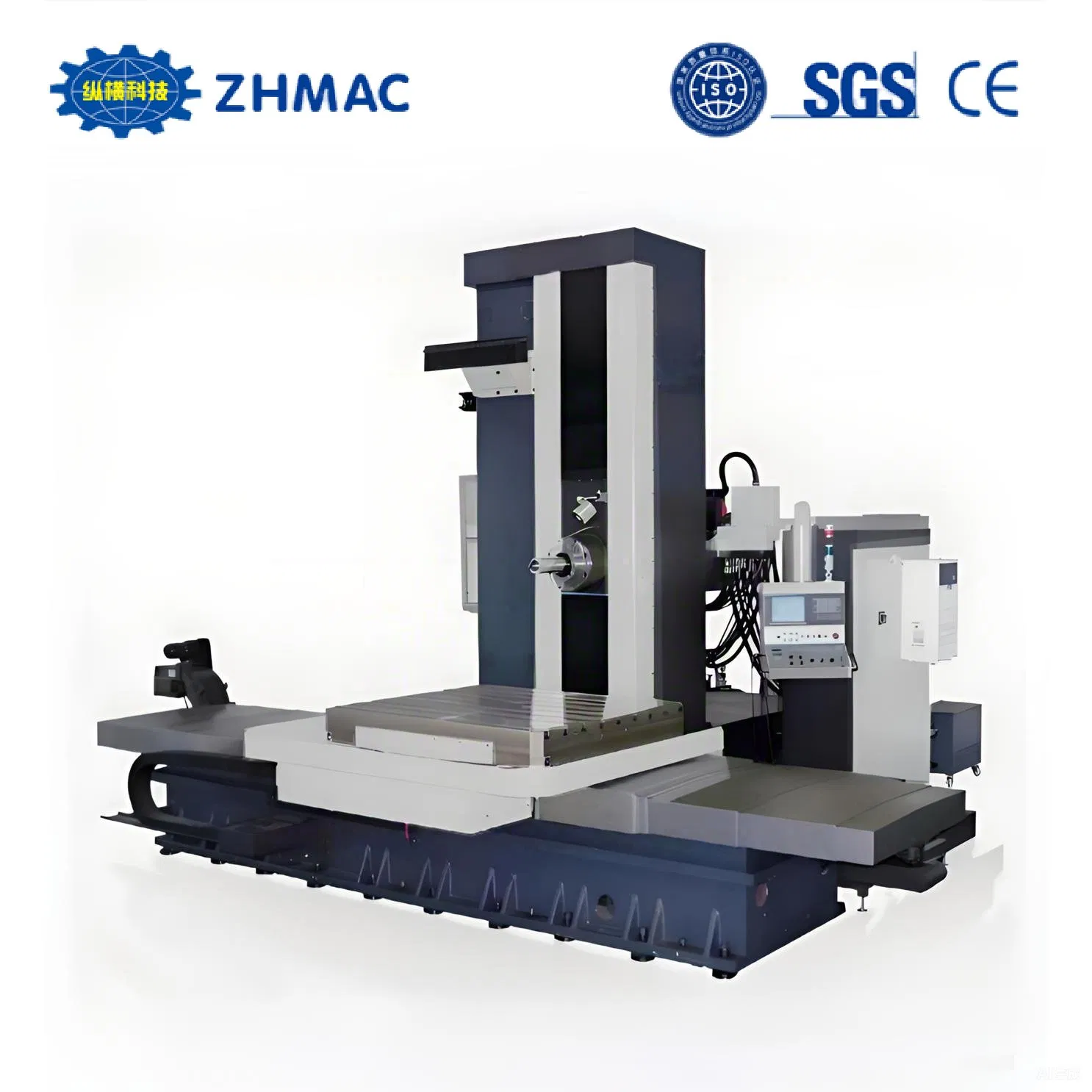

| Project | Unit | HBC110A | HBC110B | HBC130A | HBC130B |
|---|---|---|---|---|---|
| X-axis travel | mm | 2000 | 3000 | 2000 | 3000 |
| Y-axis travel | mm | 2000 | |||
| Z-axis travel | mm | 1500 | |||
| W-axis dia. | mm | 110/500 | 130/700 | ||
| Table Load | kg | 8000 | |||
| Max Speed | rpm | 2500 | |||
| Machine Weight | kg | 28000 | 32000 | 30000 | 34000 |
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine and customized program services according to drawings.
3. All products come with a warranty period of 12 months.
4. Standard warranty excludes man-made damage.
