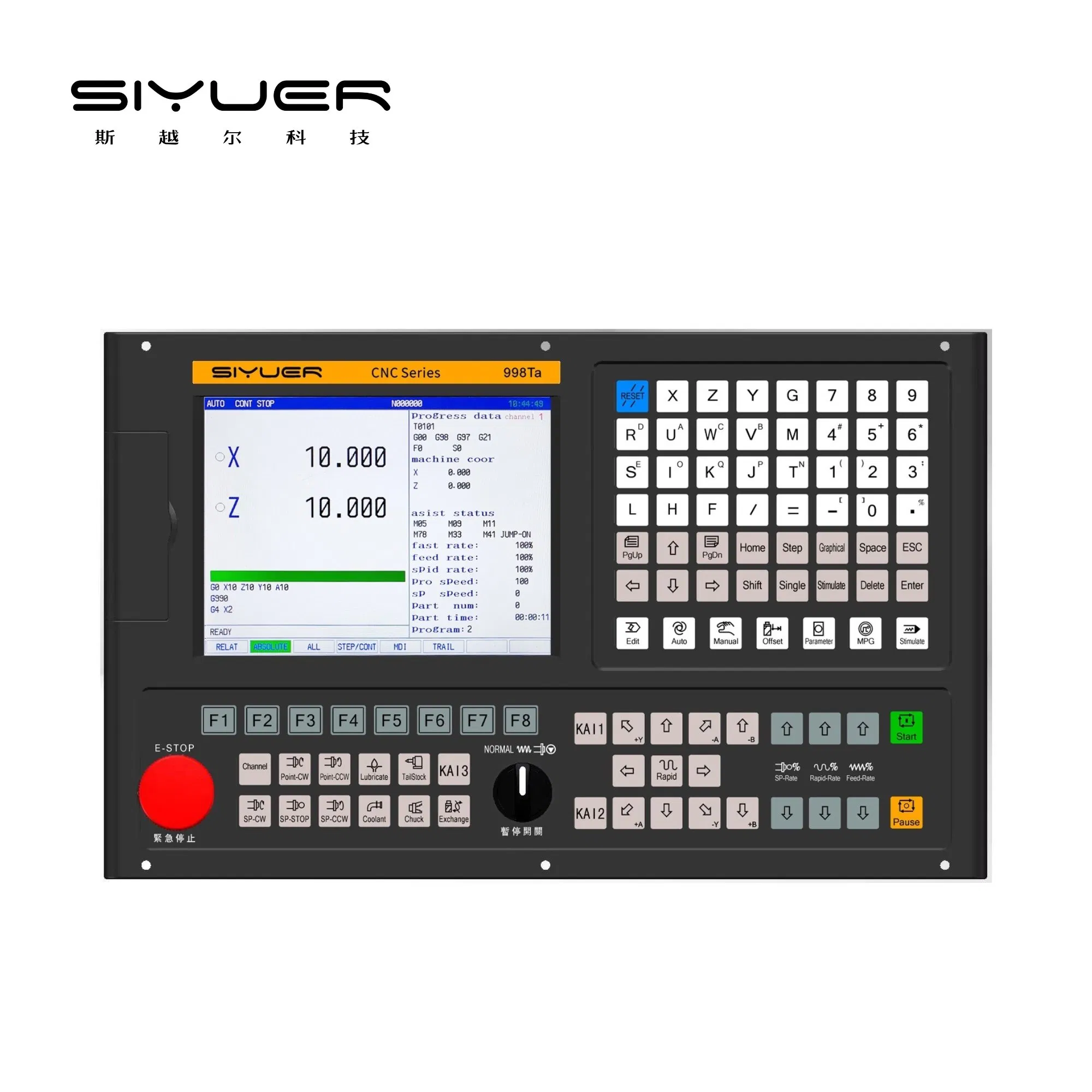

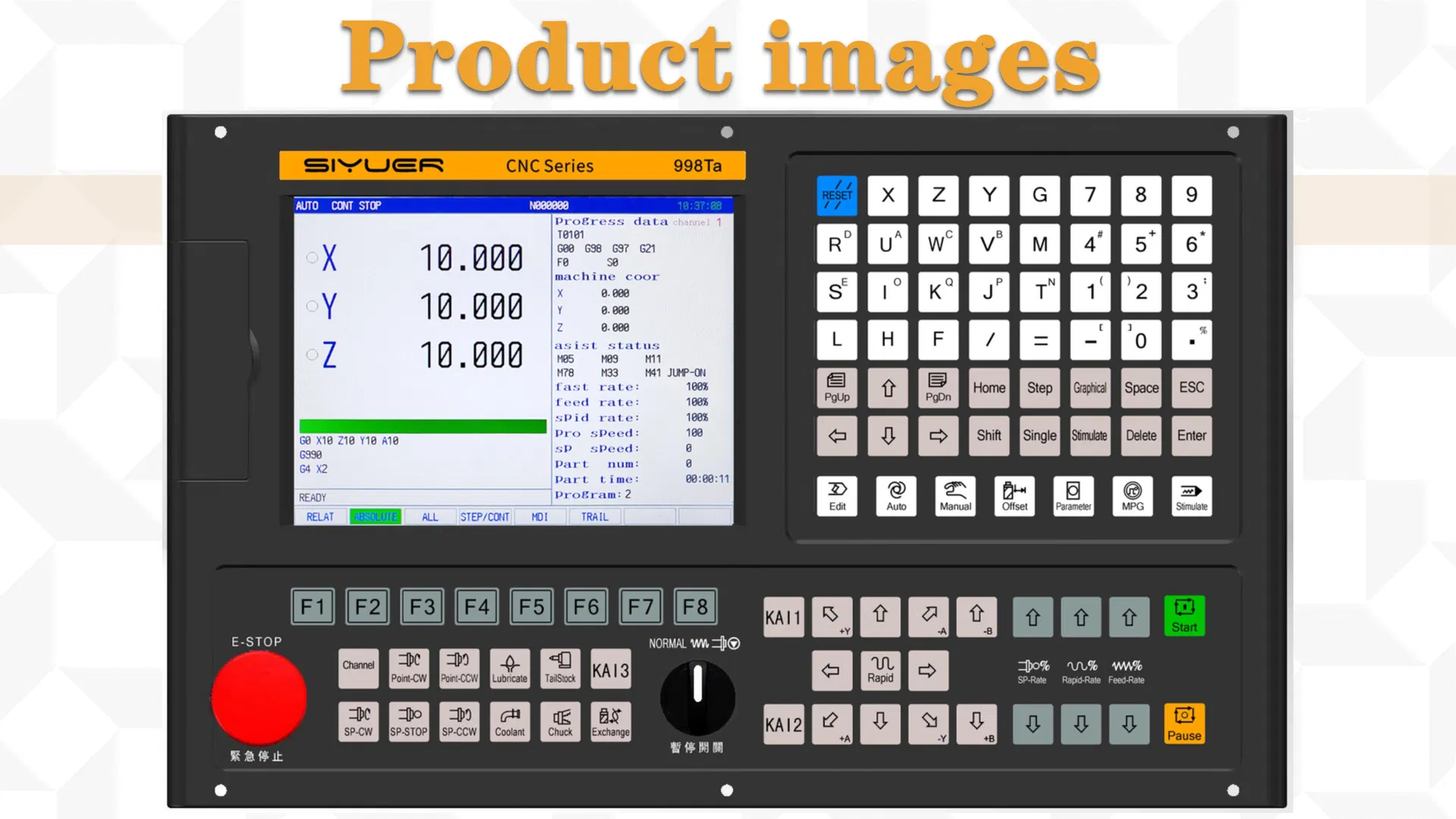

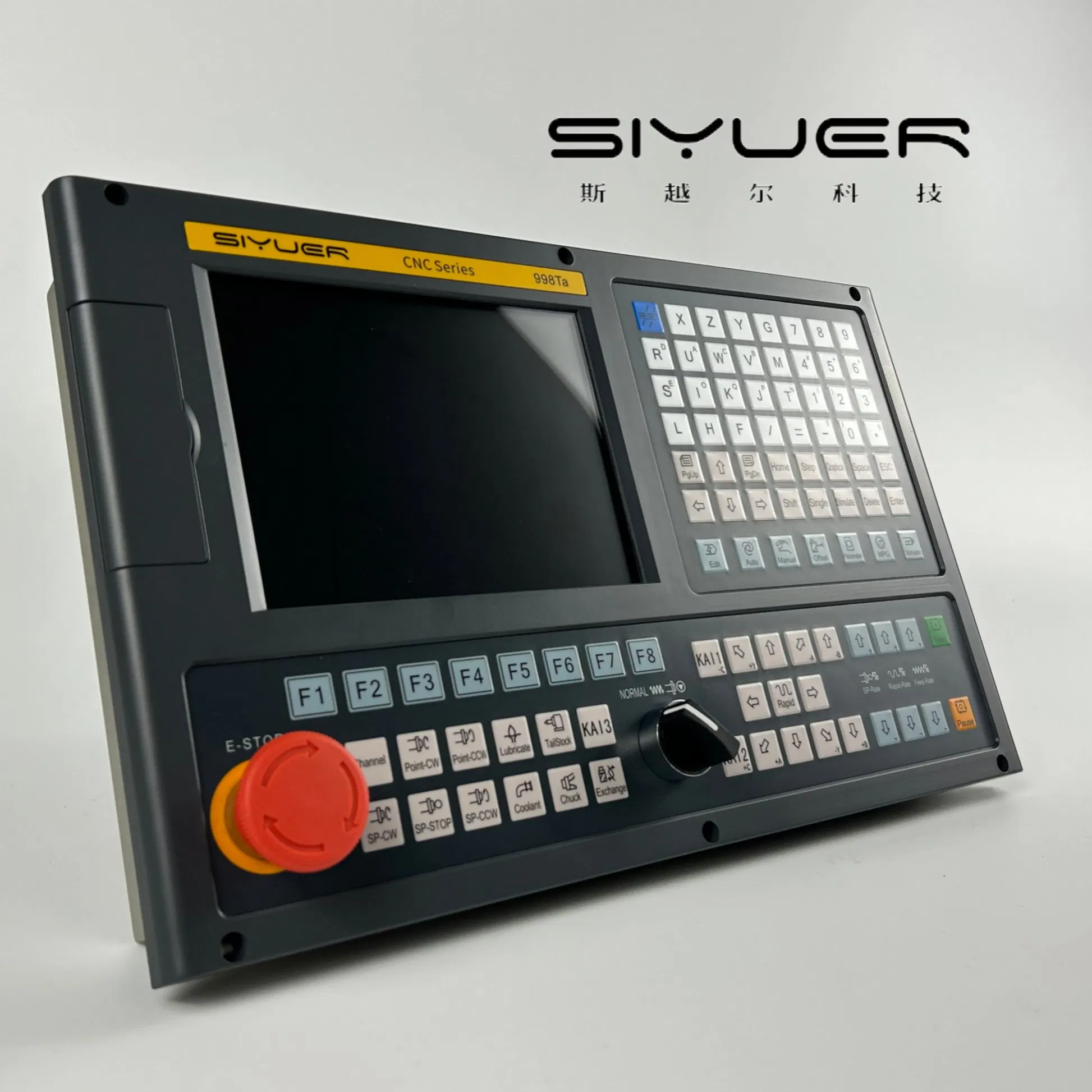

Multi-Axis Turning System CNC Controller with Live Tooling

1 / 5

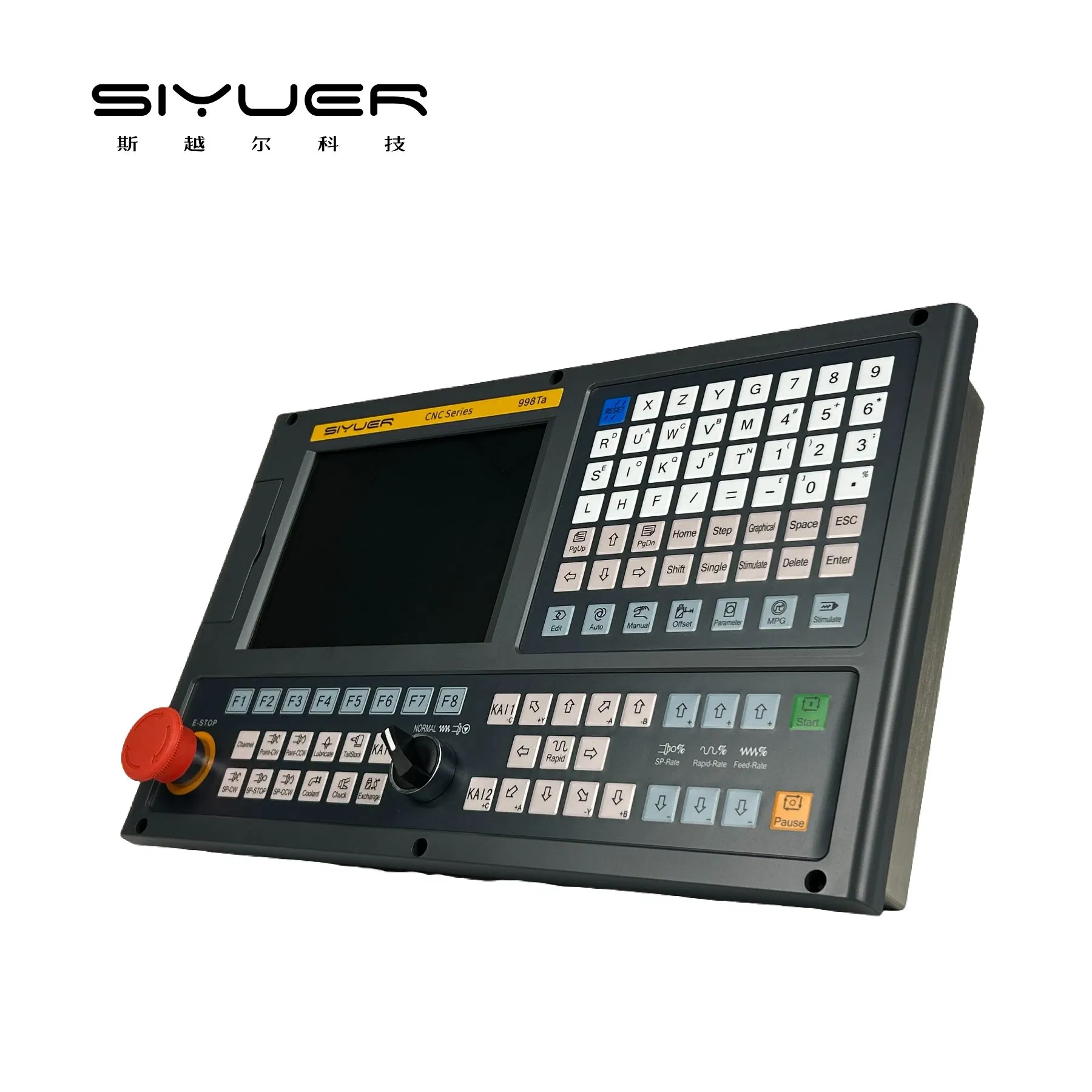

Multi-Axis Turning System CNC Controller with Live Tooling

Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Send Inquiry

Product Description

Basic Information

Model NO.

998Ta / Siyuer 998ta

Type

CNC Controller

Axis Num

2-4 Axis

Display Screen

8.4 Inch LCD

Material

Stainless Steel / Aluminum Alloy

Accuracy

0.1um

CPU

32bits+Fpga

I/O Num

52/26

Speed

30m/Min

Certification

GS, CE

Product Description

Technical Specification

Movement Control	Control axes: X, Z, Y, A axis. Interpolation function: straight line, arc. Fast moving speed: up to 30000mm/min. Manual/Handwheel feed support.
Thread Machining	Single or multi-head external metric straight threads, tapered threads, end face threads, and variable pitch threads. Pitch range: 0.0001mm to 500mm.
Accuracy Compensation	Reverse gap compensation: 0mm~2.000mm. Pitch error compensation: 512 points. Tool compensation: 32 sets.
G-Codes	29 kinds of G codes including G00-G04, G28, G32-G34, G40-G42, G70-G76, G90-G99, etc.
Spindle Control	Analog voltage dual-channel (0V~10V). Support for four spindle gears and frequency conversion.

Packaging & Delivery

Package Size: 50.00cm * 40.00cm * 22.00cm
Gross Weight: 9.000kg

CNC Controller Package

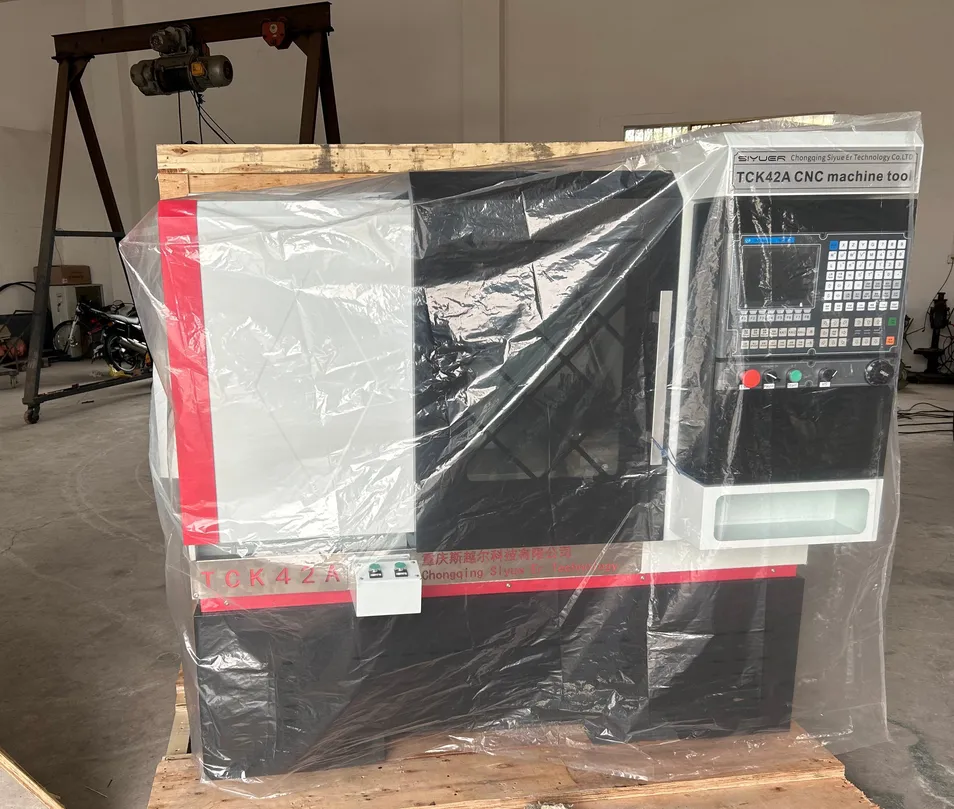

CNC Lathe Package

Product FAQ

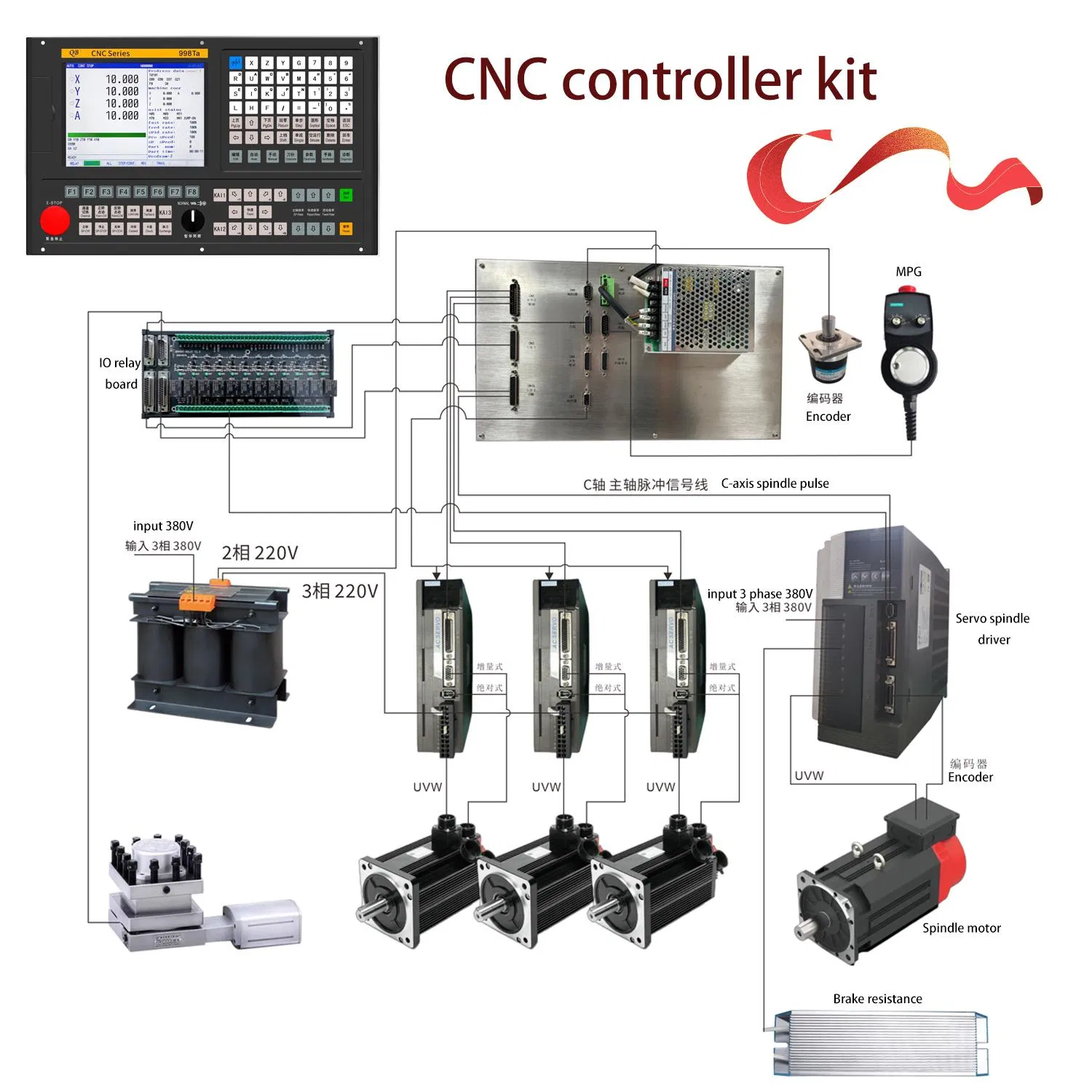

What does a total CNC system include?

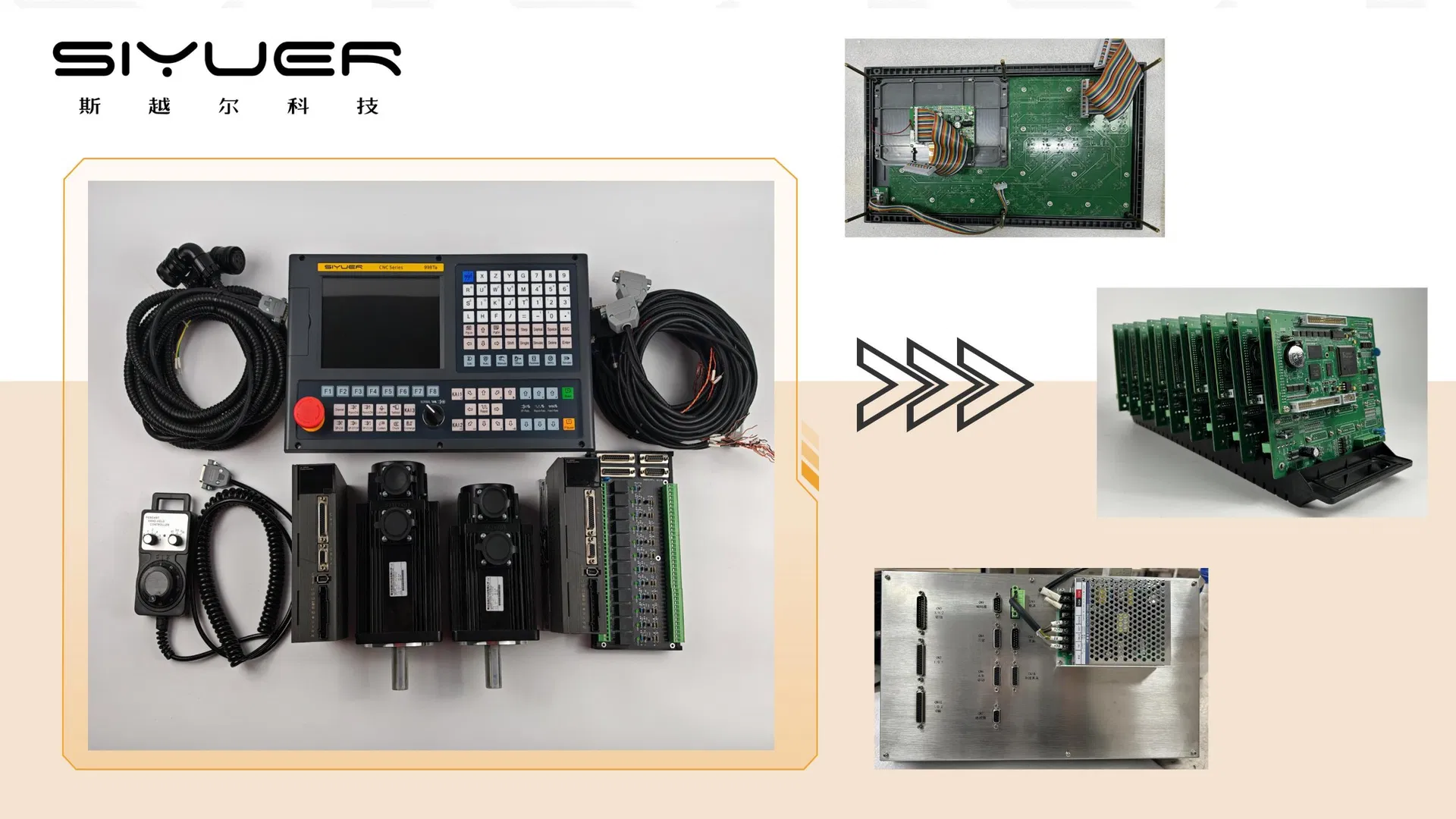

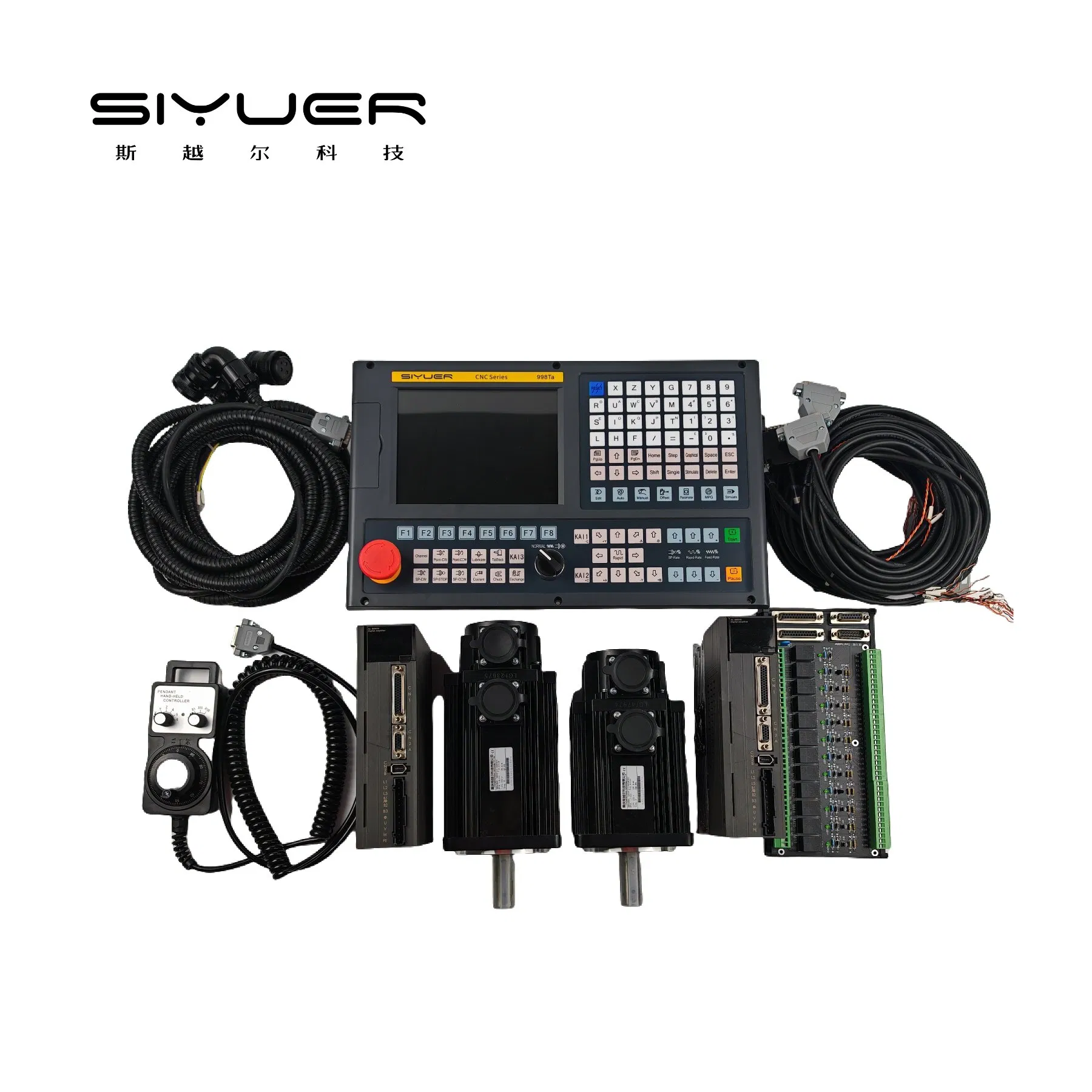

We provide plug-and-play CNC systems including controllers, spindle & axes drivers/motors, and complete cables & accessory kits.

What are the standard delivery times?

Standard orders typically take 5–7 workdays. Customized solutions are available with negotiable lead times.

Does the system support Automatic Tool Changers (ATC)?

Yes. For lathes, it supports electric/servo/counting turrets. For milling, it supports linear, umbrella, arm, and turret-type tool magazines.

What spindle control modes are available?

The system uses analog voltage (0–10V) for precise speed control.

Can I customize the boot logo for my brand?

Yes, we support custom boot logos to meet your specific branding requirements.

What languages does the interface support?

The system features a multilingual interface including English, Chinese, Spanish, Japanese, and more.
