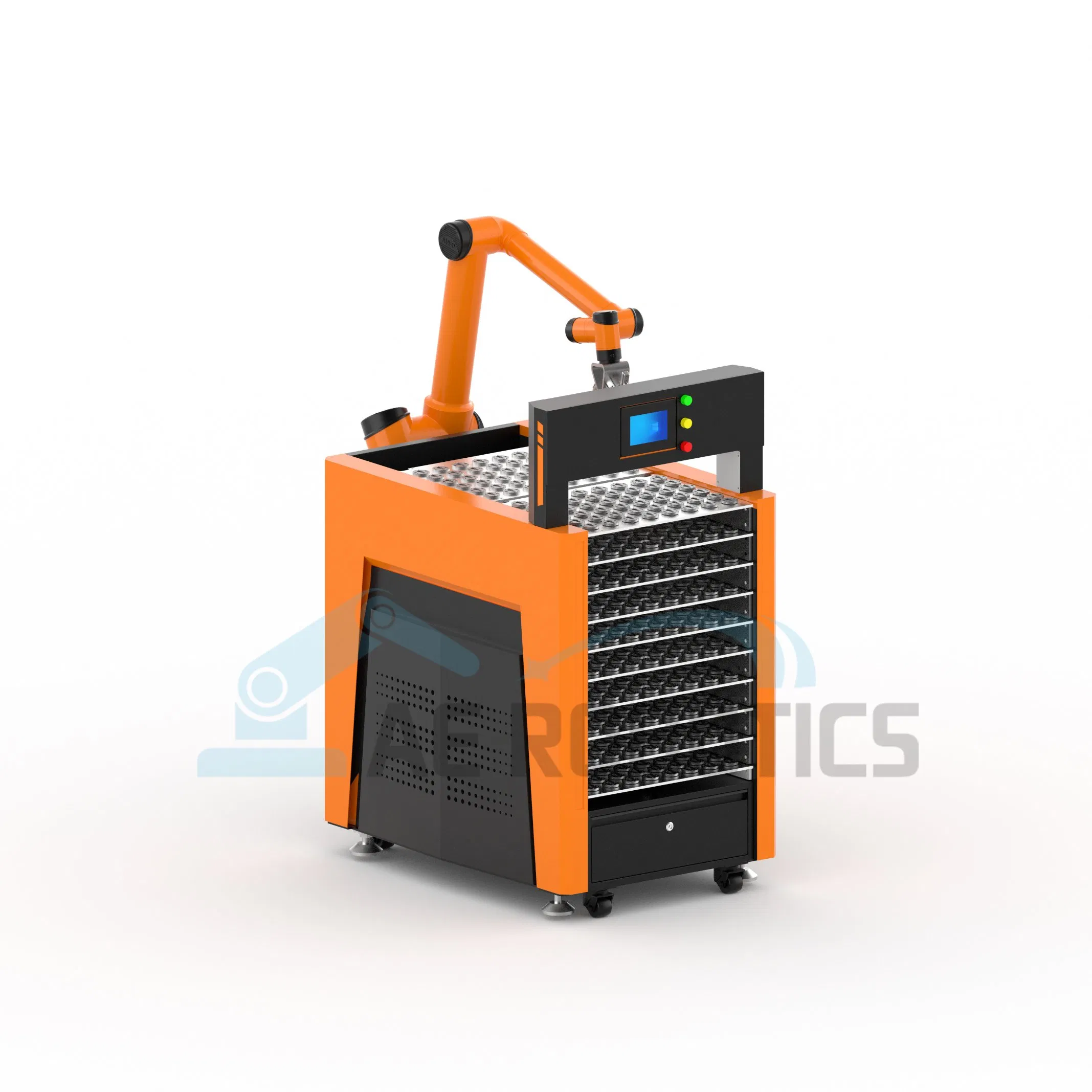

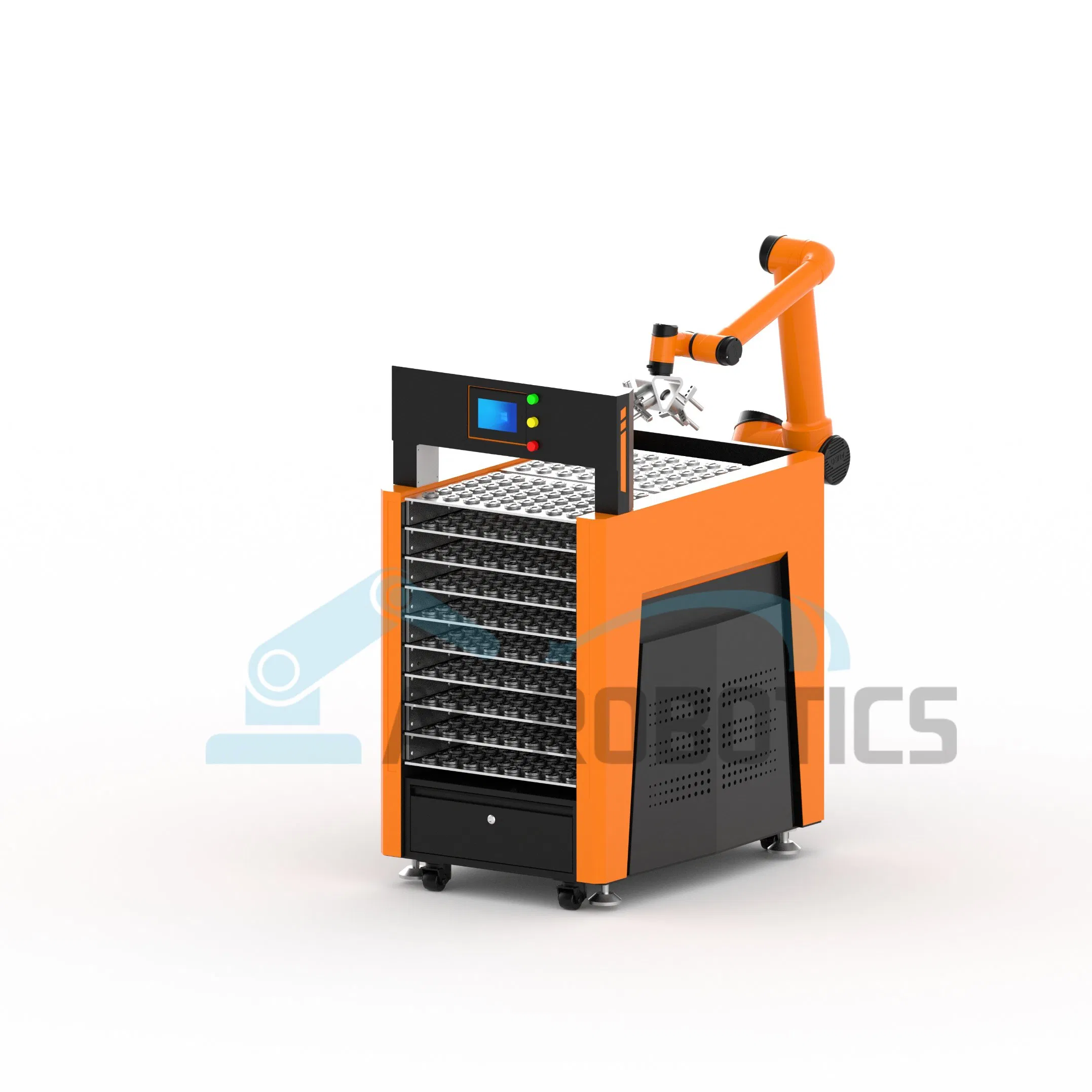

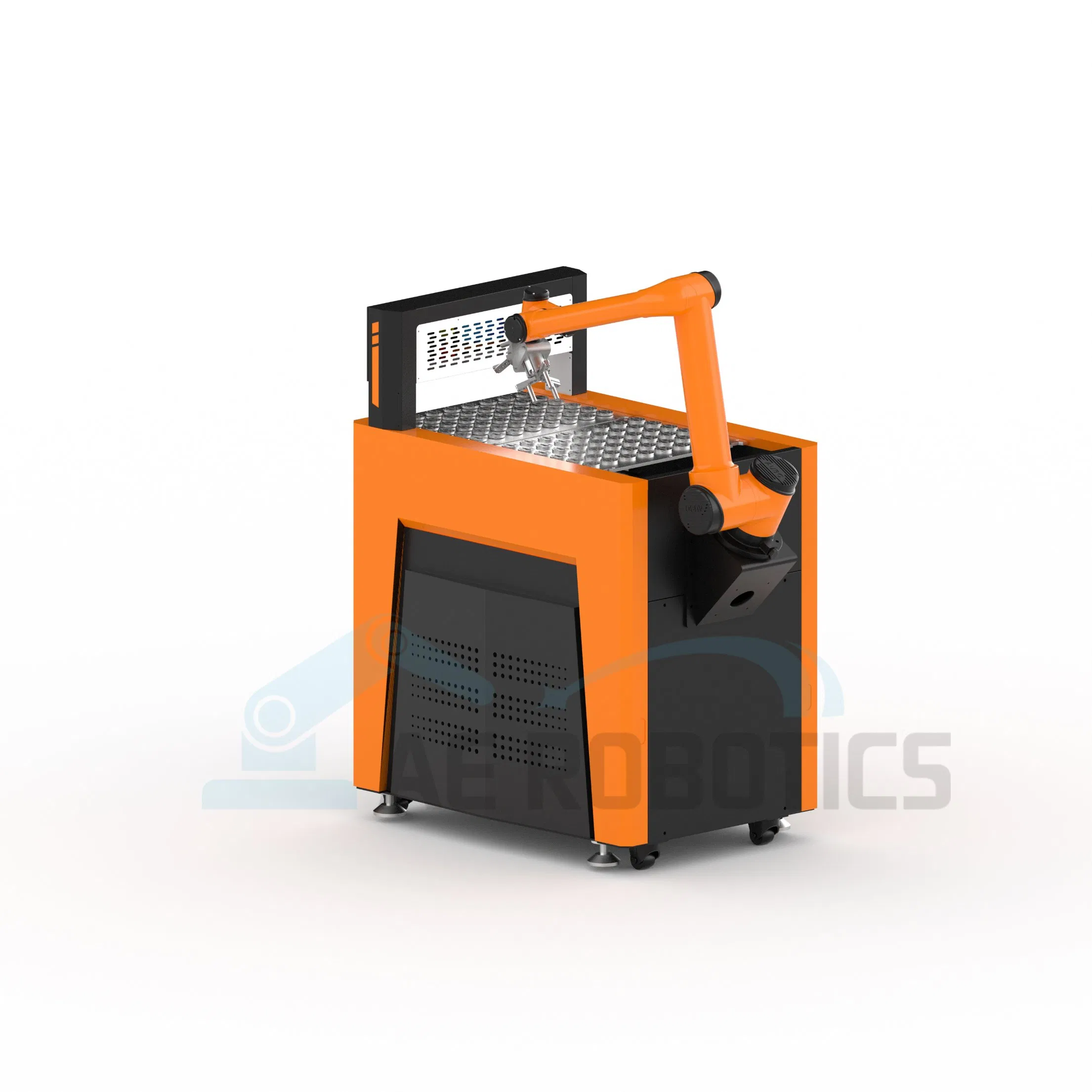

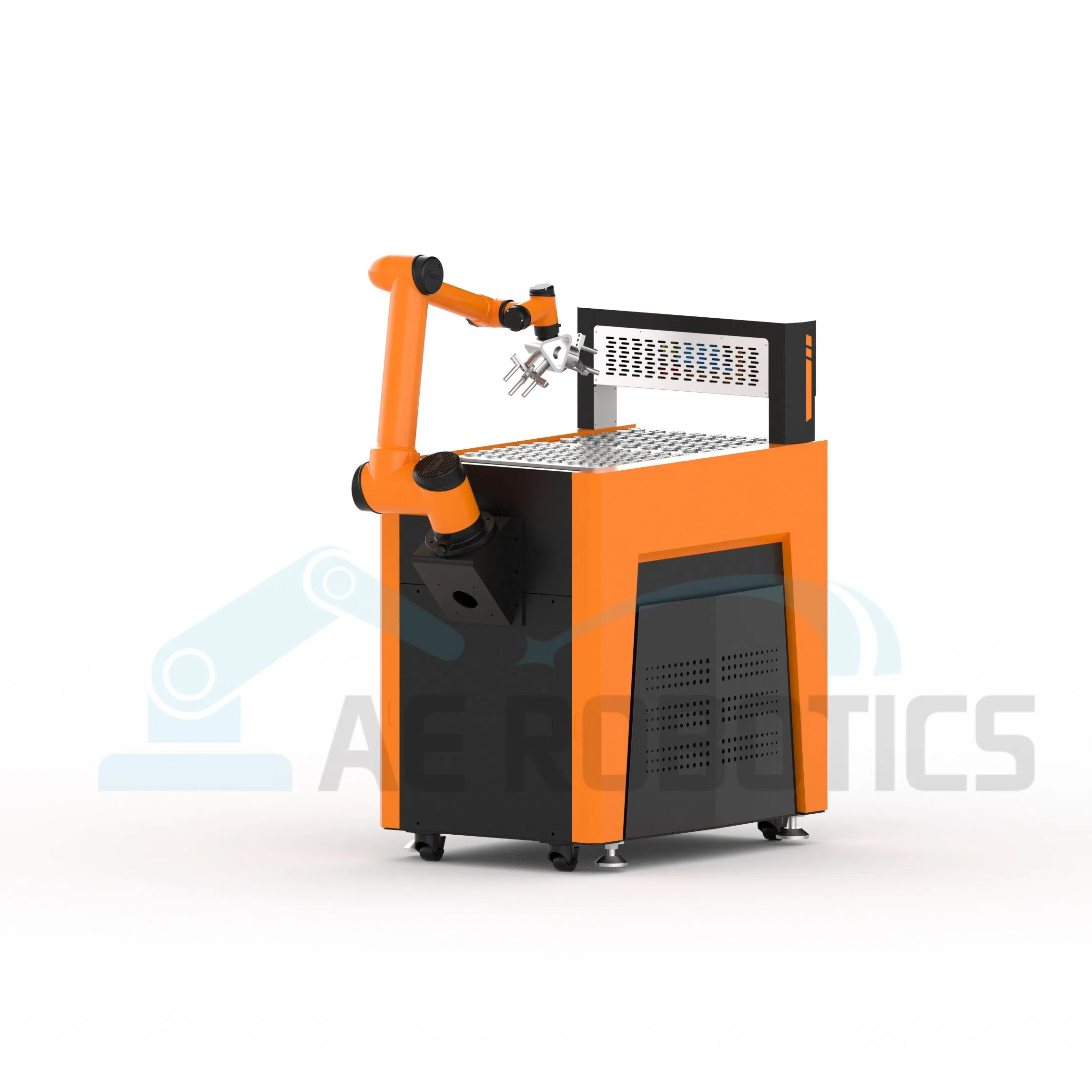

MOS-T10 Solution for 6-Axis CNC Loading and Unloading Robot 10kg 1350mm

1 / 5

MOS-T10 Solution for 6-Axis CNC Loading and Unloading Robot 10kg 1350mm

Customization:	Available
Application:	Machine Tending, Picking and Placing, CNC Tending, Loading, Pick and Place, Assembly
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

📊 Basic Information

Model NO.

MOS-T10

Degrees of Freedom

6-axis

Drive Mode

Electric

Payload Capacity

10 kg

Tray Size

600*480mm

Weight

420kg

Arm Reach

1350mm

Protocol

Ethernet, Modbus-RTU/TCP, Profinet

Input Voltage

Single Phase 220V

Certification

Warranty

12 Month

Origin

China

🚀 Product Description

CF605-886 6 Axis Collaborative Robot Pick and Place Workstation

Advantages of Application

Wide range of applications: Adapted to various brands and types of equipment.
Easy to operate: No programming needed for quick start.
Flexible material change: Simple tray adjustments for various workpieces.
High versatility: Powerful software for free programming.
Safe and reliable: Complies with multiple safety standards.
Cobot Advantages: Short deployment, high security, and small footprint.

⚙️ Technical Data & Configuration

PRODUCT CONFIGURATION TABLE
Model	MOS-BT10
DOF	6-AXIS
Load	10KG
Arm reach	1350mm
Tray size	1000*688mm
Tray Type	Flexible tray compatible with round and square raw material
Gripper	Double two or three finger gripper with air blow
Power	Single phase 220V (110V options)
Application	For CNC lathe, milling EDM, Test machine load/unload

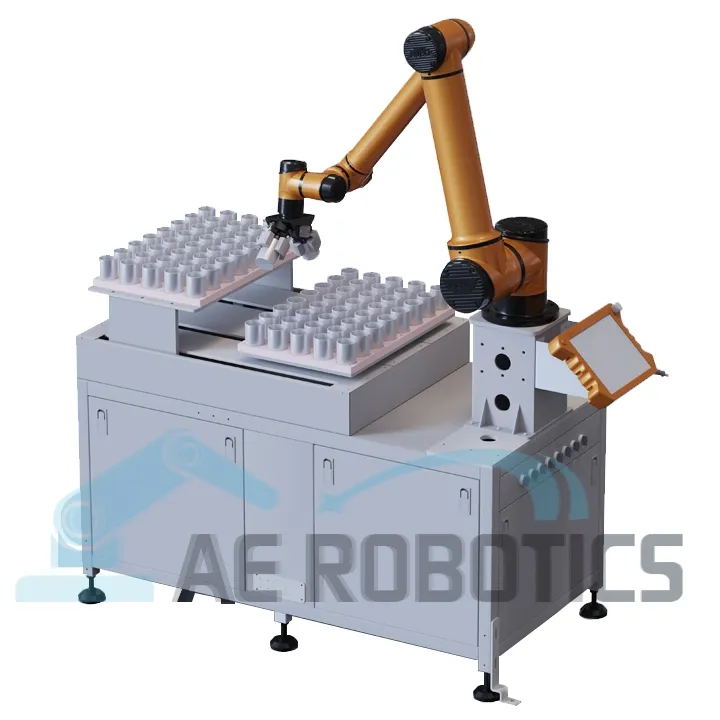

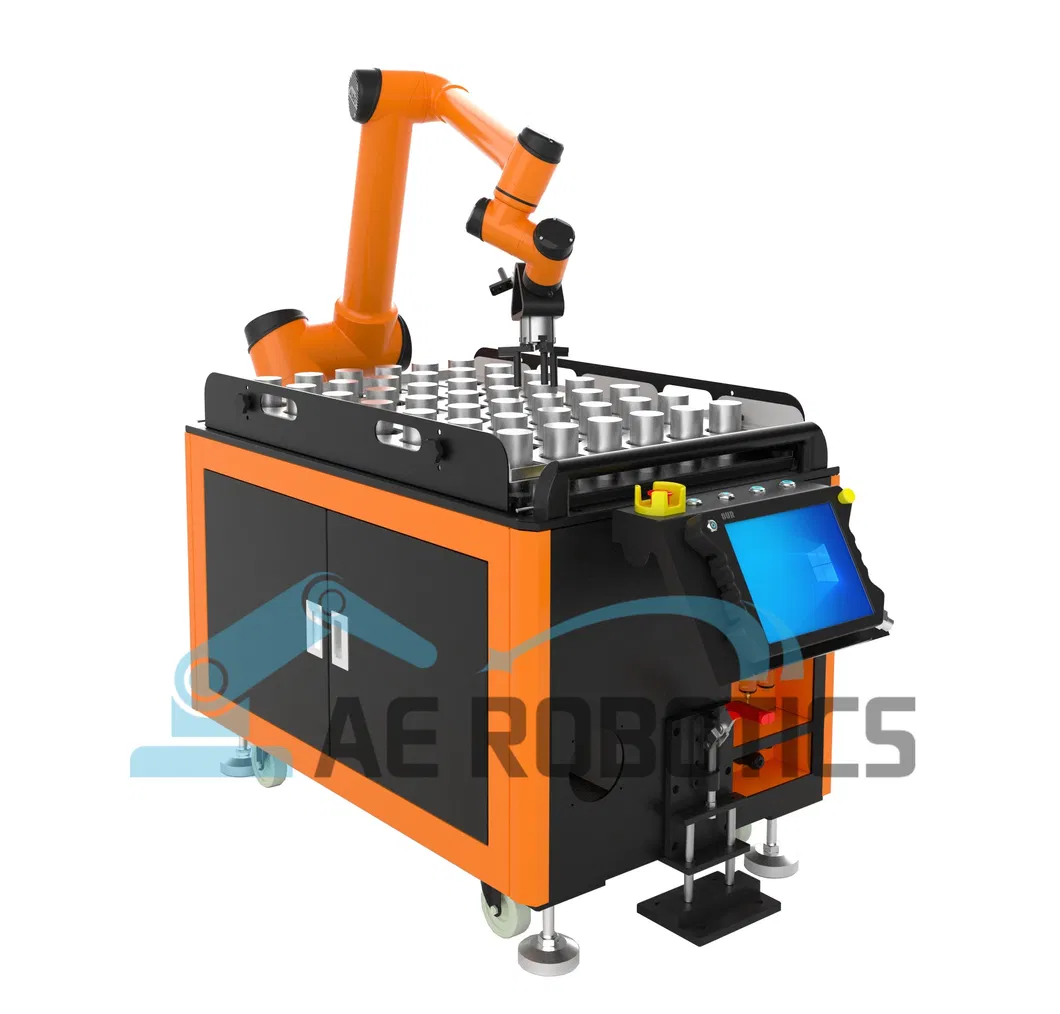

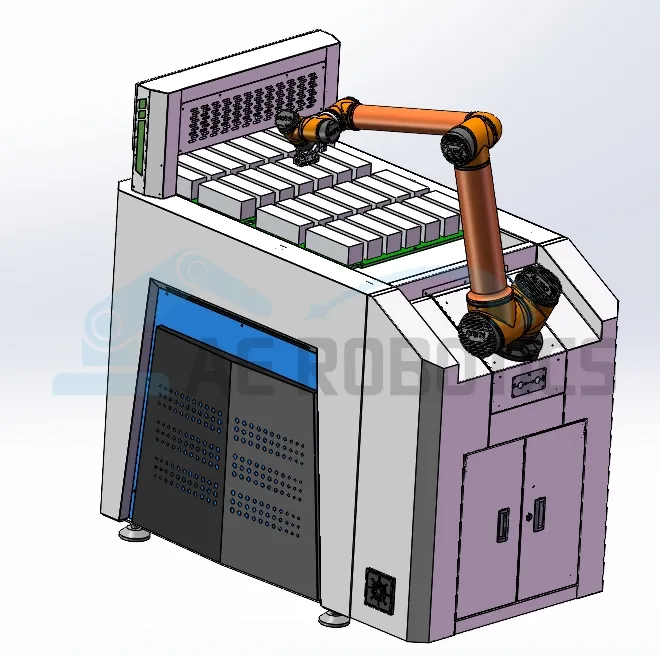

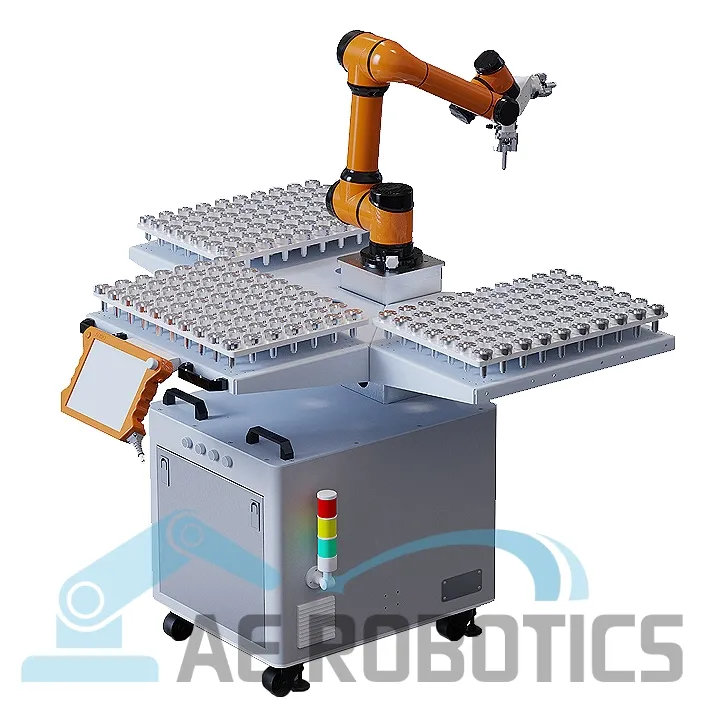

📸 Application Photos

📦 Packaging

🏆 Expertise & Quality

We specialize in providing innovative robotic solutions that streamline processes and enhance efficiency across various industries. Our expertise lies in designing, developing, and implementing customized robotic arm systems.

With years of experience in the robotics industry, we handle international requirements including voltage standards, customs, and machinery usage habits efficiently.

❓ Frequently Asked Questions

What is the payload capacity of the MOS-T10 robot?

The MOS-T10 collaborative robot has a payload capacity of 10 kg, making it suitable for a wide range of pick and place tasks.

What is the maximum reach of the robotic arm?

The robotic arm features a maximum reach of 1350mm, providing ample coverage for CNC loading and unloading applications.

Does the workstation support different power voltages?

Yes, the standard input is single-phase 220V, but 110V options are available to meet different regional power requirements.

What communication protocols are supported?

The system supports Ethernet, Modbus-RTU/TCP, and Profinet (as an option) for seamless integration with existing factory systems.

Is the workstation easy for non-programmers to use?

Yes, one of the primary advantages is that technicians do not need extensive programming knowledge to get started quickly with its intuitive interface.

What types of materials can the tray handle?

The workstation includes a flexible tray that is compatible with both round and square raw materials.
