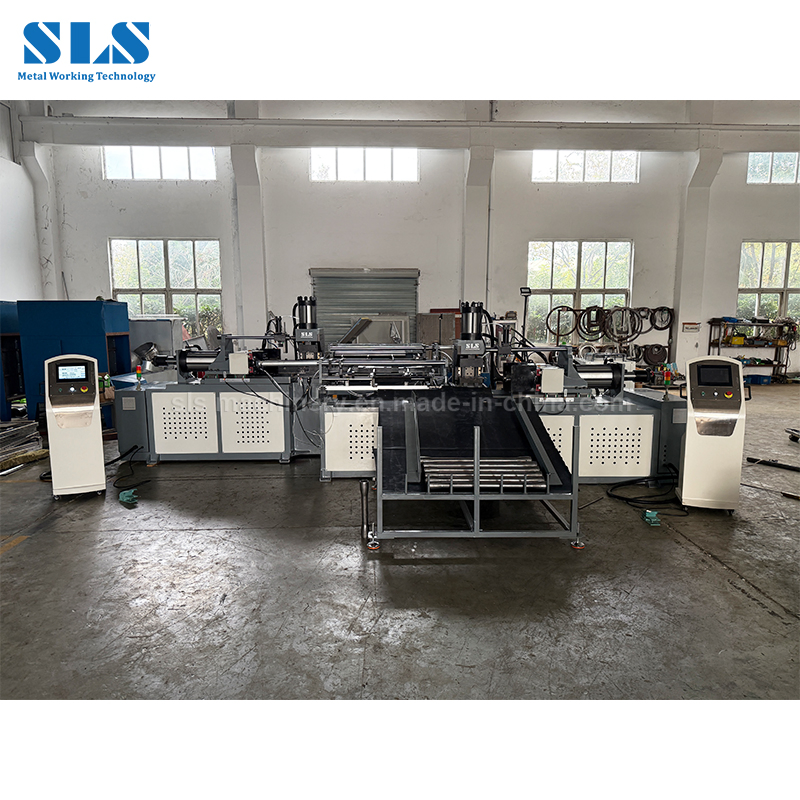

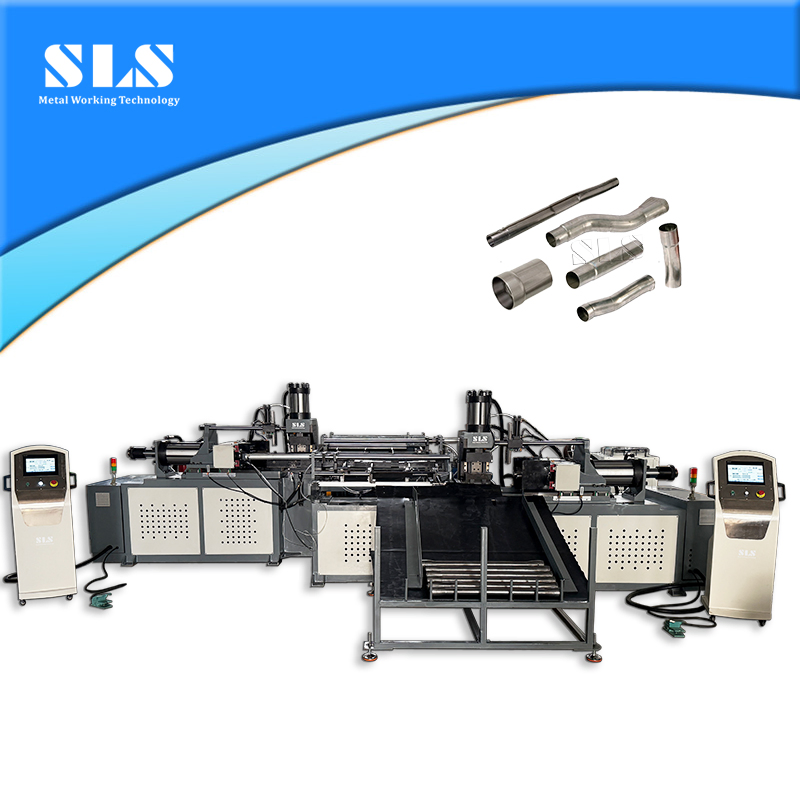

Modular Tube Forming Cell for Custom Auto Motorcycle and Furniture Pipe Solutions

Customization:	Available
After-sales Service:	Full Time Sales Service
Applicable Material:	Carbon Steel,Ss,Copper,Aluminum

Send Inquiry

Product Description

📊 Basic Information

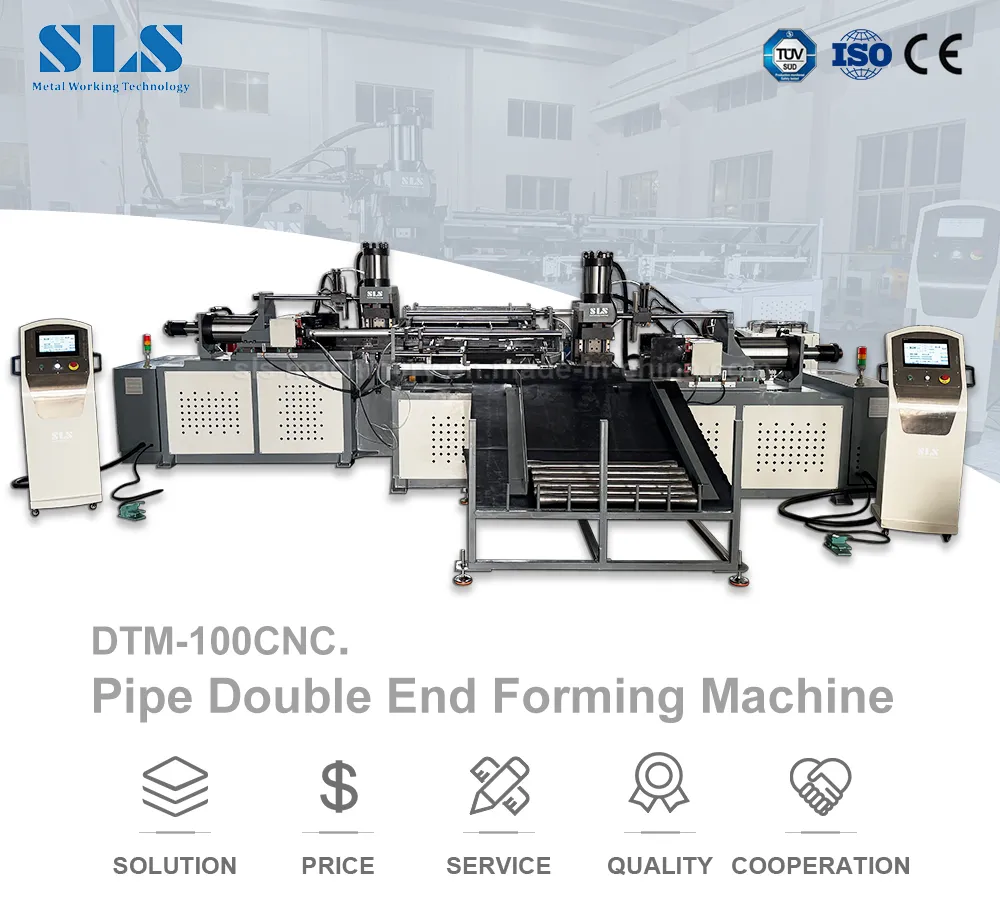

Model NO.

01. DTM-100CNC

Drive Mode

Electric+Hydraulic

Warranty

2 Years

Name

Pipe End Forming Solutions

Technical

Tube Cold Forming

Certificate

CE, ISO 9001-2000

Operate Way

Human Interface

Suit End Forming

Shrinking/Expanding/Others

Voltage

Customized

Controlling

PLC Controlling

📦 Packaging & Delivery

Package Size

4900.00cm * 1450.00cm * 1600.00cm

Gross Weight

2200.000kg

🔍 Product Overview

Pipe End Forming Solutions

Specializing in advanced Pipe End Forming Solutions - high-performance tube end forming systems engineered for demanding, high-volume industrial applications. These systems seamlessly combine expanding, bulging, reducing, and flaring with secondary processes like cutting, deburring, and in-line inspection in one continuous operation.

Ultimate Automation: Robotic part handling and multi-station turrets for 24/7 production.

Modular Cells: Custom-configured process chains (cut-debur-form-inspect).

Advanced Tech: Servo-electric drives and precise CNC controls for energy savings.

Heavy-Duty Capability: Process large-diameter and thick-walled tubes like titanium.

Smart Management: Storage for hundreds of job programs and fault diagnostics.

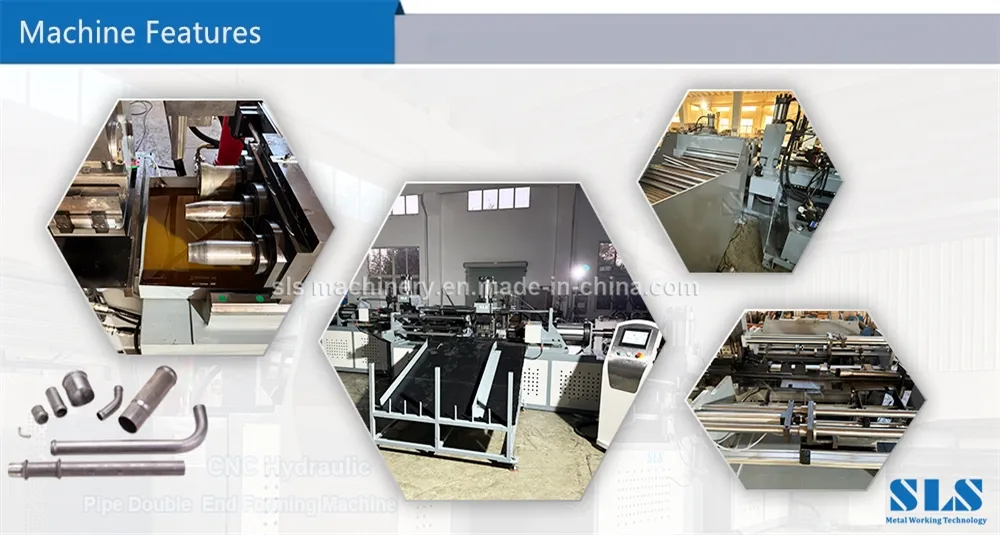

⚙️ Key Features

Touch Screen Human Interface for easy Auto/Manual modes.

Strict quality control on all standardized parts.

Equipped with emergency stop for operator safety.

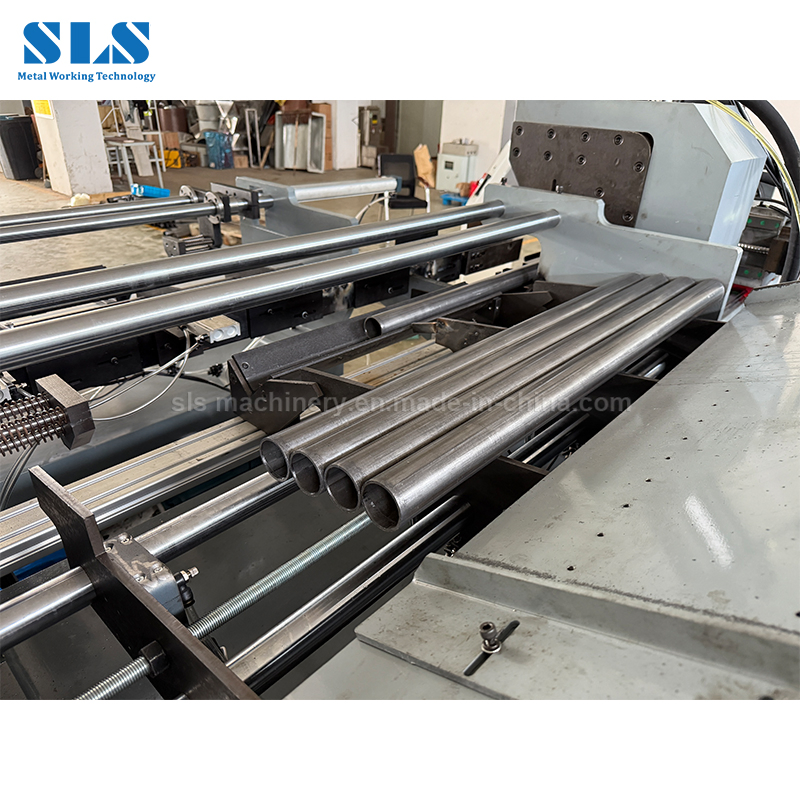

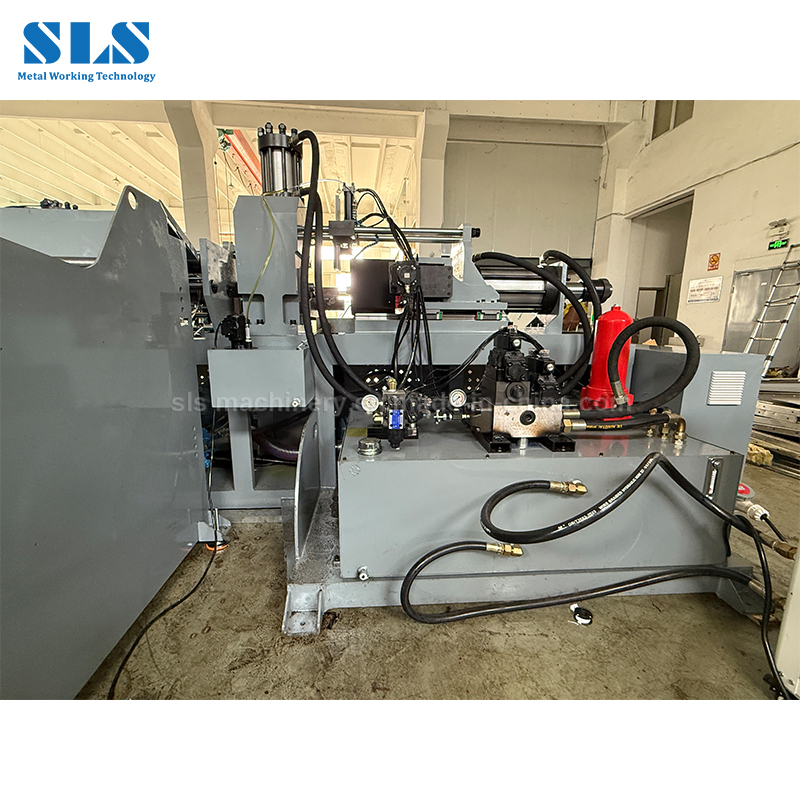

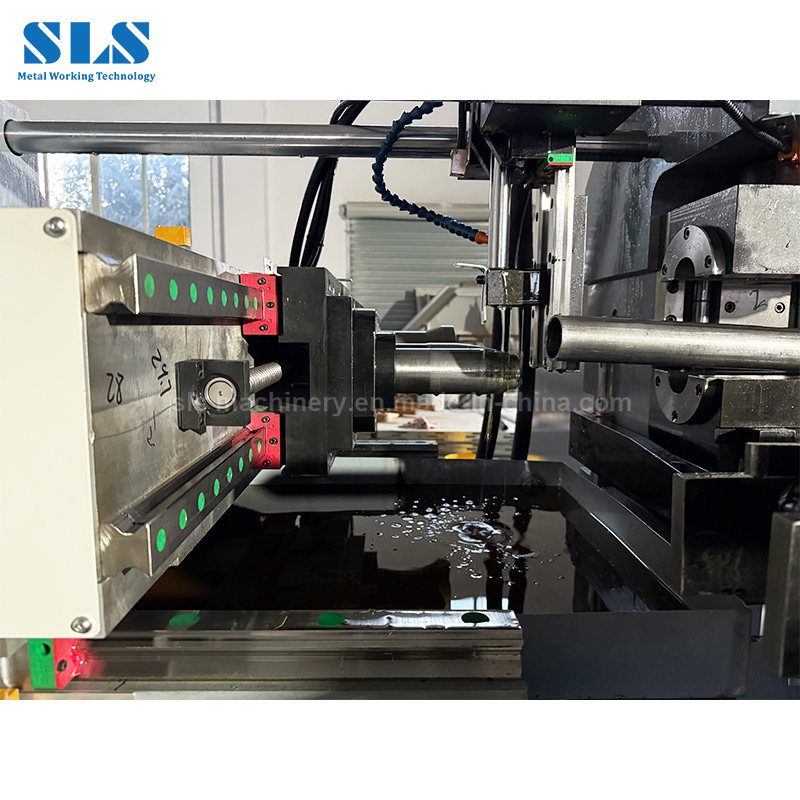

Hydraulic driven tube clamping and end forming.

Versatile shapes: Convex, Concave, Sectional, Square, V-Shape, and more.

Water cooling system for stable long-term operation.

📏 Technical Parameters

Model	40NC	60NC	80NC	100NC	115NC	165NC	220NC
Capacity	40x2mm	60x2.5mm	80x3mm	100x3.5mm	115x4mm	165x5mm	220x8mm
Stroke	100mm	100mm	100mm	150mm	150mm	150mm	150mm
Forming Time	3-4s	4-5s	7-8s	9-10s	12-14s	15-18s	20-25s
Power	4Kw	5.5Kw	7.5Kw	11Kw	15Kw	22Kw	33Kw

Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a professional manufacturer focusing on metal pipe and tube processing machinery production.

2. How do I choose the right pipe forming machine? Please provide your pipe outer diameter range, wall thickness, material, required forming shape, and forming length.

3. Does your equipment come with certification? Yes, our machines are fully CE and ISO 9001:2000 certified to ensure international quality standards.

4. What kind of after-sales service do you provide? We provide operation manuals, installation videos, and 24-hour online technical support. We also offer factory training and onsite engineer services.

5. Can the machines be customized? Yes, voltage, color, and specific functions like multi-stations or additional feeding systems can be customized to your requirements.

6. What is the typical forming time for these machines? Depending on the model and pipe size, forming time typically ranges from 3 seconds for smaller models to 25 seconds for heavy-duty models.
