| Type | Horizontal Lathe |
| Processing Accessory | Chuck CNC Lathe |
| Guide Rail | Horizontal Guide Rail |
| Tool Holder | Single-tool Holder CNC Lathe |
| Power Source | Electric |
| Automatic Grade | Semiautomatic |
| Precision | Normal Precision |
| X-Axis Travel | 220mm |
| Z-Axis Travel | 550mm |
| Voltage | 220V/380V/440V |
| Package Size | 200.00cm * 110.00cm * 130.00cm |
| Package Gross Weight | 1200.000kg |
| Production Capacity | 1000pieces/Year |
| Certification | GS, CE, RoHS, ISO 9001 |

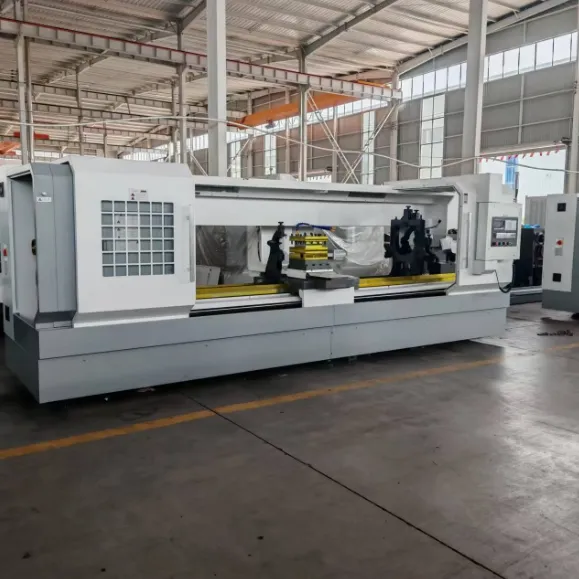

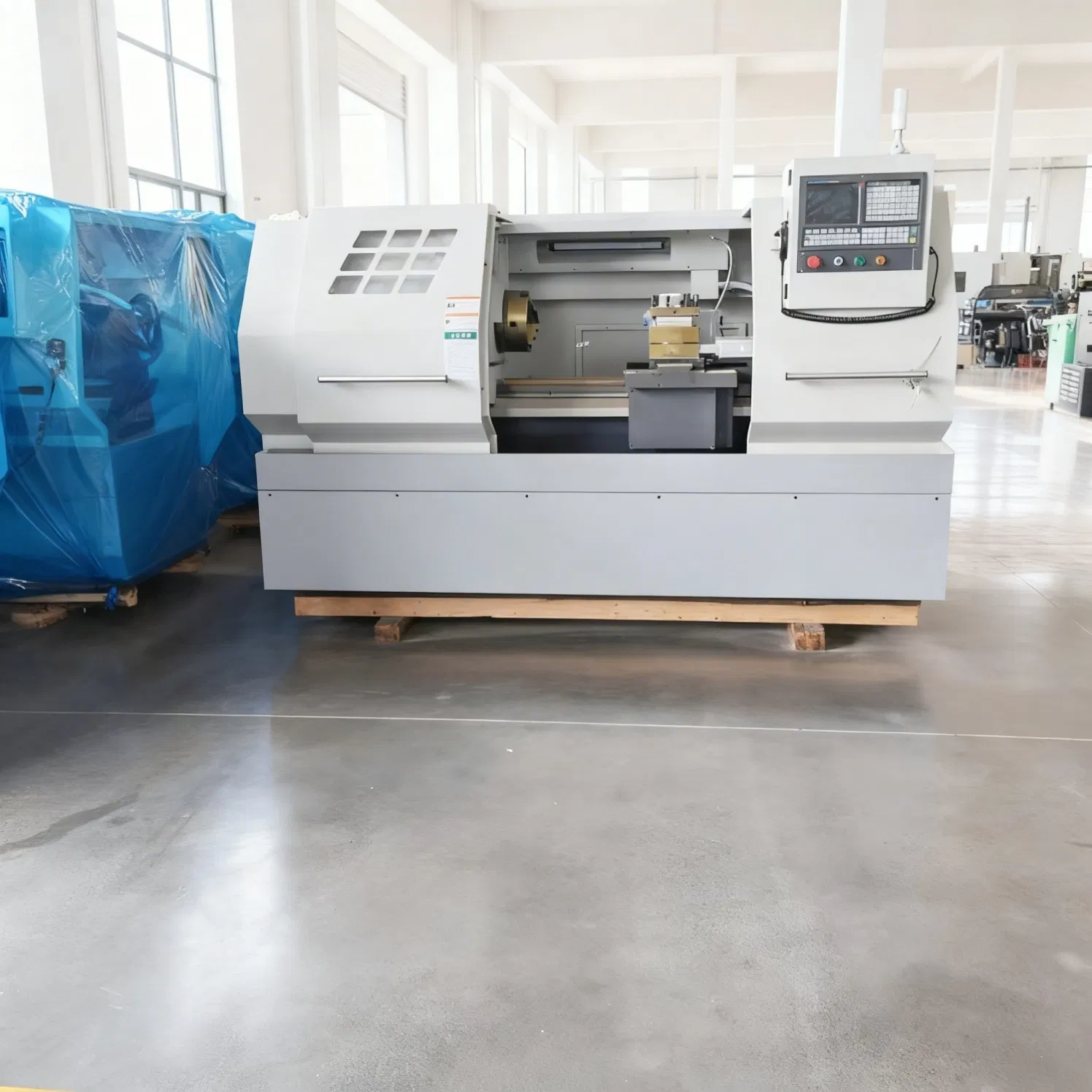

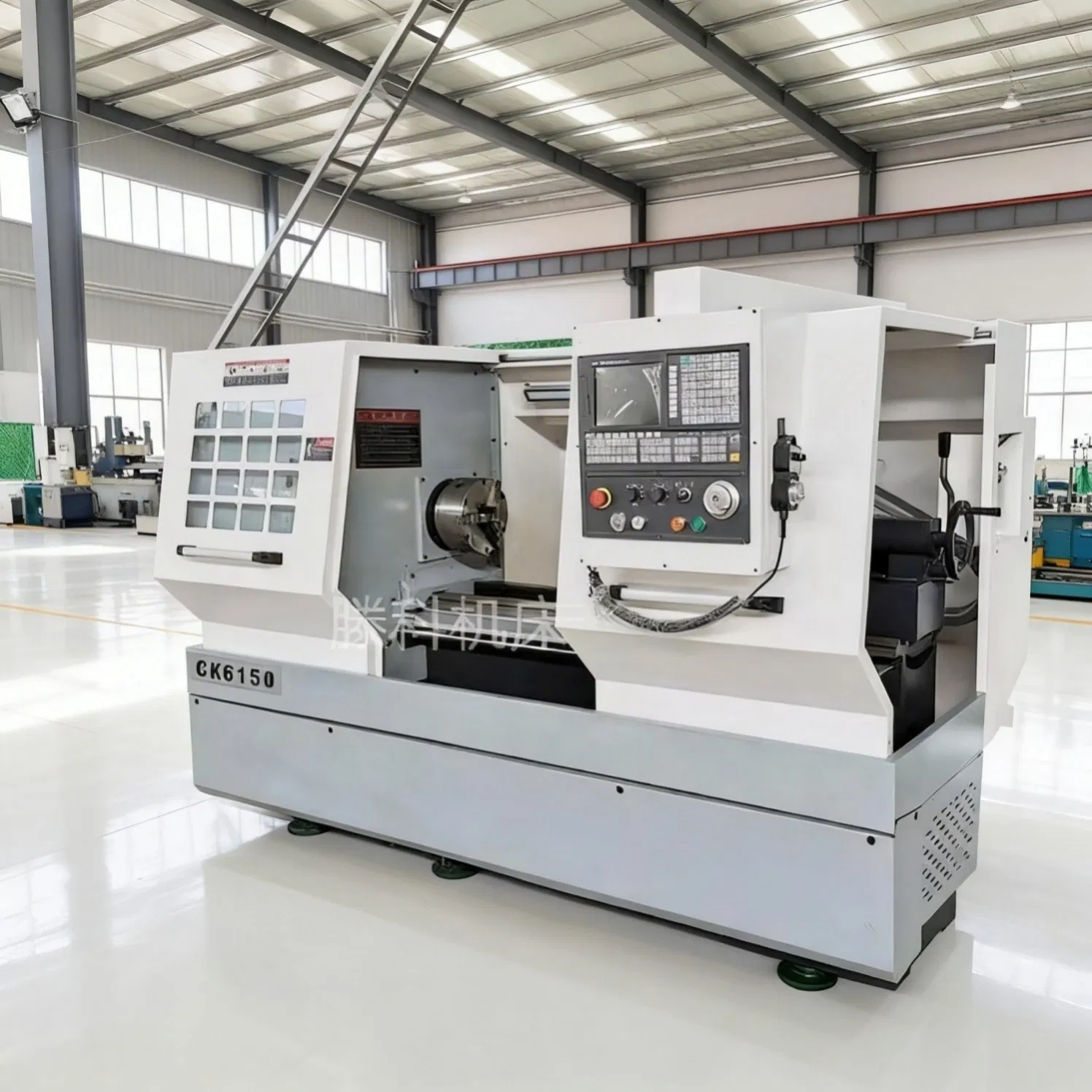

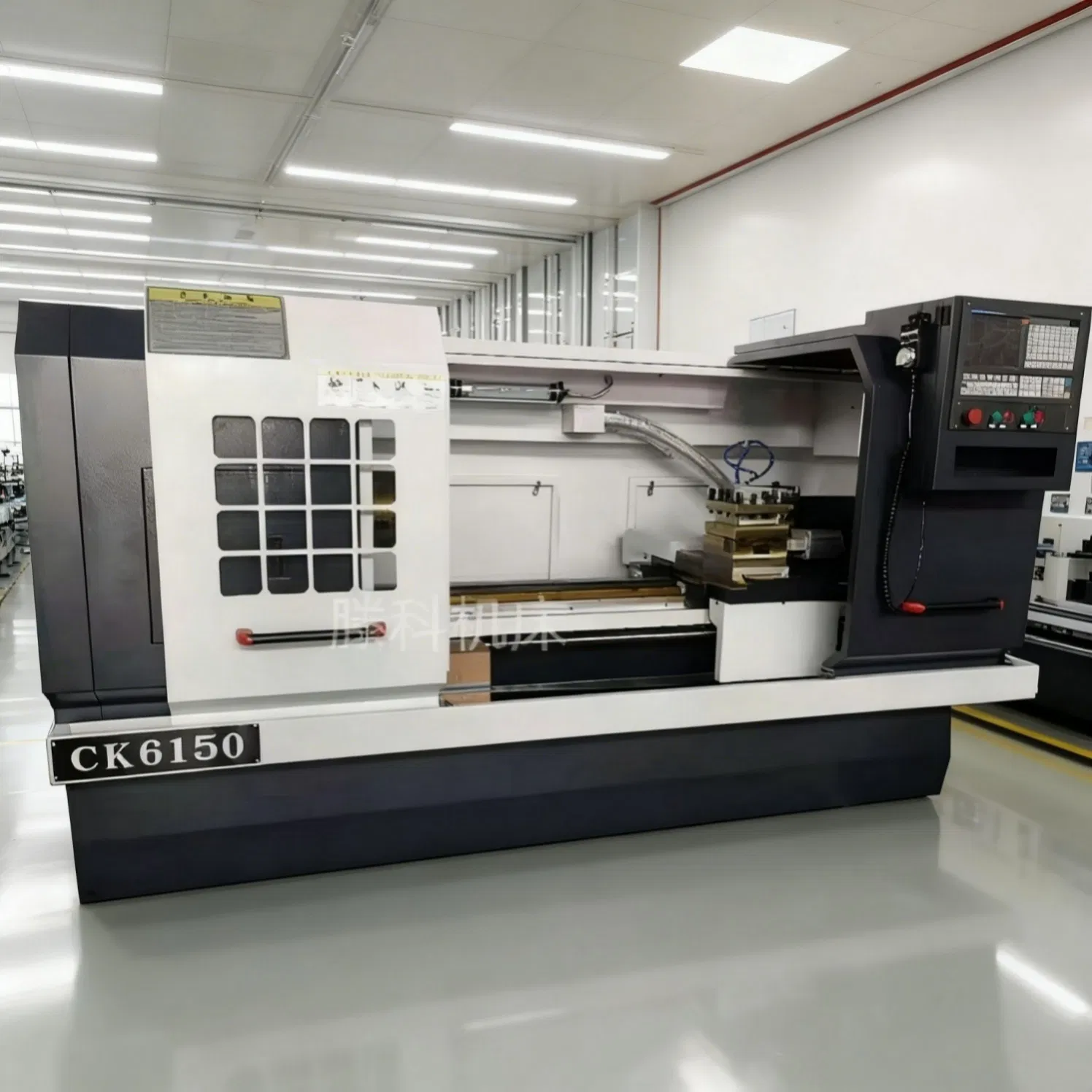

This machine tool is suitable to process middle and large size workpieces in steel, cast iron, and non-ferrous metal materials. Featuring high power and rigidity, it is ideal for heavy-cutting inner circles, ex-circles, end surfaces, and threads in both metric and English systems.

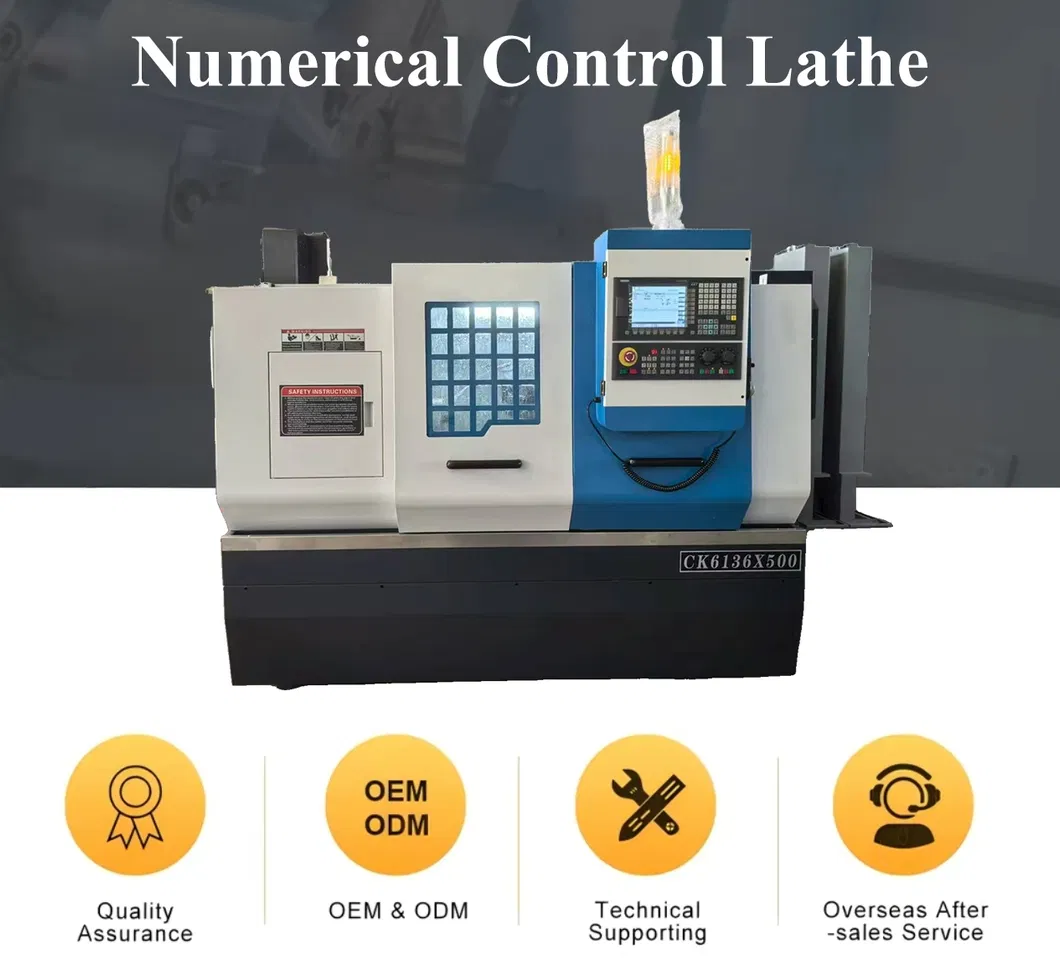

Controlled by an NC system, this machine can process different inner bores, ex-circles, circular conical surfaces, and screw threads. It is especially suitable for small and middle-sized shaft and plate workpieces from rough processing to finish processing in batches. Advantages include higher automaticity, simpler programming, and higher accuracy.
| Specifications | Unit | CK6152E | CK6165E |
|---|---|---|---|
| Max.swing over bed | mm | Φ530 | Φ650 |
| Max.swing over cross slide | mm | Φ280 | Φ375 |
| Spindle speed | rpm | 30-1600 | 10-850 |
| Spindle motor | kW | 7.5 | 11 |

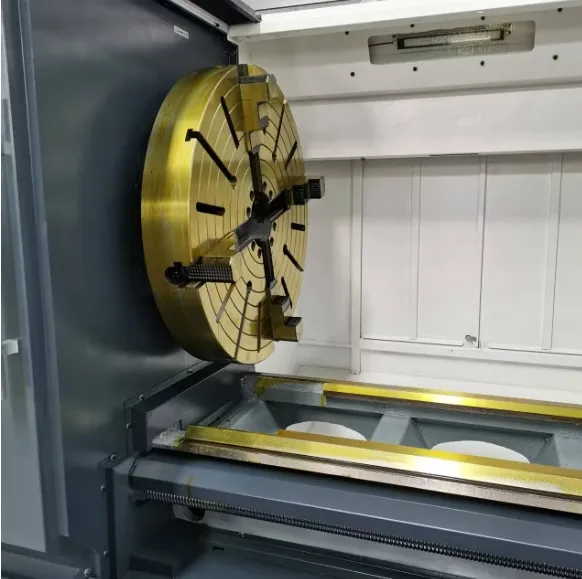

| Chuck size | mm | Φ250 | Φ320 |
| Machine dimension | mm | 2570x1550x1710 | 3200x1800x1900 |

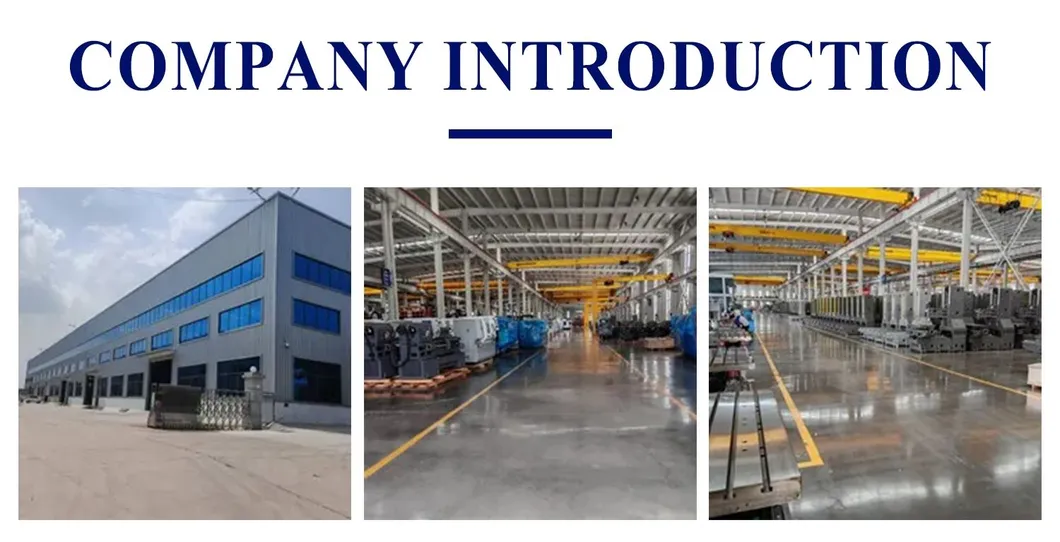

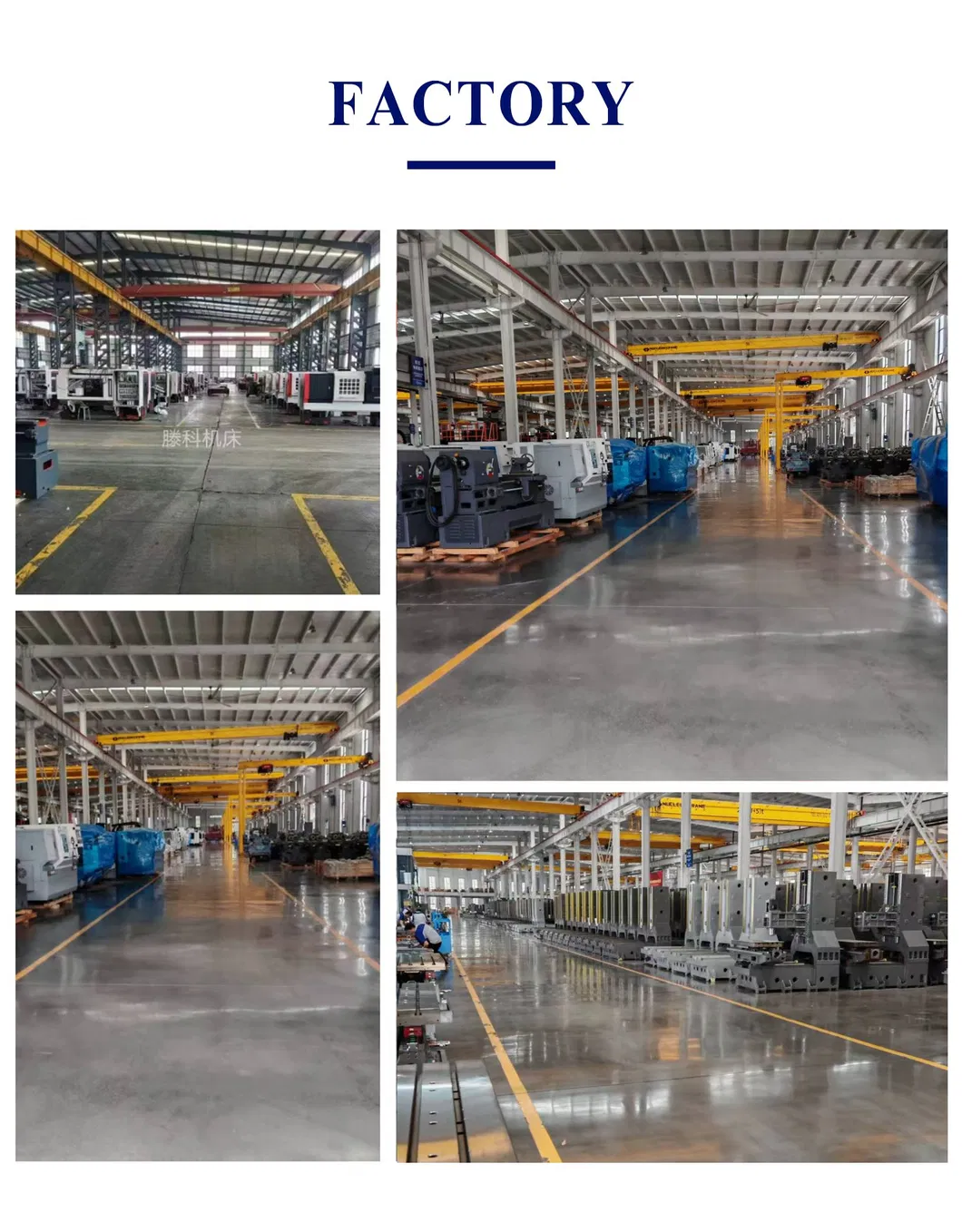

As a member of the China Machine Tool Industry Association (CMTBA) and ISO 9001:2015 certified, the company relies on strong economic strength and professional production equipment. Products cover metal cutting and forming machines, exported to the USA, Russia, Southeast Asia, and more. We ensure every piece of equipment is qualified before leaving the factory.
