Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Processing Precision
0.005-0.01(mm)
CNC Control System
Fanuc Mitsubishi
Number of Spindles
2 Spindle
Max. Spindle Speed
6000 r.p.m
Spindle Motor Power
11.0/15.0 Kw

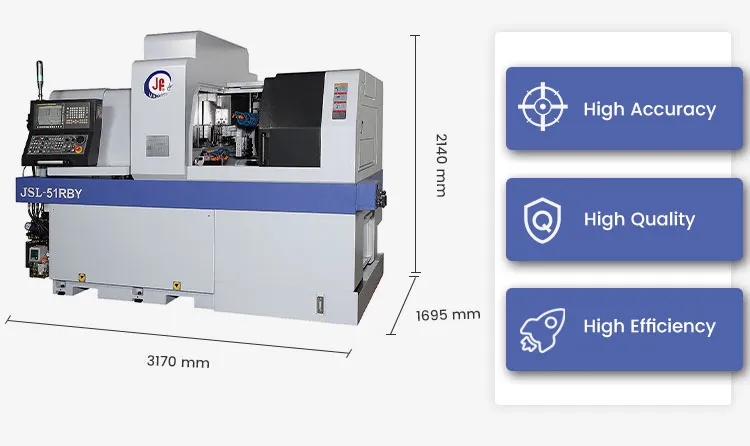

Dimension
3170× 1695 × 2140 mm
Product Description

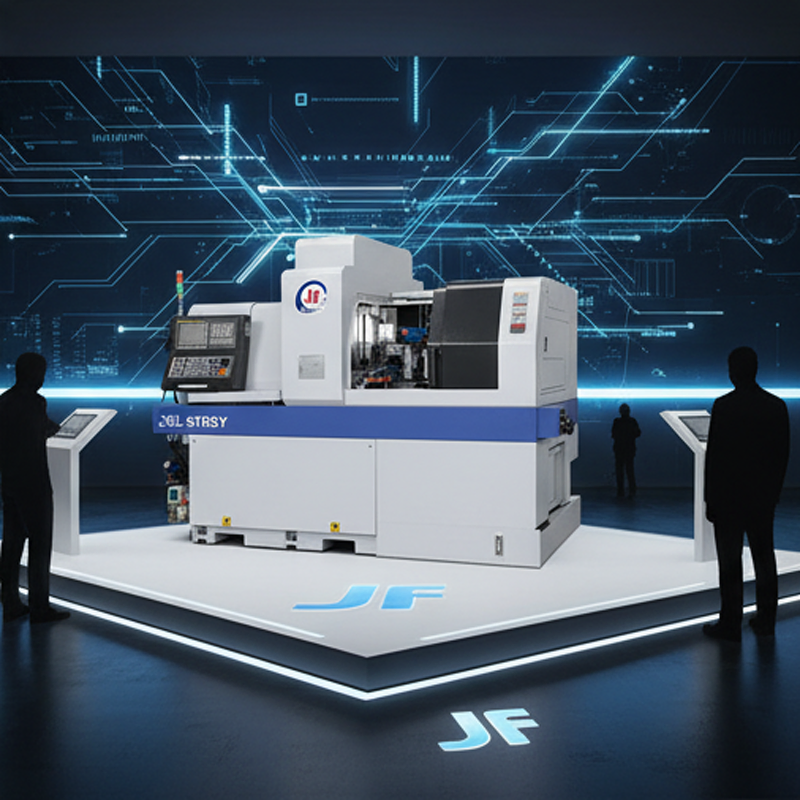

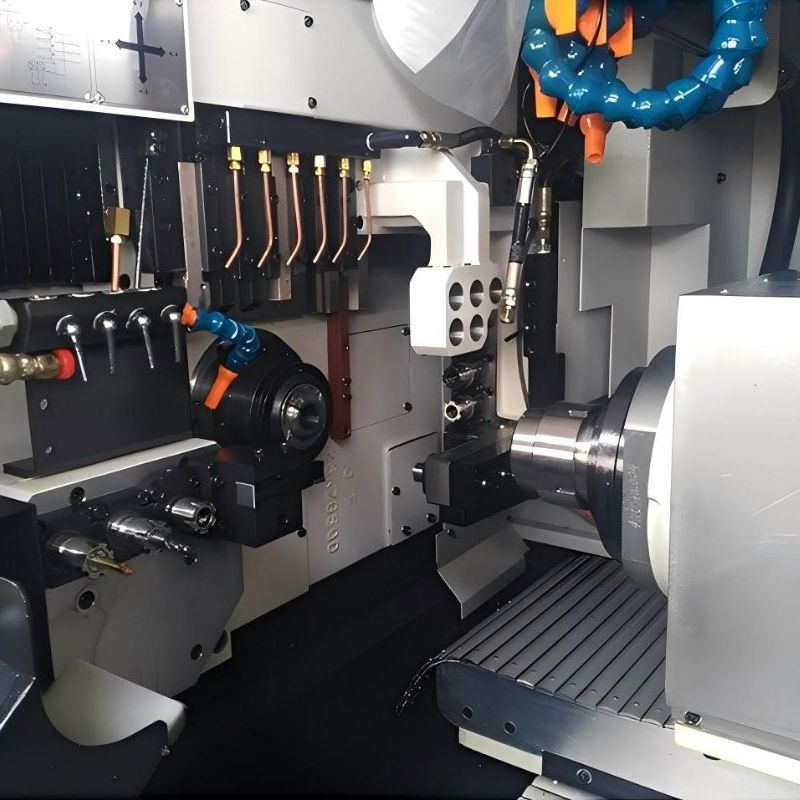

Key features of the JSL-51RBY sliding head lathes:
- Maximum turning diameter: 51mm.

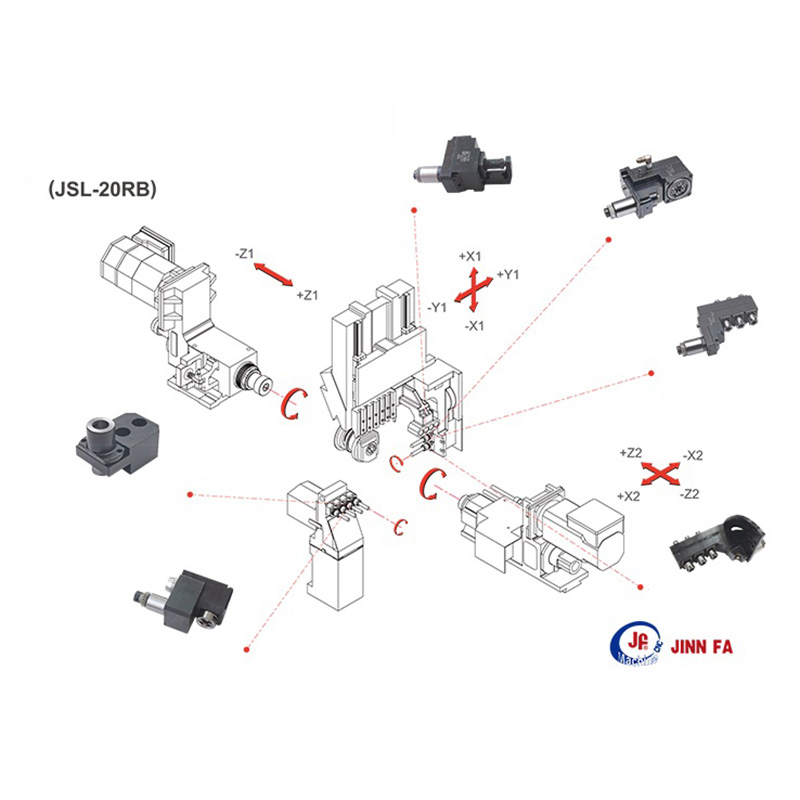

- Up to eight axes of motion can be performed simultaneously (X1/Y1/Z1/X2/Y2/Z2/C1/C2).

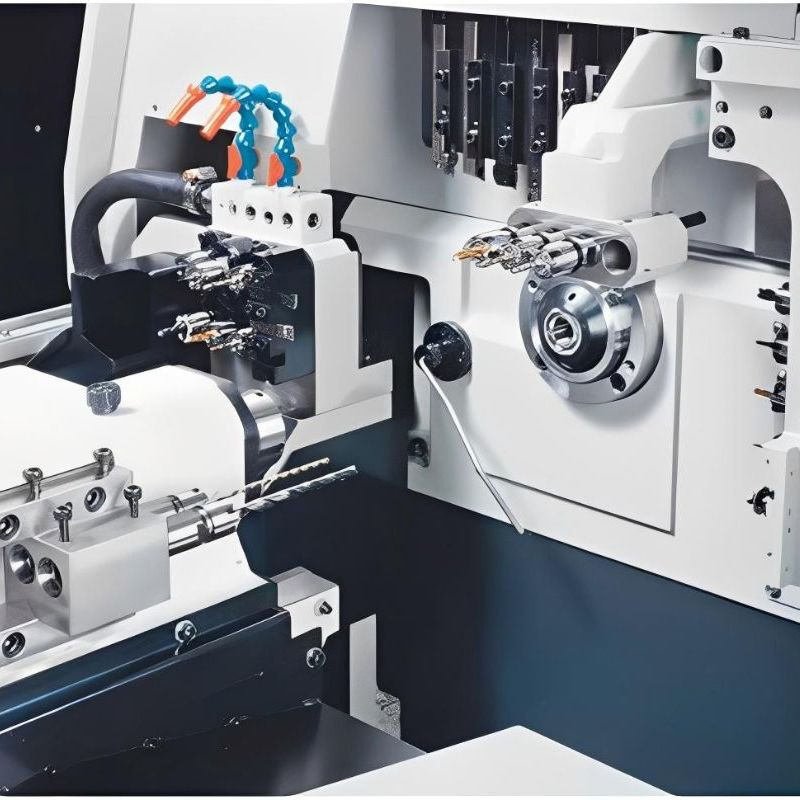

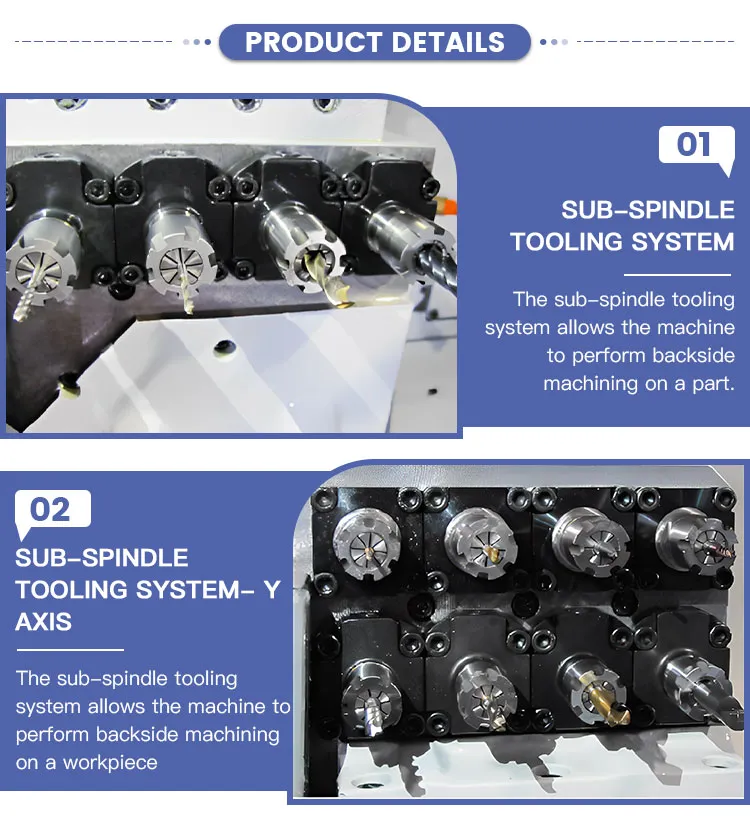

- The sub-tool system enables eccentric drilling, milling, and grooving.

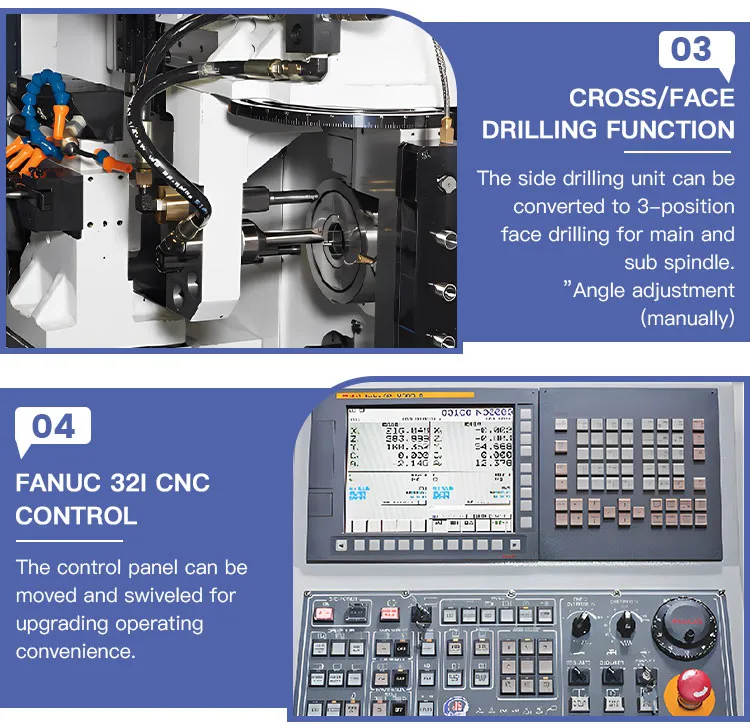

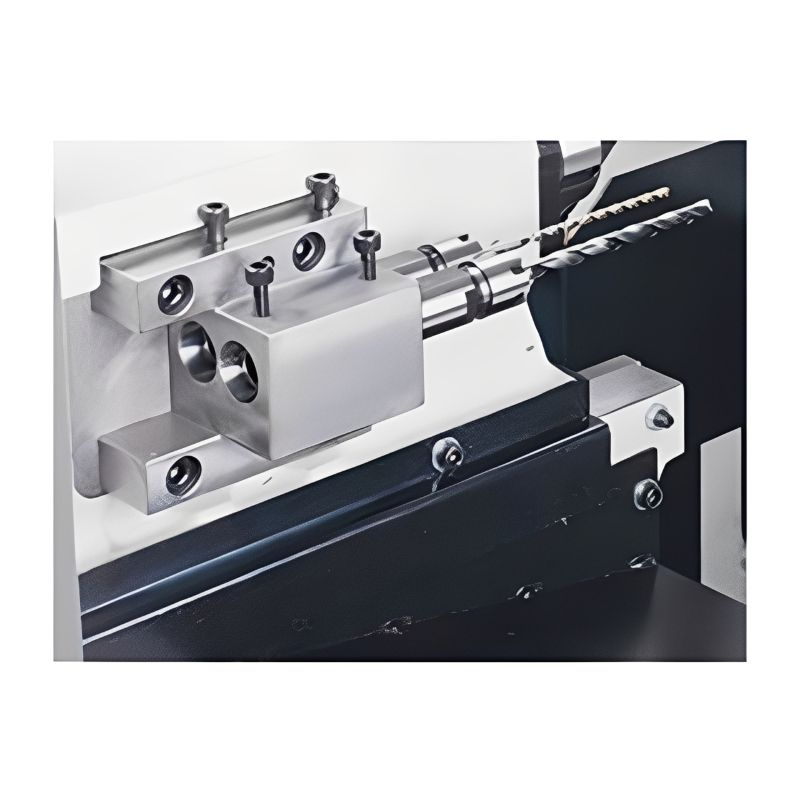

- Side drilling can be converted to end face drilling.
- Rugged construction and long tool life provide stable, versatile machining performance.
Product Parameters
| Project |
JSL-51RBY Parameters / Functions |
| Max. Processing Diameter (Main Axis) | 51mm |
| Max. Processing Diameter (Secondary Axis) | 51mm |
| Max. Bore Diameter (Main Axis) | 26mm |
| Max. Machining Length (Guide Sleeve) | 300mm |
| Total Number of Axis | 8 |
| Fast Feed | 30M/min |
| Total Machine Weight | 5450 Kg |
Our Advantages
20 Years of Industry ExperienceTwo decades of focused CNC machine tool sales and project implementation.
System-Level Selection CapabilitiesCustomized recommendations based on production capacity and cost targets.
Strong Technical Service TeamOne-stop service from installation to process trial production.
Comprehensive Spare Parts GuaranteeStock of critical spare parts to ensure production continuity.

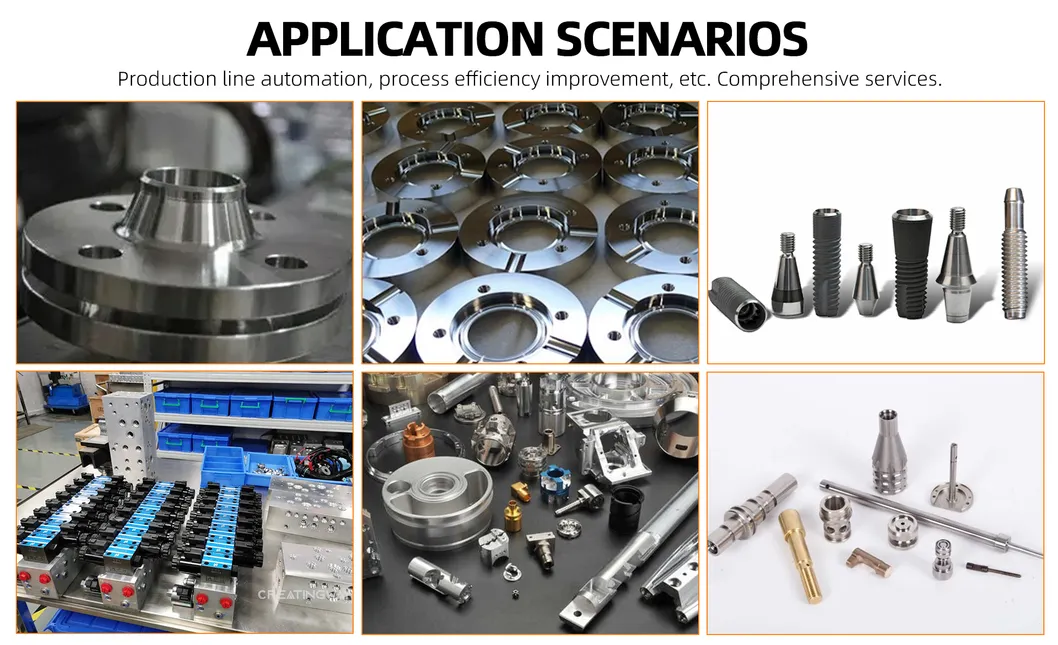

Multi-Industry Application ExperienceExtensive cases in automotive, medical, and aerospace sectors.
Certifications & Exhibition
Packaging & Shipping
Frequently Asked Questions
What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
What CNC system do you use?
FANUC, SIEMENS, MITSUBISHI, GSK, SYNTEC. It depends on your choice.
How can I choose the most suitable machines?
Please provide your specifications or product drawings, and we will recommend the best model for your needs.
What are your main products?
We specialize in CNC lathes, milling machines, vertical machining centers, Swiss-type lathes, and grinding machines.
What are your payment terms?
T/T (30% deposit, 70% before shipment) or Irrevocable LC at sight.
What trade terms do you accept?
FOB, CFR, and CIF are all acceptable.
