3 Axis 4 Axis 5 Axis CNC Milling Machine Center with Screw Type Chips Conveyor for metal

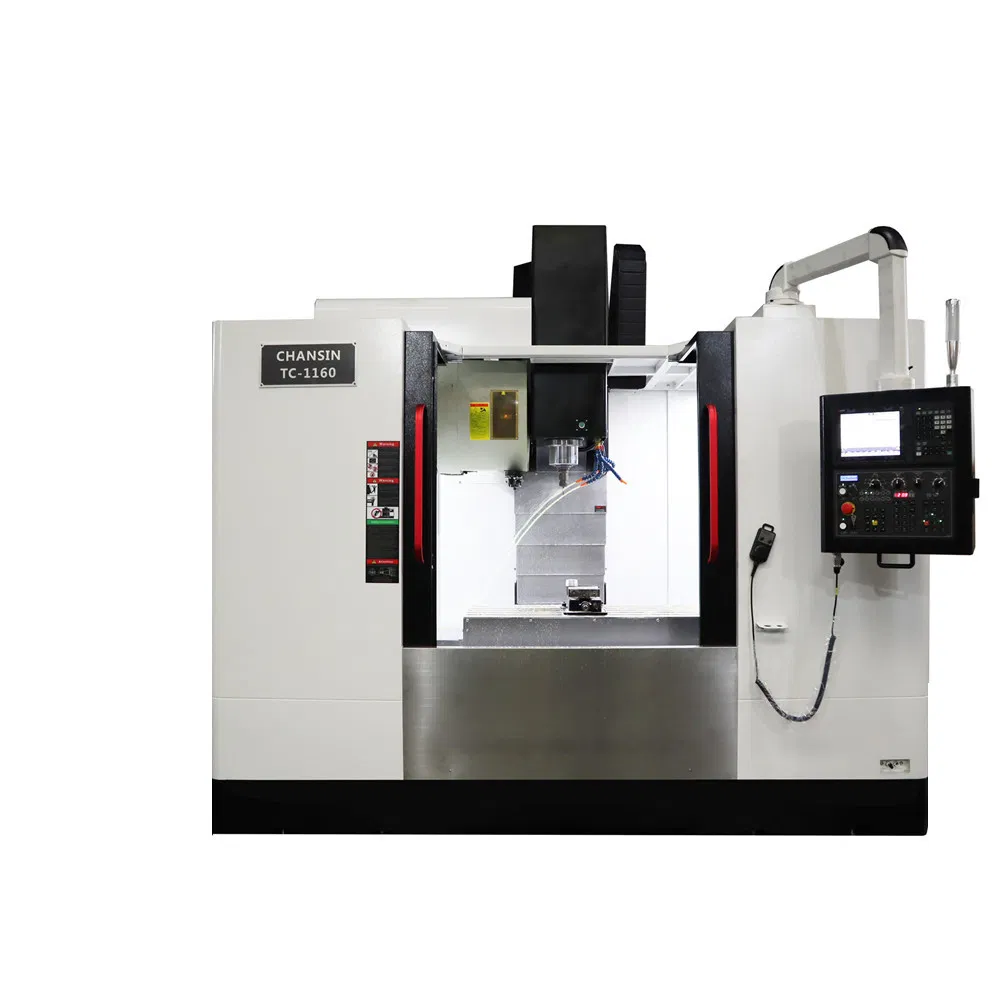

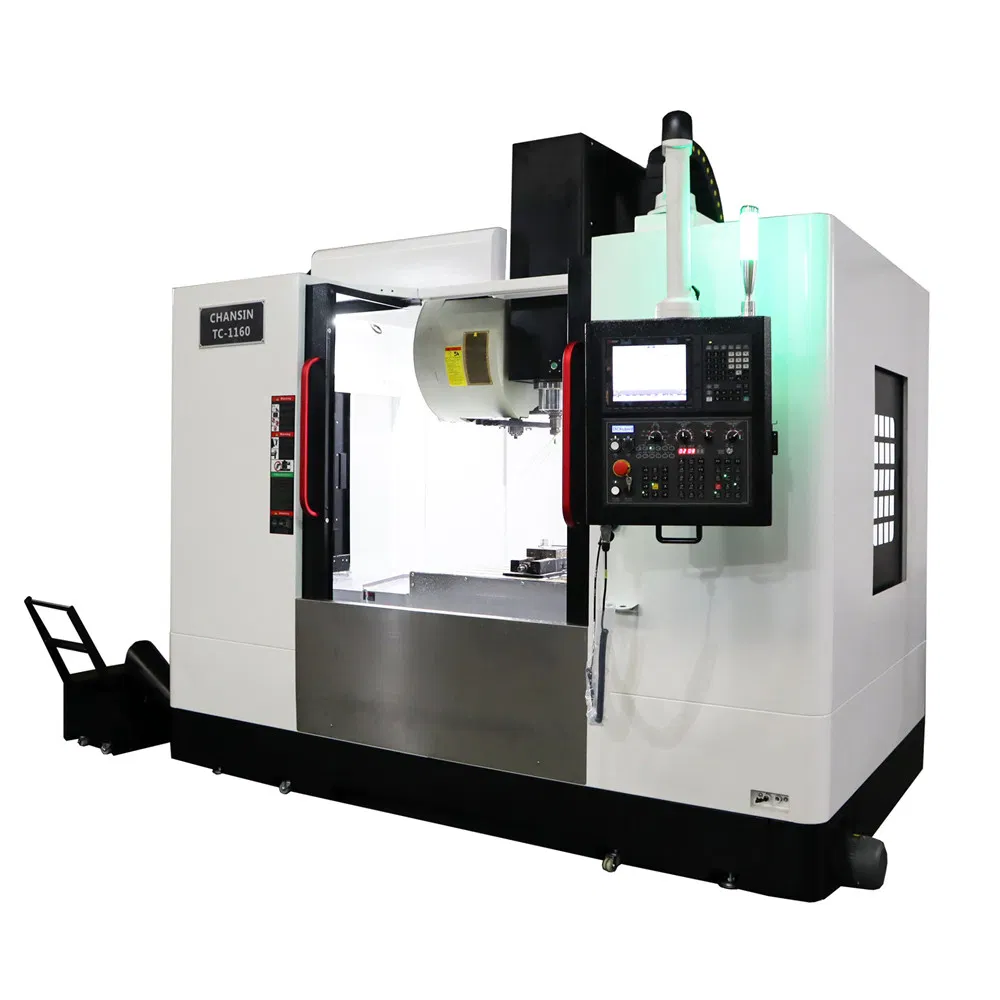

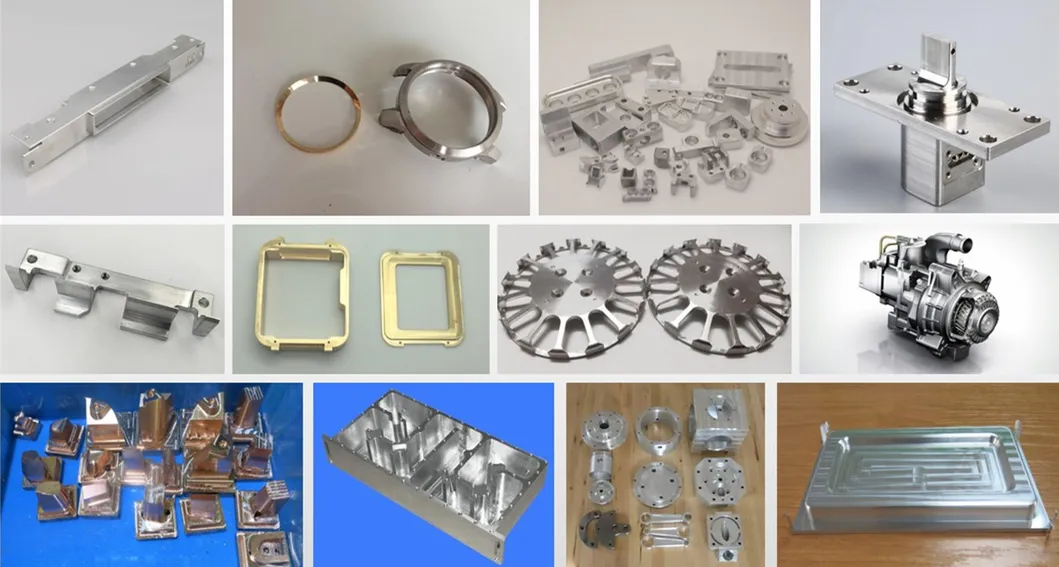

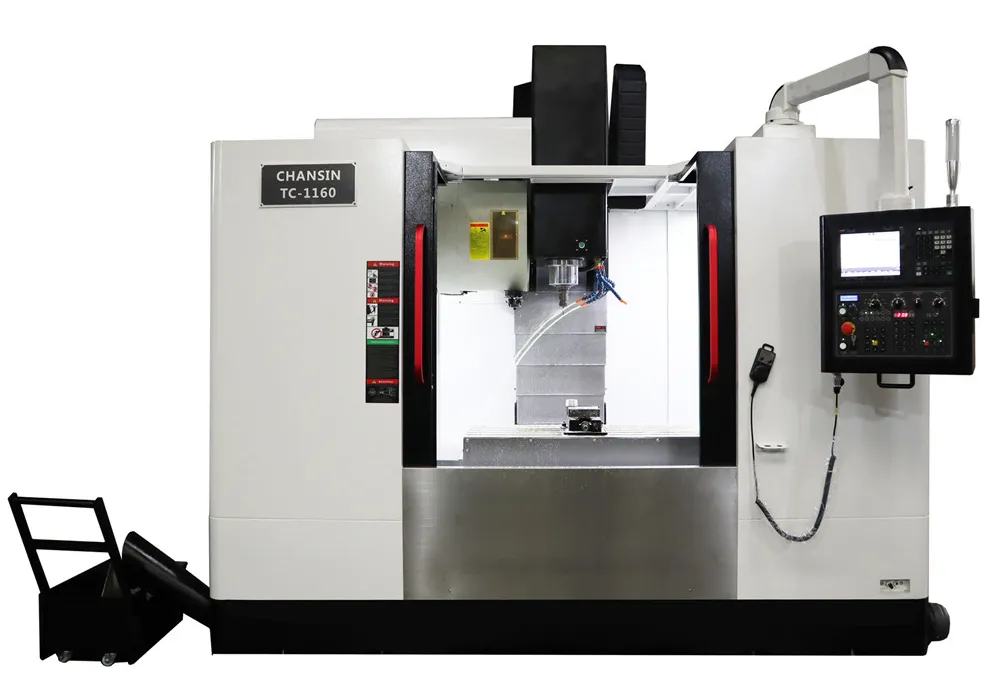

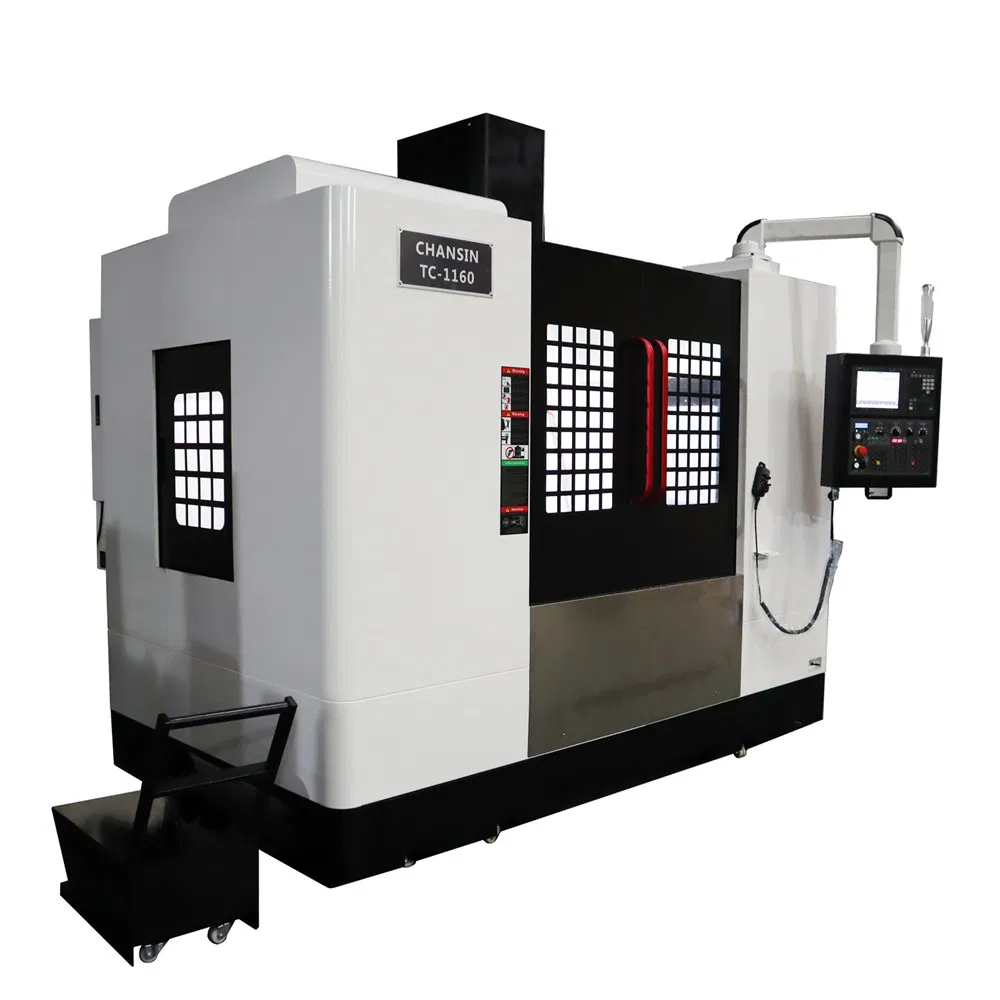

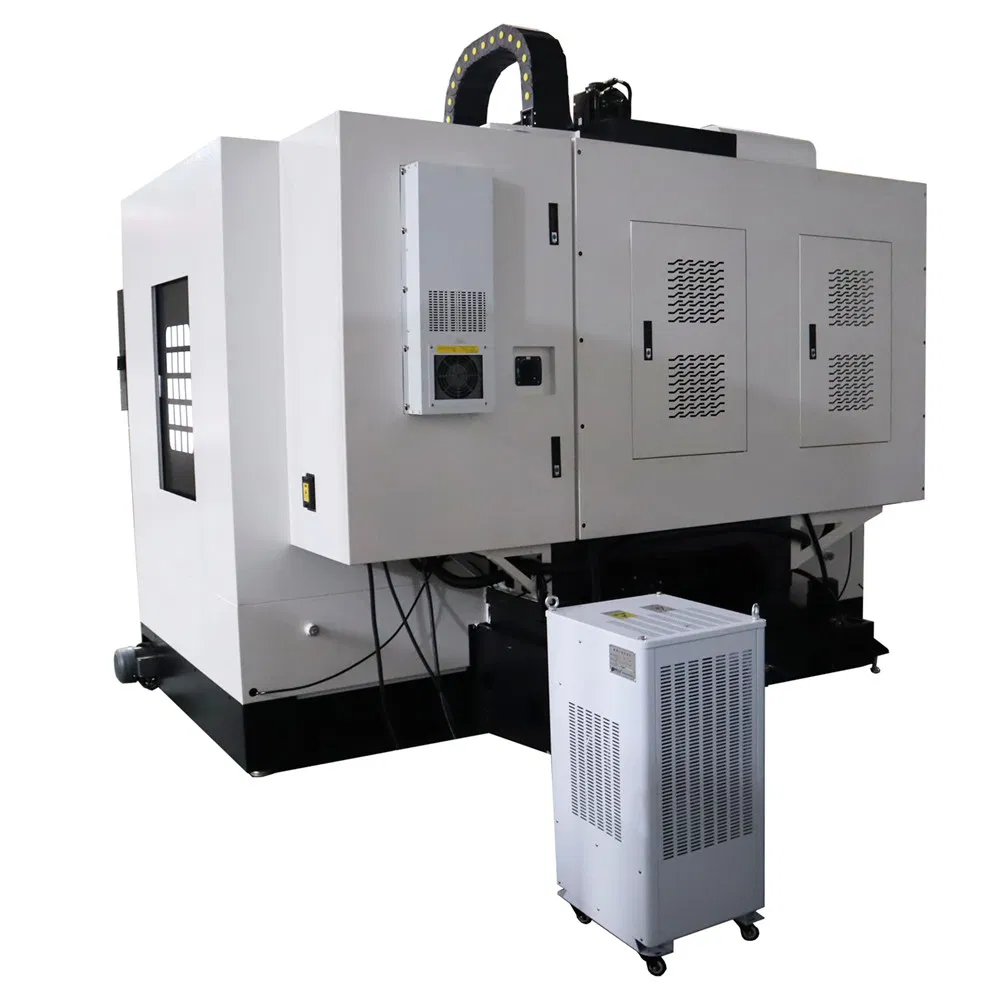

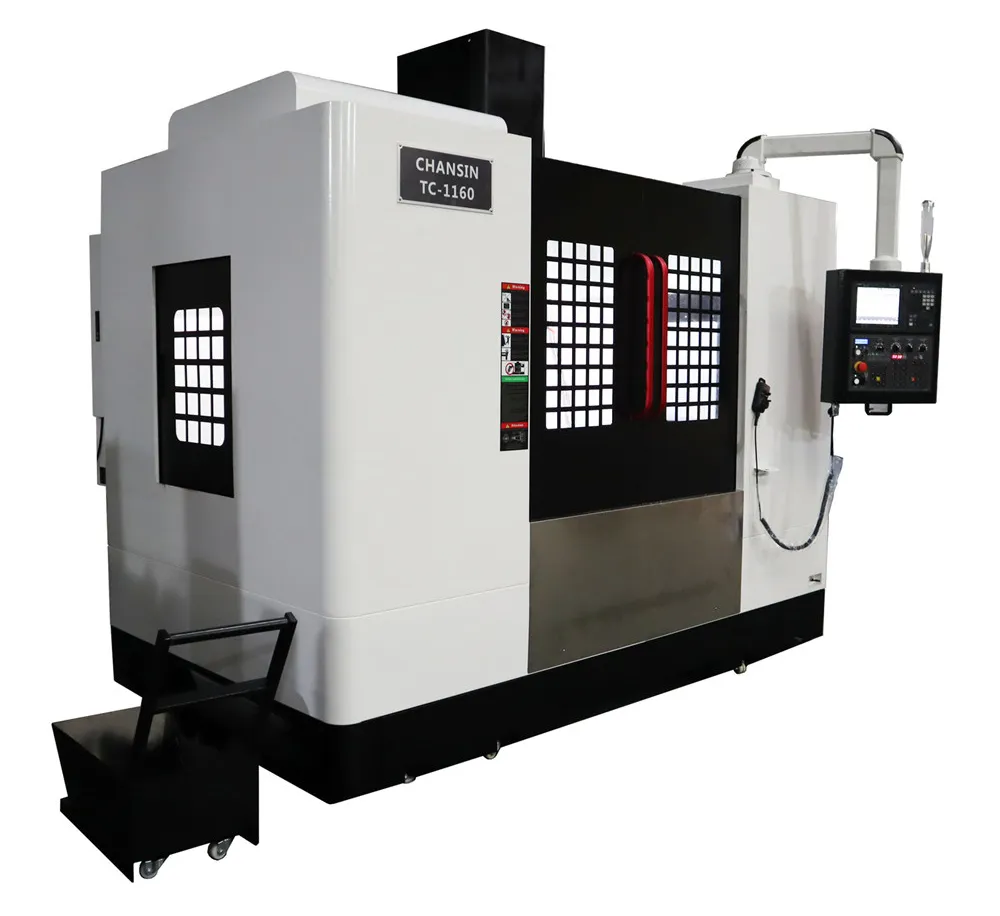

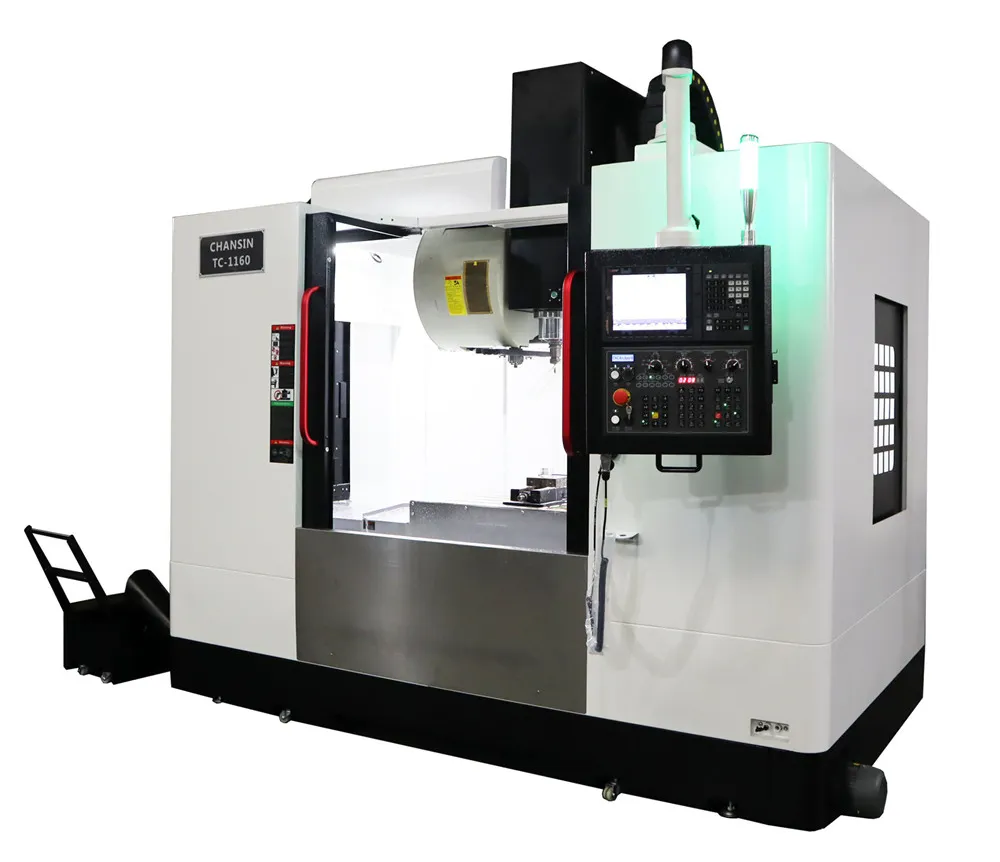

This product is a semi-closed-loop vertical machining center with X, Y, and Z three-axis servo control. The structure and dimensions are compact and reasonable, suitable for efficient processing of small, complex, and high-precision parts such as discs, plates, shells, and molds.

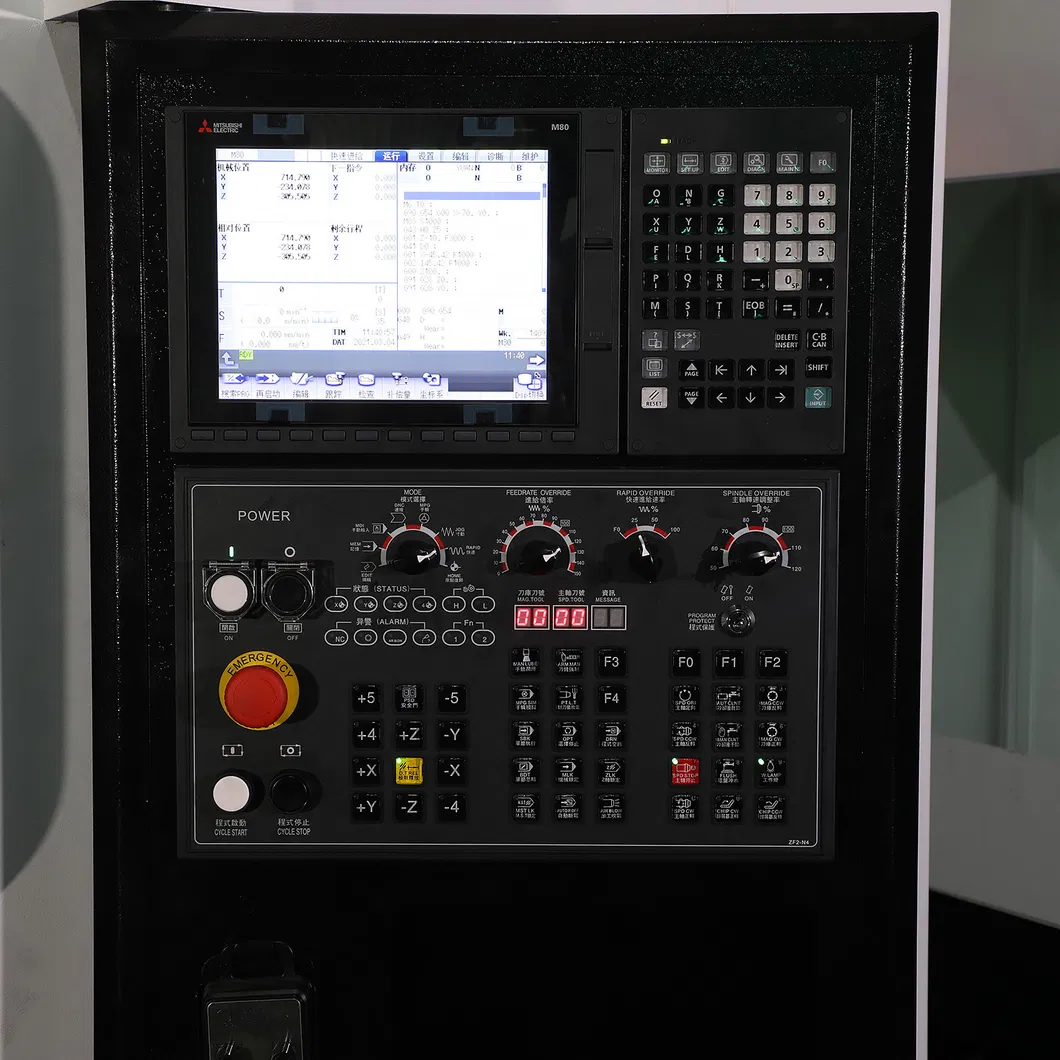

Conforms to ergonomic interactive interface with servo drive for high-precision milling.

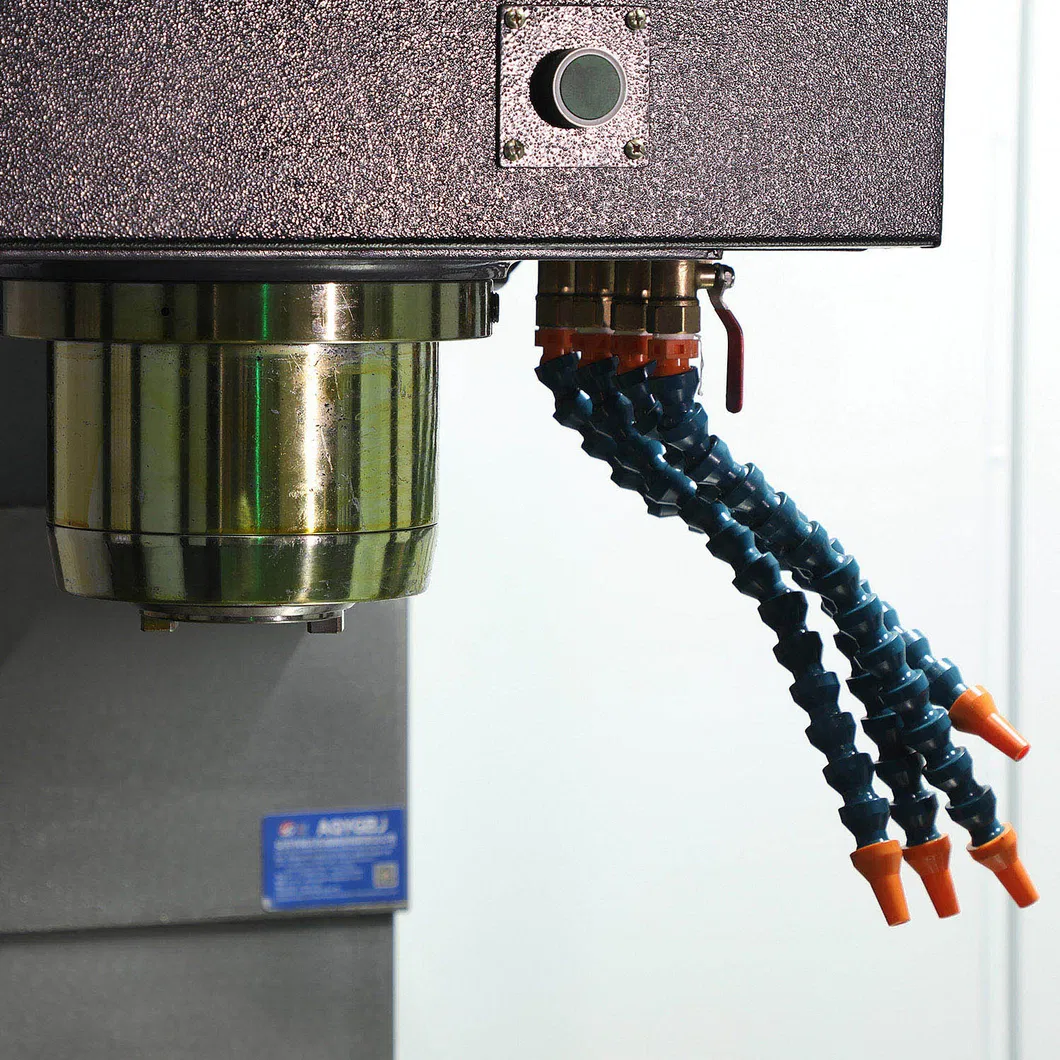

POSA/VOLIS/ROYAL optional. Belt drive or direct drive options available. Features high speed (8000-12000rpm), high precision angular contact thrust ball bearings, and strong axial rigidity.

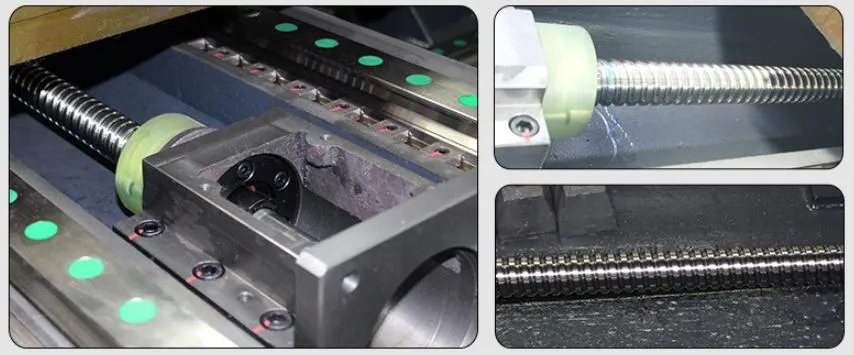

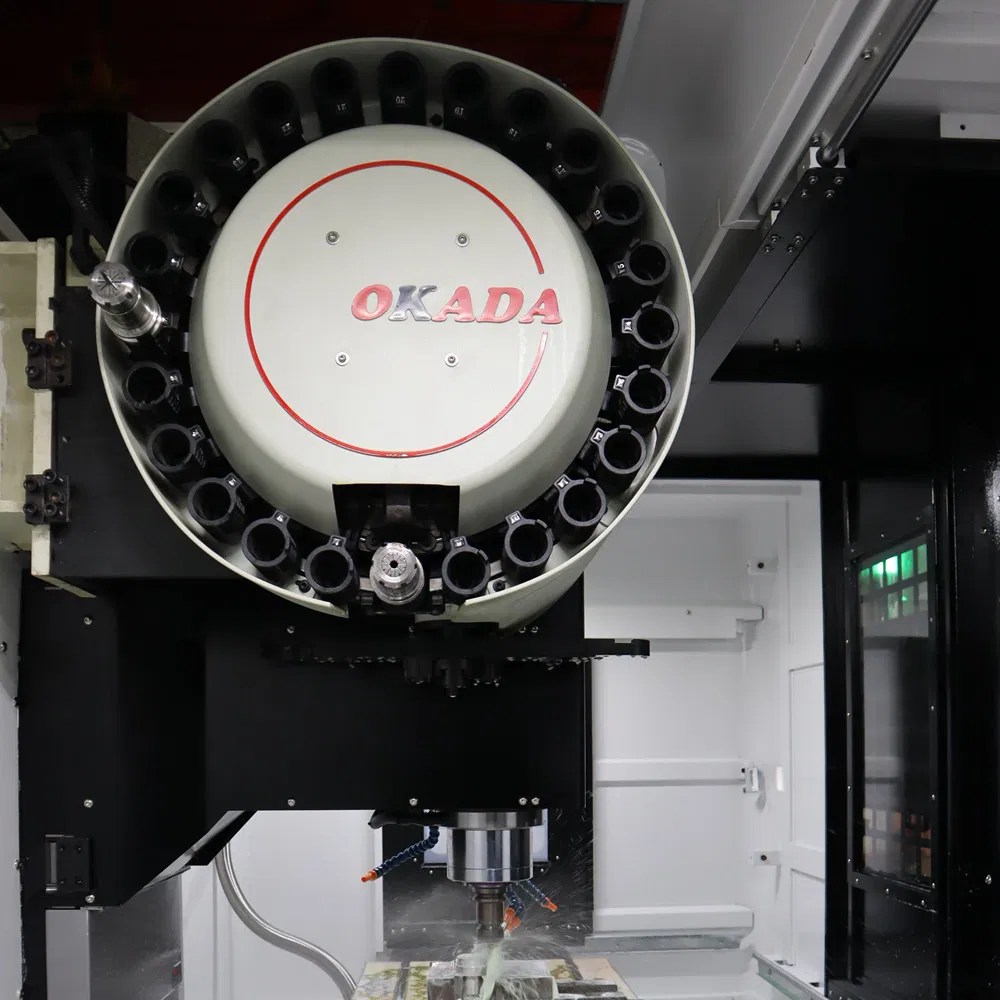

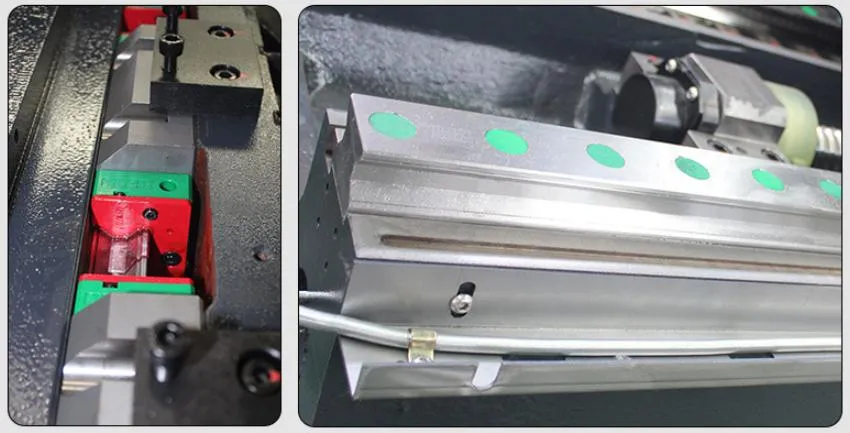

Equipped with a 24-disc type tool magazine for fast and accurate changes. Forced lubrication system for all sliding surfaces and ball screws with alarm display for low oil levels.
| Description | Unit | Value |
|---|---|---|
| Table Size | mm | 1200 * 600 |
| Travel (X/Y/Z) | mm | 1100 / 600 / 600 |
| Max Table Load | kg | 1000 |
| Spindle Taper | - | BT40 |
| Max Spindle Speed | rpm | 8000 / 12000 |
| Positioning Accuracy | mm | ±0.005 / 300 |
| Repeatability | mm | ±0.003 / 300 |
| Machine Weight | kg | 8500 |
