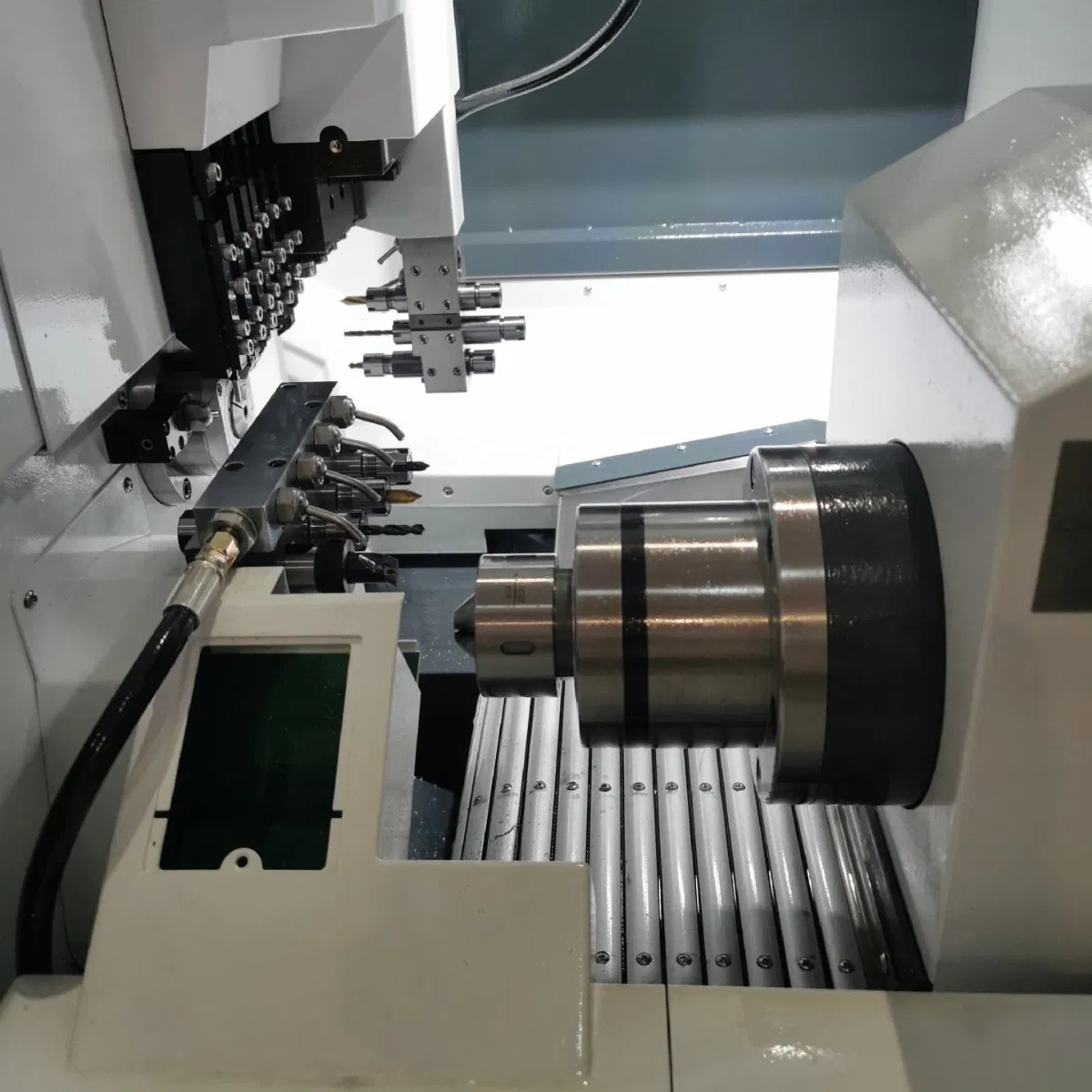

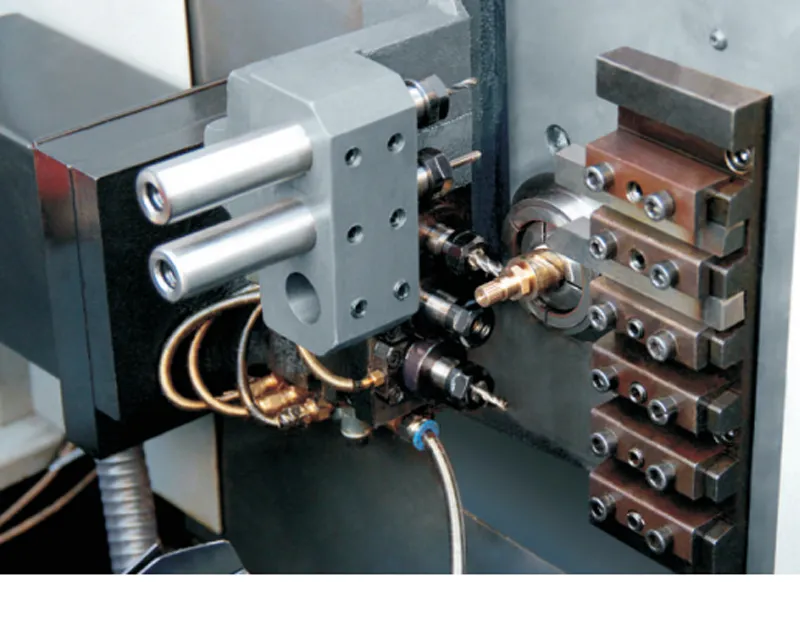

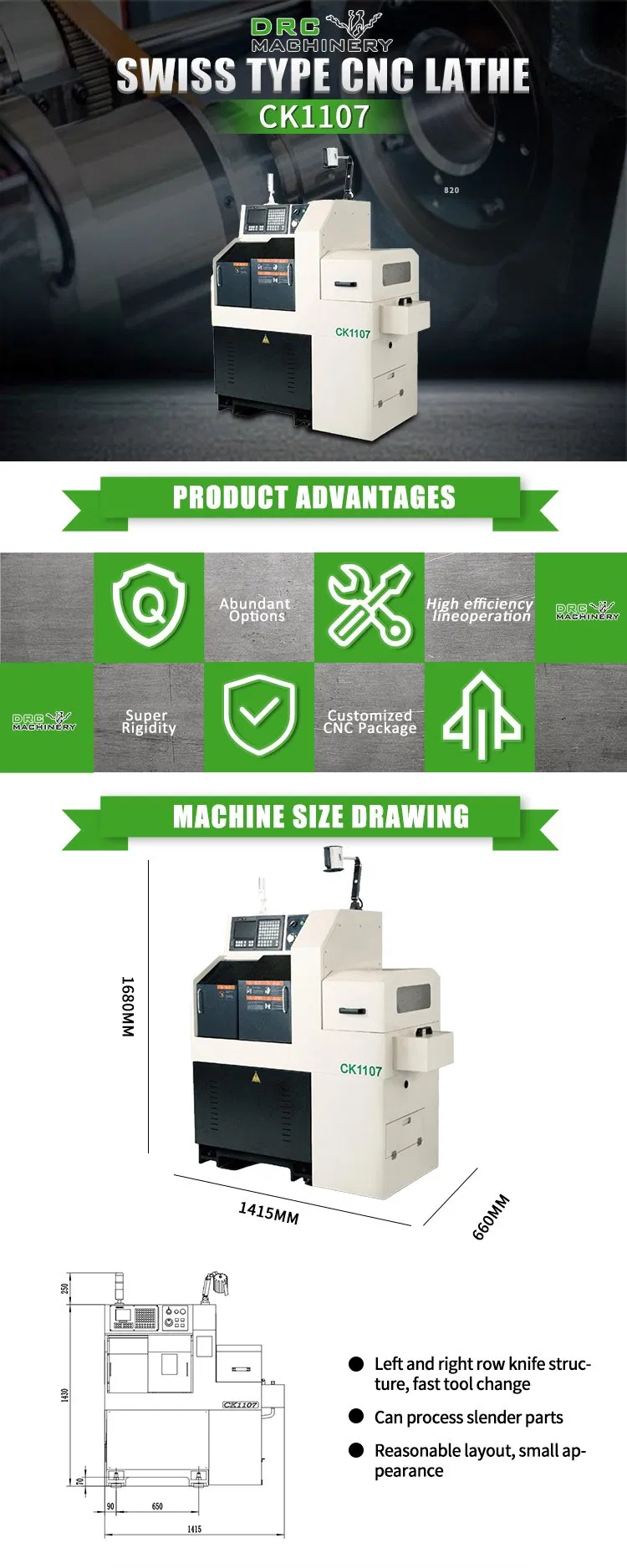

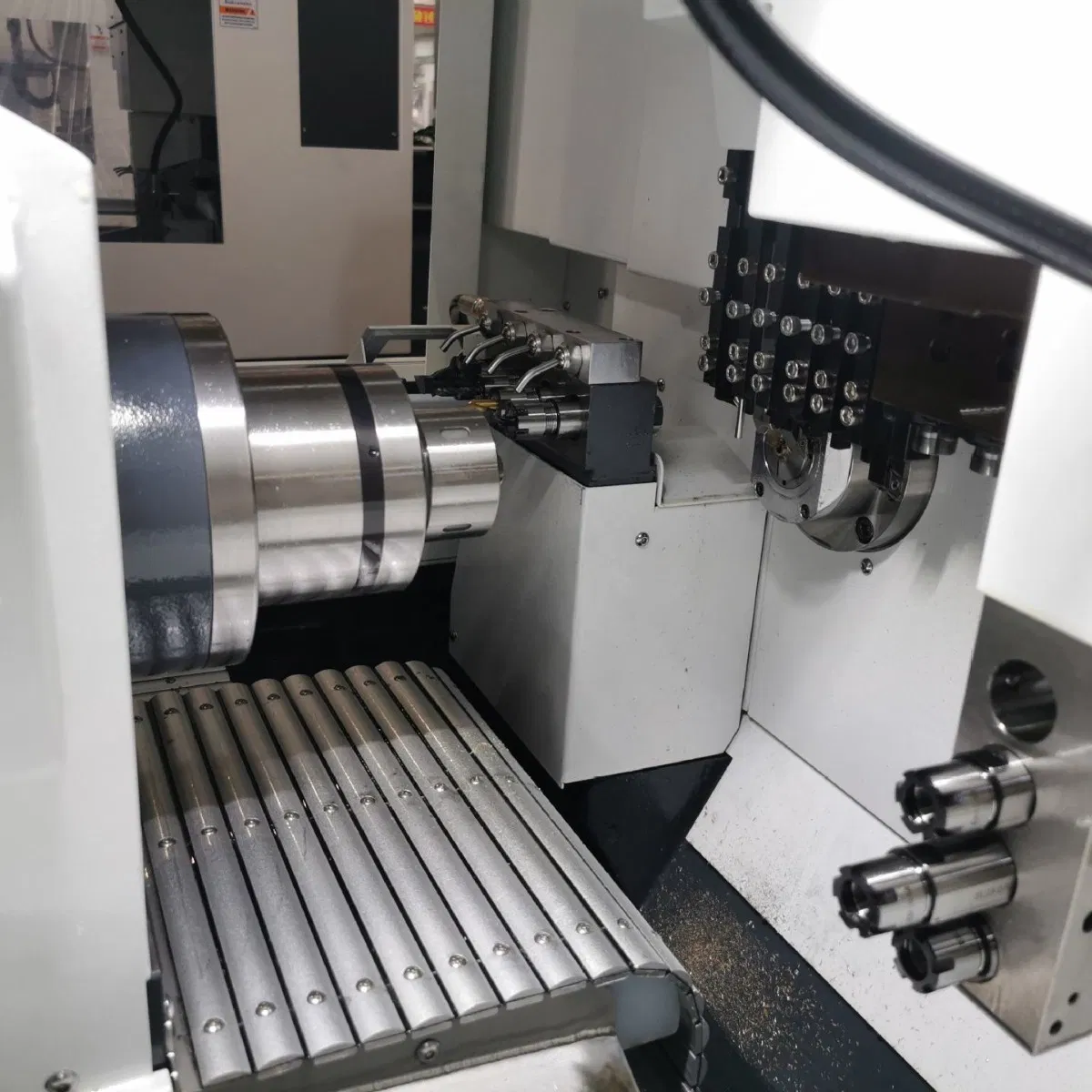

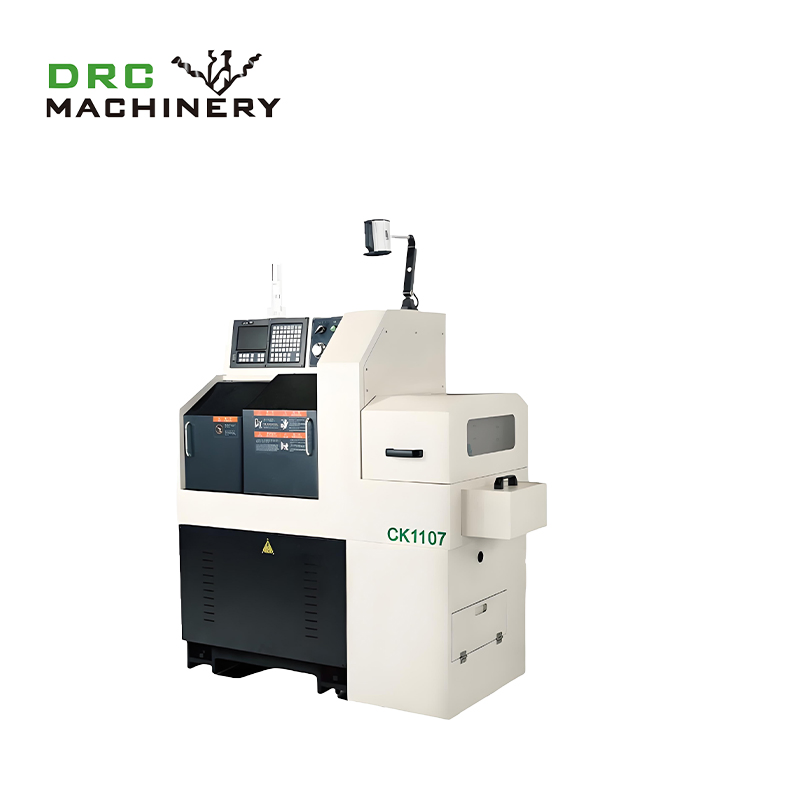

CK1107 high-speed walking machine has a left and right row tool structure, with a large number of tools, fast tool change, and good rigidity. It can process all kinds of ultra-slender parts. Reasonable layout, compact appearance and less floor space. High-speed centering CNC lathe, all three axes adopt linear rolling guides and are driven by servo motors.
The Spindle Movable Type CNC machine features a reasonable structure, fast tool changing, and high reliability. It significantly reduces material feeding times and improves efficiency when processing slender parts. A one-time material feeding is sufficient for parts less than 150mm in length.
| Power Supply | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 4kW | |
| CNC System | BYSK / YZ150 | Standard Configuration |
| Small Setting Unit | 0.001mm | |
| X Axis Pulse Equivalent | 0.0005mm | |
| Cutting Speed | 1--4000mm/min | |
| Rapid Feed Rate (X/Y/Z) | 15000mm/min | |
| Spindle | Max Bar Diameter | Φ7mm |
| Spindle Hole Diameter | Φ8mm | |
| Spindle Speed | 0-5000r/min | |
| Spindle Motor Power | 2kW | |
| Travel | Z Axis Travel | 150mm |
| Servo Motor Power | 0.4kW | |
| Slide Form | Linear Guides |
A1: It is specifically designed for high-precision processing of ultra-slender parts with a fast tool-changing mechanism and high rigidity.
A2: The CK1107 supports a maximum bar diameter of Φ7mm.
A3: Yes, it comes equipped with an automatic feeder and can be installed with part-catching devices to realize fully automated processing.
A4: It is ideal for medical components, electronics, aerospace, automotive accessories, and micro-axis industries requiring high mass production precision.

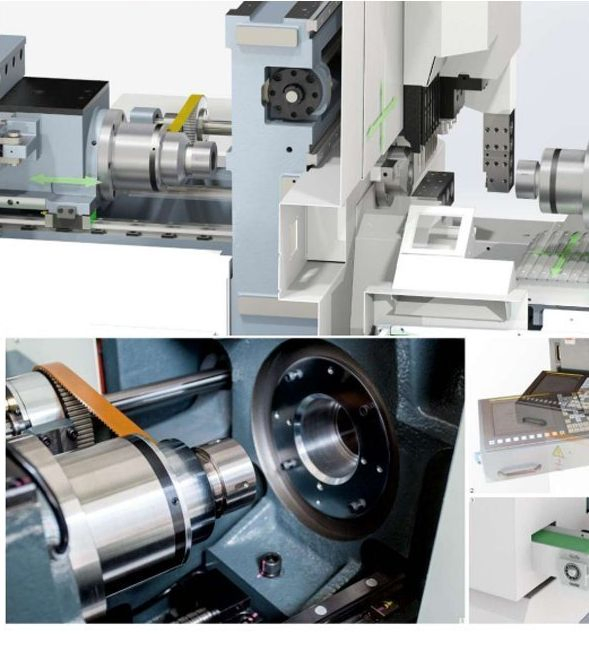

A5: The machine utilizes imported linear rolling guides for all three axes to ensure high-speed movement and accuracy.
A6: The machine operates on a three-phase AC 380V supply with a total input power of 4kW.
