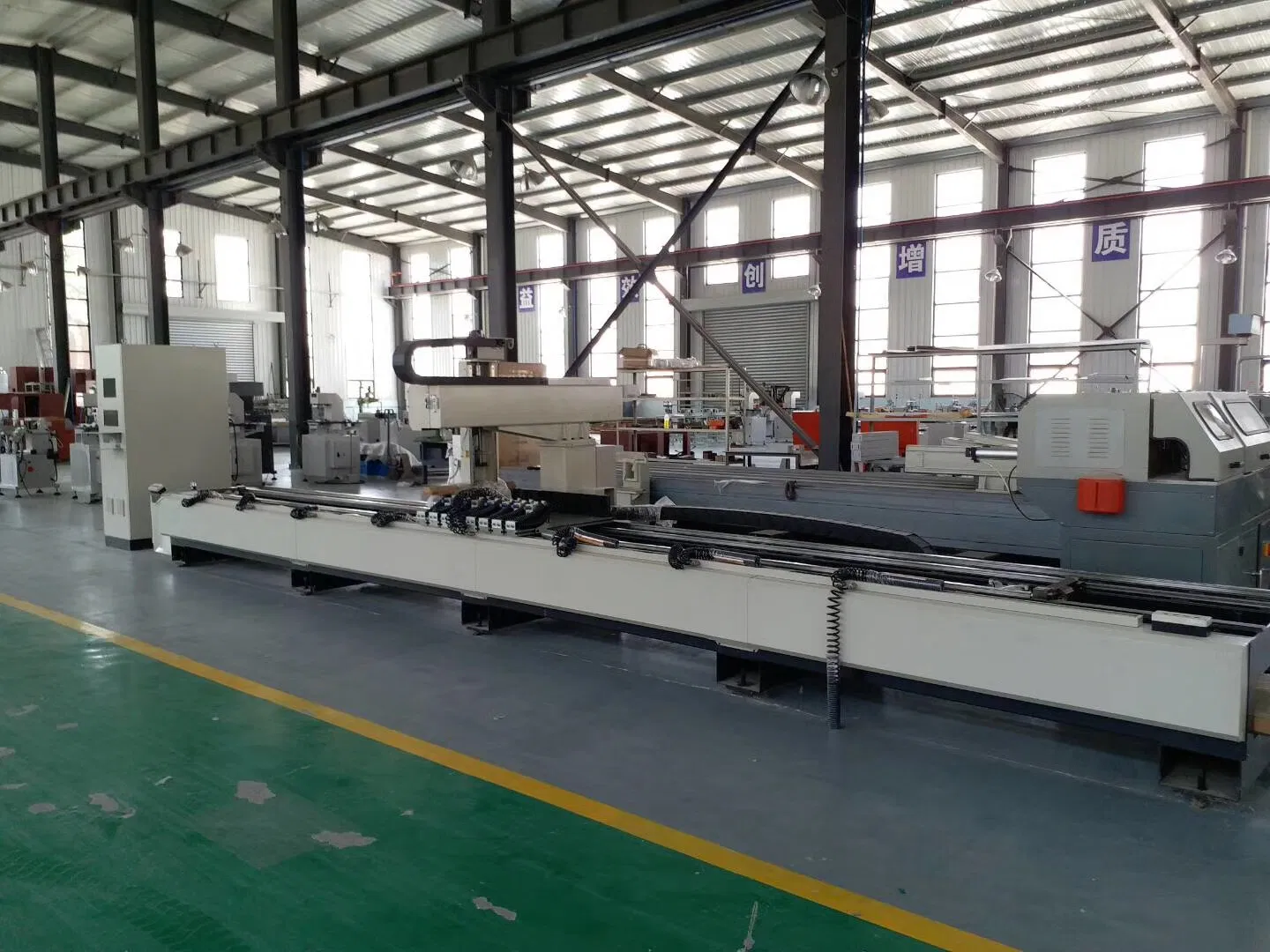

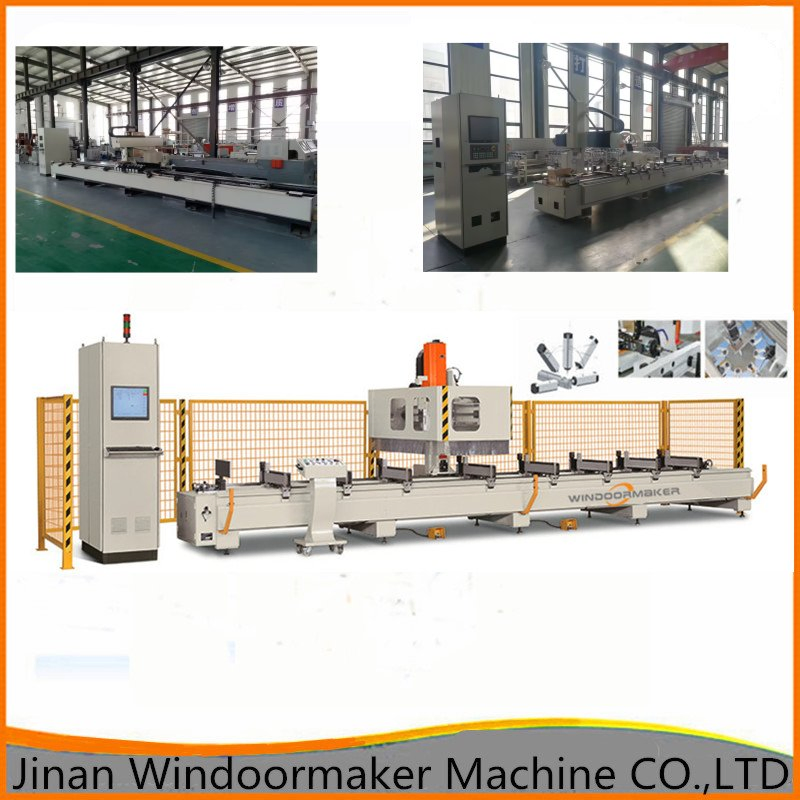

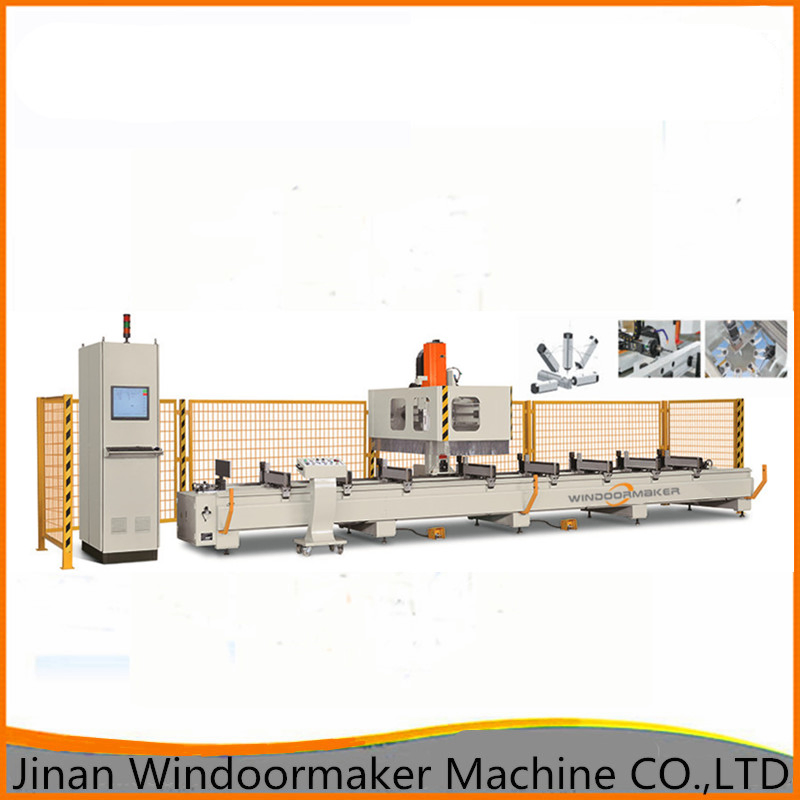

High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine
High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine
High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine
1 / 3
High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine
High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine
High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine

High Speed 4 Axis Aluminum Profiles Machining Center CNC Facade Machining Centre Doors and Windows Manufacturing Machine

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

Overview
Model NO.WM4-CNC-7000
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
NameFour-Axis CNC Machining Center
FunctionAluminum Machining Center
Power12.5kw
Rotary Speed0 to 18000r/Min
Package Size11000.00cm * 2100.00cm * 2300.00cm
Gross Weight3500.000kg
Product Description
  • Using advanced industrial CNC systems, friendly human-machine interface, simple operation and trustable function
  • Suitable for aluminum alloy, aluminum and wood composite profile, and other light alloys of copper, as well as the UPVC profile processing
  • In the range of 90°~0°~-90° four axis unite machining
  • One time clamping can complete milling, drilling, chamfering, grooving and other multi-functional precision machining
  • Made of high strength welding structure, after thermal aging annealing processing guarantee high rigidity and high stability
  • Adopts imported high precision linear guide rail, ball screws, gear racks and servo motor
  • High-quality imported automatic tool change for high speed motorized spindle
  • Equipped with 8 tools store, adjustable pneumatic clamping ensure efficient processing
  • Double table for two parts, or two kinds of profile machining, interactive feeding
Technical Parameters
X-axis stroke: 7000mm Y-axis stroke: 380mm
X-axis feed speed: 0~60m/min Y-axis feed speed: 0~50m/min
X-axis accuracy: ±0.15mm Y-axis accuracy: ±0.02mm
Z-axis stroke: 300mm Repeat location: ±0.02mm
Spindle power: 7.5kW Spindle speed: 0~24000rpm
Axis angle: -90°~0°~+90° Tools qty: 8 tools
Device Configuration
  • Spindle motor: Italy high speed electrical spindle
  • Structure: High strength welding structure, thermal aging annealing processing
  • Transmission: X-axis gear rack; Y & Z-axis imported ball screw
  • Drive system: Imported digital communication servo drive system
  • Operation: Professional industrial control system with manual pulse generator
Certifications
Certification 1

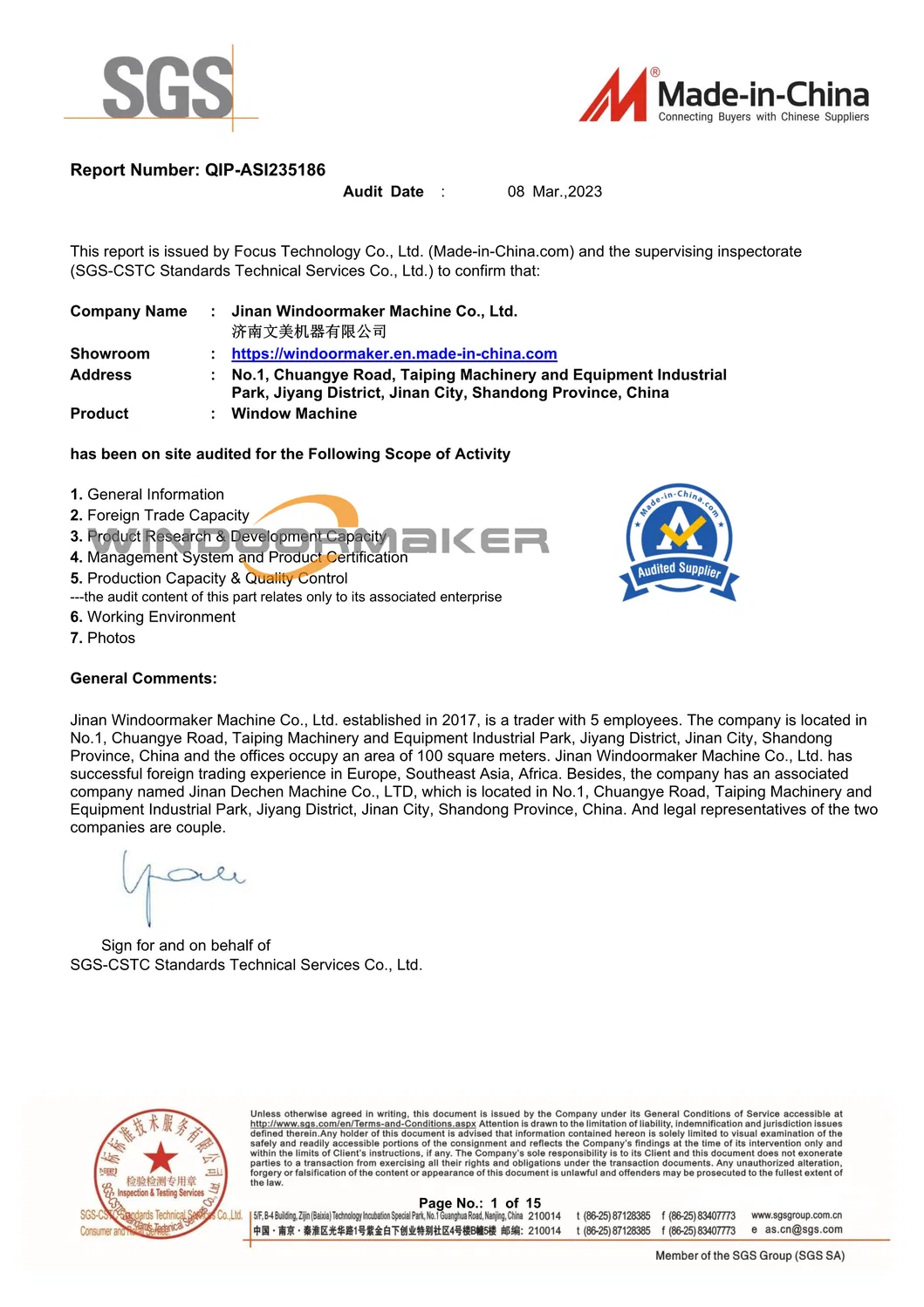

Certification 2
Company Profile

An engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines. The factory covers an area of 15000 m². During the years developing, it has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

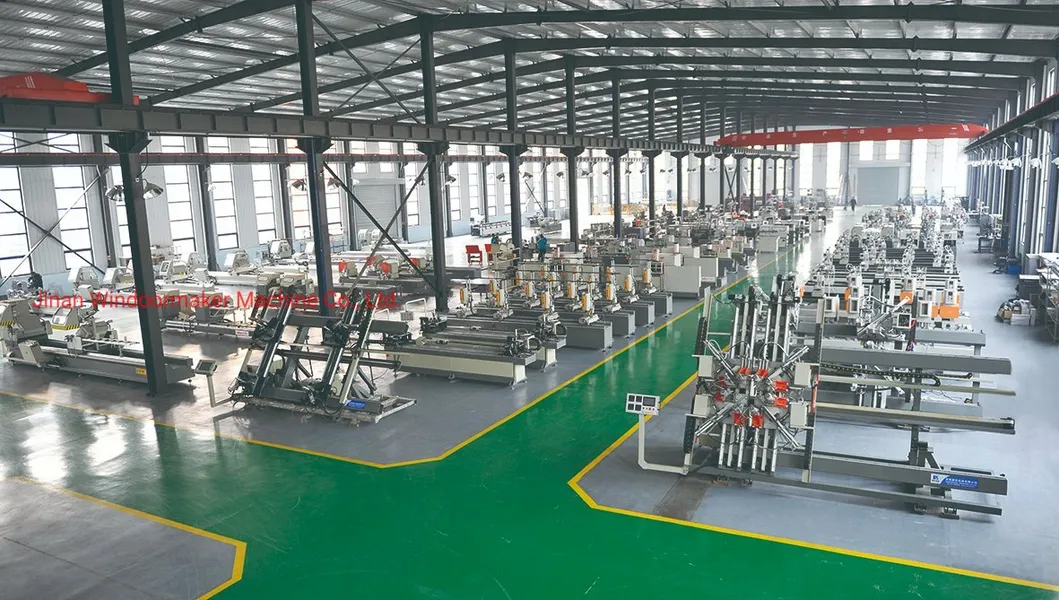

Factory

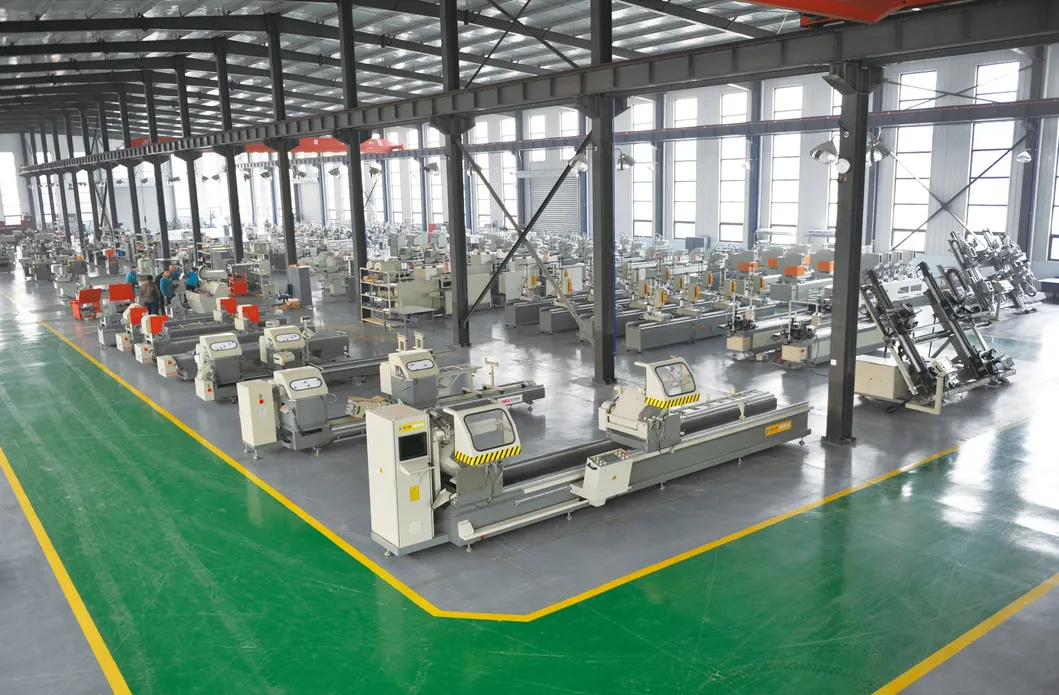

Workshop 1

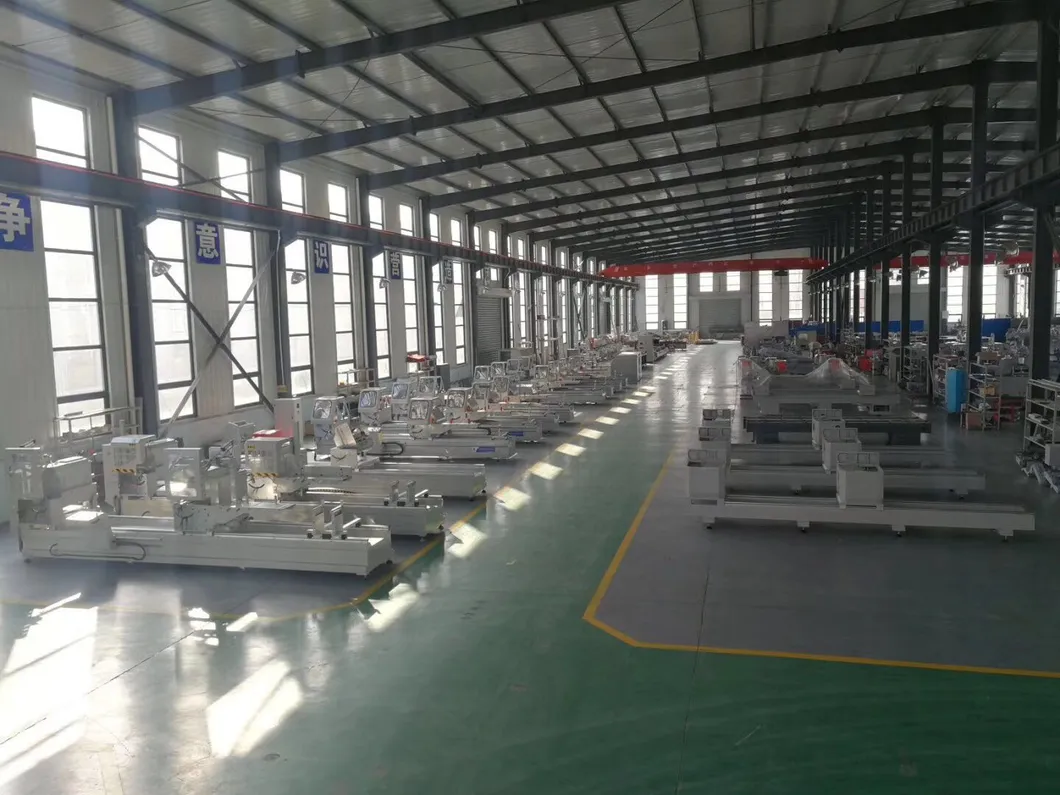

Workshop 2
Machine at Customer Site

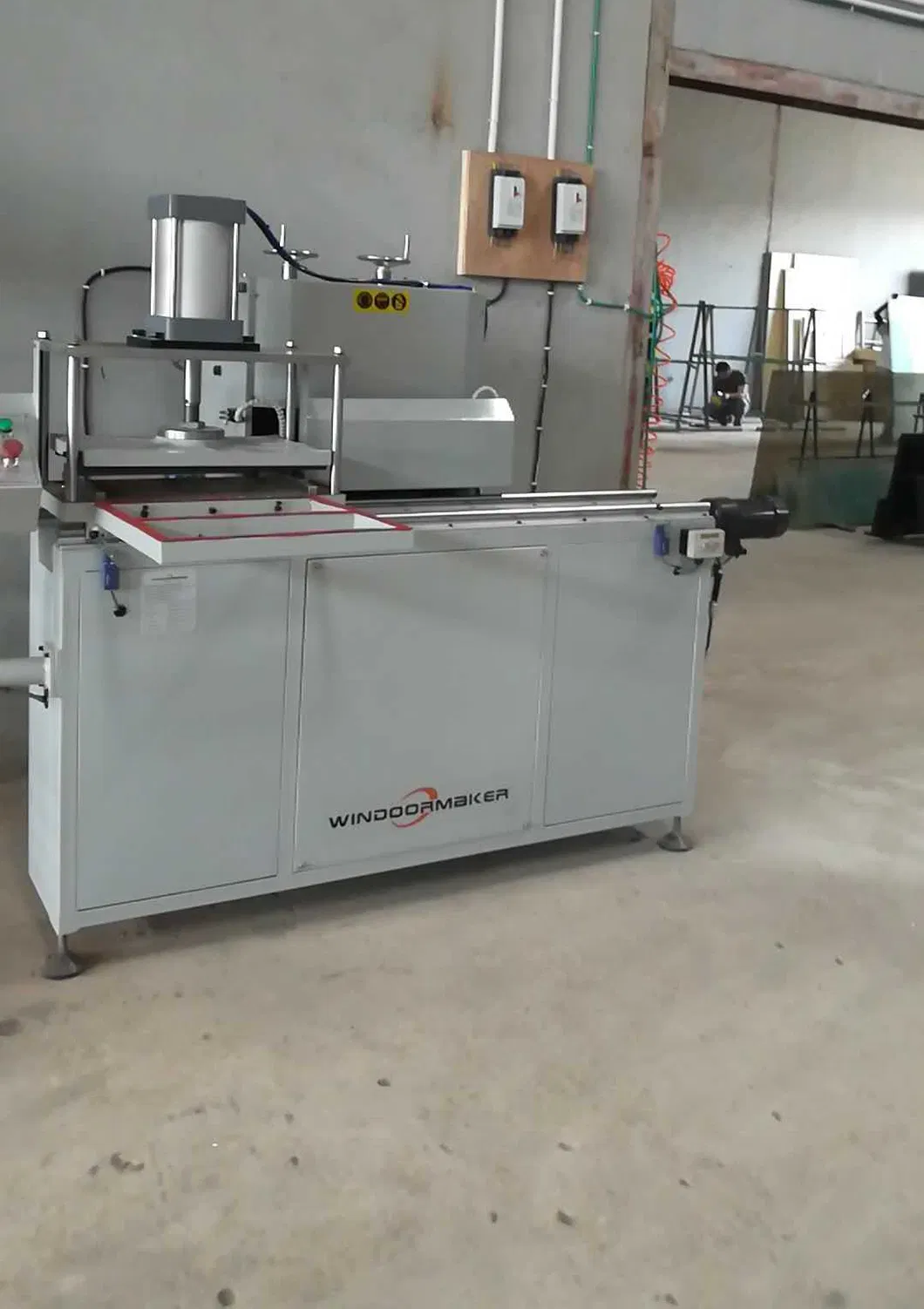

Customer site 1

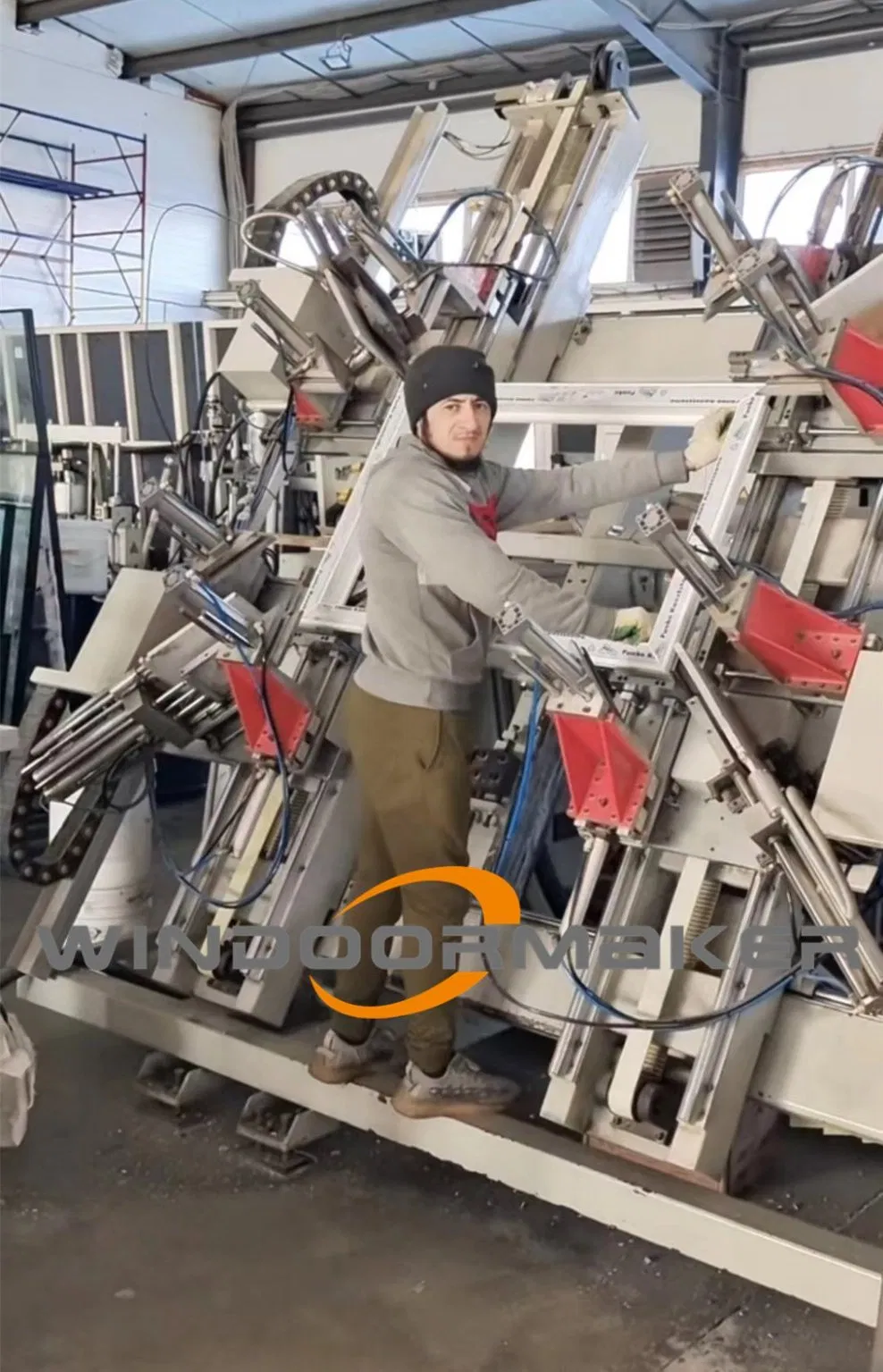

Customer site 2

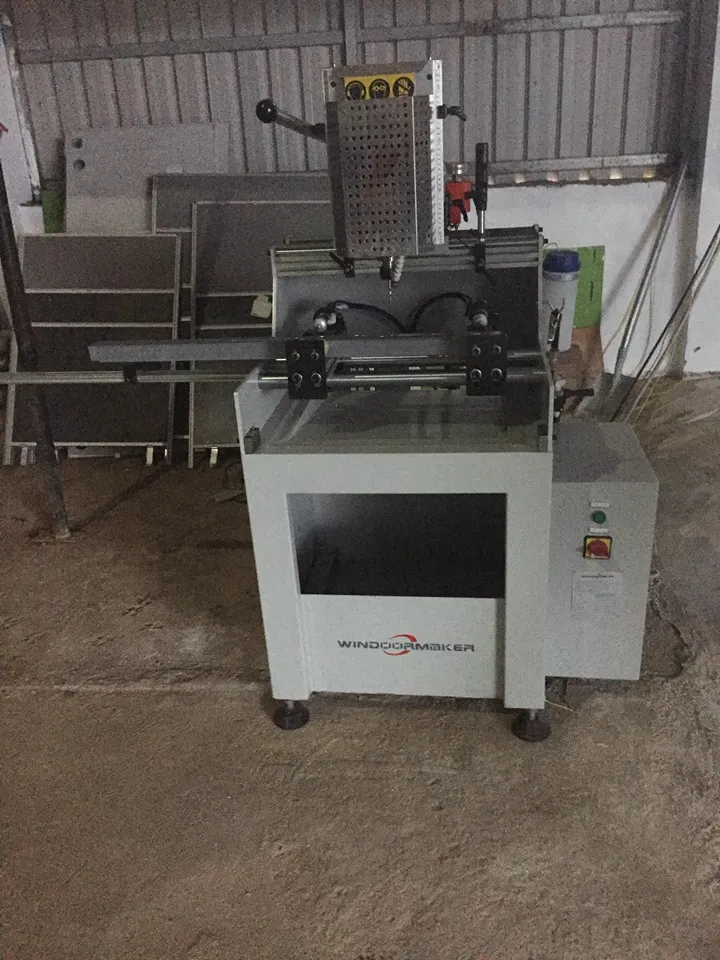

Customer site 3
Packaging & Shipping
Packaging 1
Packaging 2
Shipping
FAQ
Q1: What materials can this CNC machining center process? A: It is suitable for aluminum alloy, aluminum and wood composite profiles, light copper alloys, and UPVC profiles.
Q2: How many axes does the WM4-CNC-7000 have? A: This is a four-axis CNC machining center, allowing for unite machining in the range of 90° to -90°.
Q3: What functions can be performed in a single clamping? A: It can complete milling, drilling, chamfering, grooving, and other multi-functional precision machining tasks.
Q4: What is the capacity of the tool magazine? A: The machine is equipped with an 8-tool magazine and supports high-speed automatic tool changes.
Q5: What kind of drive system does it use? A: It uses an imported digital communication servo drive system along with high-precision linear guide rails and ball screws.
Q6: Is the machine structure stable for long-term use? A: Yes, it is made of a high-strength welding structure that undergoes thermal aging annealing to ensure high rigidity and stability.
