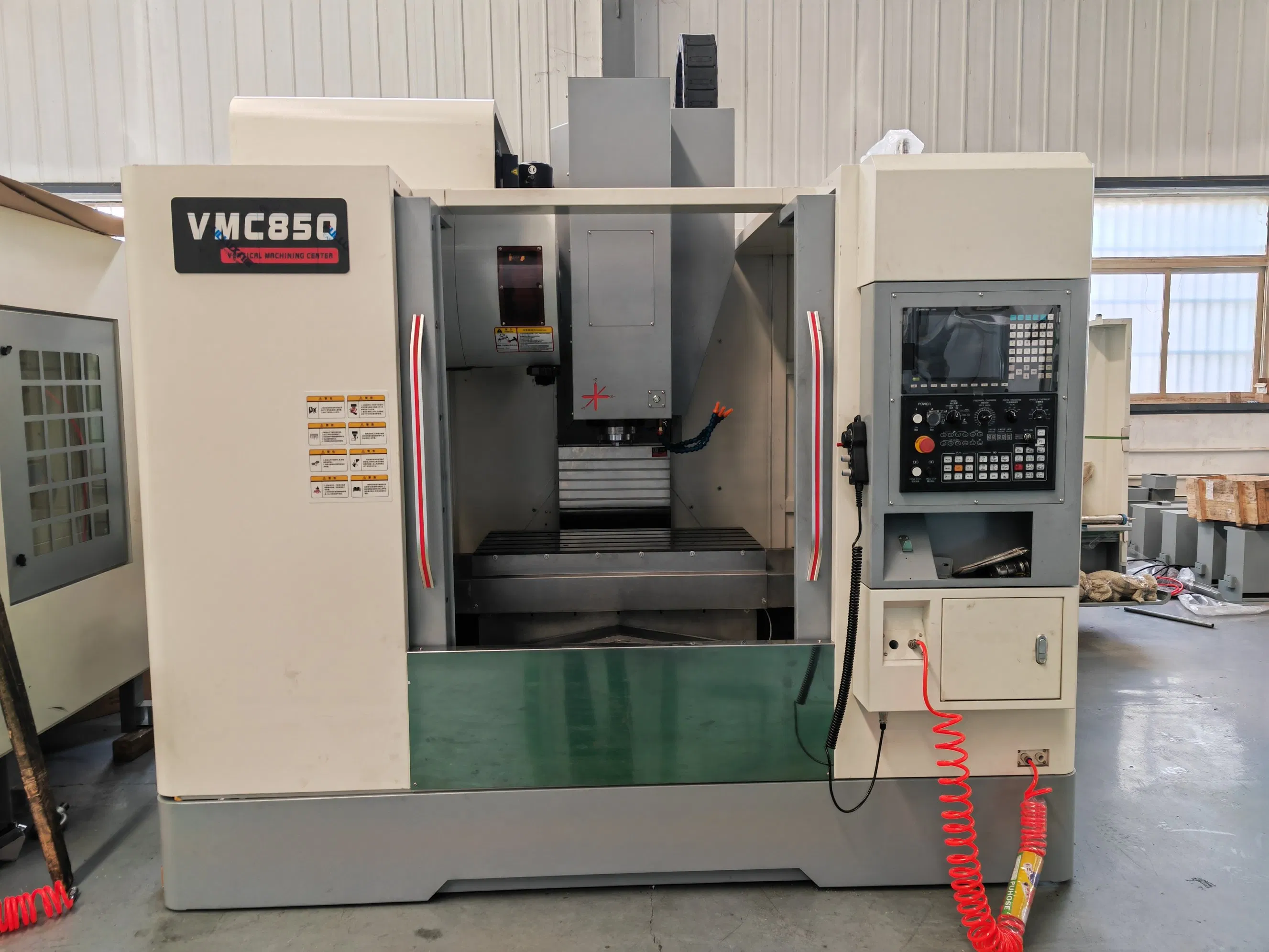

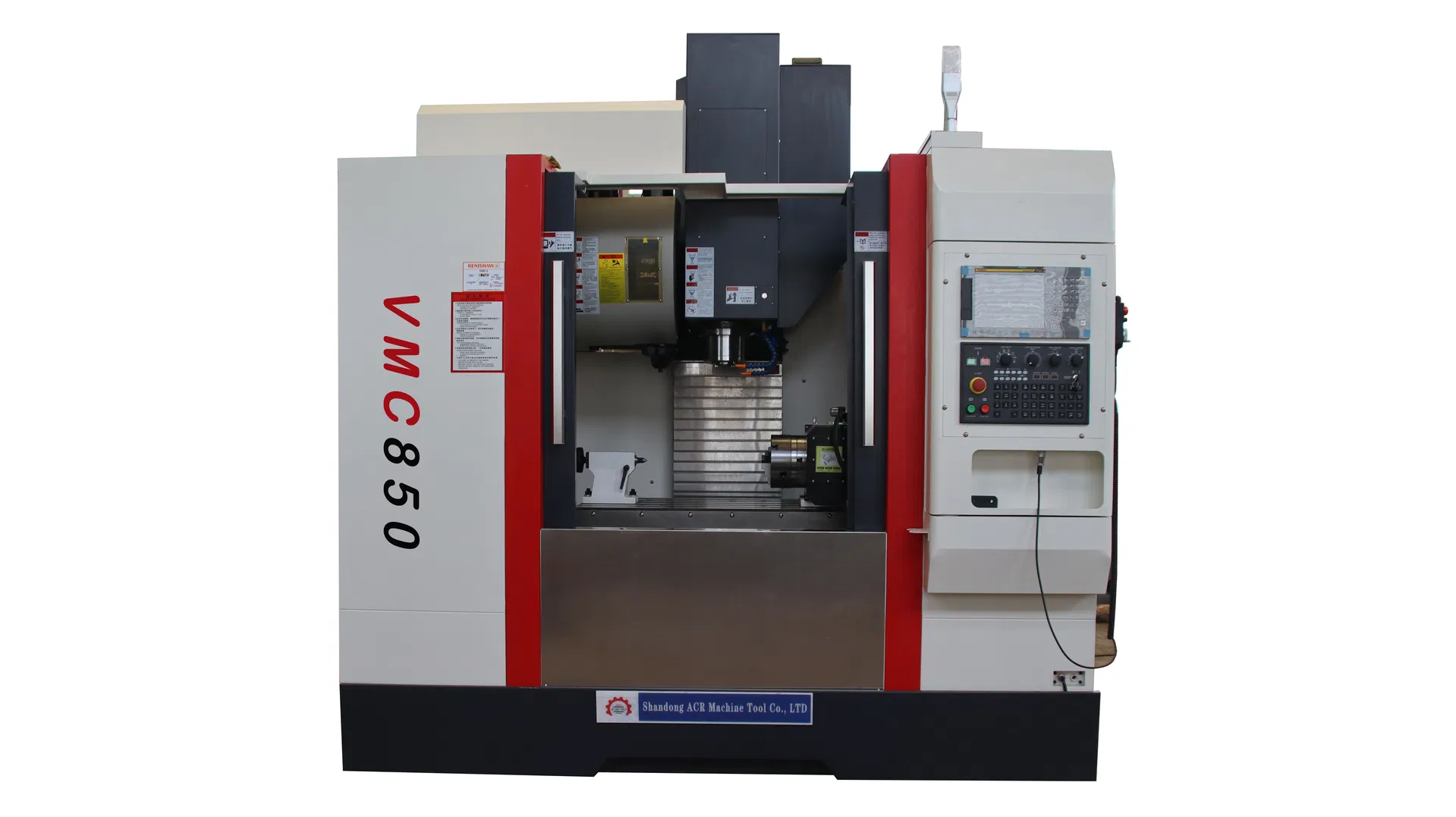

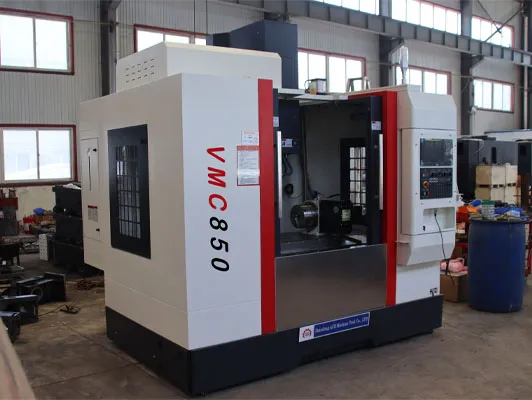

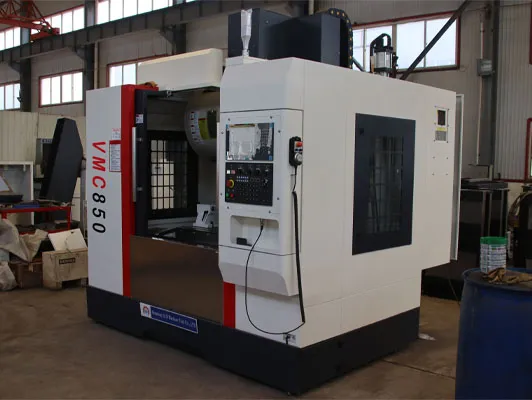

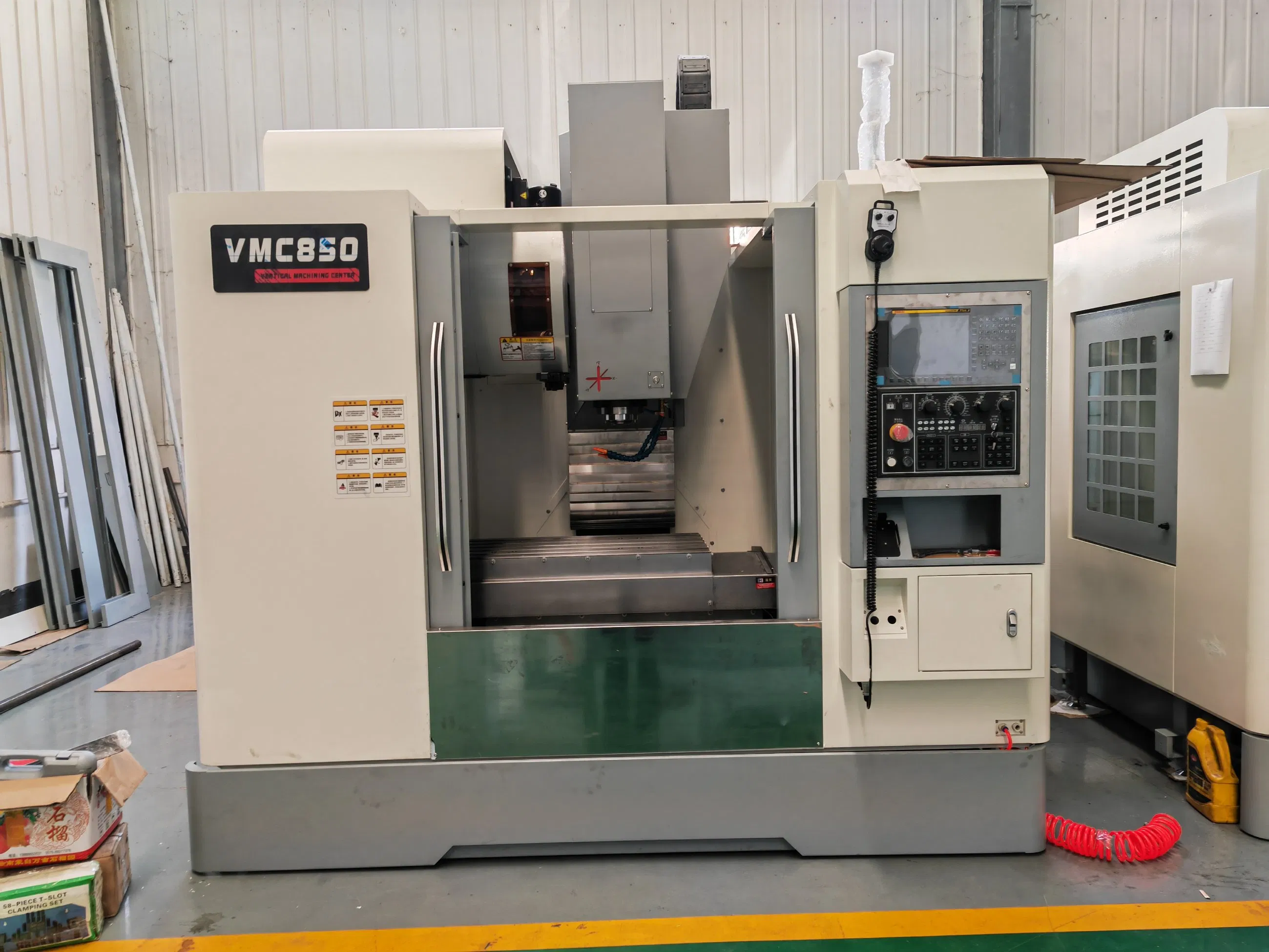

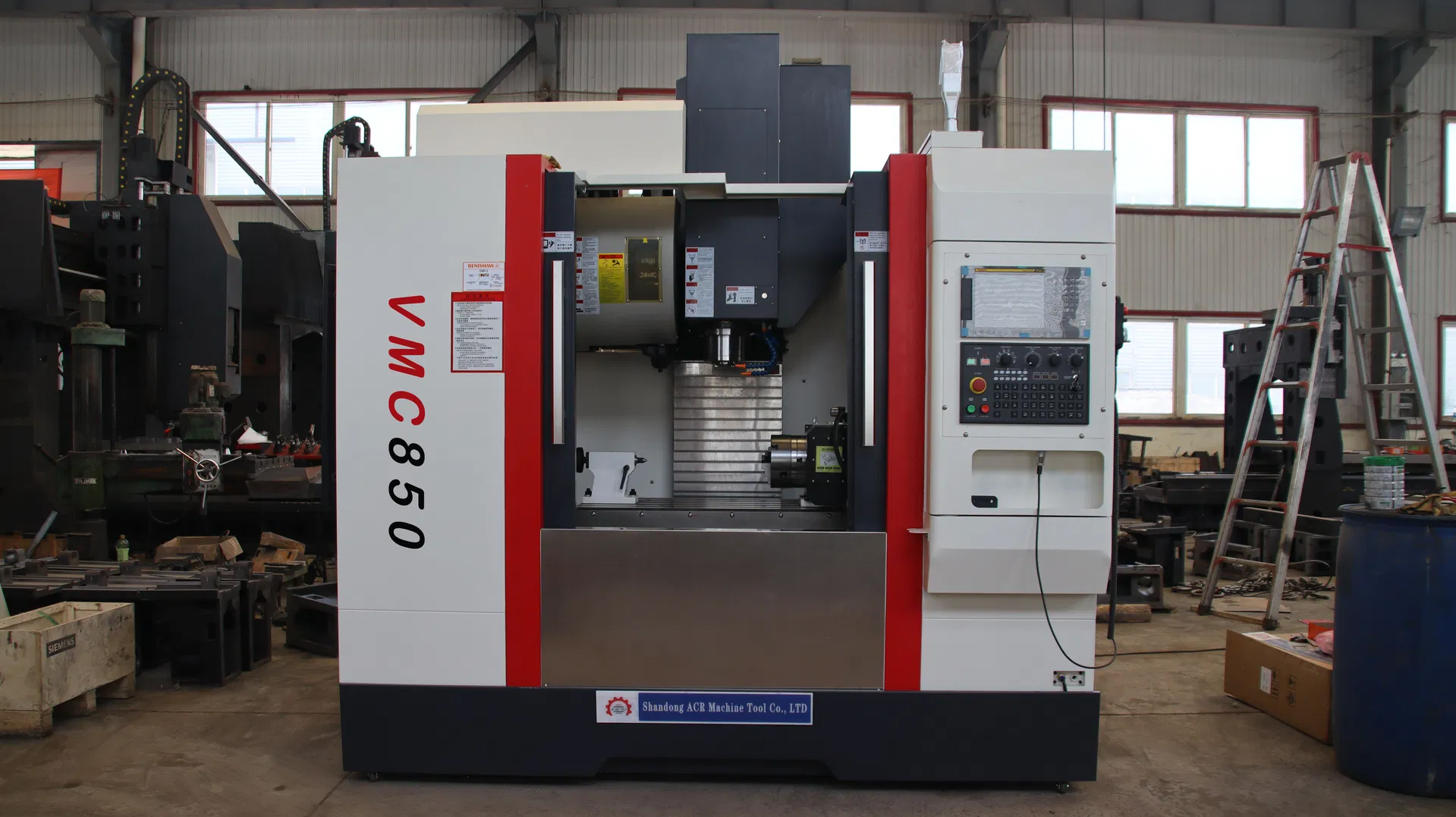

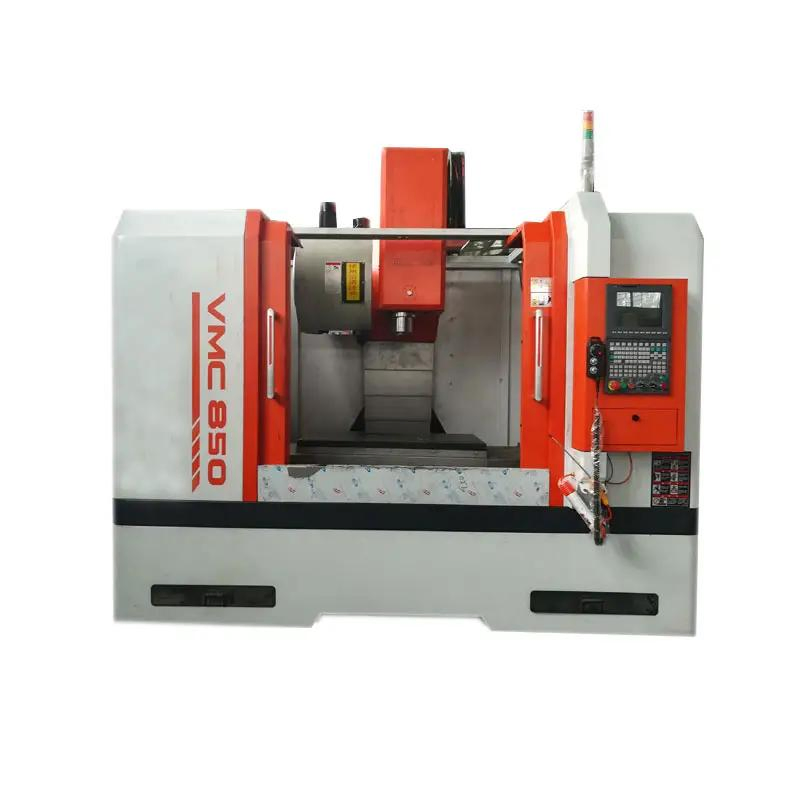

Model NO.: VMC850
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools
Control Method: Semi-Closed Loop Control
Processing Precision: 0.04~0.05(mm)
X/Y/Z Axis: 800 / 500 / 500 mm
Table Size: 500*800 mm
Spindle Speed: 8000 rpm
💎Extra-large column stability, "herringbone" column structure, high-speed displacement without vibration, no deformation, rapid traverse speed up to 48m/min. Z-axis is driven by a braked servo motor, with no counterweight design, to enhance the Z-axis drive performance. All three axes adopt roller linear guides with high rigidity, low noise and low friction characteristics to obtain the best rounding accuracy.
| SPECIFICATIONS | Units | VMC650 | VMC850 | VMC855 | VMC1160 |
| Table size | mm | 500*800 | 500*1000 | 550*1000 | 600*1200 |
| X/Y/Z axis travel | mm | 650/500/500 | 800/500/500 | 800/550/550 | 1100/600/600 |
| Max. spindle speed | rpm | 8000 | 8000 | 8000 | 8000 |
| Main motor power | kw | 5.5 | 7.2 | 11 | 11 |
| Machine weight | kg | 4500 | 5200 | 5800 | 6800 |

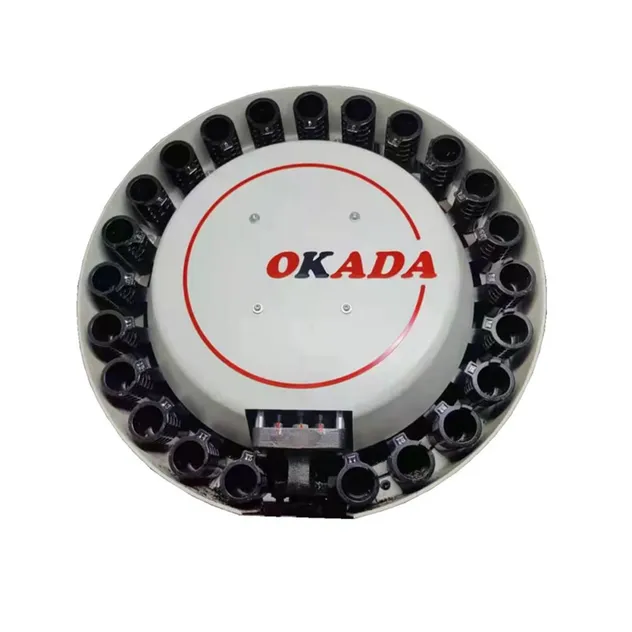

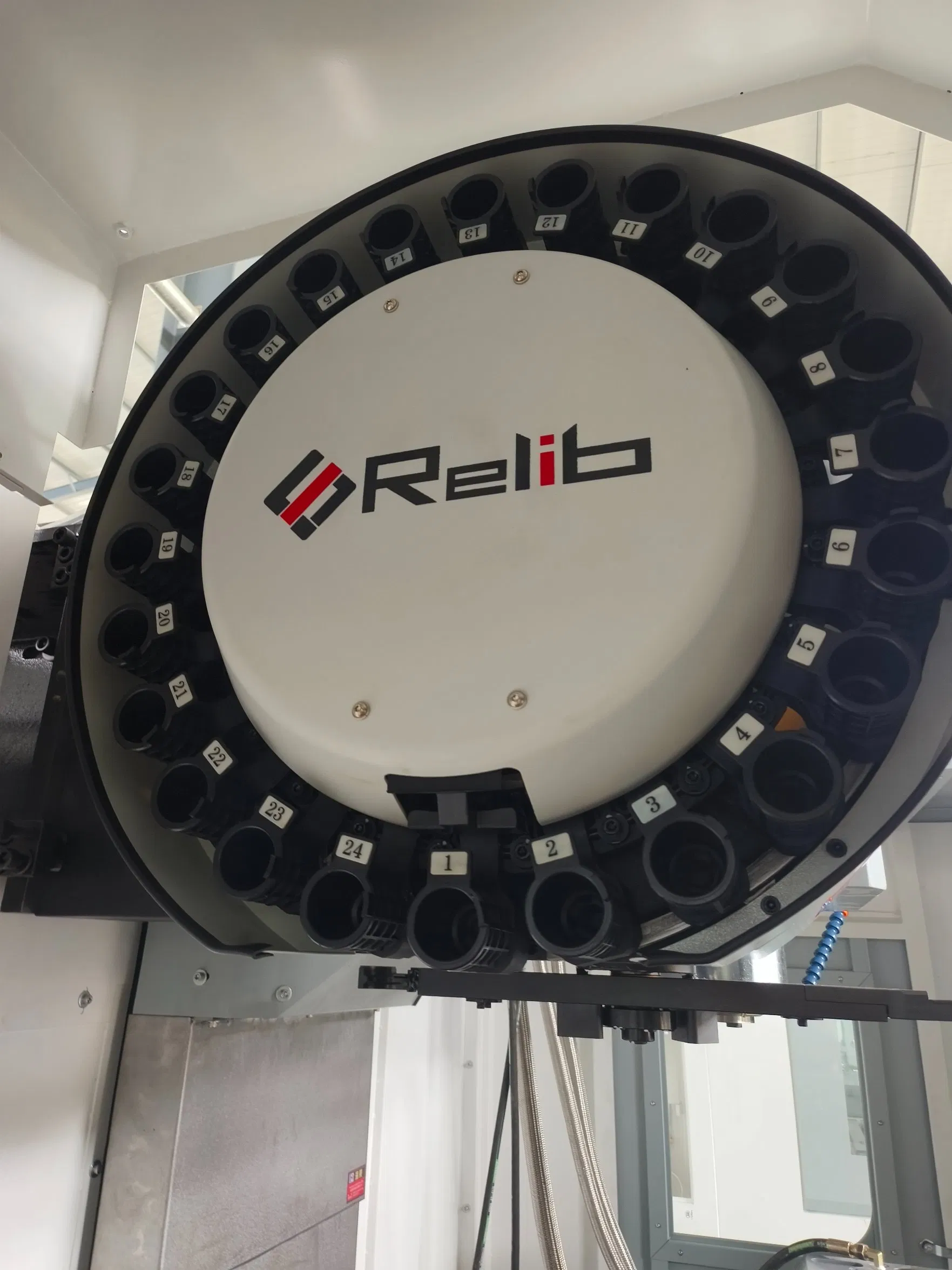

24 Tool Magazine

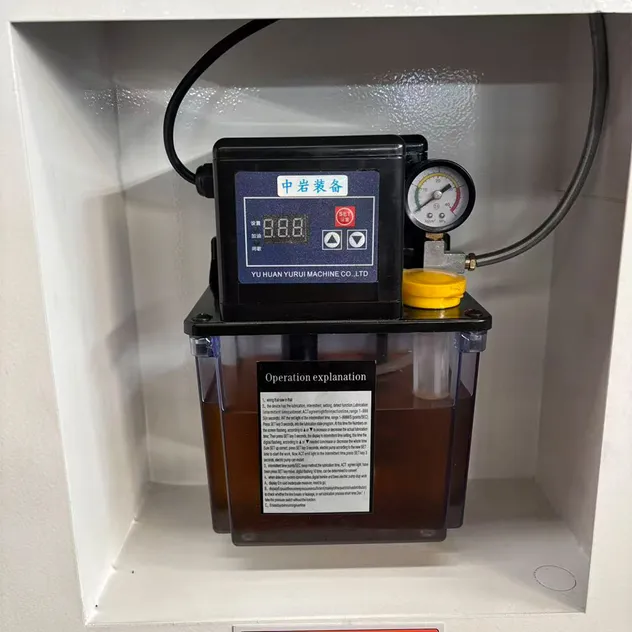

Automatic Lubrication System

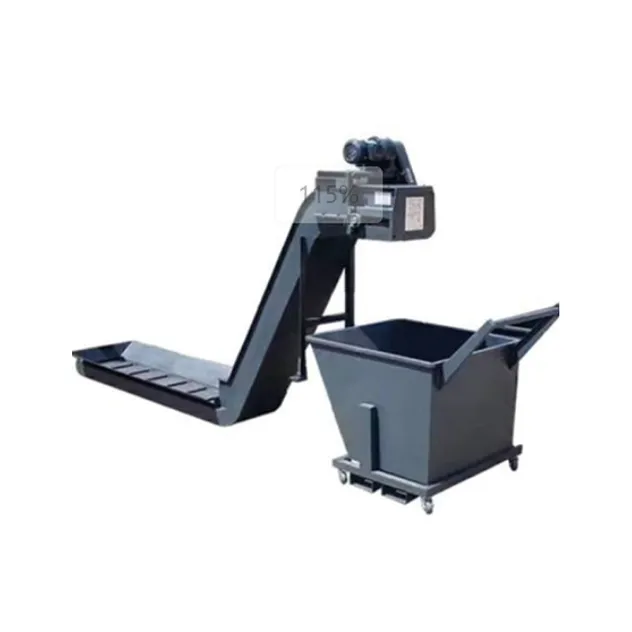

Chain-type Chip Conveyor

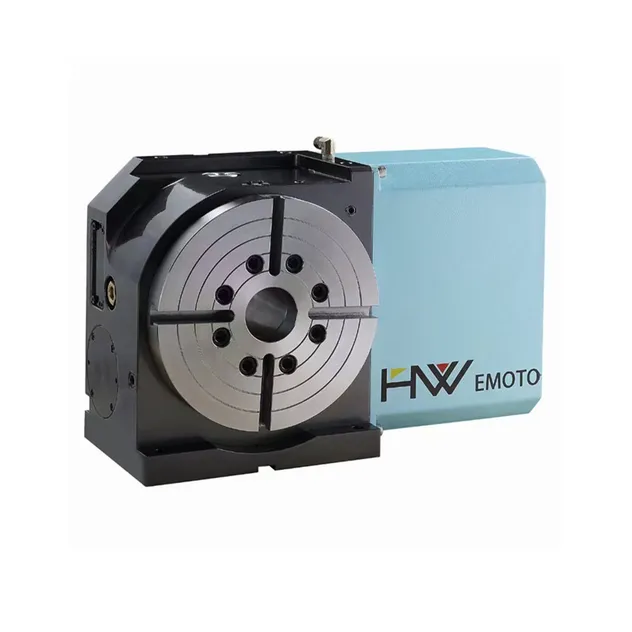

CNC 4 Axis

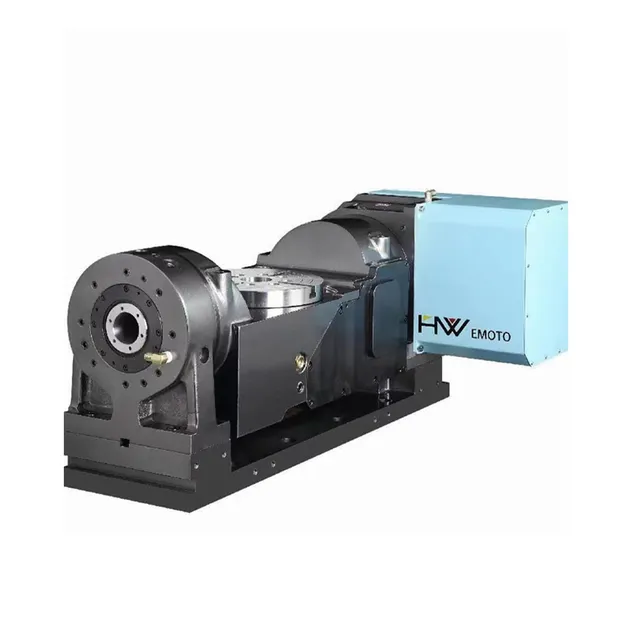

CNC 5 Axis

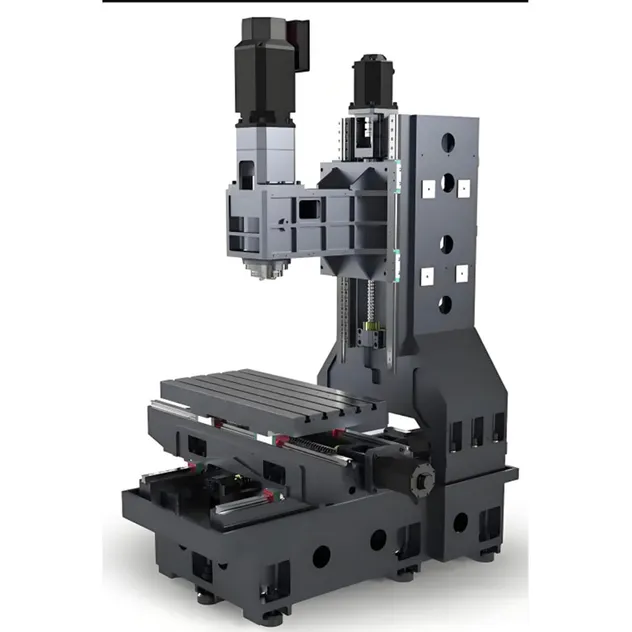

Direct-Drive Spindle
🏭Our products cover CNC lathe machines, CNC milling machines, vertical and horizontal machining centers. We have exported to South America, Southeast Asia, Russia, the Middle East and other countries, praised by domestic and foreign customers for continuous innovation.
