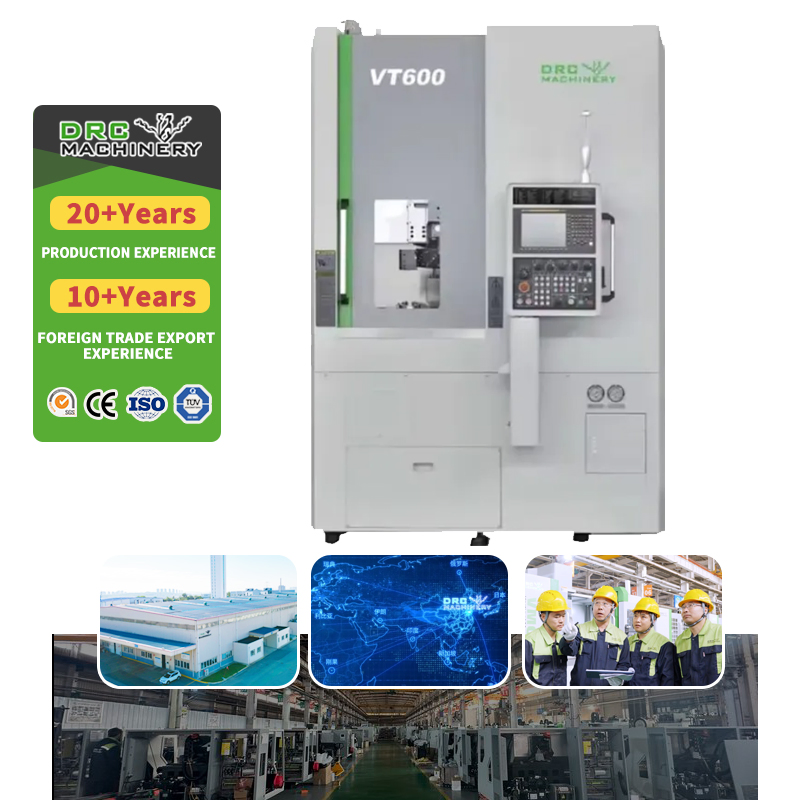

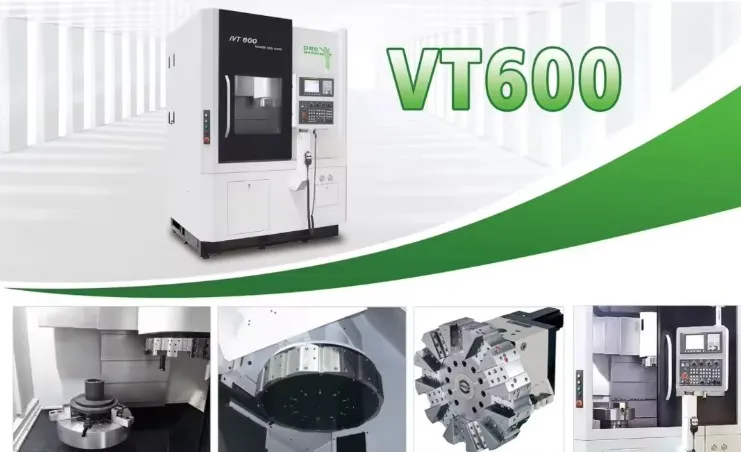

High Quality VT600 CNC Vertical Lathe Machine Metal Automatic Vertical Turning Milling Lathe
The machine tool adopts HT300 high-strength cast iron bed, which has undergone two heat treatments and artificial aging (vibration) to eliminate the residual stress of the casting to the greatest extent. All assembly surfaces between motor bases and castings are precisely adjusted by manual scraping to ensure the overall accuracy of the machine tool.
In terms of design, the spindle column adopts a symmetrical box structure, which can provide reliable support for the turret during heavy cutting and reduce high-frequency vibration during milling. The machine tool is equipped with a 15\18.5Kw spindle motor as standard to adapt to large diameter and heavy load cutting.

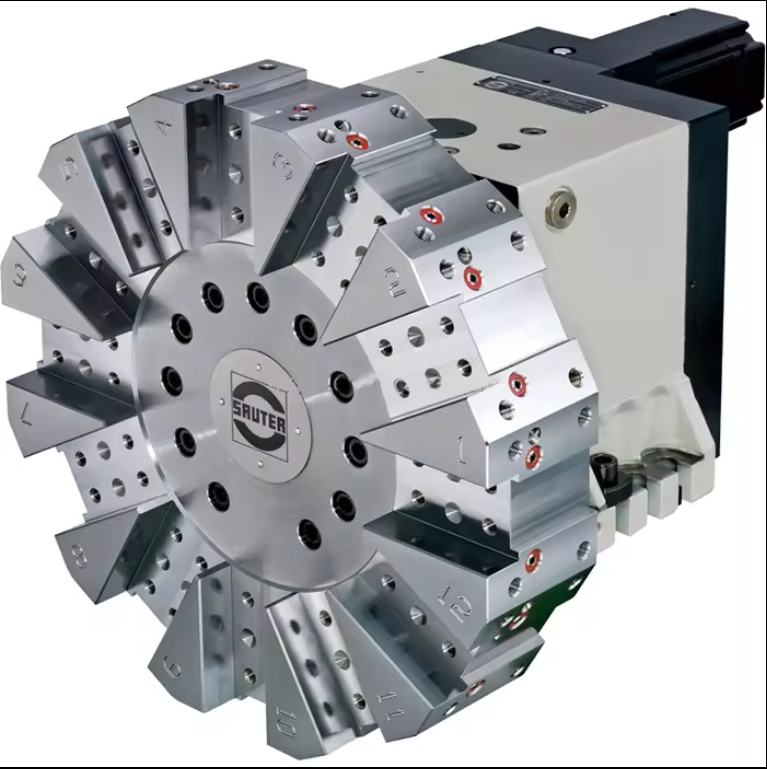

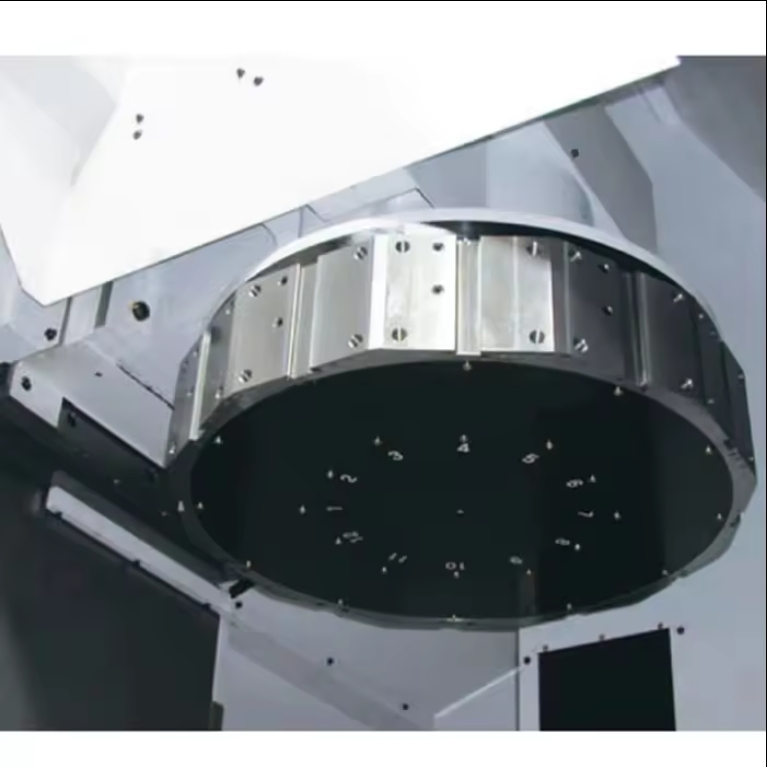

The maximum turning speed can reach 2500rpm and the maximum torque can reach 440Nm. The C-axis supports a maximum feed parameter of 36000°/min (100rpm/min) to respond to high-speed milling needs. It is equipped with a 100Nm 5.5kw milling motor with a maximum speed of 3000rpm. The 12-station turret equipped with BMT65 ensures efficient tool changing and high positioning accuracy.
| Parameter Item | Value | Unit |
|---|---|---|
| Swing over Bed | Φ700 | mm |
| Max. Turning Diameter | Φ600 | mm |
| Max.table load | 600 | - |
| X travel | 380 | mm |
| Z travel | 560 | mm |
| Main Drive Power | 15 / 18.5 | kW |
| Max. spindle Speed | 2,500 | rpm |
| Turret type | BMT65 | - |
| Number of Driven Tools | 12 | - |
| Accuracy of positioning in X/Z Axes | ≤ 6 / 8 | µm |
