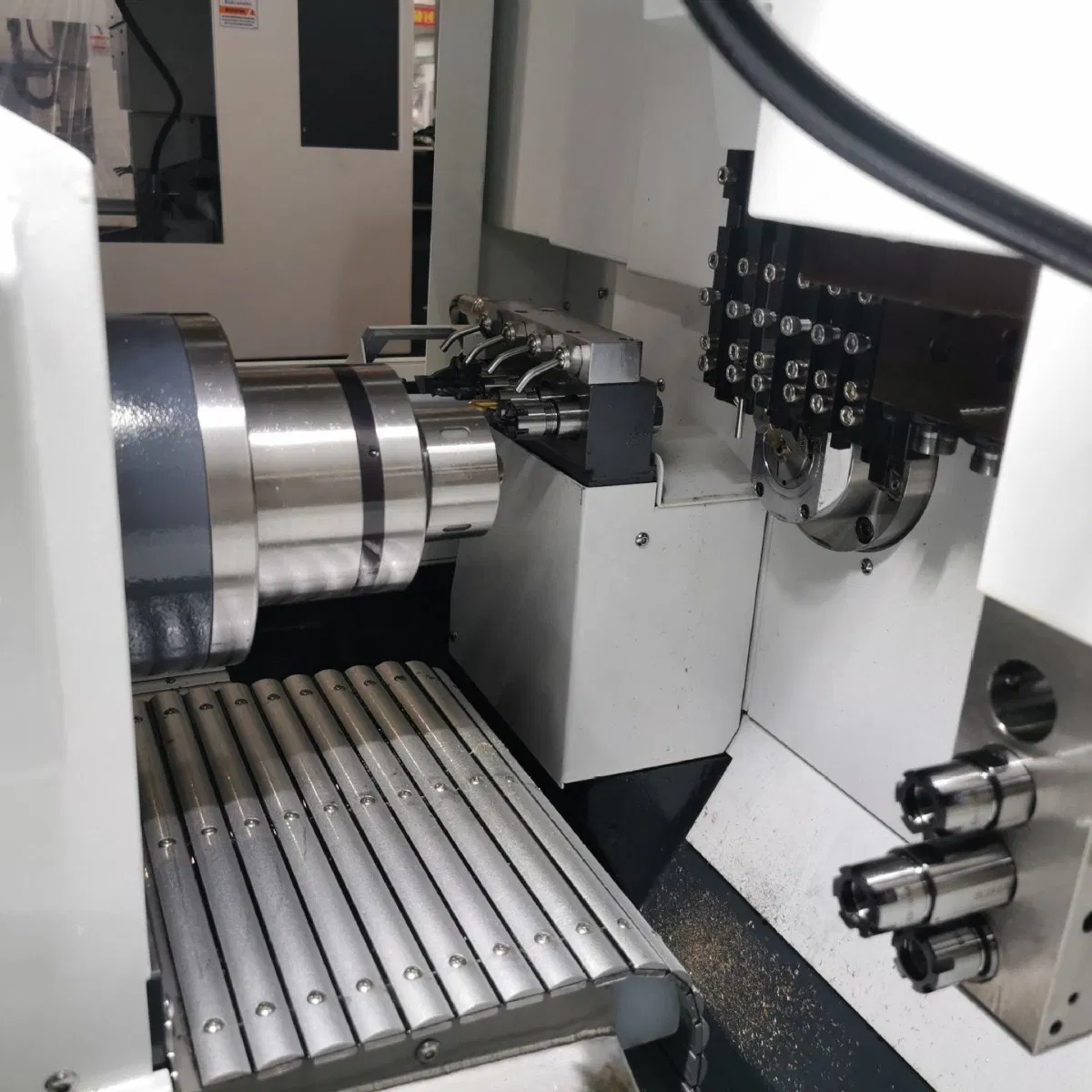

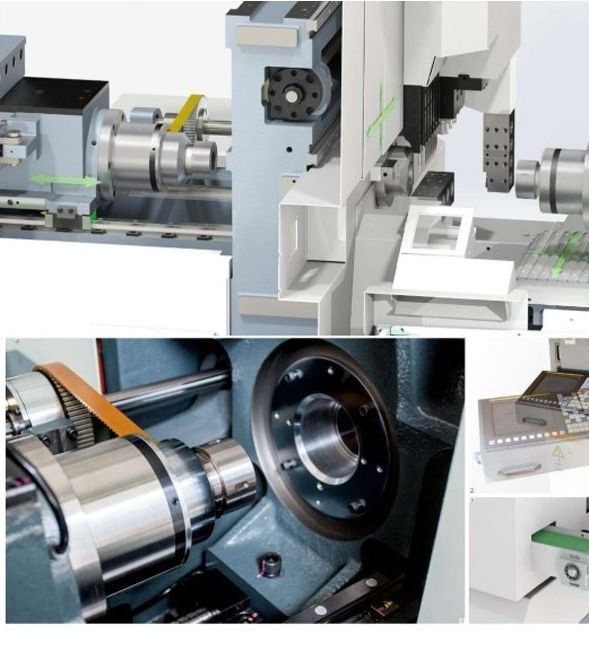

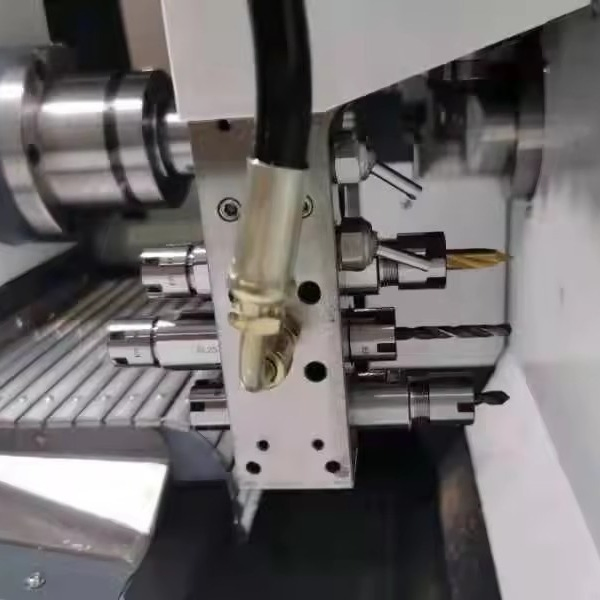

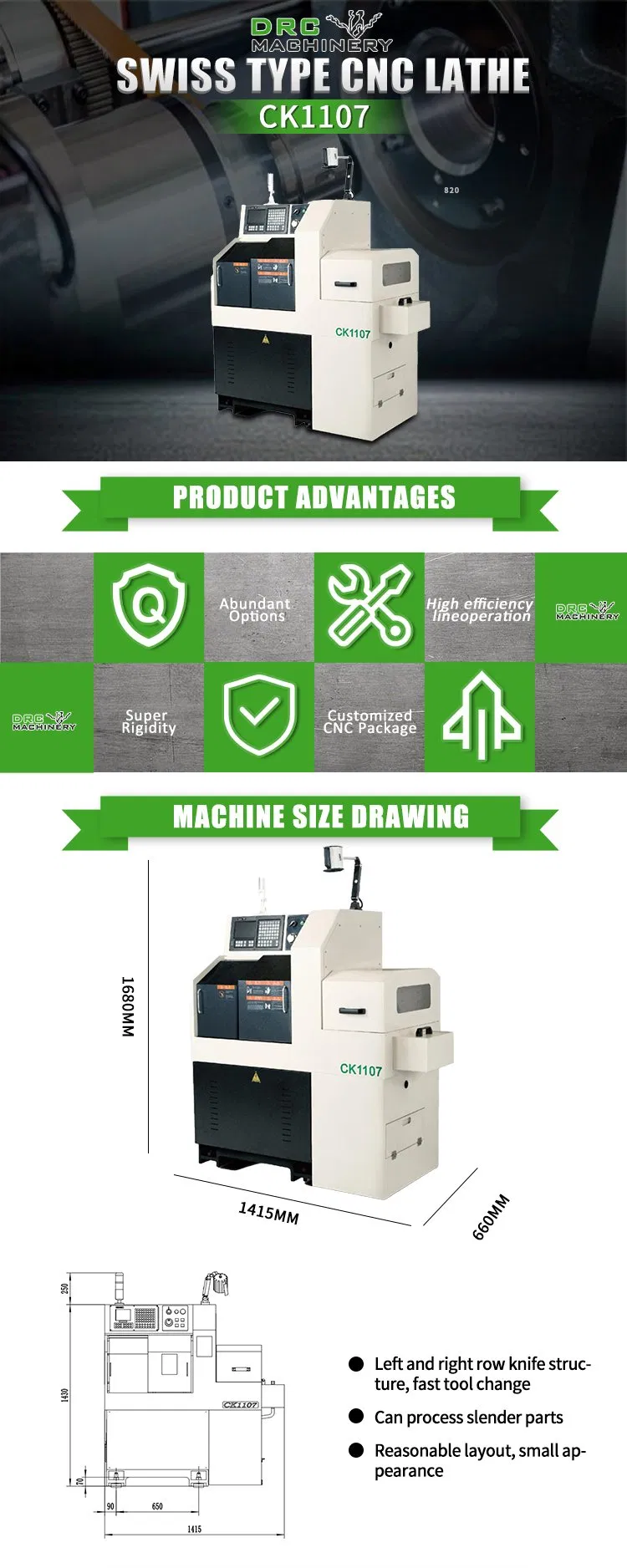

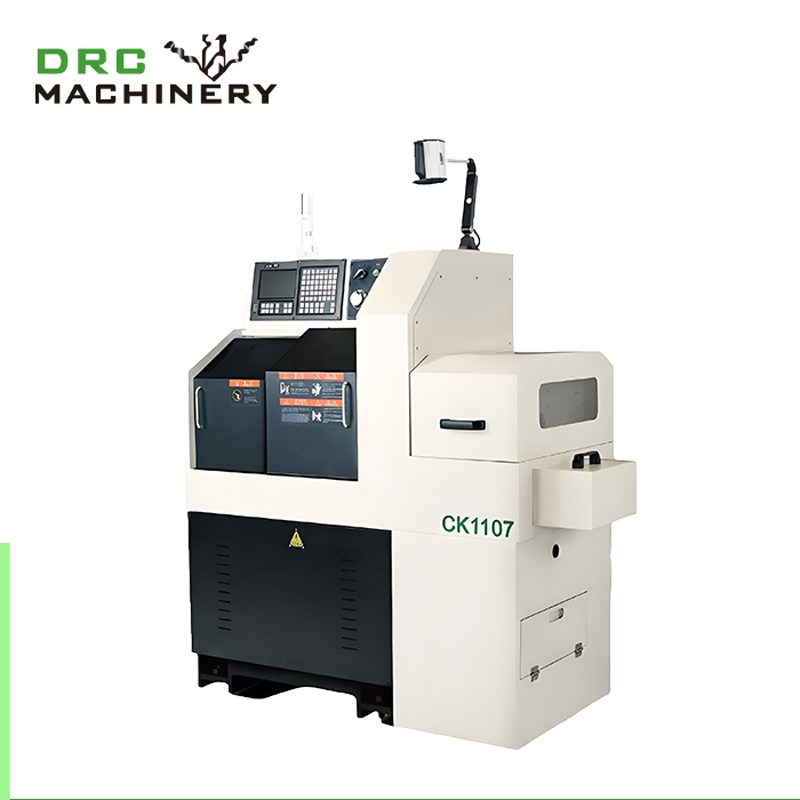

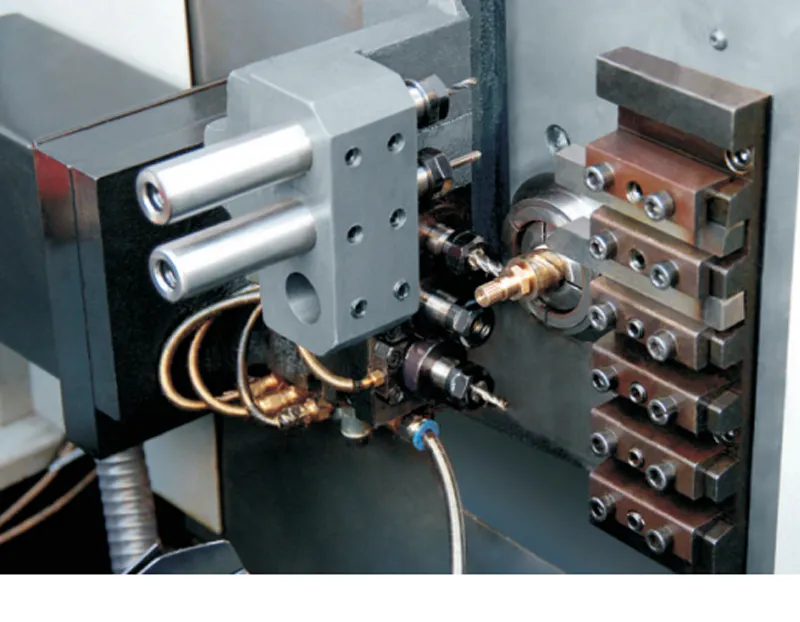

CK1107 high-speed Swiss-type CNC lathe features a left and right row tool structure for fast tool changes and high rigidity. Equipped with an automatic feeder, it is ideal for processing ultra-slender parts with high efficiency.

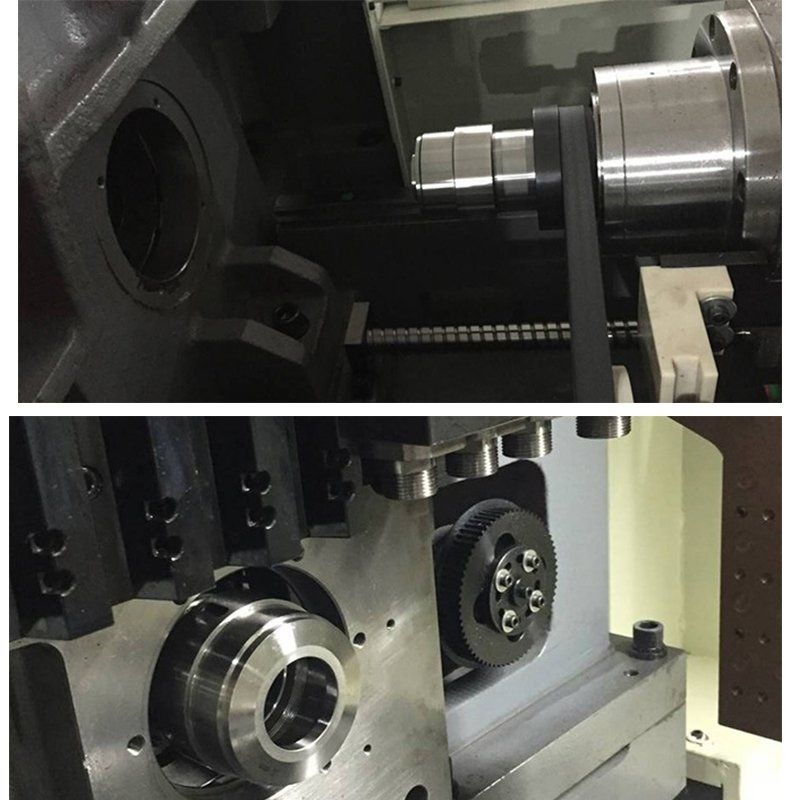

The CK1107 Spindle Movable Type CNC machine provides a reasonable structure and high reliability. Compared with other lathes in its class, it significantly reduces material feeding times and improves efficiency for slender parts. A one-time material feeding is sufficient for parts up to 150mm in length.
| Power Supply | Rated Voltage | Three-phase AC 380V |
| Rated Frequency | 50HZ | |
| Total Input Power | 4kW | |
| CNC System | System Model | BYSK YZ150 |
| Setting Unit | 0.001mm | |
| Cutting Speed | 1--4000mm/min | |
| Rapid Feed Rate (X/Y/Z) | 15000mm/min | |
| Spindle | Max Bar Diameter | Φ7mm |
| Spindle Speed | 0-5000r/min | |
| Spindle Motor Power | 2kW | |
| Travel | Z Axis Travel | 150mm |
| Guide Type | Linear Guides |
