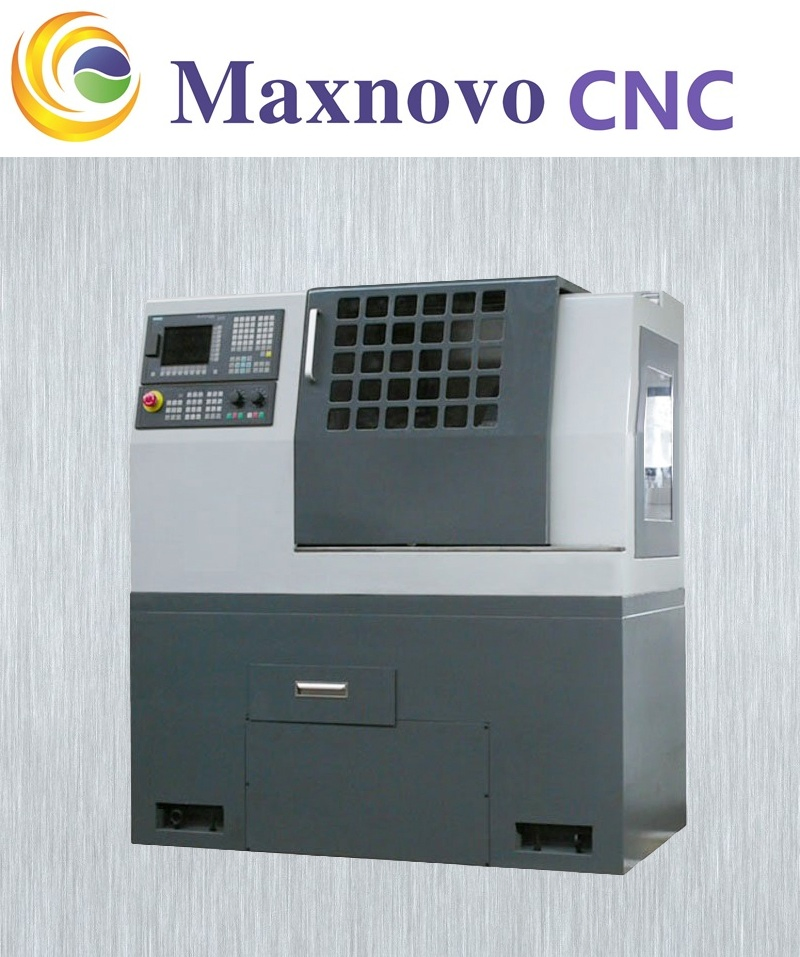

High Precision S300 Compact Slant Bed CNC Lathe with Siemens Control

Customization:	Available
After-sales Service:	Worldwide
Warranty:	1 Year

Basic Information

Model NO.:

MM-S300

Type:

Horizontal Lathe

Processing:

Chuck CNC Lathe

Guide Rail:

Inclined Guide Rail

Control Mode:

CNC

Precision:

High Precision

Spindle Speed:

3000 Rpm

Tool Magazine:

8-Station

Product Description

MM-S300 CNC Torno - High Precision CNC Inclined-Bed Bench Lathe

This MM-S300 is a high-precision Slant Bed CNC Mini Lathe equipped with a SIEMENS CNC Control System. It is an economical CNC lathe machine designed with an inclined bed and an 8-station Automatic Tool Changer (ATC), providing high educational and industrial value. This compact machine allows for all basic turning operations including machining cylindrical, conical, internal, and external surfaces, planning, cutting, and threading.

⭐ Compact Inclined-Bed CNC Lathe Perfect For Training and Small Batch Production

Slant Bed Design Ensures Excellent Stability and Efficiency
Maximum Turning Diameter Over Bed: 300 mm
Maximum Workpiece Length: 400 mm
SIEMENS 808D Advanced Control System
High precision Linear Guides and Preloaded Ball Screws for X and Z axes
Advanced Servo-Motor for both X-axis and Z-axis
Central Lubrication for reduced maintenance
3-Jaw Chuck included in Standard Equipment

High Precision S300 Compact Slant Bed CNC Lathe

Technical Parameters

Control system	SIEMENS 808D Advanced
Maximum Swing Over Bed	Ø 300 mm
Distance Between Centers	400 mm
Spindle Bore	Ø 20 mm
Spindle Speed	100 -- 3000 RPM
Nos. of Tool Position	8-station
Rapid Feed Speed (X/Z)	5000 mm /min
Positioning Accuracy	± 0.005 mm
Main Motor	1500 W
Gross Weight	650 KGS

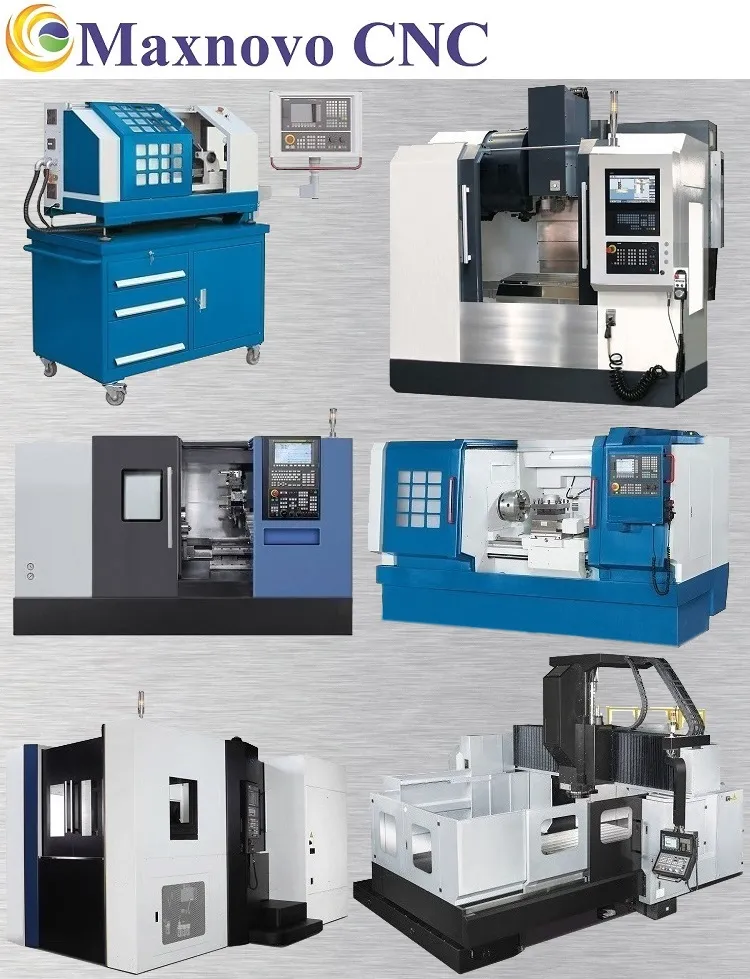

Manufacturing Quality

We never compromise on materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish. From every resistor to hardware functions, we check all components to ensure error-free products.

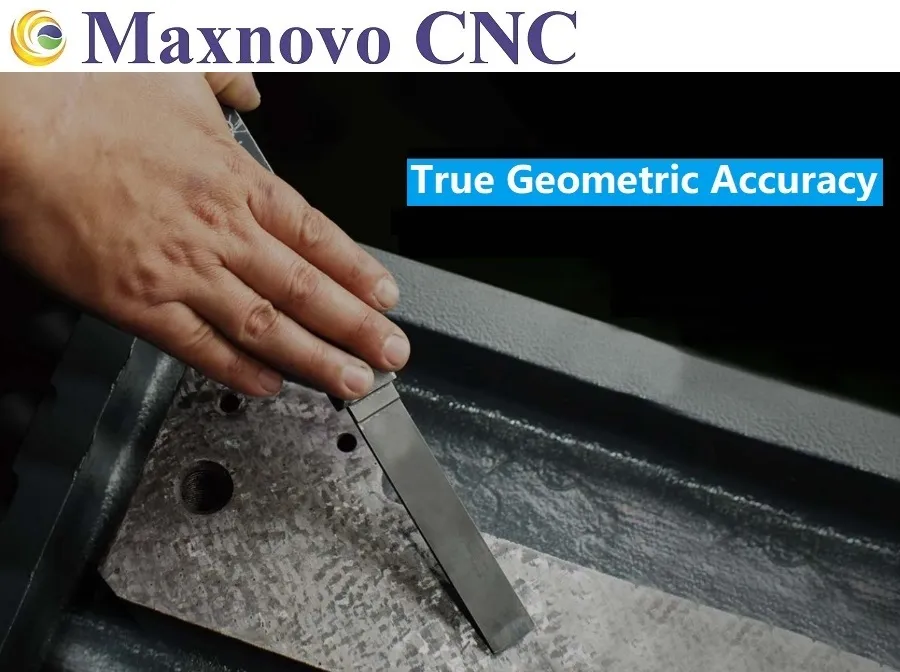

Metal Scraper Craftsmanship: Hand-scraped contact surfaces ensure at least 20 spots per square inch and a 40% contact rate, guaranteeing True Geometric Accuracy.

Frequently Asked Questions

1. Can you provide OEM or ODM services?

Yes, we have the full capability to perform OEM and ODM manufacturing to meet specific client requirements.

2. How is quality control managed during production?

Assuring quality is our priority. Our engineers manage Incoming Quality Control (IQC), In-Process Quality Control (IPQC), and Outgoing Quality Control (OQC), along with internal audits and equipment calibration.

3. What is the typical delivery timeframe?

Generally, the delivery time is within 1 to 2 months after contract confirmation. Large-scale production orders can be discussed case by case.

4. What type of bed design does the MM-S300 use?

The MM-S300 features a slant bed design, which ensures excellent stability, better chip removal, and high efficiency during operation.

5. What control system is integrated into this lathe?

The machine is equipped with the SIEMENS 808D Advanced Control System for high precision and reliable performance.

6. Does the machine include an automatic tool changer?

Yes, the MM-S300 includes an 8-station Automatic Tool Change (ATC) system as standard equipment.
