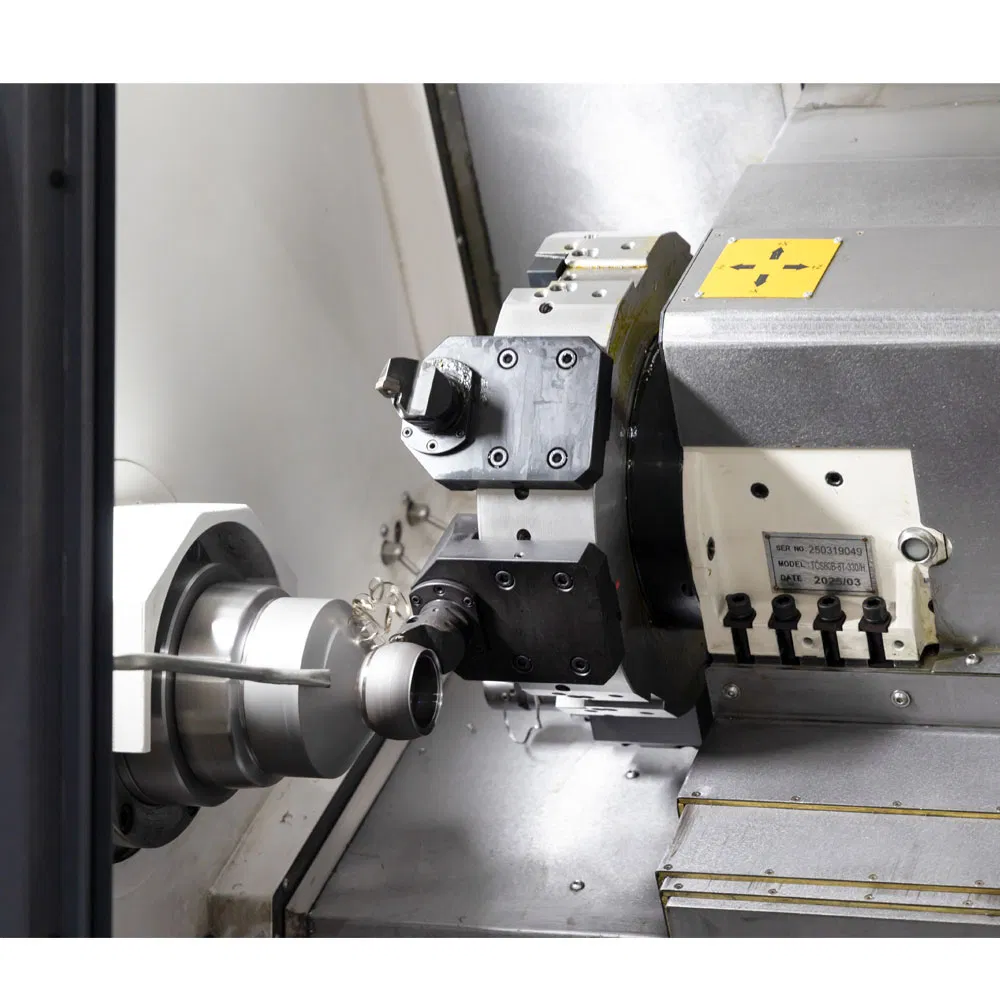

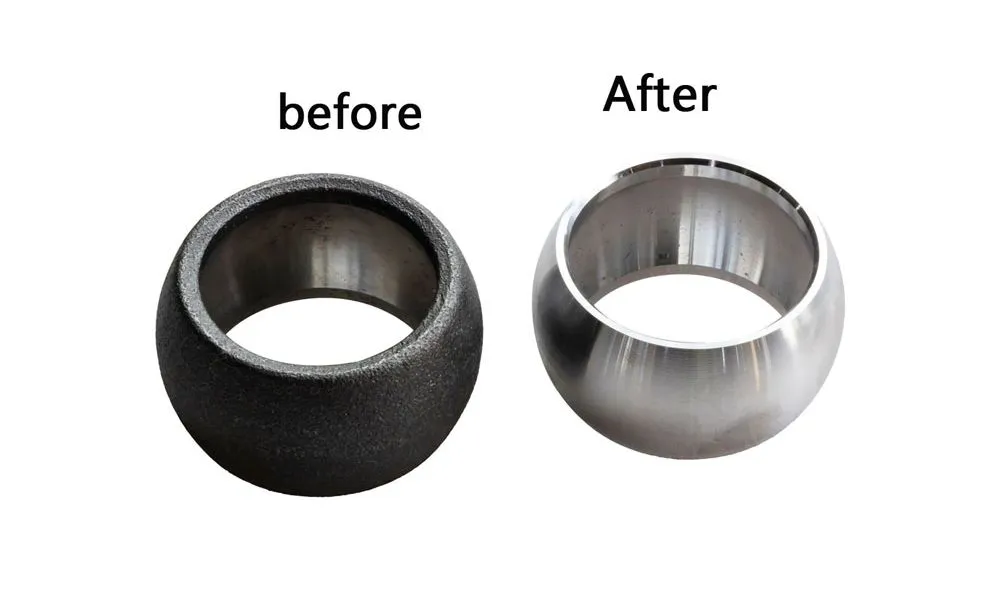

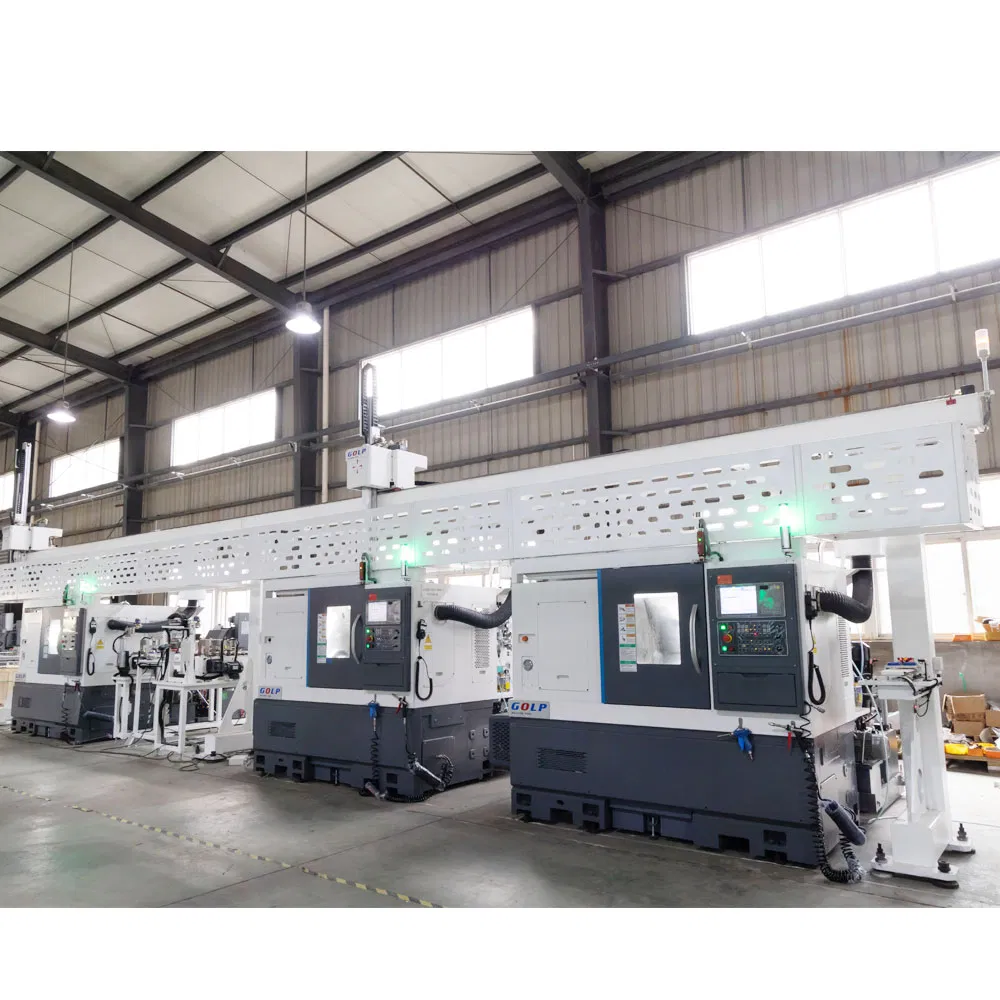

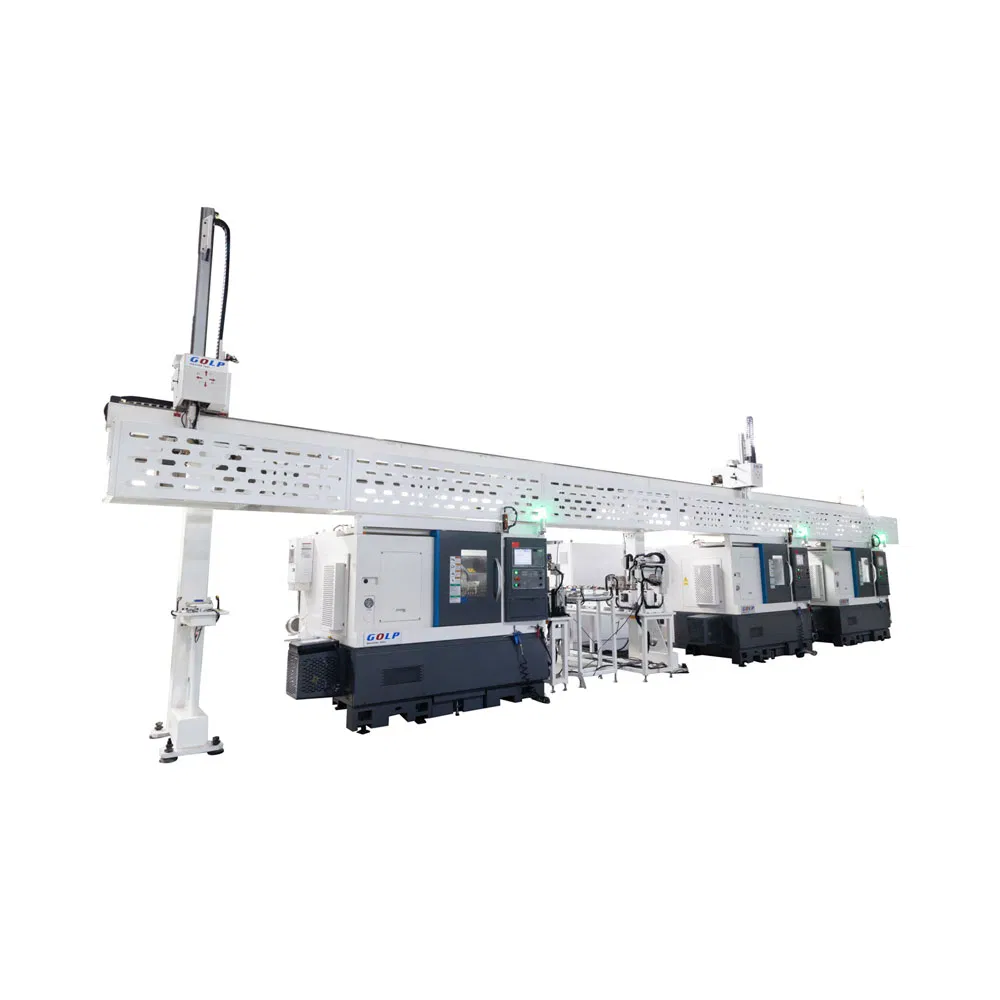

This automated lathe is specially designed for machining cage end faces and outer circles with high efficiency. It supports a max.bed rotary diameter of Φ400 mm, a max.turning diameter of Φ300 mm, and a max.turning length of 500 mm, making it ideal for high-volume, precision production.

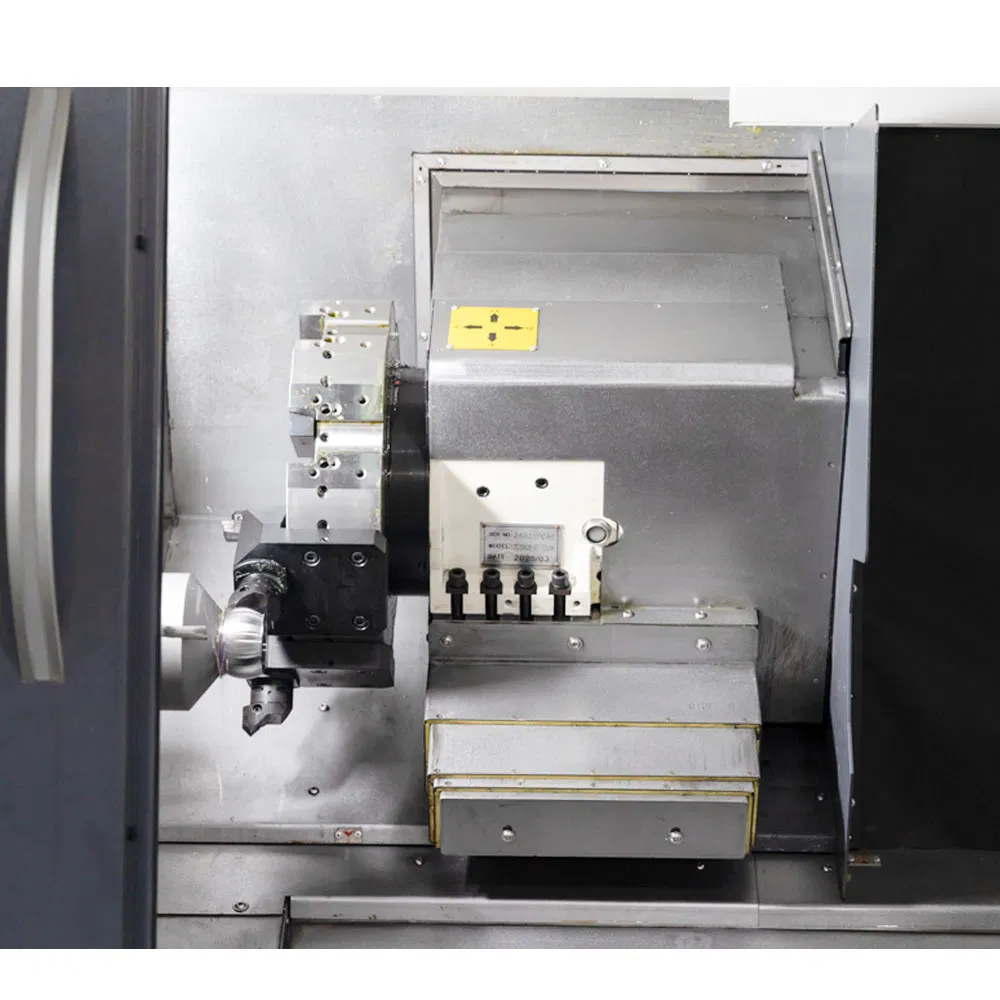

Equipped with an A2-6 spindle head, a spindle bore diameter of Φ55 mm, and MT6 taper, the machine ensures outstanding rigidity and stability during machining, accommodating a wide range of cage sizes.

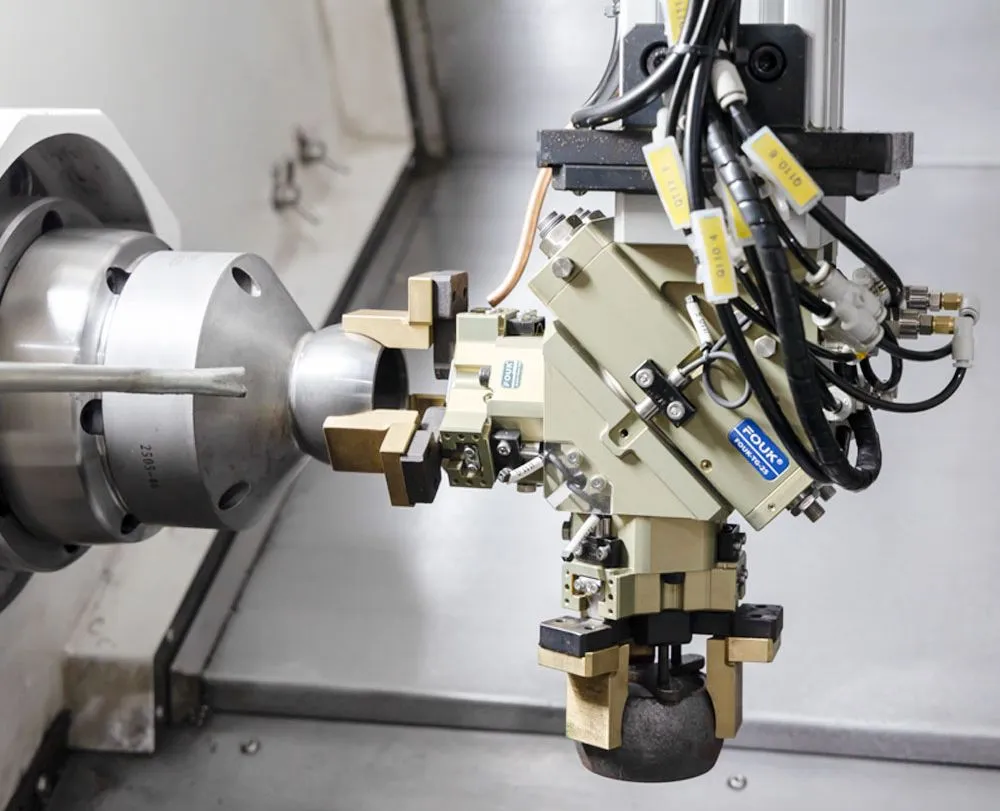

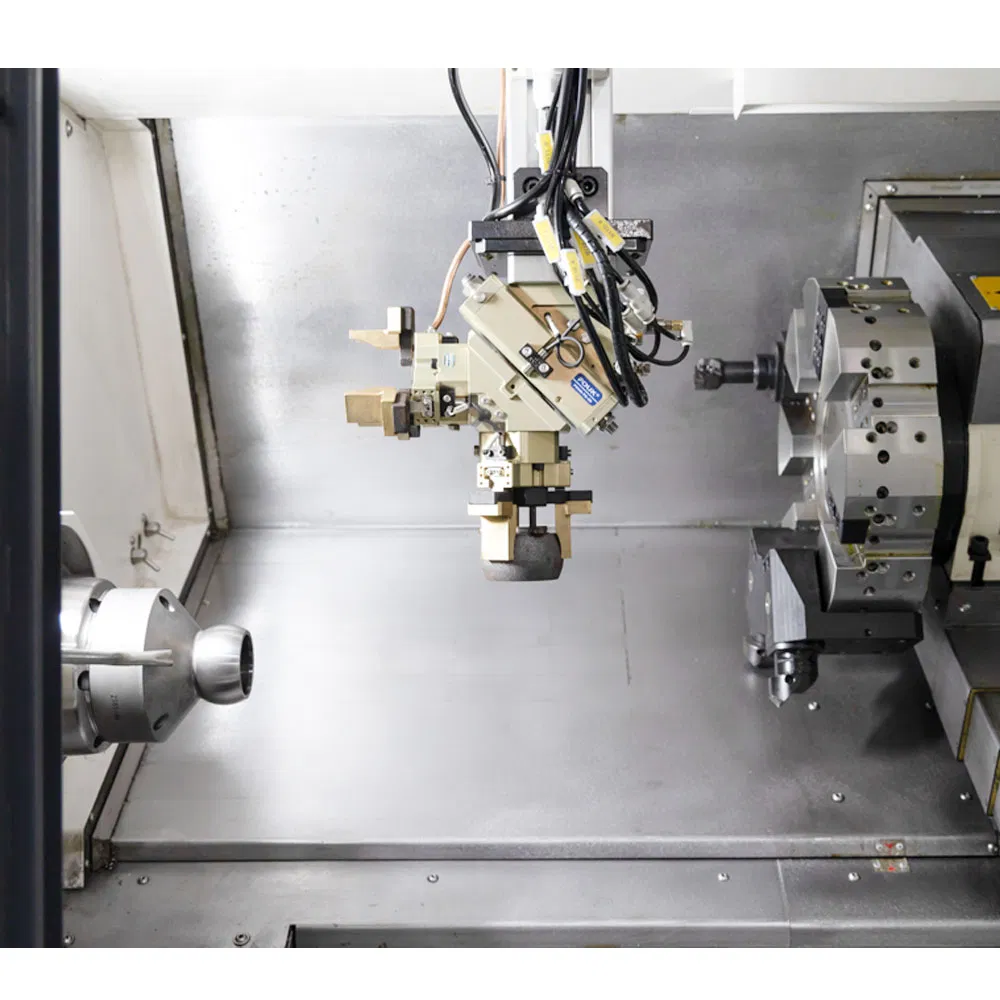

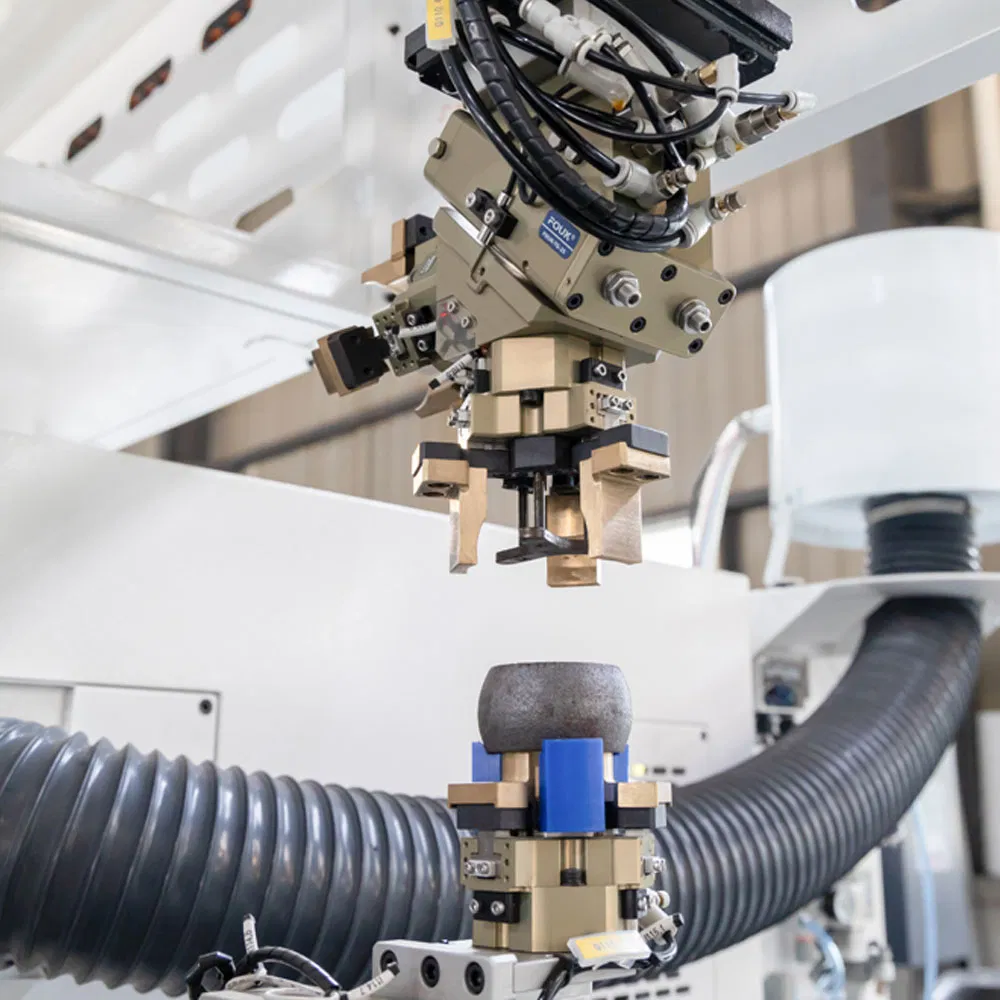

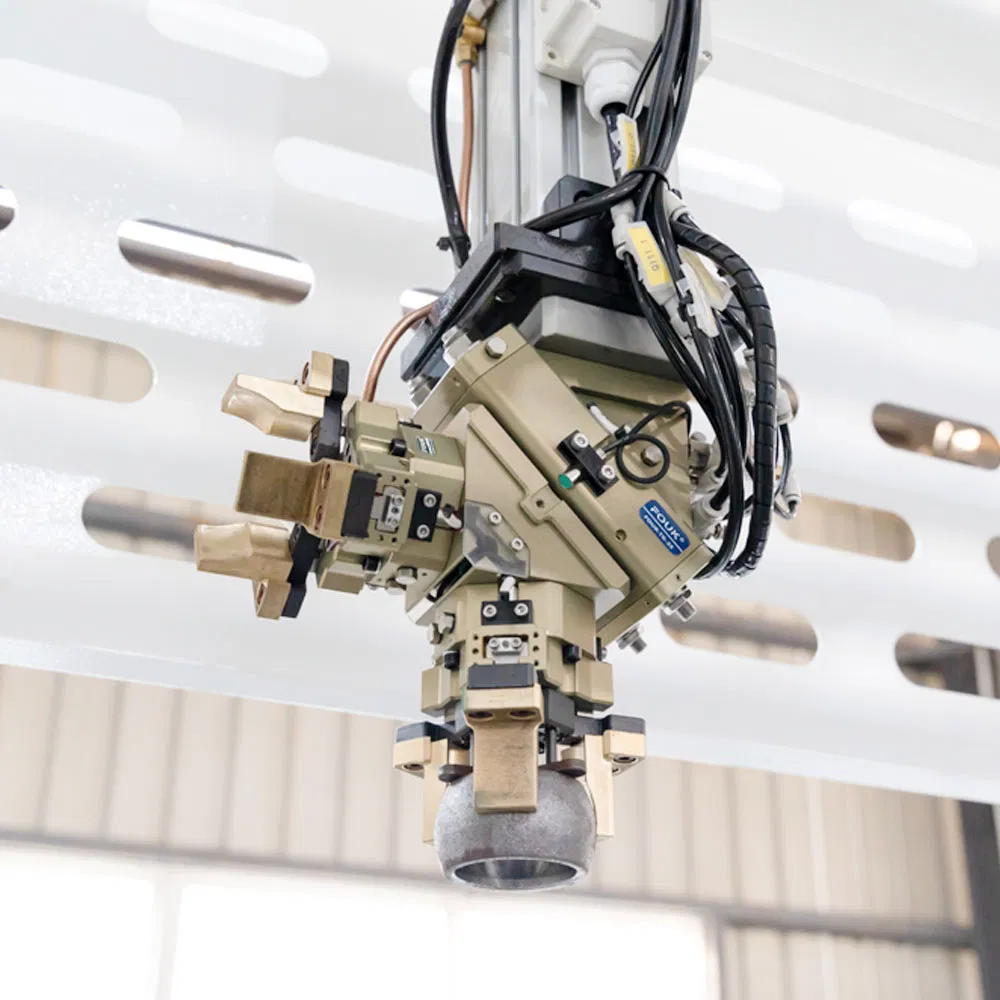

Employing an innovative dual-jaw gripper, it revolutionizes the production cycle by facilitating simultaneous workpiece gripping and exchange, drastically cutting down waiting times and maximizing production efficiency.

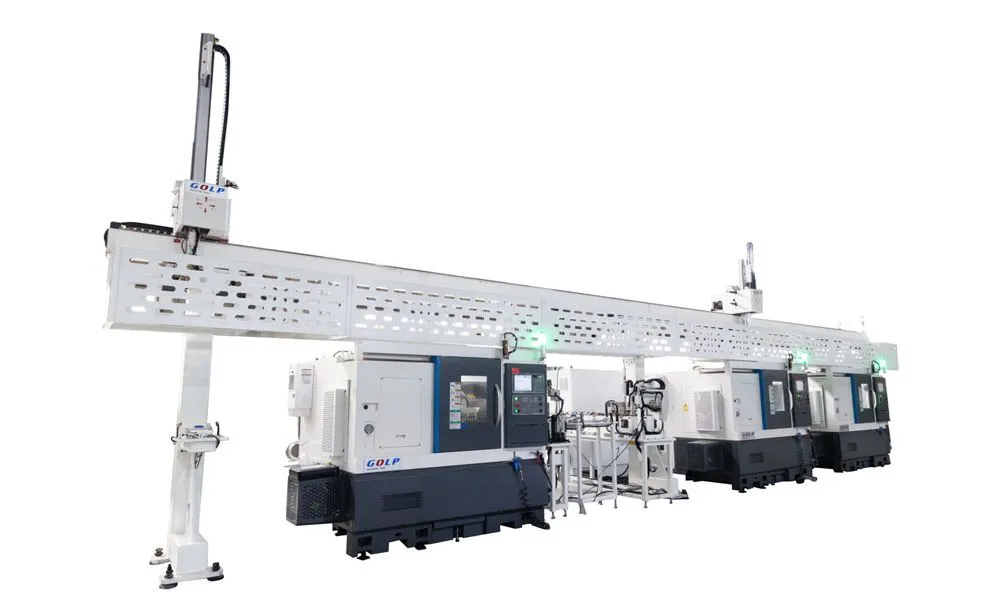

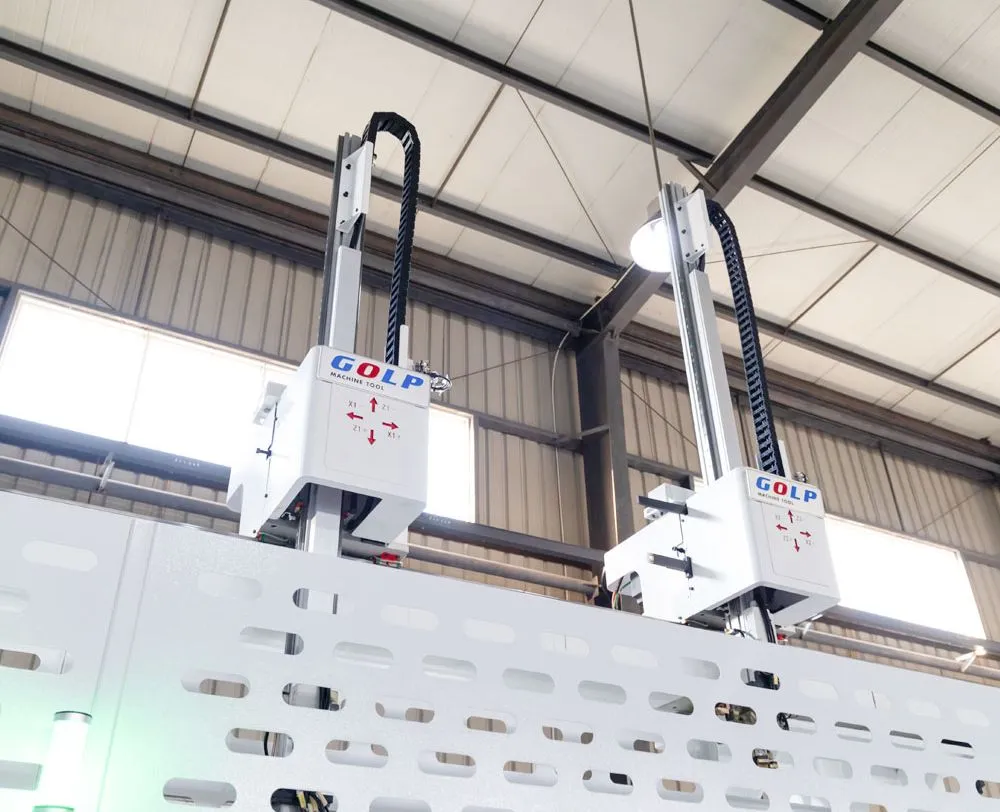

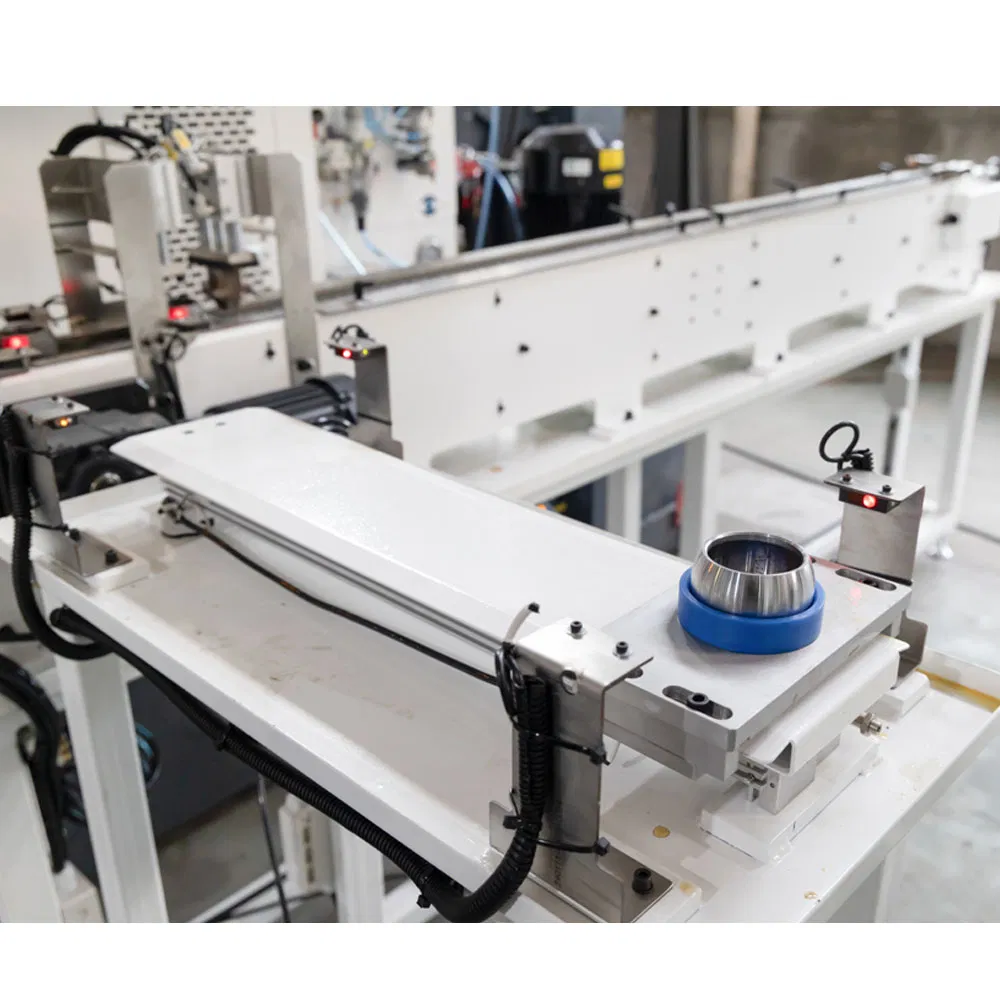

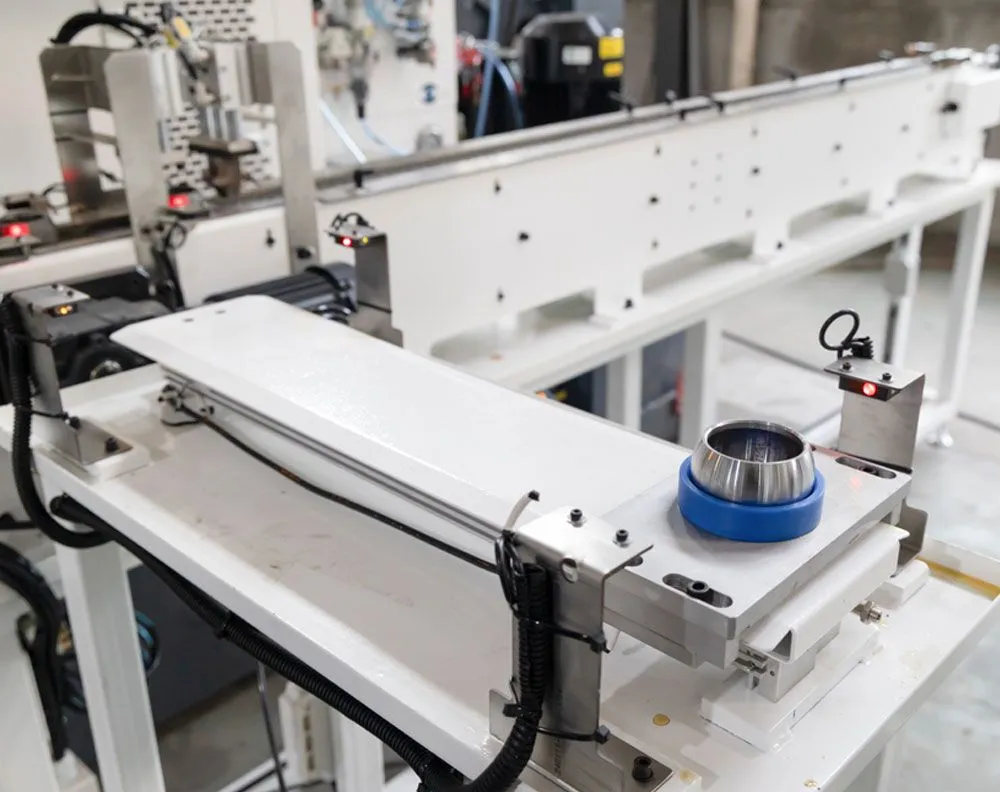

The state-of-the-art offset transfer mechanism is ingeniously crafted to prevent any potential collisions between the dual machine heads, reducing downtime during concurrent unloading.
| Category | Technical Item | Specification |
|---|---|---|
| Processing Scope | Max bed rotary diameter | Φ400 mm |
| Max turning diameter | Φ300 mm | |
| Max turning length | 500 mm | |
| Spindle | Spindle head type | A2-6 |
| Spindle bore diameter | Φ55 mm | |
| Max speed | 3000 rpm | |
| Motor power | 11 kw | |
| Feeding | X/Z axis travel | 195/500 mm |
| Rapid speed | 18/24 m/min |
