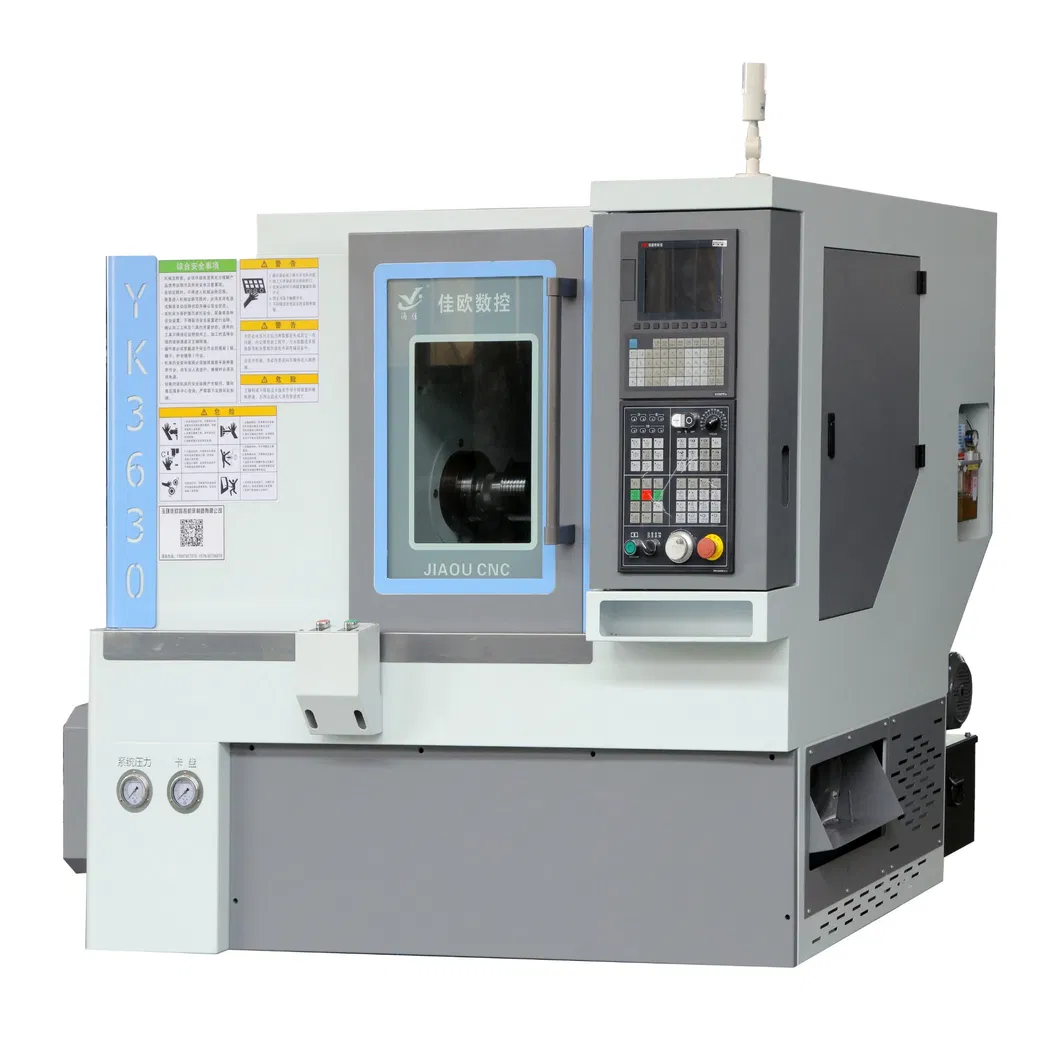

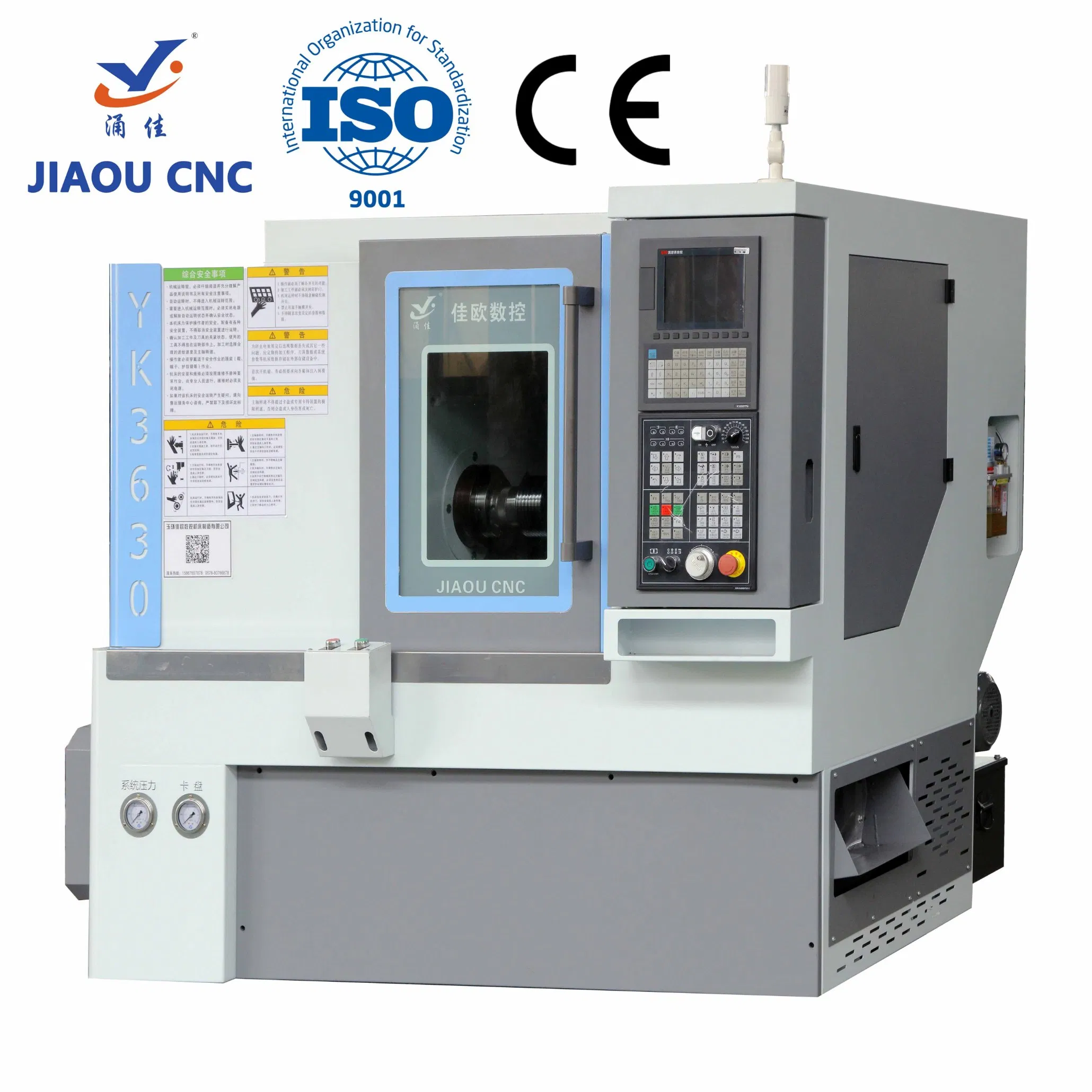

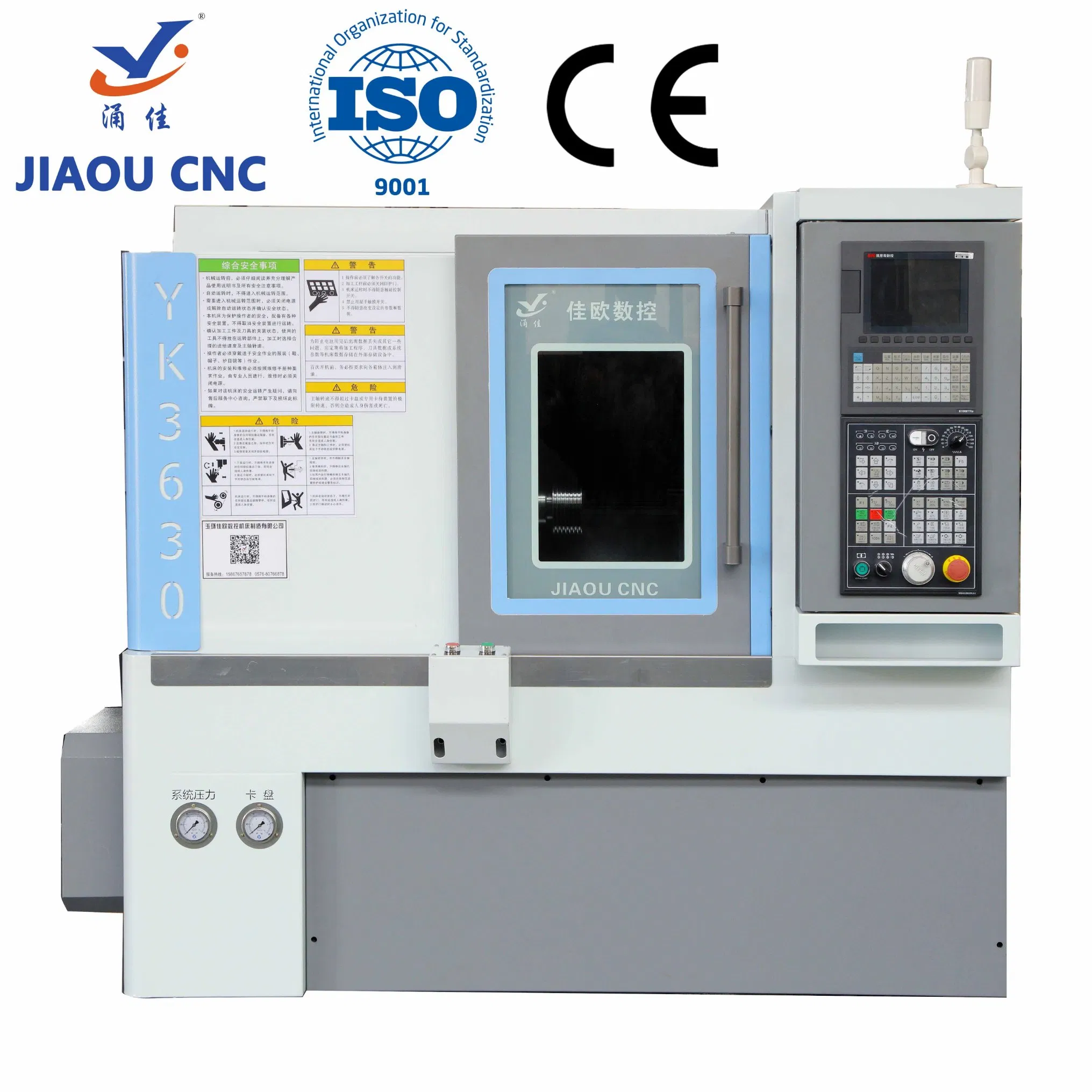

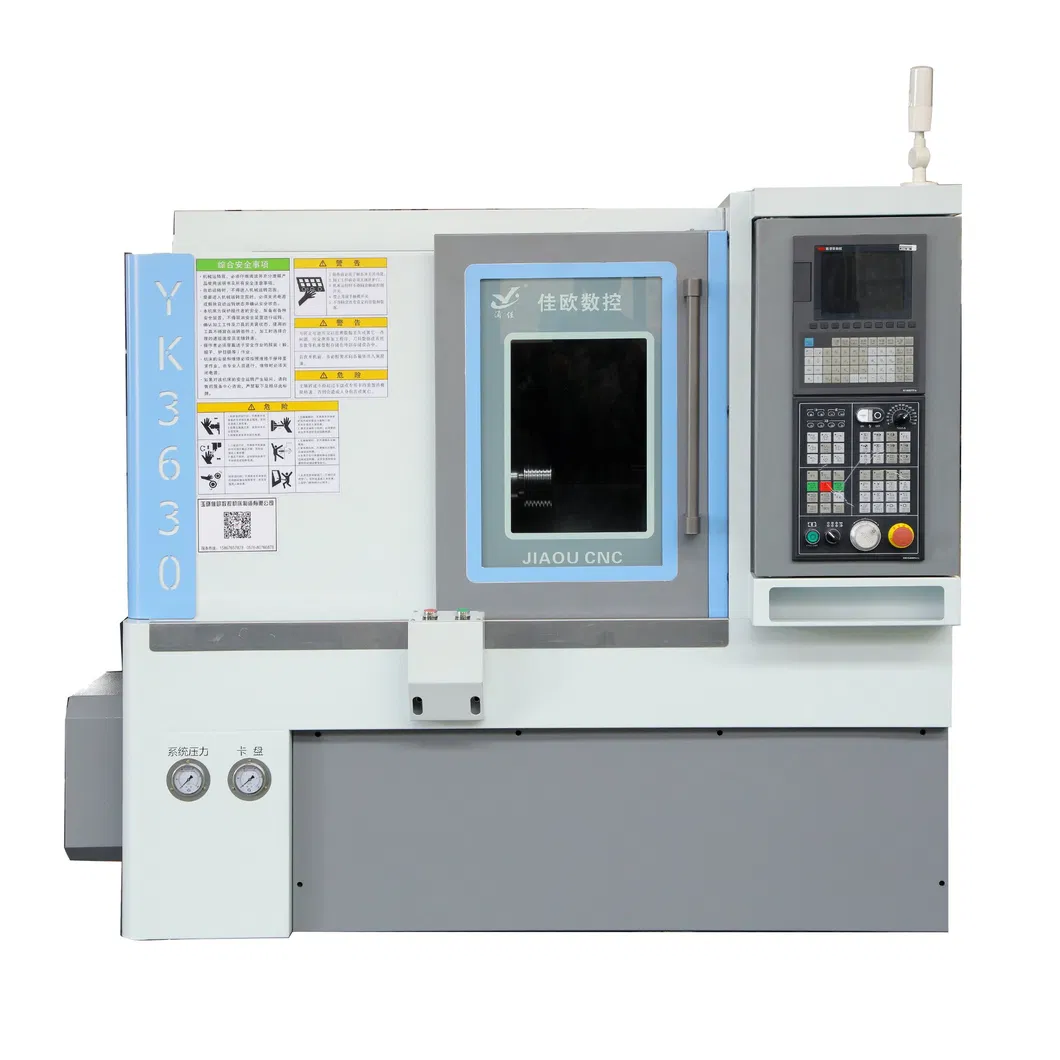

Compact High-Precision Horizontal Slant-Bed Gang Tool CNC Lathe

1 / 5

Compact High-Precision Horizontal Slant-Bed Gang Tool CNC Lathe

Customization:	Available
After-sales Service:	Negotiable
Warranty:	Negotiable

Send Inquiry

Product Description

Basic Info.

Model NO.

YK3630

Application

Metal

CNC System

Syntec/Fanuc/Siemens

Processing Precision

0.003-0.005mm

Max. Swing Over Bed

420mm

Main Spindle Speed

200-4000 rpm

Tool Type

Gang Tooling

Certification

CE, ISO 9001

Product Description

High-Stability 45° Slant Bed Design: The integral slant bed made of cast iron provides excellent rigidity and reduces vibration.

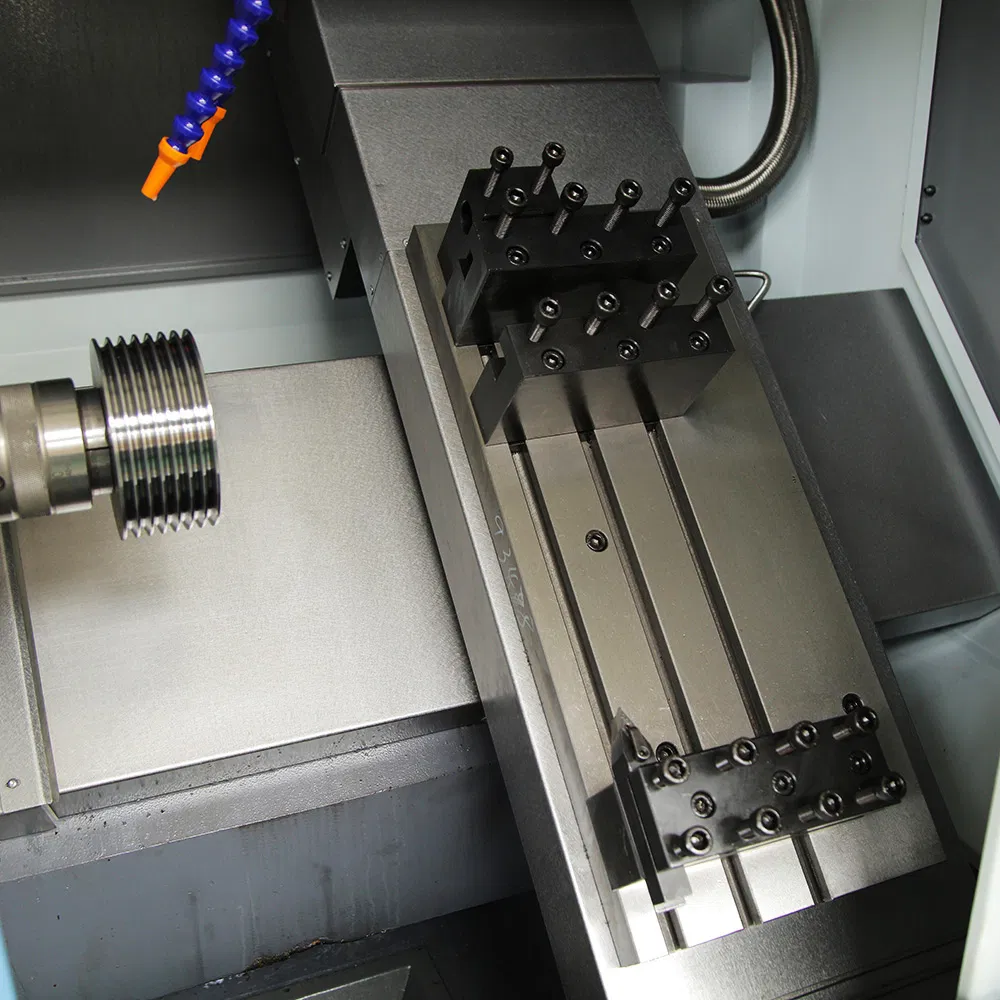

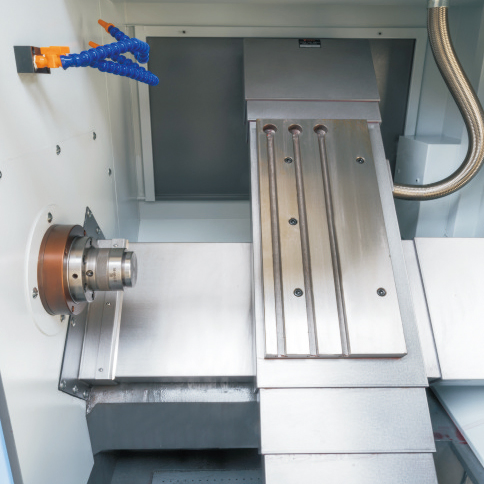

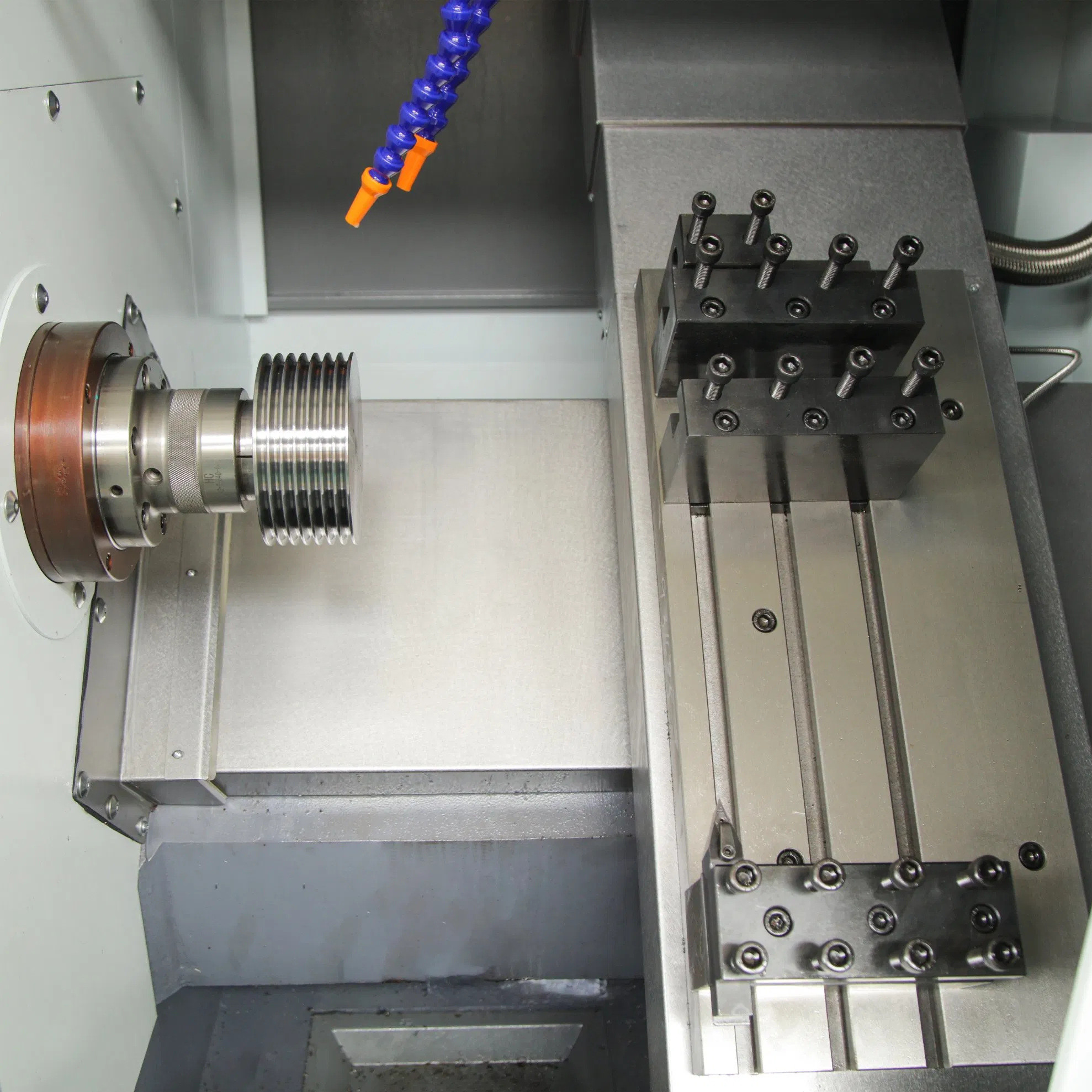

Compact Gang Tool Holder System: Offers faster tool changes and reduced cycle times for high efficiency.

Global-Standard Precision Components: Features parts from Taiwan, Japan, and Germany for long-lasting reliability.

Product Parameters

YK3630 Technical Specifications
Machining Capacity	Swing over bed	mm	Ф420
	Swing over carriage	mm	Ф150
	Max bar material size	mm	Ф36
	Max turning length	mm	-
Spindle	Spindle nose	-	A2-5
	Spindle motor power	kw	4
	Spindle speed	rpm	200-4000
Precision	Repeatable X-axis	mm	0.003
Precision	Repeatable Z-axis	mm	0.005

Certifications & R&D

We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, we maintain full control over design and production autonomy.

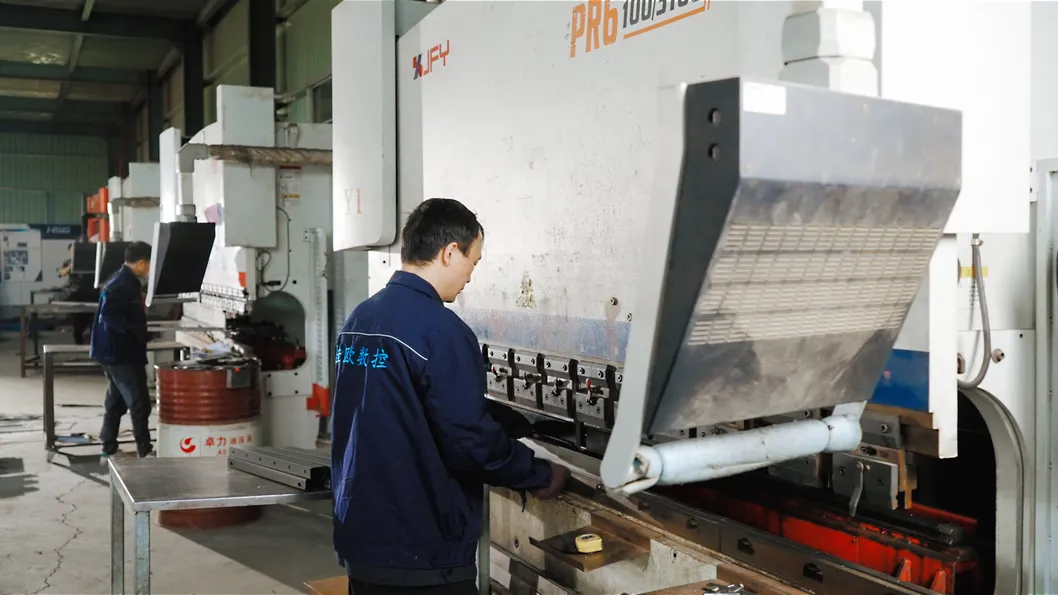

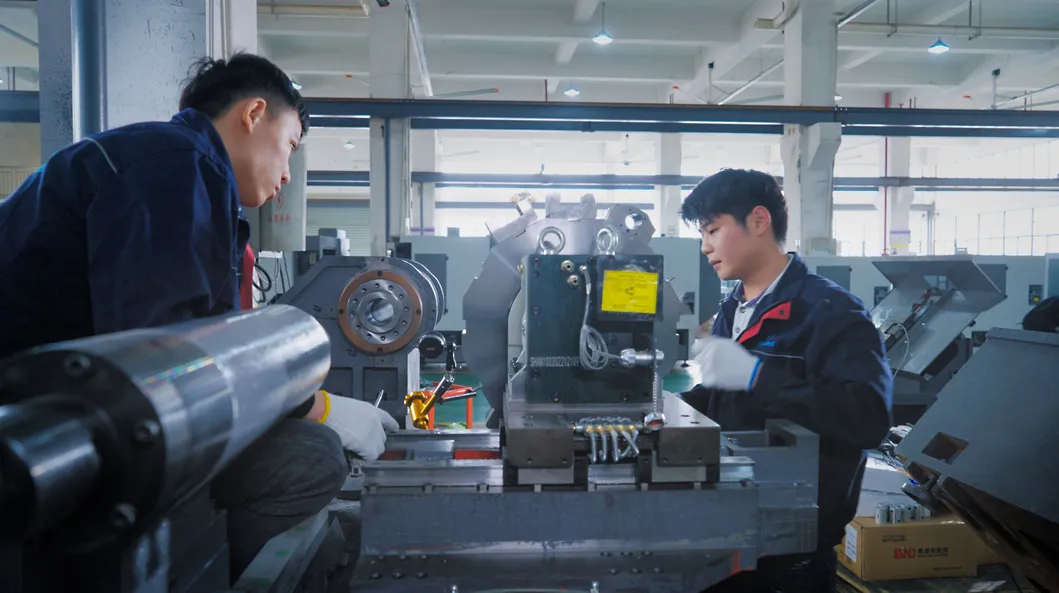

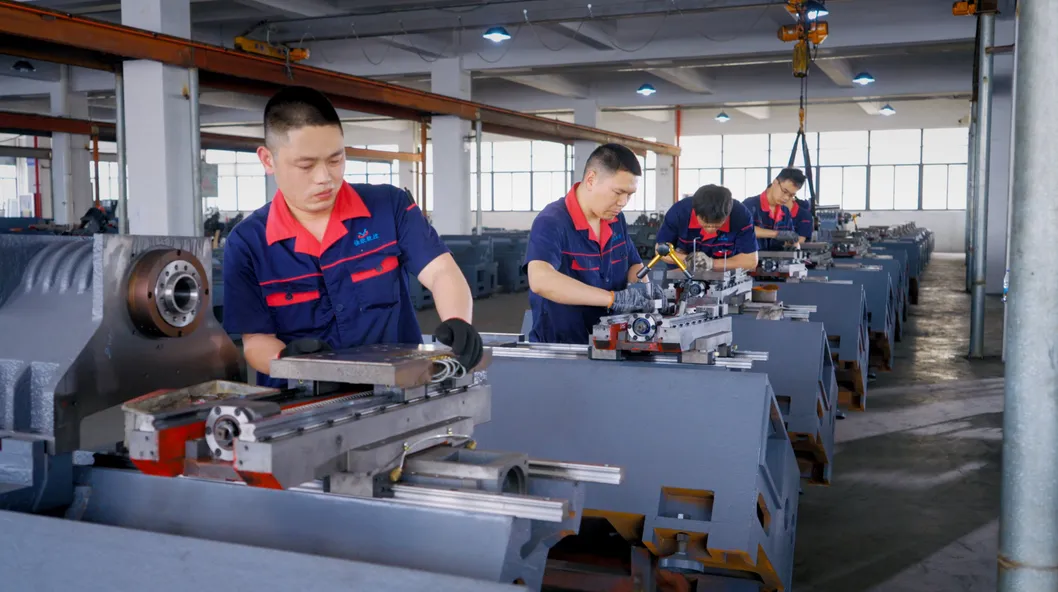

Production & Workshop

We operate multiple production workshops, covering cast iron processing, mechanical component assembly, installation, debugging, and sheet metal laser cutting. Every step is independently processed to ensure quality.
