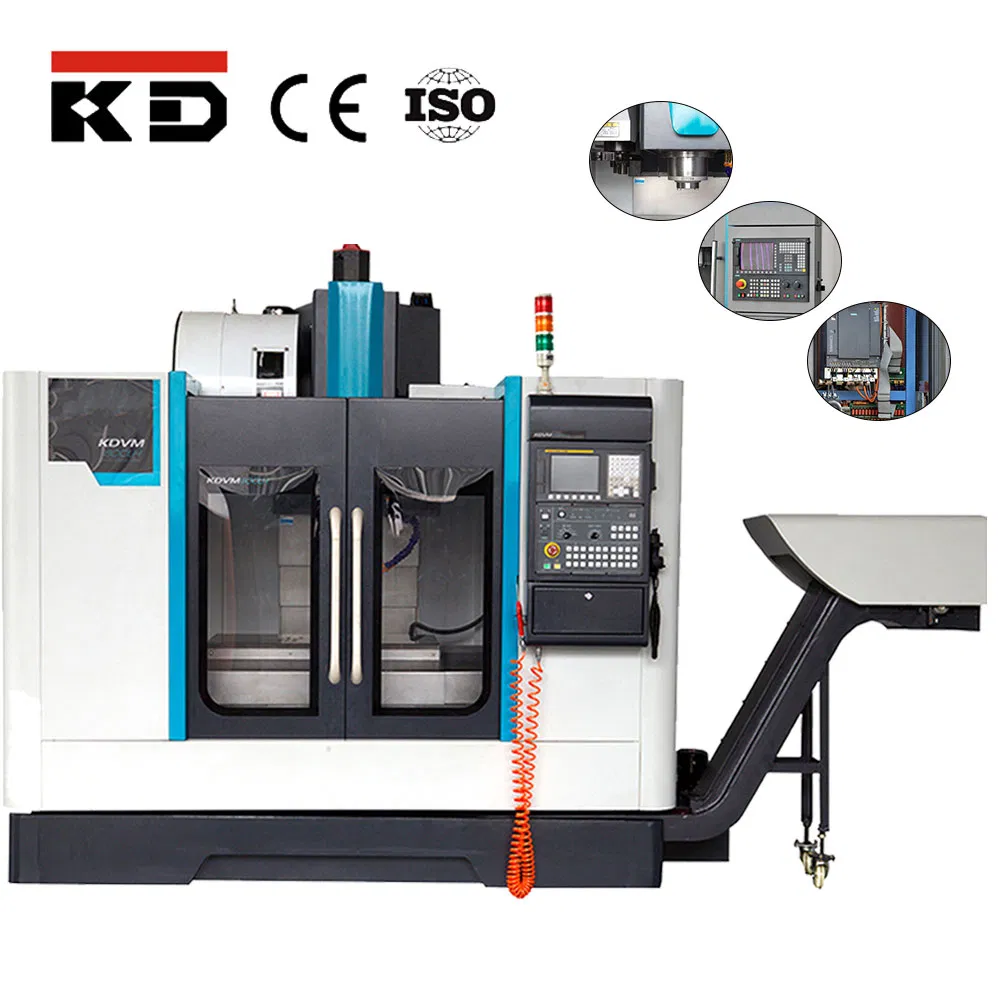

High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
1 / 5
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800

High Precision Super Speed CNC Vertical Machining Center Vmc800

Customization: Available
Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools, Metal- Milling
Send Inquiry

Product Description

iBasic Information
Model NO.
KDVM800LA
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
It6
Performance
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
4700X2700X2700mm
Trademark
KADAI
HS Code
84571010
Capacity
523
⚙Product Specifications
High Precision Super Speed CNC Vertical Machining Center Vmc800
High Precision Super Speed CNC Vertical Machining Center Vmc800
MODELS DM852 DM1052
TRAVEL
X axis800mm1000mm
Y axis520mm
Z axis520mm
Spindle center to column550mm
Spindle end to table150-670mm
TABLE
Table size950×510mm1130×510mm
T-slot (width×number×space)18mm×5×100mm
Max. table loading800kg
SPINDLE

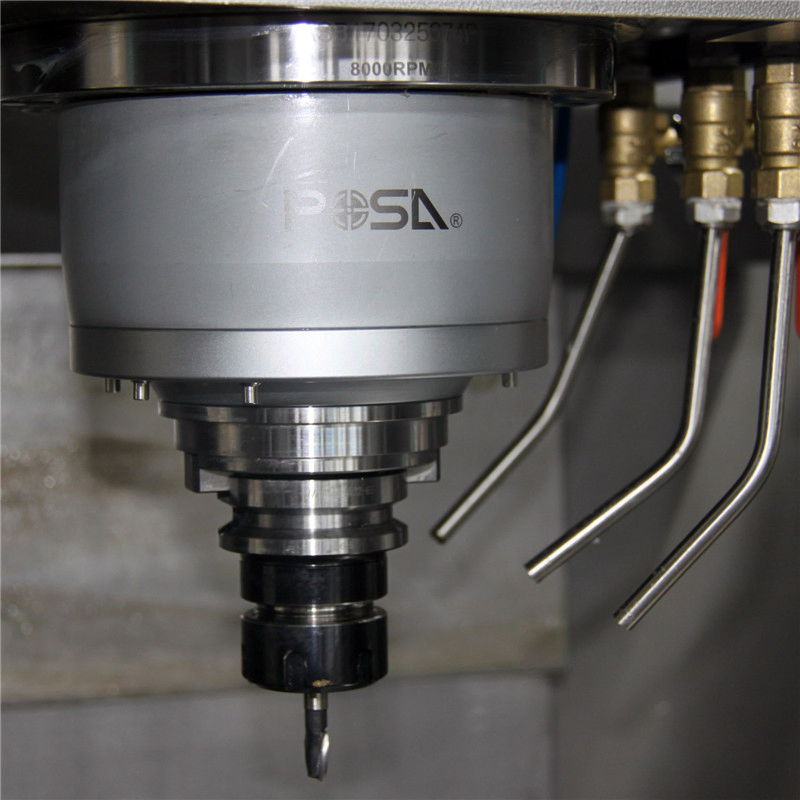

Taper bore of spindleBT40
Spindle power11/15kw (FANUC)
Spindle speed8000rpm
FEED
X/Y/Z fast feed30/ 30/ 30m/min
Linear guide width X/Y/Z35/35/35mm
ACCURACY
Positioning≤0.006mm
Repeatability (X/Y/Z)≤0.004mm
OTHERS
Net weight5150kg5480kg

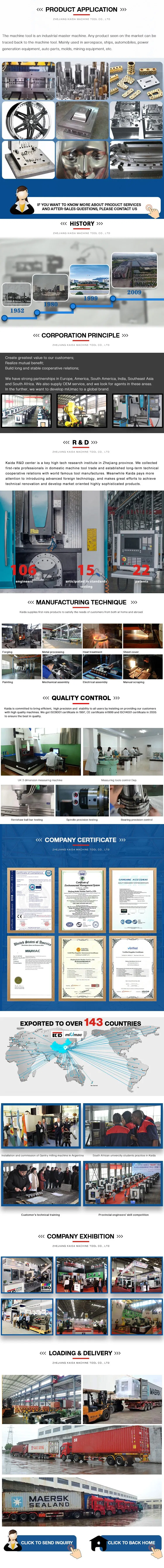

Detailed Specifications
?Frequently Asked Questions
What is the positioning accuracy of the KDVM800LA?
The machine features high precision with a positioning accuracy of ≤0.006mm and repeatability of ≤0.004mm.

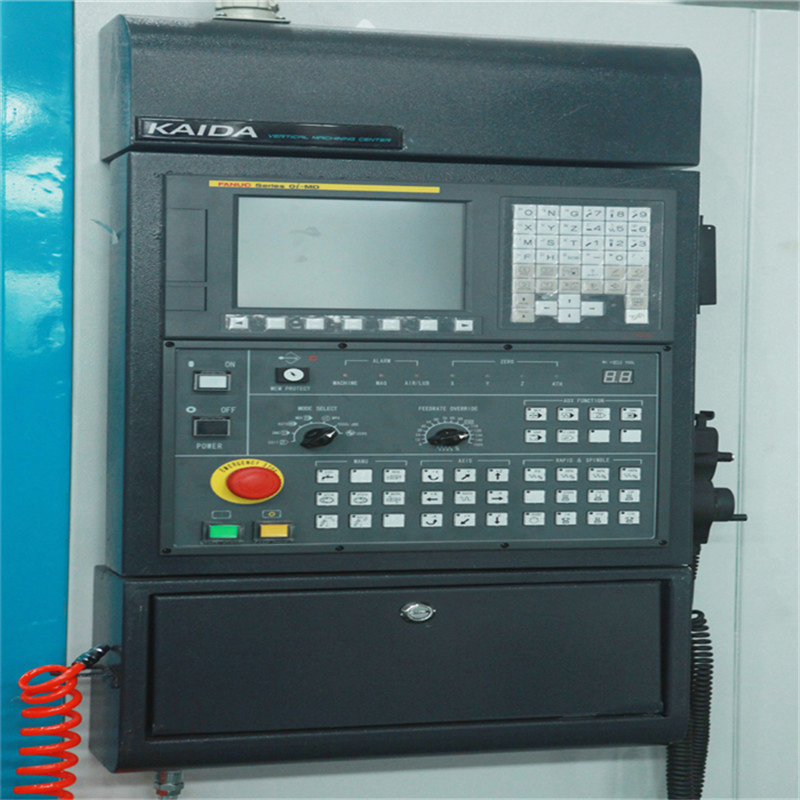

What type of control system does this CNC machine use?
It utilizes a Closed-Loop Control method for high-end CNC/MNC processing performance.
What are the spindle specifications for the DM series?
The machines come with a BT40 taper bore, 8000rpm spindle speed, and 11/15kw power (FANUC).
What certifications do these machine tools hold?
Our equipment is fully certified with GS, CE, and ISO 9001 standards to ensure international quality compliance.
What is the maximum table loading capacity?
The worktable is designed to handle a maximum loading weight of 800kg.

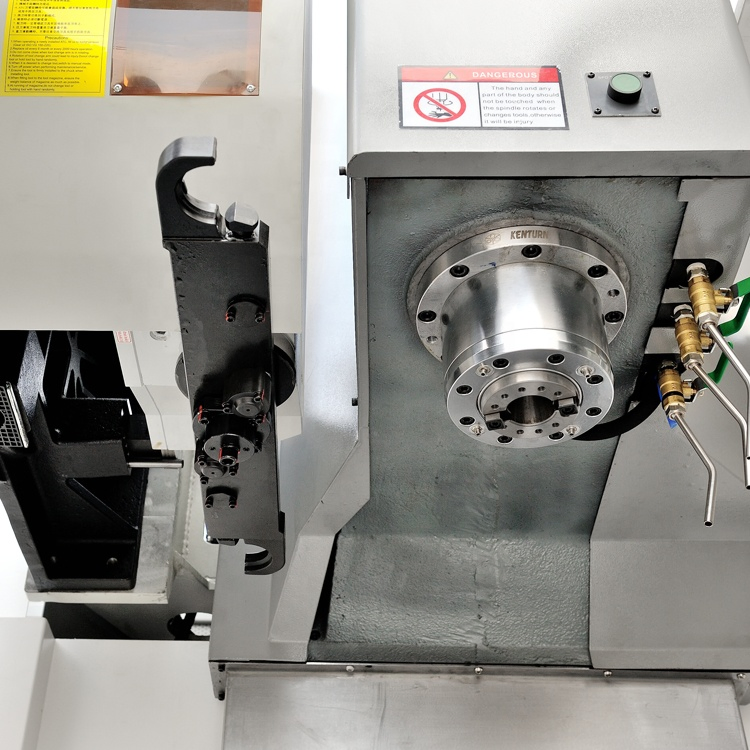

How many tools can the ATC (Automatic Tool Changer) hold?
The system is equipped with a tool magazine that holds up to 24 tools with a tool-to-tool change time of 2 seconds.
