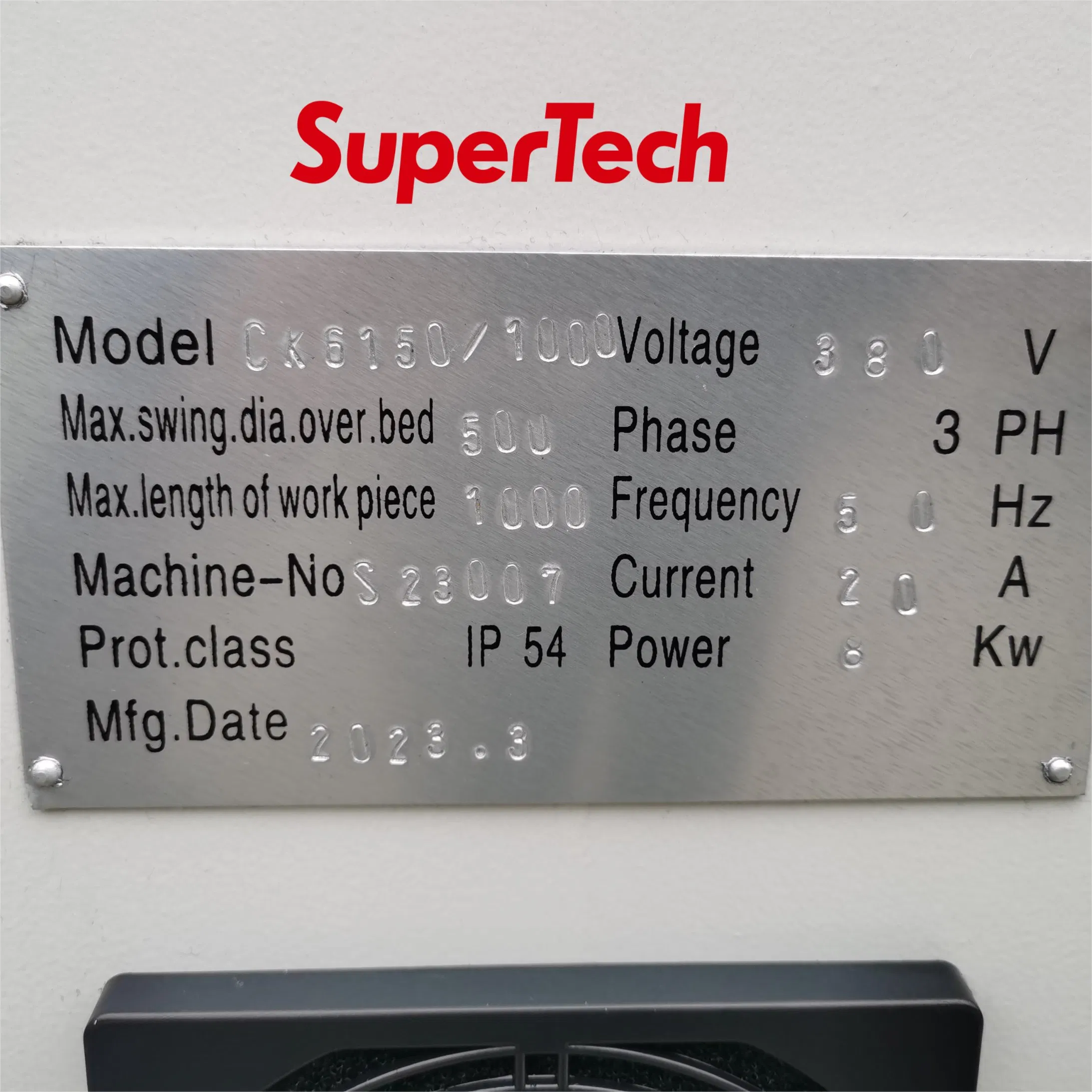

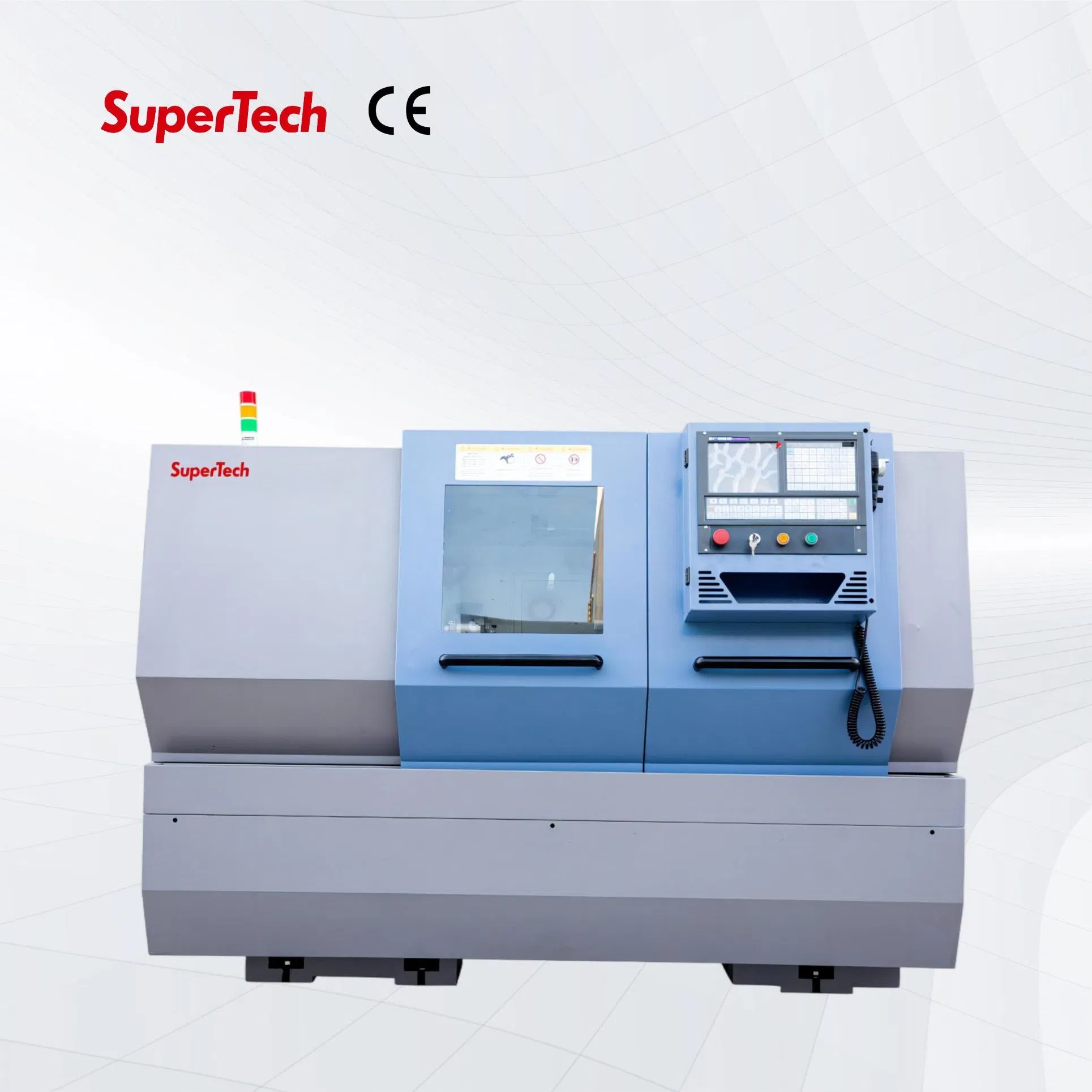

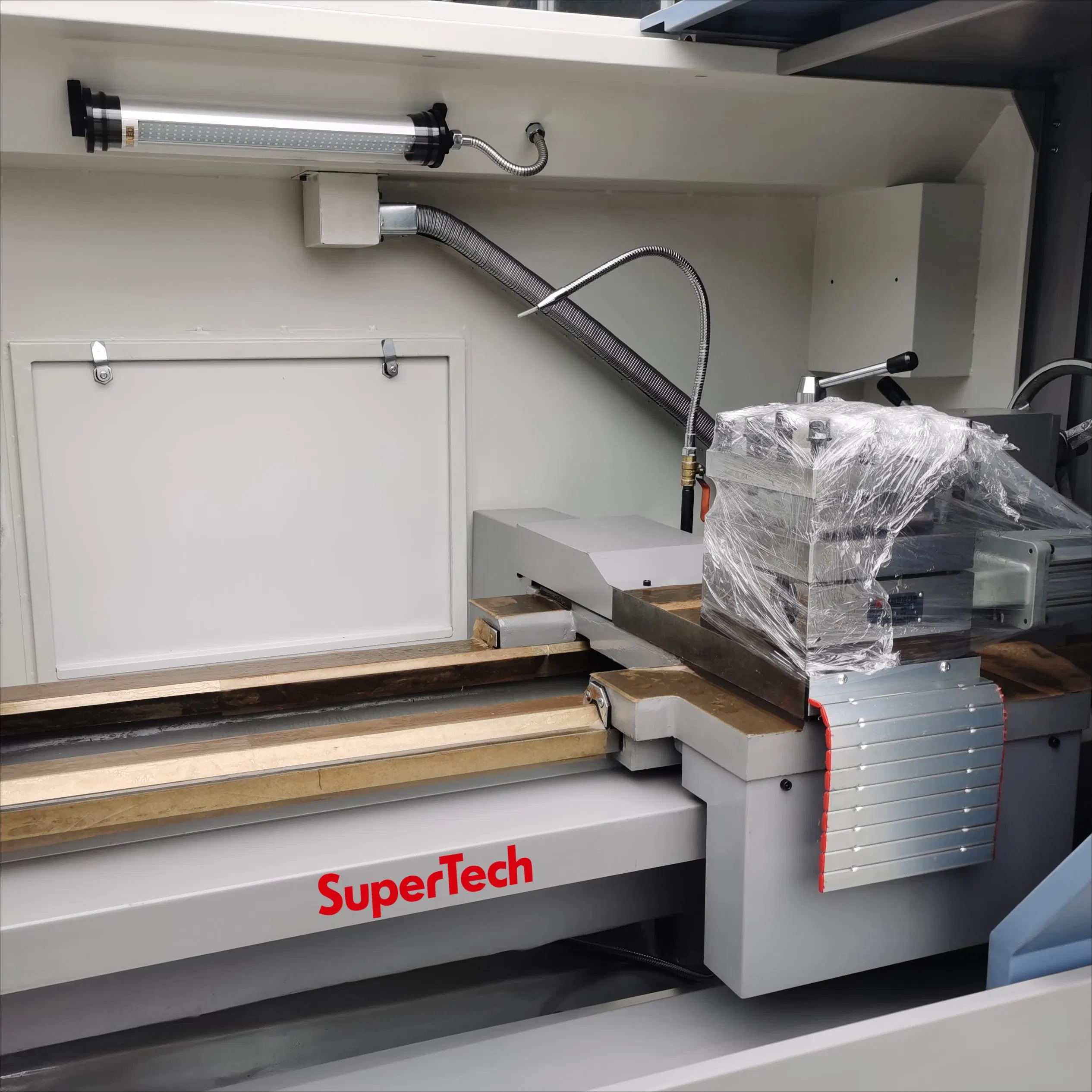

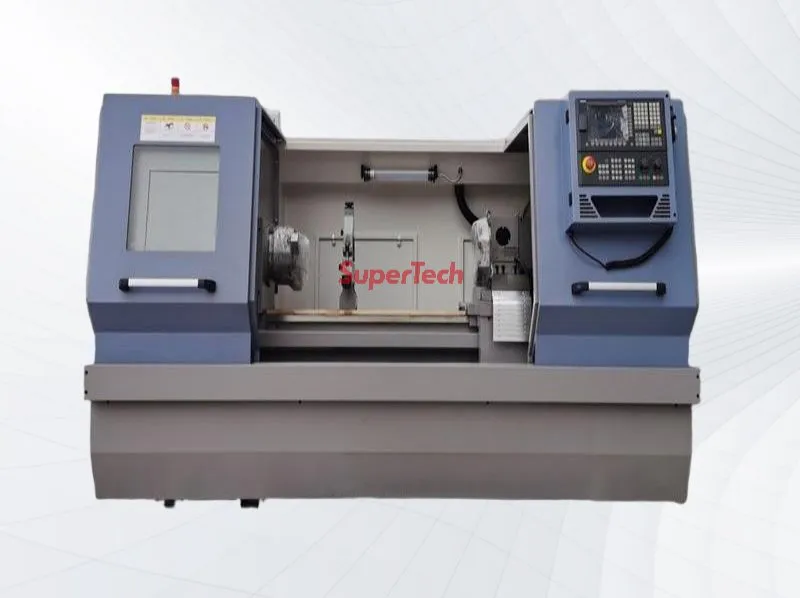

CK6150 is a domestically produced economical horizontal hard-track CNC lathe, emphasizing high cost-effectiveness and rigidity. The maximum turning diameter of the bed is Φ500mm. The processing length can be selected from 750mm to 2000mm. The diameter of the main shaft hole can reach 82mm.

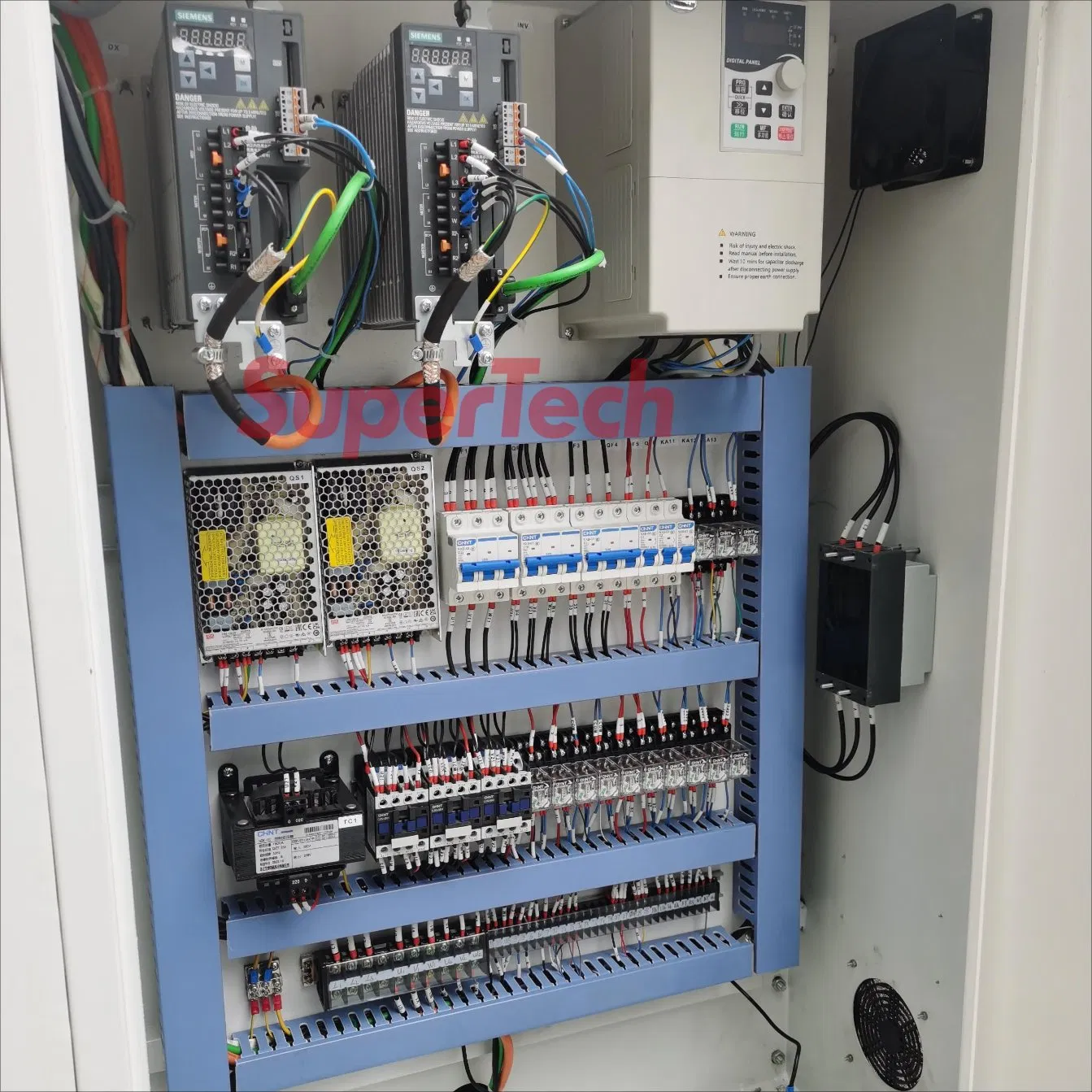

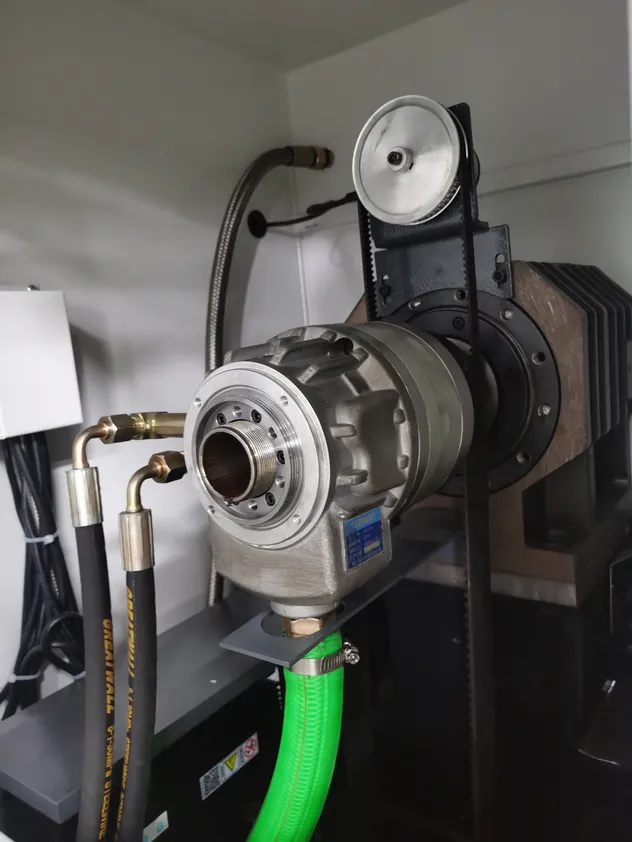

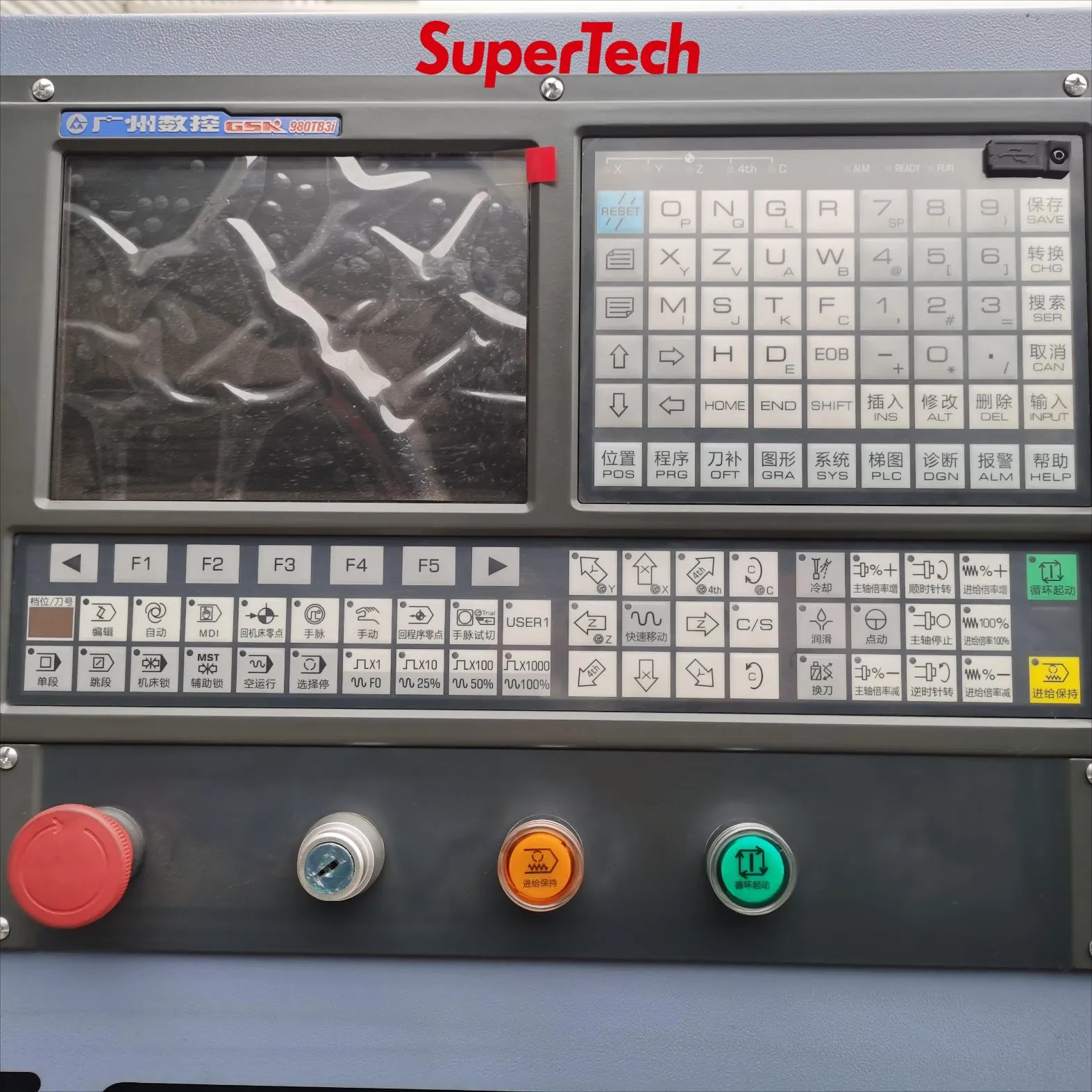

The main shaft is equipped with precision bearings, featuring high torque and a wide speed range. It is standardly equipped with domestic CNC systems such as GSK, supporting two-axis linkage. The processing accuracy reaches IT7 level.
| Main Specifications | Unit | CK6136 | CK6140 | CK6150 | |
| Capacity | Max. swing over bed | mm | 360 | 400 | 500 |
| Max. swing over cross slide | mm | 190 | 210 | 280 | |
| Headstock | Spindle hole | mm | 52 | 65 | 82/105 |

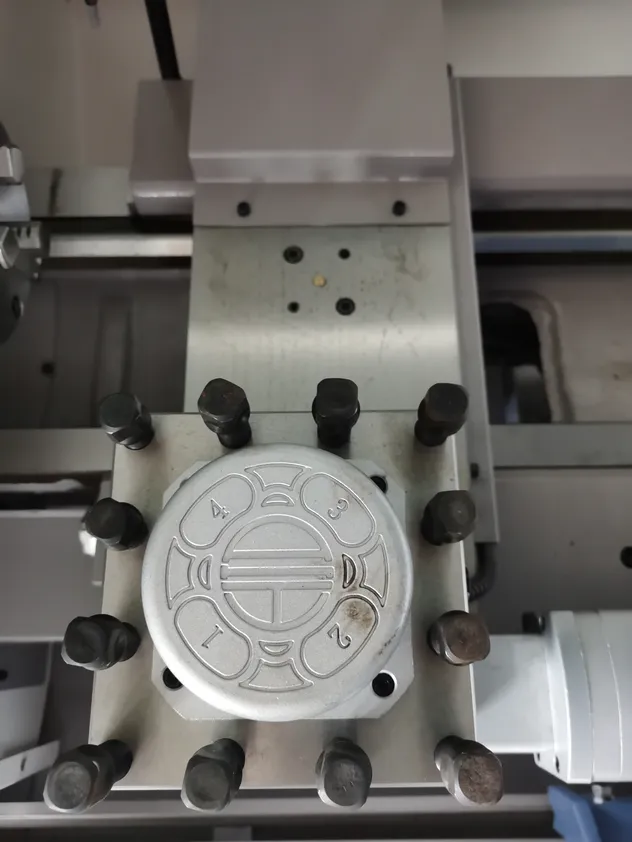

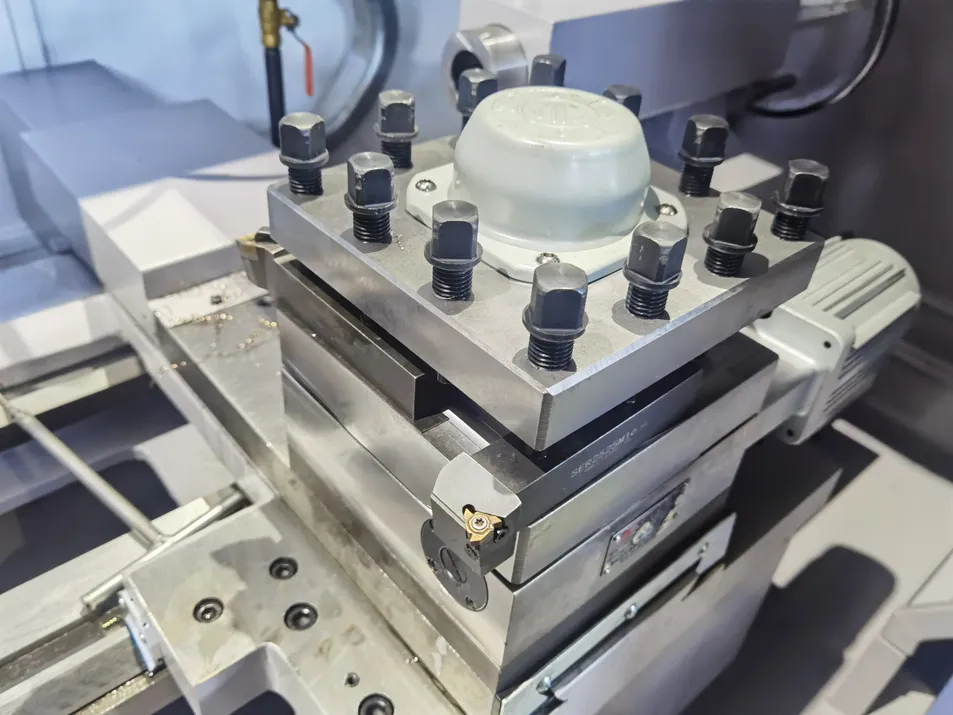

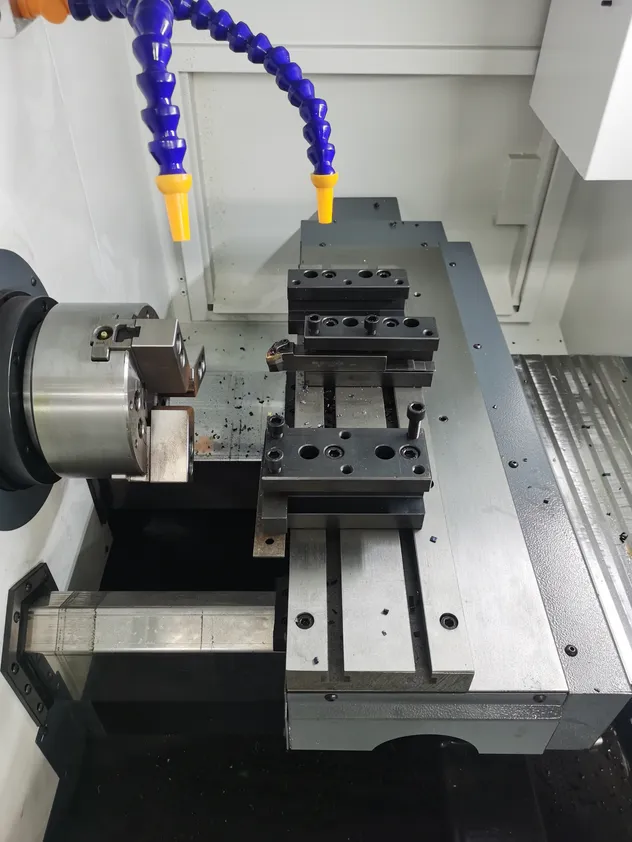

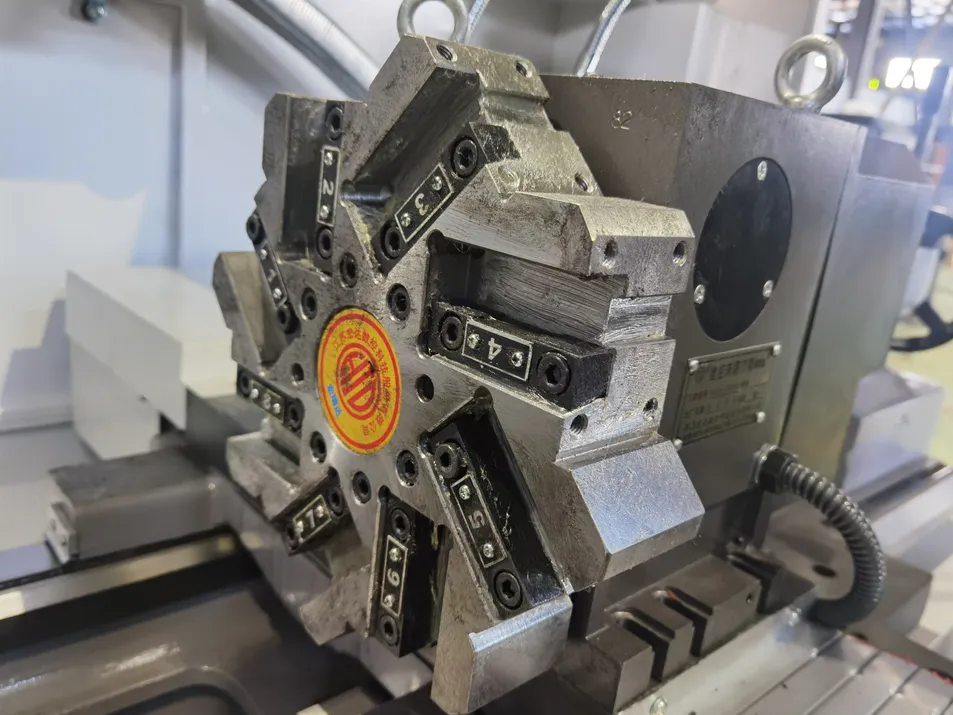

| Carriage | Number of tool post | pcs | 4/6/8 | 4/6/8 | 4/6/8 |
| Other | Machine weight | kg | 1500-1750 | 1700-1800 | 1900-2300 |

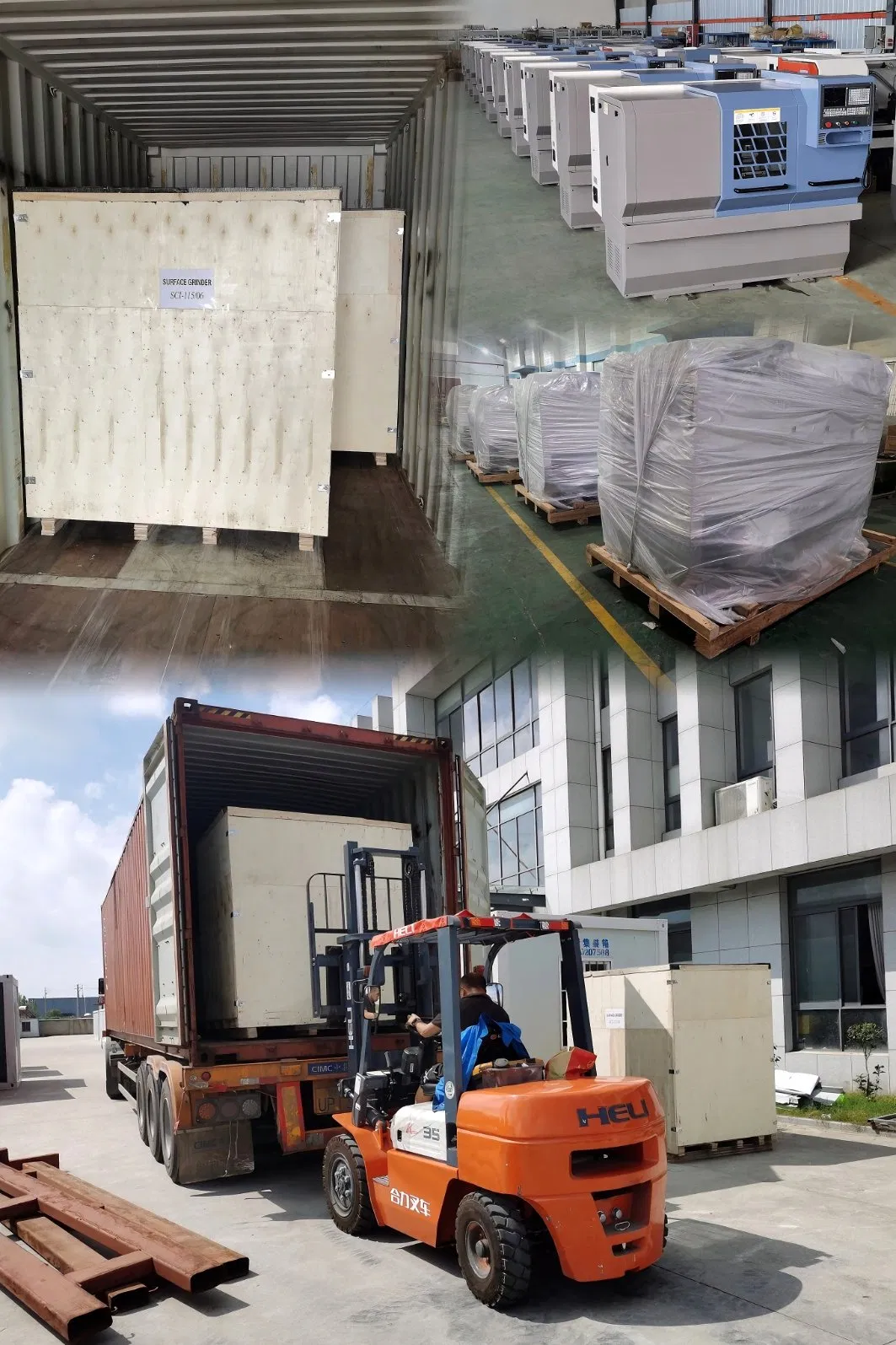

After the machines' model and contract confirmed, we will calculate the space for the containers. We load the containers in our factory by ourselves to ensure safety. We support EXW terms and provide professional loading and fixing for trucks, sea containers, and trains.
