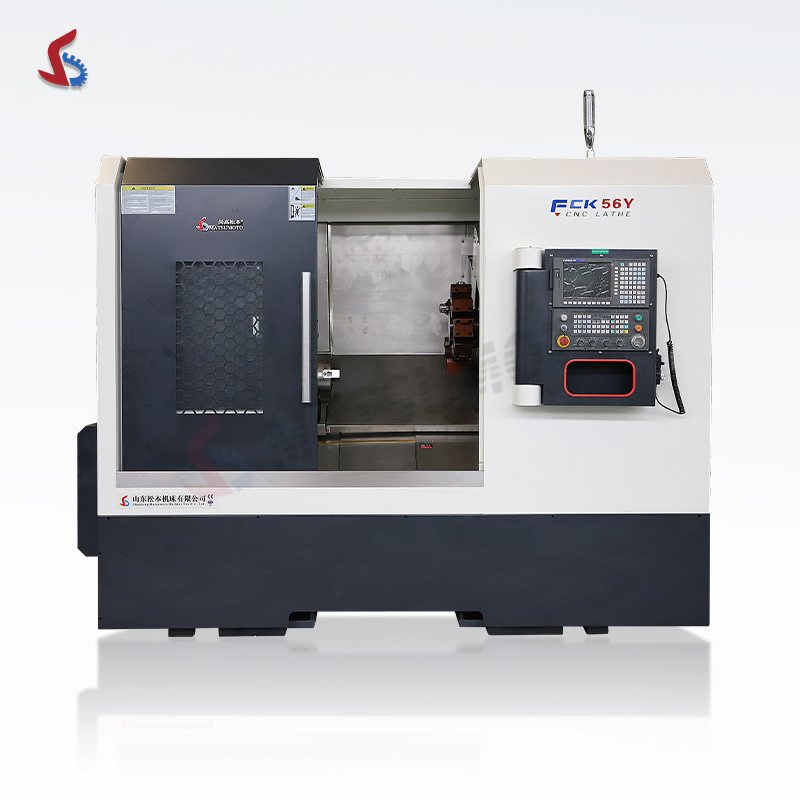

Application: TCK 56Y series multi-functional CNC lathe is a high-speed precision CNC processing equipment. The main accessories are from well-known manufacturers, and key parts are completed by precision pentahedral processing centers to ensure manufacturing accuracy.
The bed body adopts a box structure and strong cast iron (HT-300), utilizing integrated casting technology. It features strong overall rigidity, excellent accuracy maintenance, and high reliability. The 30° inclined back type integral bed body facilitates chip removal and eliminates leakage.
| Specification | Unit | FCK56Y |
|---|---|---|
| Max.swing over bed | mm | 650mm |
| Max.processing length | mm | 540mm |
| Max cutting diameter | mm | 600mm |
| X/Z axis travel | mm | 280 / 750 |
| Spindle speed | rpm | 10-3500 |
| Spindle motor power | kw | 11 |
| Tool post type | - | 12 station hydraulic turret |
| Guide way type | - | Linear guide (30° degree) |
| Weight | kg | 4200 |

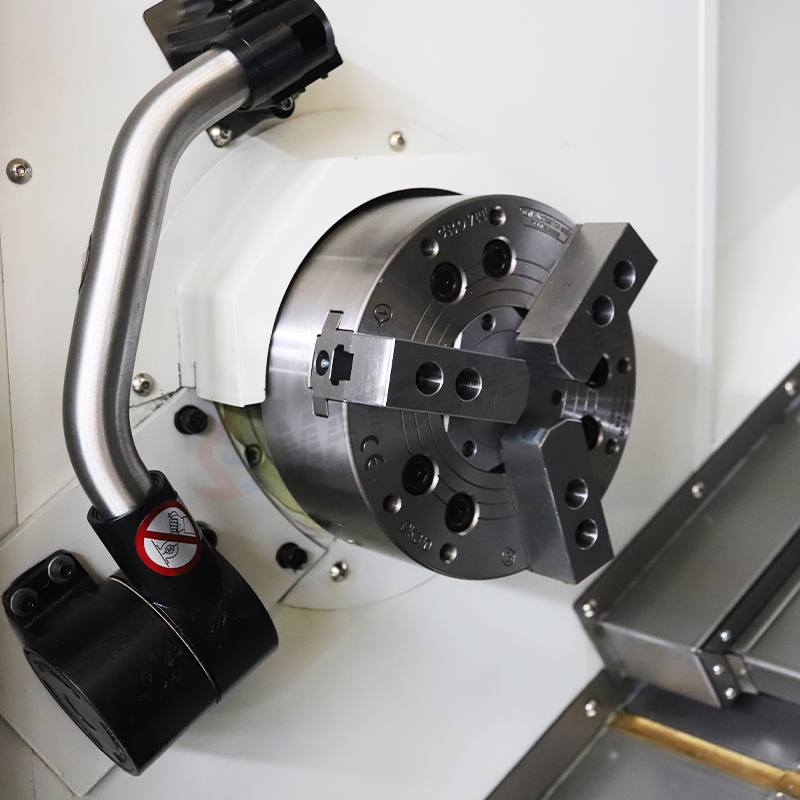

THREE-JAW CHUCK

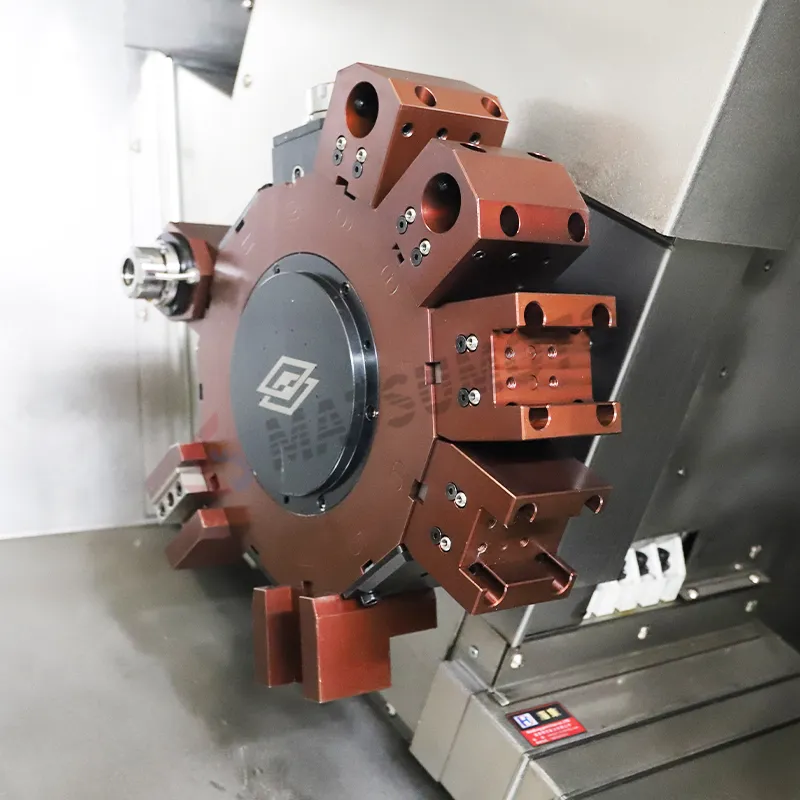

SWORD TOWER

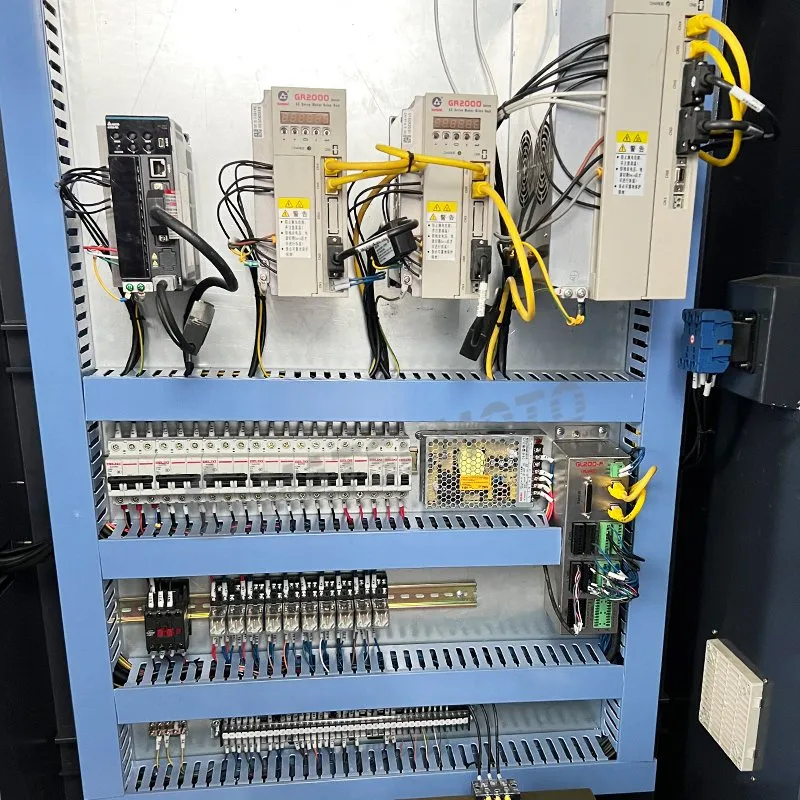

ELECTRICAL CONTROL BOX

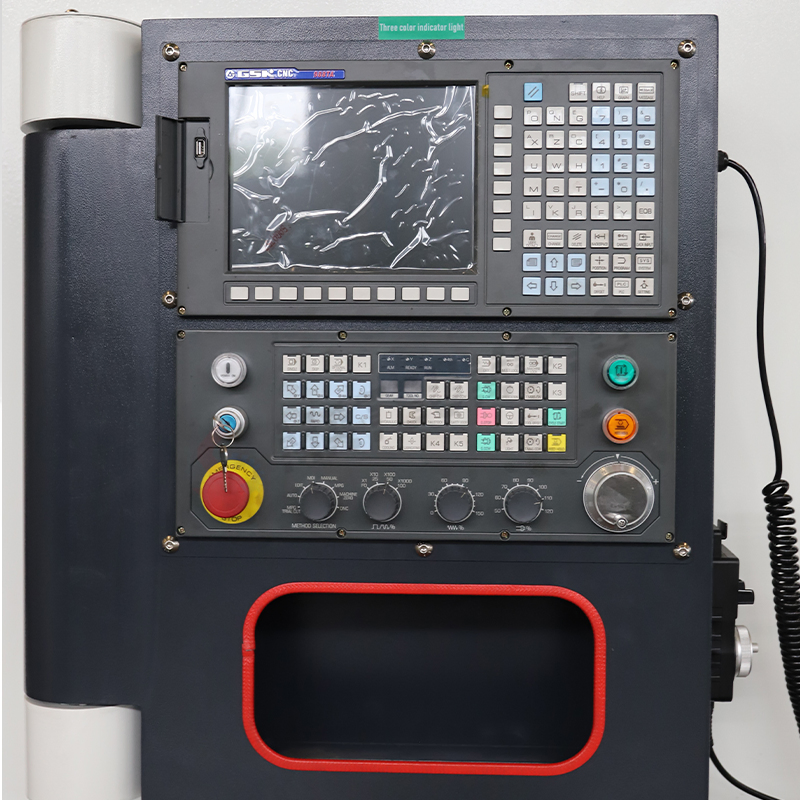

CNC CONTROL SYSTEM
QUENCHED GUIDE RAILS

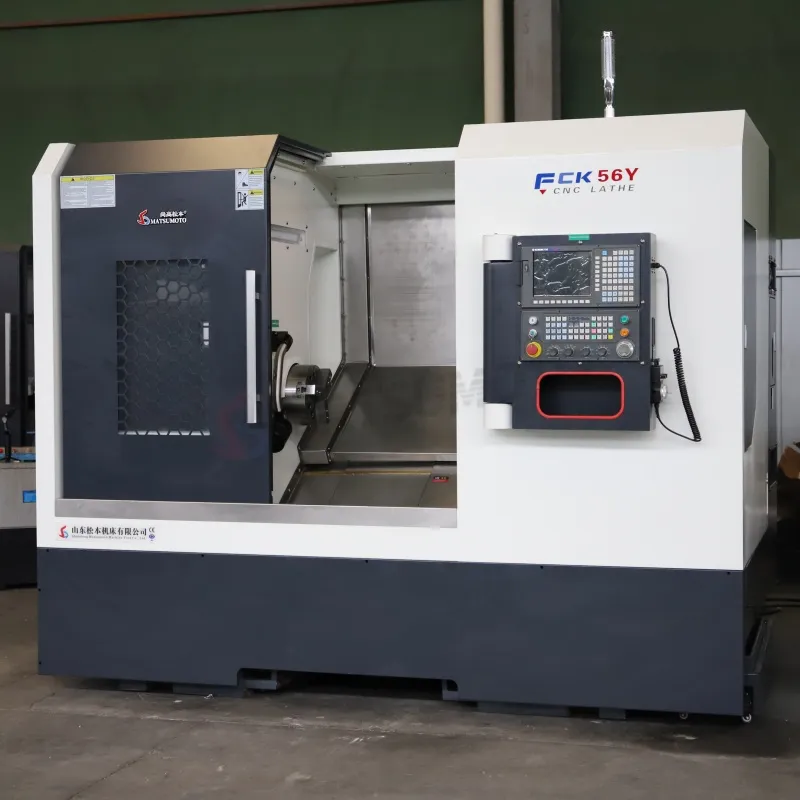

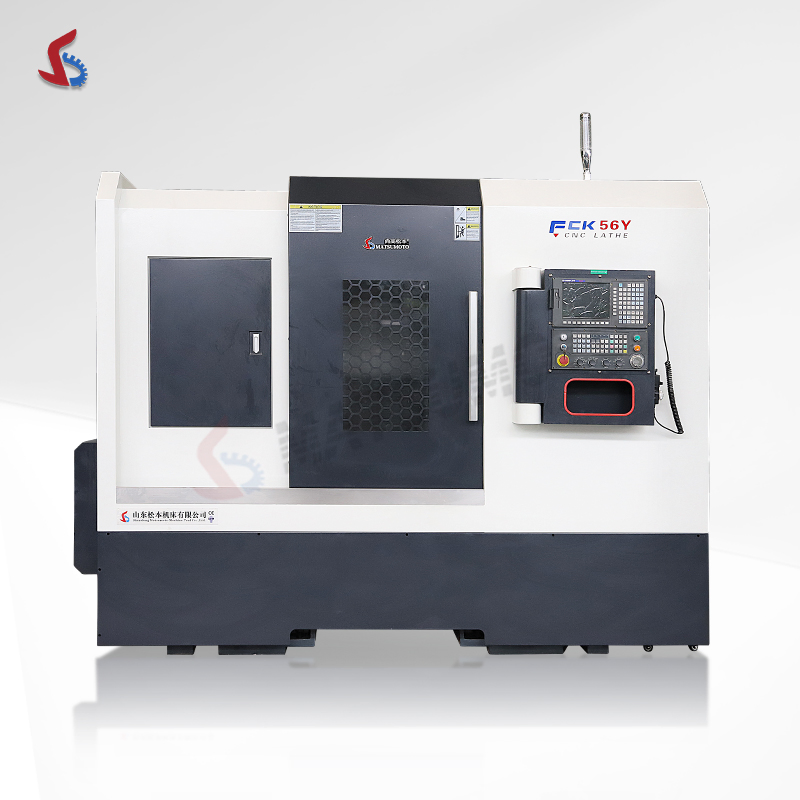

FULL VIEW
