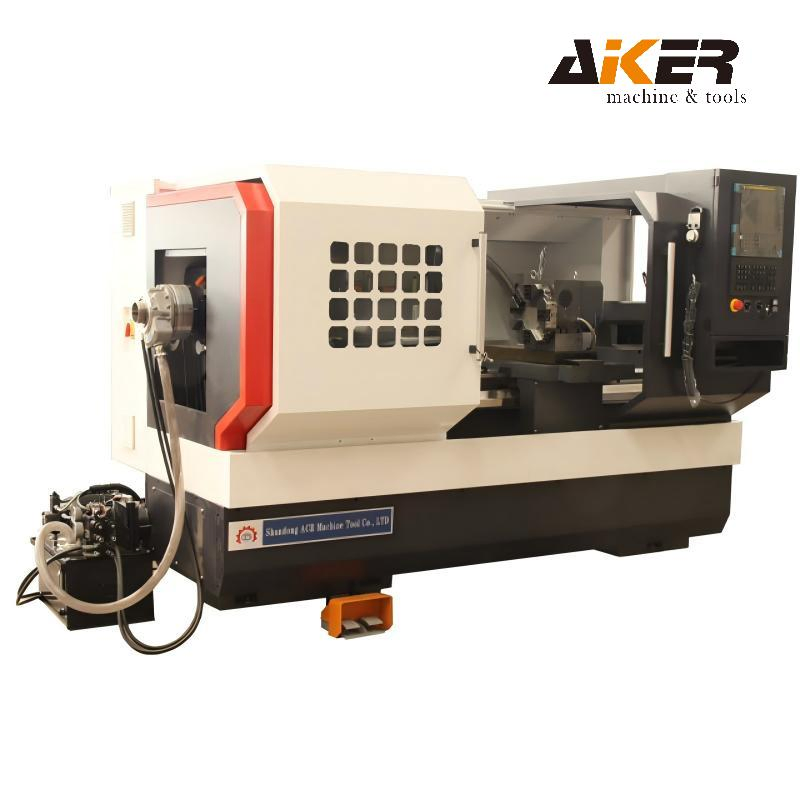

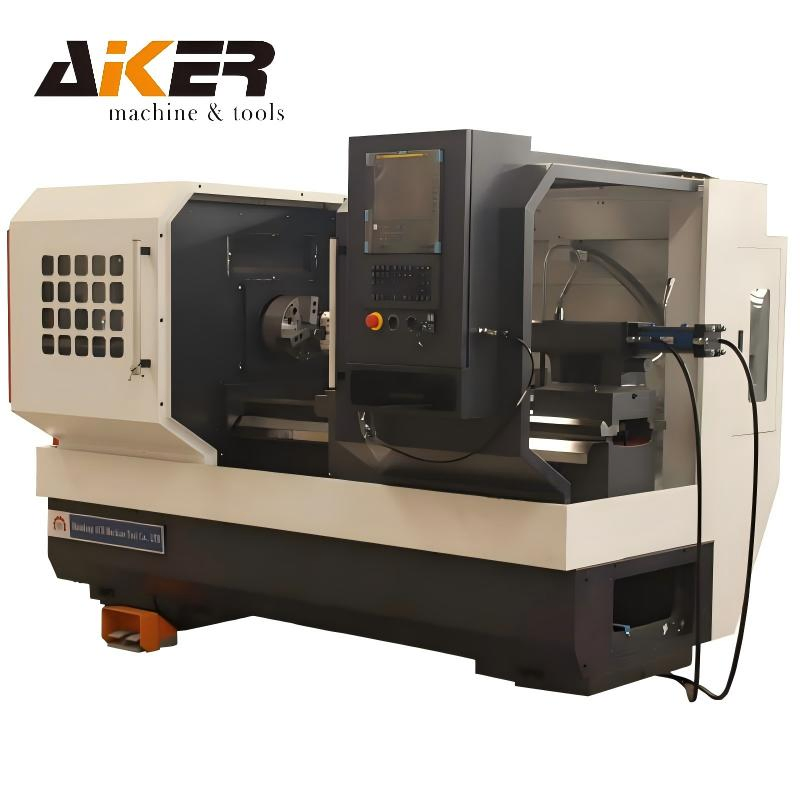

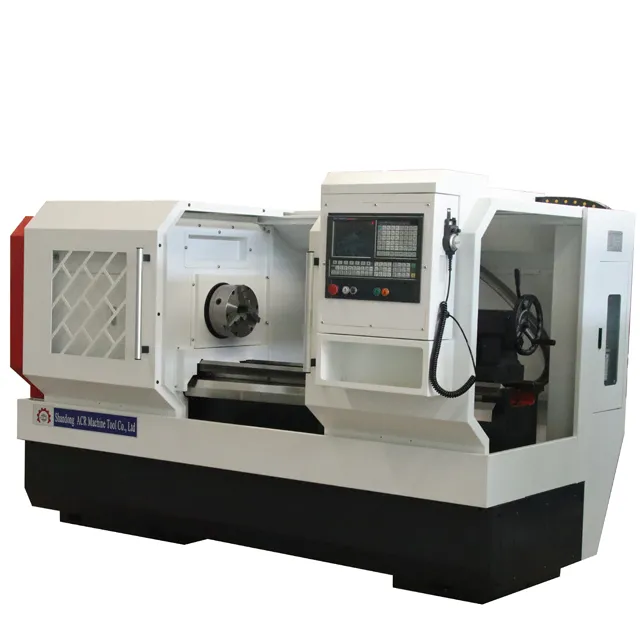

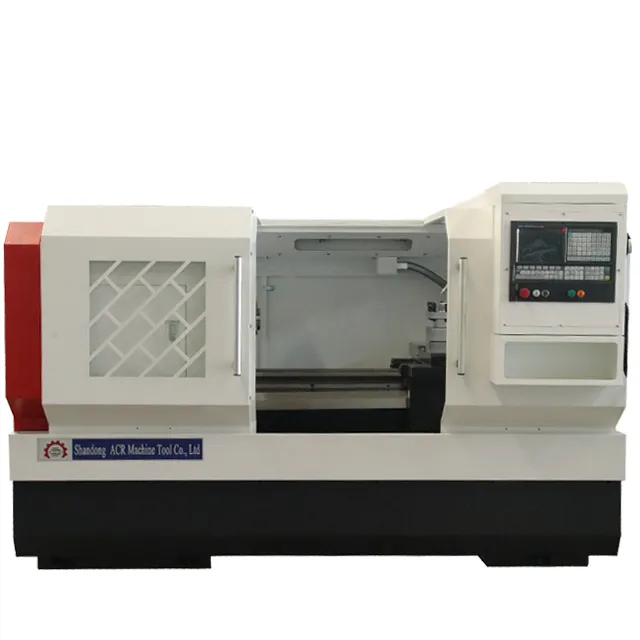

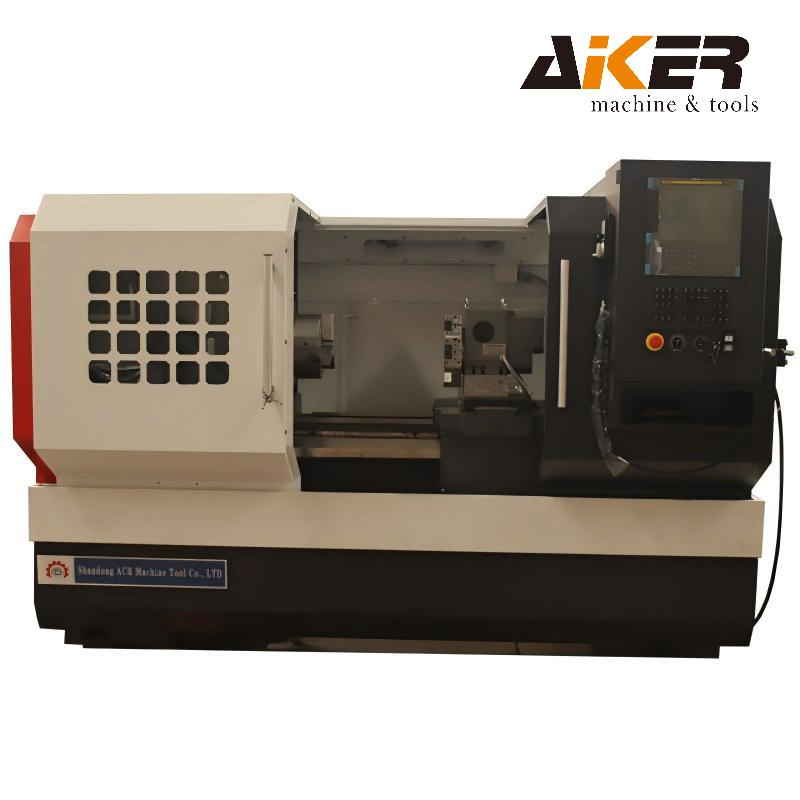

High Precision Automatic CNC Lathe Machine Ck6156 Compact CNC Lathe

1 / 5

High Precision Automatic CNC Lathe Machine Ck6156 Compact CNC Lathe

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

Ck6156

Application

Metal

Processing Precision

0.04~0.05(mm)

Swing Over Bed

560

Spindle Bore

Numerical Control

CNC/MNC

Product Description

This series of lathes features a monolithic cast bed, providing strong rigidity and a stable structure. Combined with a stepless variable-speed independent spindle, they offer reliable performance and higher precision. Suitable for all kinds of shaft and disc parts to automatically complete internal and external cylindrical, conical, arc, and end face processing.

MANUAL CHUCK

3-jaw structure for high versatility. Can hold various shaped workpieces such as cylindrical and hexagonal. Easy manual operation without complex power sources.

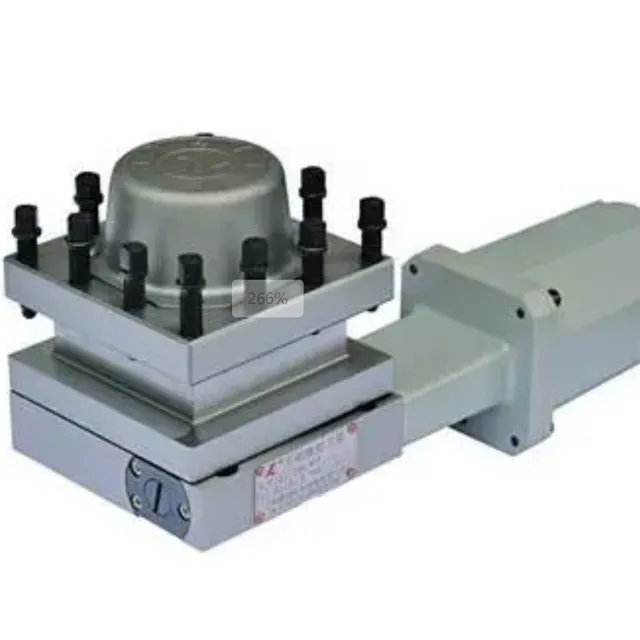

ELECTRIC TOOL TURRET

Features automatic tool changing and 4-position capacity. Improves machining efficiency and accuracy for complex part processing like turning, drilling, and grooving.

Product Parameters

SPECIFICATIONS	Units	CK6156
Swing over bed	mm	560
Swing over cross slide	mm	350
Distance between centers	mm	1000/1500/2000/3000
Spindle bore	mm	82
Spindle speed range	rpm	L:45-200 M:160-800 L:600-1600
Turret/tool post	-	Electric 4 position
X/Z axis rapid traverse	mm/min	6000 / 8000
Spindle motor power	kw	11

Standard & Optional Configuration

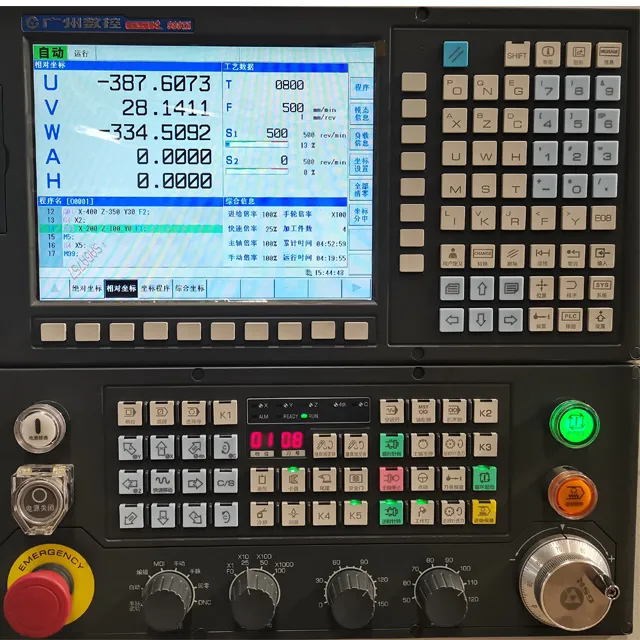

Available Options: FANUC System, SYNTEC System, Siemens System, Hydraulic Chuck, Oil Mist Collector, and Air Conditioning for control cabinets.

Manufacturing Excellence

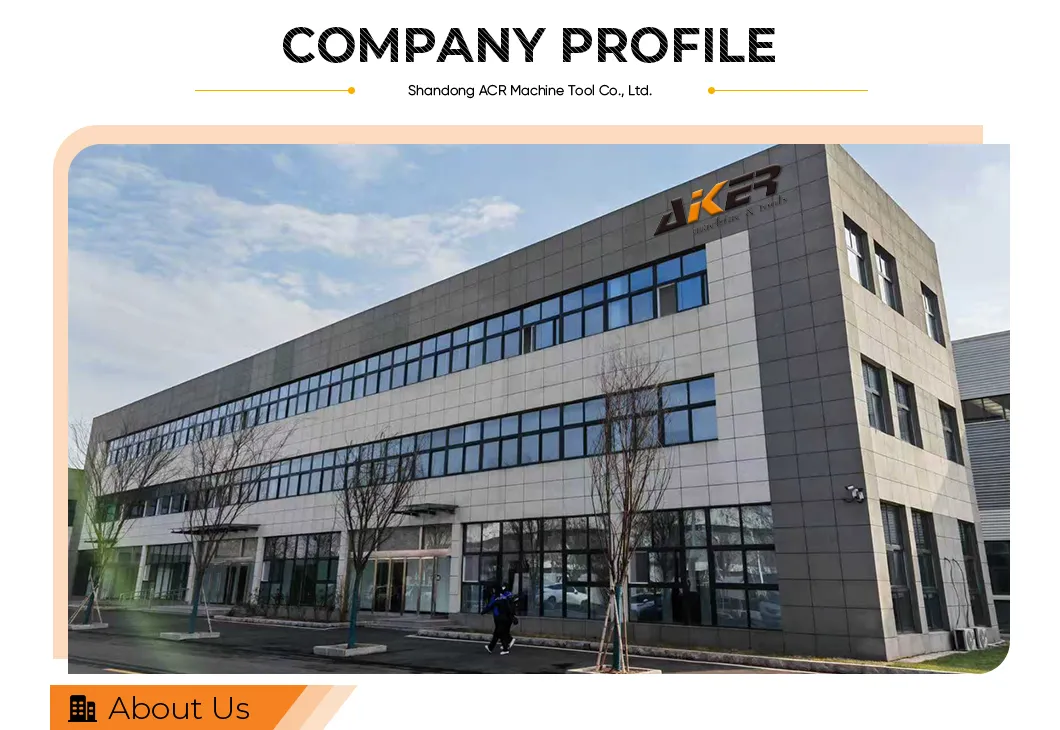

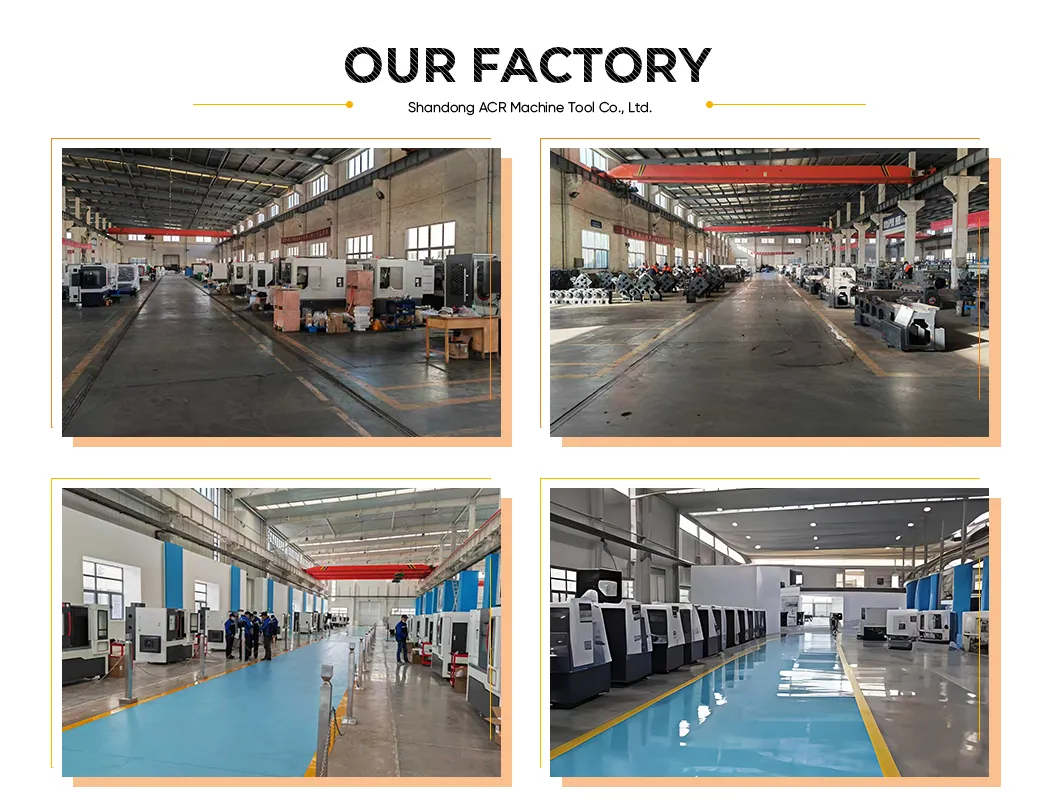

Specializing in the research, development, and manufacturing of CNC lathe machines, vertical machining centers, and gantry machining centers. Our products are exported globally to South America, Southeast Asia, Russia, and the Middle East, recognized for high precision and reliable structure.

Frequently Asked Questions

How can I choose the most suitable machine?

Please provide your technical specifications or product drawings. Our engineers will analyze your requirements and recommend the most suitable model for your production needs.

What are your main product lines?

We specialize in a comprehensive range of metalworking machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Shaper machines.

What are the available trade and payment terms?

We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most of our CNC machinery. Some specific low-cost auxiliary machines may require higher quantities.

Can you provide customized machine configurations?

Yes. If our standard models do not meet your specific requirements, we offer customization services to tailor the machine's features to your production environment.

Do you provide international shipping and packaging?

Yes, all machines are secured in professional wooden box packaging to ensure safety during long-distance maritime or land transport.
