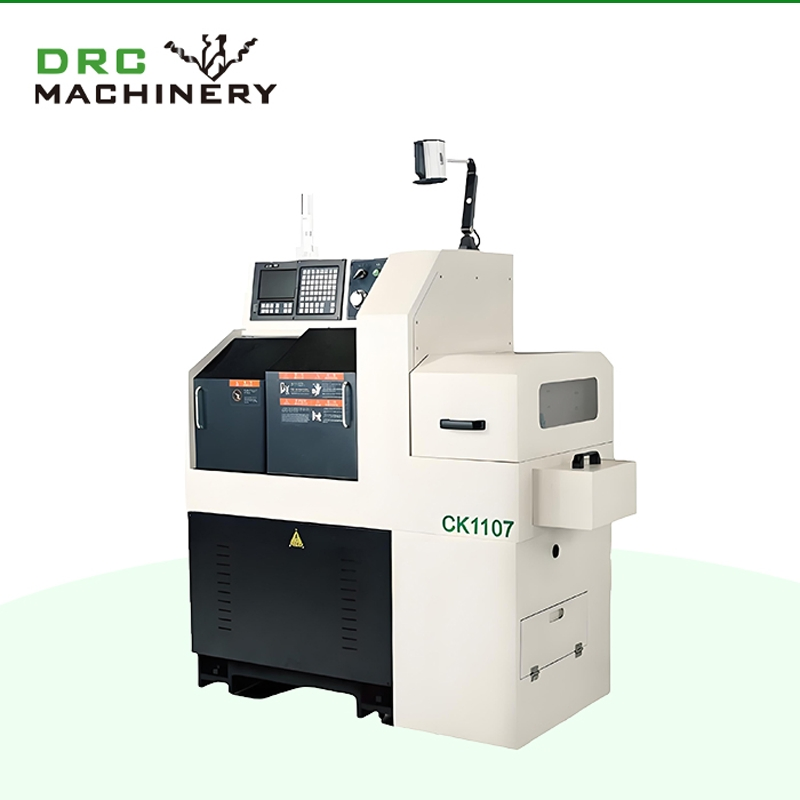

High-Precision Ck1107 CNC Turning Machine for Parts Manufacturing

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.CK1107

TypeHorizontal Lathe

ProcessingChuck CNC Lathe

Guide RailInclined Guide Rail

Power SourceHydraulic Pressure

Control ModeCNC (Automatic)

PrecisionHigh Precision (CE Certified)

Key FunctionAuto Bar Feeding & Precision Turning

Axis7-Axis (X, Y, Z, C, and Sub-Axis)

Dimension1570X890X1800mm

Our Advantages

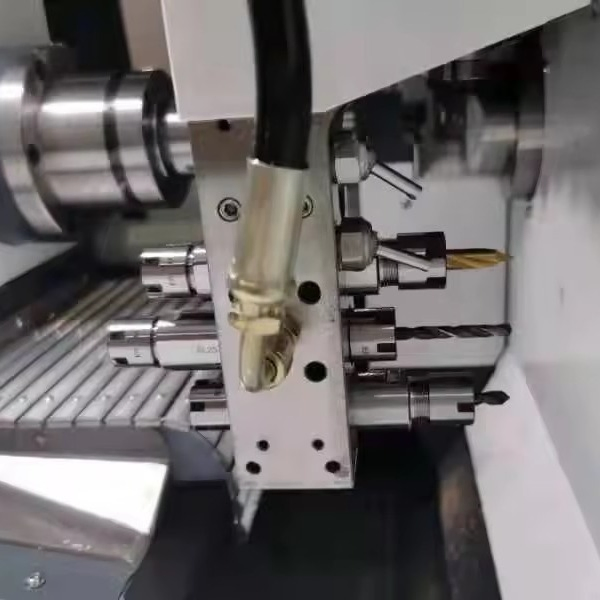

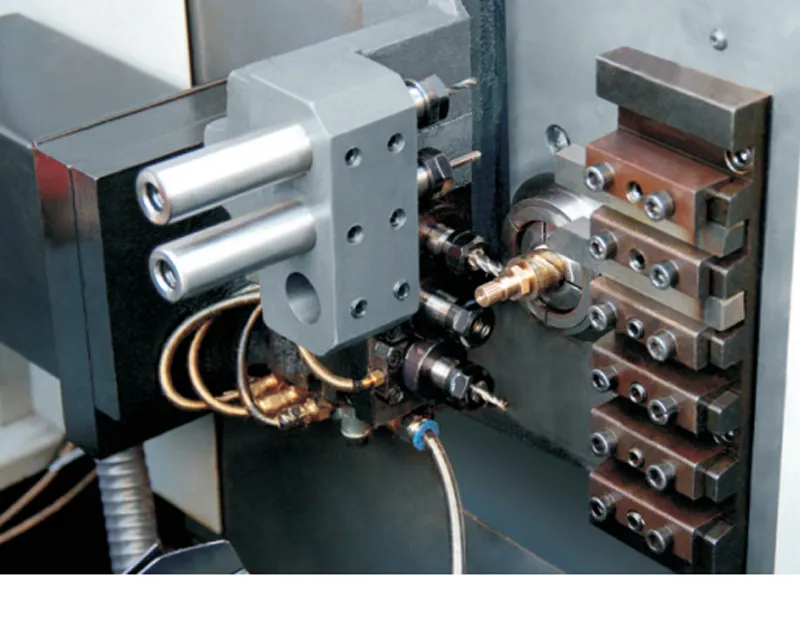

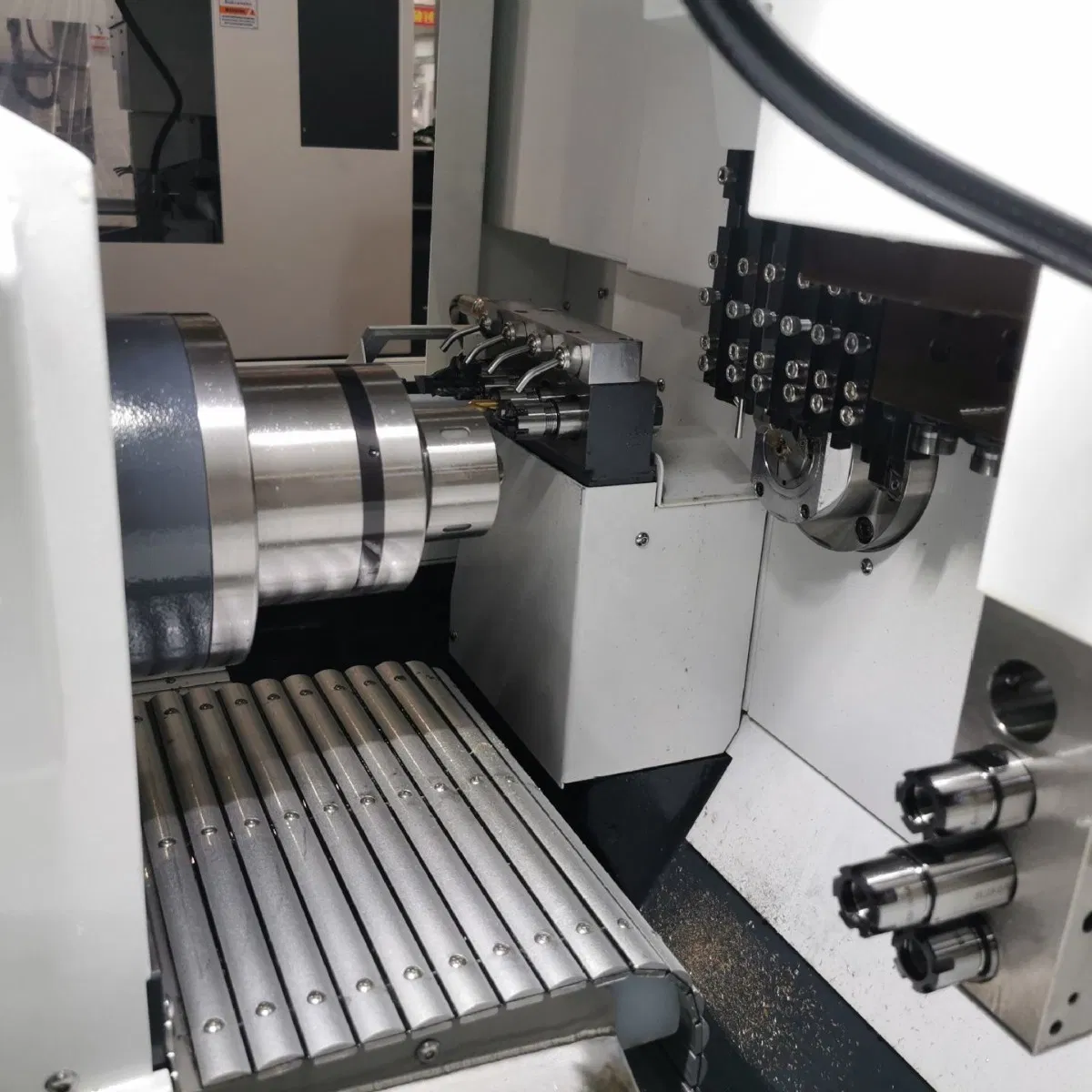

The CK1107 high-speed walking machine features a left and right row tool structure with a large number of tools, ensuring fast tool changes and excellent rigidity. It is specifically designed to process ultra-slender parts with a compact layout that minimizes floor space usage.

✓ High Efficiency: Spindle movable design reduces material feeding times and improves processing for slender parts.

✓ Automation: Equipped with an automatic feeder for one-person management of multiple machines.

✓ Advanced Components: Three feeding axes adopt imported linear rolling guides for high-speed travel.

✓ Versatility: Ideal for medical, electronics, aerospace, and pneumatic tool industries.

Detailed Gallery

Technical Specifications

Category	Parameter	Specification
Power Supply	Voltage	Three-phase AC 380V
	Frequency	50HZ
	Total Power	4kW
CNC System	Model	BYSK YZ150
	Setting Unit	0.001mm
	Pulse Equivalent	X: 0.0005mm / Y,Z: 0.001mm
	Cutting Speed	1--4000mm/min
Spindle	Max Bar Diameter	Φ7mm
	Spindle Speed	0-5000r/min
	Motor Power	2kW
Travel	X / Y / Z Axis	38mm / 80mm / 150mm
	Servo Motors	0.4kW (Each Axis)
	Guide Form	Linear Guides

Frequently Asked Questions

Q: What industries is the CK1107 CNC Lathe best suited for?

A: It is ideal for high-precision mass production in medical, electronics, aerospace, motor accessories, and clock industries, especially for ultra-slender parts.

Q: Does the machine support automatic production?

A: Yes, it is equipped with an integrated automatic bar feeder system to realize full automation and save labor costs.

Q: What is the precision level of this Swiss-type lathe?

A: The machine offers high precision with a minimum setting unit of 0.001mm and uses imported linear guides for stable performance.

Q: What is the maximum spindle speed?

A: The spindle speed ranges from 0 to 5000 r/min, powered by a 2kW motor.

Q: How many axes does the CK1107 configure?

A: It features a 7-axis configuration, including X, Y, Z, C, and sub-axis support for complex machining tasks.

Q: What are the packaging details for international shipping?

A: The machine is packed in seaworthy wooden cases with a gross weight of approximately 1100kg to ensure safety during transport.
