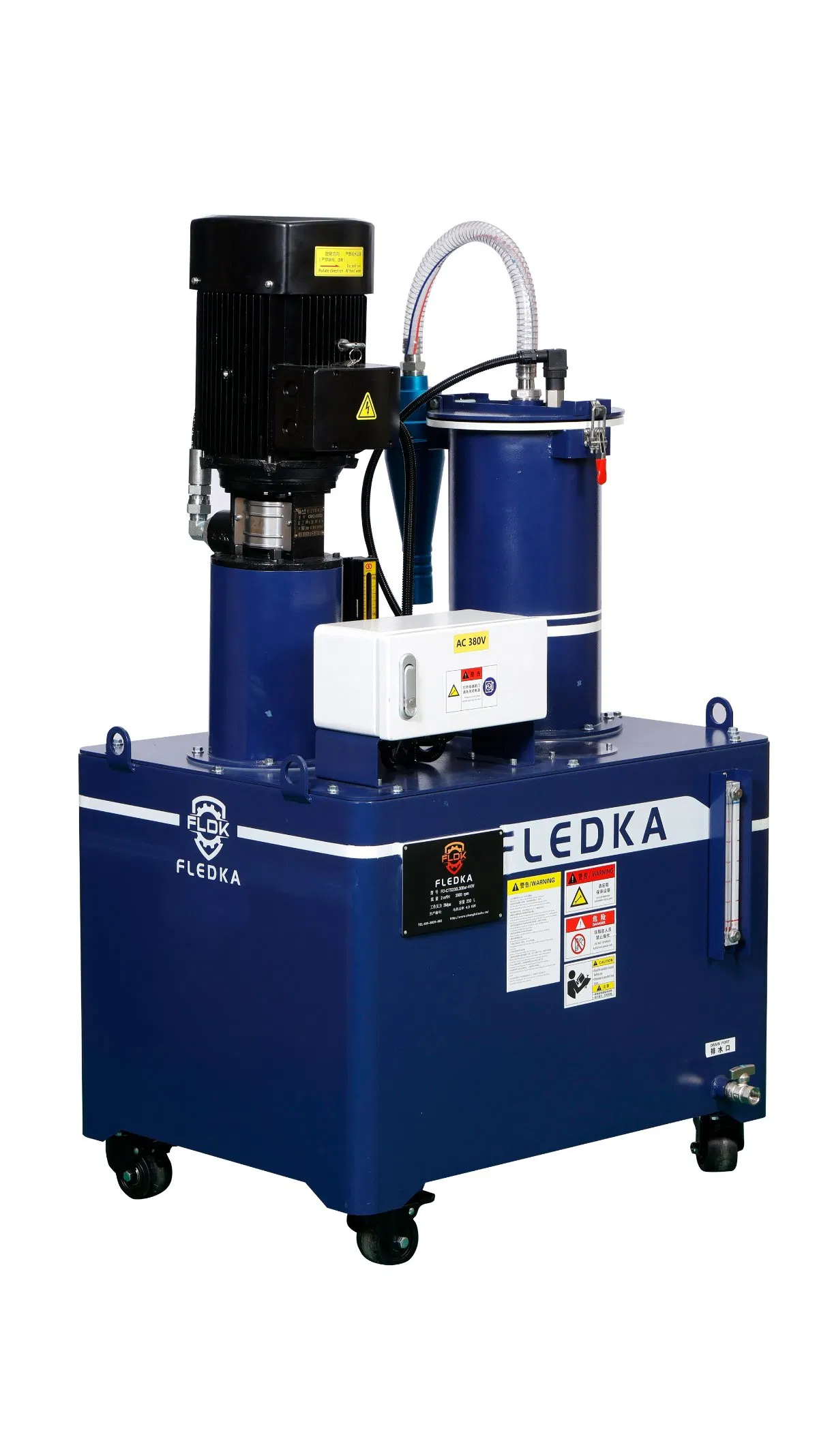

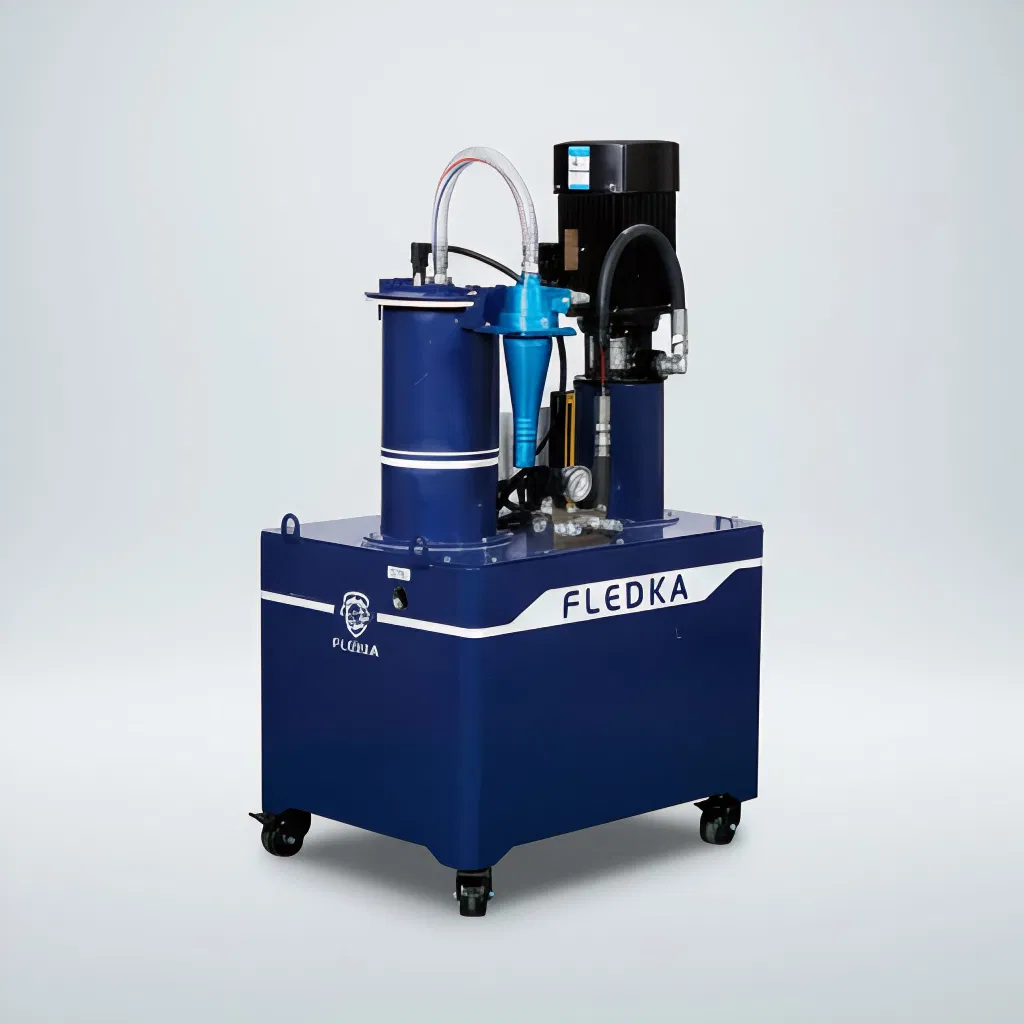

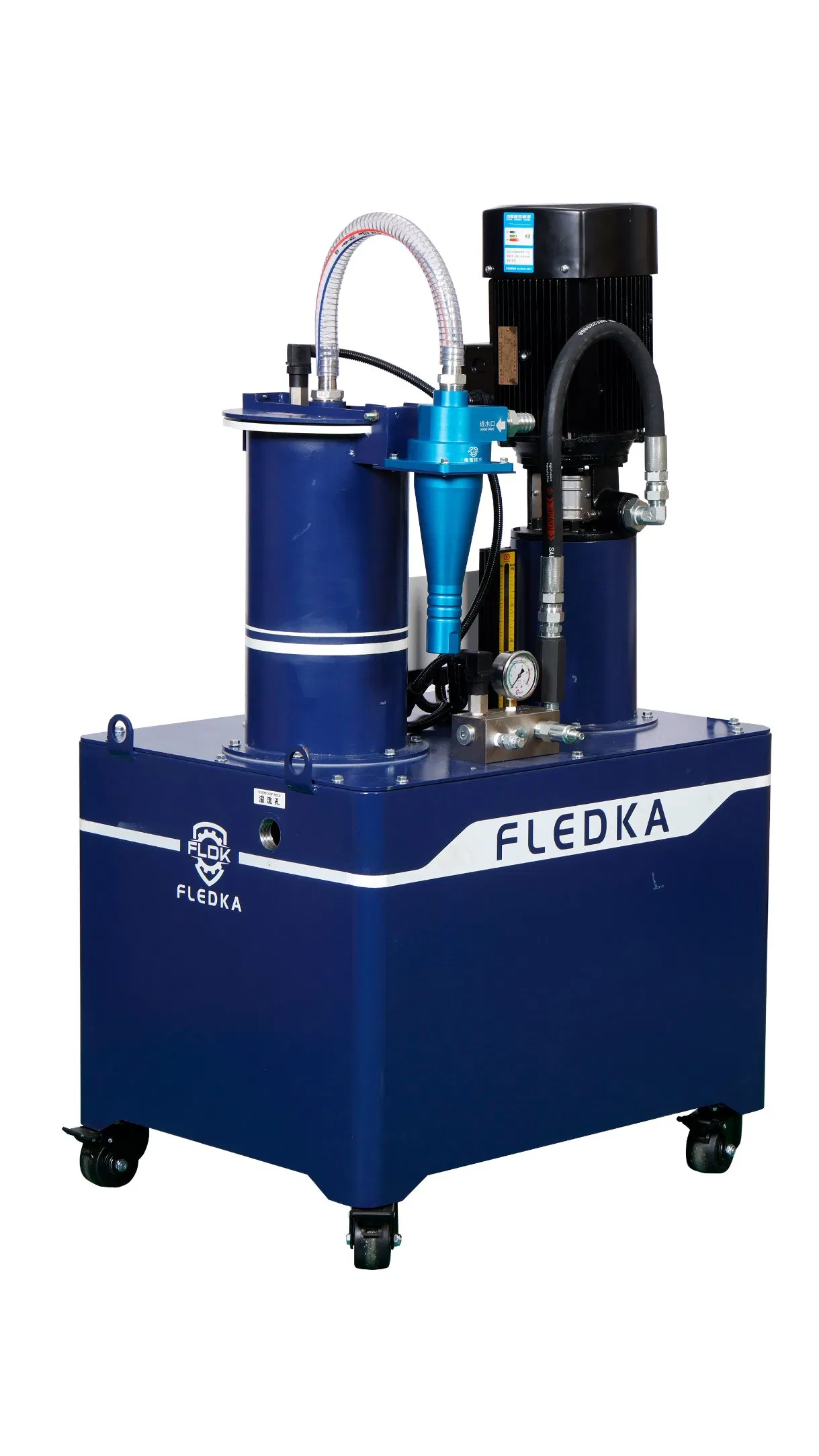

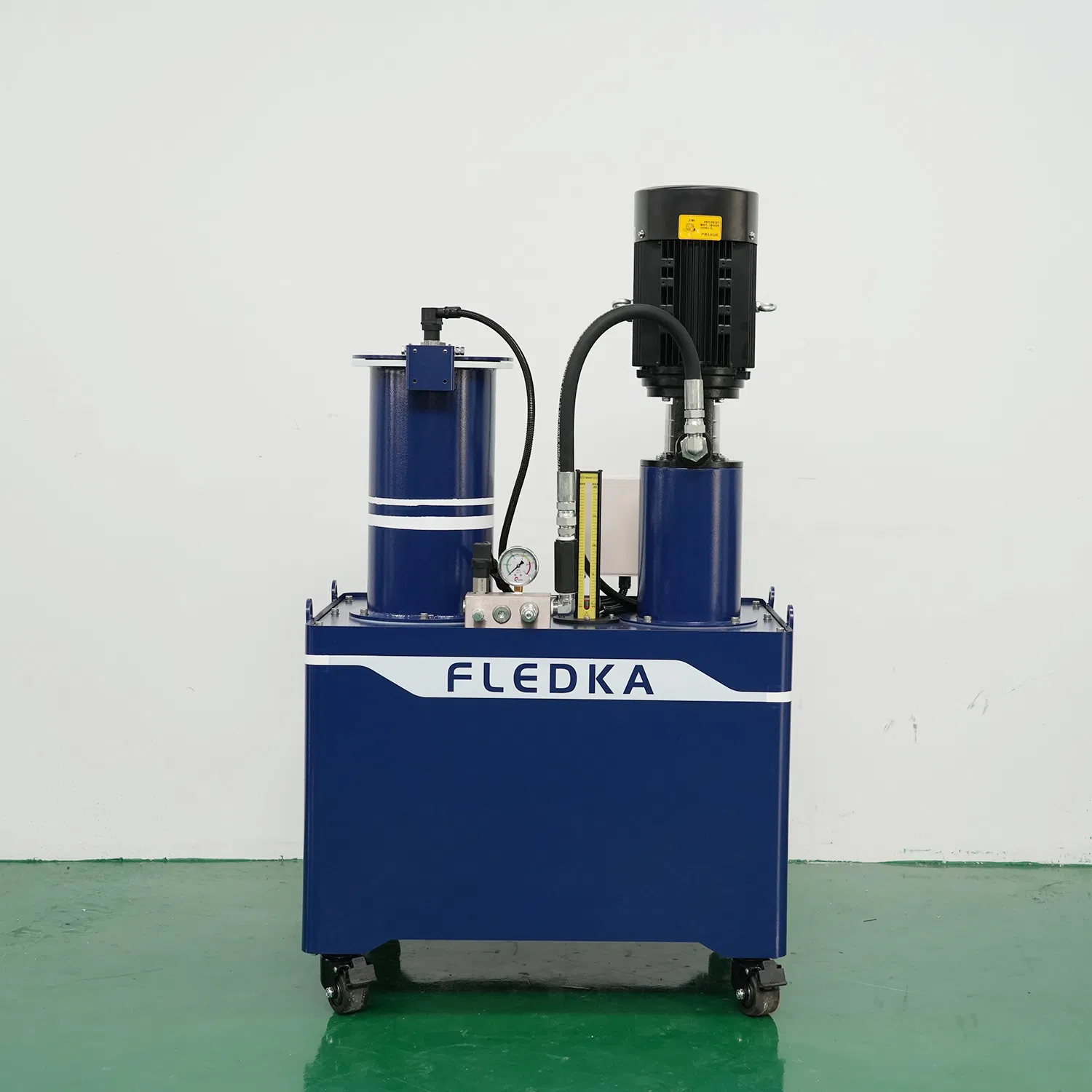

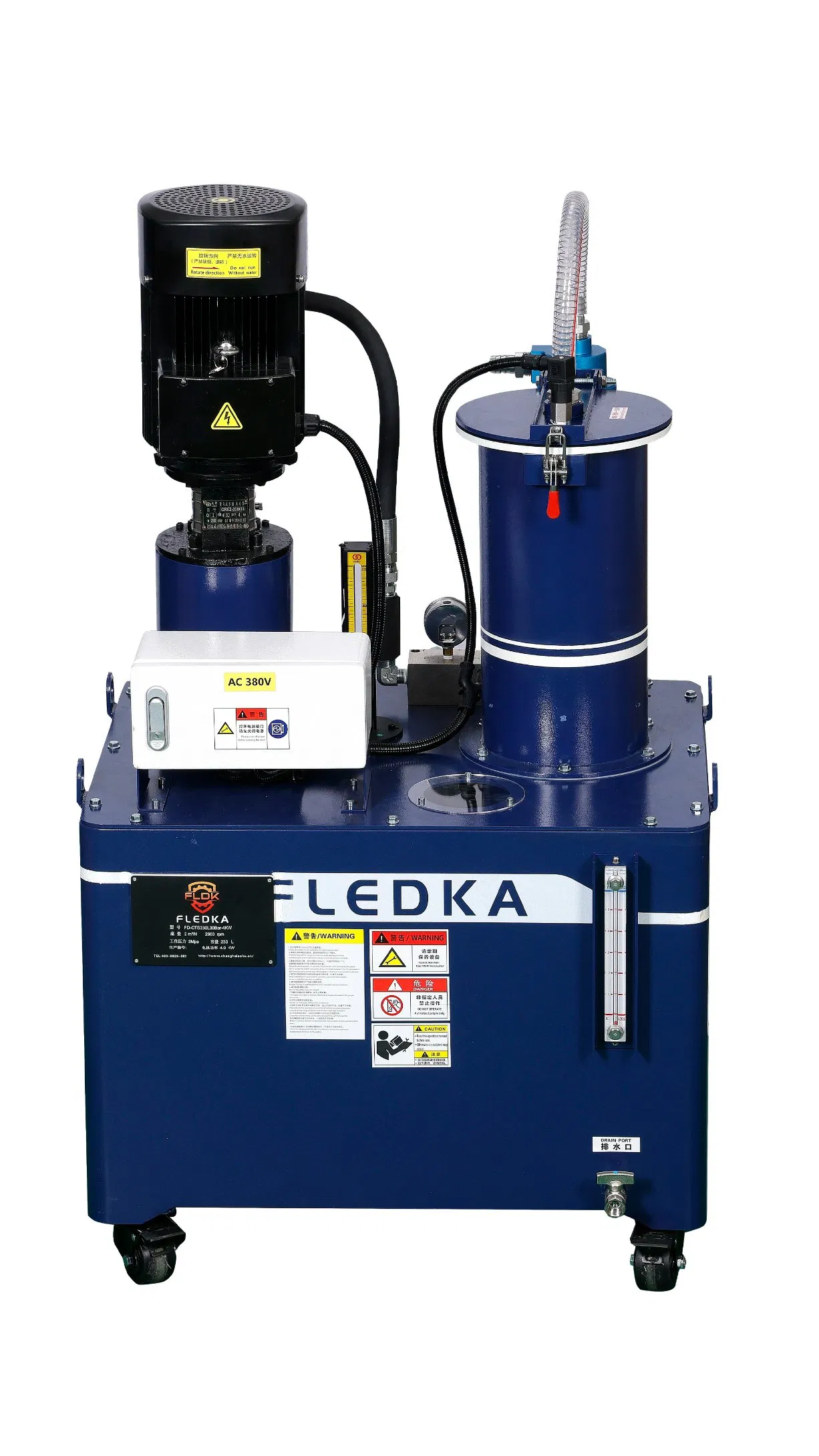

High Efficiency CNC Filtration System for 30 Bar Pressure

1 / 5

High Efficiency CNC Filtration System for 30 Bar Pressure

Customization:	Available
After-sales Service:	7*24h Service
Warranty:	1 Year

Send Inquiry

Product Description

Technical Specifications

Model NO.	FD-CTS230L30Bar-4KW
Type	High-Pressure Through-Spindle Coolant
Cooling Water	Industrial Water
System Type	Closed System
Fans Species	Single-speed Fan
Noise Level	Low
Application Fields	Precision Machining, Turning, Milling and Drilling
Certification	CE / ISO
Weight	250kg
Specification	75012001650

Product Description

During product processing and over cutting and hot cutting, the steam barrier is formed and the chip liquid is unevenly distributed, so that the tool tip cannot obtain the required cooling. In the case of insufficient cooling of the cutting tool, the iron chips will return to the cutting point. Therefore, repeated processing of chips will shorten the tool life and damage the surface finish of the workpiece.

HY series high-pressure Through spindle coolant filtration system high-pressure centralized aiming chip liquid can penetrate the steam barrier, smoothly reduce the high temperature generated during cutting, effectively supply chip liquid, significantly improve the tool life, sufficient lubrication, and improve the surface finish and accuracy of the workpiece.

Key Advantages

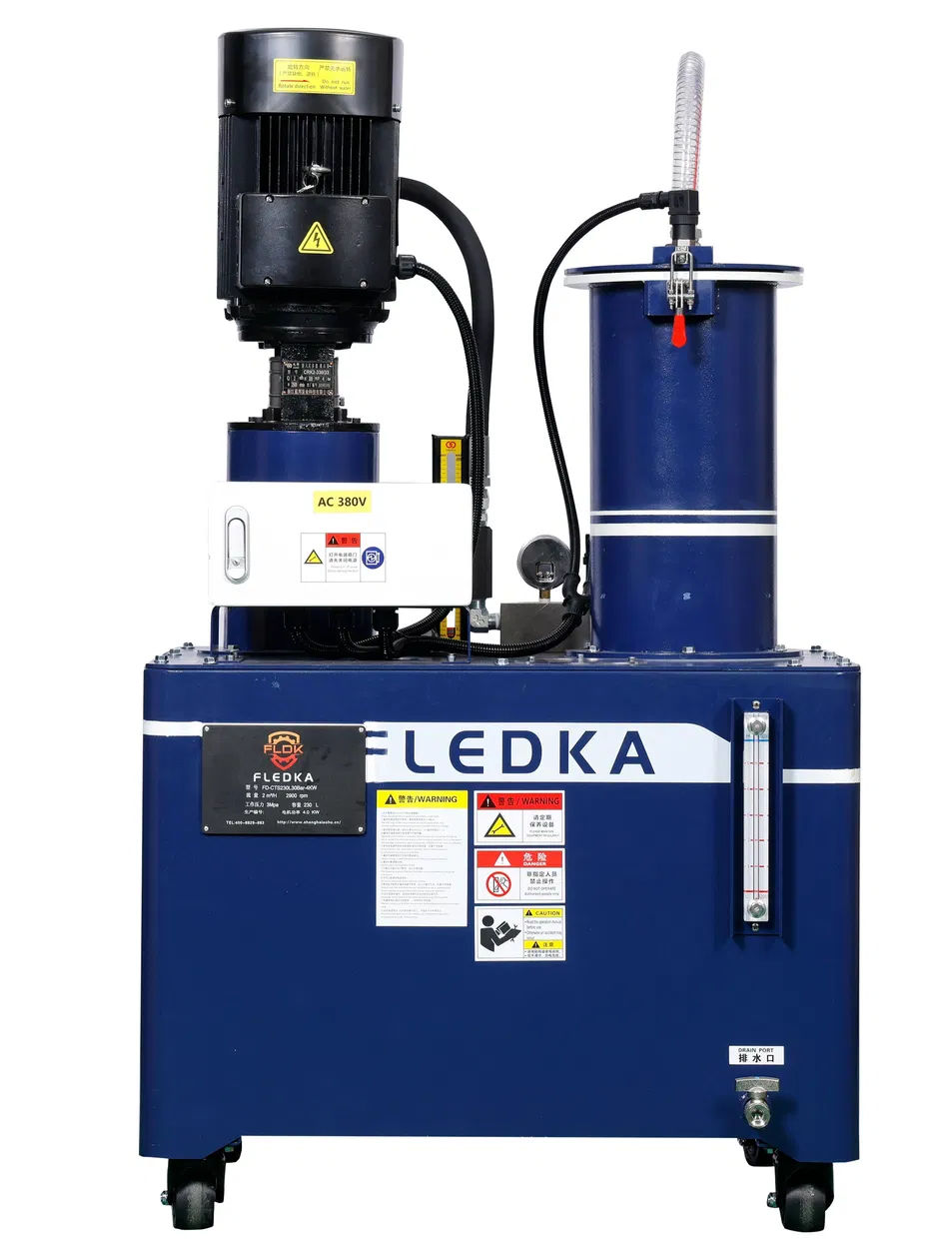

🚀 1. Superior Heat Management

By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation of the workpiece and tool, ensuring tighter tolerances and consistent part quality.

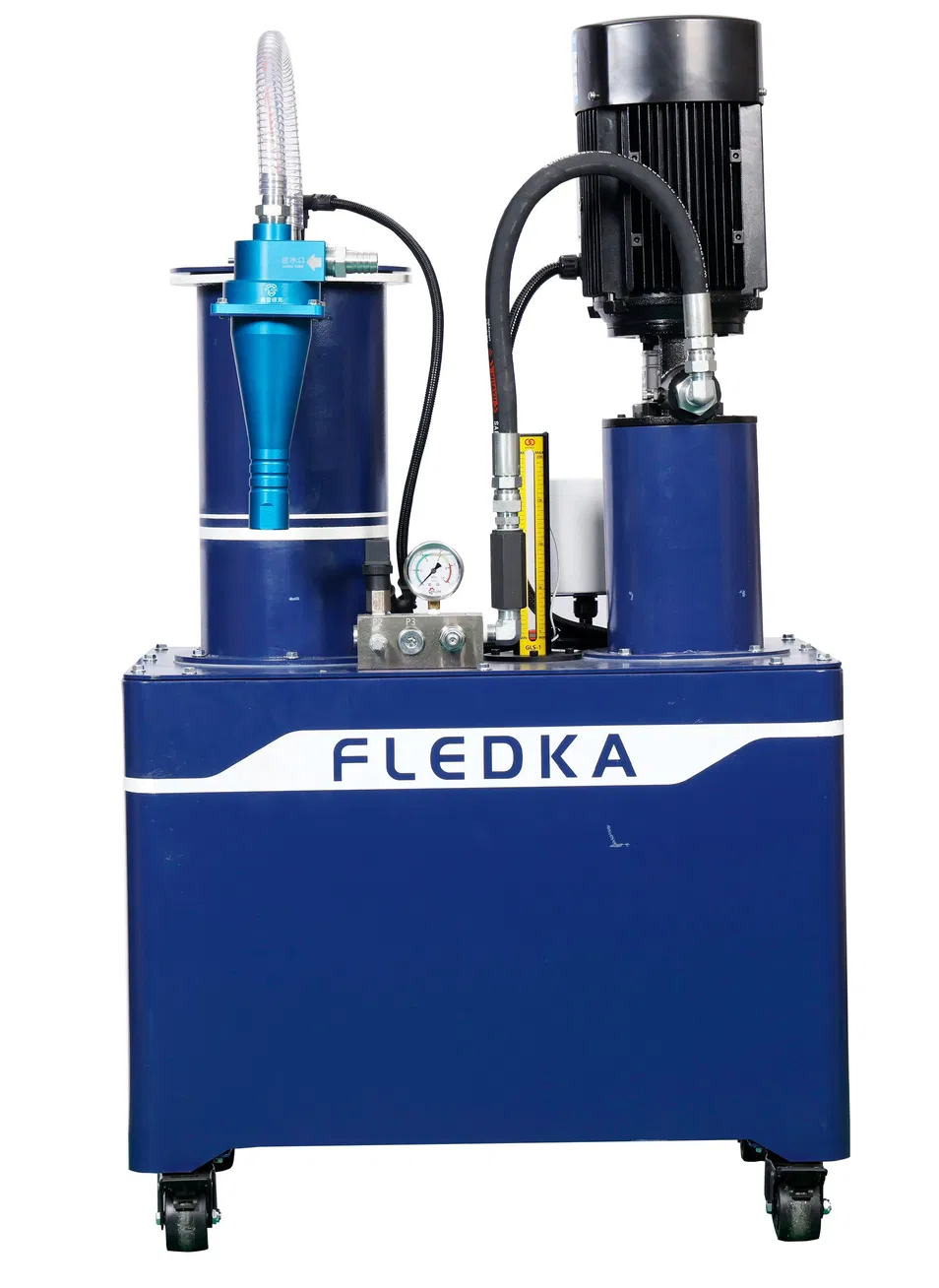

🚀 2. Efficient Chip Evacuation

The high-pressure coolant flow effectively flushes away chips from the cutting zone. It prevents chip re-welding, entanglement, and accumulation, which can lead to tool breakage and surface finish defects.

🚀 3. Force Transmission & Responsiveness

🚀 4. Flexible Customization

We offer extensive customization options to match specific machinery and cutting requirements. From adjustable stroke lengths to tailored mounting interfaces, the Knife Cylinder can be modified to fit unique equipment designs.

Professional Capabilities

Equipped with warehousing and inventory capabilities that allow us to respond swiftly to urgent orders. Our facilities include 4 technical R&D teams and 5 dedicated testing and inspection laboratories, ensuring strong mass production and product innovation.

Frequently Asked Questions

Q1. Can I get samples? Sorry, as our quotation is already very low, we are unable to provide you with samples. If you have a large purchase quantity, we can deduct the cost of sampling in our future cooperation.

Q2. Can I use my own logo or design on the products? Yes, we provide OEM/ODM services. Your logo and design can be applied to the products, and we also support non-standard customization.

Q3. Do you have your own factory? Yes, we have a 4,000-square-meter professional manufacturing facility. We have an efficient R&D team providing comprehensive OEM/ODM services to customers.

Q4. What is your production capacity? We have mature production lines with an annual capacity of 70,000 sets of 4th/5th axis cables, 5,000 hydraulic power units, 5,000 tool release cylinders, and 2,000 high-pressure through-spindle coolant systems.

Q5. When will the products be shipped? Standard products are in stock and can be shipped immediately. For non-standard customized products, the lead time is typically 2-4 weeks depending on core component selection.

Q6. What industries are your products suitable for? Our solutions are versatile and widely used in precision machining, turning, milling, drilling, packaging, textiles, and metalworking industries.
