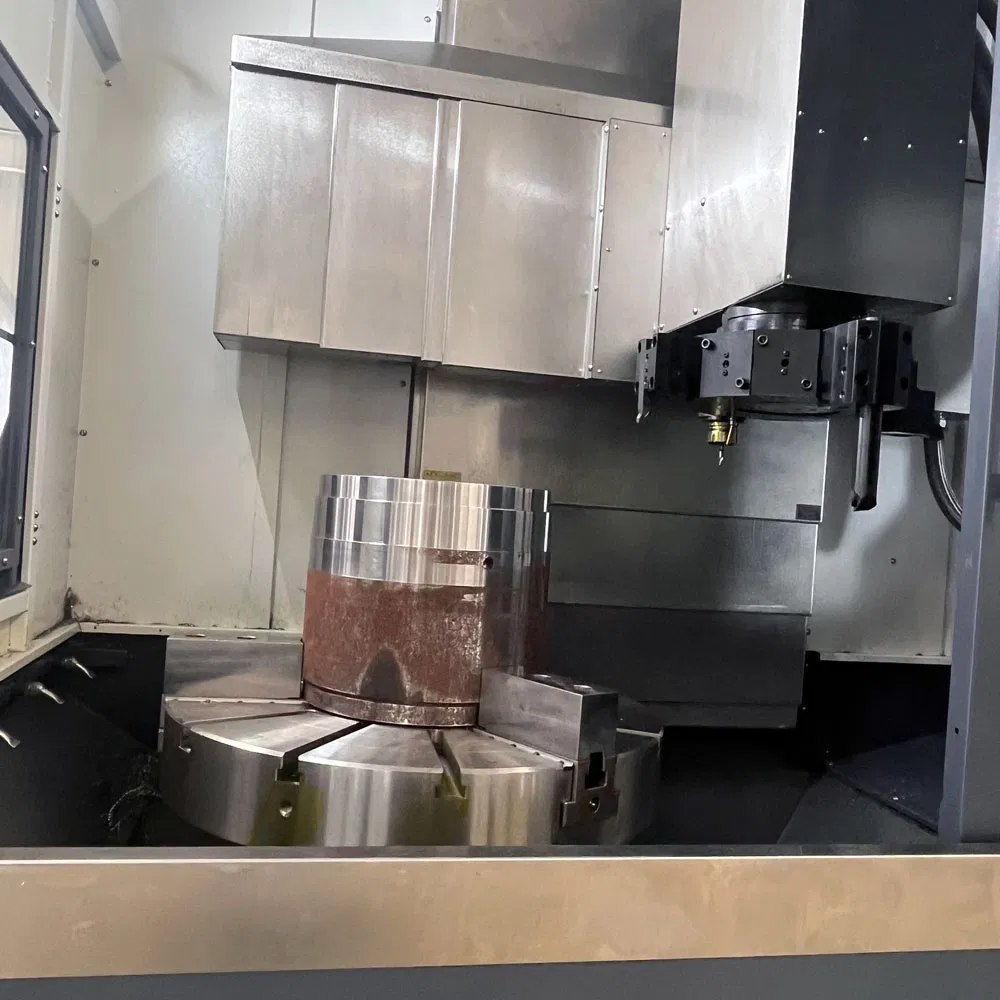

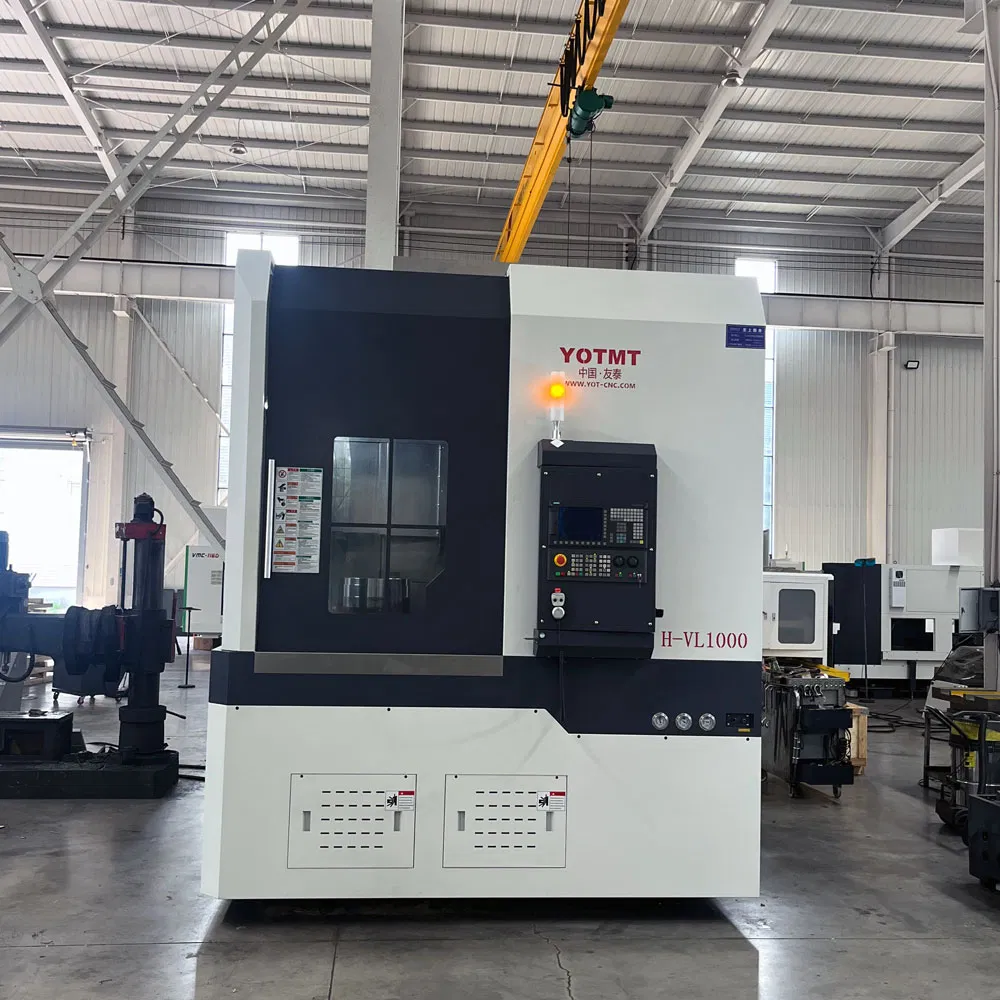

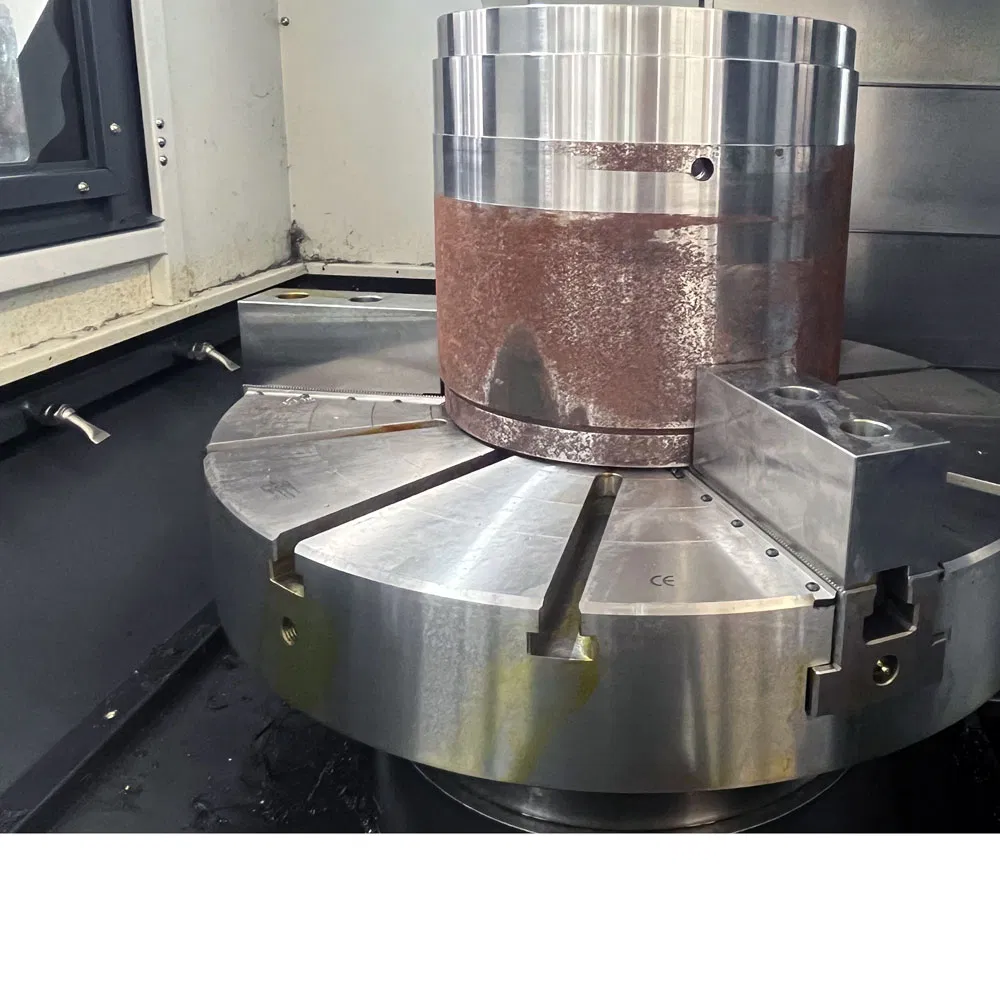

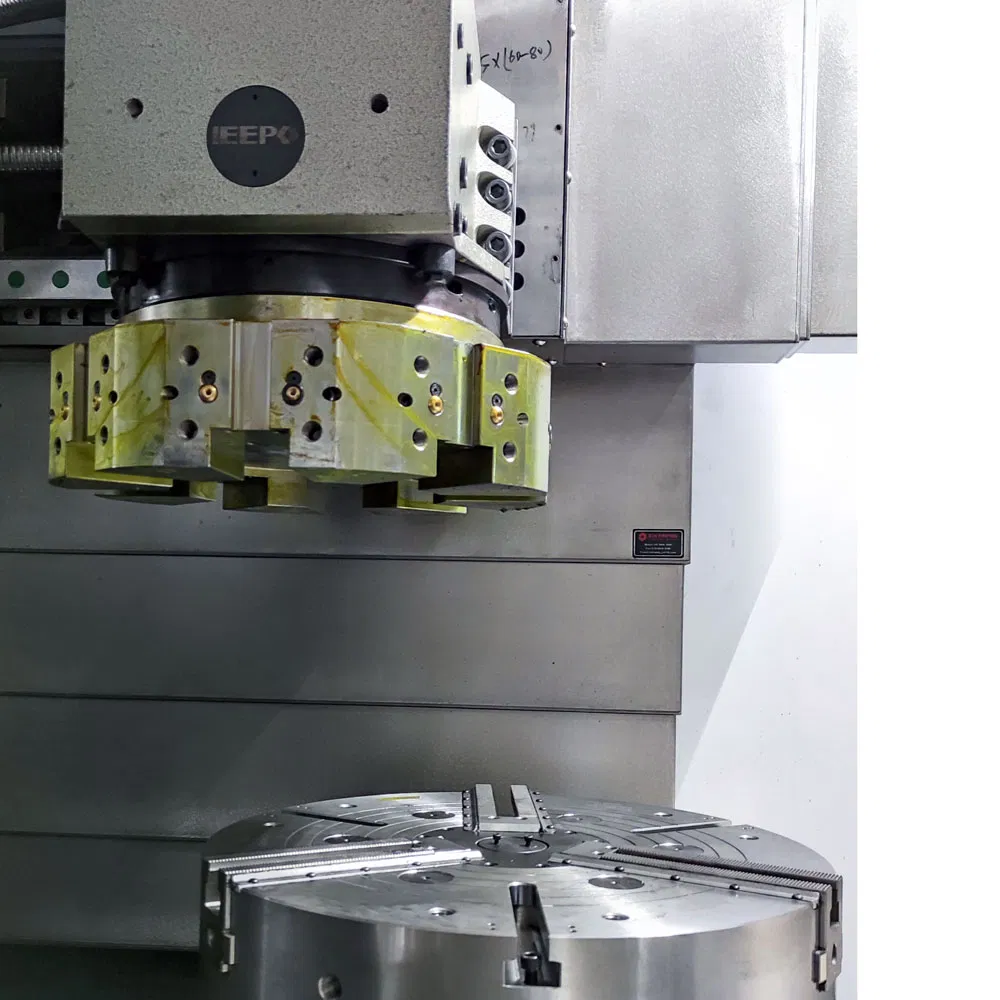

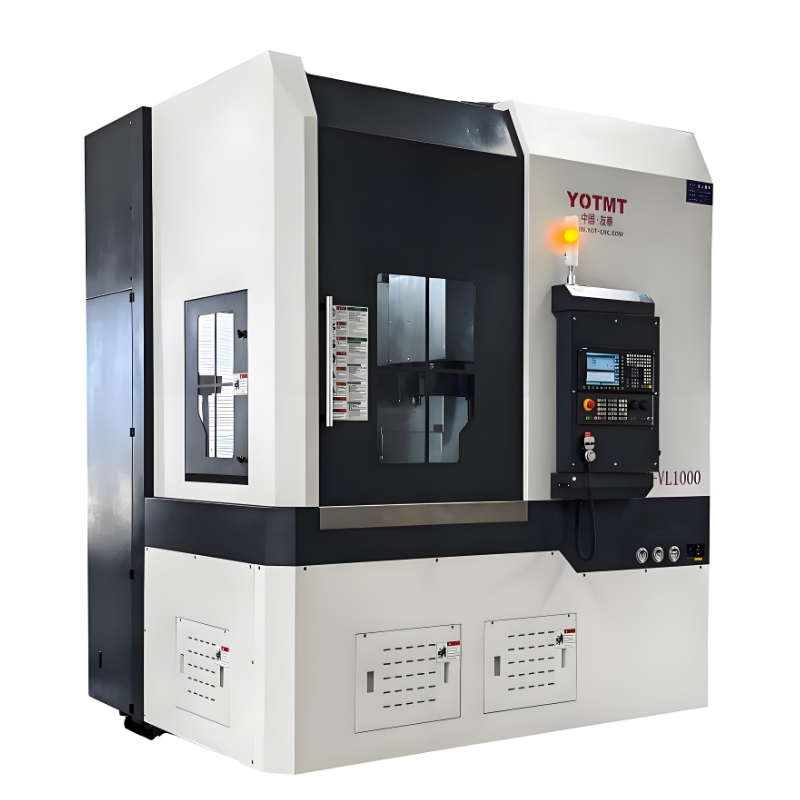

Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
1 / 5
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm
Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm

Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm

Customization: Available
After-sales Service: on Site / Online
Warranty: 1 Year
Send Inquiry

Product Description

1

Overview - Basic Info

Model NO.
H-VL
Type
Vertical Lathe
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Core Advantage
Heavy Duty, Customized, High Rigidity
CNC Type
CNC Brand Optional
2

Product Description

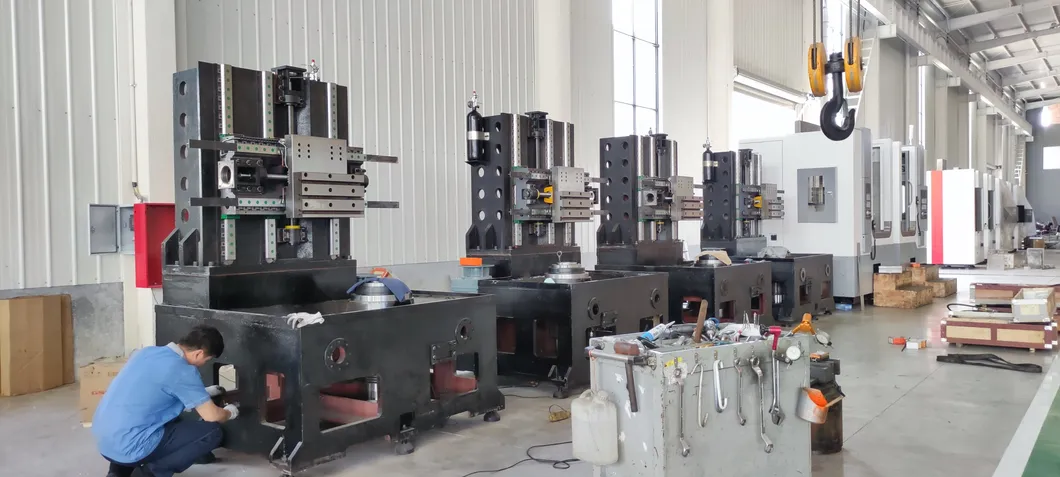

Heavy Duty Vertical Lathe

Expert Professional Manufacturer Specializing in Metal Turning Vertical CNC Lathe Machines

Expertly crafted with an exceptional array of experience in professional production line customization design, our solutions are tailored to deliver precise and innovative results. Our offerings are meticulously aligned with the unique and personalized needs of each user, ensuring perfect harmony and satisfaction.

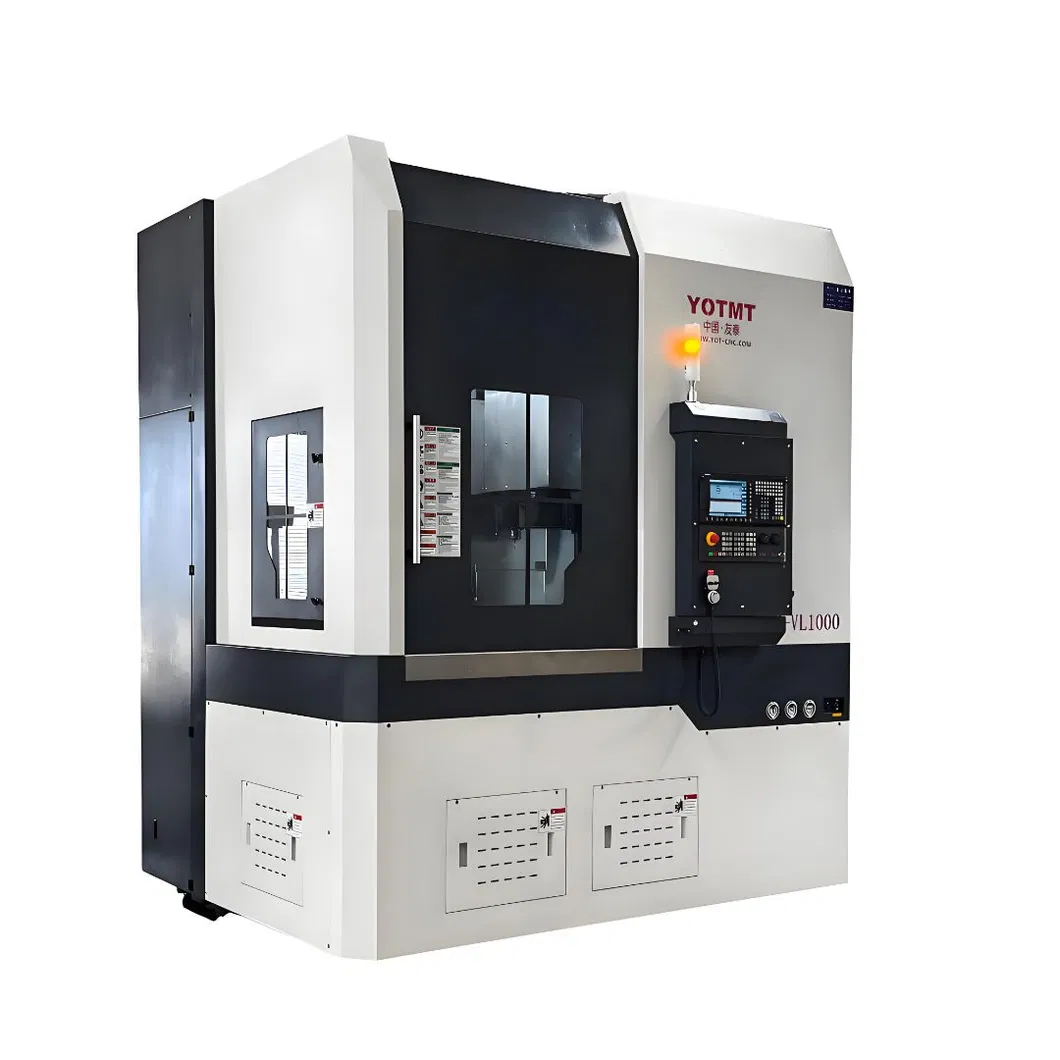

Vertical Lathe Detail

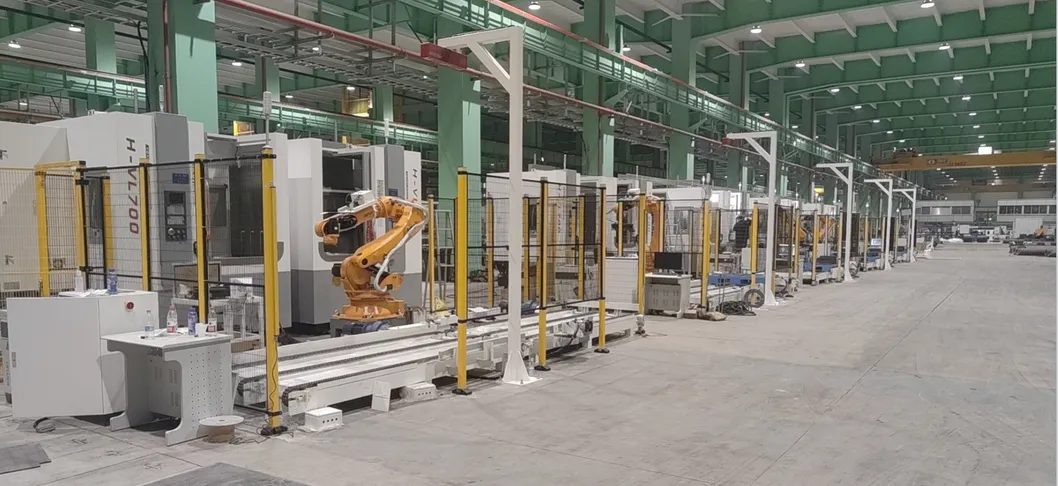

CNC Lathe Design

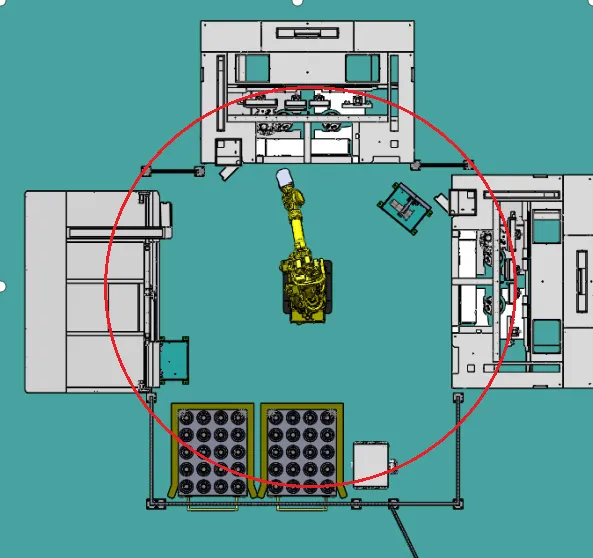

Vertical CNC Technology

Key Technology Highlights

  • Robust and Rigid Bed Design: Integral casting reinforced with rib structures and 3+2 heavy-duty cylindrical roller screw guide rails.
  • High-Torque Intelligent Drive: Customizable servo motors achieving 3000N·m torque for cemented carbide and titanium alloy.
  • Intelligent Production: Optional automatic tool setting and cloud data management for 24-hour unmanned production.
3

Product Parameters

MODEL SWING DIAMETER (MM) TURNING DIAMETER (MM) WORKPIECE LENGTH (MM)
H-VL700770700650/750
H-VL850920850650/1000
H-VL100011001000800/1200
ITEM UNIT H-VL700 H-VL850 H-VL1000
Spindle SpeedRPM50-150050-150030-800
X/Z Axis Fast MoveMM20000/2400016000/2000012000/16000
Positioning AccuracyMM0.008/0.01
Spindle PowerKW18.52230
4

Detailed Photos

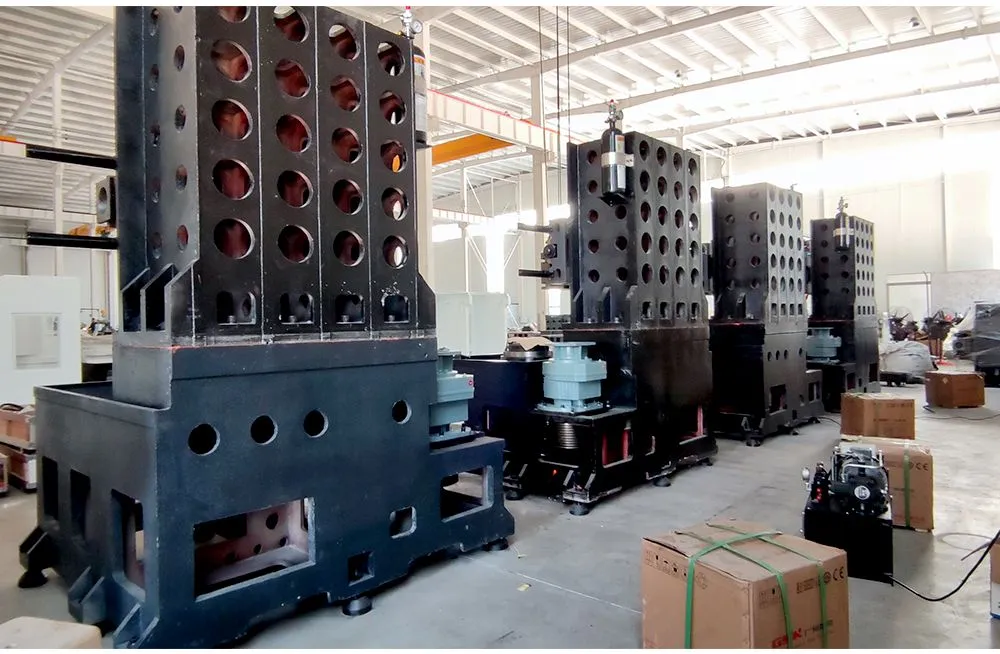

Detail 1

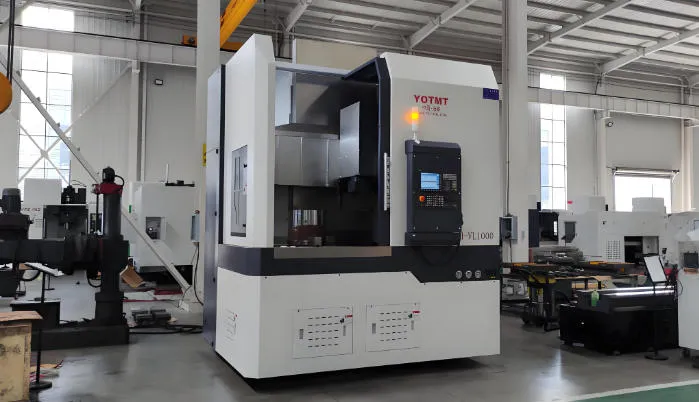

Detail 2

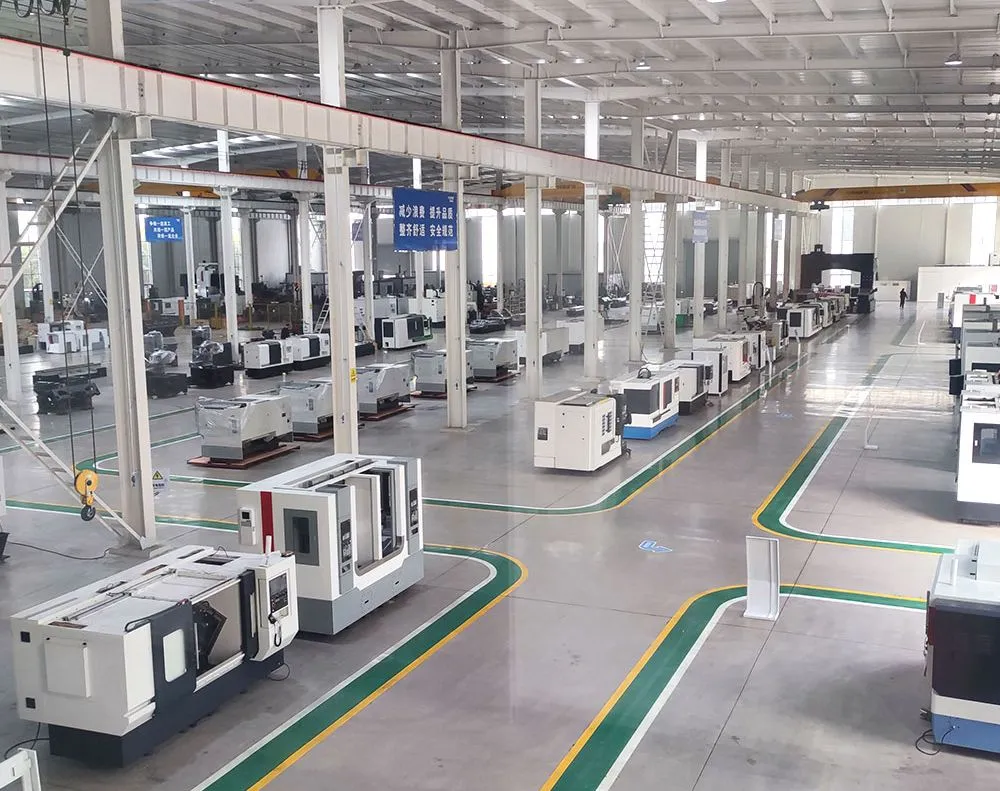

Detail 3

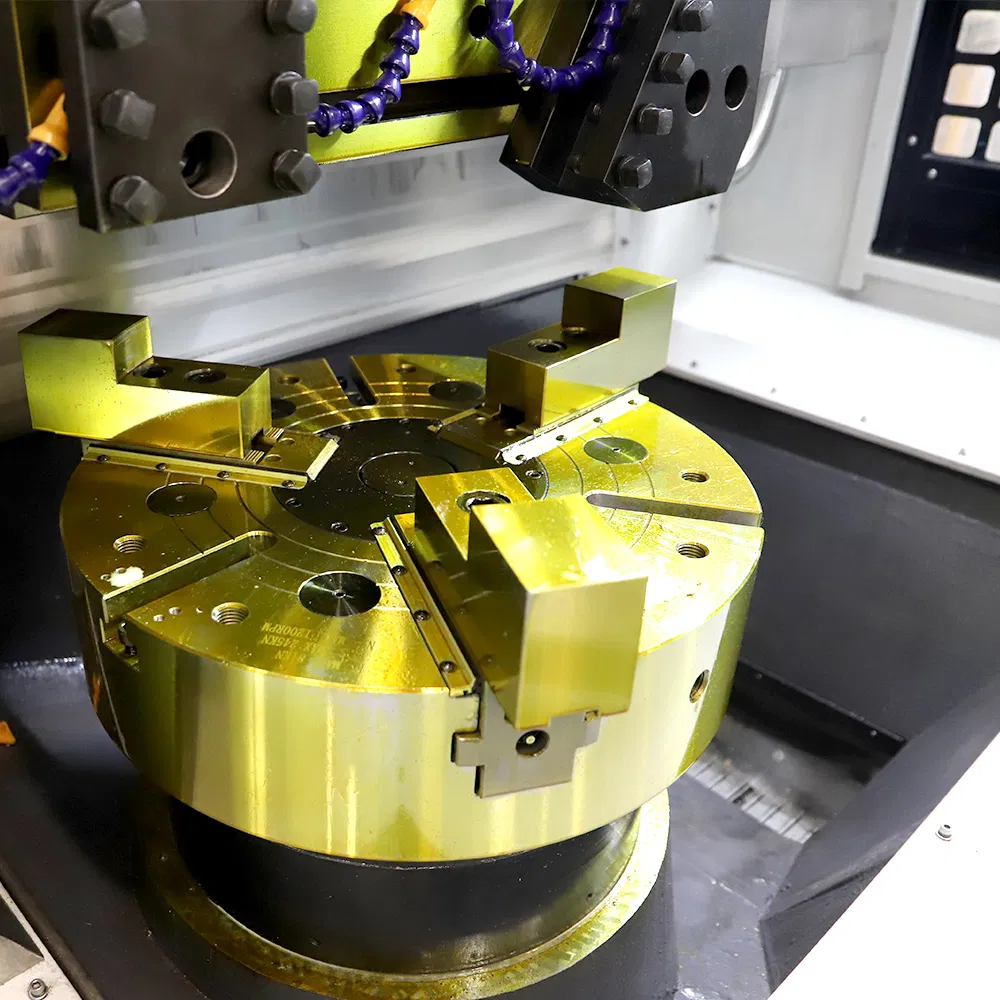

Detail 4
5

Recommended Models

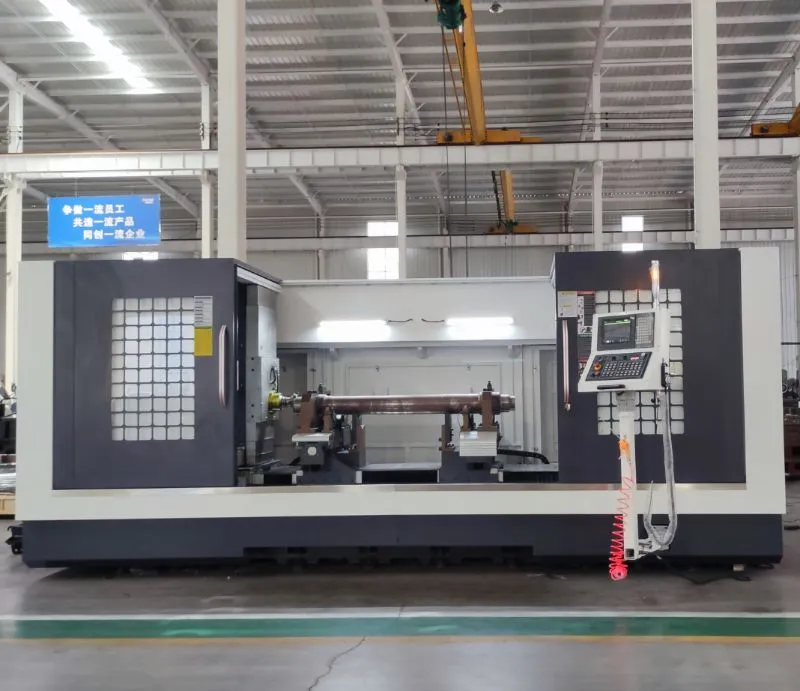

Machining Center

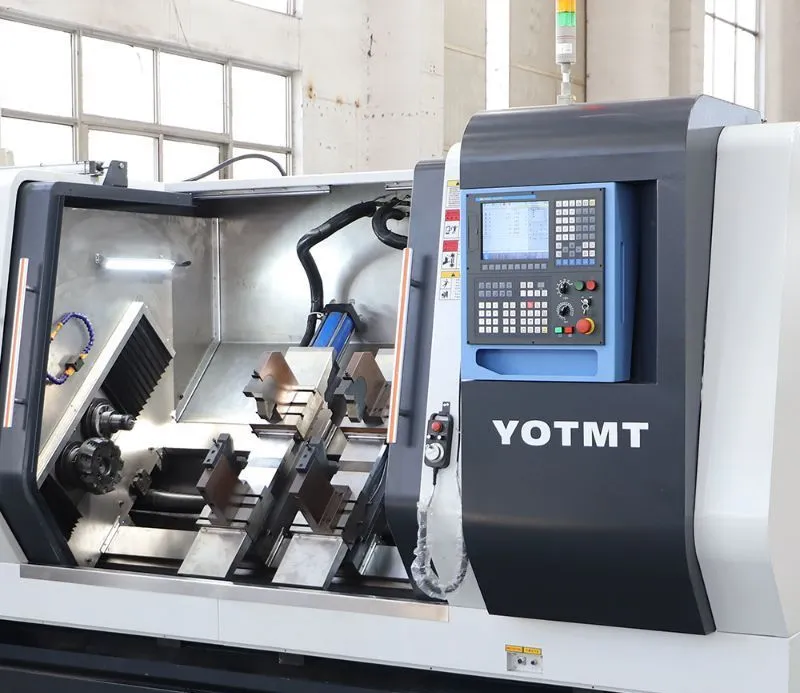

Centering Machine

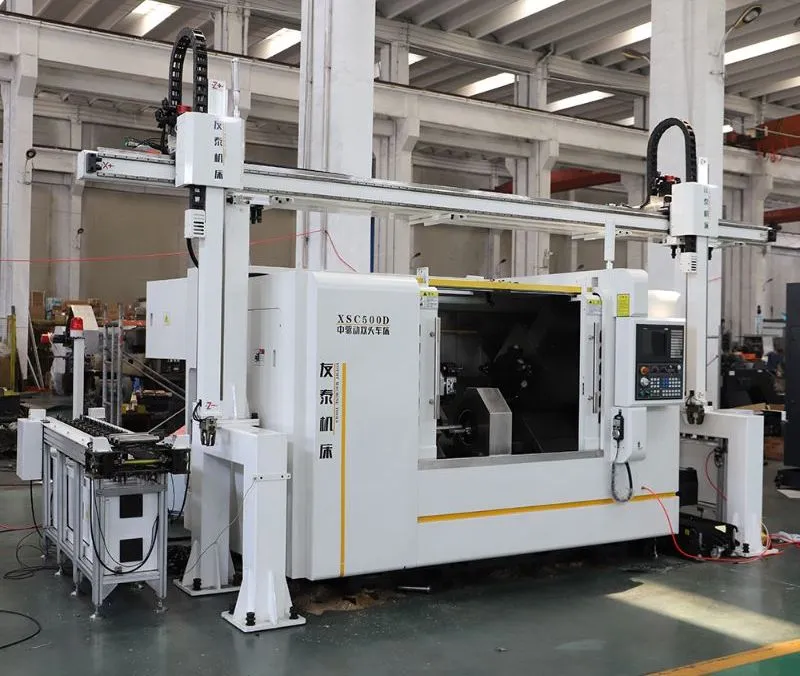

Turning Lathe
?

Frequently Asked Questions

What materials can this Vertical CNC Lathe process?
It is designed for high-strength materials including cemented carbide, titanium alloy, and other metals used in heavy-duty industries.
What are the main application industries?
Shipbuilding, wind power energy, rail transportation, aerospace, and heavy machinery manufacturing.
Does it support automated production?
Yes, it features an intelligent production module with optional tool breakage detection and cloud data management for 24-hour unmanned operation.
What CNC systems are available?
We offer basic systems like GSK and KND, as well as high-end options like Siemens 828/840, Fanuc 0I-MF PLUS, and Mitsubishi.
What is the positioning accuracy of the H-VL series?
The positioning accuracy is approximately 0.008/0.01 mm, ensuring high-precision results for complex parts.
Are there customization options for the tool rest?
Yes, we offer multi-turret configurations, synchronous processing tool rests, and optional four-axis/five-axis linkage tool rests.
