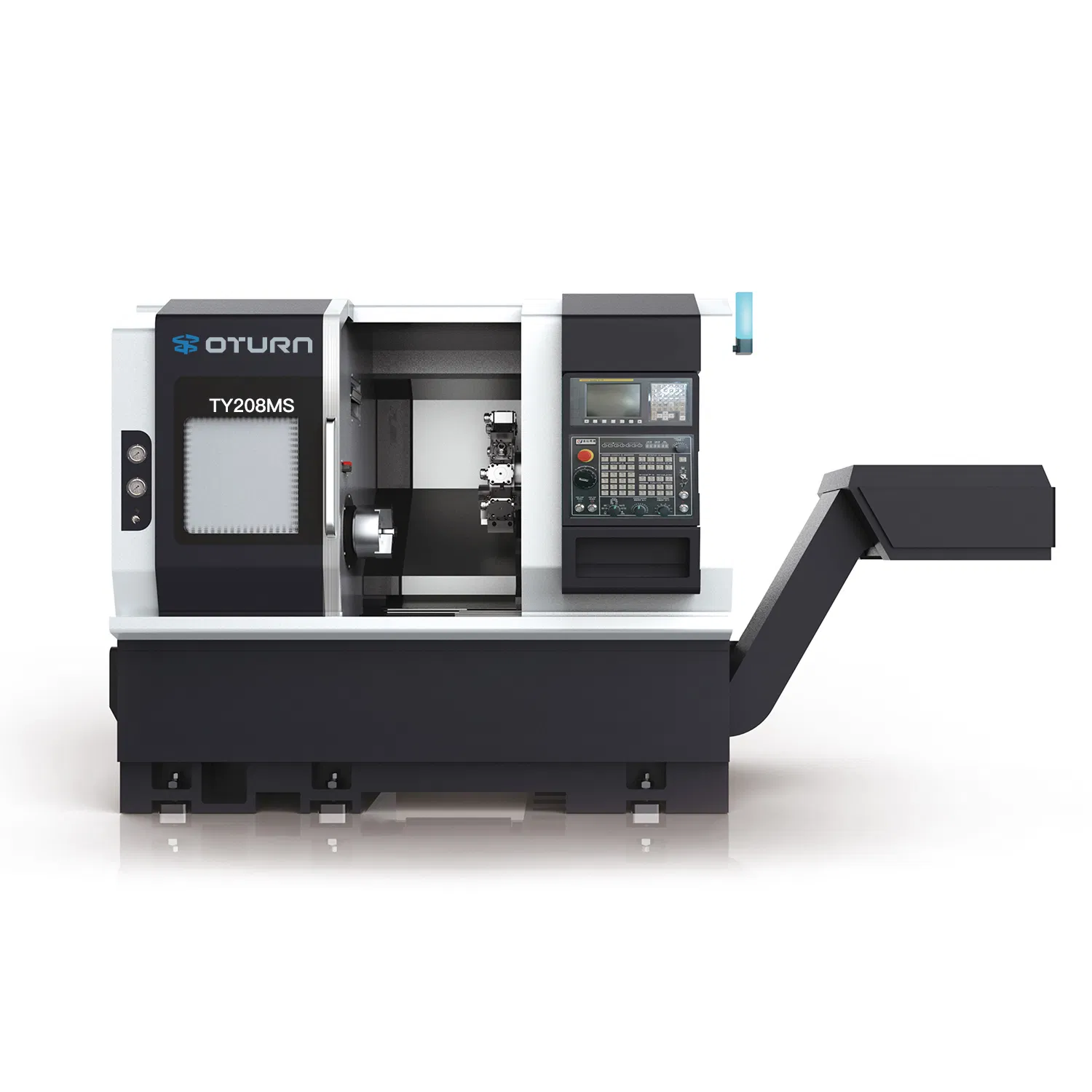

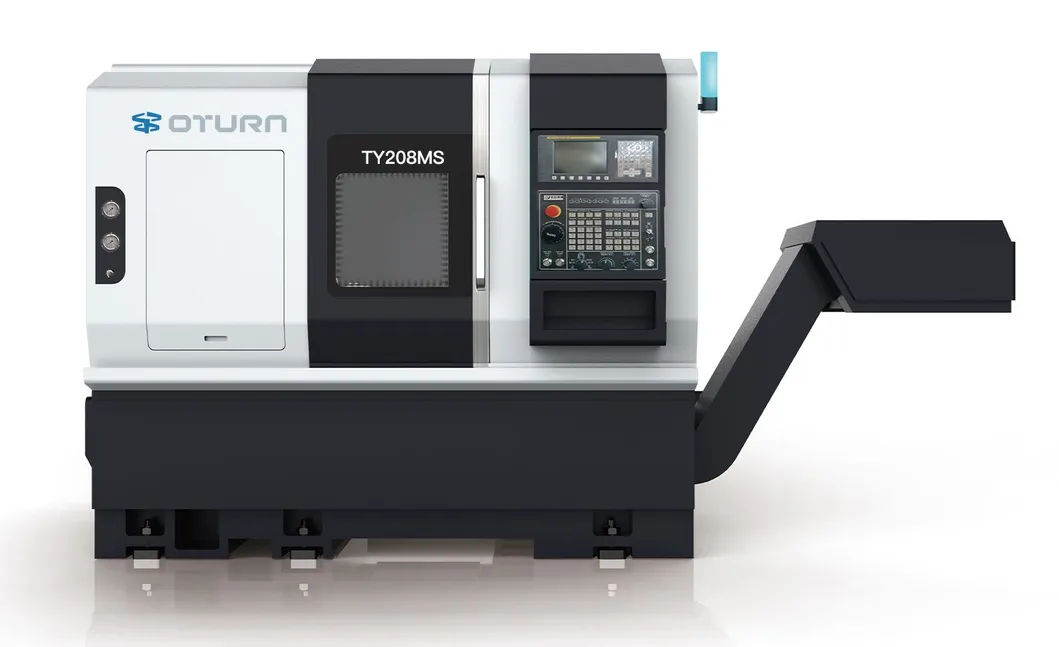

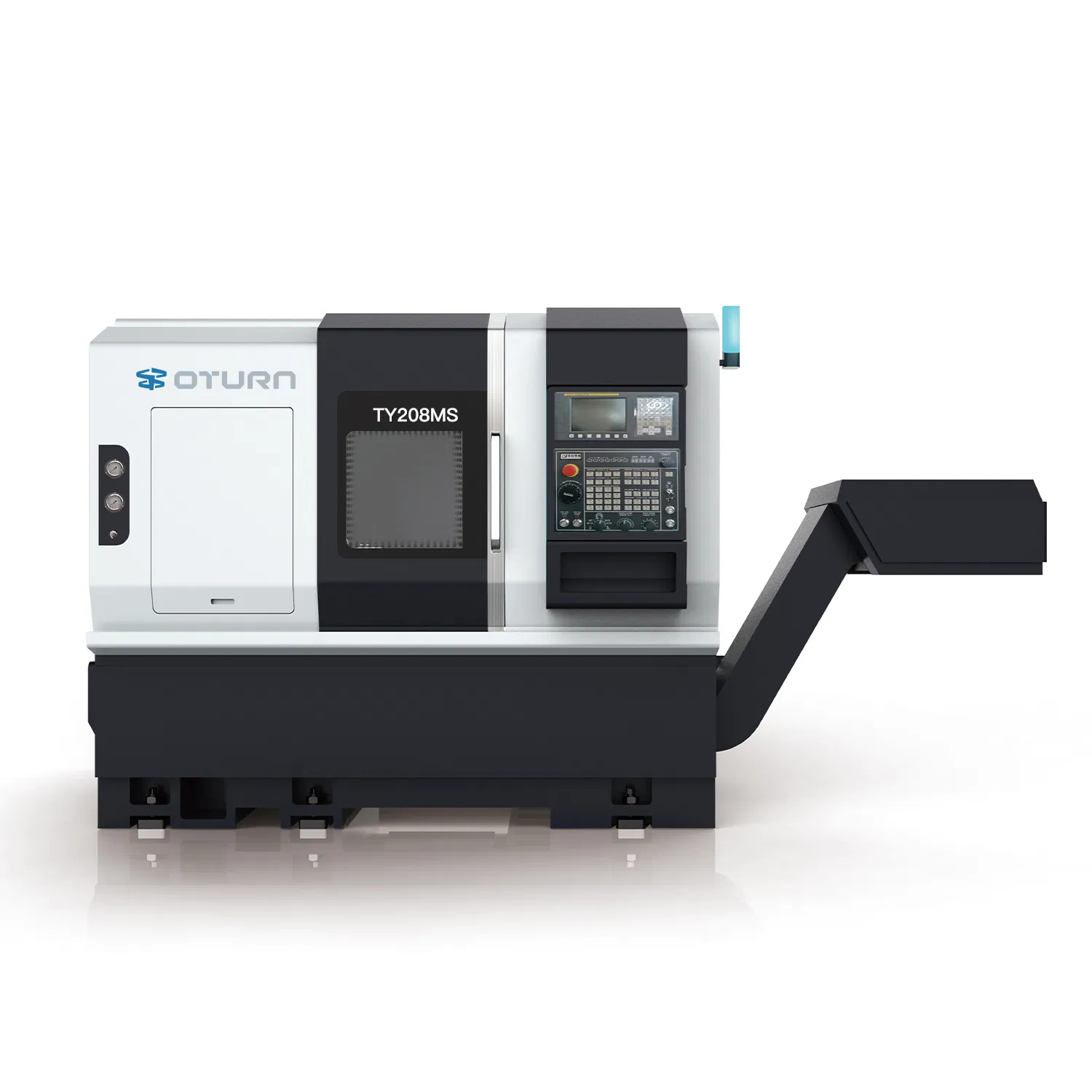

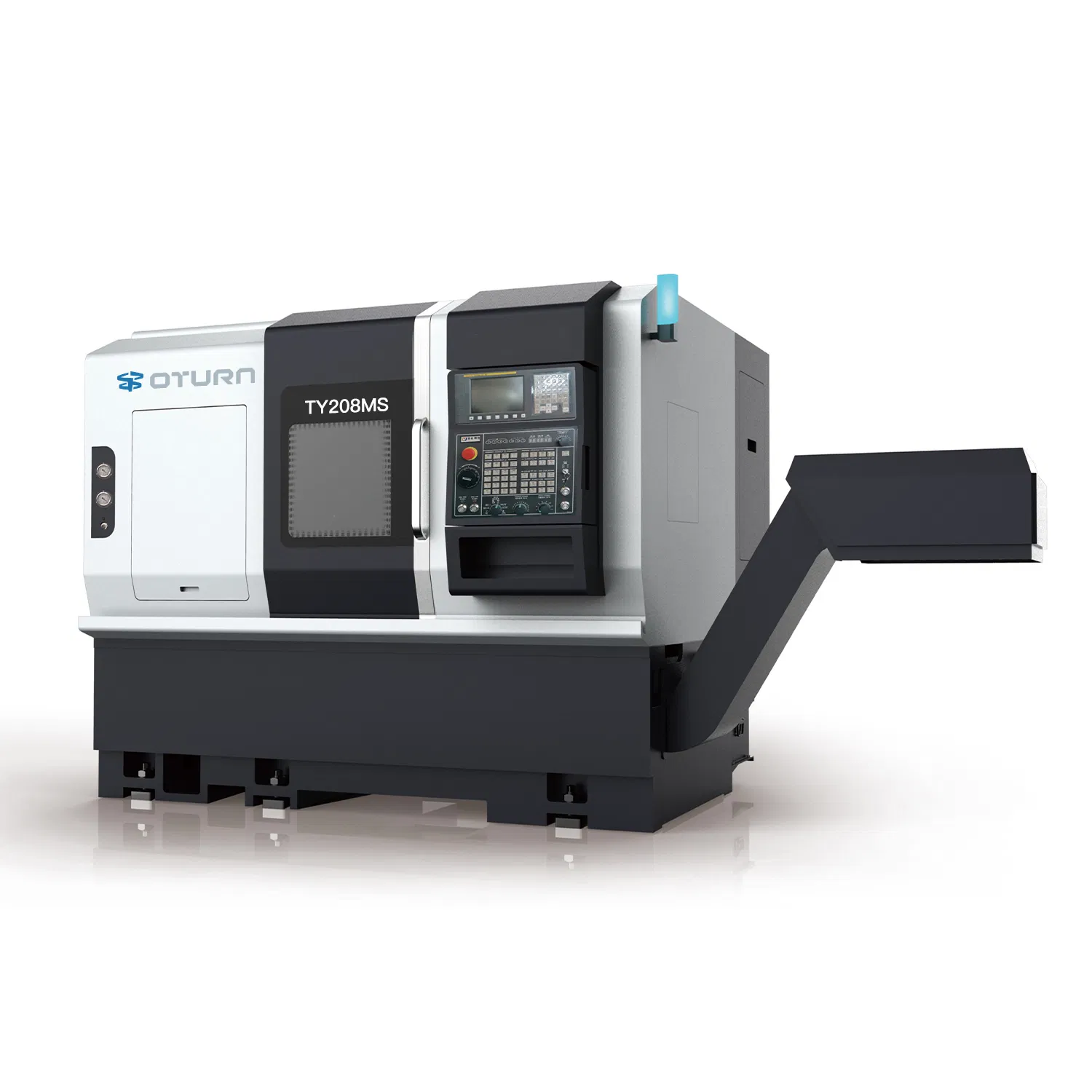

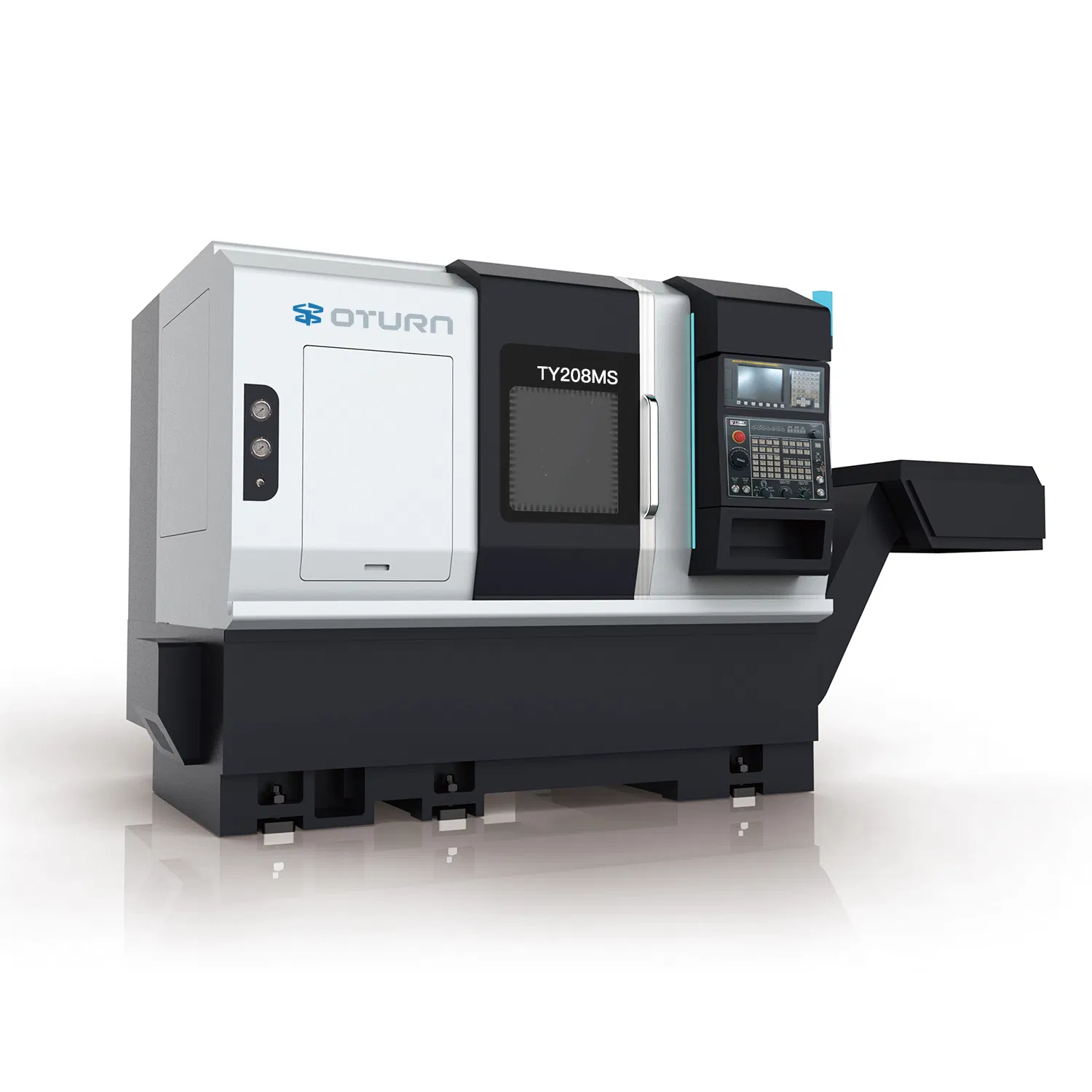

High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability. It maintains long-term reliable accuracy, processing stability, and tool life. Drive system adopts screw pre-tension design to improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies manual operation and reduces cycle times. The second spindle is capable of full turning during machining.
🔹 Direct drive synchronous electric spindle: Magnetic ring type incremental encoder positioning accuracy: 20 arc seconds. Deflection accuracy within 0.002mm.
🔹 Integral servo power turret: High rigidity BMT interface with rapid and precise tool change performance.
🔹 Premium Components: Equipped with THK linear guide rails and ball screws. Feed drive adopts FANUC servo motor system.

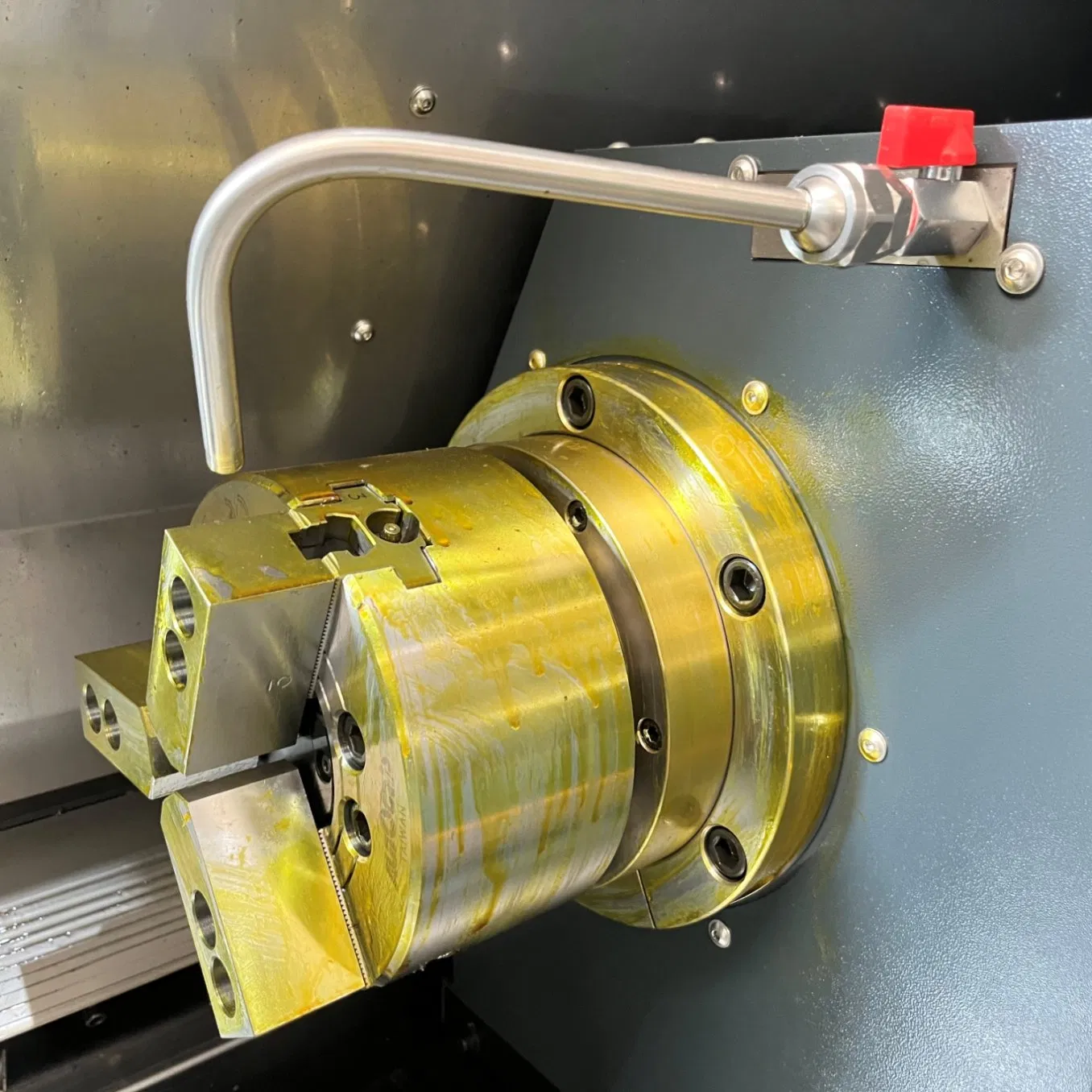

🔹 Automated Production: Taiwan rotary chuck and automatic chip removal device for efficient, safe production.
| Item | Unit | Technical Data (208MS) |
|---|---|---|
| Max. turning diameter over bed | mm | Φ680 |
| Max. processing diameter | mm | Φ370 |
| Max. processing length | mm | 420 |
| Spindle speed | rpm | 4300 |
| Spindle motor power | kw | 18/22 |
| X/Z/S travel | mm | 230/510/600 |
| Positioning accuracy | mm | ±0.005 |
| Machine weight | kg | 5200 |
