Basic Information
Model NO.:GMC1614
Type:Tool Milling Machine
Structure:Desktop
Controlling Mode:CNC
Precision:High Precision
Table Size:1200X1700
X/Y/Z Travel:1600/1500/800
Spindle Speed:6000 rpm
Tool Capacity:24
Controller:Fanuc
Product Description

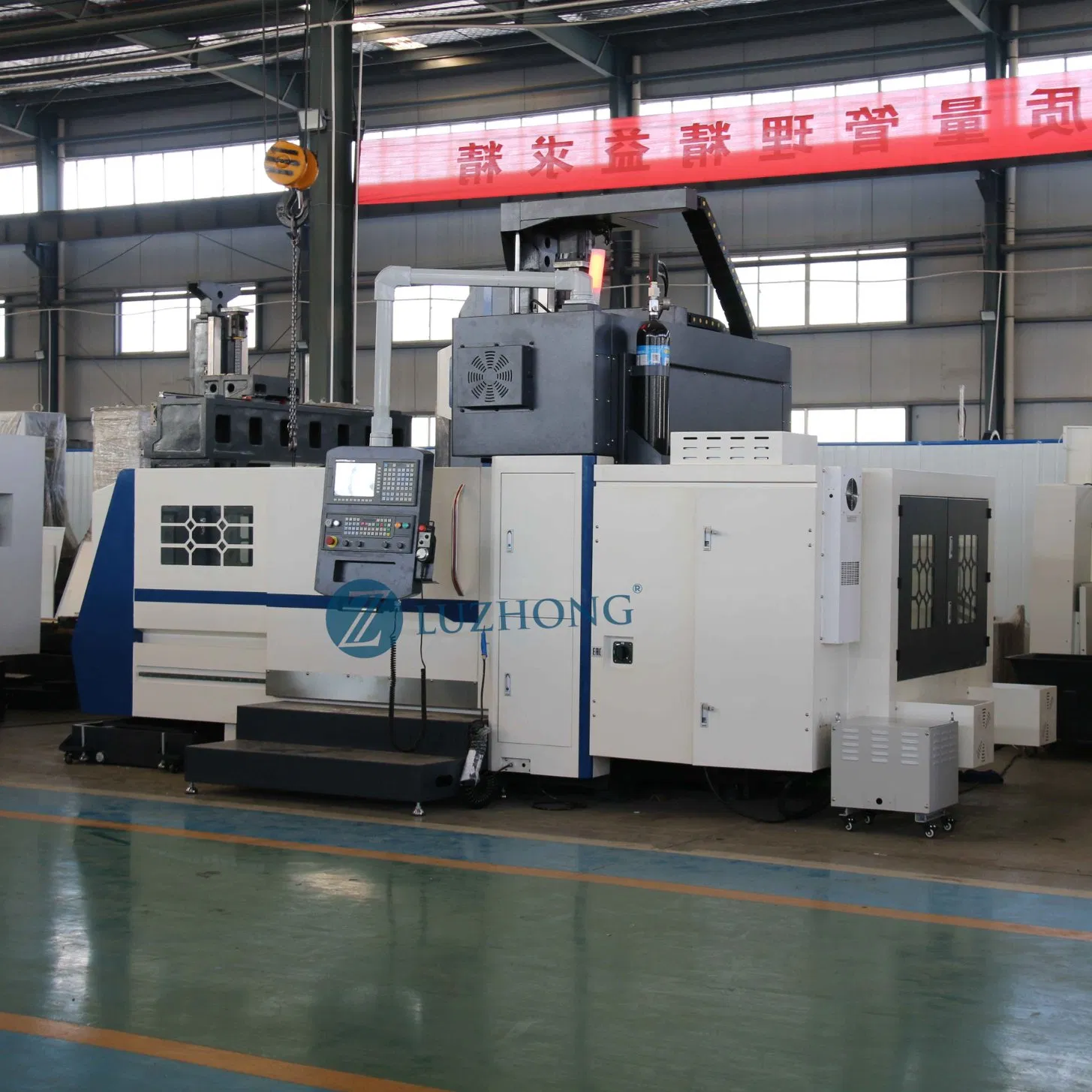

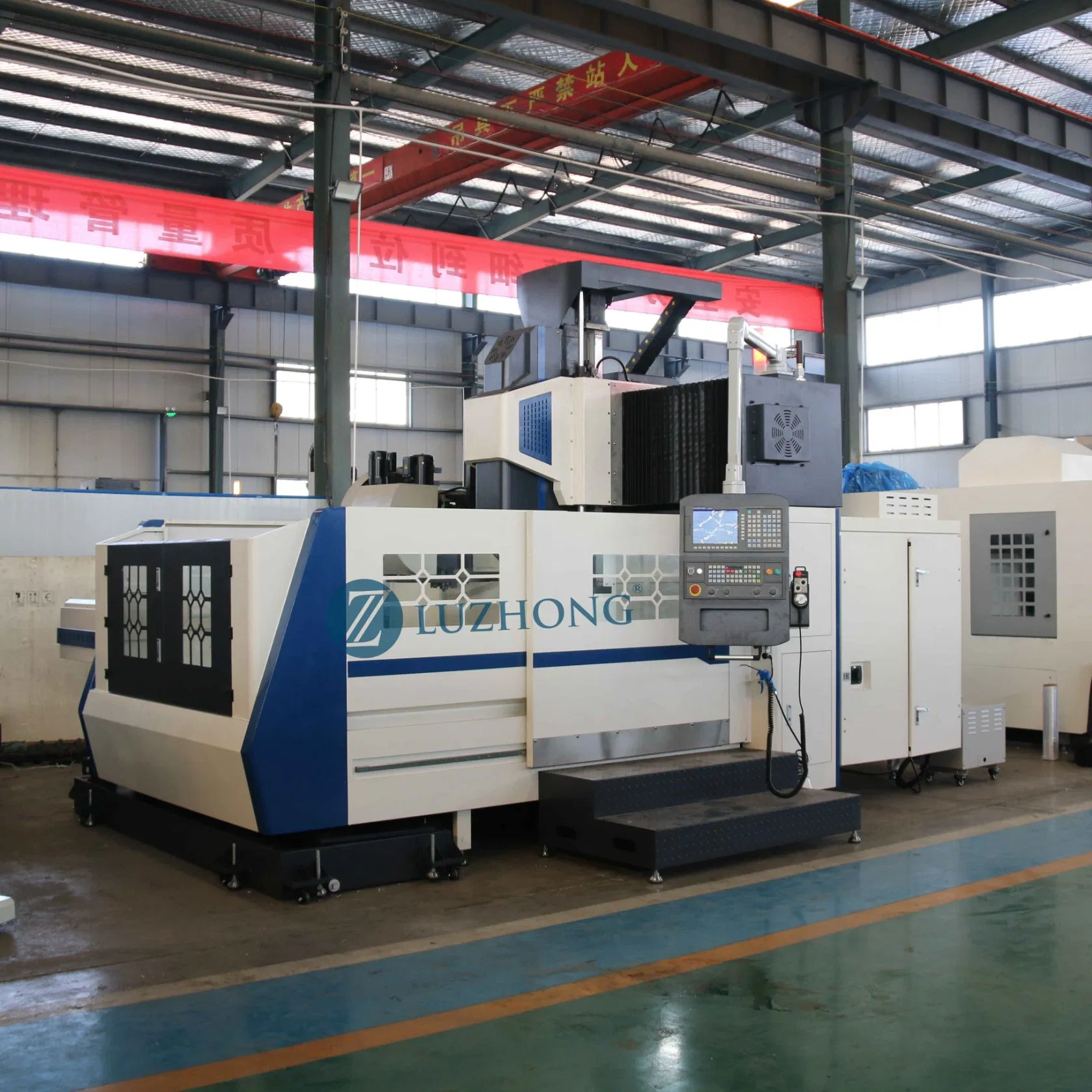

CNC Gantry type GMC1614 Automatic 5 Axis High Speed Gantry Machining Center
Product Parameters
| Specification |
Units |
GMC1614 Data |
| Table size(W*L) | mm | 1200*1700 |
| X axis travel | mm | 1600 |
| Y axis travel | mm | 1500 |
| Z axis travel | mm | 800 |
| Gantry width/passing height | mm | W:1500/H:1030 |
| Table load | t | 2.5 |
| Spindle taper | - | BT50 /190 |
| Rapid traverse speed | m/min | 15 |
| Main motor power | kw | 15/18.5 |
| Machine weight | t | 15.5 |
Detailed Photos & Features
MACHINE CONSTRUCT
High strength high quality HT300 cast iron

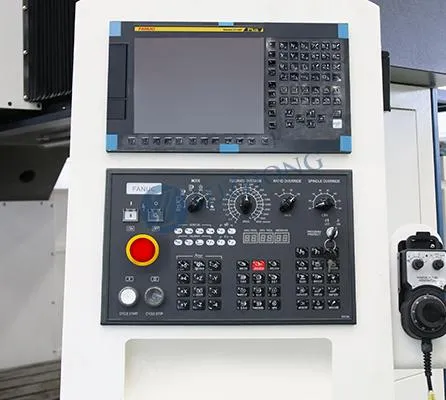

CONTROL SYSTEM
Standard FANUC high-performance controller

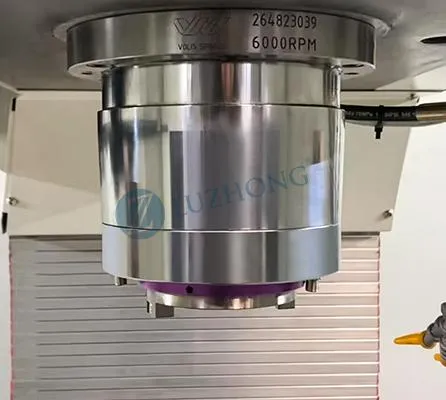

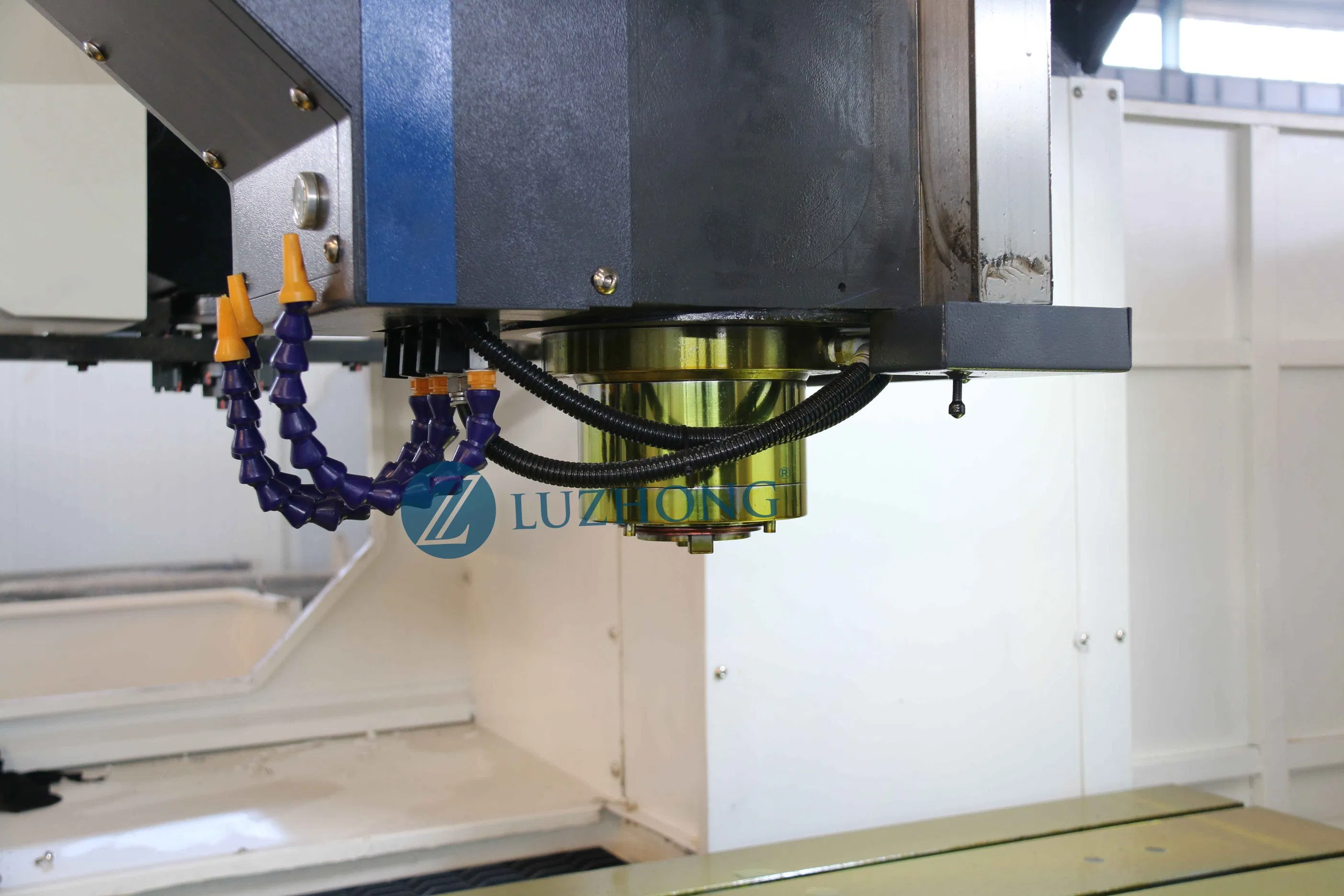

PRECISION SPINDLE
BT50 6000rpm high-torque precision spindle

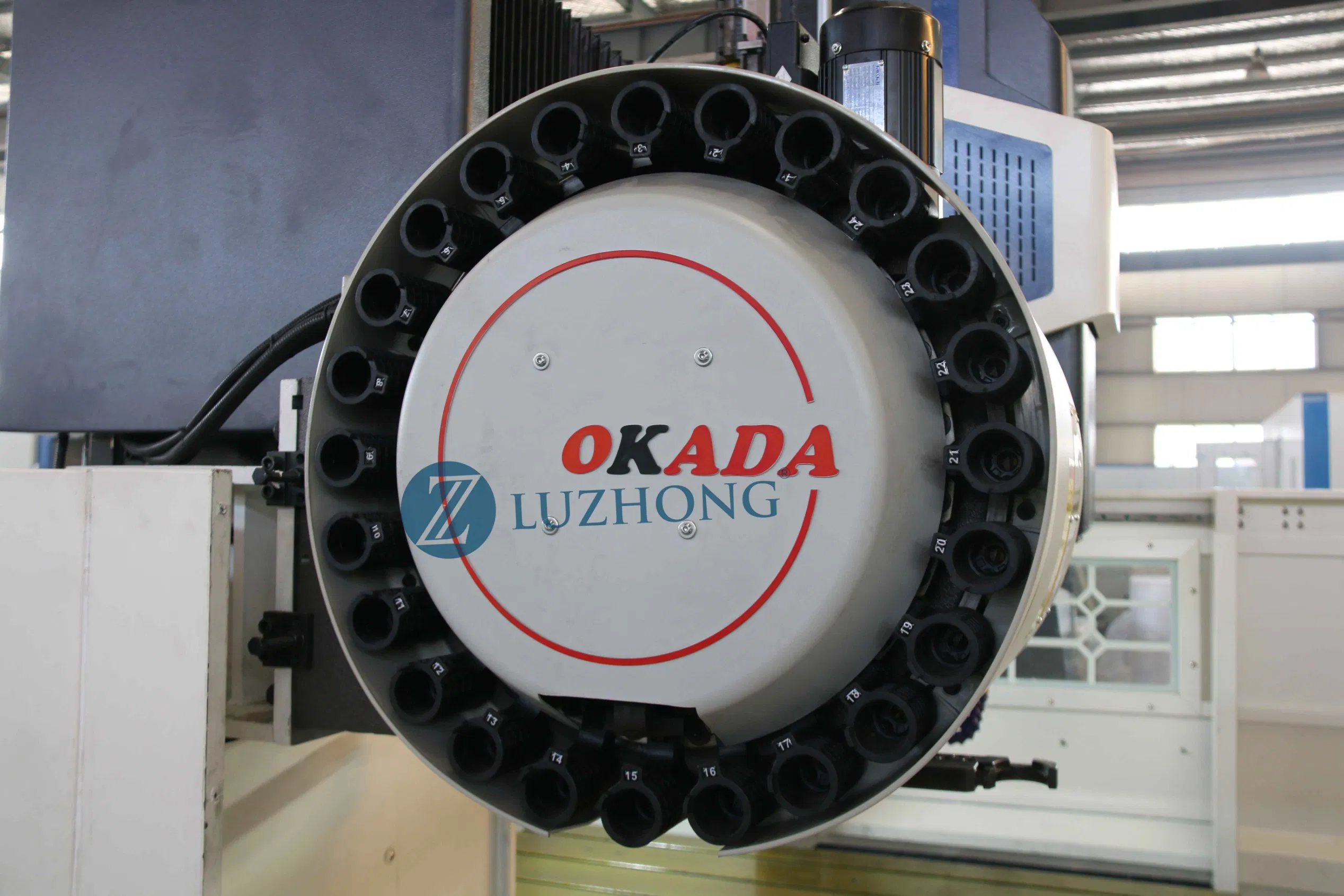

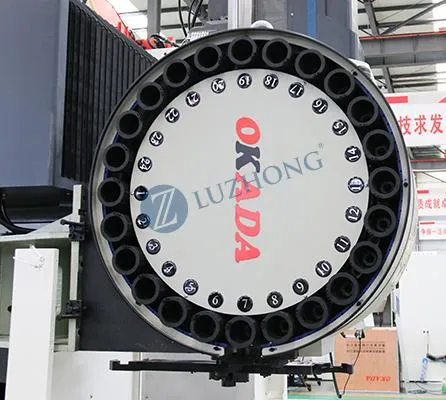

OKADA TOOL MAGAZINE
Arm type 24-tool capacity, 3s change time
Company Capabilities

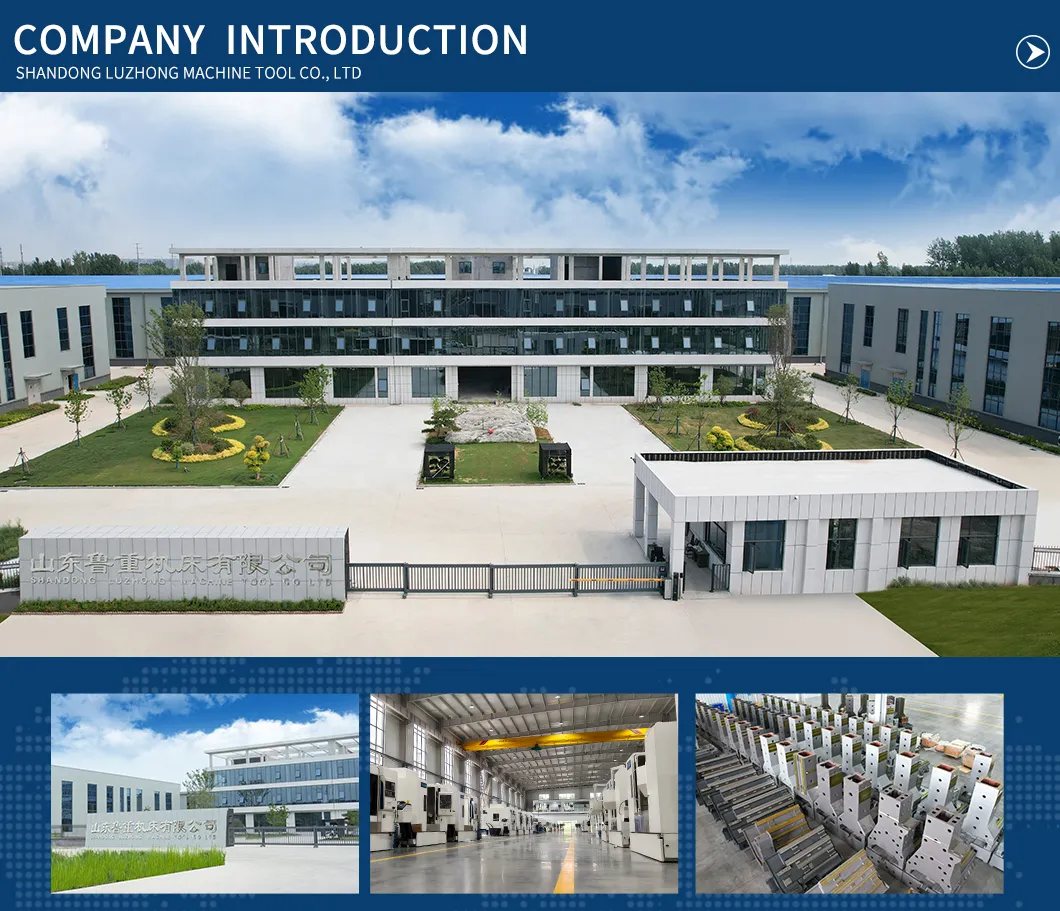

- 🔹 100,000m² Factory space with over 200 skilled workers.
- 🔹 30+ Years of professional CNC machine manufacturing experience.
- 🔹 Strict Quality Control with 24-step testing processes.
- 🔹 Global Certifications: ISO, CE, BV, TUV, and SGS.
- 🔹 Warranty: 18 months standard warranty period.
FAQ
How can I choose the most suitable machines?
Please provide your technical specifications or product drawings, and we will recommend the best model and configuration for your specific production needs.
What are the main products available?
We specialize in a full range of CNC machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Radial Drilling Machines, and Sawing Machines.
What are your standard trade terms?
We accept standard international trade terms including FOB, CFR, and CIF to accommodate different shipping requirements.
What are the payment terms for orders?
Standard terms are 30% initial payment upon order confirmation and 70% balance payment before shipment via T/T. Irrevocable LC at sight is also accepted.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our high-precision machining centers.
What kind of quality testing do the machines undergo?
Each machine undergoes rigorous inspection, including Renishaw laser interferometer testing and ballbar testing to ensure ultimate positioning accuracy.
