| Movement Control |
Control axes: X, Z, Y, A axis. Pulse + direction output for AC servo or stepper motors. Interpolation: Straight line, arc. Position range: -9999.999mm~9999.999mm. Unit: 0.001mm. Max Speed: 30000mm/min. |
| G Function | 29 kinds of G codes including G00, G01, G02, G03, G33, G71, G90, G94, G99, etc. Supports logic operations and jumps. |
| Thread Machining | Single or multi-head metric straight threads, tapered threads, and variable pitch threads. Range: 0.0001mm to 500mm. |
| Accuracy Compensation | Reverse gap compensation (0-2.000mm). Pitch error compensation (512 points). 32 sets of tool length compensation. |
| Principal Axis | Dual-channel 0V~10V analog voltage output. Supports servo spindle speed and position positioning modes. |

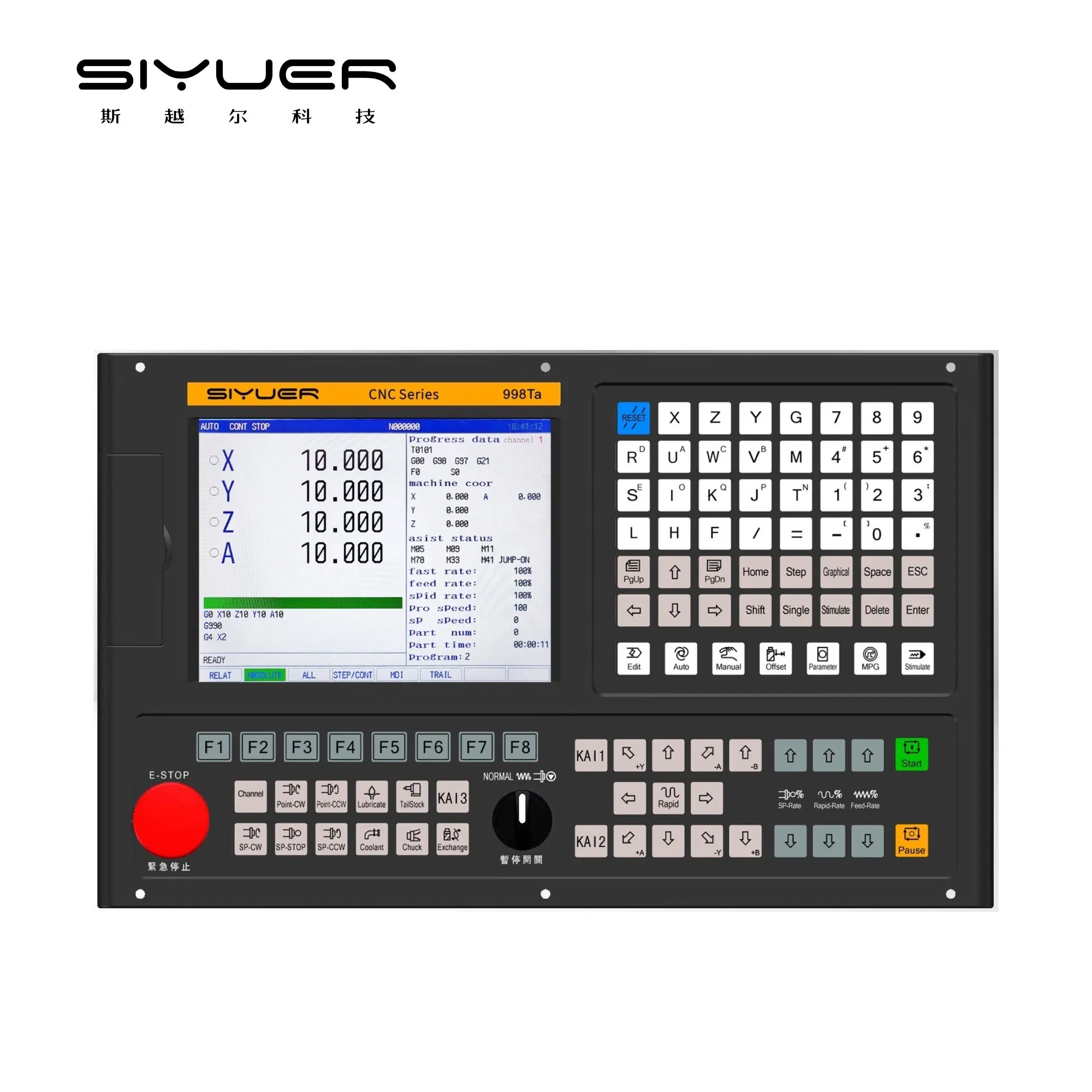

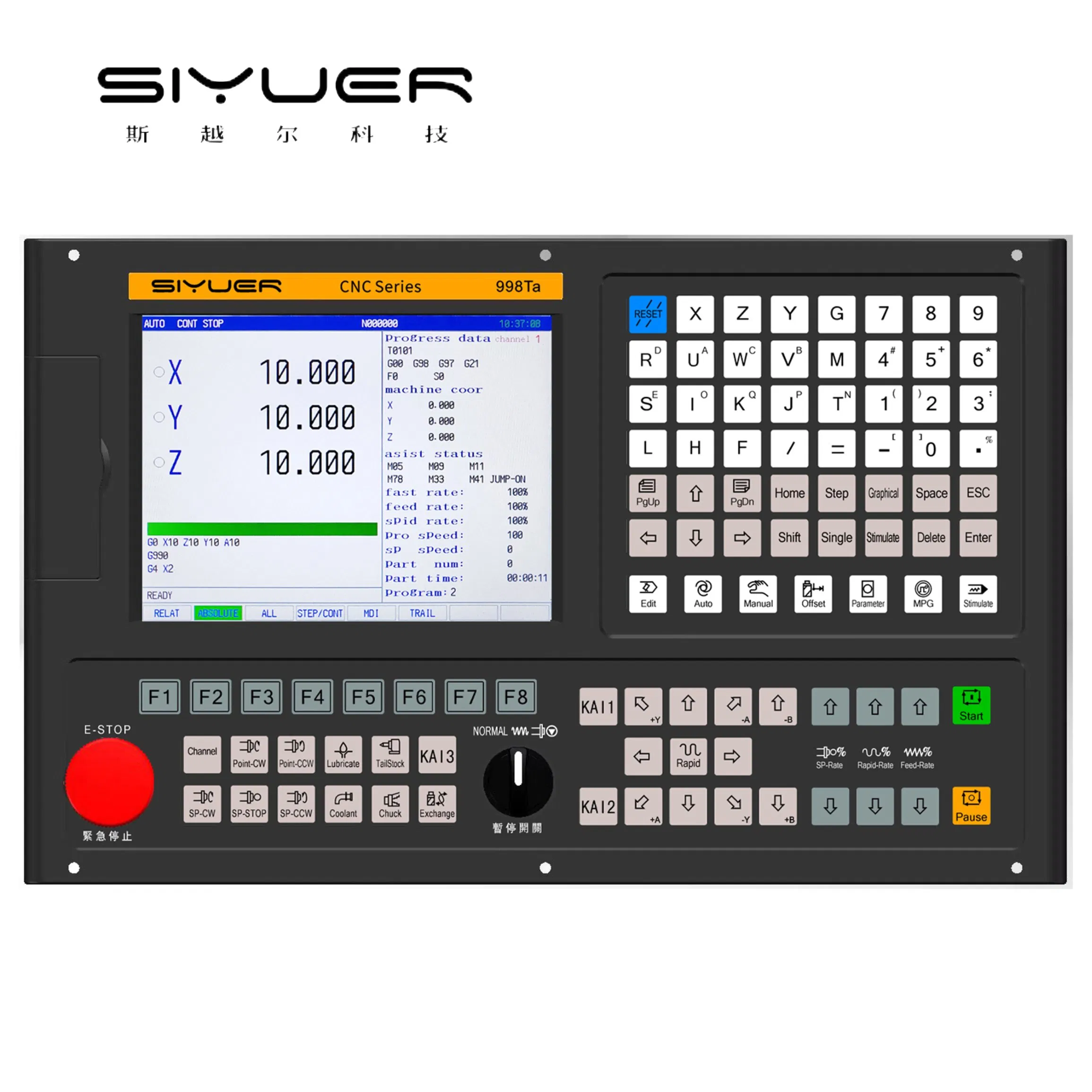

| Display & Memory | 8-inch 800x600 LCD. Chinese/English interface. 164M program capacity for up to 10,000 programs. |

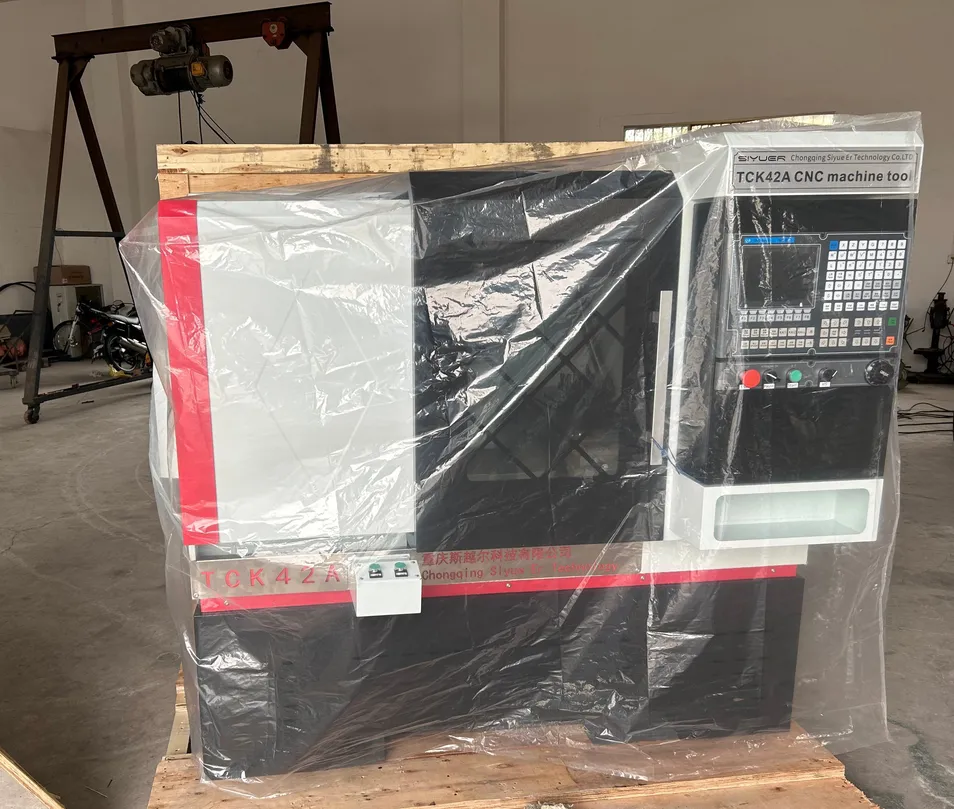

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided, including export wooden crate packaging for larger units.
