📊 Overview
Model NO.ALSX-CNC-4228
Glass Thickness3-19 mm
Input Power7kw
Air Pressure0.5-0.8MPa
Max. Processing Size6000*3100mm
Min. Processing Size2500*2000mm
Transfer Speed5-40m/Min
Servo SystemYaskawa
Warranty12 Months
Capacity200 Sets/Year
🛠️ Product Description & Specification

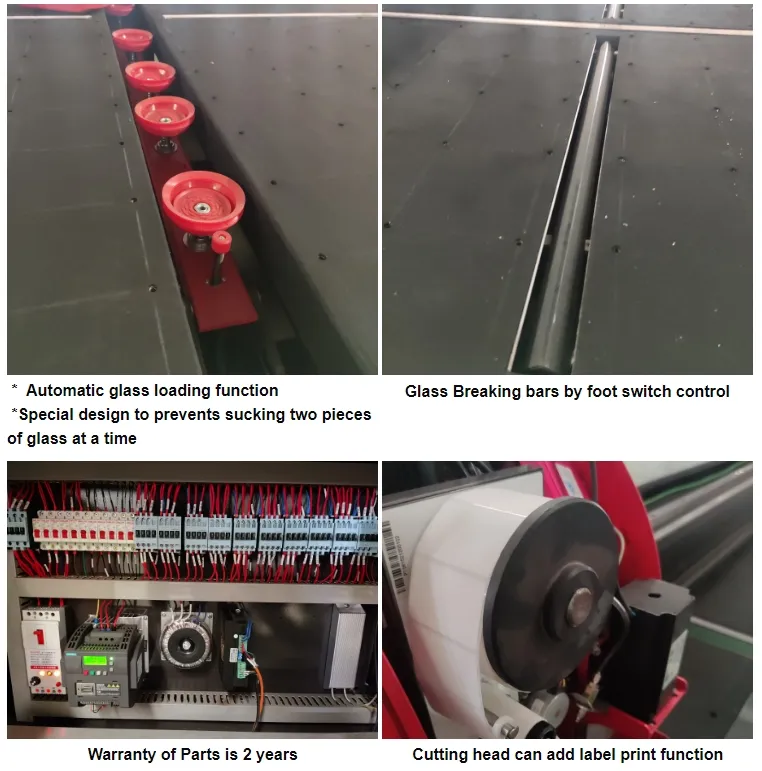

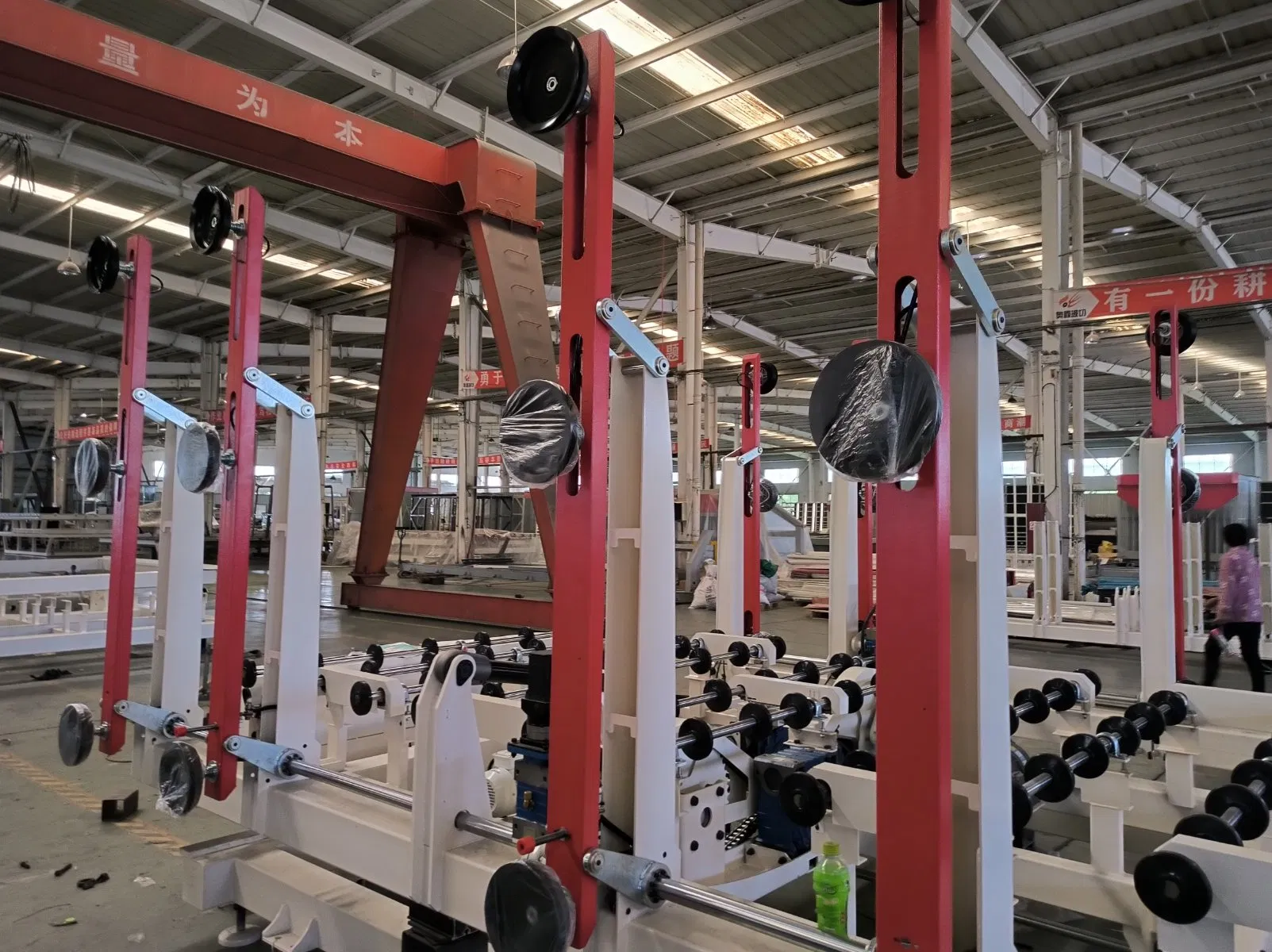

Loading Machine Features
Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm. Chain convey after glass suck. Both auto and manual modes available.

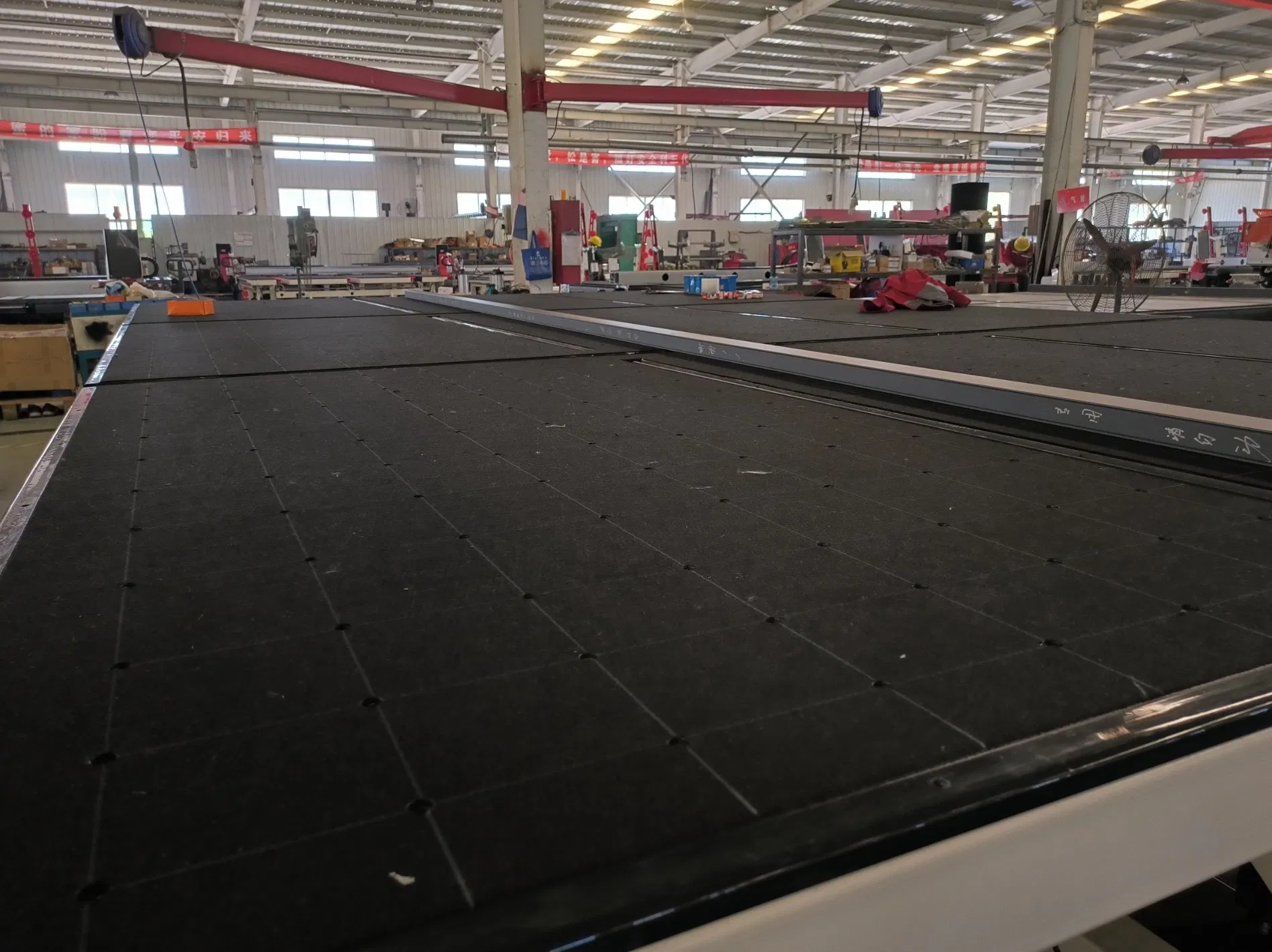

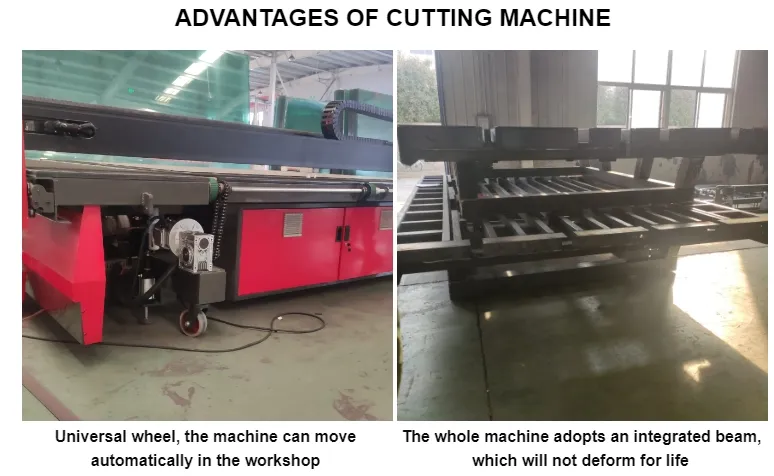

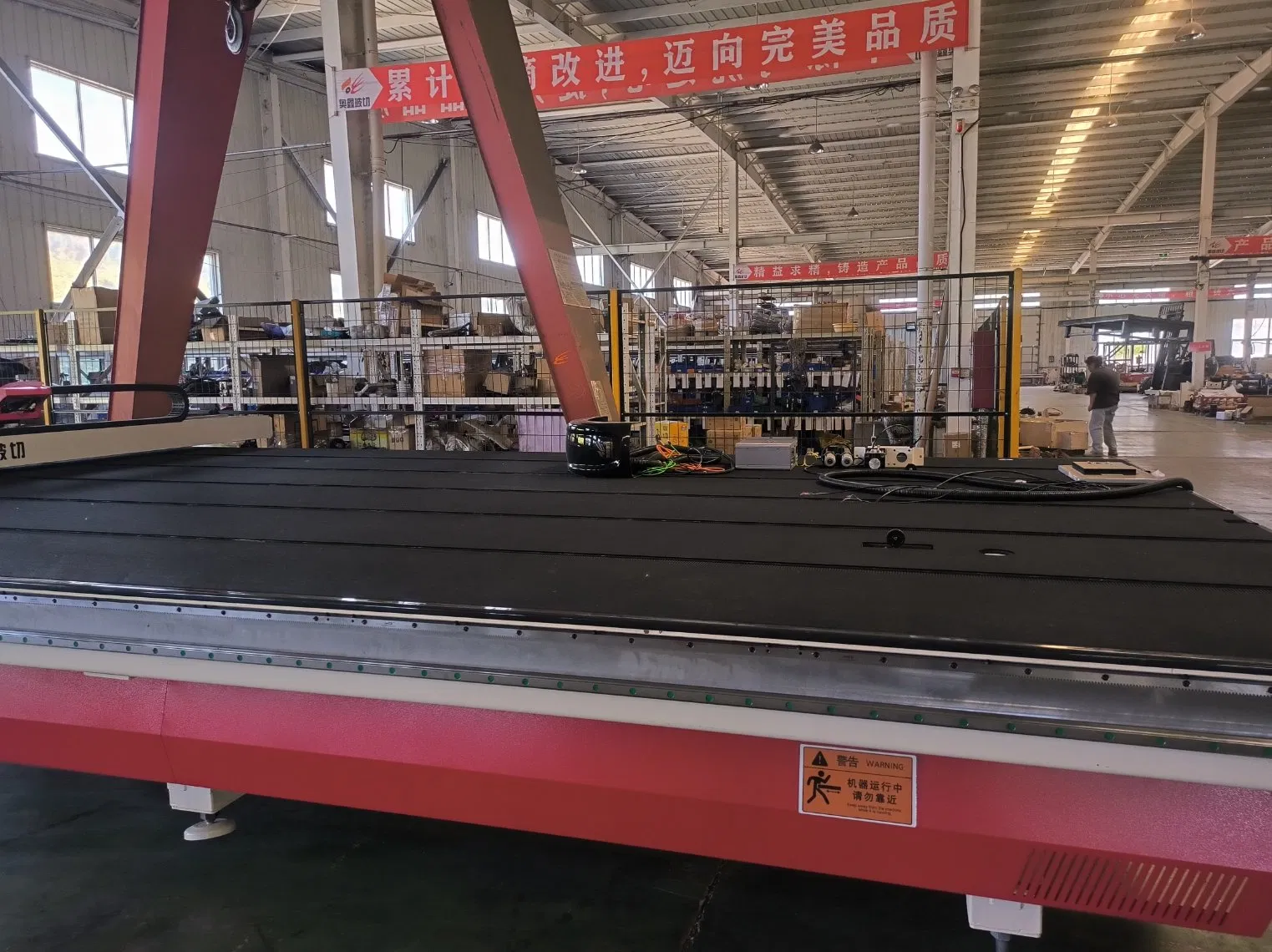

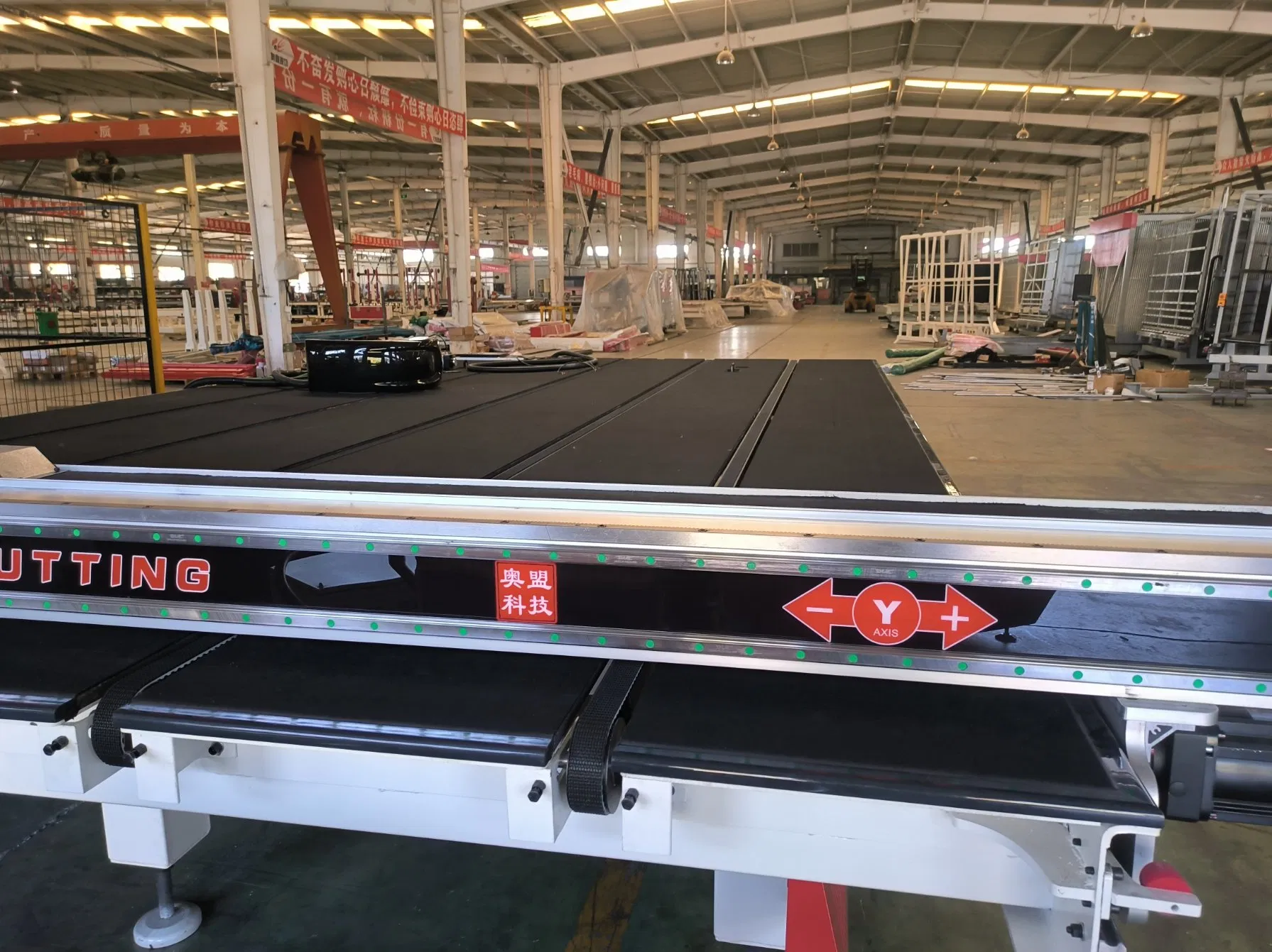

Cutting Machine Precision
Mn bridge steel (Q345A) with perfect surface treatment. Japan SMC valve controls cutting pressure. Cutter head 360 degree rotation with buffers for glass protection.

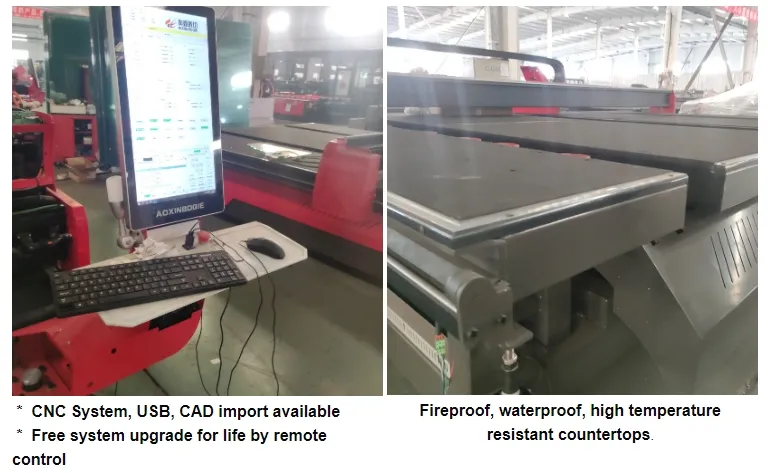

Advanced Control
3D edge searing system with high precision automatic location. Automatic lubrication system works in step with cutter head.
| Product Feature |
Specification Details |

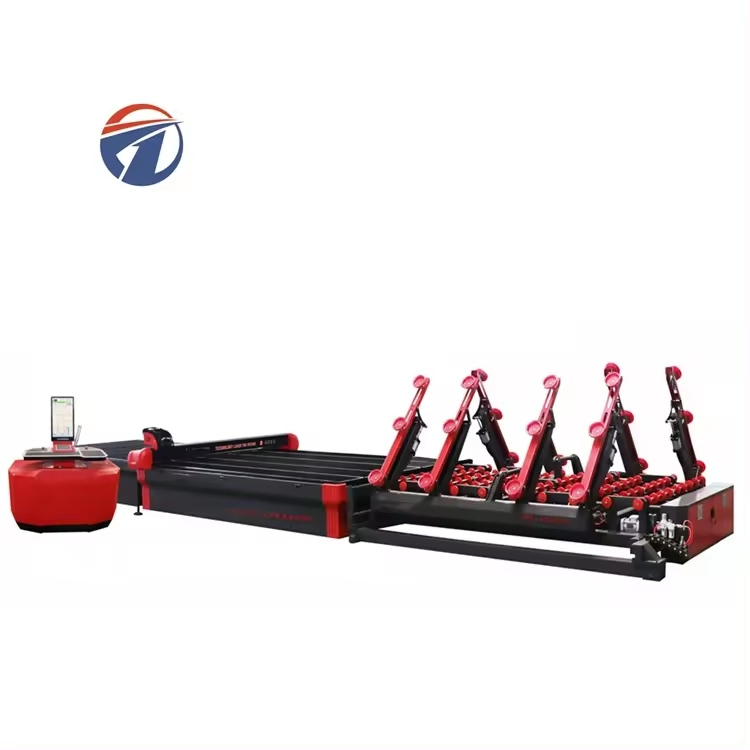

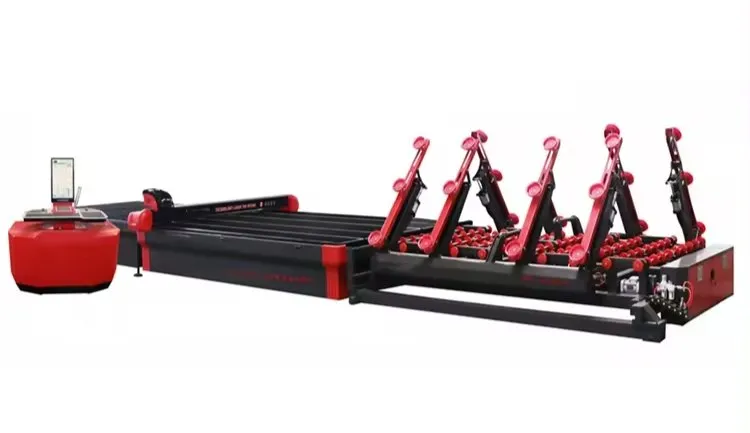

| Product | Glass cutting line |
| Max. glass size | 4200*2800mm |
| Max. cutting speed | 200m/min |
| Max. cutting accuracy | 0.2mm |
| Total Power | 16-19kW |
| Overall dimension | 11000*3700*900mm |
📦 Packing & Delivery
Package Size13500 * 2900 * 900 mm
Package Gross Weight2500.00kg
📜 Certifications
❓ Frequently Asked Questions
When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days.
What can you do if the machines have problems?
We provide free components if machines are within guarantee time, or dispatch engineers for on-site repairs.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for installation, adjustment, and operation training.
Are the machines customizable?
Yes, every machine could be customized to meet your special industrial requirements.
What is the thickness range for glass cutting?
The machine is designed to process glass with a thickness range from 3mm to 19mm.
Is technical support available internationally?
Yes, all of our engineers have passports and are available for international on-site service and training.
