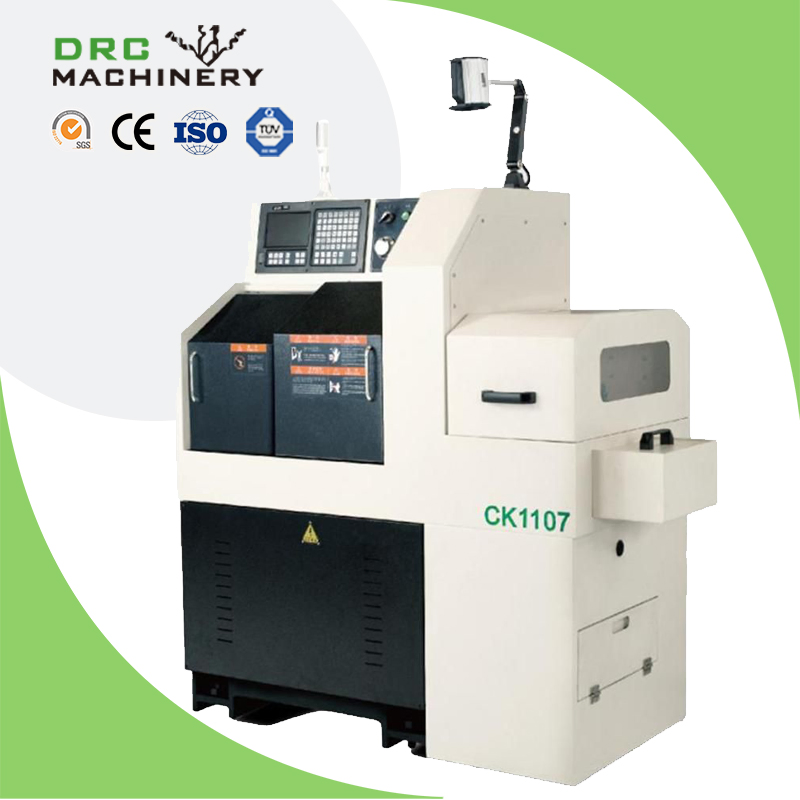

Fanuc Control Swiss Lathe Ck1107 - Auto Bar Feeder CNC

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CK1107

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Application

Efficient Precision Turning

Machine Type

High Speed Swiss CNC Lathe

🚀 Our Advantages

High Precision 2 Spindle 5 Axis Swiss Cnc Automatic Lathe CK1107

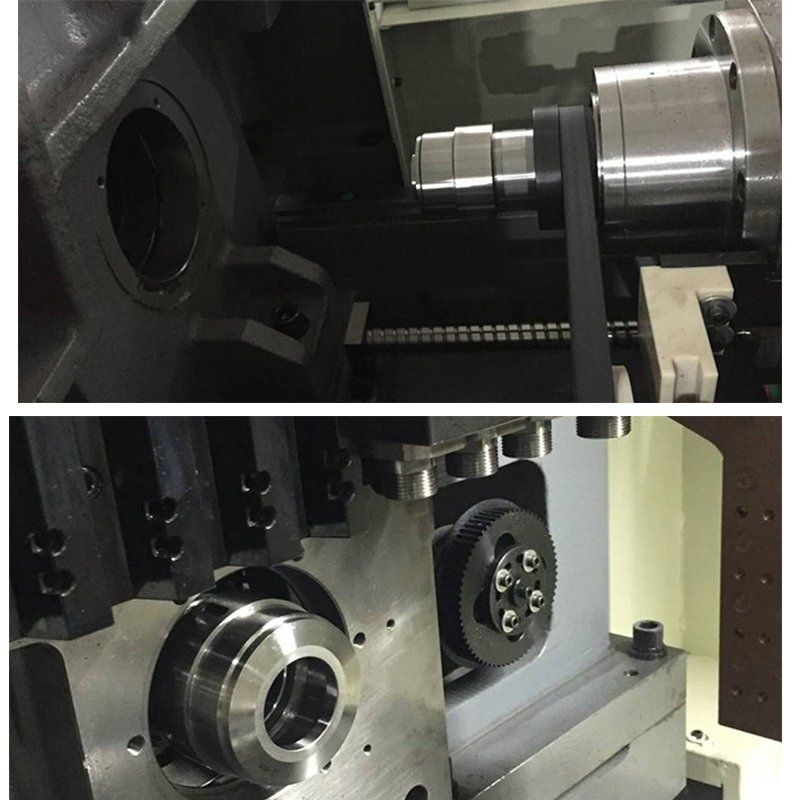

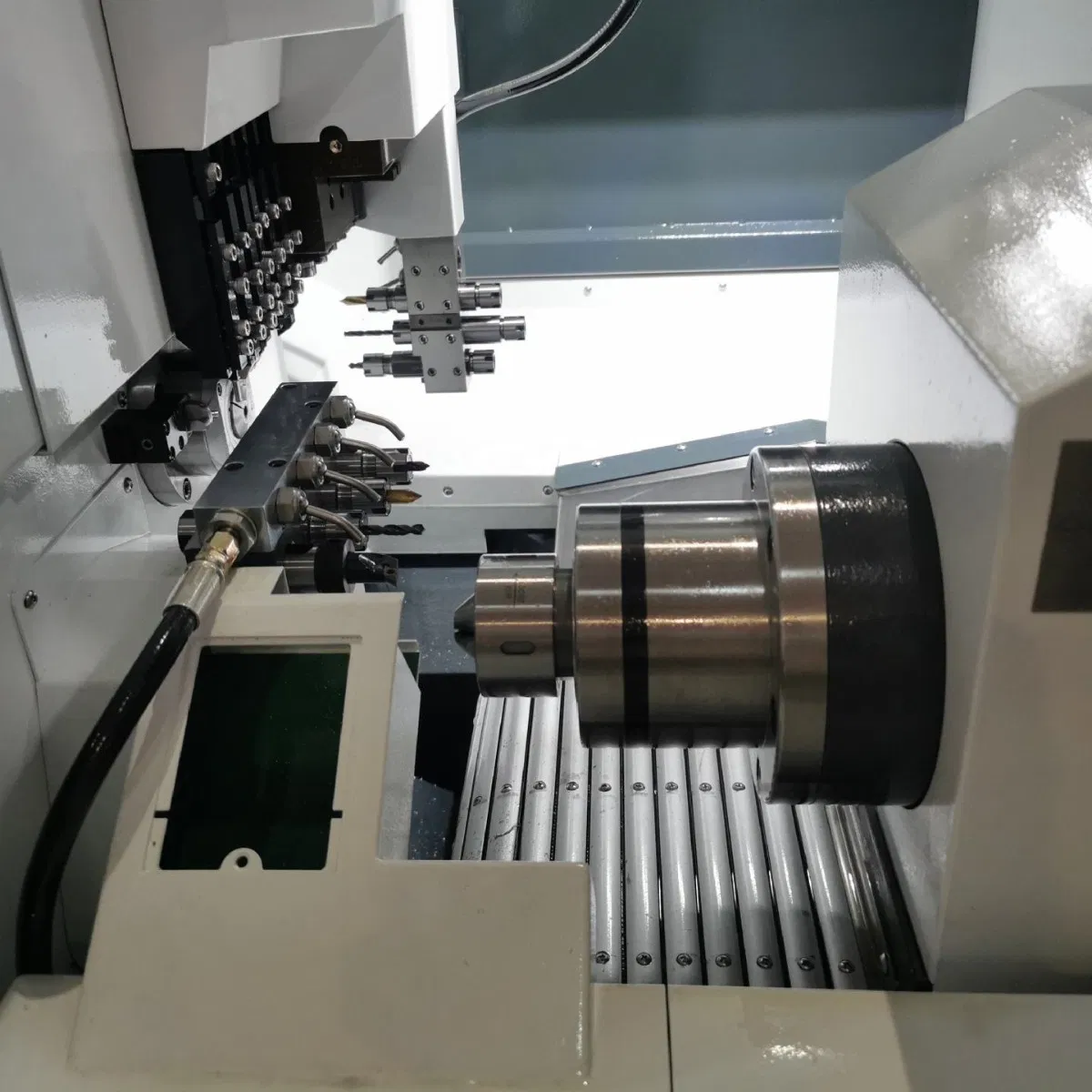

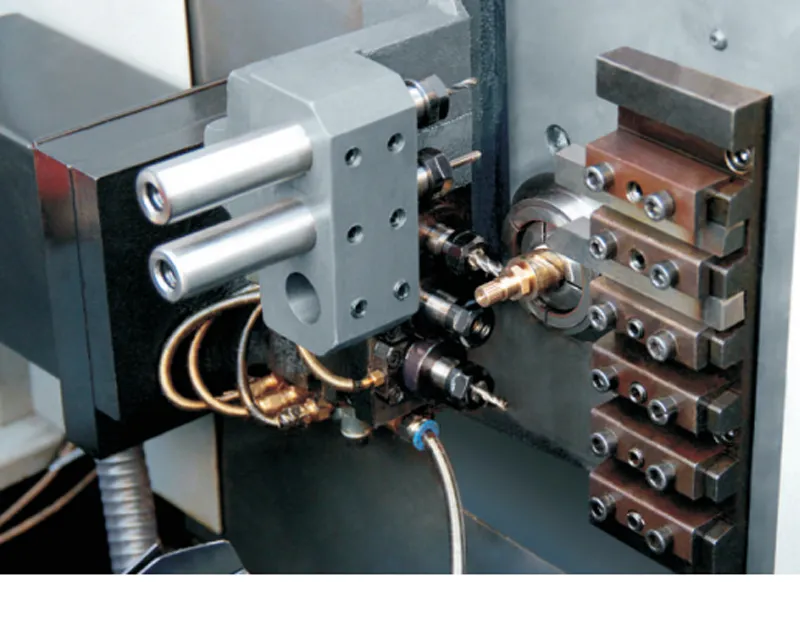

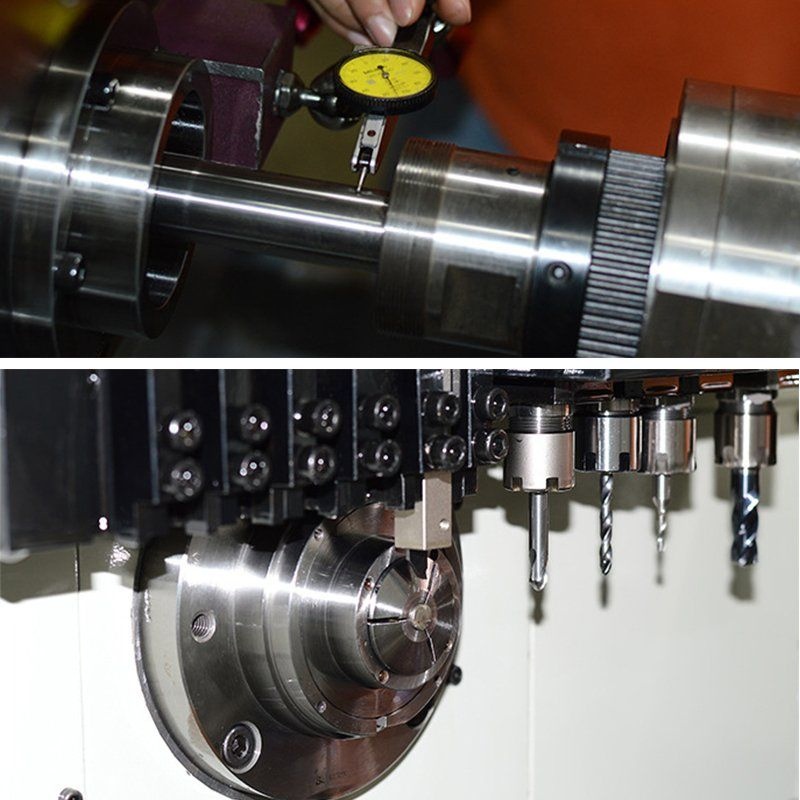

CK1107 high-speed walking machine has a left and right row tool structure, with a large number of tools, fast tool change, and good rigidity. It can process all kinds of ultra-slender parts. Reasonable layout, compact appearance and less floor space. High-speed centering CNC lathe, all three axes adopt linear rolling guides and are driven by servo motors.

Swiss Type CNC Lathe Features:

Three feeding axes adopt import linear guide rail.
High speed travel reduces idle movement and increases efficiency.
More tools than usual gang type lathe with quicker change time.
Ideally apply to machine various super slender components.
Equipped with automatic feeder for realized automatic production.

⚙ Technical Specifications

Category	Parameter	Value
Power Supply	Rated Voltage / Frequency	Three-phase AC 380V / 50HZ
Power Supply	Total Input Power	4kW
CNC System	Small Setting Unit	0.001mm
CNC System	Rapid Feed Rate (X/Y/Z)	15000mm/min
Spindle	Max Bar Diameter	Φ7mm
Spindle	Spindle Speed	0-5000r/min
Journey	Z Axis Travel	150mm

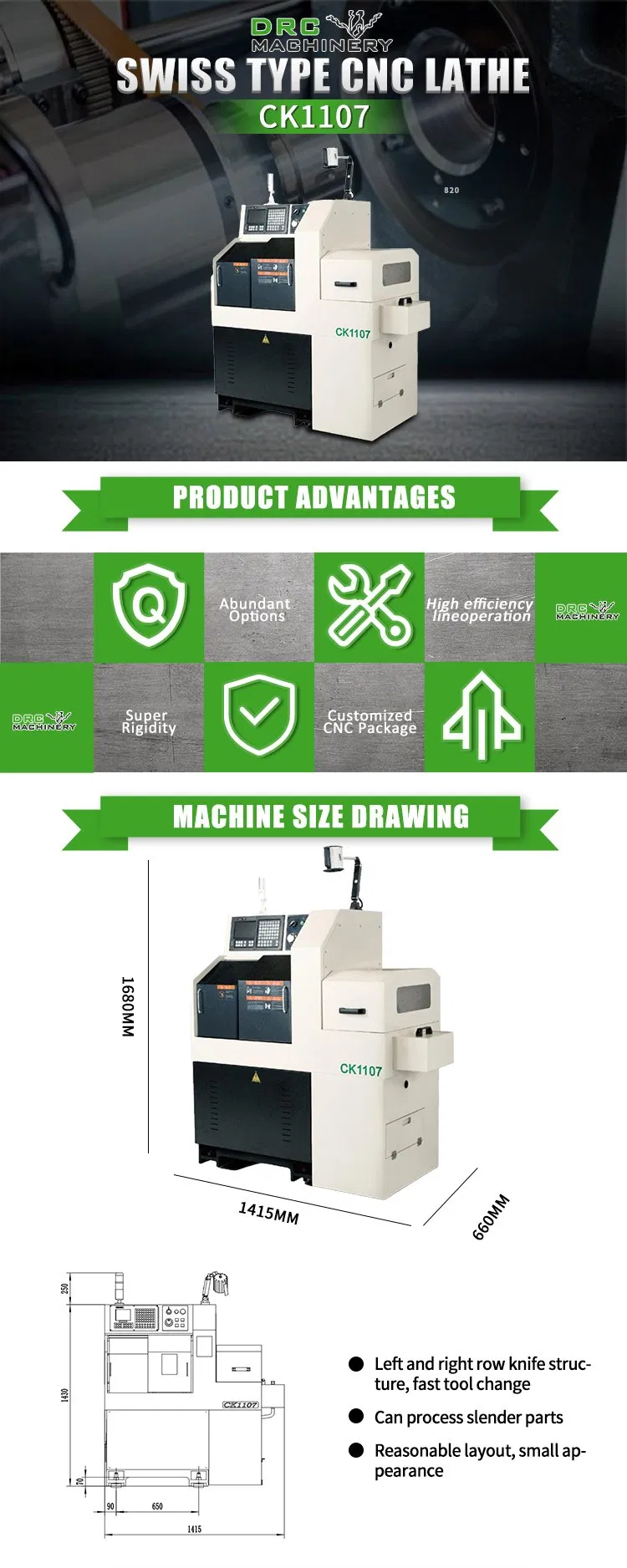

Dimensions	Machine Size (LWH)	1570X890X1800mm

❓ Frequently Asked Questions

What is the primary application of the CK1107 Swiss CNC Lathe?

The CK1107 is designed for efficient precision turning of ultra-slender parts, commonly used in medical, electronic components, and clock industries.

What are the advantages of the linear tool structure?

The linear tool structure provides faster tool changes, high rigidity, and superior precision compared to traditional gang-type lathes.

Does the machine support automated production?

Yes, the machine is equipped with an automatic feeder and can be installed with part-catching devices to realize fully automated operation.

What is the maximum spindle speed of this model?

The spindle speed ranges from 0 to 5000 r/min, allowing for high-speed operation on various metal materials.

What type of guide rails are used in the CK1107?

All three axes adopt imported linear rolling guides to ensure smooth movement and long-term high precision.

How does the machine handle slender parts?

The spindle movable type structure is specifically optimized to reduce material feeding times and improve efficiency for parts up to 150mm in length.
